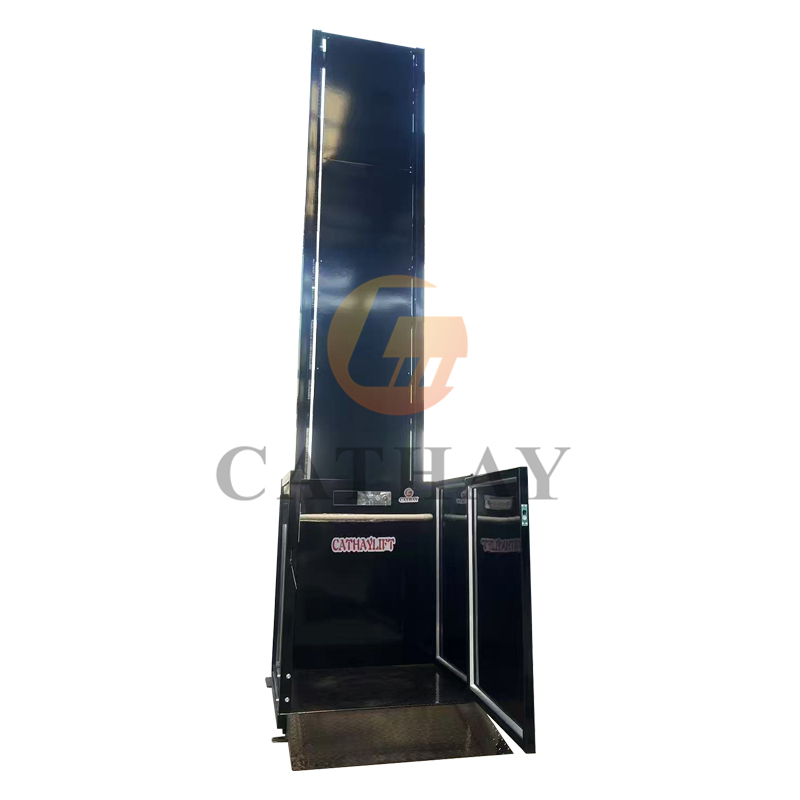

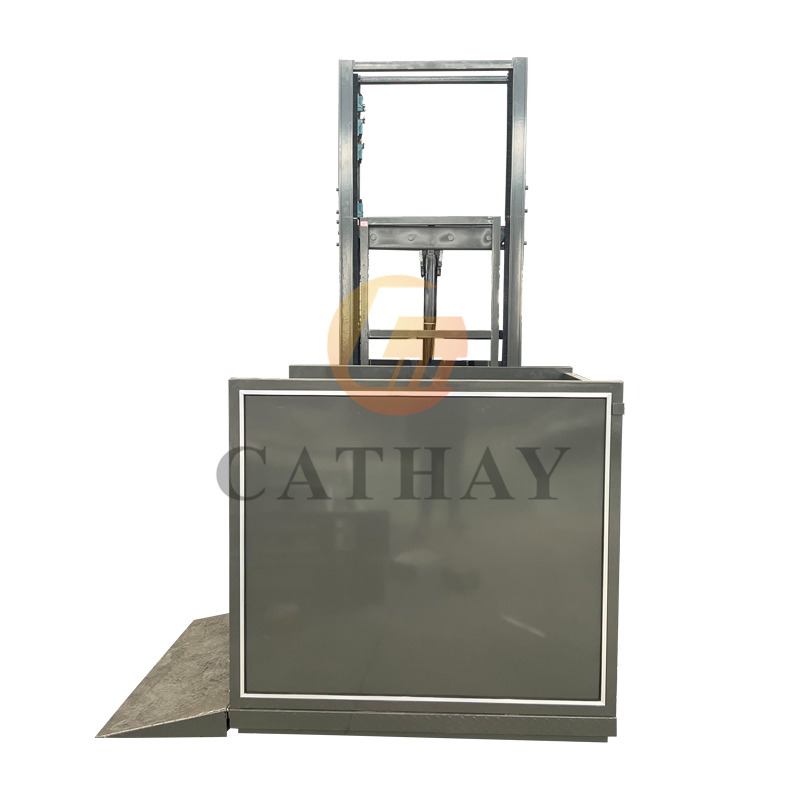

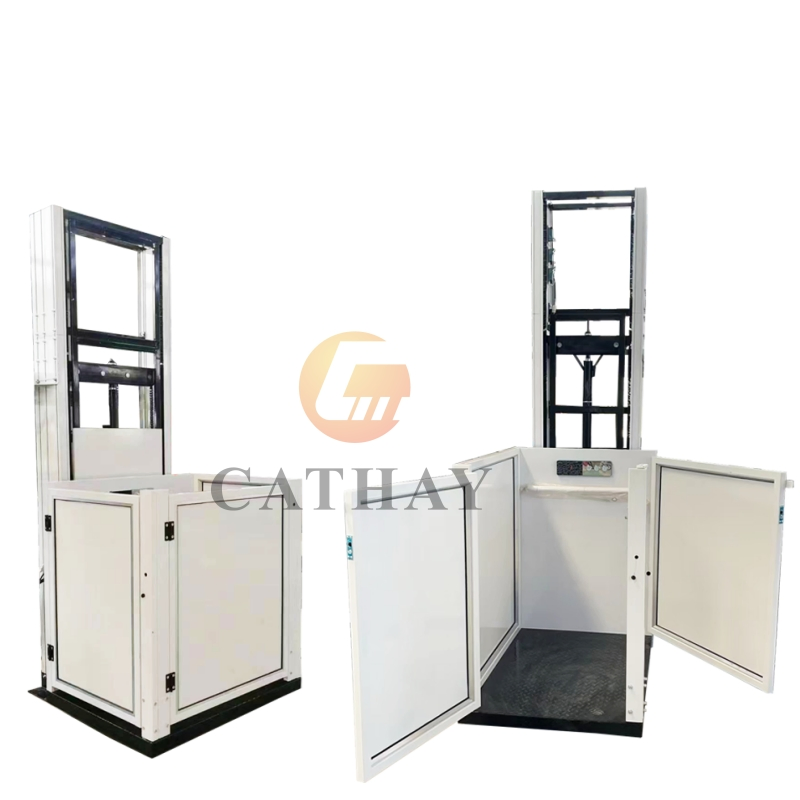

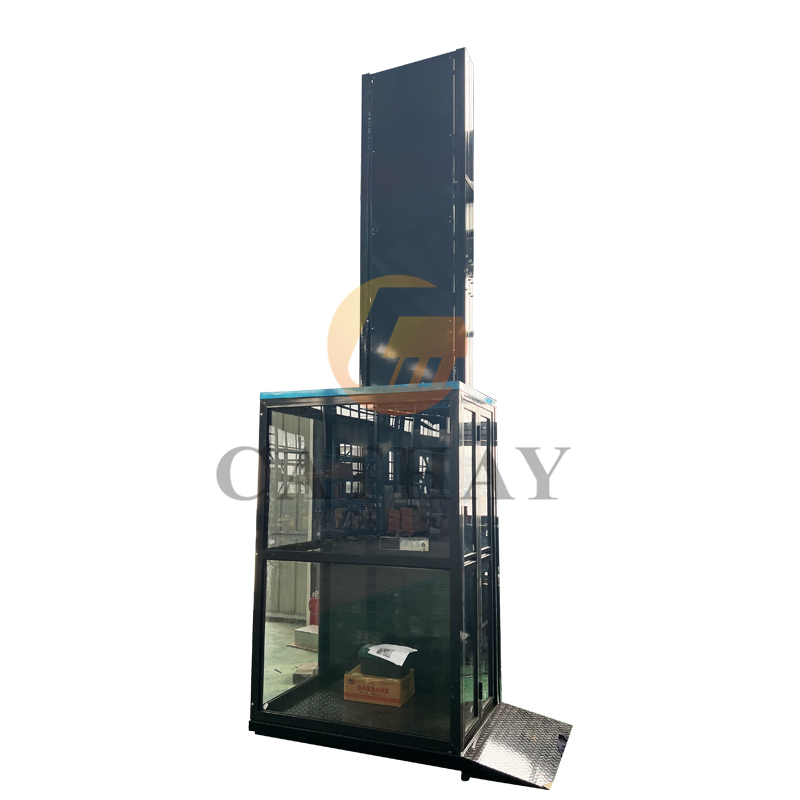

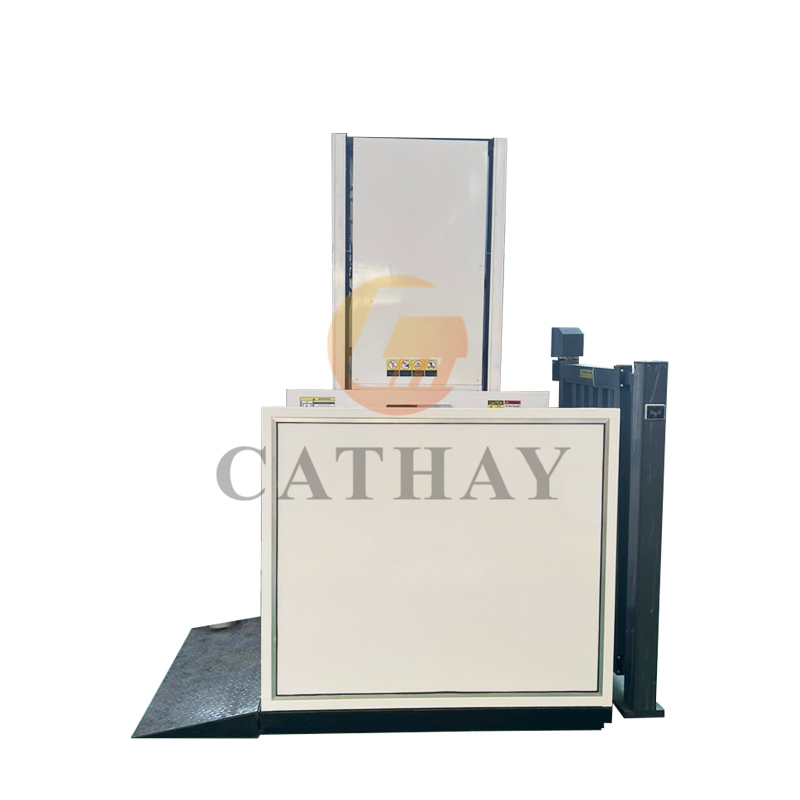

CE 1~15m Residential Indoor Outdoor Vertical Platform Stair Home Small Personal Elevator Wheelchair Lift for Home

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
250kg ~ 500kg
Driven Type
AC (Hydraulic)
Lifting Height
1 ~ 12m
Certification
GS, CE, RoHS, ISO 9001
Platform Size
1430mm × 1000mm
Voltage
110V / 220V / 380V / 440V
Product Description

The electric indoor outdoor hydraulic wheelchair home platform elevator lift is engineered to meet diverse mobility needs while ensuring stability and security. With a lifting height range of 1~12 meters and a robust capacity of 250kg~500kg, these lifts offer strong adaptability for installation in various environments, including general explosion-proof locations. Flexible configuration options allow for customization of the platform and entry/exit orientation to match specific user requirements.

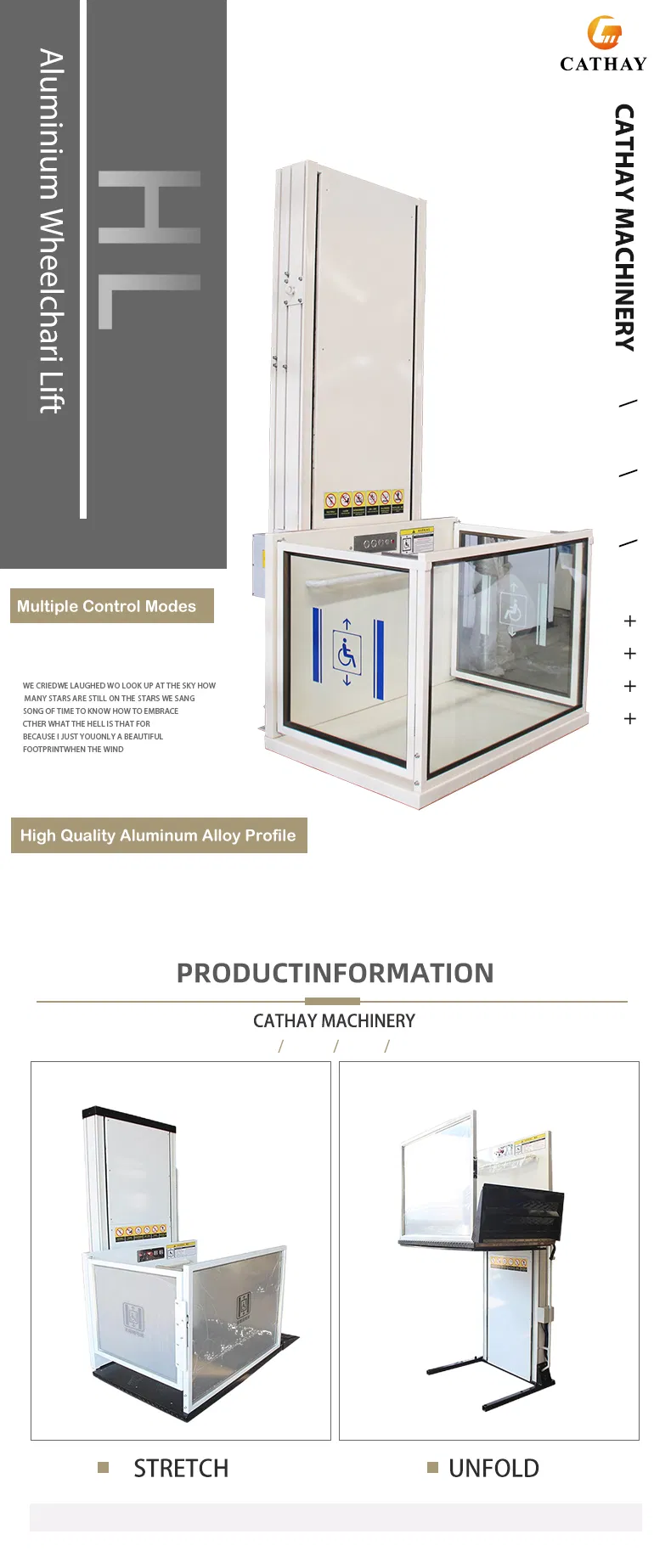

Wheelchair Lift Overview
Product Parameters
Model HL10 HL20 HL30 HL40 HL50 HL60 HL100
Max Platform Height 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm 10000mm
Load Capacity 250kg 250kg 250kg 250kg 250kg 250kg 250kg
Machine Weight (kg) 350 550 780 880 1000 1100 1500
Platform Size 1430*1000mm Skid-proof checkered steel
Drive System Hydraulic silent pump station and electric motor
Product Advantages
1
Safety Sensor Protection: Equipped with a sensor beneath the car that immediately stops the platform if it detects an obstacle while descending.
2
Safety Interlock System: The platform automatically locks in case of malfunction to prevent accidental movement.
3
Emergency Descent: Features a manual pressure relief mechanism for safe lowering during power outages.
4
Durable Construction: High-strength extruded aluminum rails ensure long-term durability and steady movement.
5
Low Noise Operation: Silent pump station design complies with ANSI/ASME and EN1570 noise standards.

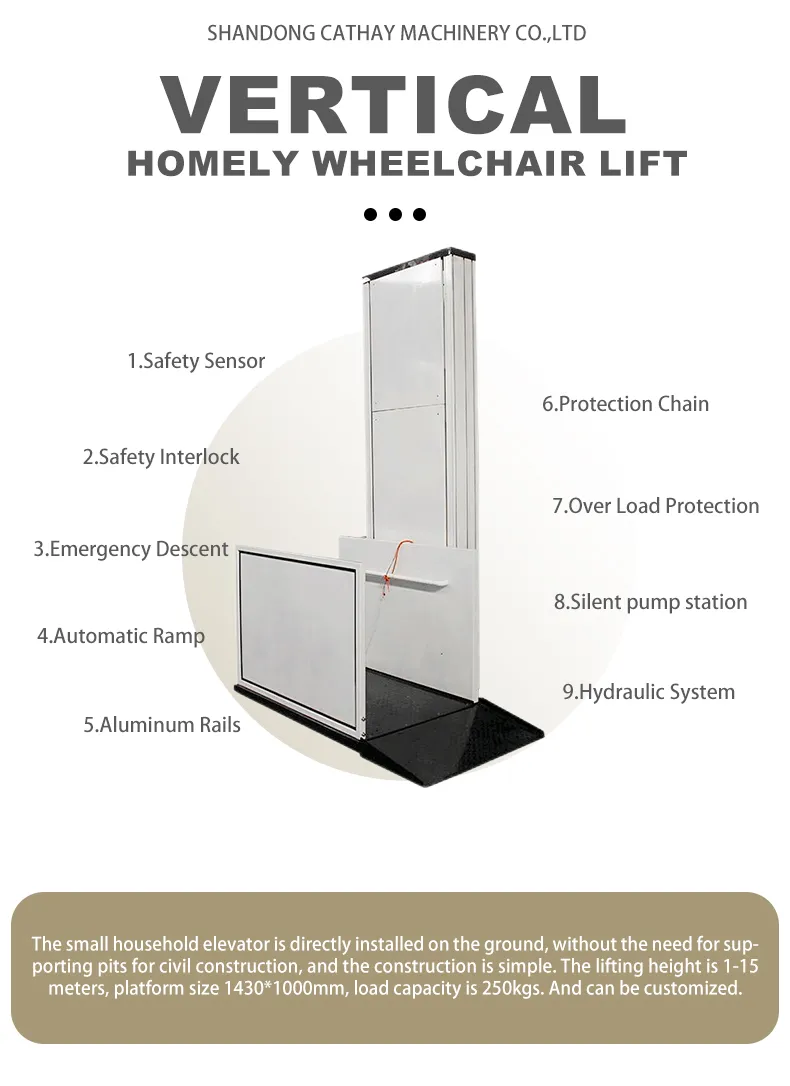

Advantage 1
Advantage 2

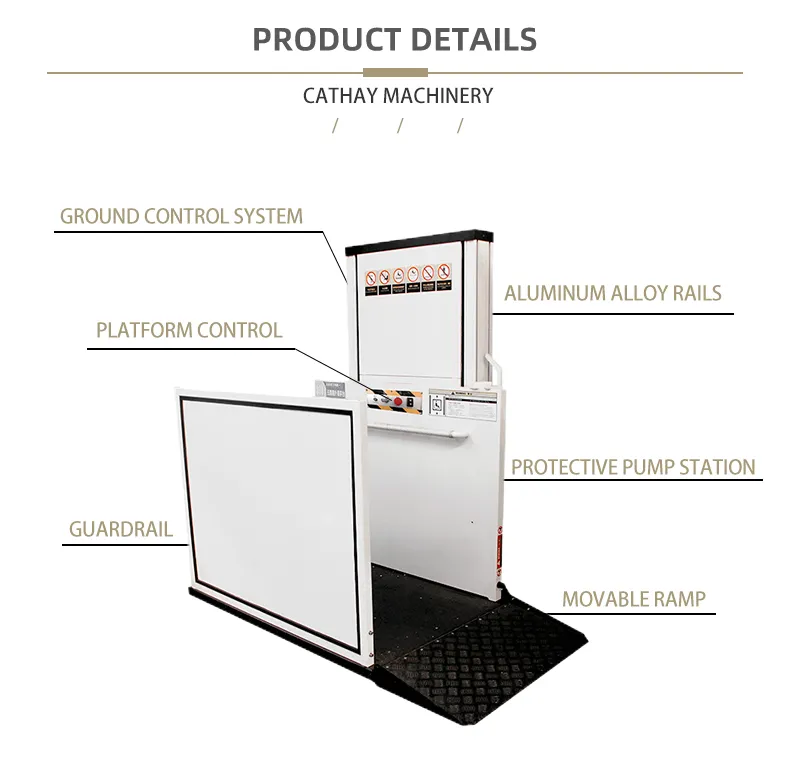

Advantage 3
Application Scenarios

Hydraulic wheelchair home lifts provide an efficient way to move between floors in residential spaces. They are ideal for seniors, people with disabilities, and families with mobility challenges. Suitable for both new homes and retrofits, these lifts can be installed indoors or outdoors, fitting well in low-rise buildings.

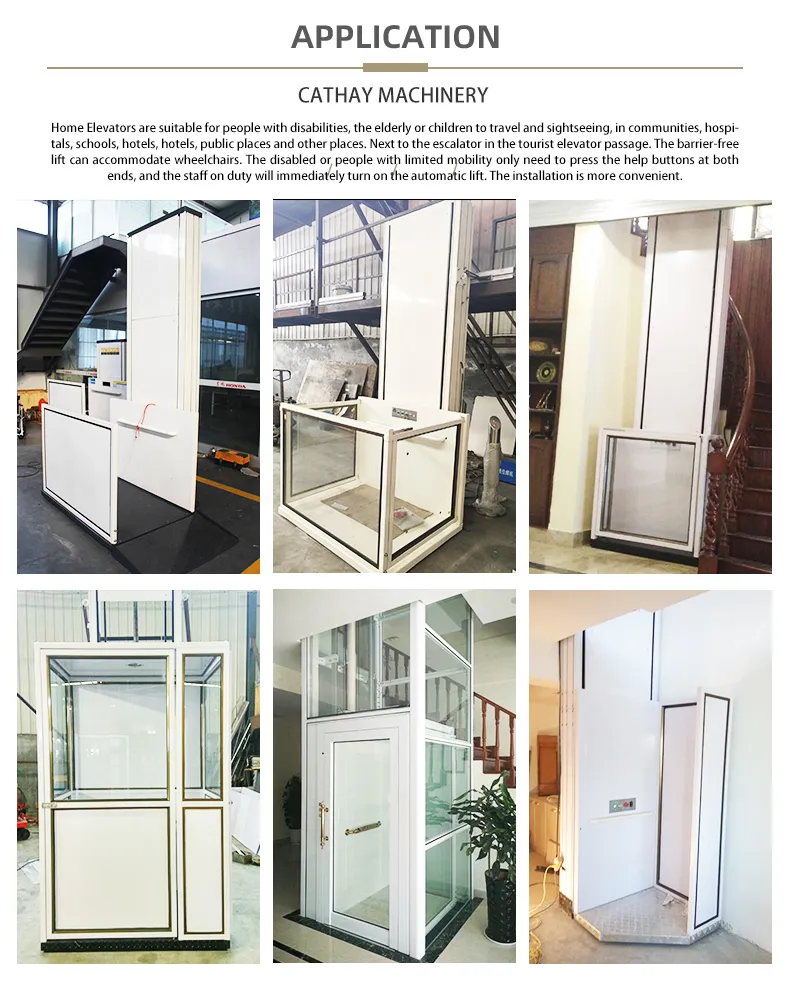

Application 1

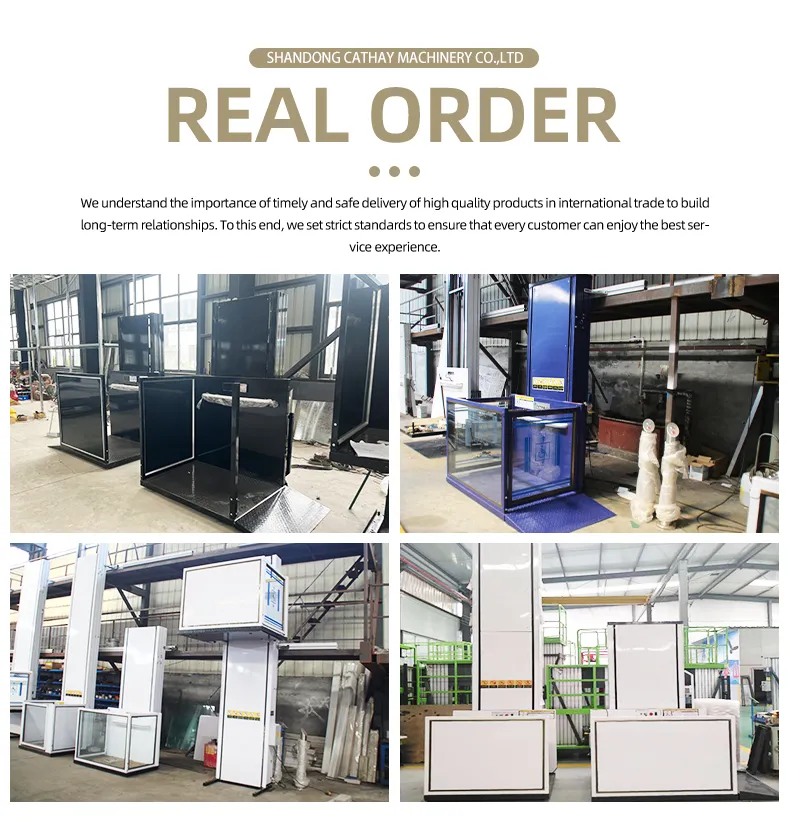

Application 2
Manufacturing & Quality

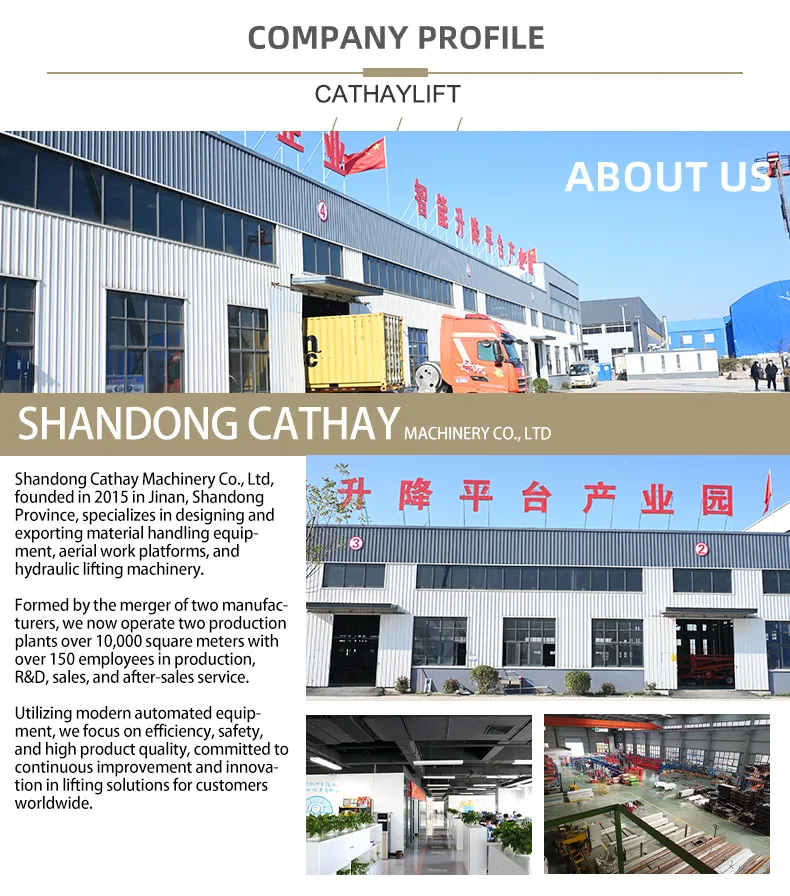

Factory
Certifications
Team
Frequently Asked Questions
What is the maximum lifting height available?
The wheelchair lift is customizable with a lifting height ranging from 1 meter up to 12 meters.
Can the lift be installed in outdoor environments?
Yes, the system is designed to operate in both indoor and outdoor conditions with a working temperature range of -20°C to 70°C.
What safety features are included for the user?
Safety features include a bottom safety sensor to stop for obstacles, an emergency manual descent valve, and a safety interlock system.
Does the installation require a deep pit?
No, these lifts are designed for no-pit installation and can be installed directly on the finished floor.
What is the standard weight capacity?
The standard loading capacity is 250kg, but it can be customized up to 500kg depending on specific model requirements.
How is the lift controlled?
It includes a control panel on the platform, column switches for the ground/floors, and a remote control that works within a 20m range.
Related Products

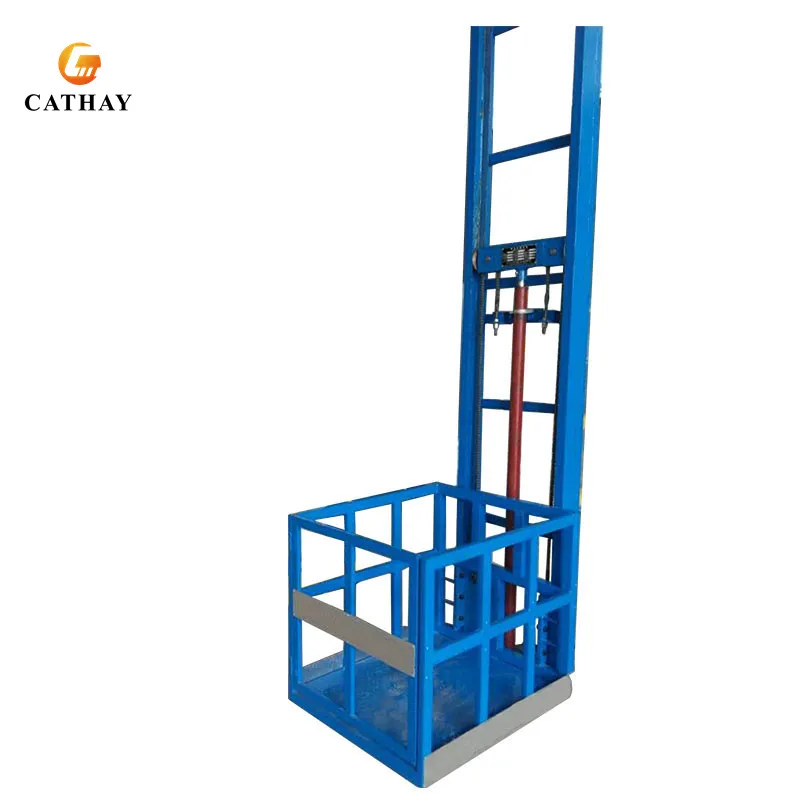

Related Product 1

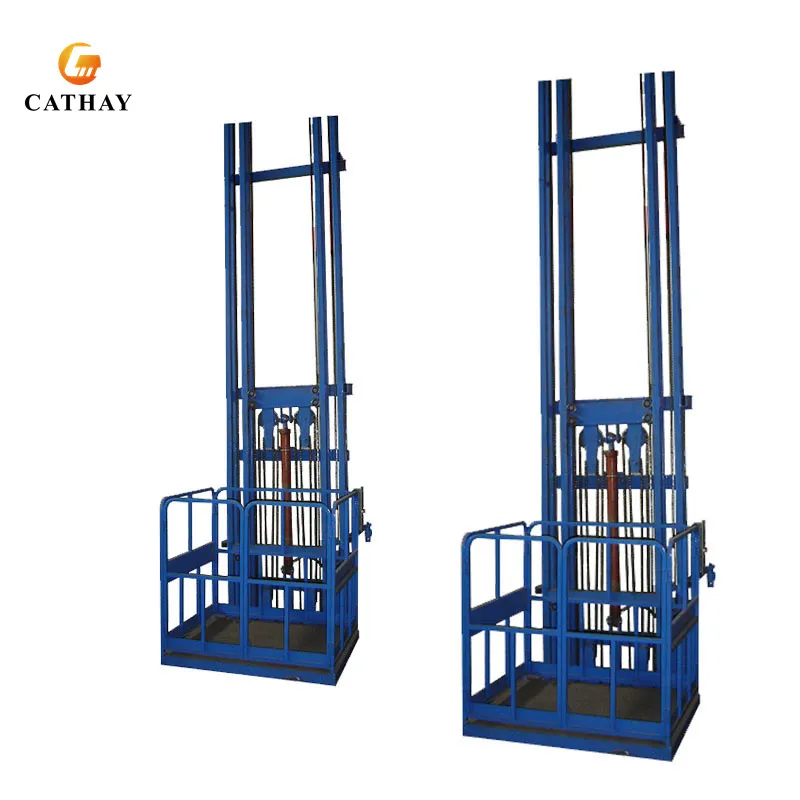

Related Product 2

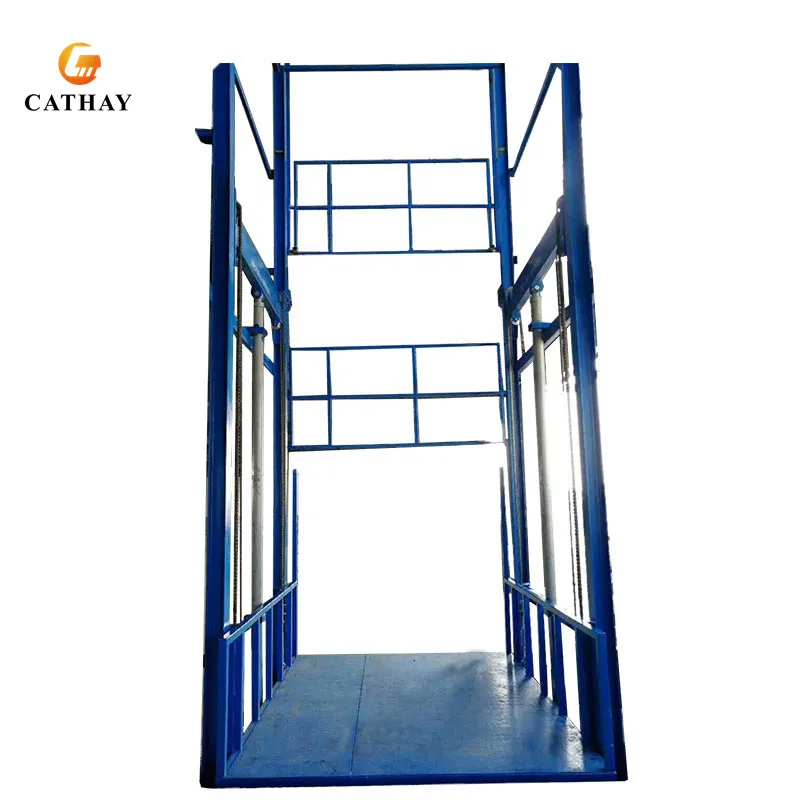

Related Product 3
