Basic Information
Driving Type
Gearless Motor
Control Mode
Collective Selective Control

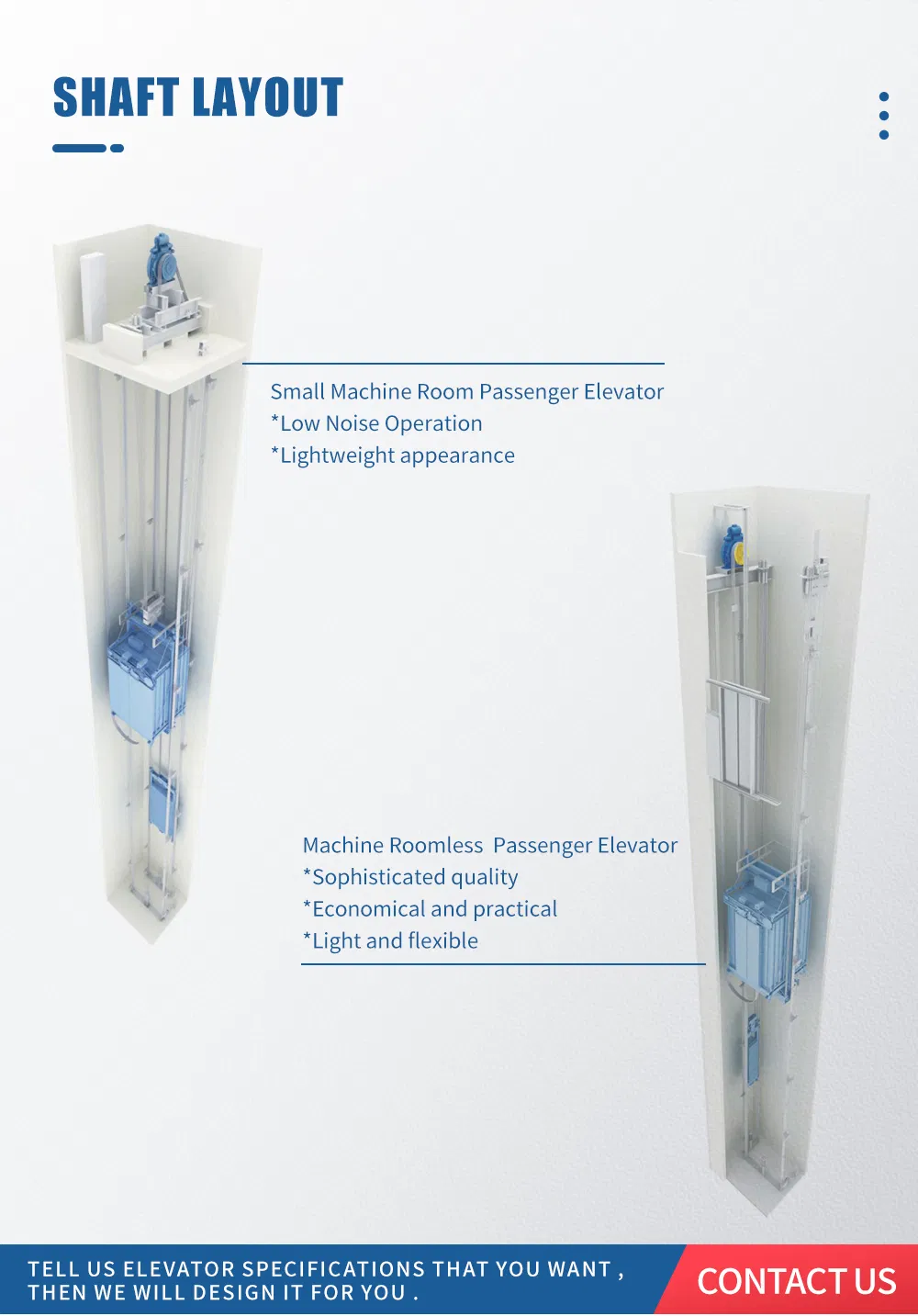

Machine Room
Without Computer Room
Elevator Door
Automatic Opening

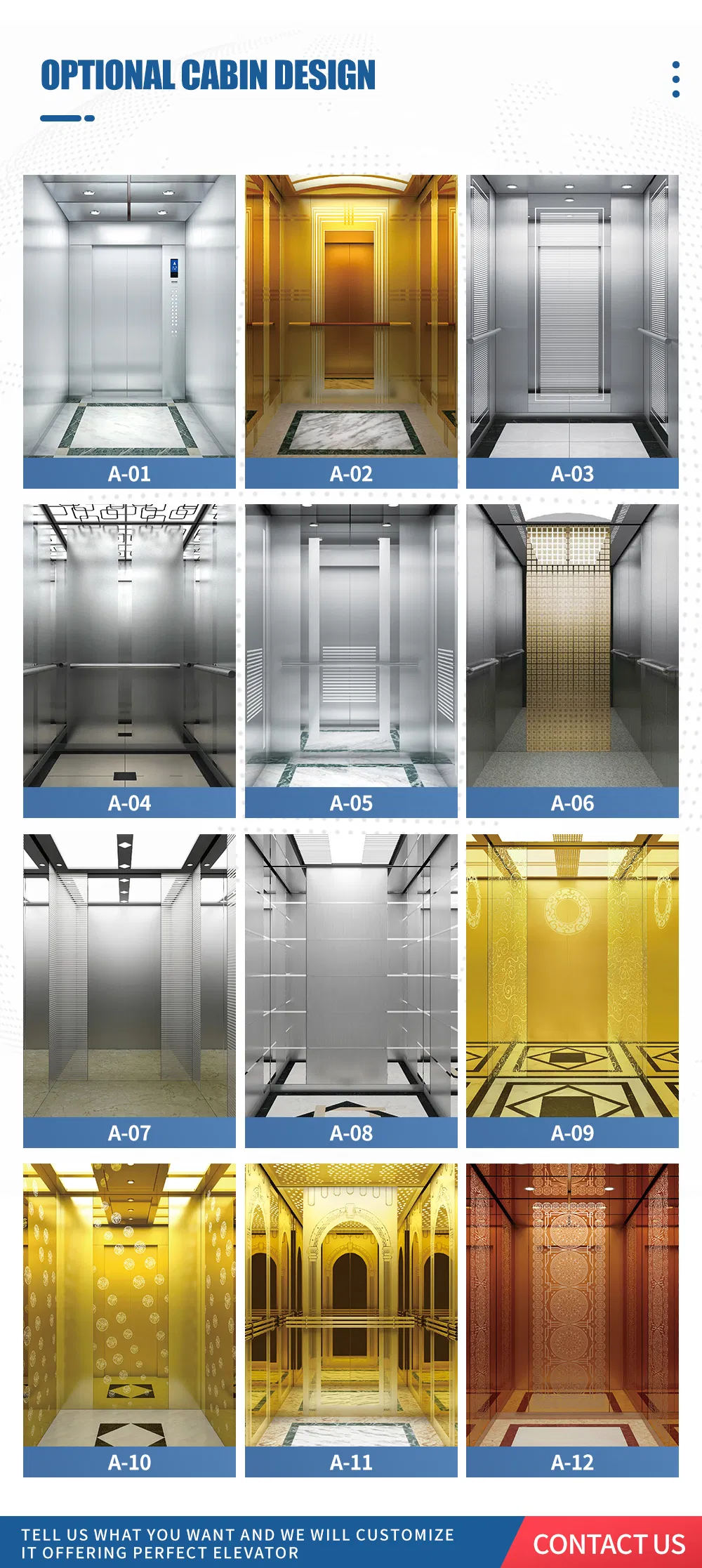

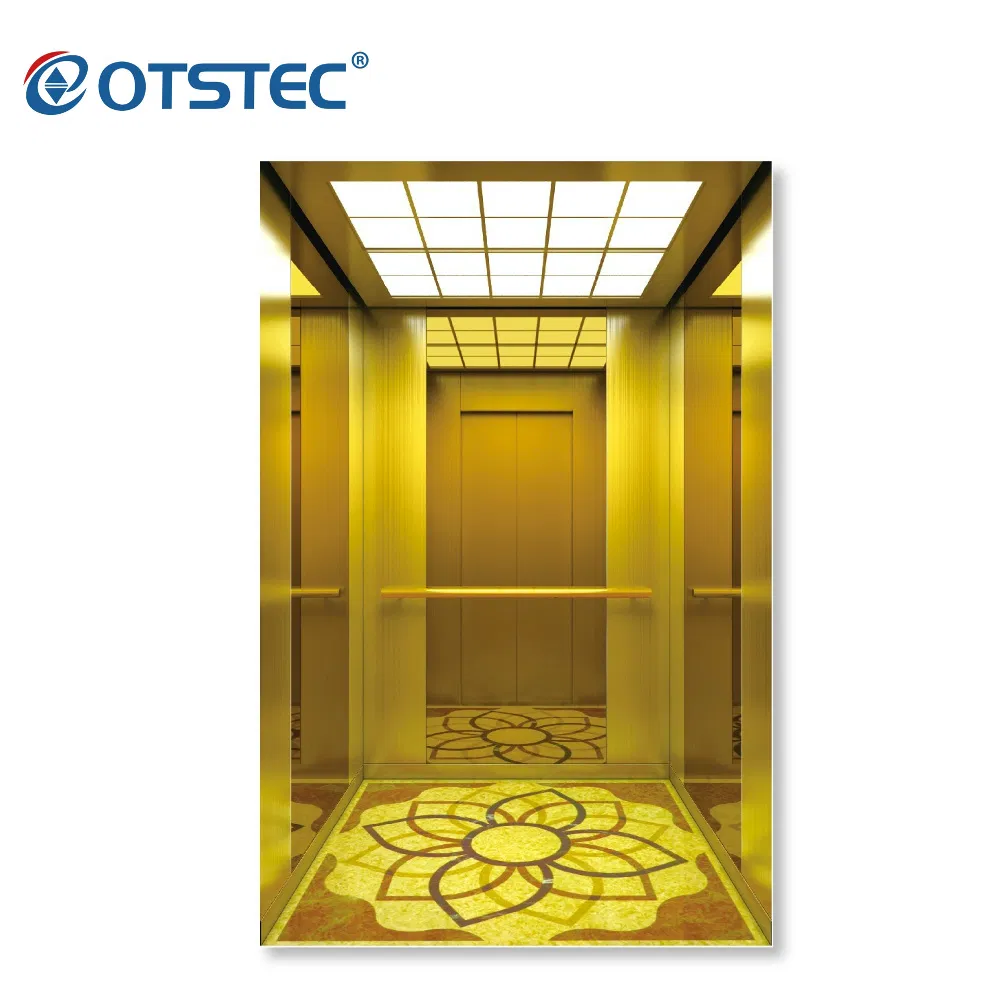

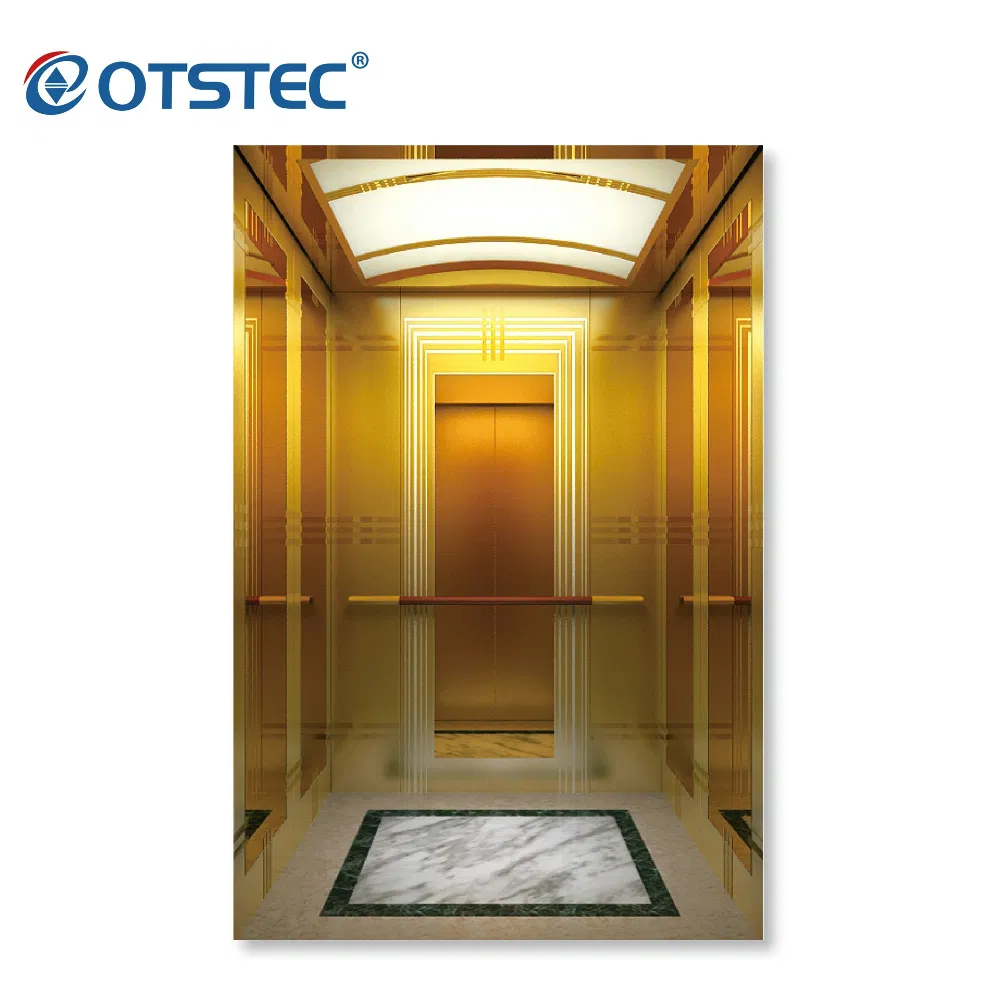

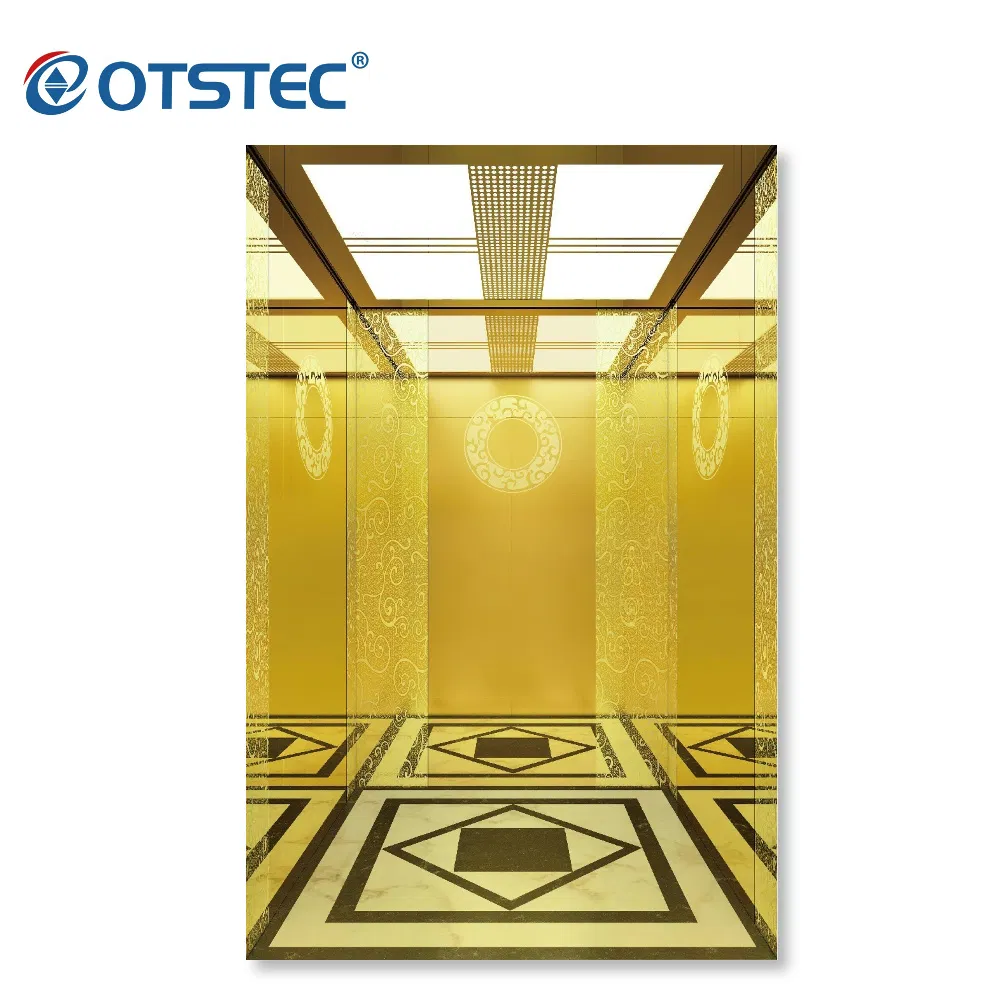

Car Wall
Hairline Stainless Steel
📊
Technical Parameters
| Small Machine Room Specifications |
| Passenger |
Capacity (Kg) |
Speed (m/s) |
Car Size (W*D*H mm) |
Shaft Min. (W*D mm) |
Overhead Height |
Rise Max. (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120 |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150 |
| Machine Room-less Specifications |
| Passenger |
Capacity (Kg) |
Speed (m/s) |
Car Size (W*D*H mm) |
Shaft Min. (W*D mm) |
Overhead Height |
Rise Max. (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1900*1500 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1500 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2200*1700 | 4500 | 120 |
📜
Certifications & Quality
🌎
Global Exhibitions
❓
Frequently Asked Questions
What are your standard packing terms?

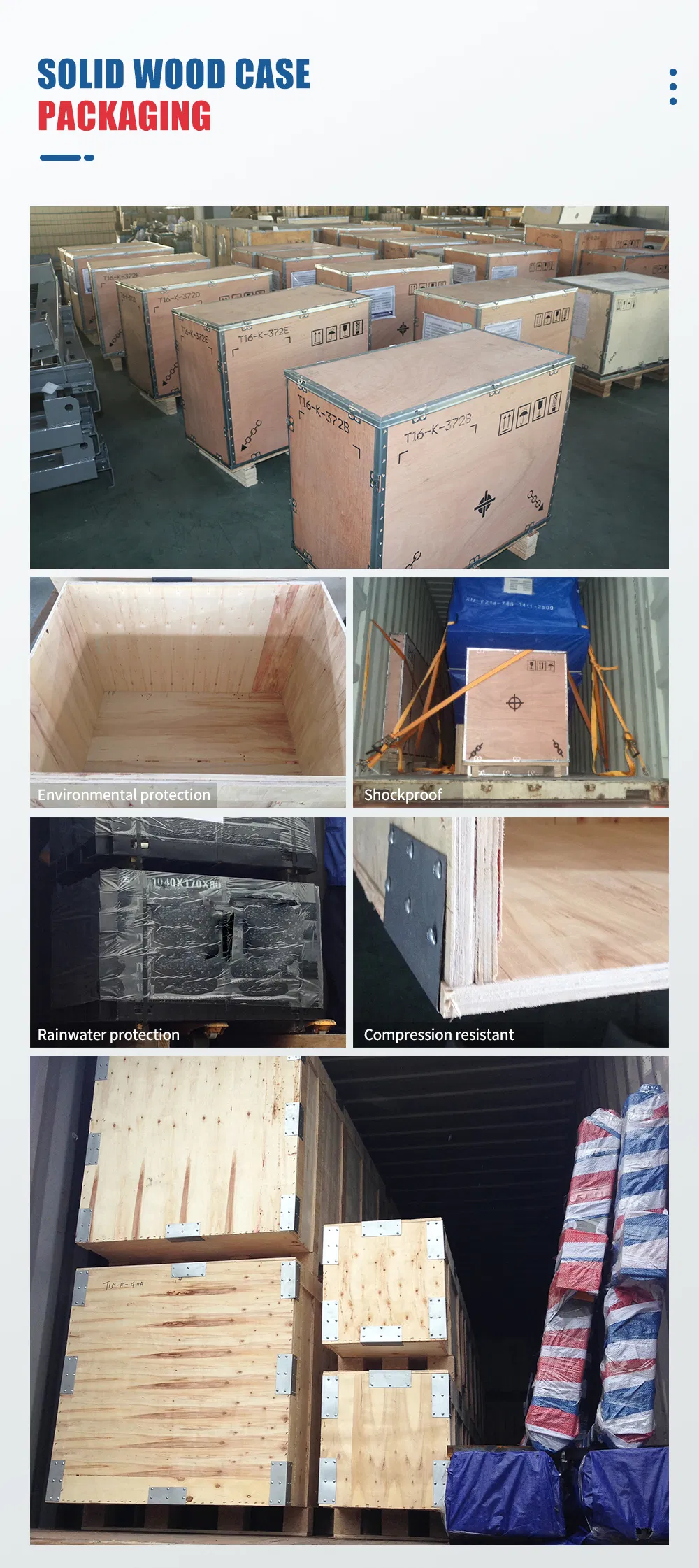

Generally, goods are packed in solid wooden cases for maximum safety during transit. Custom branded boxes can be used for authorized patent holders.
What delivery terms do you support?
We offer flexible delivery options including EXW, FOB, CFR, and CIF to suit international shipping needs.
What is the typical lead time for an order?
Lead time is usually 25 to 30 days after confirmation of technical specifications, drawings, and receipt of advance payment.
How is quality control handled before delivery?

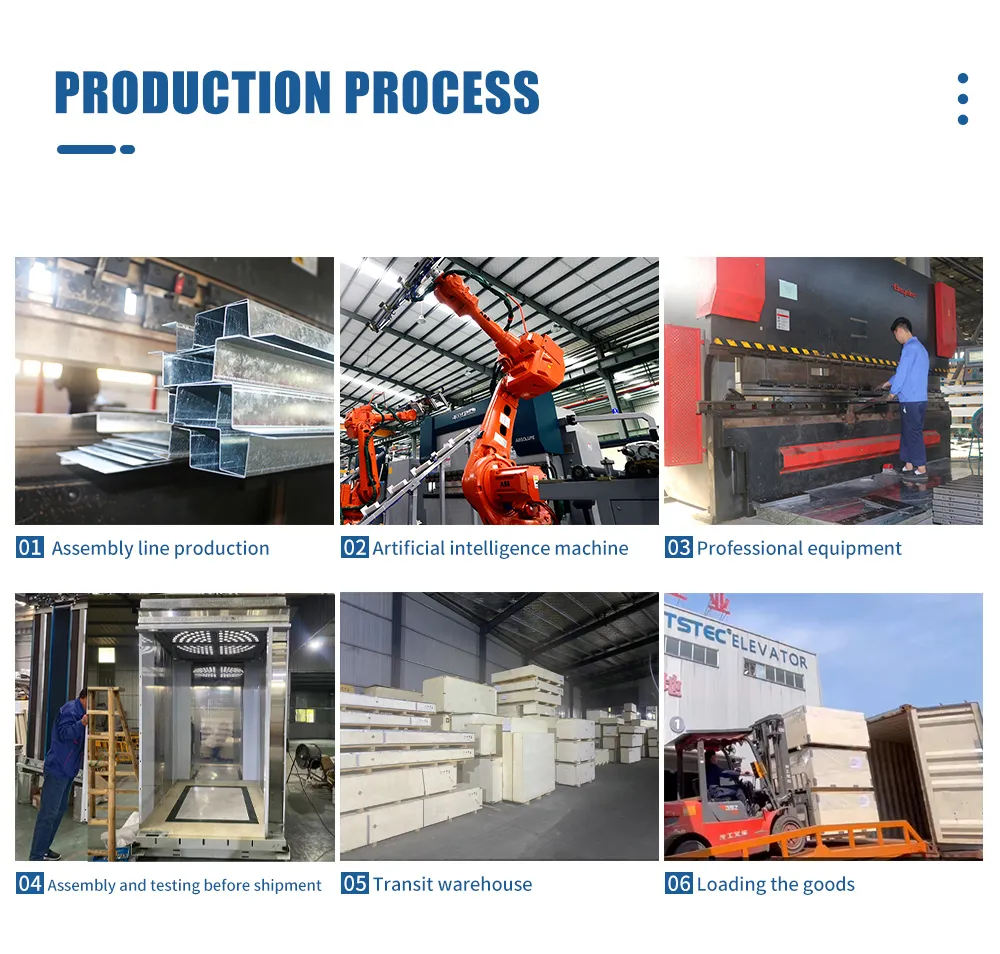

We conduct rigorous testing. Elevators have their cabin frame and door operators pre-assembled, and escalators are run for 72 hours continuously. Test photos are shared with the client.
Do you provide technical documentation?
Yes, we provide full technical specifications, installation guides, and safety certificates for every elevator system delivered.
How do you ensure long-term client satisfaction?
We maintain competitive pricing and high-quality standards. We treat every customer as a partner and friend, ensuring reliable after-sales support regardless of location.
