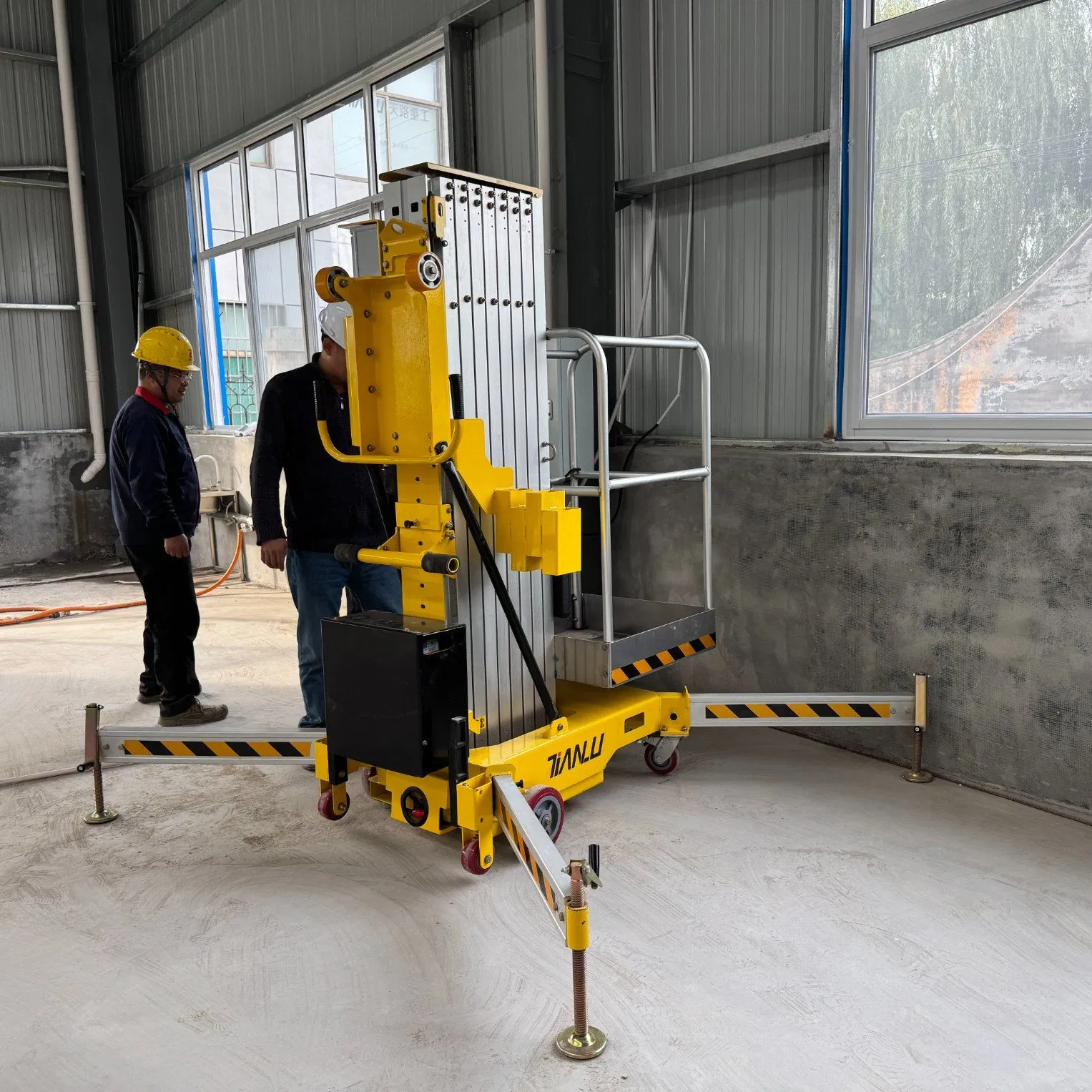

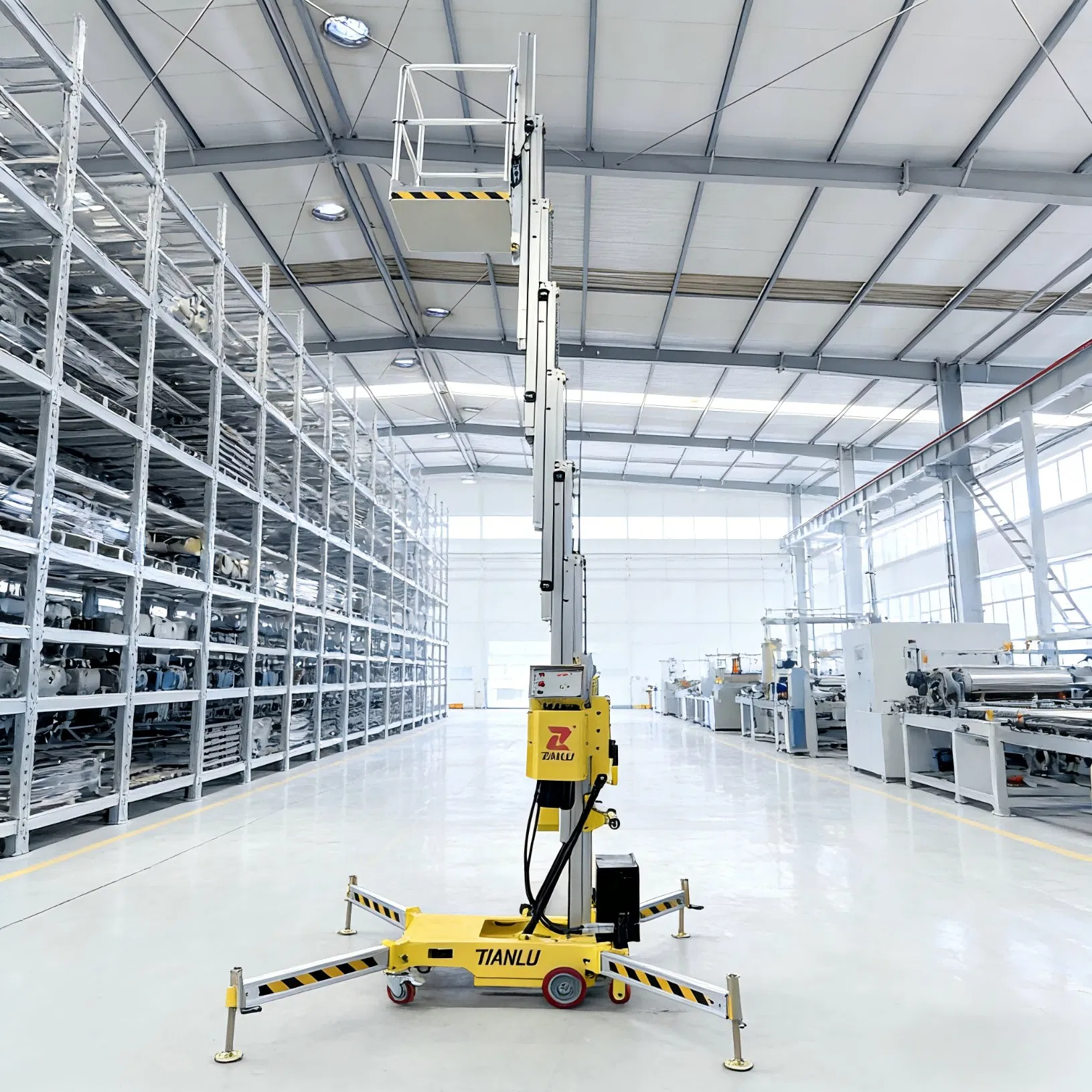

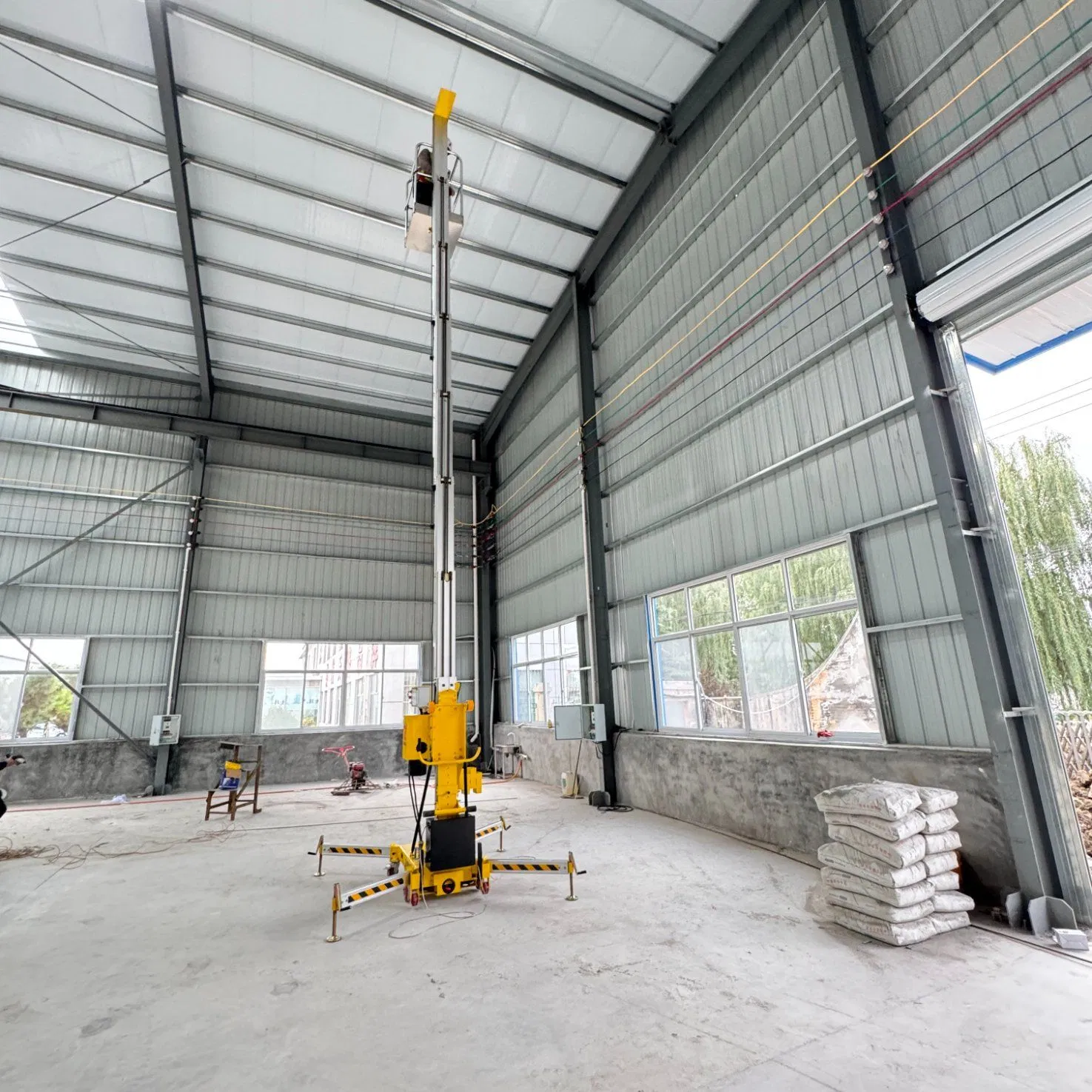

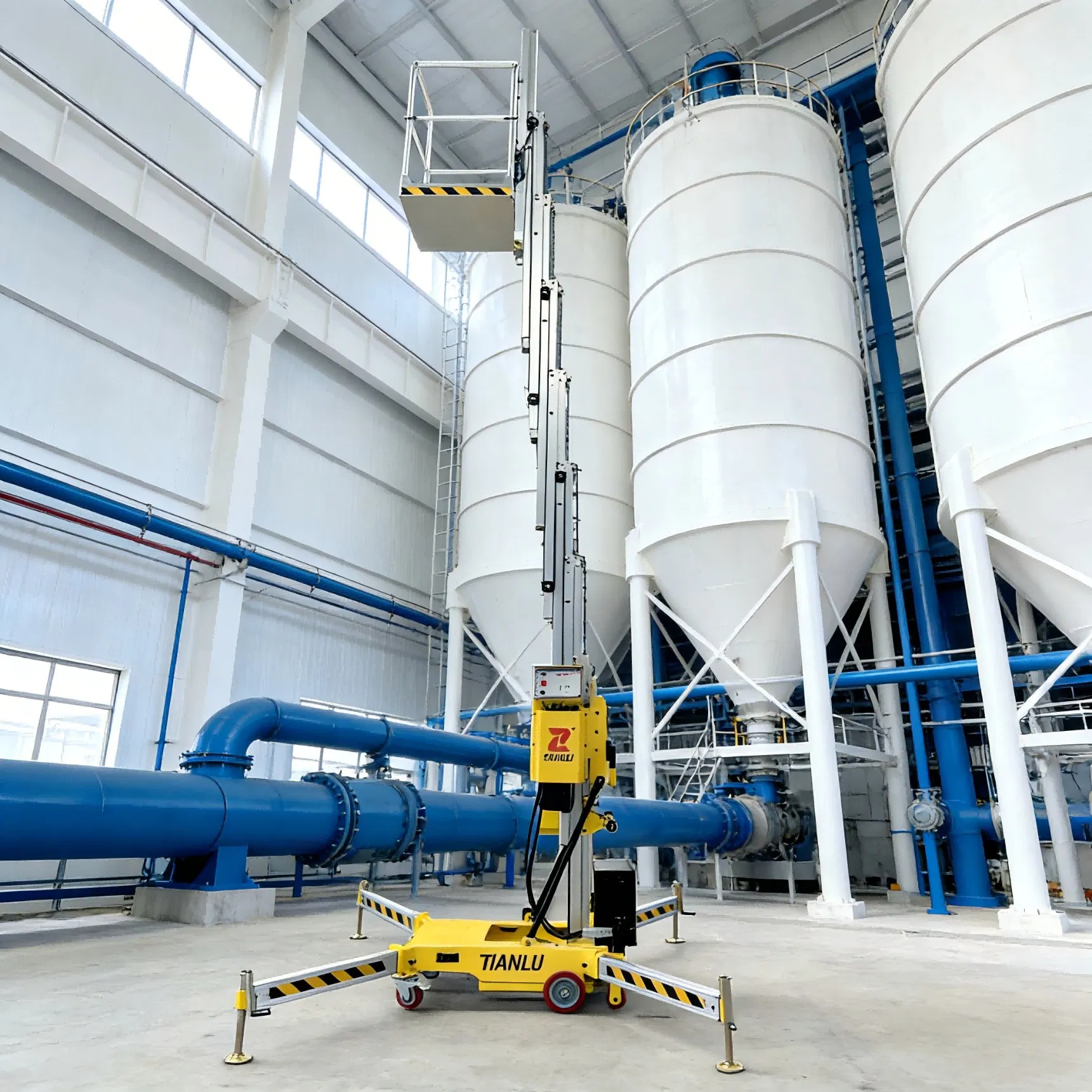

Reliable 5m 6m 8m 10m Single Mast Aluminum Alloy Vertical Lift

Customization:	Available
After-sales Service:	Lifetime After-Sales Service
Warranty:	12 Months or 2000 Hours

📋

Basic Specifications

Model NO.

TRWP1-5

Application

Workshop, Warehouse, Building

Lift Mechanism

Telescoping Lift

Maximum Working Height

6.7m

Platform Load Capacity

150kg

Driven Type

AC/DC

Certification

GS, CE, ISO 9001

Overall Machine Weight

330kg - 380kg

📦

Packaging & Delivery

Package Size

150cm * 99cm * 210cm

Package Gross Weight

500.00kg

Transport Package

Wooden Box

🚀 High-Performance Aerial Solution

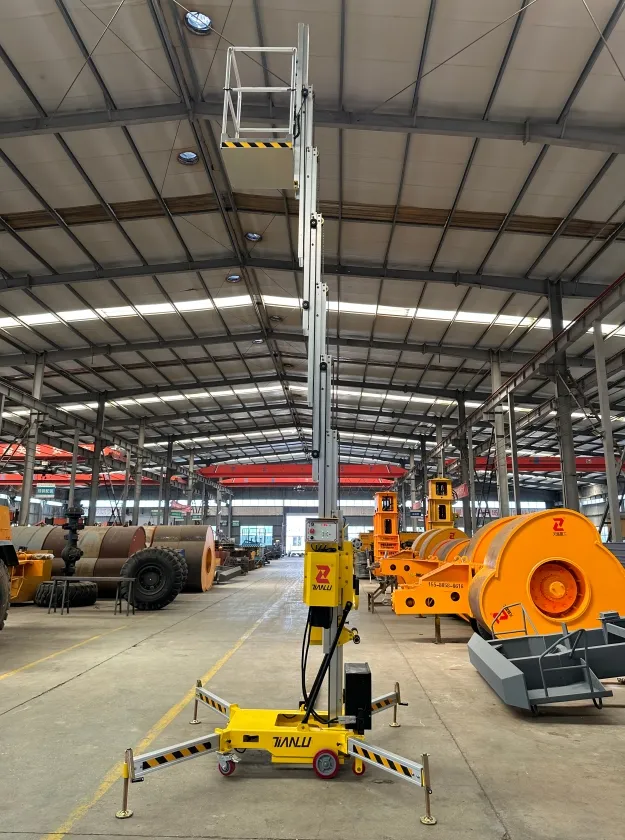

The vertical mast lift is a highly compact and electric-powered self-propelled lifting solution. It's designed specifically for applications in tight spaces and indoor environments. The lift allows operators to maneuver easily in forward/reverse, steer, and adjust the mast height with precision using intuitive proportional controls.

With its zero-emission design and ultra-quiet operation, this mast boom lift is perfect for noise-sensitive environments such as warehouses, shopping malls, and airports. Equipped with advanced safety features that automatically trigger alarms and halt operation in the event of overload or tilt.

⭐ Key Highlights

Narrow Space Design: Ideal for supermarkets, hotels, and narrow aisles.
Easy Transport: Lightweight design allows loading into light-duty trucks.
Stable Structure: Unique rear mast slide bar and one-piece formed aluminum alloy mast.
Safety First: Emergency descent system and self-locking platform door.

📊

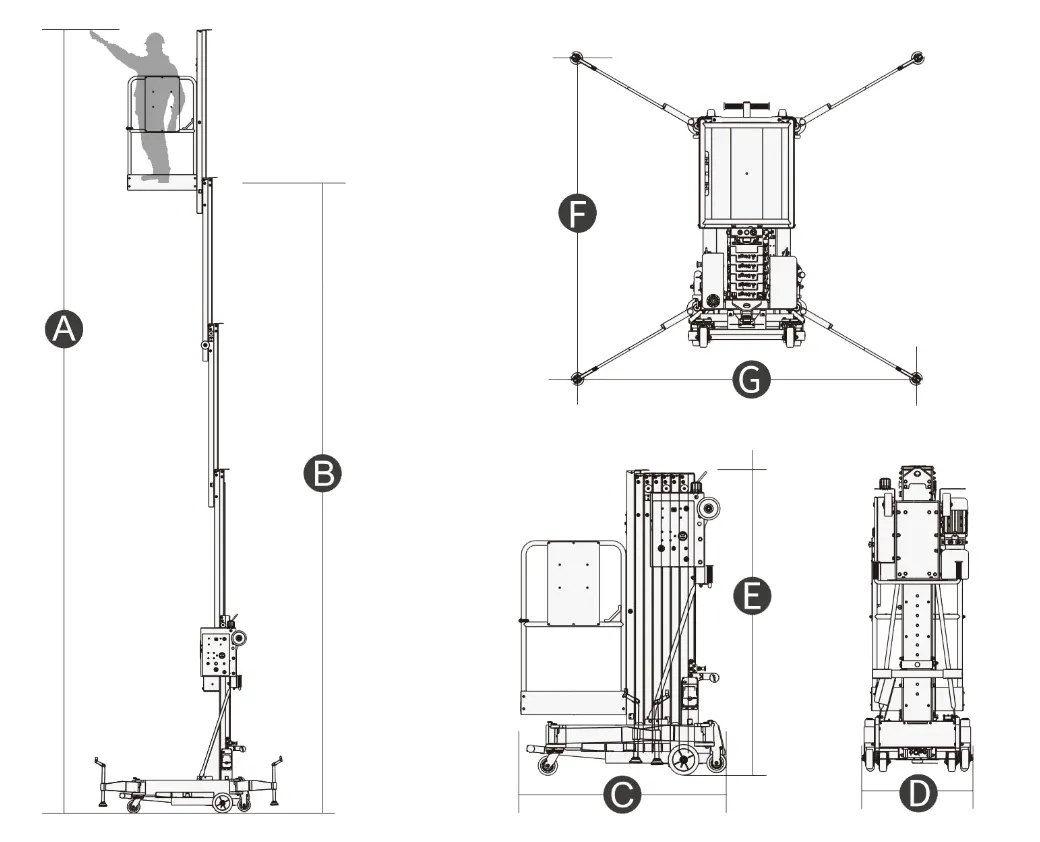

Technical Data Sheet

Model	TRWP1-5	TRWP1-6	TRWP1-8	TRWP1-9	TRWP1-10
Max working height (m)	6.7	8.2	9.6	10.9	12.1
Max platform height (m)	4.7	6.2	7.6	8.9	10.1
Load capacity (kg)	150	150	150	150	136
Overall height (m)	1.99	1.99	1.99	1.99	1.99
Overall weight (AC)	346kg	346kg	385kg	410kg	440kg

💎

Why Choose Our Equipment?

High-Strength Mast

One-piece formed high-strength aluminum alloy mast with roller + chain self-leveling system for maximum stability.

Premium Components

Equipped with branded power units, non-marking polyurethane tires, and aviation-specific wiring harnesses.

🏗️

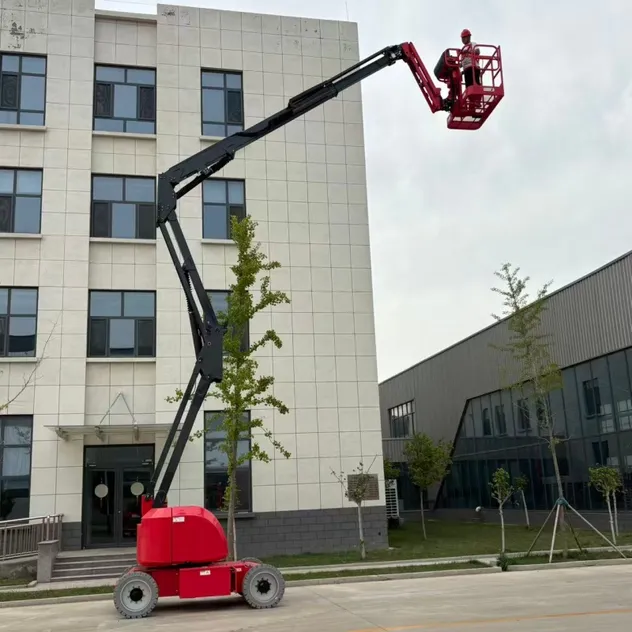

Other Hot Products

❓

Frequently Asked Questions

Q1: Are you the original manufacturer?

Yes, we are an official leading manufacturer in construction machinery. Since our establishment in 2004, we have focused on providing reliable aerial work solutions.

Q2: What kinds of payment terms are accepted?

We accept L/C, T/T, D/A, D/P, and Western Union. Standard terms are 30% deposit and 70% balance before shipment.

Q3: What is the typical delivery time?

Delivery is typically within 7-30 days after receiving the deposit, depending on the model and customization requirements.

Q4: What about the warranty and after-sales service?

Our warranty extends to 12 months after shipment or 2000 working hours. We offer lifelong service and provide free parts for replacement during the warranty period.

Q5: Do you provide online technical support?

Absolutely. Our digital service team offers online technical support through video demonstrations and real-time remote video links to assist your maintenance team.

Q6: Do you accept OEM or ODM orders?

Yes, we provide OEM and ODM manufacturing services. We welcome product customization, including special working devices, specific colors, and brand requirements.
