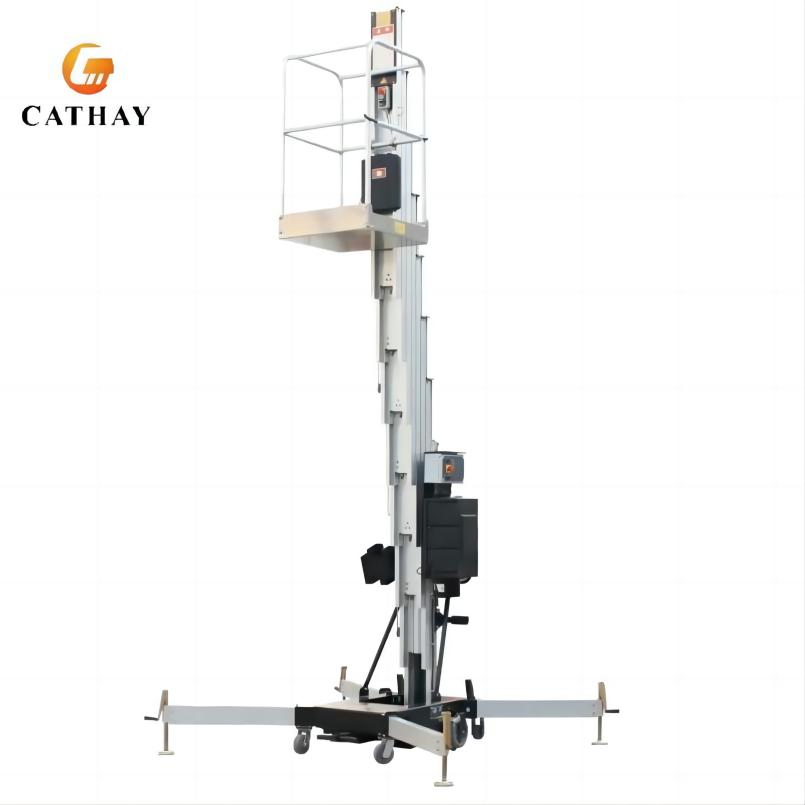

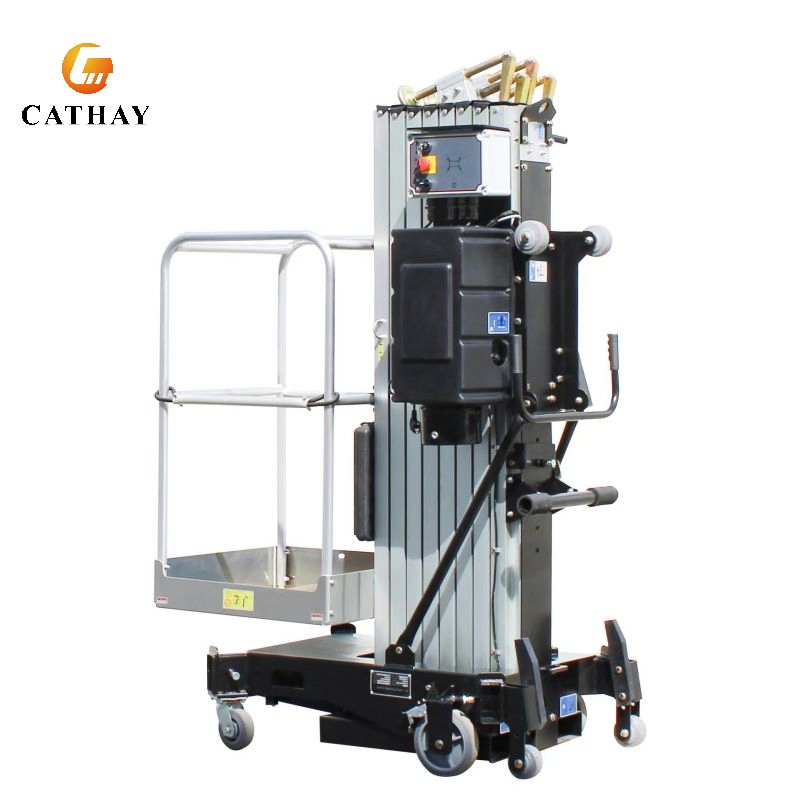

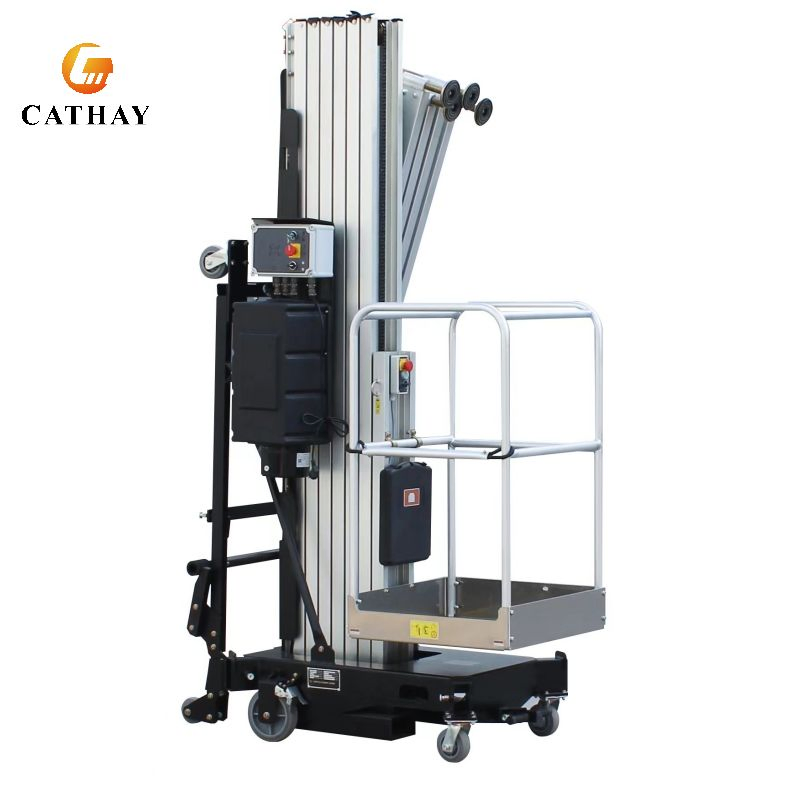

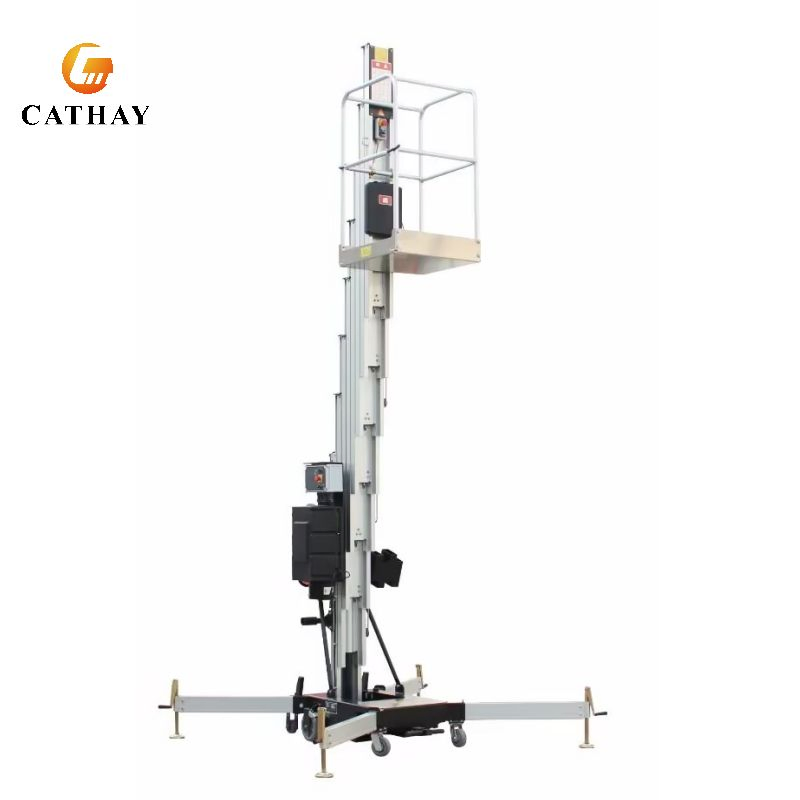

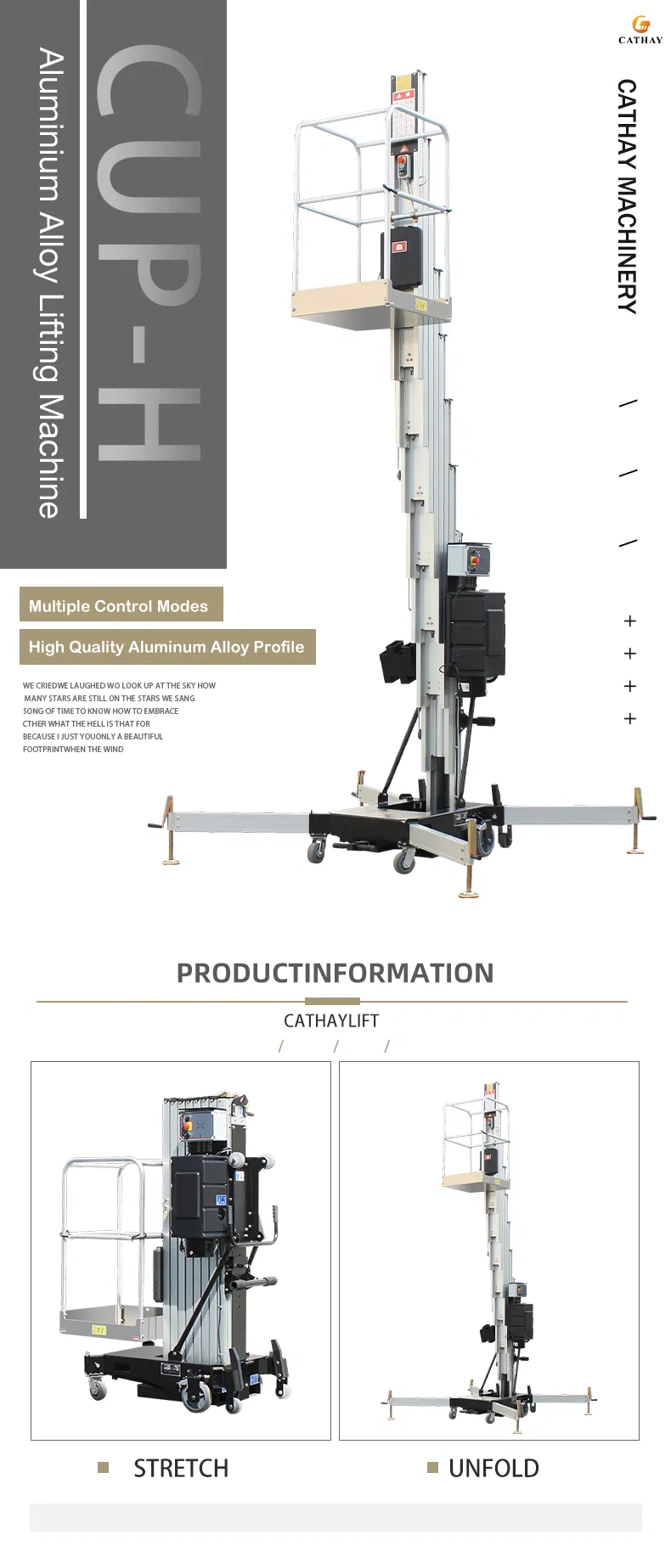

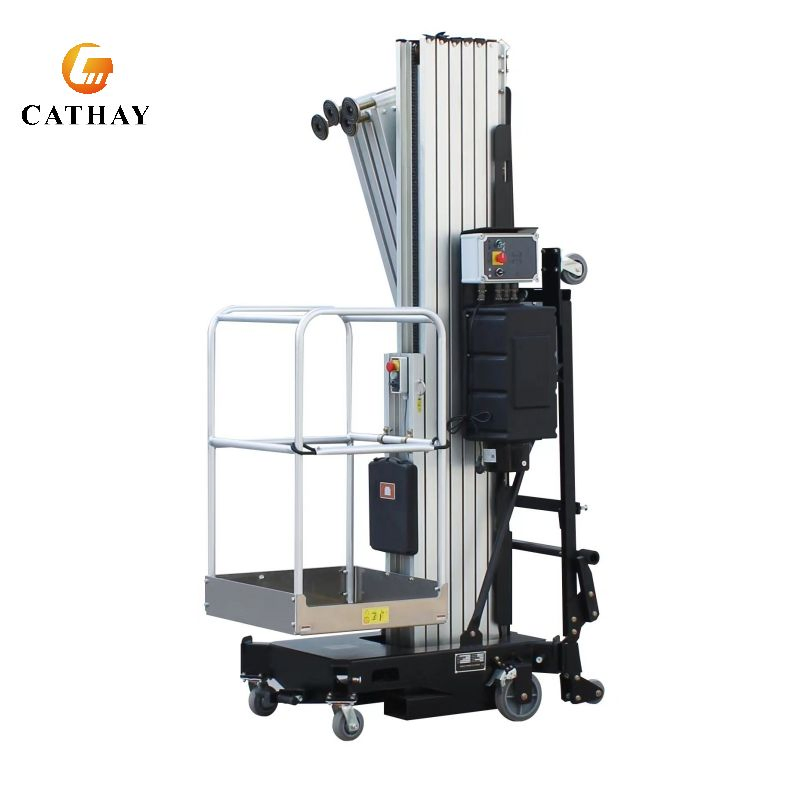

5~14m Electric Single Mast Push Around Vertical Mast Lift with CE (OEM & ODM & OBM)

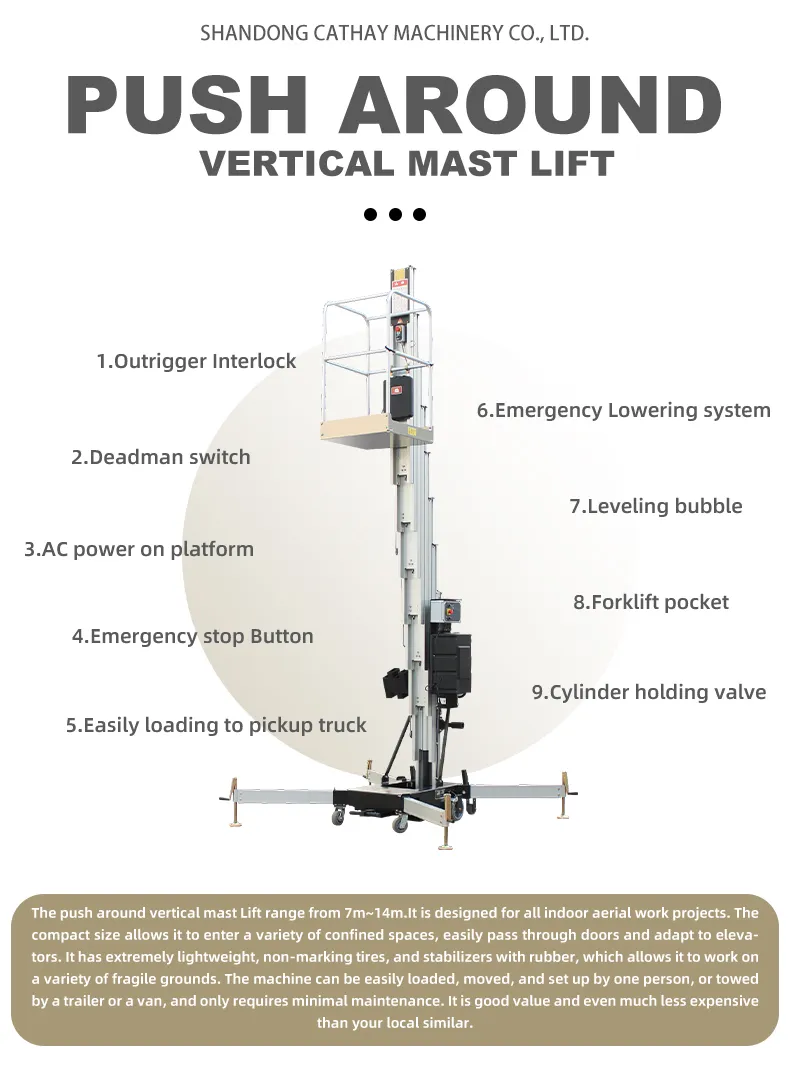

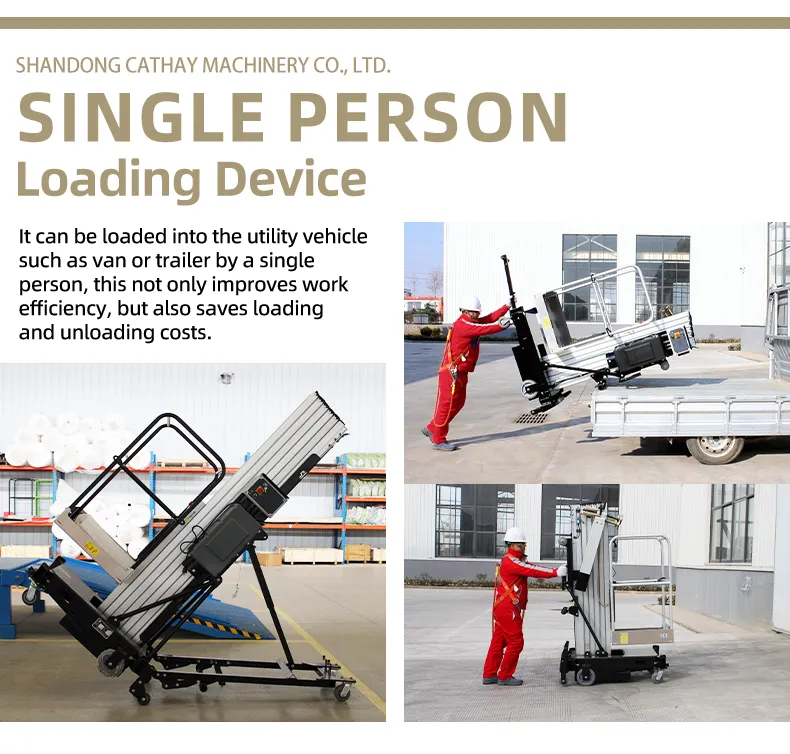

Push around vertical mast Lift range from 5m~14m. It is designed for all indoor aerial work projects. The compact size allows it to enter a variety of confined spaces, easily pass through doors and adapt to elevators. It has extremely lightweight, non-marking tires, and stabilizers with rubber, which allows it to work on a variety of fragile grounds. The lift can be easily loaded, moved, and set up by one person, and only requires minimal maintenance.
| Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H |
|---|---|---|---|---|---|---|
| Max. Platform Height | 5m | 6m | 8m | 9m | 10m | 12m |
| Max. Working Height | 7m | 8m | 10m | 11m | 12m | 14m |
| Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg |
| Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m |
| Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg |

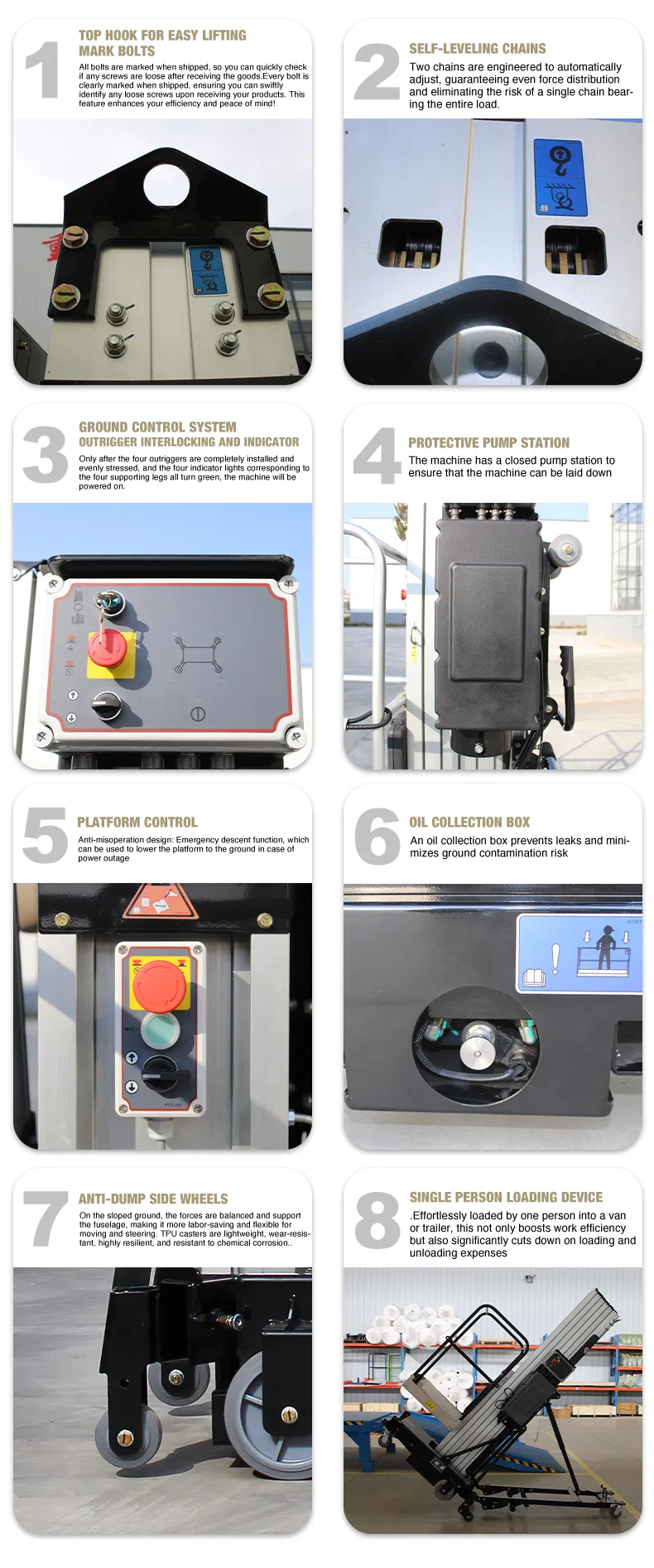

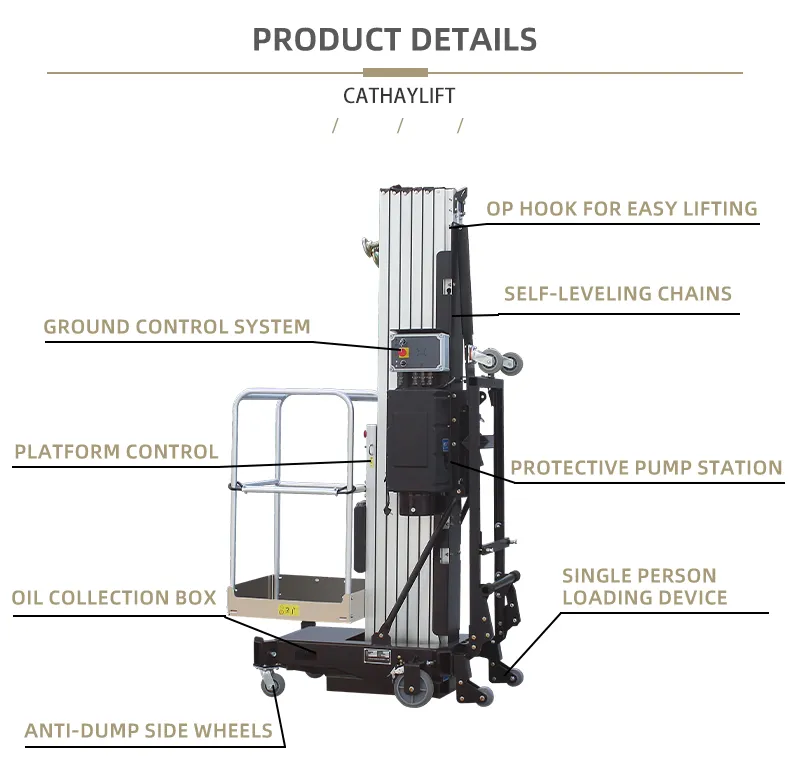

Outrigger Interlocking & Ground Control System: To ensure operational safety, the lift is only powered once all four outriggers are fully deployed and evenly stressed. A prominent red emergency stop button enhances safety by immediately halting all functions.
Aviation Plug & Wear-Resistant Cable: Equipped with aviation-grade connectors for modular maintenance. Ultra-durability drag cables boast a flex life of over 5 million cycles, resistant to oil, UV, and cold.
Upper Platform AC Power Supply: An IP66-rated AC socket is integrated on the platform, allowing direct use of power tools with protection against dust and water spray.

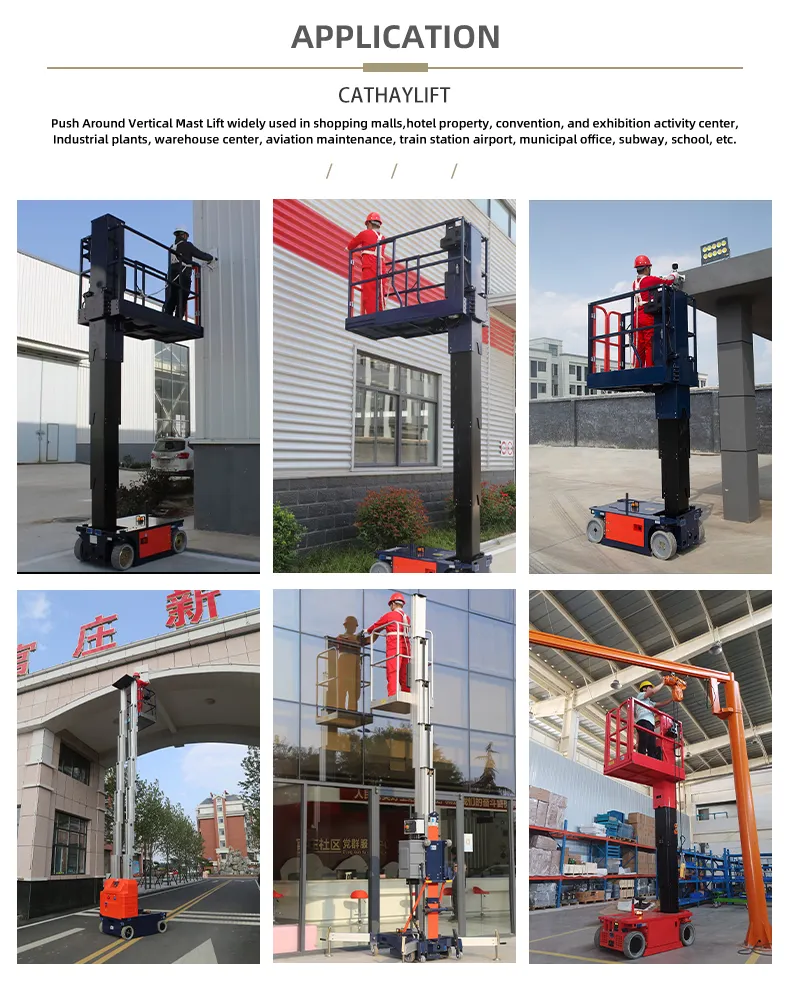

Commonly used in shopping malls, hotels, exhibition centers, industrial plants, warehouses, airports, train stations, subways, schools, and government buildings. Their compact size makes them ideal for indoor maintenance and overhead tasks in high pedestrian flow areas.
