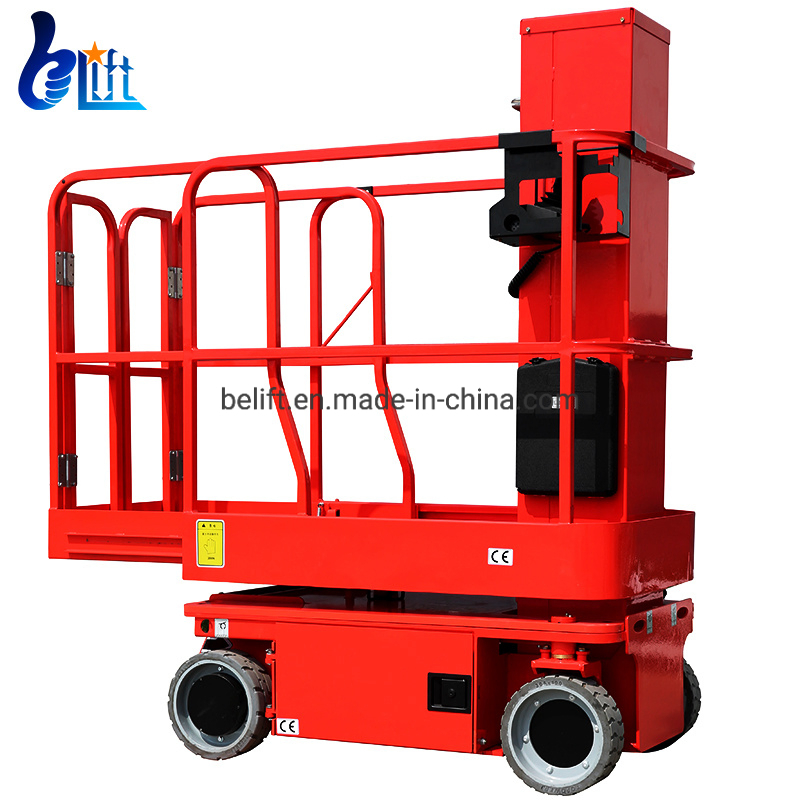

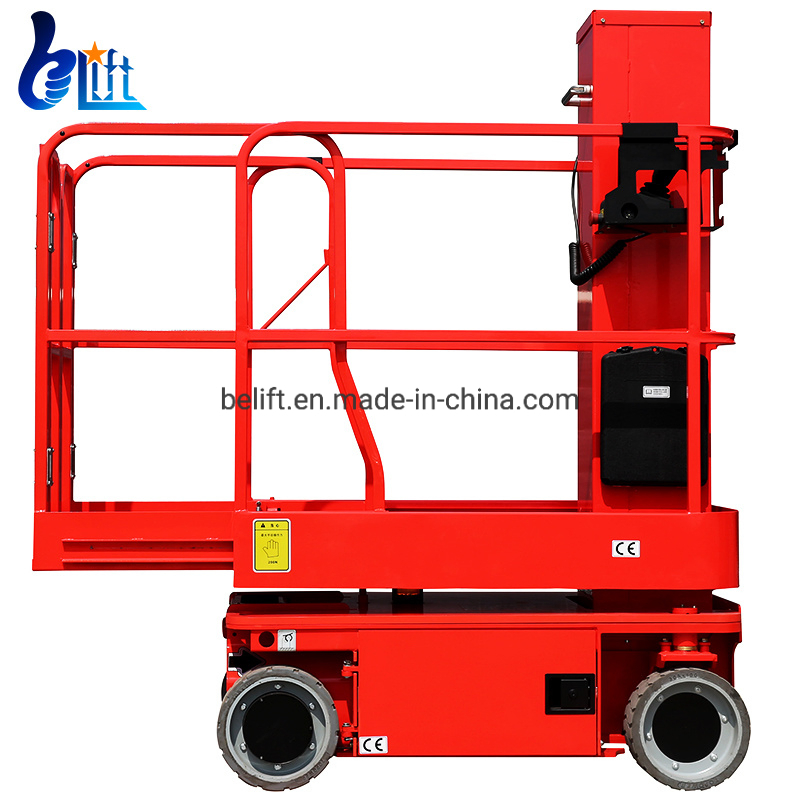

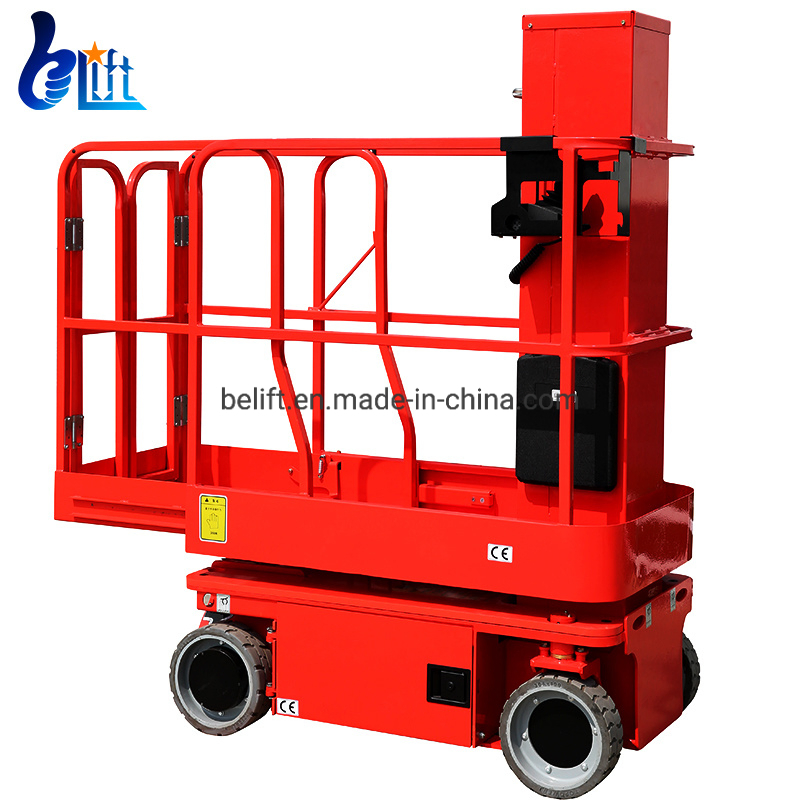

High-end Self-Propelled Vertical Mast Lift is a sophisticated low-level access machine featuring automatic walking, turning, and lifting functions. It is specifically engineered for both indoor and outdoor aerial tasks where height is limited and space is narrow.

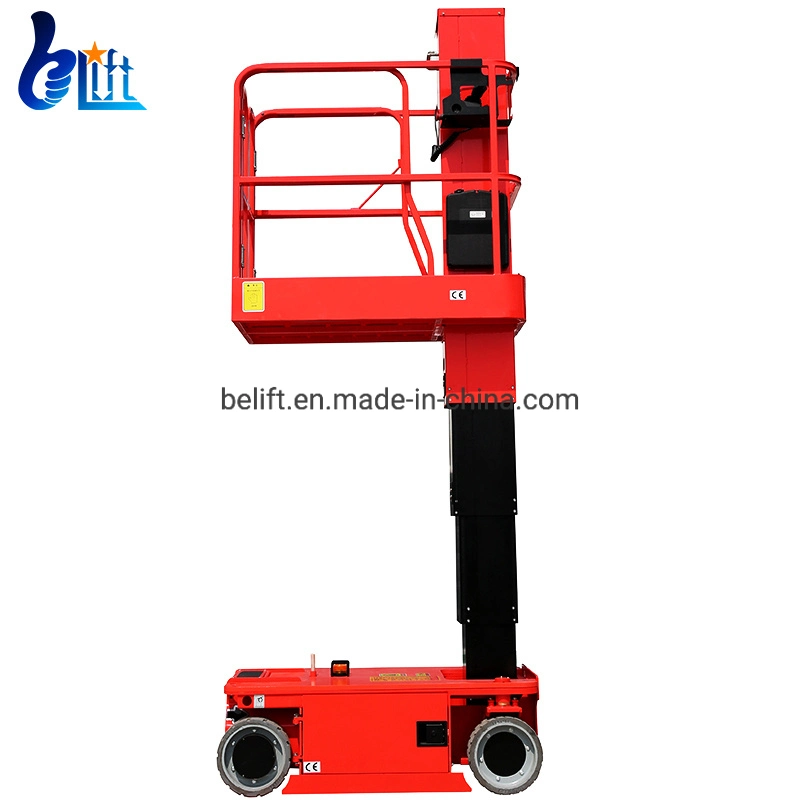

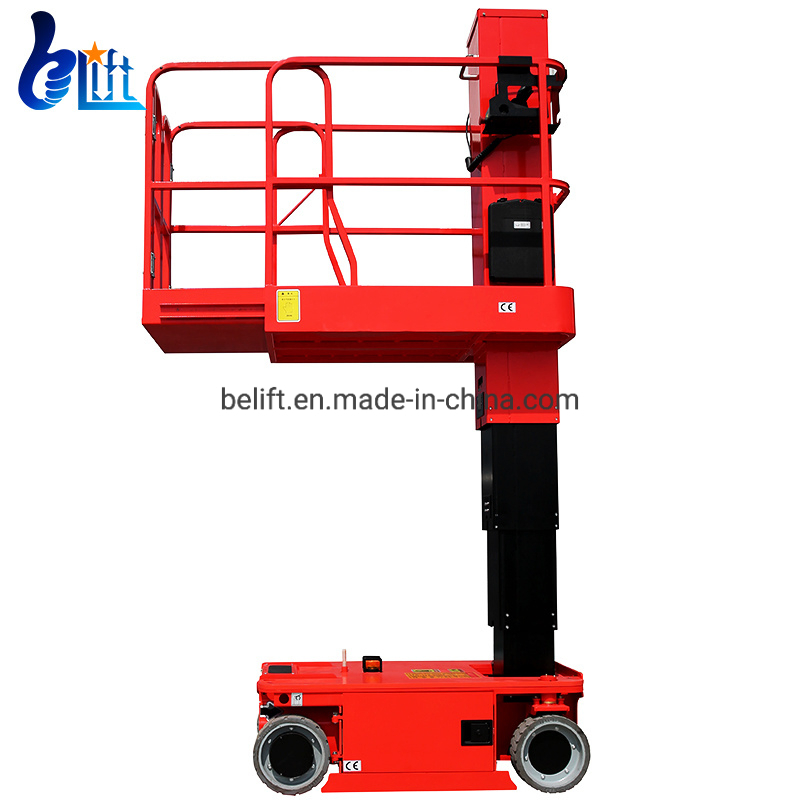

This vertical mast lift remains drivable even at full height. Its extremely compact dimensions allow it to navigate through standard doorways and tight corridors, making it ideal for supermarkets, warehouses, workshops, and stadiums.
| Model No. | ASWP-3.6 | ASWP-4.8 | ASWP-6.0 |
|---|---|---|---|
| Max Platform Height | 3.6m | 4.8m | 6.0m |
| Max Working Height | 5.6m | 6.8m | 8.0m |
| Loading Capacity | 227kg | 227kg | 159kg |
| Platform Size | 1.3x0.7m | 1.3x0.7m | 1.3x0.7m |
| Extendable Length | 0.51m | 0.51m | 0.51m |
| Travel Speed (Stowed) | 4km/h | 4km/h | 4km/h |
| Up/Down Speed | 31/32 sec | 41.5/42 sec | 52/53 sec |
| Gradeability | 25% | 25% | 25% |
| Battery | 2x12V/100AH | 2x12V/100AH | 2x12V/100AH |
| Weight | 810kg | 980kg | 1060kg |

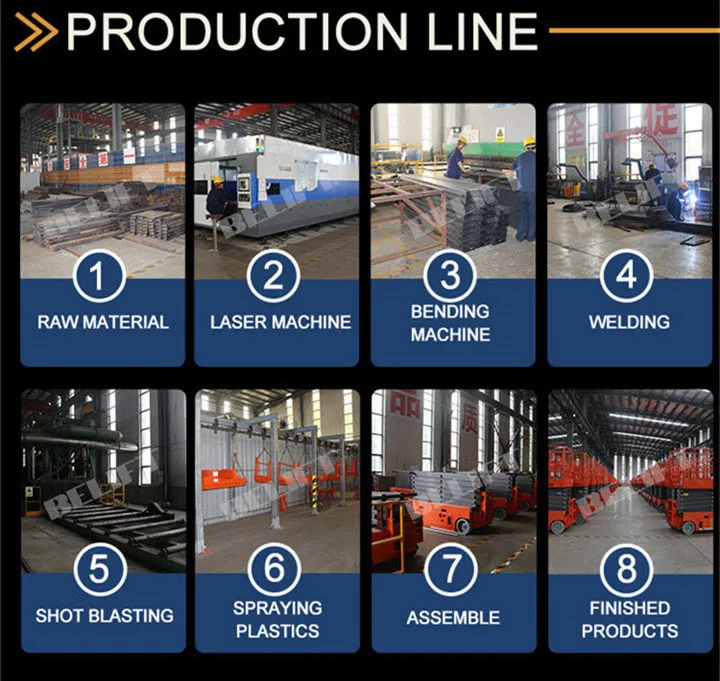

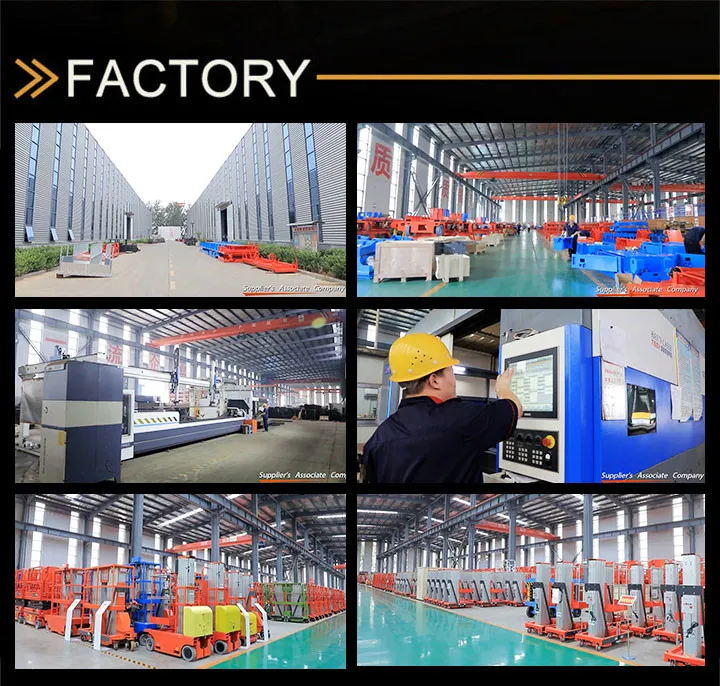

Our facility is specialized in manufacturing high-quality Aerial Work Platforms. All products are certified by CE, ROHS, SGS, and ISO standards. We utilize automatic production lines to ensure precision and consistent quality.
