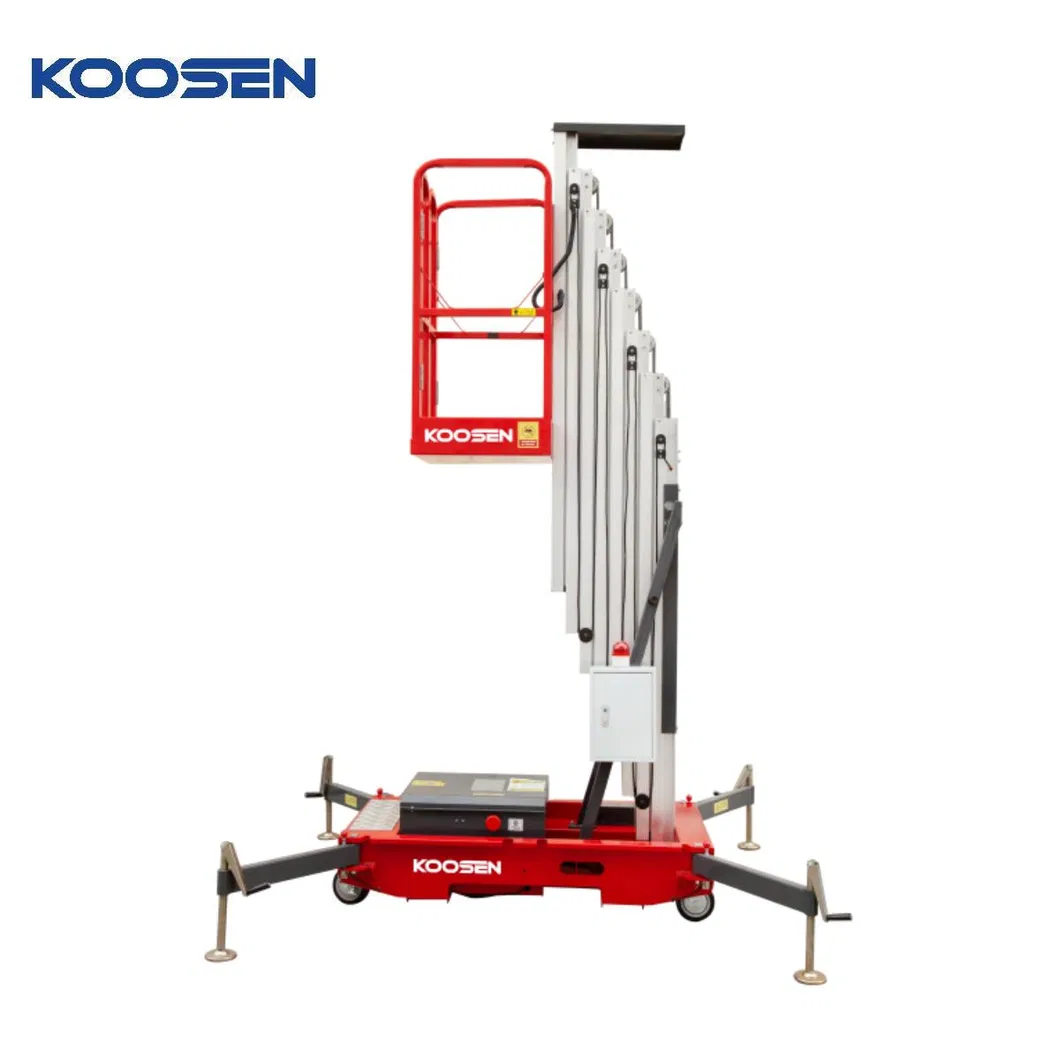

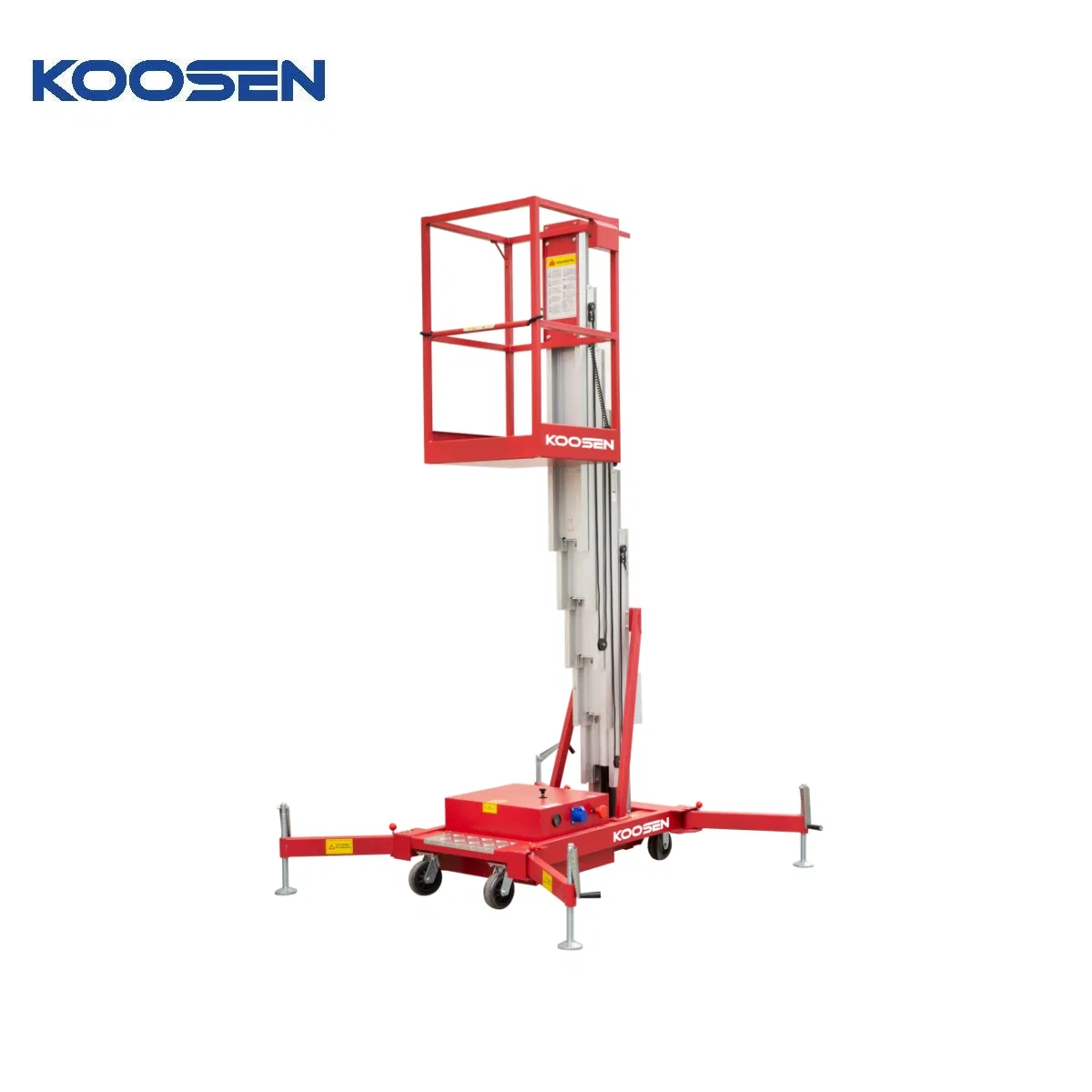

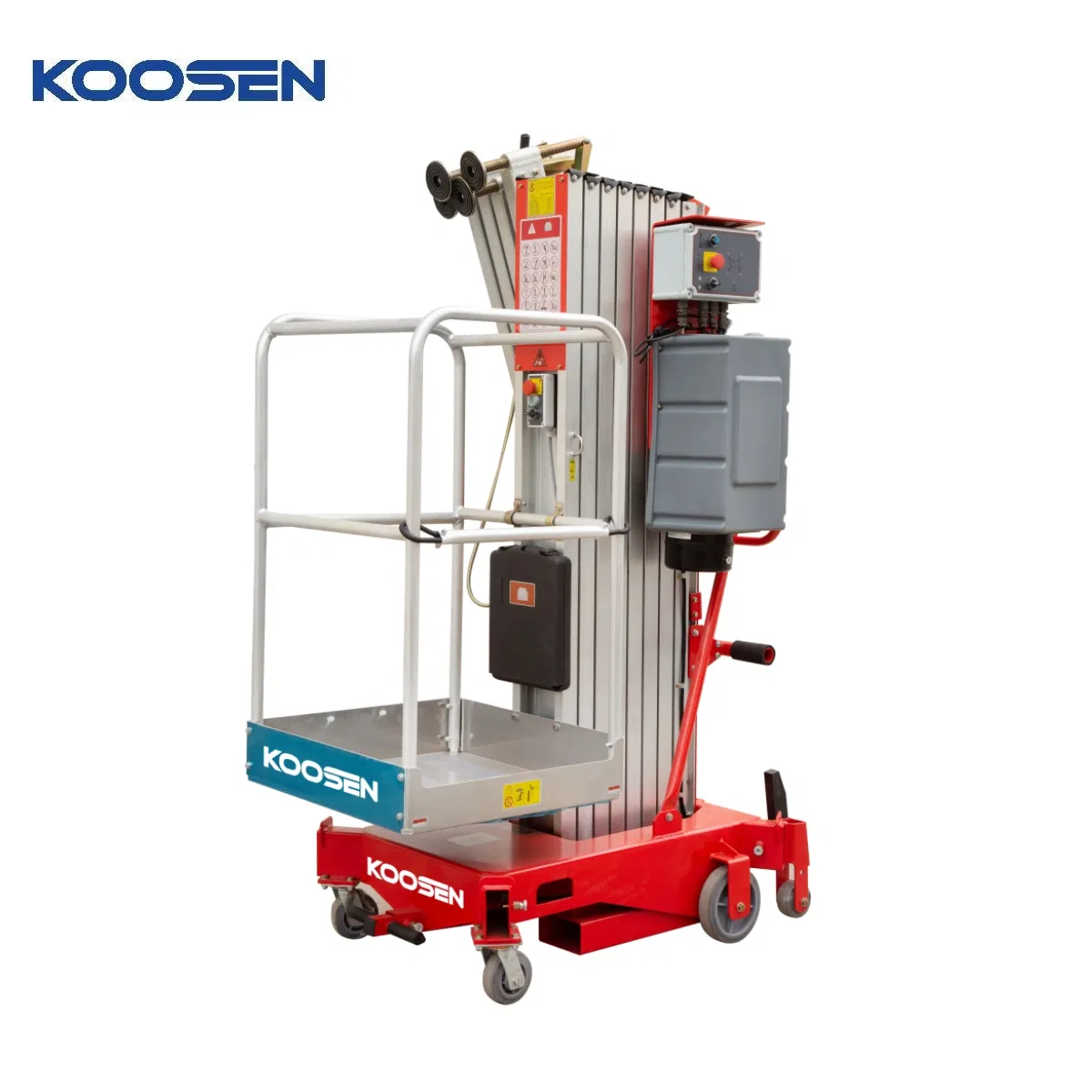

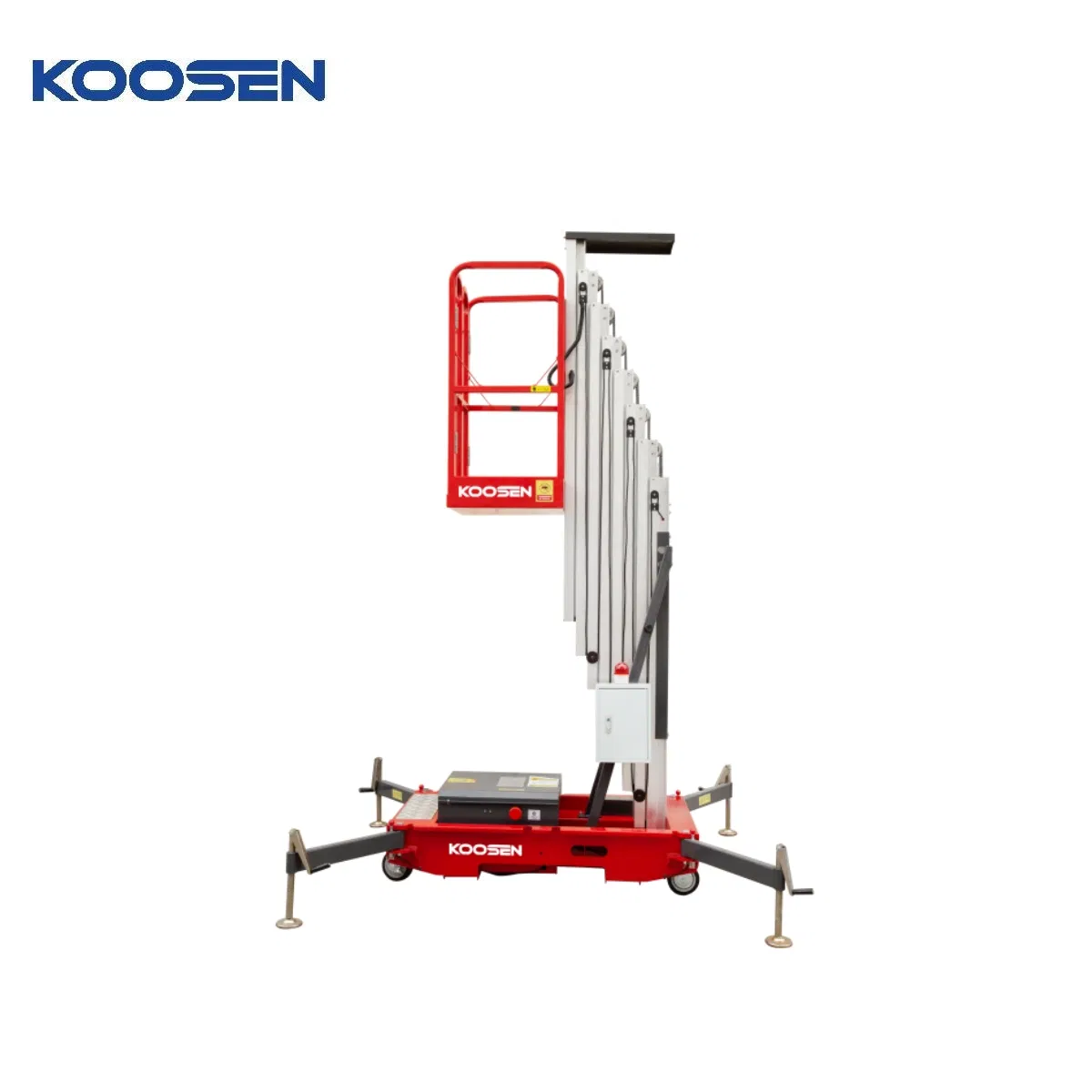

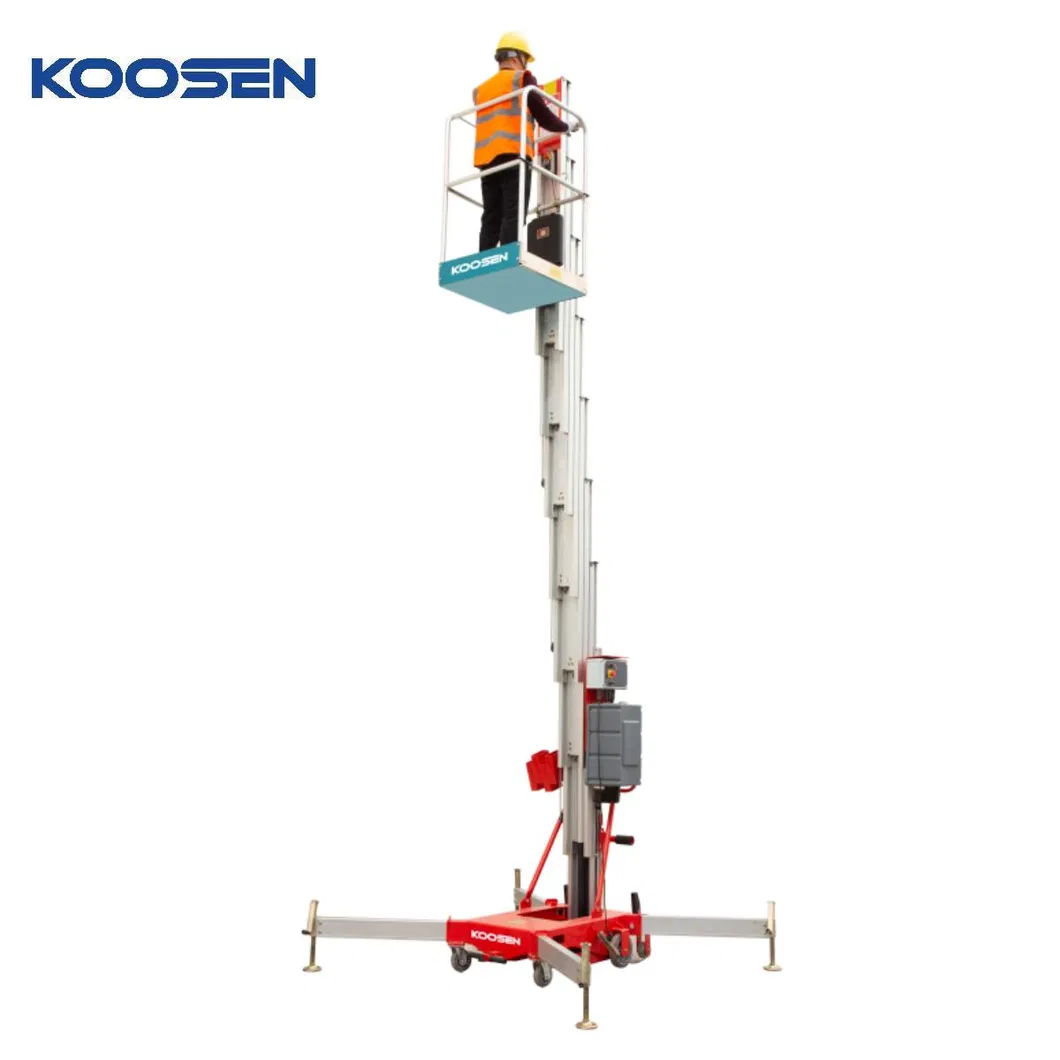

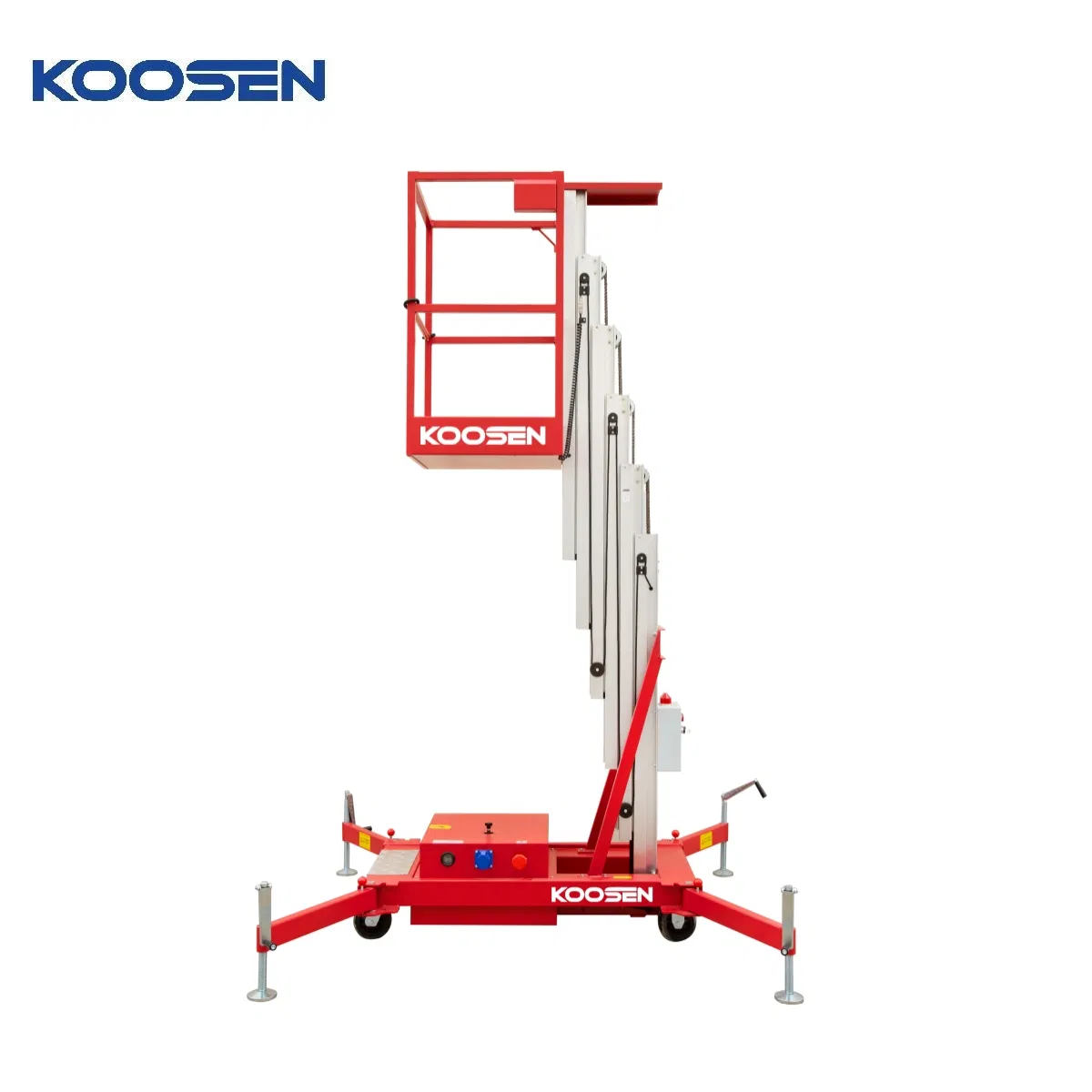

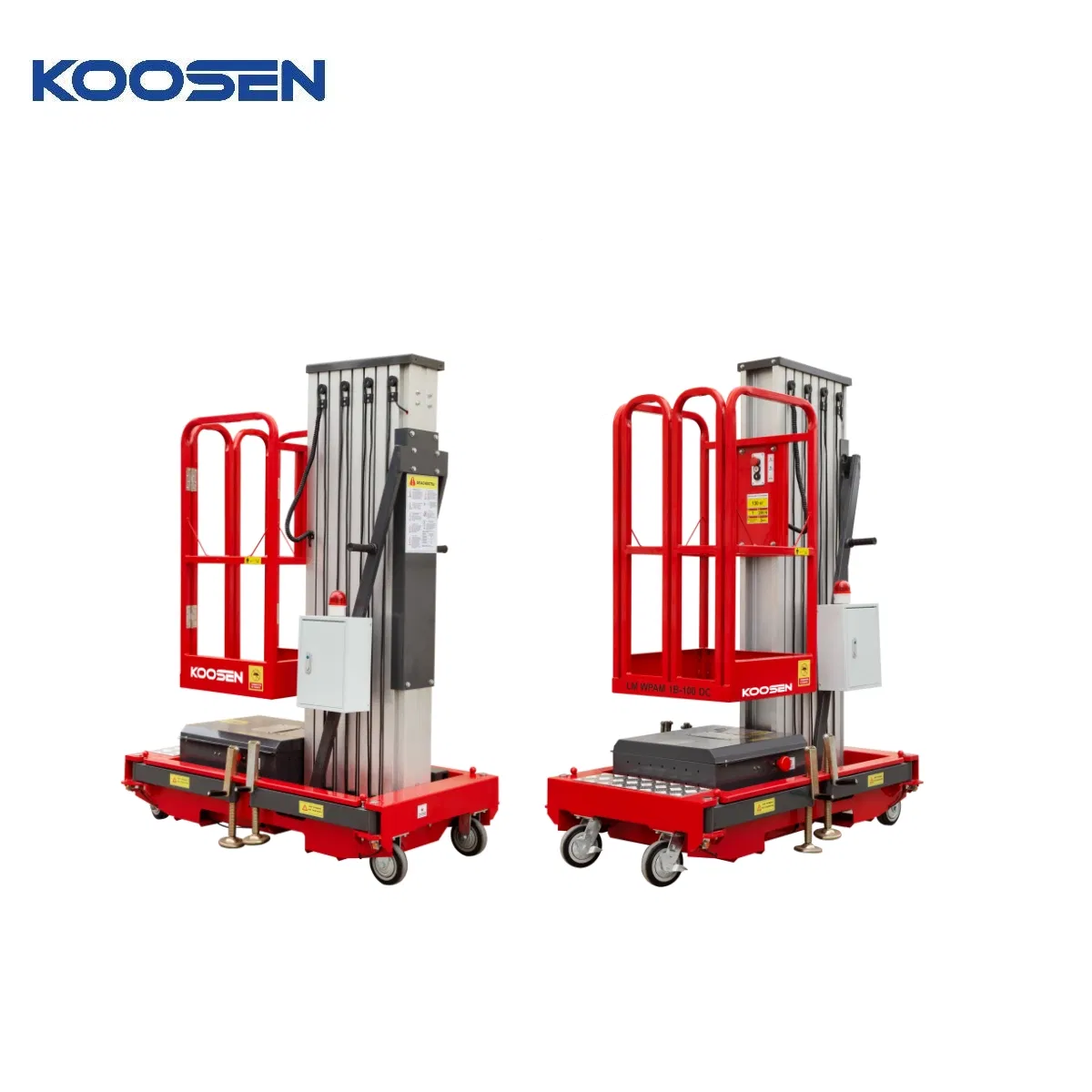

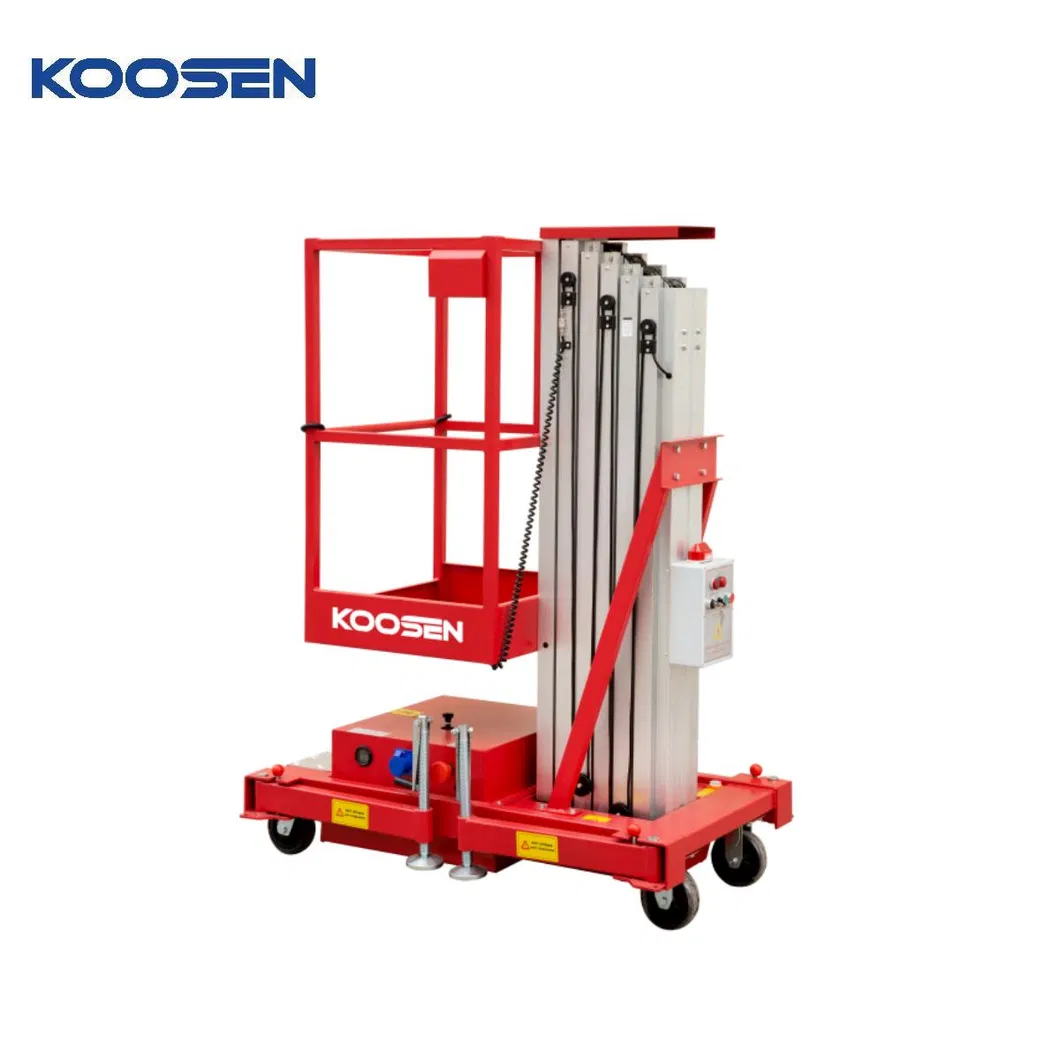

Single Masts Aluminum Alloy Aerial Lifting Platform Vertical Platform Lift

Basic Information

Model NO.

Lift

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Articulated Lift

Carrying Capacity

Light Level

Driven Type

DC

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Specification

0.67m*0.66*1.97M

Product Description

✔

Working Height: 12.00m, 10.00m, 8.00m

✔

S.W.L: 150kg

Key Features:

Self-leveling outriggers with sensor system and LED display for safe and reliable operation.
Cylinder holding valve included.
Trunk loading device, convenient for solo loading.
AC/DC Power systems available as optional configurations.

Technical Parameters

Model	Working Height	Platform Height	Stowed Size (LWH)	Outrigger Footprint	S.W.L
GTWY11-1000	12.70m	10.70m	1.50m * 0.81m * 2.30m	2.20m * 2.20m	120kg
GTWY10-1000	12.20m	10.40m	1.26m * 0.81m * 1.97m	1.80m * 1.80m	136kg
GTWY8-1000	10.00m	8.00m	1.24m * 0.81m * 1.97m	1.60m * 1.60m	150kg
GTWY6-1000	8.20m	6.20m	1.24m * 0.81m * 1.97m	1.60m * 1.60m	150kg
