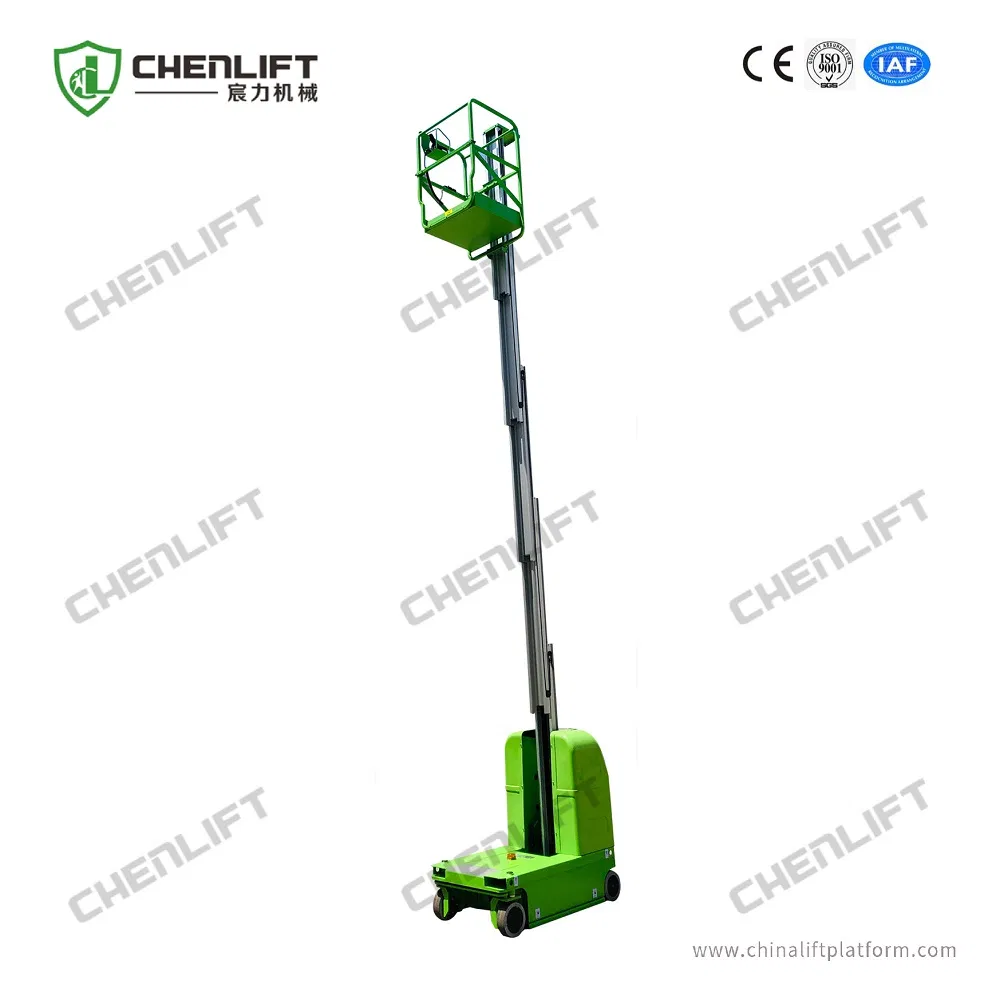

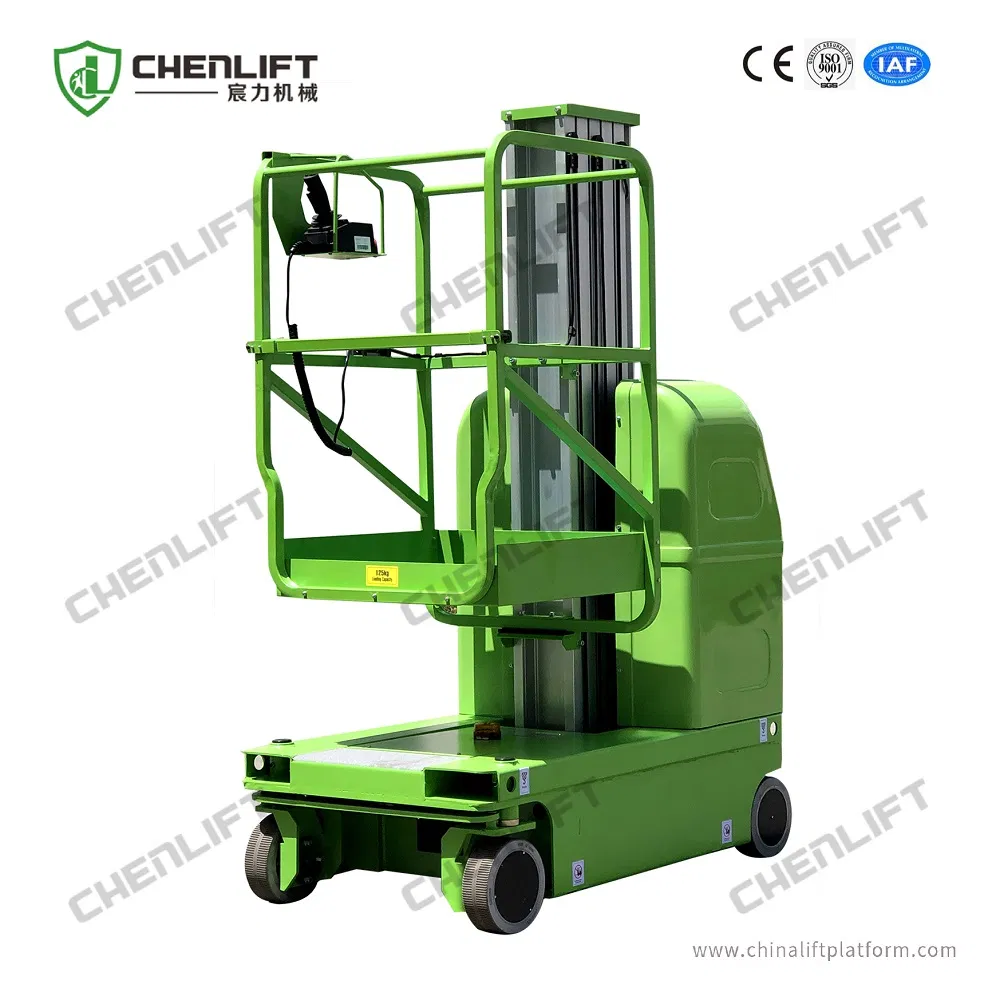

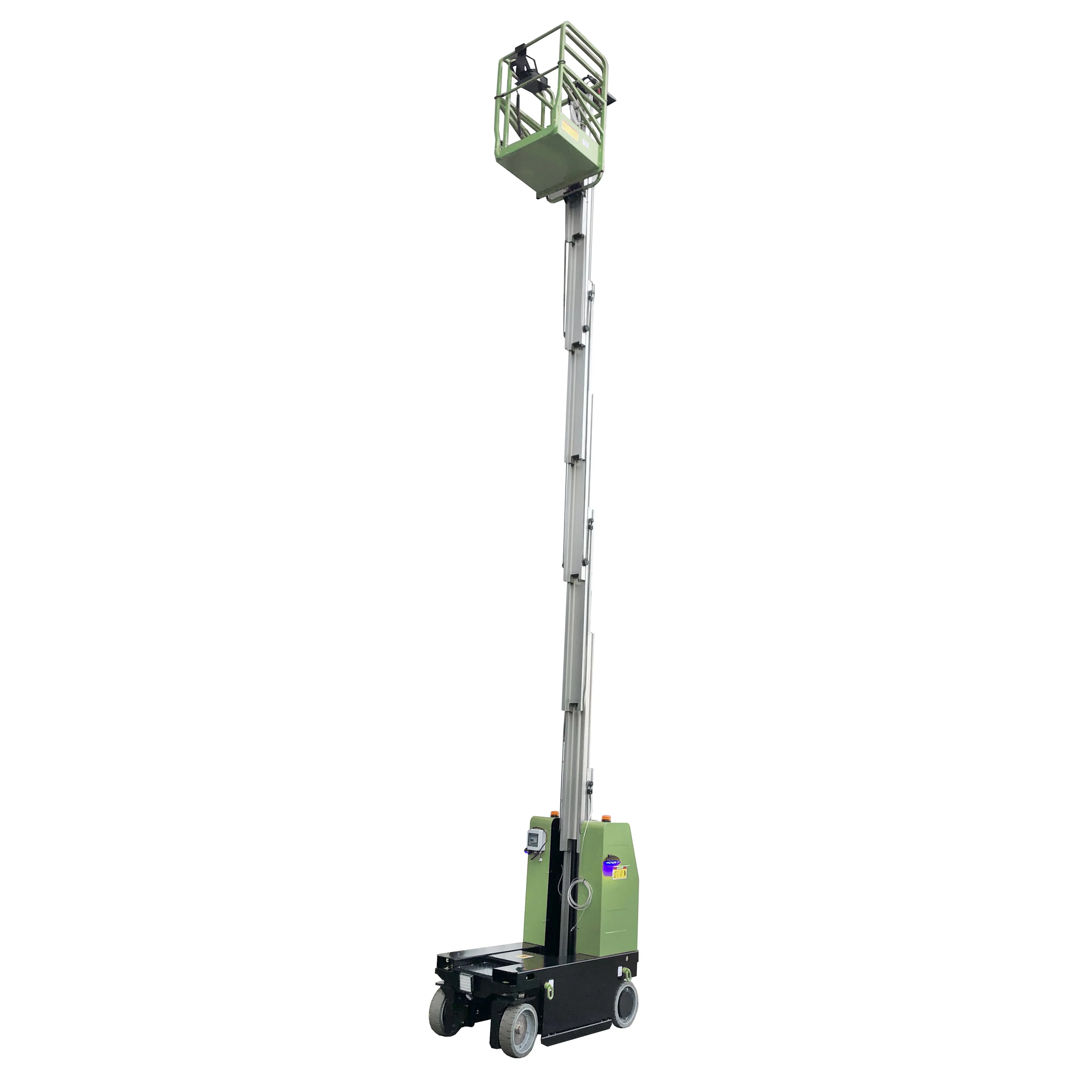

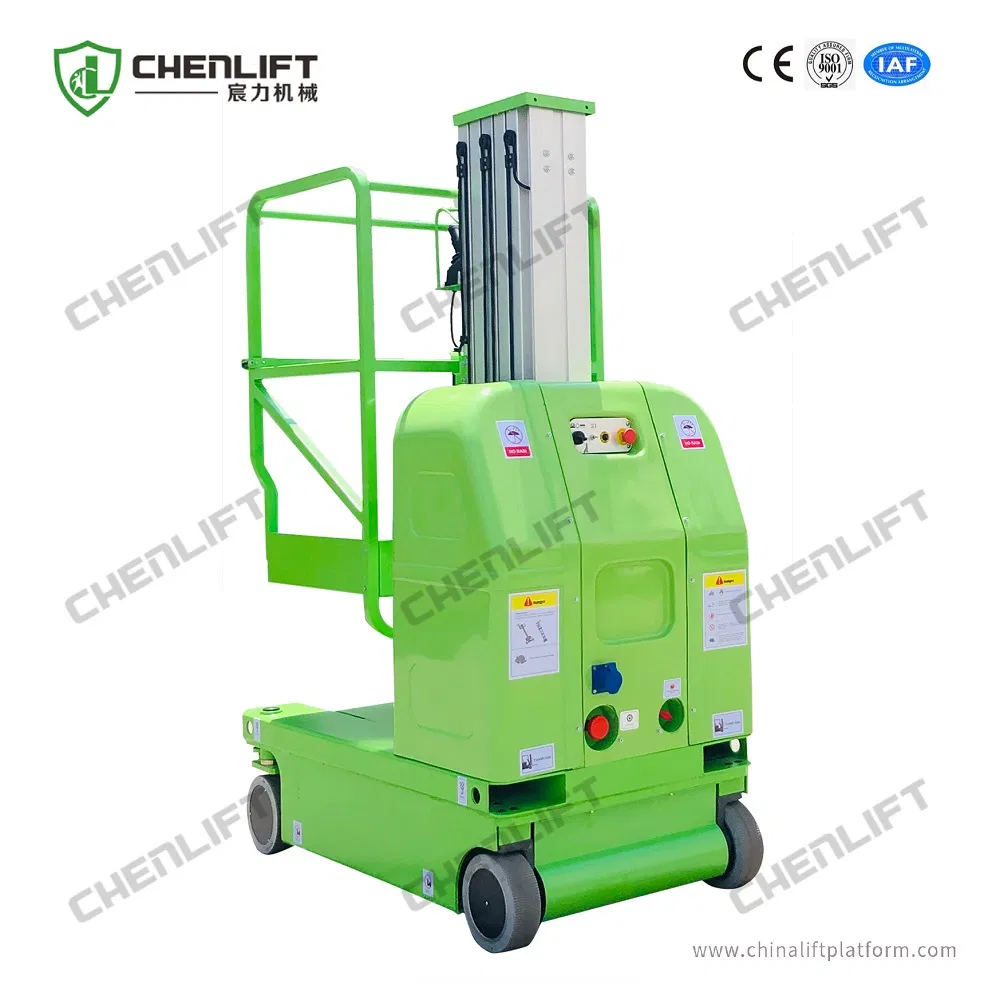

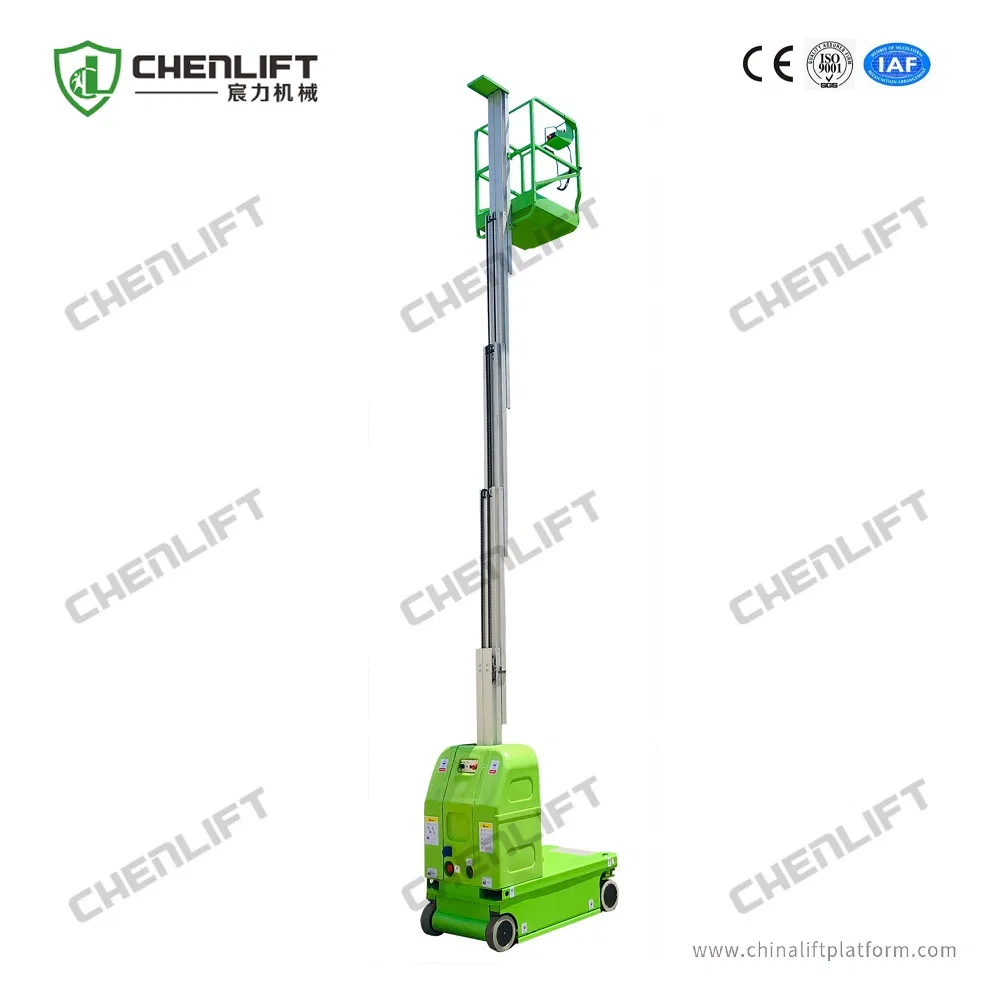

6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

Customization: Available
After-sales Service: Can Post Spare Parts Within 1 Week
Warranty: One Year

Product Description

Basic Information

Model NO.
MG600-1S
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Driven Type
DC
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Platform Height
6 M
Working Height
8 M
Loading Capacity
125kg
Platform Size
0.78*0.70m
Driving Motor
2*24V/0.4kw
Lifting Motor
24V/2kw
Power Source
2*12V/115ah
Weight
1102kg
HS Code
8428909090

Product Description

Self-Propelled Economical Vertical Lift

The Self-Propelled Economical Vertical Lift is designed to be light and exquisite, offering exceptional convenience and flexibility. It is engineered to pass through general foyers and enter/exit elevators with ease. This energy-efficient solution works without damaging the ground and is ideal for wall-mounted tasks and exploration work in hotels, hospitals, stations, airports, and warehouses.

Safe and reliable, the base pothole protection device ensures operational stability and peace of mind.

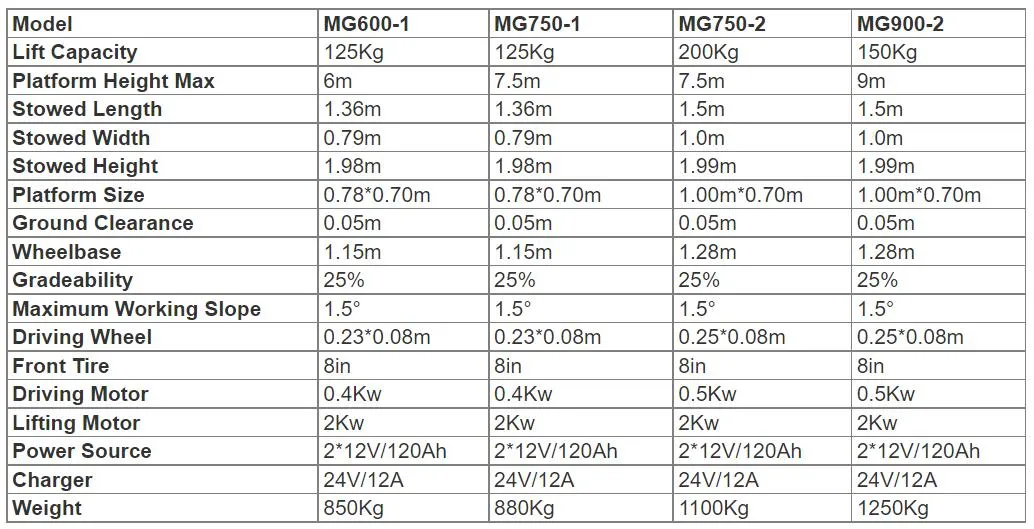

Vertical Lift Overview

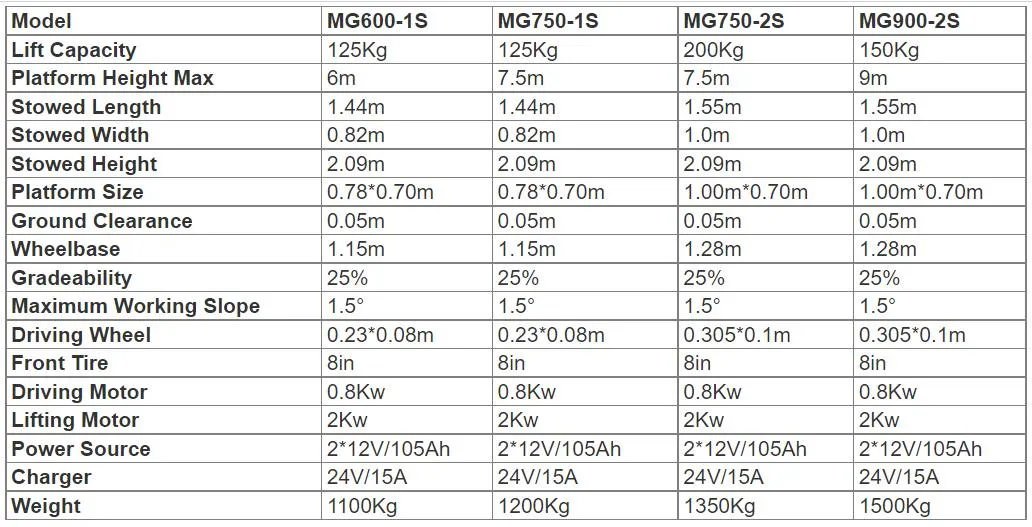

Vertical Lift Operation

Operation Types

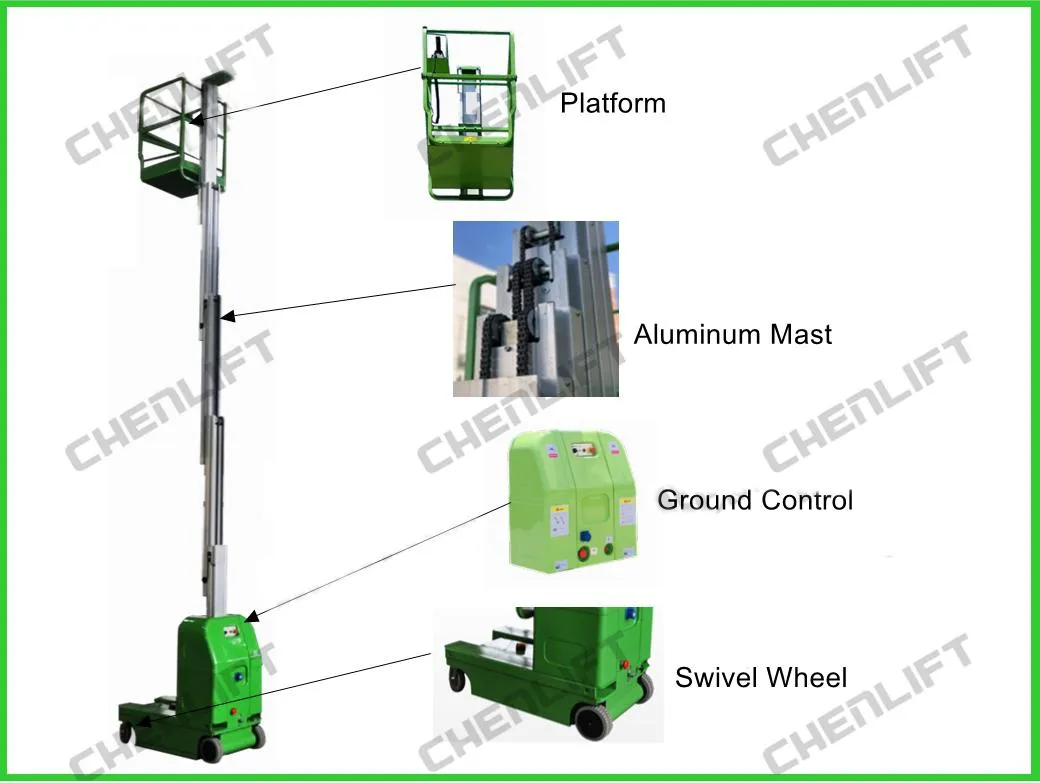

Swivel Turning Type

Swivel Turning Type

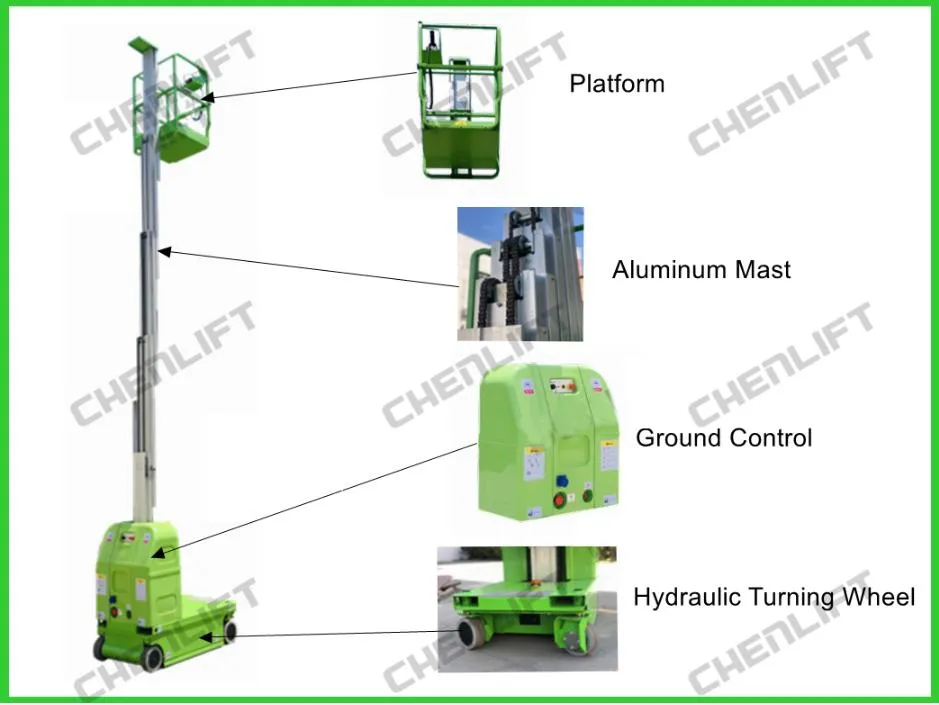

Hydraulic Turning Type

Hydraulic Turning Type

Standard Configuration

  • Proportional controls
  • DC power supply
  • Drivable at full height
  • Non marking tyre (2WD)
  • Automatic braking system
  • Emergency stop button
  • On board Diagnostic system
  • Tilt sensor with alarm
  • Anti-dust cover on the mast
  • Powder coating painting

Optional Configuration

  • AC power to platform
  • Overload sensor with alarm
  • Platform working light
  • Air tube to the platform
  • Platform extension
  • Self-lock gate on platform
  • Hour meter
  • Wireless tracking

Handling & Storage

The Self-propelled Aerial Order Picker must be stored in a horizontal position during transport and storage to prevent oil and electrolyte overflow. Ensure the storage area is clean and protected from damp or extreme climates. Ambient temperature should not exceed 40ºC. If the battery is inactive for long periods, it must be recharged timely.

Certificates & Quality

Certificates

Equipment & Visiting

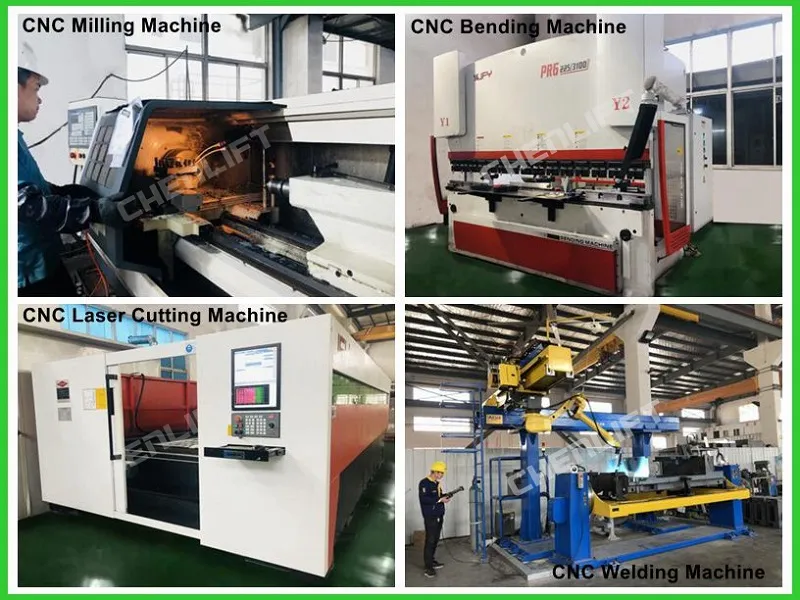

Factory Equipment
Customer Visiting

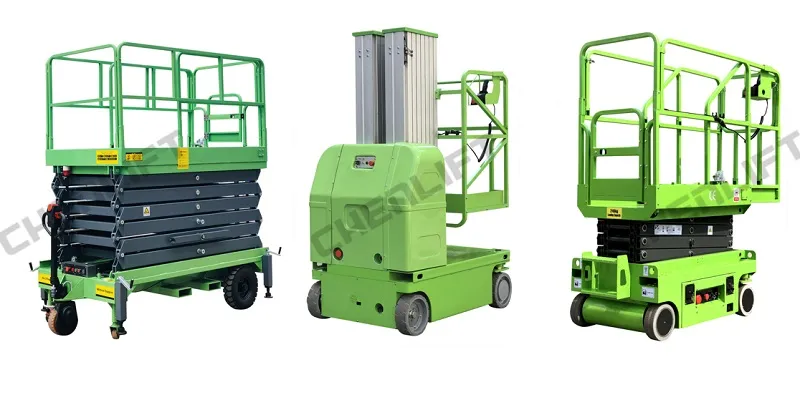

Related Products

Frequently Asked Questions

What is the maximum working height of the MG600-1S?
The unit offers a platform height of 6 meters, providing a total working height of 8 meters.
What is the load capacity for this vertical lift?
The MG600-1S is designed for a maximum loading capacity of 125kg, suitable for one person and their tools.
Can this machine be used in confined spaces or elevators?
Yes, with its compact size (0.78*0.70m platform) and lightweight design, it can easily enter elevators and pass through standard foyers.
What type of power source does it use?
It is powered by a DC system with two 12V/115ah batteries, including a 24V/12A charger for efficient energy use.
Is the lift safe for sensitive flooring?
Absolutely. It features non-marking tires designed to work on delicate surfaces without leaving scratches or damage.
What safety mechanisms are included as standard?
Standard safety features include an automatic braking system, tilt sensor with alarm, emergency stop button, auxiliary lowering, and a pothole protection device.
