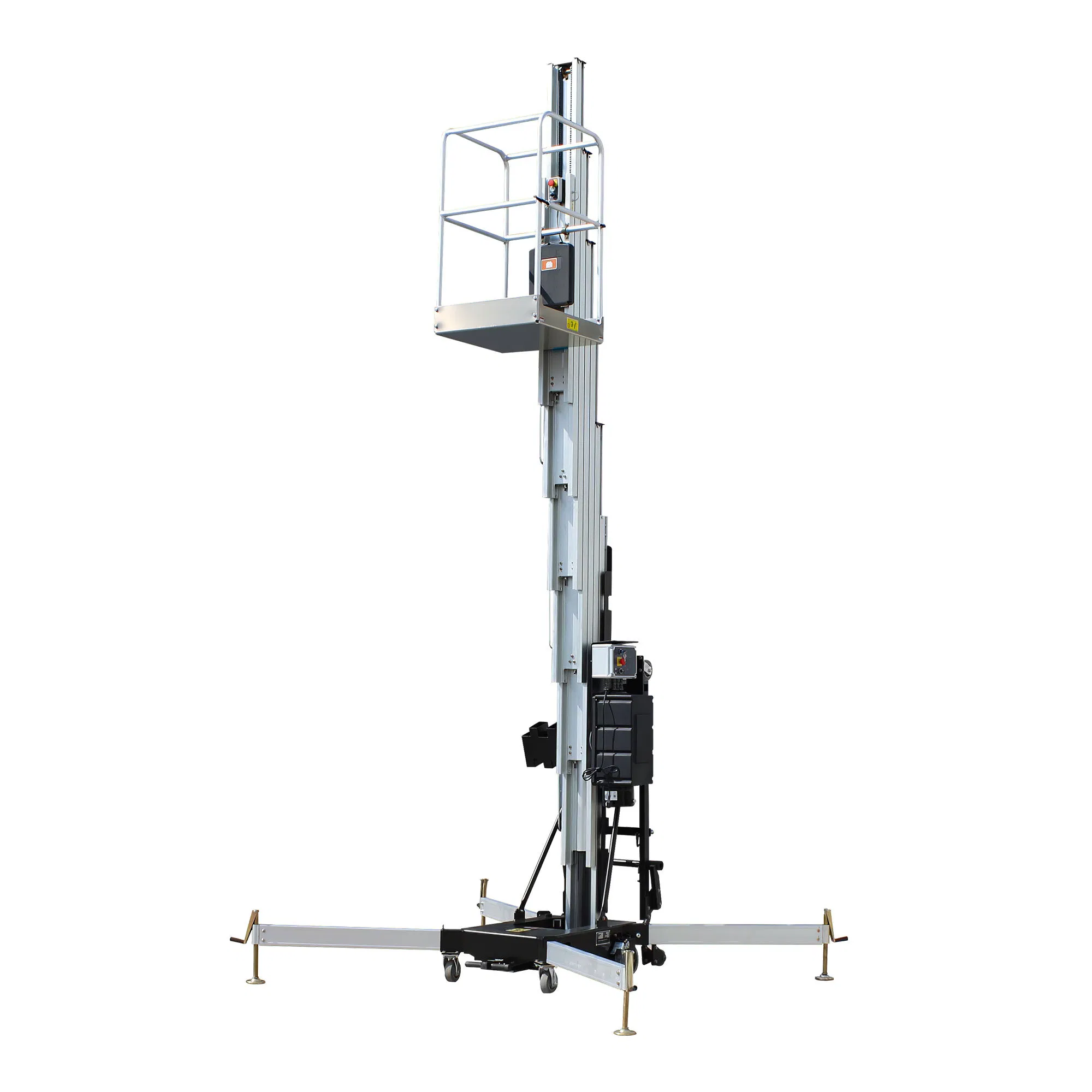

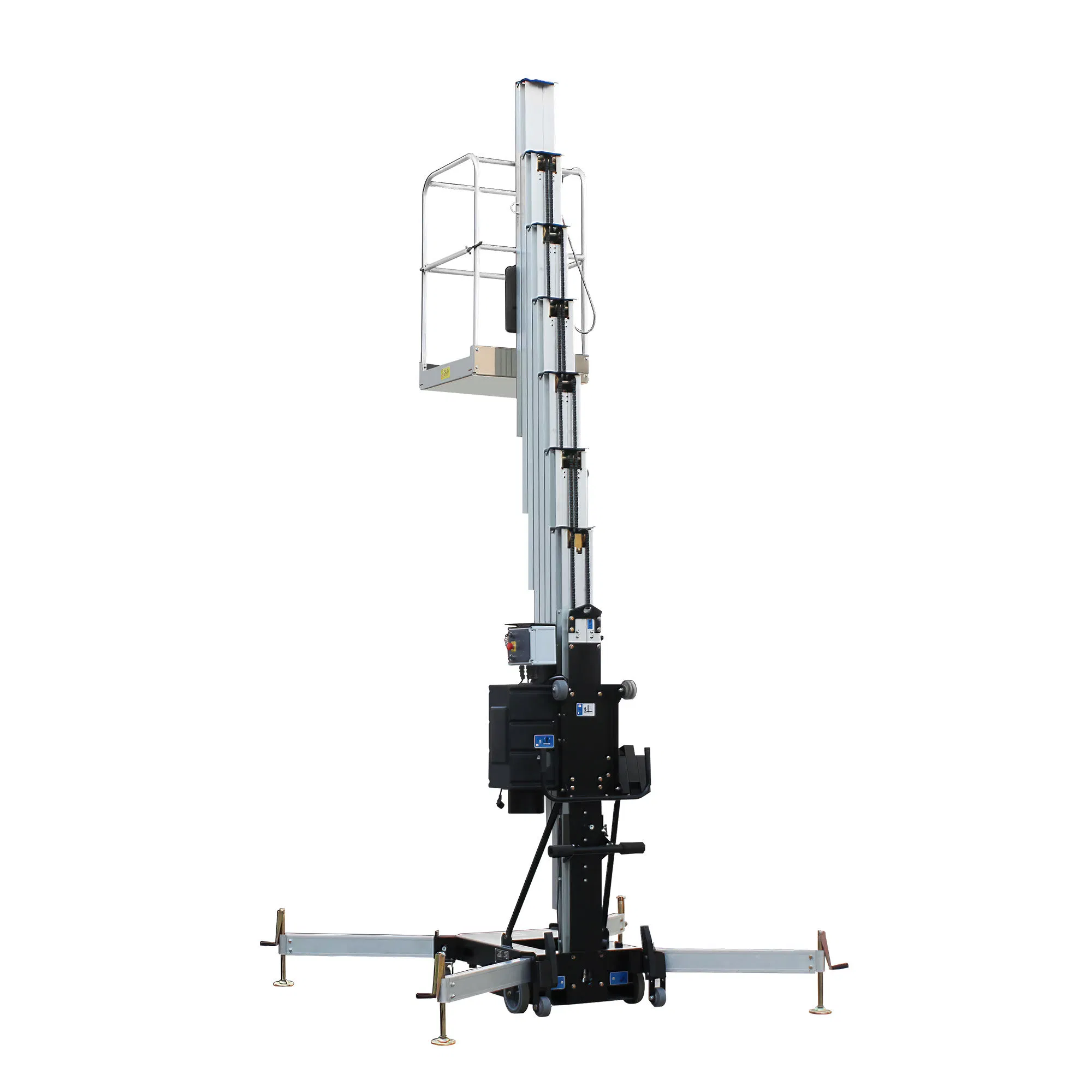

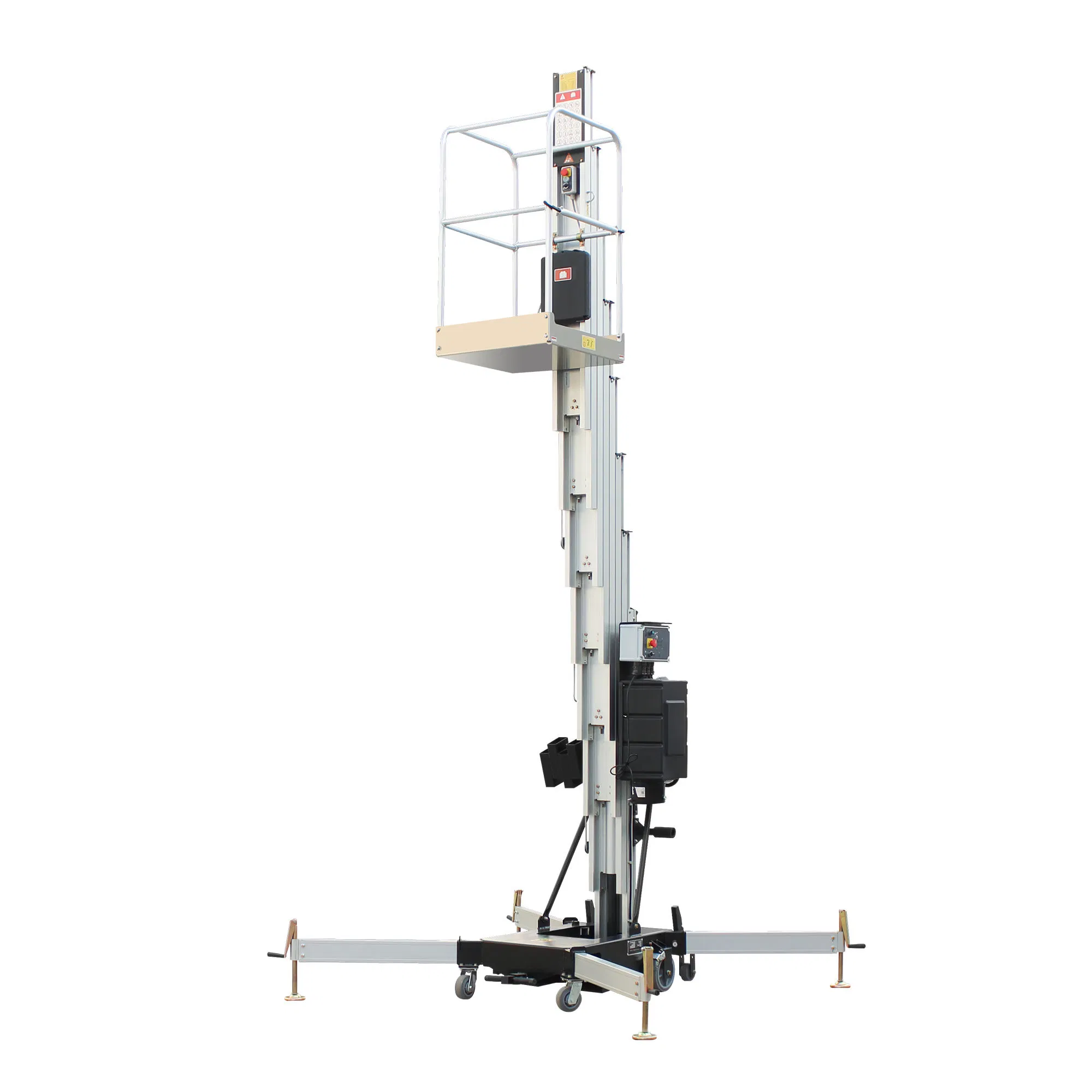

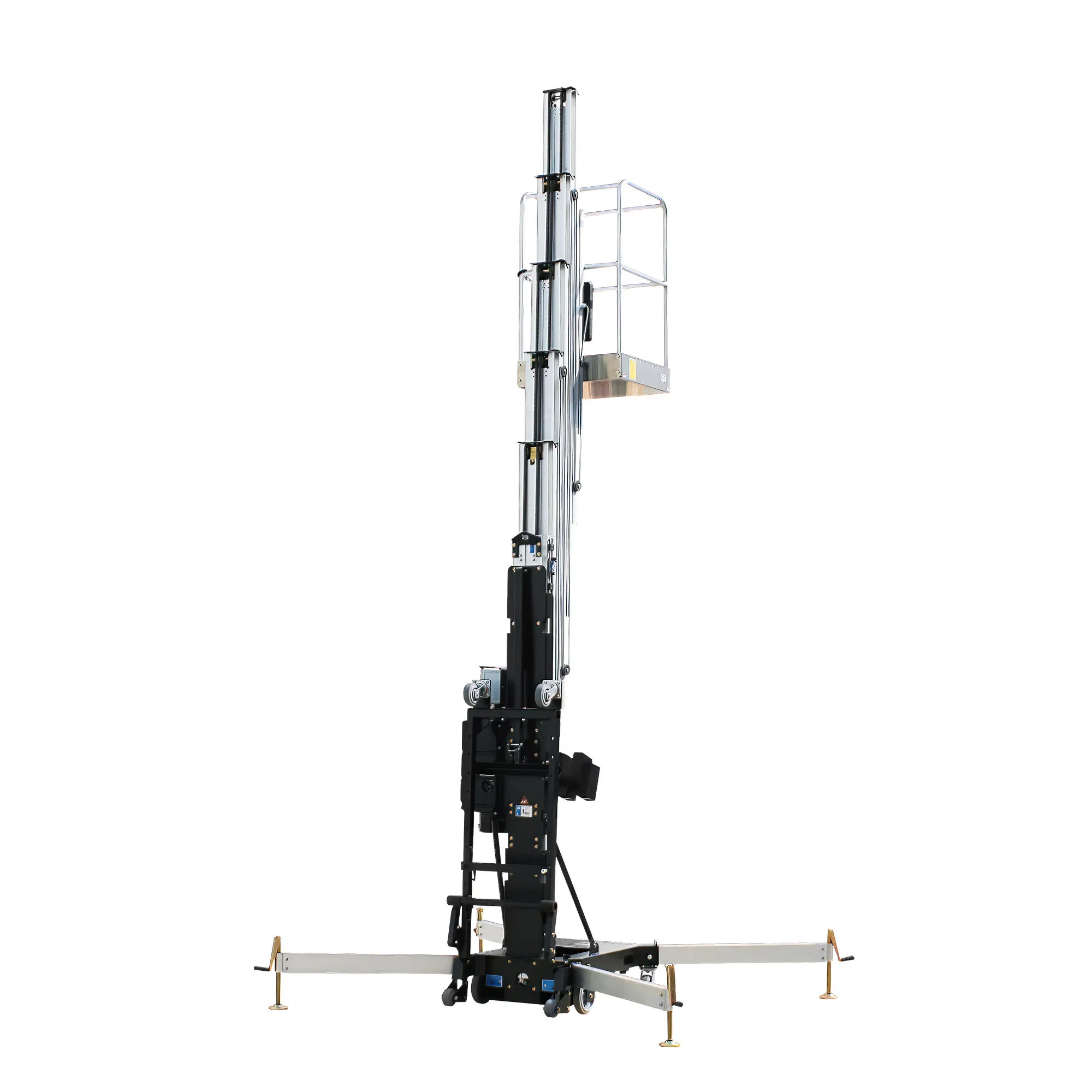

10m12m Portable Vertical Hydraulic Ladder Price Two Mast Electric Man Lift Aluminum Alloy Lift Platform for Sale

1 / 5

10m12m Portable Vertical Hydraulic Ladder Price Two Mast Electric Man Lift Aluminum Alloy Lift Platform for Sale

Customization:	Available
After-sales Service:	1 Year
Warranty:	1year

Send Inquiry

Product Description

Basic Info.

Model NO.

200kg/300kg/500kg

Application

Workshop Crane, Shipboard Crane

Lift Mechanism

Rack&Pinion

Carrying Capacity

Weight Level

Moves

Vehicular

Driven Type

Running Mode

Moving

Feature

Insulating

Condition

New

Min.Lifting Height

70mm

Lift Drive/Actuation

Hydraulic

Table Size

1560*785*1995mm

Weight

1005 Kg

Lifting Height

10m

Control

Double Controller

Product Name

Man Lifts

Capacity

200-3000kg

Voltage

220V

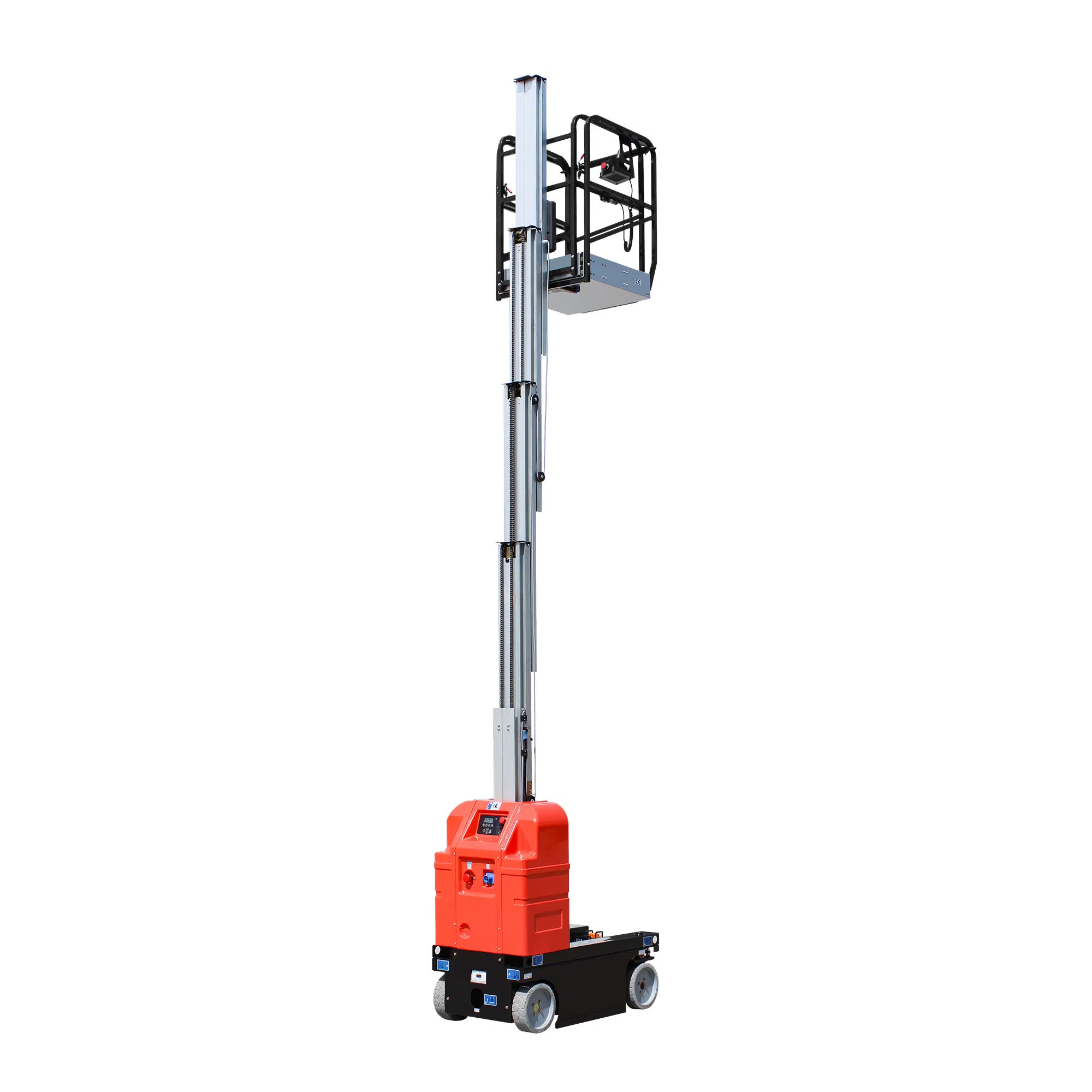

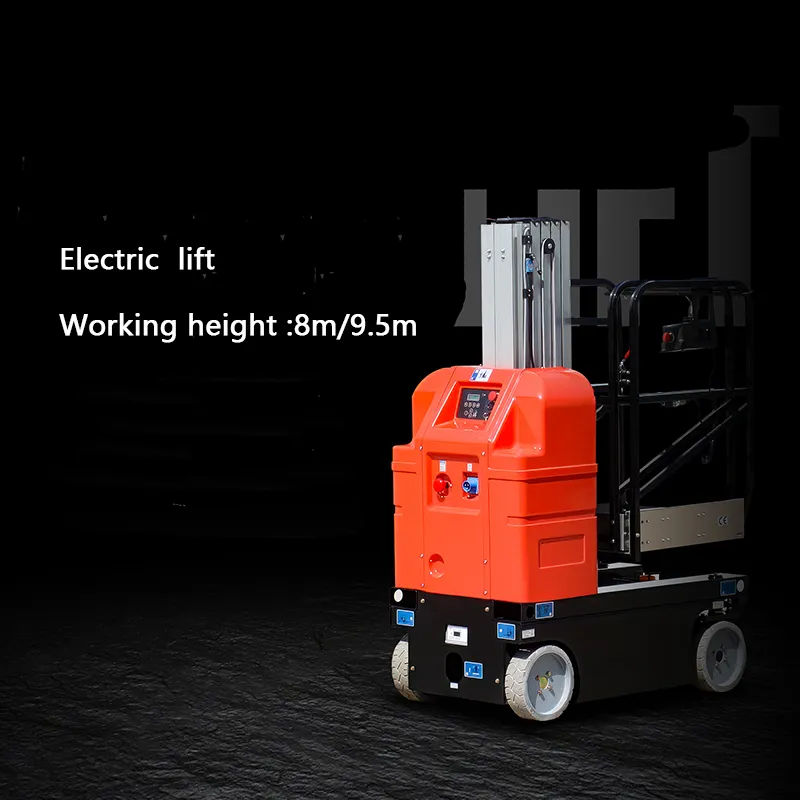

Product Overview

The extension platform can be quickly deployed to the operation point.

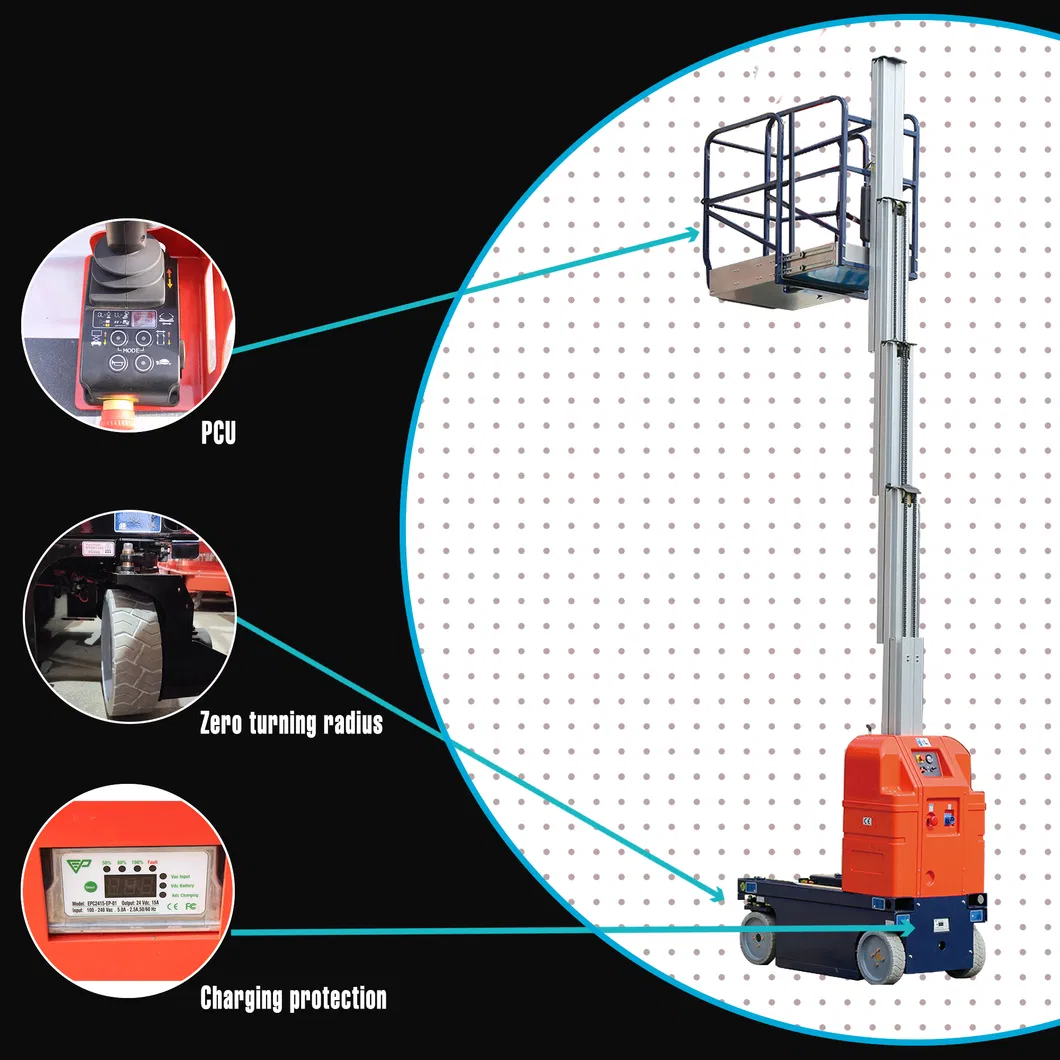

The industry's minimum turning radius (inner wheel 0m) and compact design facilitate operation in narrow spaces.
25% climbing ability, able to smoothly climb slopes.
Automatic display of fault codes for easy maintenance.

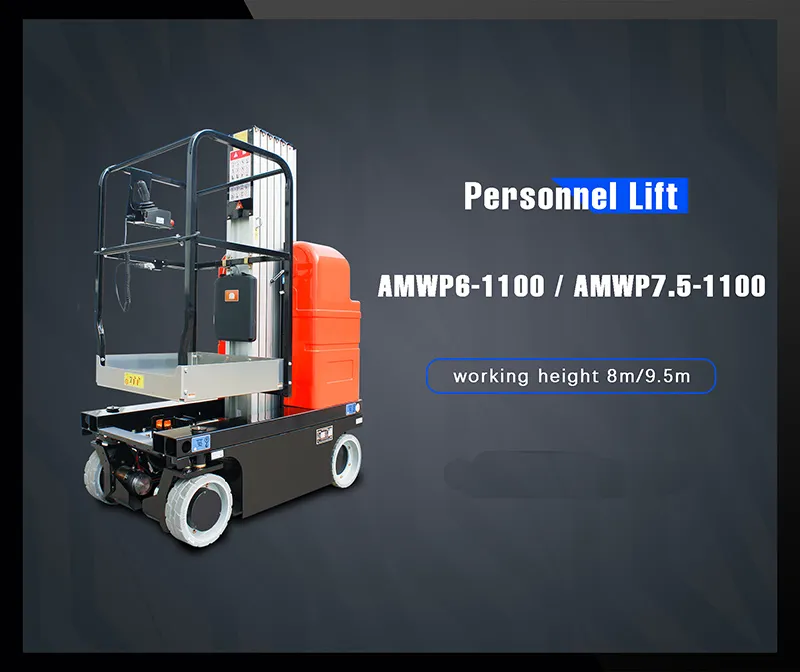

Model	AMWP6-1100	Min. turning radius (inner)	0
Safe working load	150kg	Min. turning radius (outer)	1.5m
Extended Platform Load	75kg	Lifting/Drive motor	1.2kw/0.5kw
Max working height	8m	Travel speed (retracted)	3.5km/h
Max platform height	6m	Travel speed (lifting)	0.8km/h
Overall length	1.4m	Ascending/Descending Speed	48/40sec
Overall width	0.76m	Storage battery	2*12V/100ah
Overall height	1.99m	Charger	24v/15A
Platform size	0.660.661.1m	Max Climb Capability	25%
Extension Size	0.48m	Max allowable working angle	1.5°
Min ground clearance	0.1m	Tyre	Φ305*100mm
Weight	1120kg	Wheelbase	1.14m

Model	AMWP6-6100	Min. turning radius (inner)	0
Safe working load	159kg	Min. turning radius (outer)	1.4m
Extended Platform Load	114kg	Lifting/Drive motor	1.3kw/0.5kw
Max working height	8m	Travel speed (retracted)	4km/h
Max platform height	6m	Travel speed (lifting)	1.1km/h
Overall length	1.36m	Ascending/Descending Speed	52/53sec
Overall width	0.82m	Storage battery	2*12V/100ah
Overall height	1.98m	Charger	24v/15A
Platform size	1.30.71.1m	Max Climb Capability	25%
Extension Size	0.51m	Max allowable working angle	2°
Min ground clearance	0.1m	Tyre	Φ305*100mm
Weight	1060kg	Wheelbase	1.04m

Product Parameters

⚙️

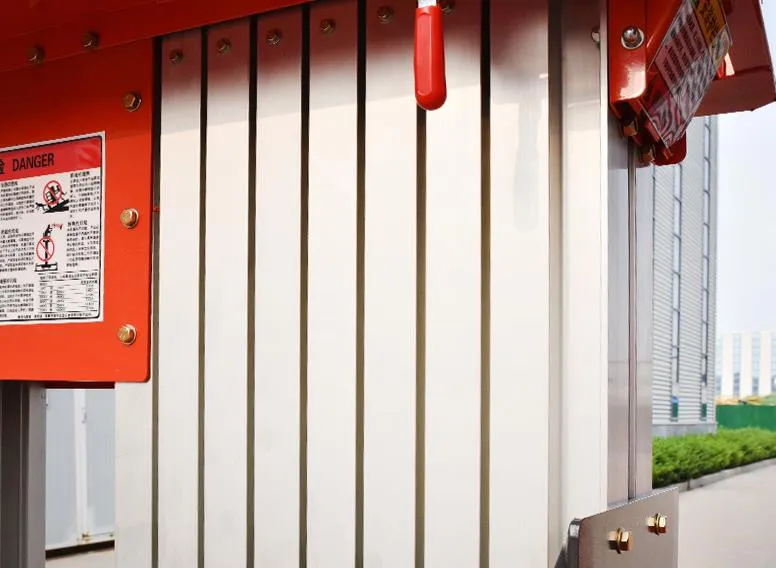

Excellent material selection

Excellent aluminum alloy, corrosion resistance, good stability and strong bearing capacity.

⬆️

Stable lifting

The machine adopts double chain transmission, with good bearing capacity and stable lifting.

🔘

Polyurethane wheel

Sturdy and wear-resistant, suitable for various surfaces with small resistance and no damage to the ground.

📟

Integrated control box

Functions are clear at a glance, making the operation simple and convenient.

Frequently Asked Questions

Q1: What is the maximum working height of these man lifts?

The maximum working height reaches up to 8 meters, with a maximum platform height of 6 meters.

Q2: Can these lifts be used in tight or narrow workshop spaces?

Yes, they feature a compact design with a minimum inner wheel turning radius of 0m, making them ideal for narrow aisles and confined spaces.

Q3: What kind of surfaces are the polyurethane wheels suitable for?

The polyurethane wheels are wear-resistant and designed to walk on various indoor surfaces without causing damage or leaving marks.

Q4: Is the platform extendable for better reach?

Yes, the extension platform can be quickly deployed to reach specific operation points efficiently.

Q5: How is the safety of the lifting mechanism ensured?

The lift uses a stable double chain transmission system combined with high-strength aluminum alloy construction for maximum stability and bearing capacity.

Q6: What is the climbing capability of the vehicular man lift?

The machine features a 25% climbing ability, allowing it to move smoothly over typical workshop slopes and inclines.
