📋Basic Information
Control Mode
Collective Selective Control

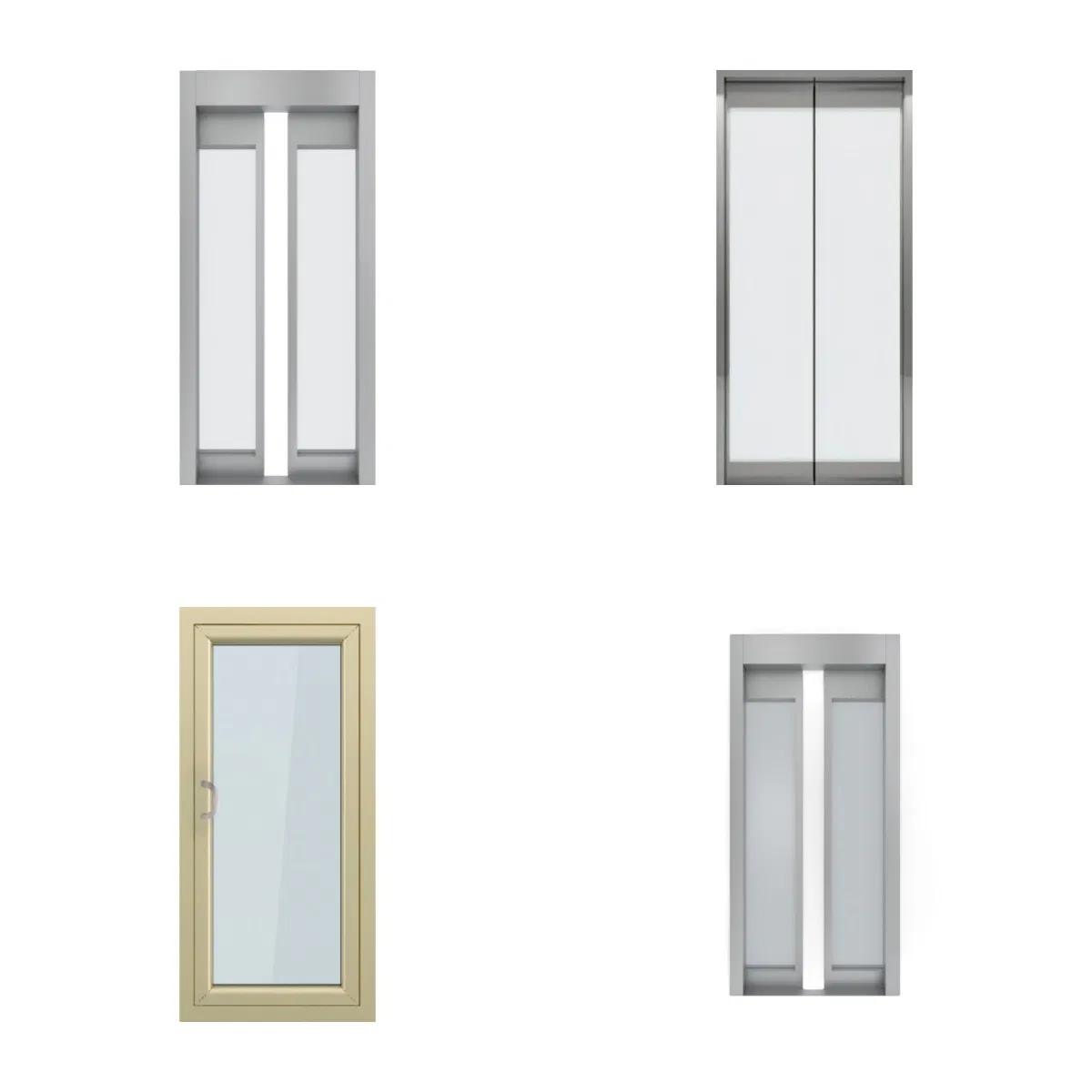

Elevator Door
Center Opening Door
Deceleration
With Deceleration Device
Application
Hotel, Apartment, Office Building
Traction
Gearless Traction Machine

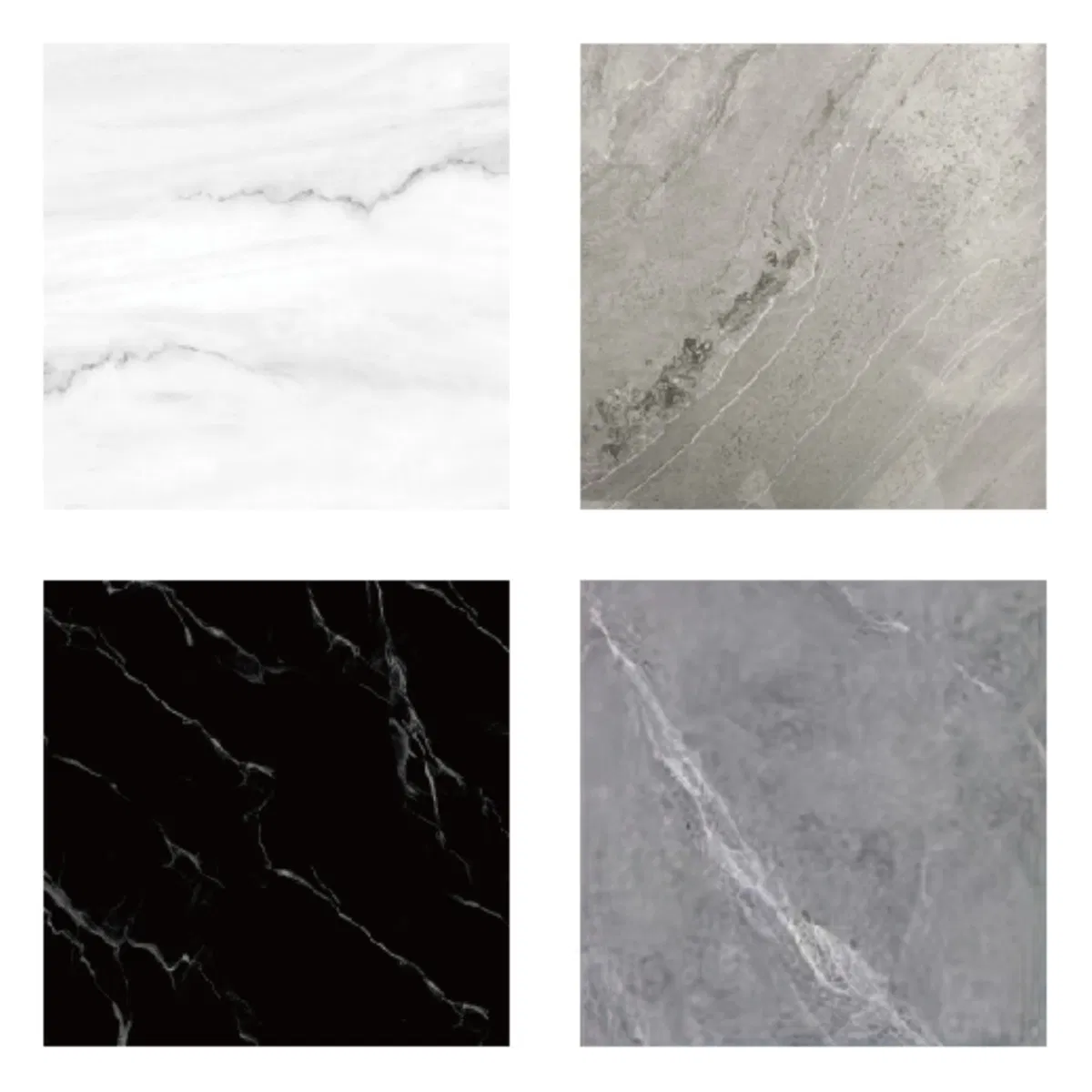

Material
Mirror Etching Panel
Control System
Monarch Vvvf Controller
🏙️Passenger Elevator Features
Our Passenger Elevators are designed for high-rise buildings, offering smooth, quiet rides, high energy efficiency, and fully customizable cabins to match your building's aesthetic.

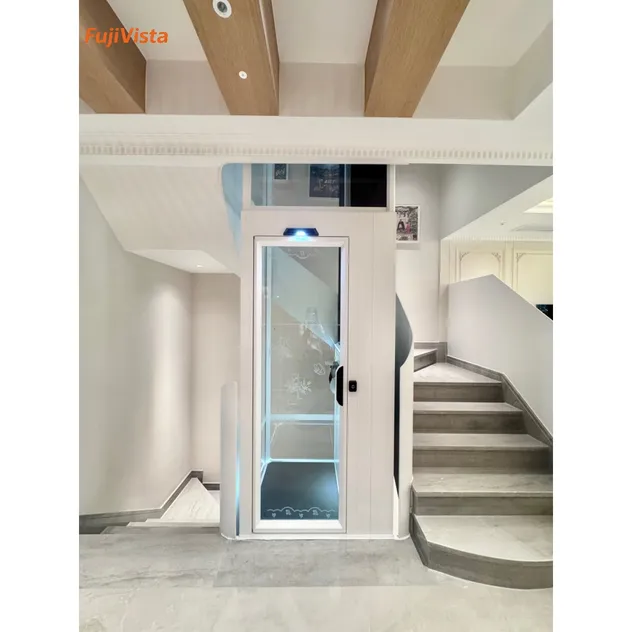

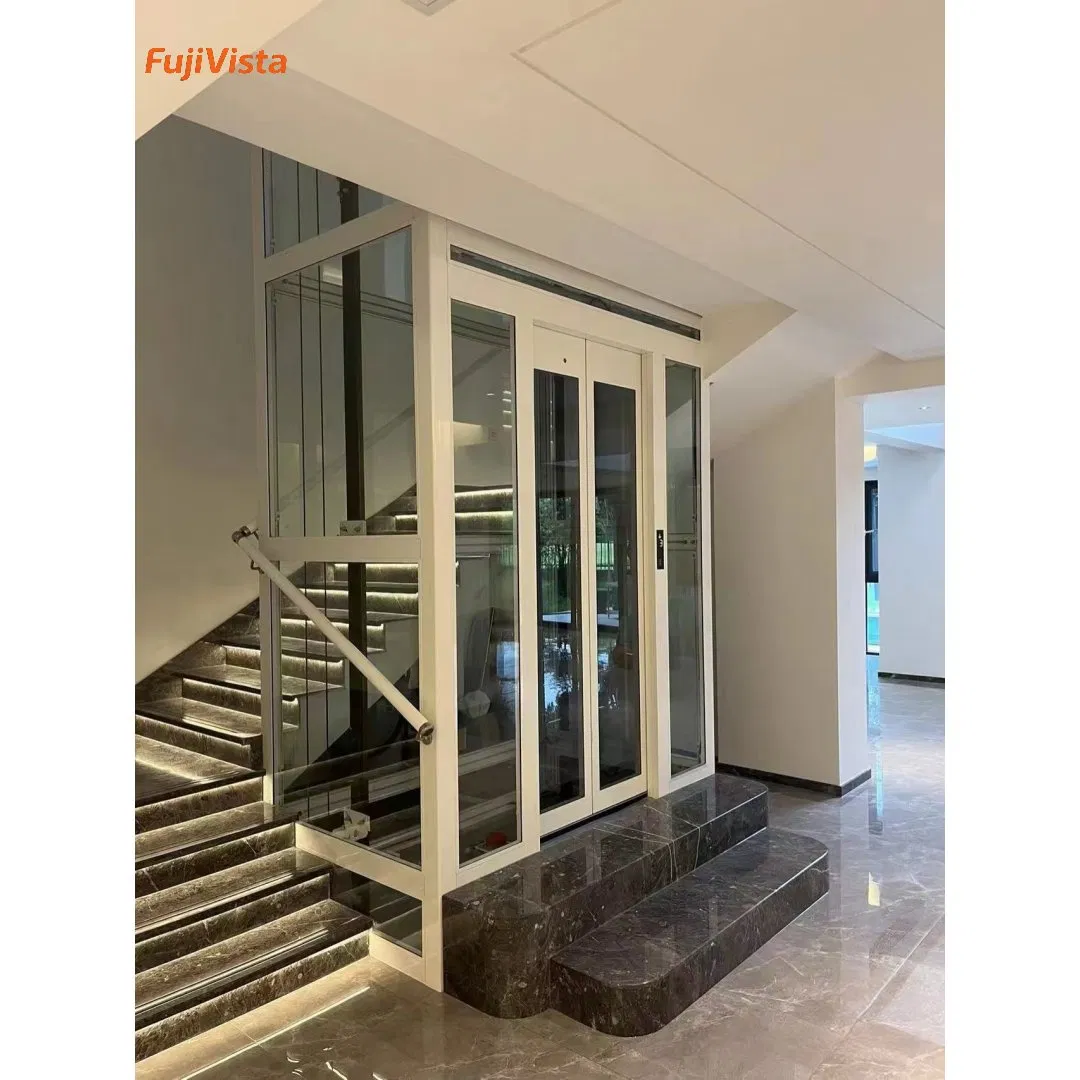

Observation home elevator

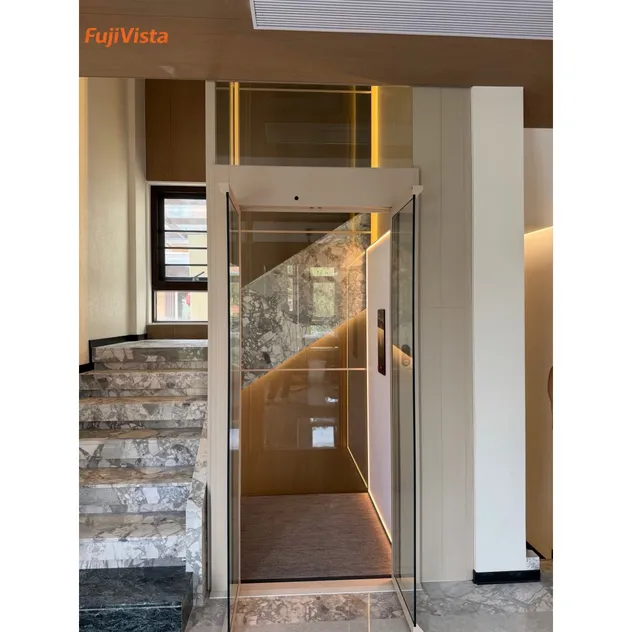

Mirror Villa Lift
Residential Elevator Technology

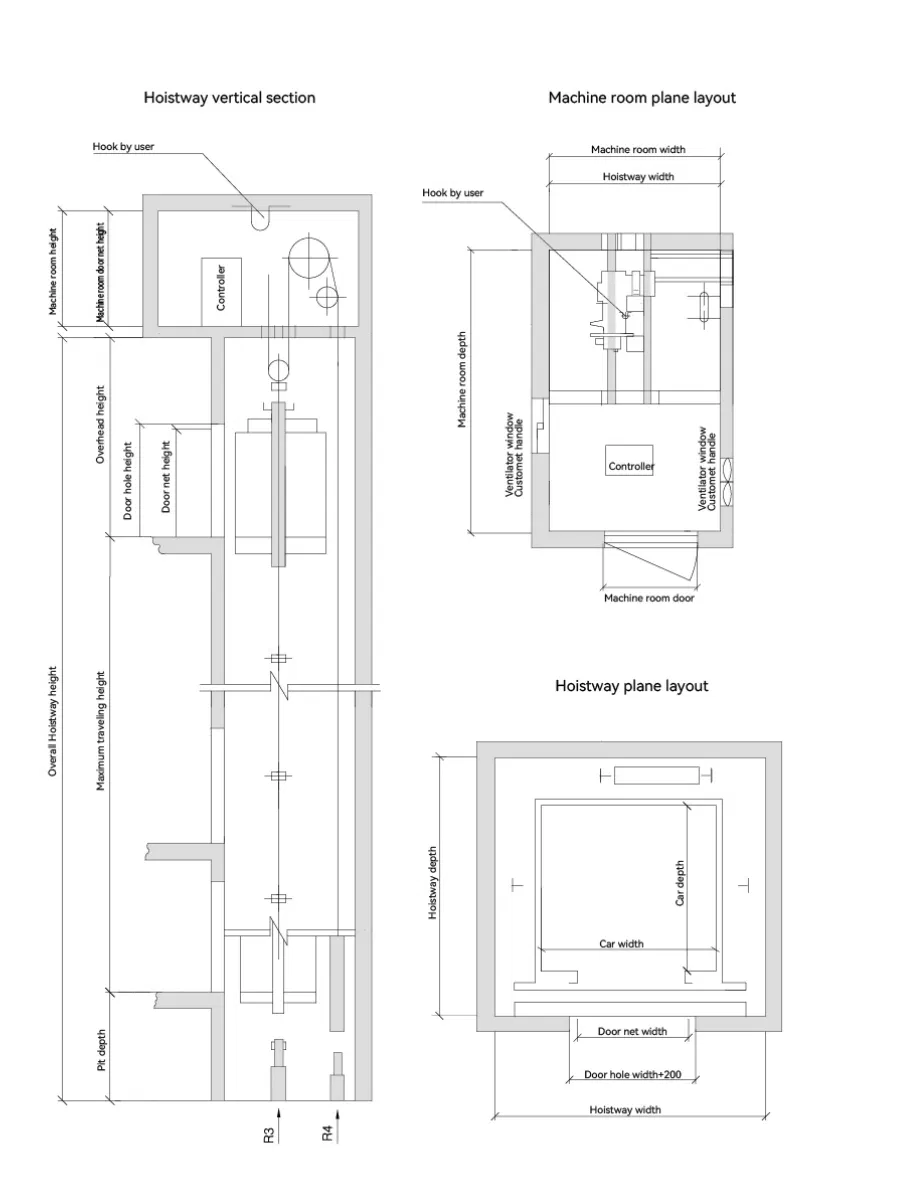

📐Technical Specifications
Installation Guidelines:
- Approved drawings guide installation, meeting strict standards.
- Ensure >50mm step and proper width for machine room to well holes.
- Watering objects must meet graphic standards during installation.
- Buffer base must be created under professional guidance.
| Load (kg) |
Speed (m/s) |
Hoistway Size (mm) |
Machine Room Size (mm) |
Car Dimension (mm) |
Door Net Opening (mm) |
Overhead Height (mm) |
Pit Depth (mm) |
| 630 |
1.0 |
2000×1800 |
2000x3500 |
1400×1100 |
800 |
4500 |
1500 |
| 1.5 |
4600 |
1600 |
| 1.75 |
4700 |
1700 |
| 2.0 |
4900 |
2000 |
* Note: Data for reference only, final manufacture follows contract specifications.
🛠️After Sales & Support
Standard Warranty
12 months post-assembly (excludes transportation fees).
Global Support
24/7 technical help and immediate spare parts availability.
Professional Training
On-site or remote operation and maintenance training programs.

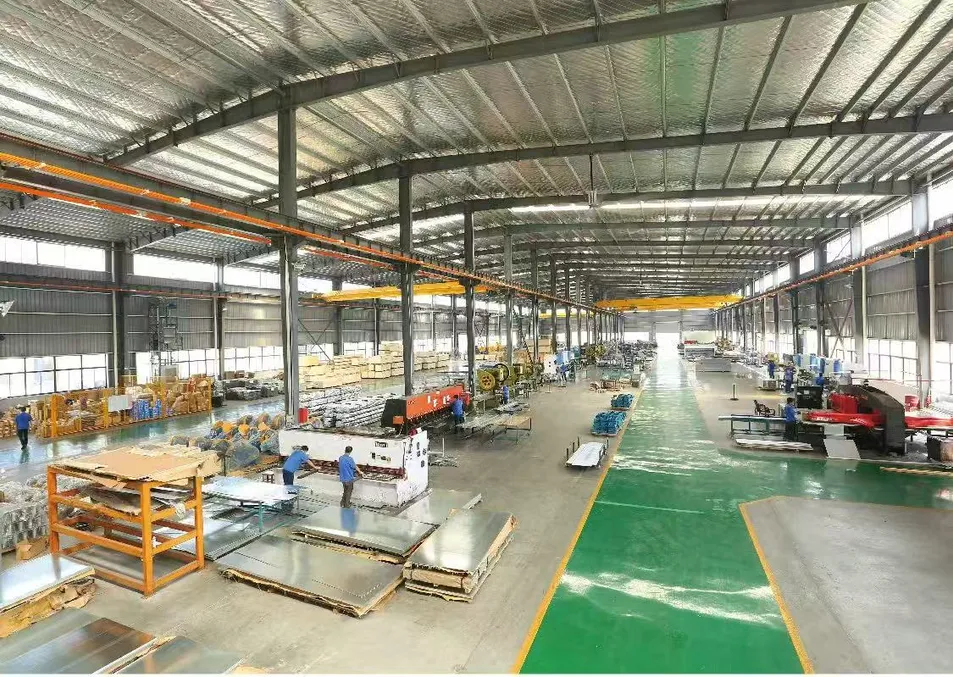

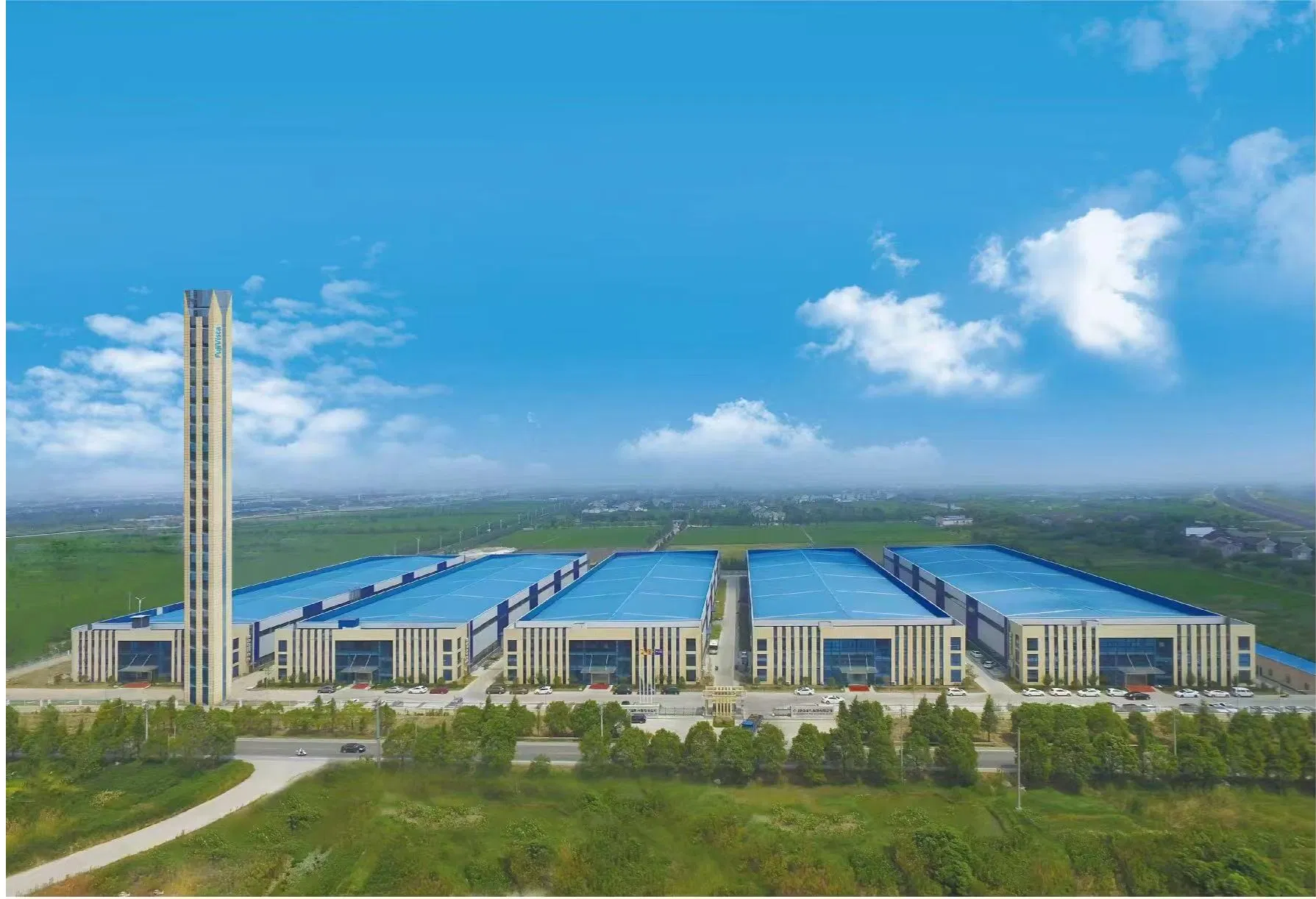

🏭Our Capabilities
As a leading elevator manufacturer with ISO 9001 and CE certifications, we export to over 10 countries. Our focus remains on high-quality R&D and precision engineering.
Why Choose Us?
OEM/ODM capabilities, competitive pricing, bulk discounts, and turnkey project solutions.
Product Range
Home elevators, Freight elevators, Sightseeing elevators, and customized vertical transport.
❓Frequently Asked Questions
Q: How do we handle installation after purchase?
A: We provide complete manuals and technical drawings. You can hire local teams while our engineers offer remote guidance to ensure a successful setup.
Q: How is the risk of damage during sea freight managed?
A: We use reinforced wooden crates and anti-rust packaging. Additionally, we provide full insurance under CIF terms to protect your investment.
Q: What is the typical timeline for a customized elevator?
A: 1. Design: Proposal in 3 days after hoist-way details are submitted. 2. Production: Starts post-deposit. 3. Delivery: Typically ships 15 days after final balance.
Q: What are the accepted payment terms?
A: We use secure terms: 30% deposit to start production and 70% balance due post-production but before shipment, primarily via T/T.
Q: What additional costs should I consider besides the elevator quote?
A: Our CIF quotes include the product, export packaging, and freight/insurance. You should plan for local import duties, customs fees, inland transport, and local installation labor.
Q: What does the standard warranty cover?
A: We provide a 12-month warranty starting after assembly, which covers technical defects. We also maintain 24/7 global tech support and spare parts availability.
