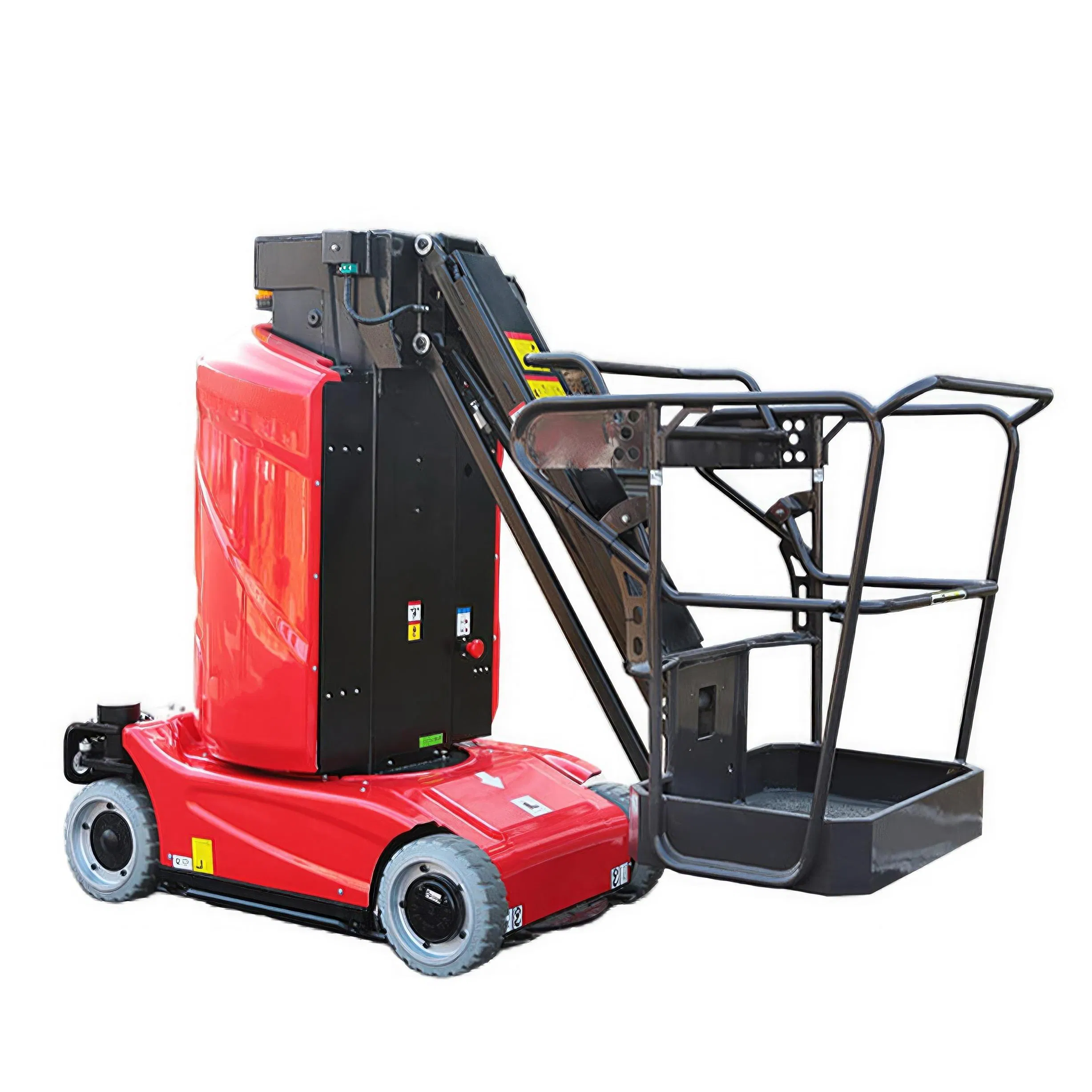

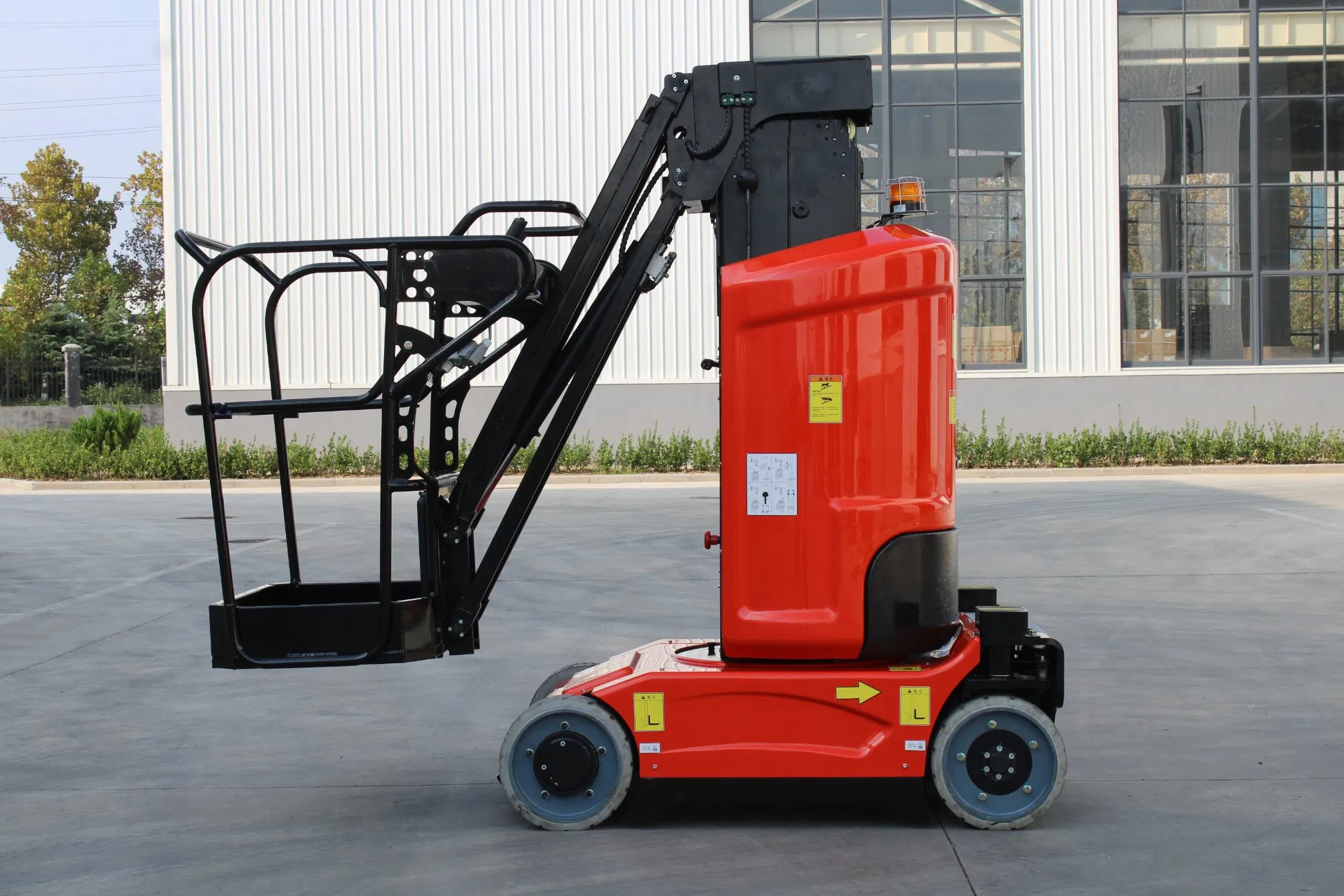

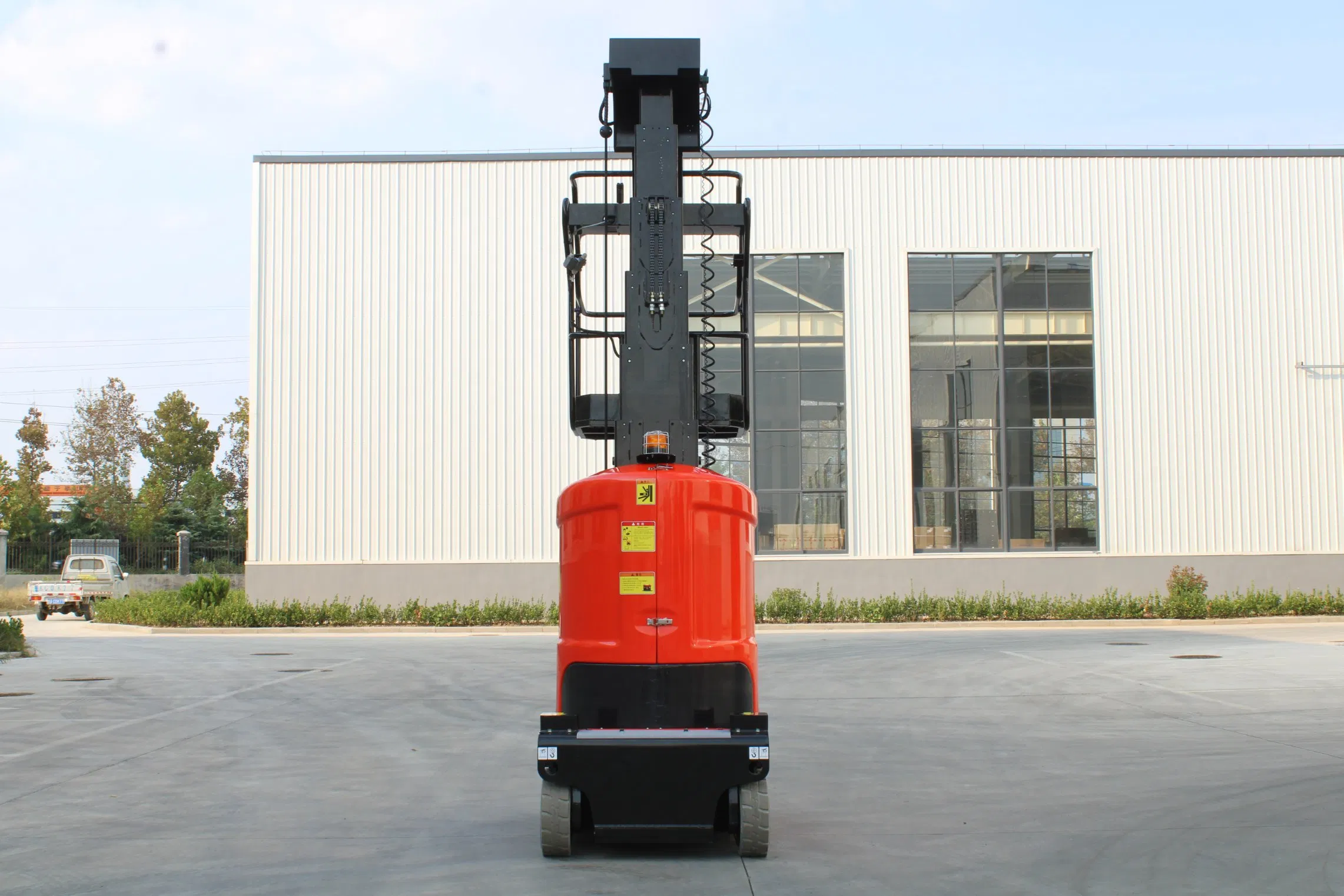

CE Certificated 9.2m Self Propelled Electric Jib Telescopic Vertical Mast Lift with Jib

Customization: Available
After-sales Service: Free Parts
Warranty: 24 Months

Product Description

Basic Information

Model NO.
AMWP-8100
Lift Mechanism
Articulated Lift
Load Capacity
200kg
Min. Lifting Height
9.2m
Driven Type
Hydraulic
Certification
GS, CE, ISO 9001
Power
220V/380V
Weight
2950kg

Product Description

The vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom. With an ultra-narrow design, a mast boom lift with a jib is ideal for compact areas that require up-and-over capabilities. Suitable for both indoor and outdoor applications.

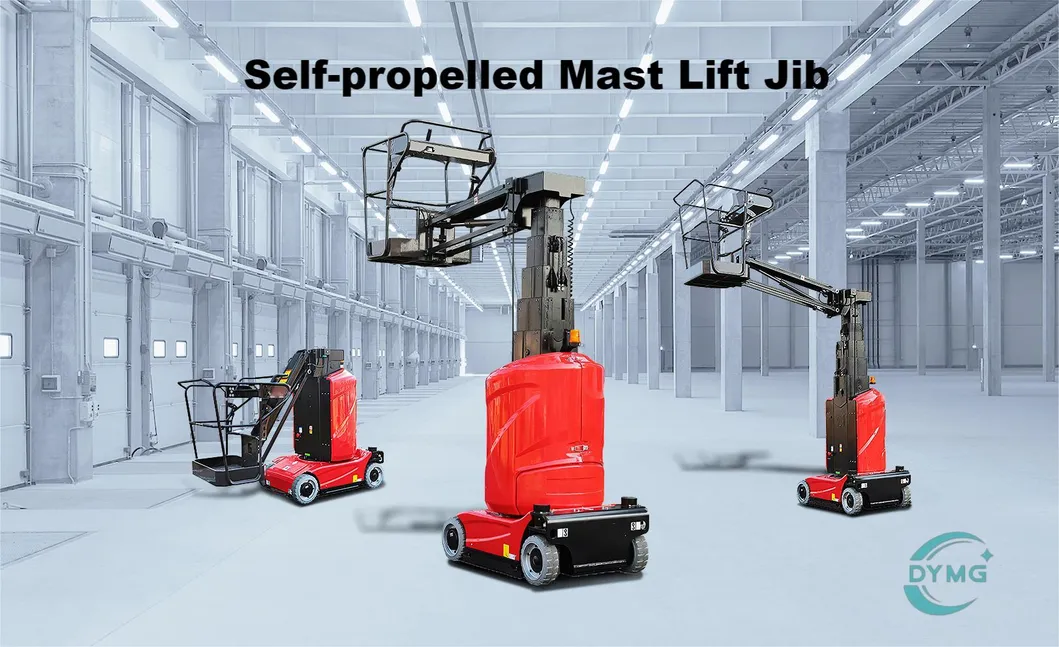

Vertical Mast Lift

Technical Parameters

ModelAMWP11.2-8100
Max. Working Height11.2m
Max. Platform Height9.2m
Loading Capacity200kg
Max. Horizontal Reach3m
Up and Over Height7.89m
Overall Dimension2.53m × 1.0m × 1.99m
Platform Dimension0.62m × 0.87m × 1.1m
Travel Speed (Stowed)4.5km/h
Battery24V/240Ah
Weight2950kg

Main Features

Versatility: Vertical mast and jib combination allows motion and reach in tight indoor and outdoor sites.
Compact Design: Specifically designed for confined spaces where larger equipment cannot fit.
Maneuverability: Self-propelled units enhance productivity and reduce manual labor on job sites.
Safety: Equipped with guardrails, harness points, and stability systems for operator protection.

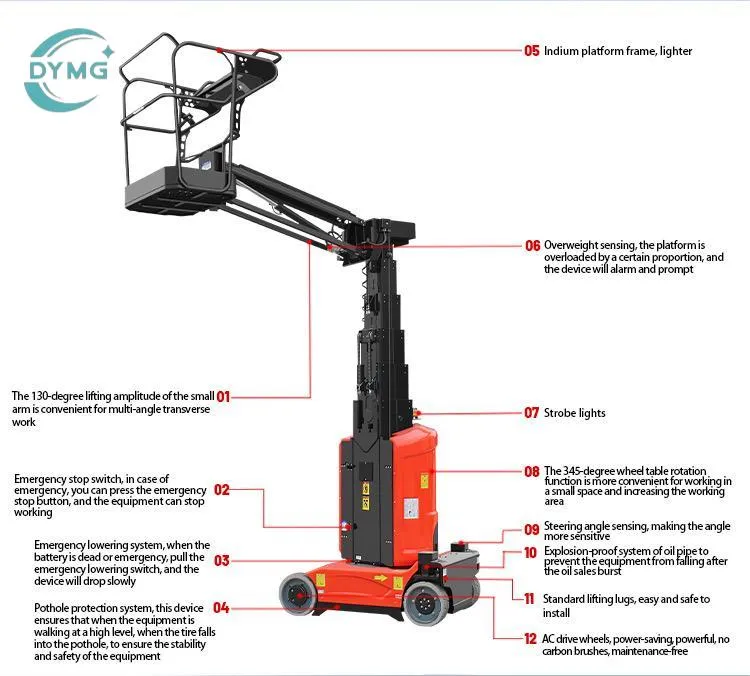

Features Display

Product Photos

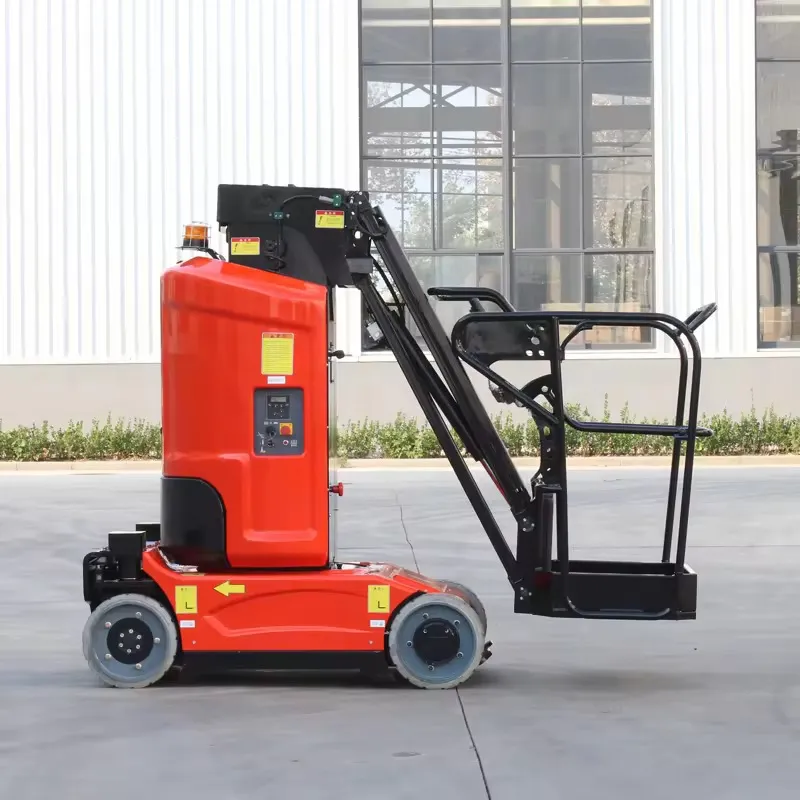

Photo 1

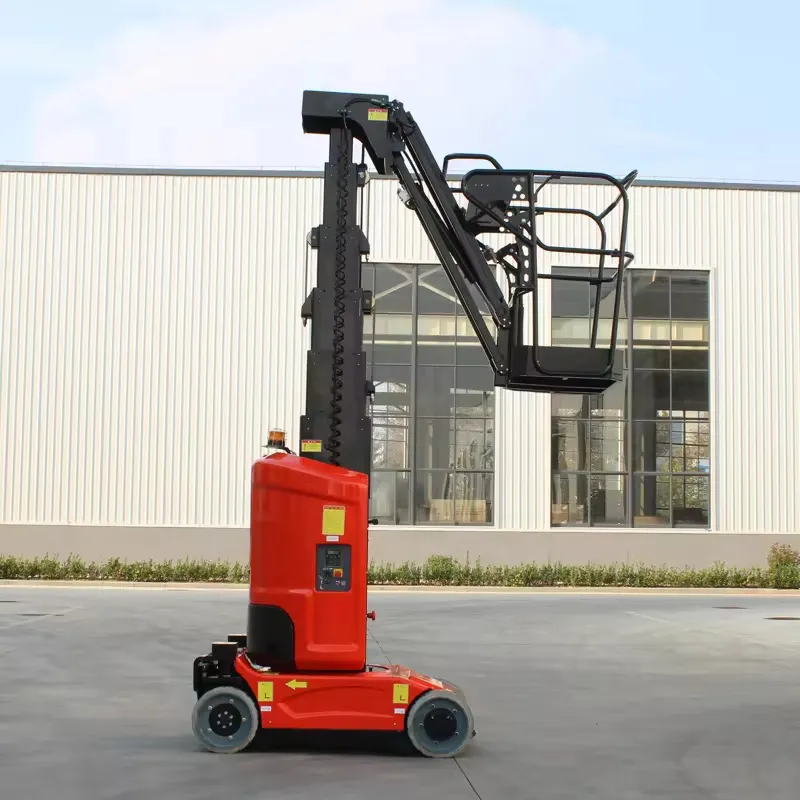

Photo 2

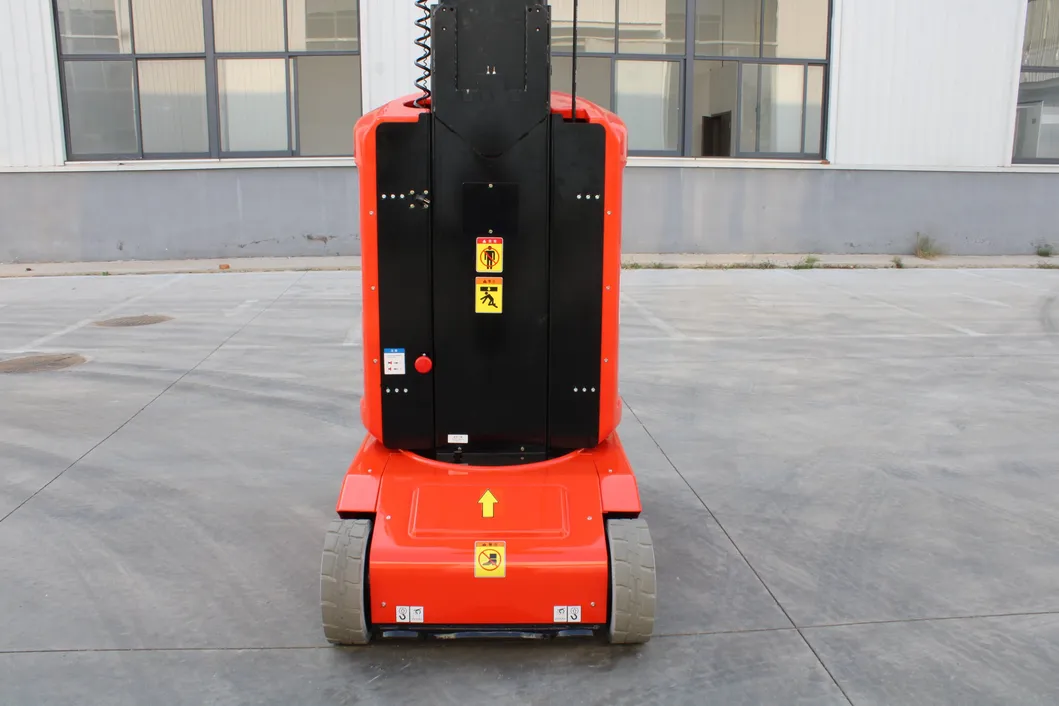

Photo 3
Photo 4

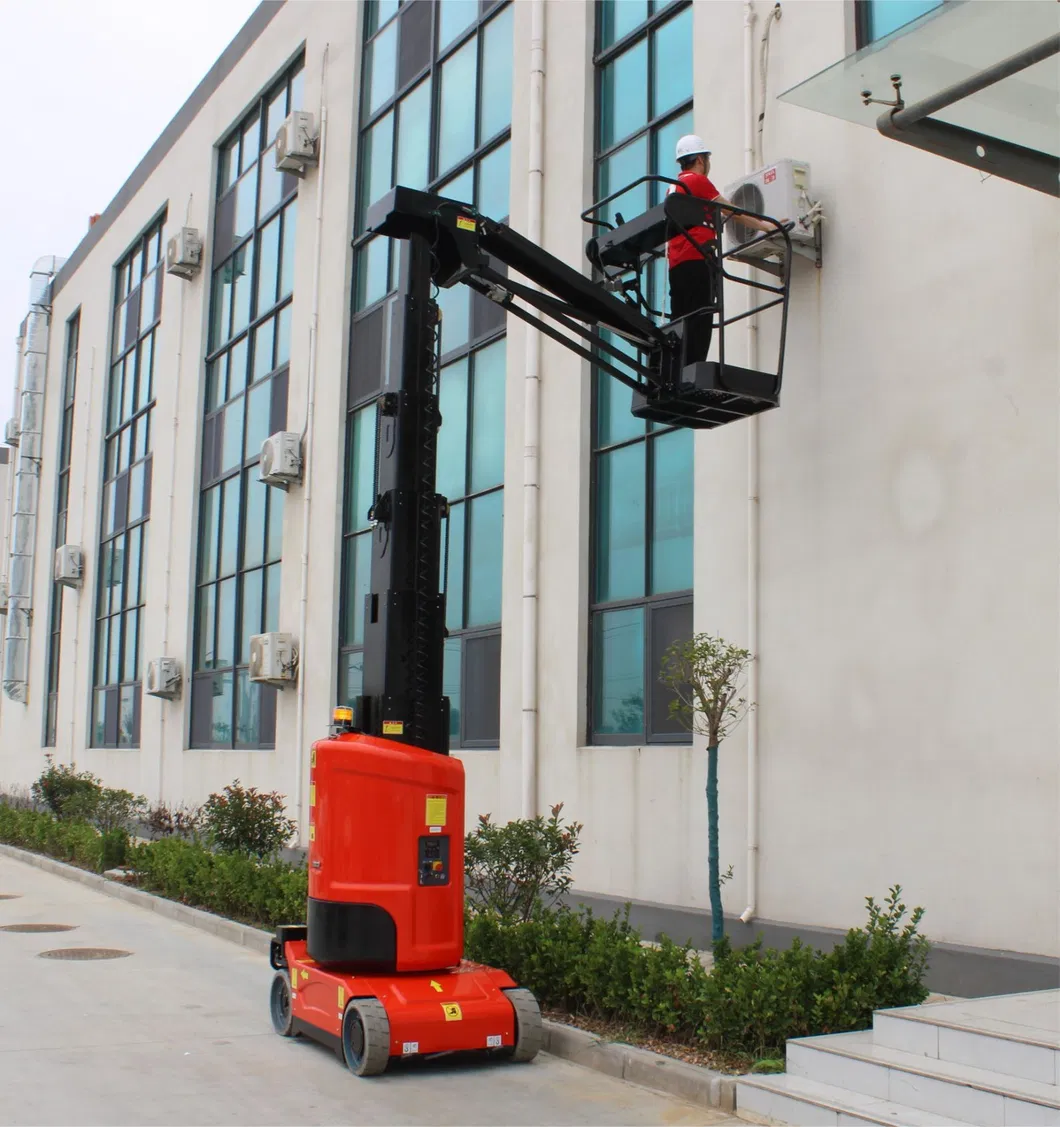

Photo 5

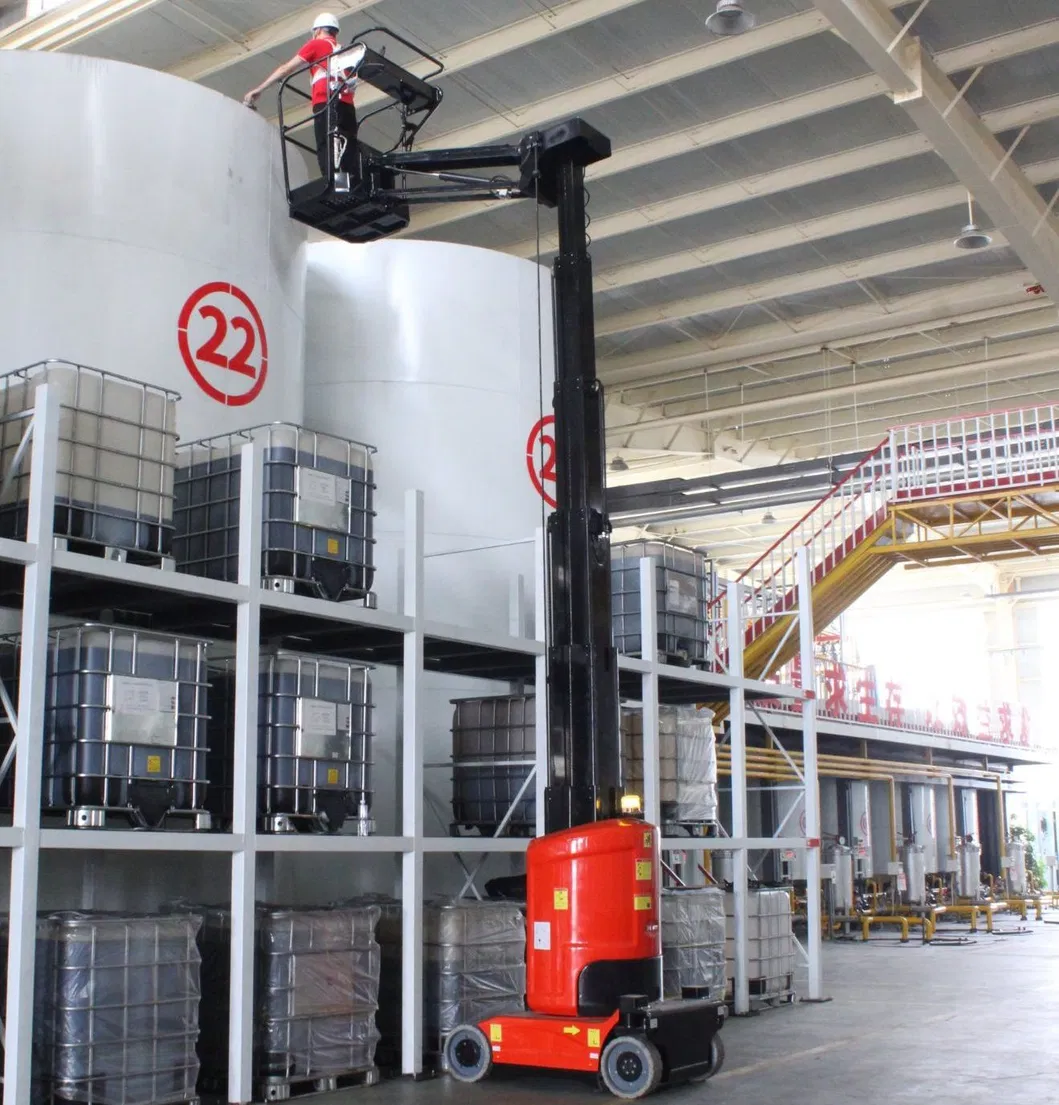

Photo 6

Packaging & Shipping

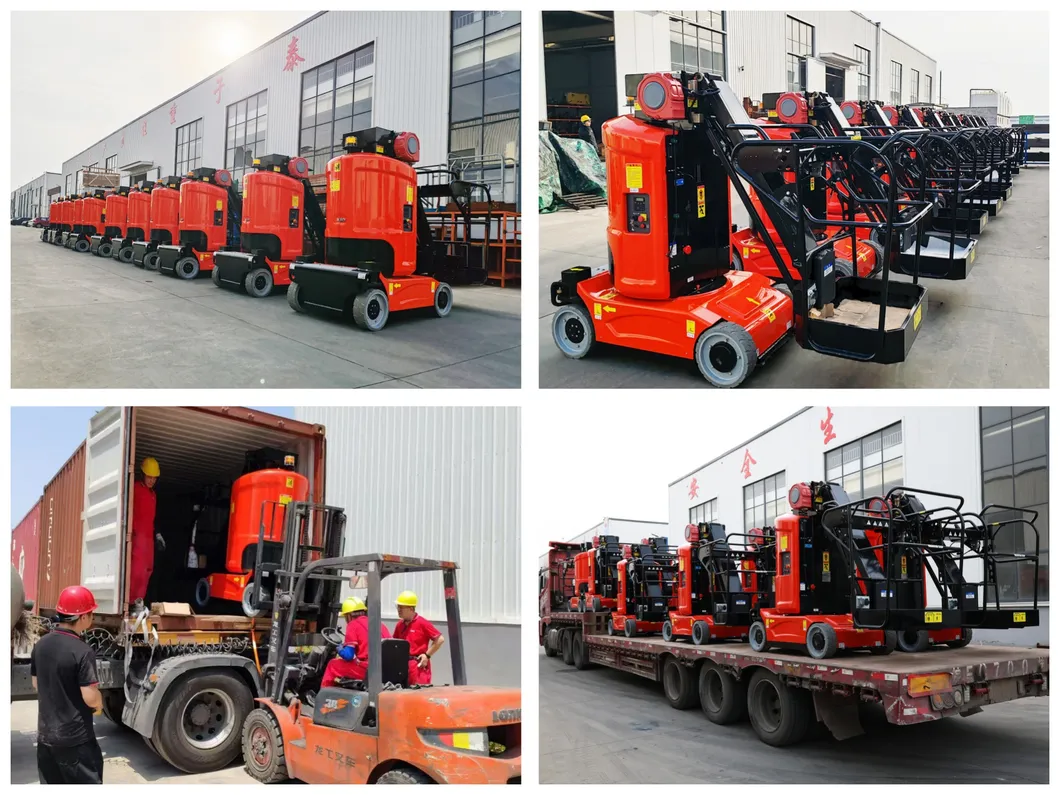

Shipping

Company Profile

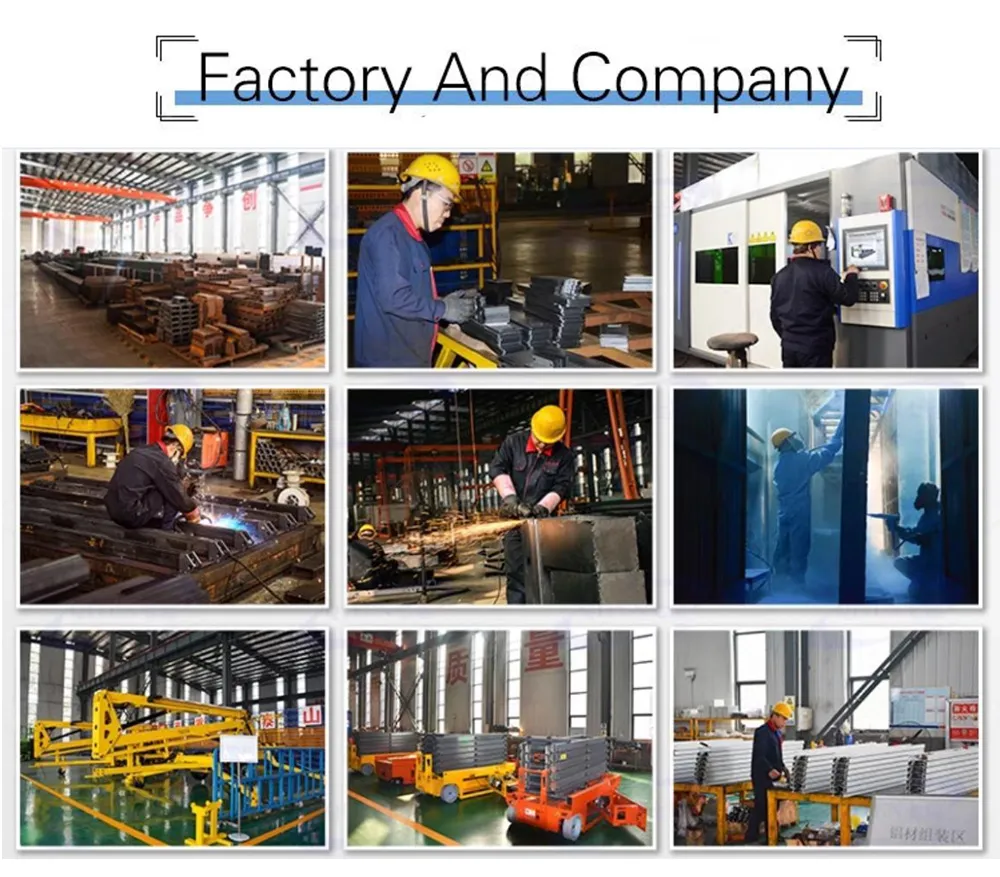

Factory

We are a professional manufacturer of hydraulic lifting platforms in China. Our factory features advanced production equipment, strong technical force, and reasonable technological processes. We utilize high-quality hydraulic systems from Italy and Germany, including explosion-proof and self-locking devices. Our products are known for novel design, stable lifting, and simple operation.

Main products include scissor lifts, aluminum alloy mast lifts, boom lifts, and dock levelers. All products comply with national industry standards and are exported to over 150 countries. We are committed to highlighting product quality and service value to maintain long-term customer relationships.

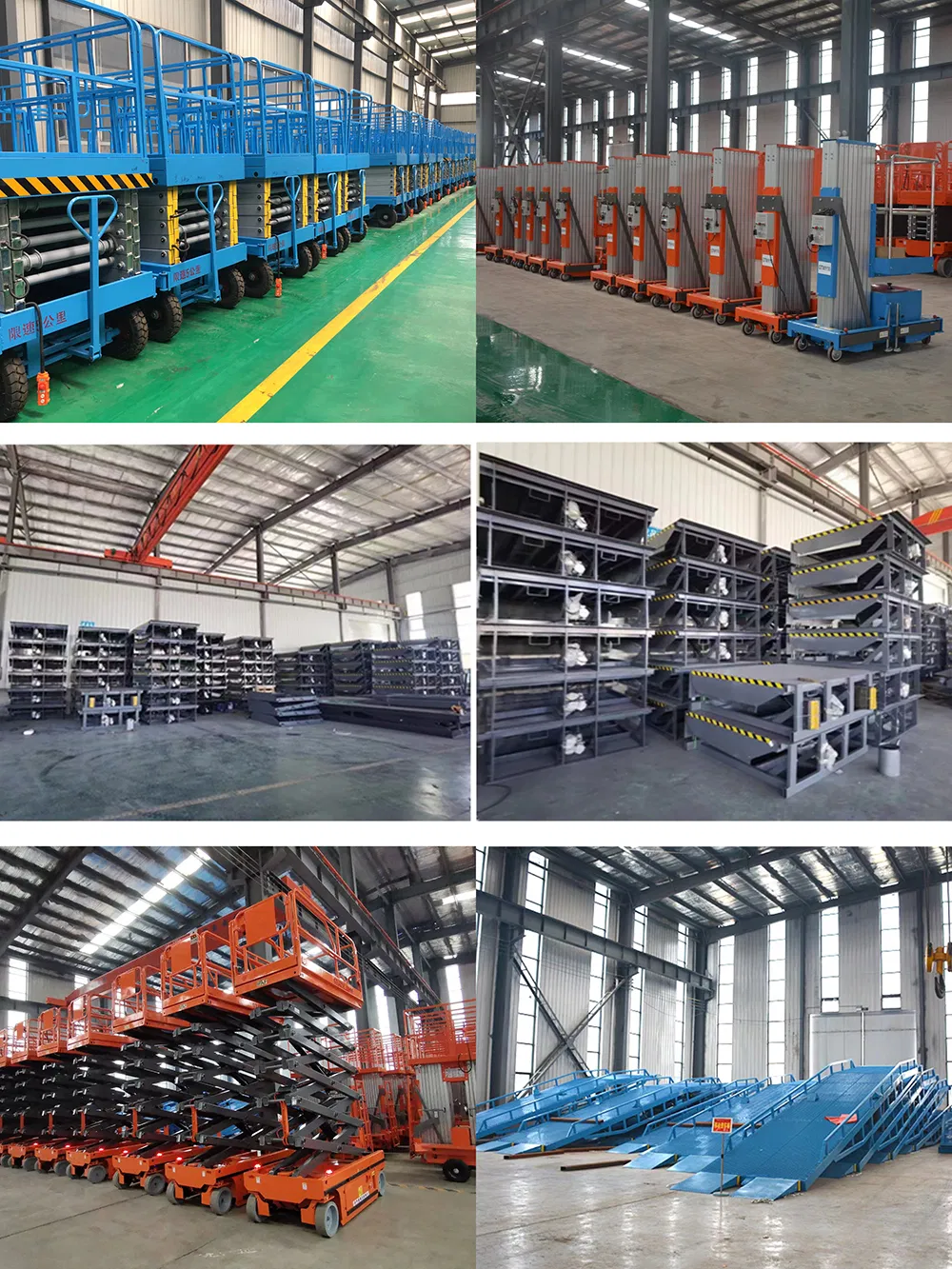

Workshop 1

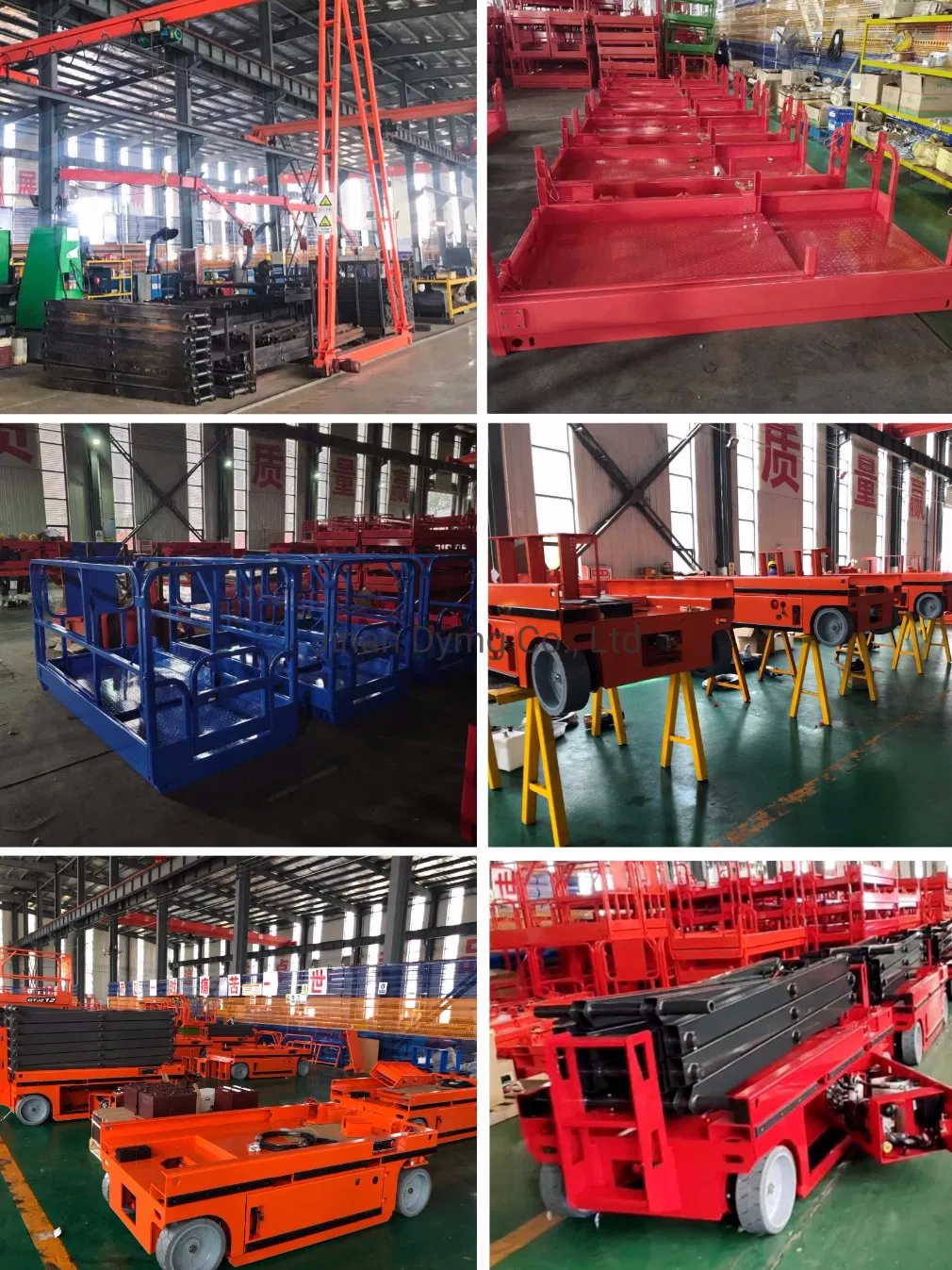

Workshop 2

Frequently Asked Questions

1. What is the maximum working height of this lift?
The maximum working height is 11.2 meters, with a maximum platform height of 9.2 meters.
2. What is the load capacity of the AMWP-8100?
The lift has a loading capacity of 200kg, suitable for operators and their necessary tools.
3. Can this equipment be used in narrow indoor aisles?
Yes, its ultra-narrow design and compact dimensions (1.0m width) make it ideal for tight indoor spaces and warehouse aisles.
4. What kind of power source does it use?
It is powered by a 24V/240Ah battery system and can be charged via 220V or 380V power sources.
5. How long is the warranty period?
The product comes with a comprehensive 24-month warranty period.
6. What is the typical lead time for an order?
Standard models in stock can be delivered within 5 days. Customized orders typically take about 15 working days.
