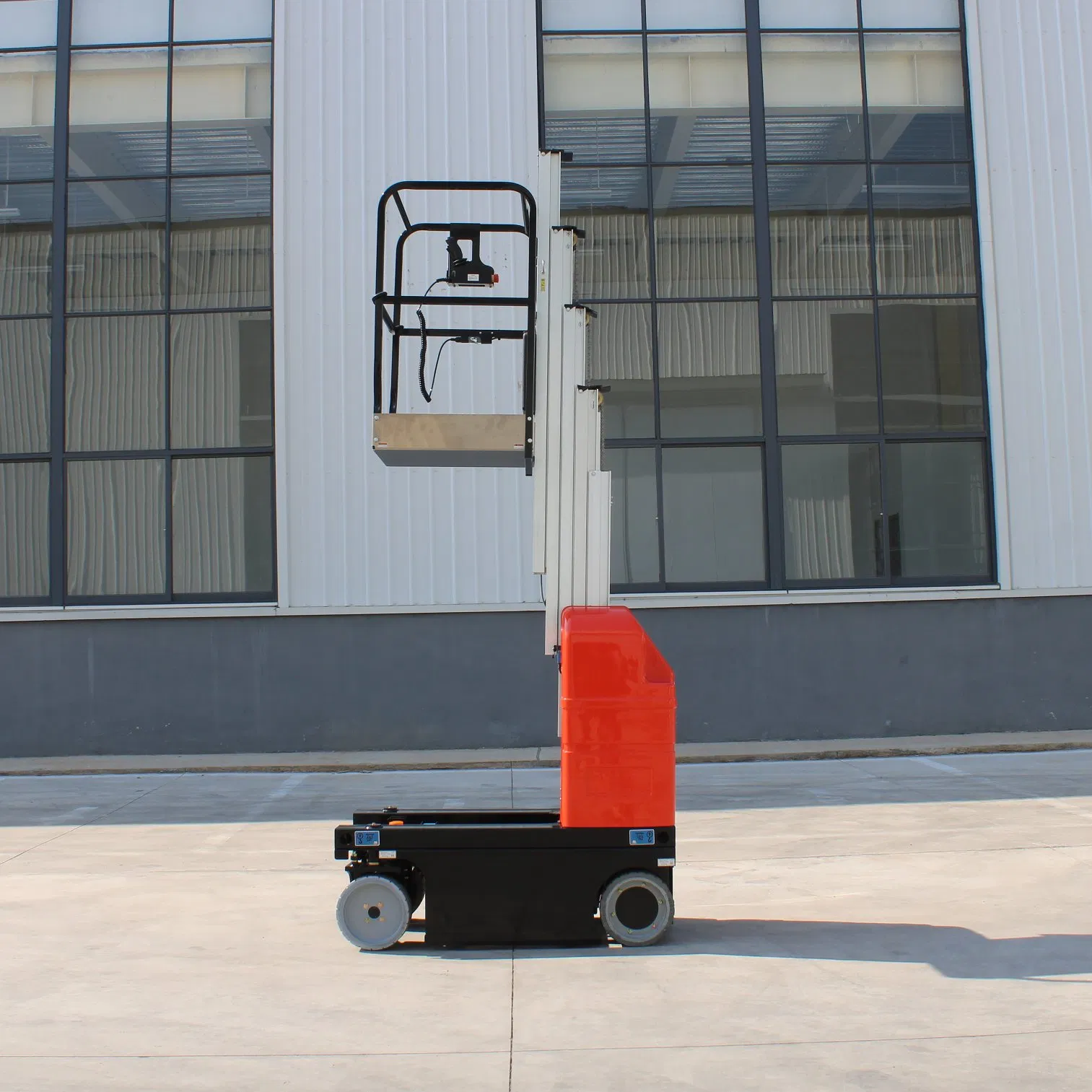

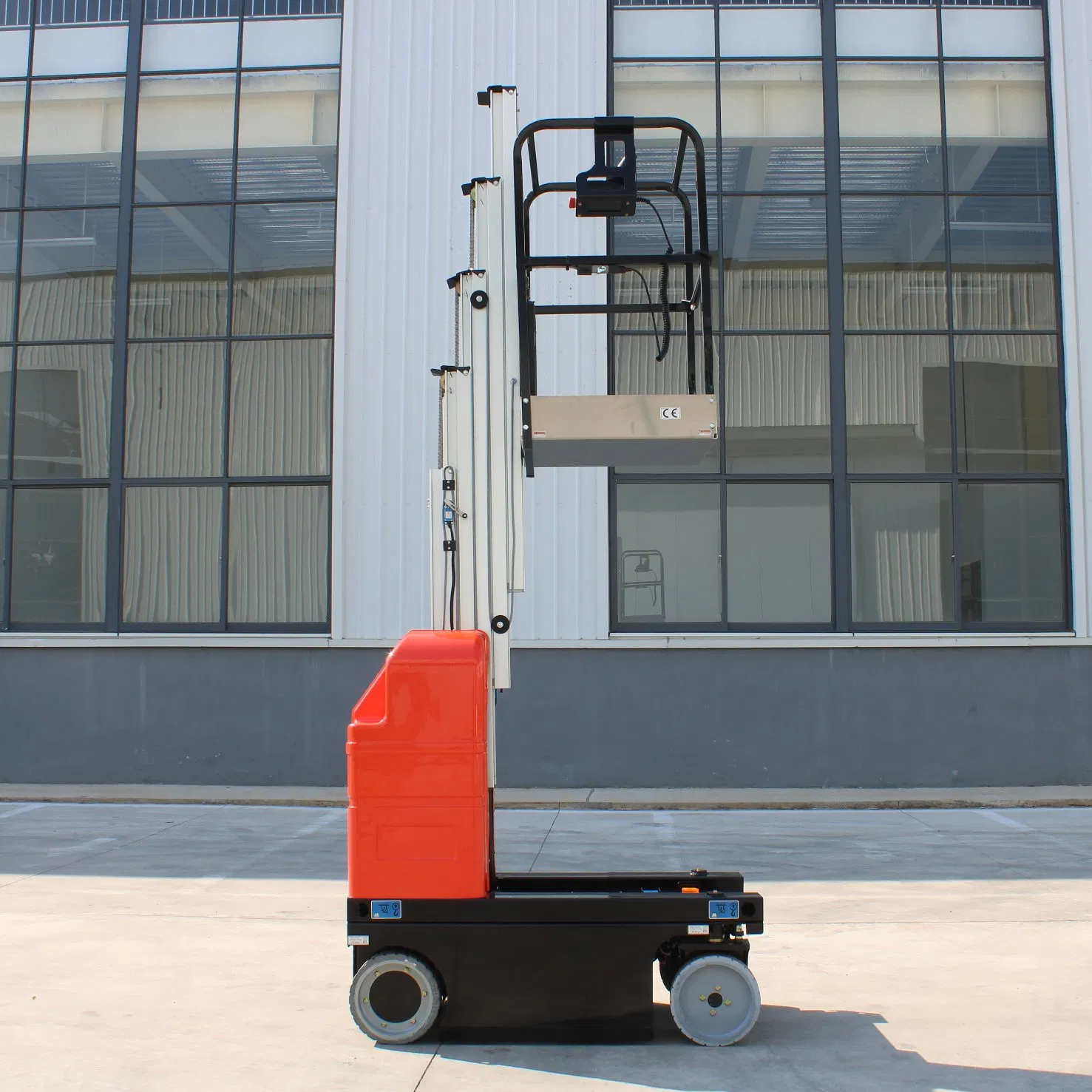

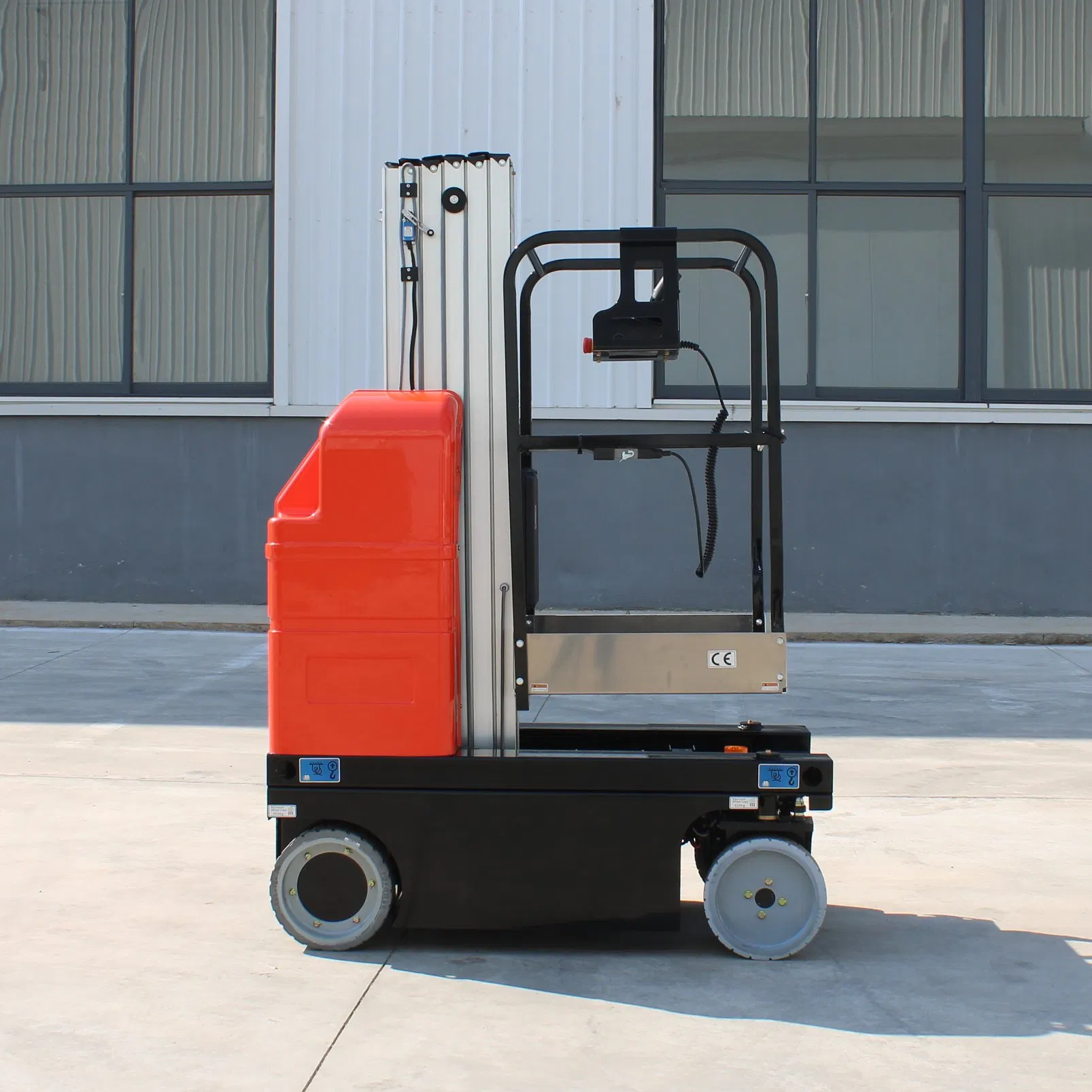

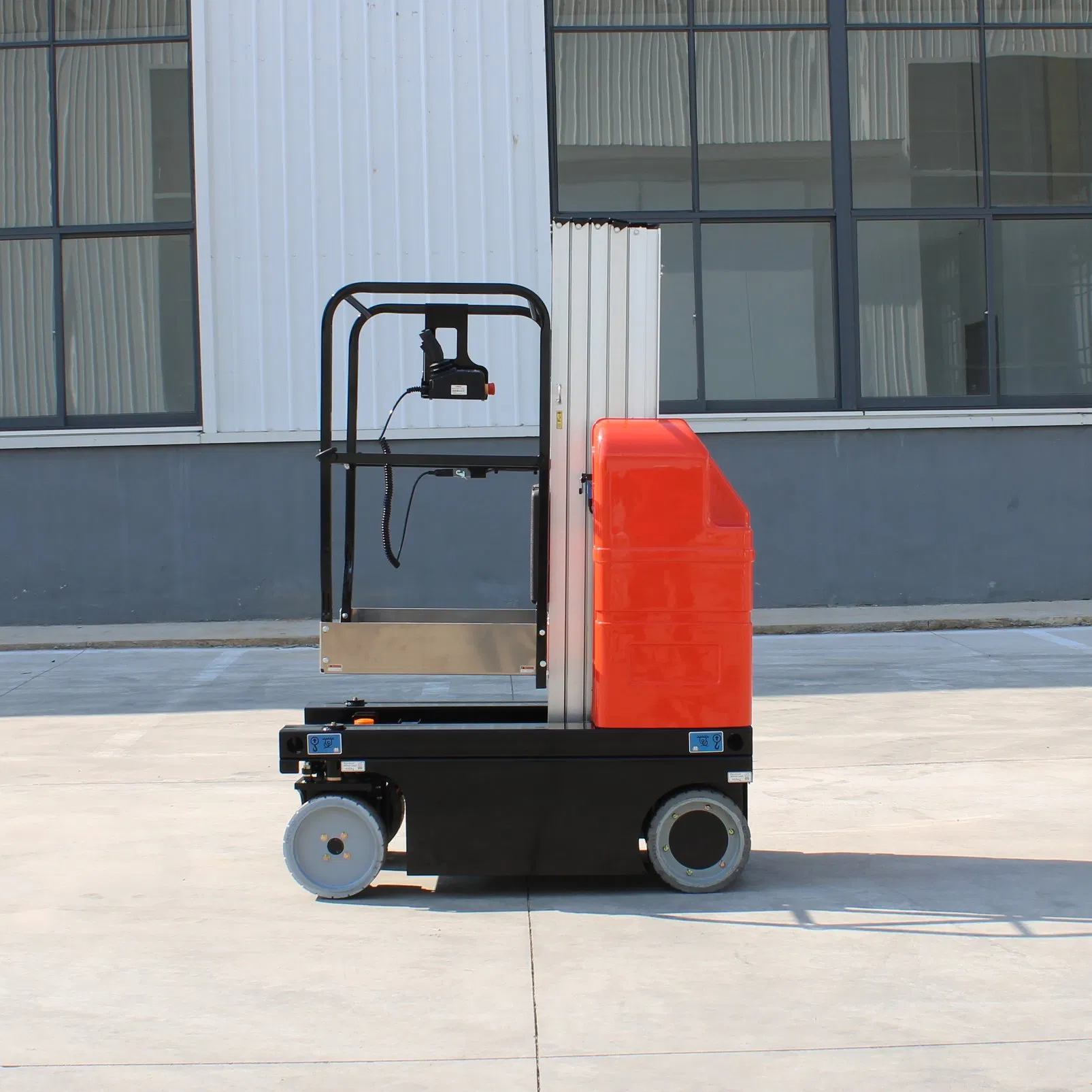

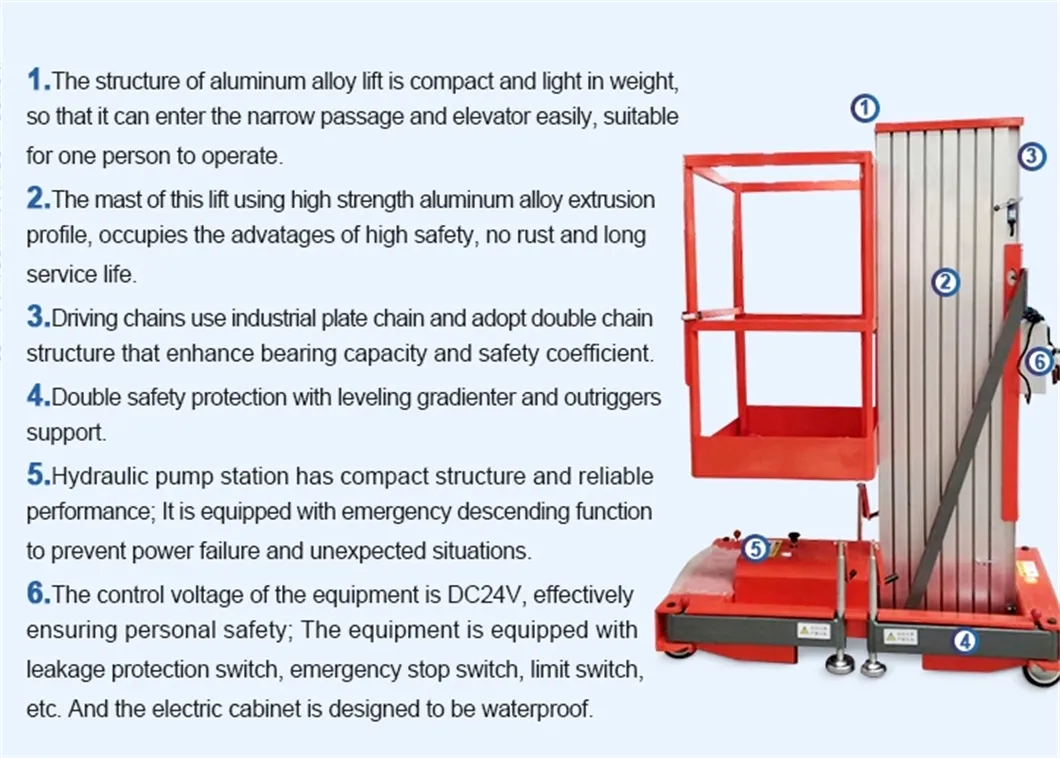

Hydraulic vertical mobile aluminium alloy lift platform is primarily constructed from high-strength aluminum alloy. It features a compact and refined appearance, with small total dimensions and low weight for easy and convenient operation. Its design allows it to navigate narrow spaces such as doors, corridors, and elevators.
✔ Ideal Assistant: Perfect for aerial work in hotels, supermarkets, airport waiting rooms, museums, and gymnasiums for cleaning and maintenance tasks.
| Product Model | Platform Height (m) | Working Height (m) | Capacity (kg) | Platform Size (m) | Voltage (V) | Power (kW) | Weight (kg) | Dimension (m) |
|---|---|---|---|---|---|---|---|---|
| GTWY4-100 | 4 | 5.7 | 125-150 | 0.64*0.58 | AC220V | 0.75 | 200 | 1.18*0.75*1.65 |
| GTWY5-100 | 5 | 6.7 | 125-150 | 0.64*0.58 | AC220V | 0.75 | 250 | 1.3*0.80*1.65 |
| GTWY6-100 | 6 | 7.7 | 125-150 | 0.64*0.58 | AC220V | 0.75 | 280 | 1.3*0.80*1.65 |
| GTWY8-100 | 8 | 9.7 | 125-150 | 0.64*0.58 | AC220V | 0.75 | 300 | 1.28*0.80*1.98 |
| GTWY9-100 | 9 | 10.7 | 125 | 0.64*0.58 | AC220V | 0.75 | 320 | 1.35*0.85*1.98 |
| GTWY10-100 | 10 | 11.7 | 125 | 0.64*0.58 | AC220V | 1.1 | 380 | 1.55*0.9*1.98 |

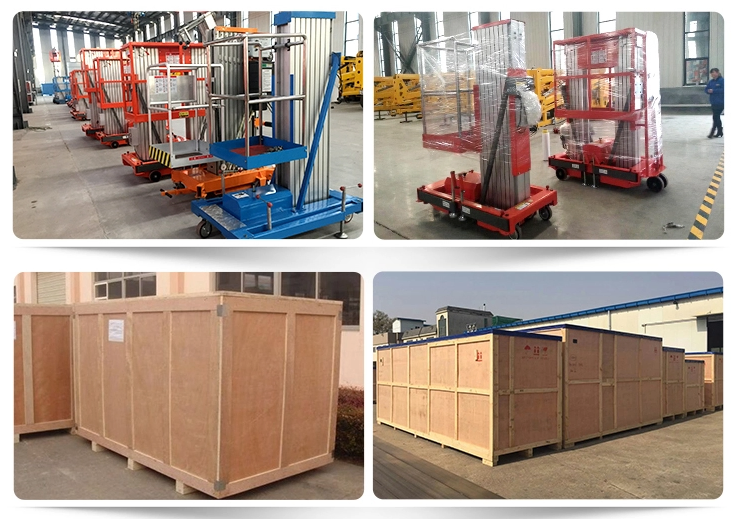

⚡ Standard Export Packing: All products are packed using standard export methods or customized according to specific customer requirements to ensure safe transit.
