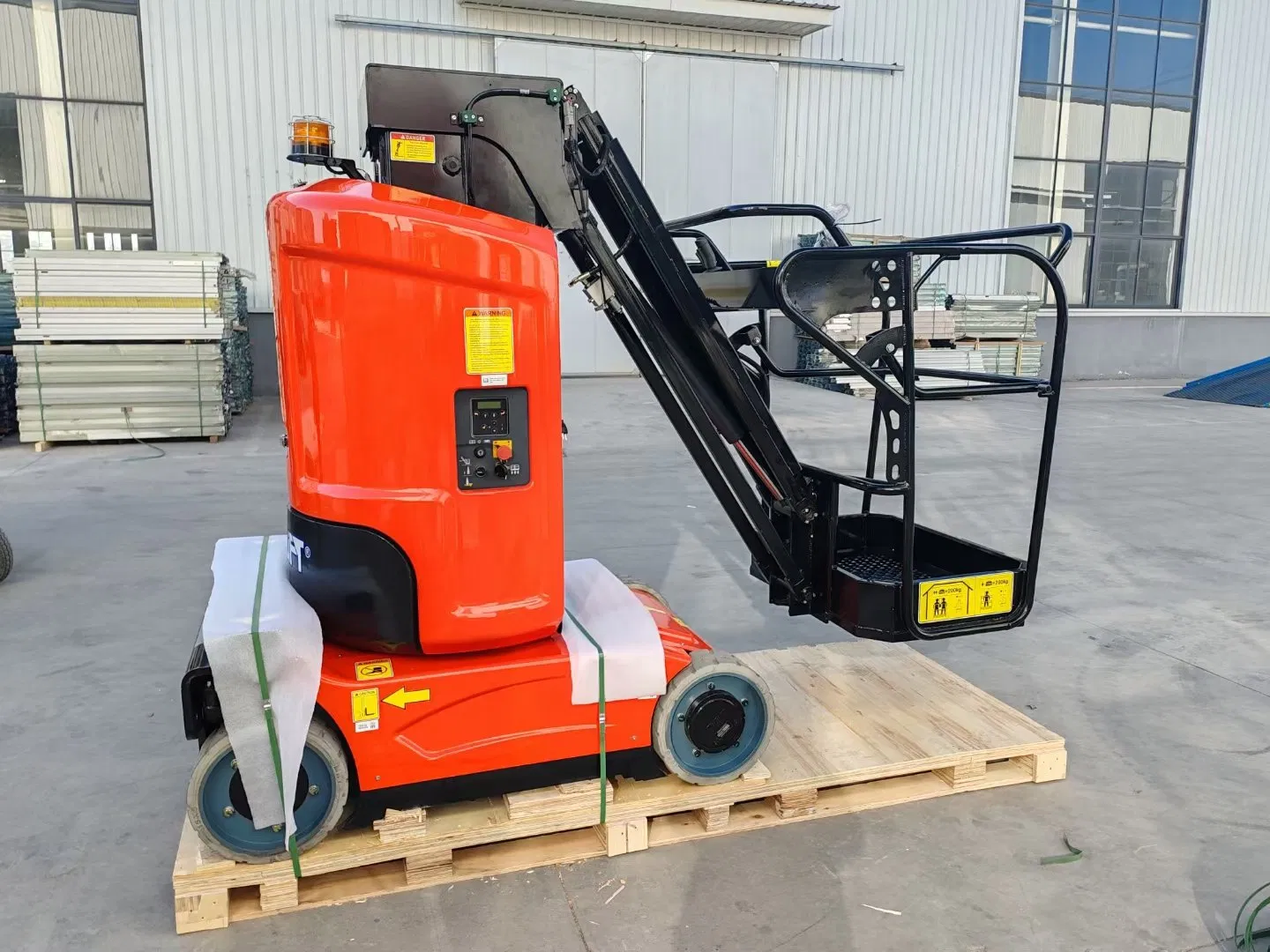

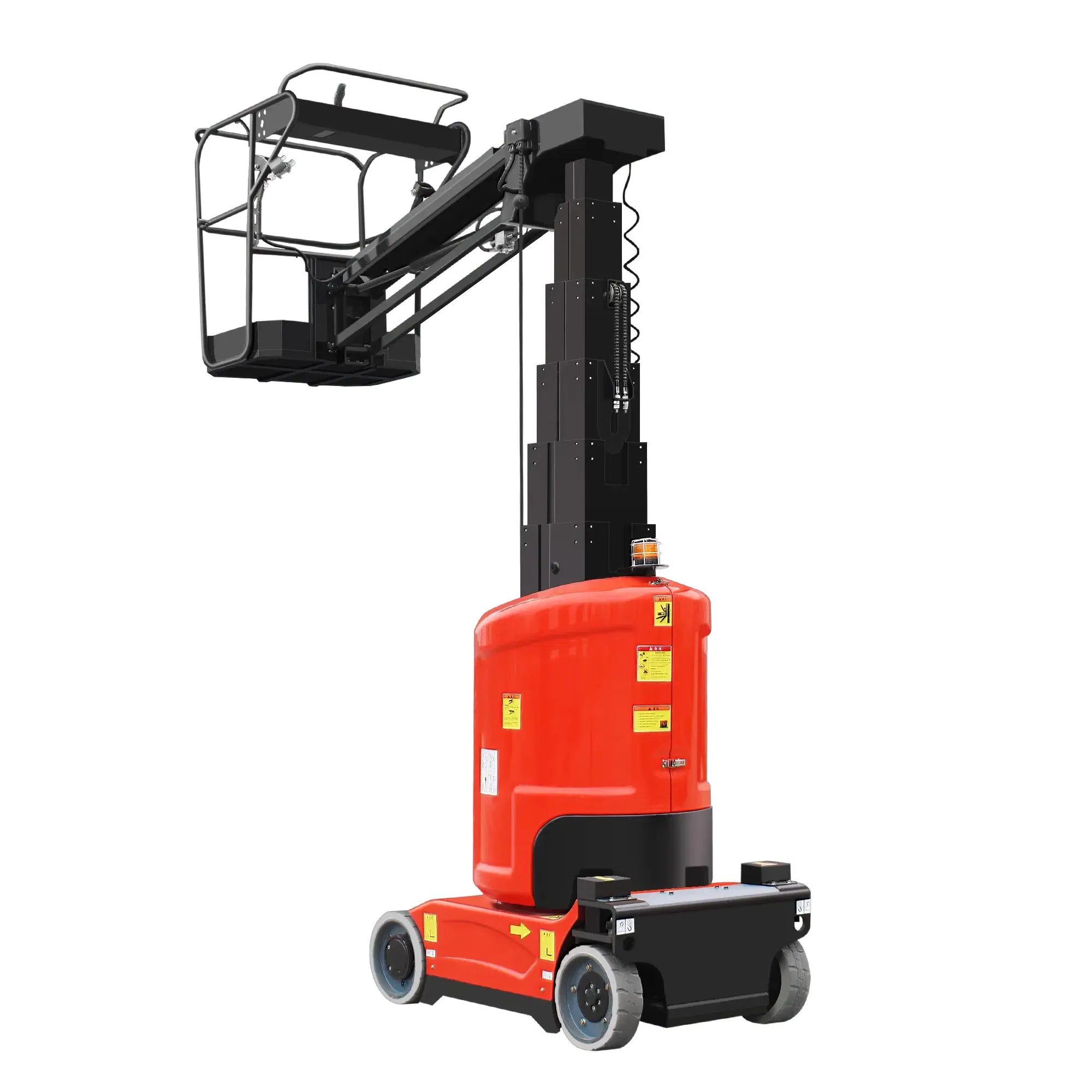

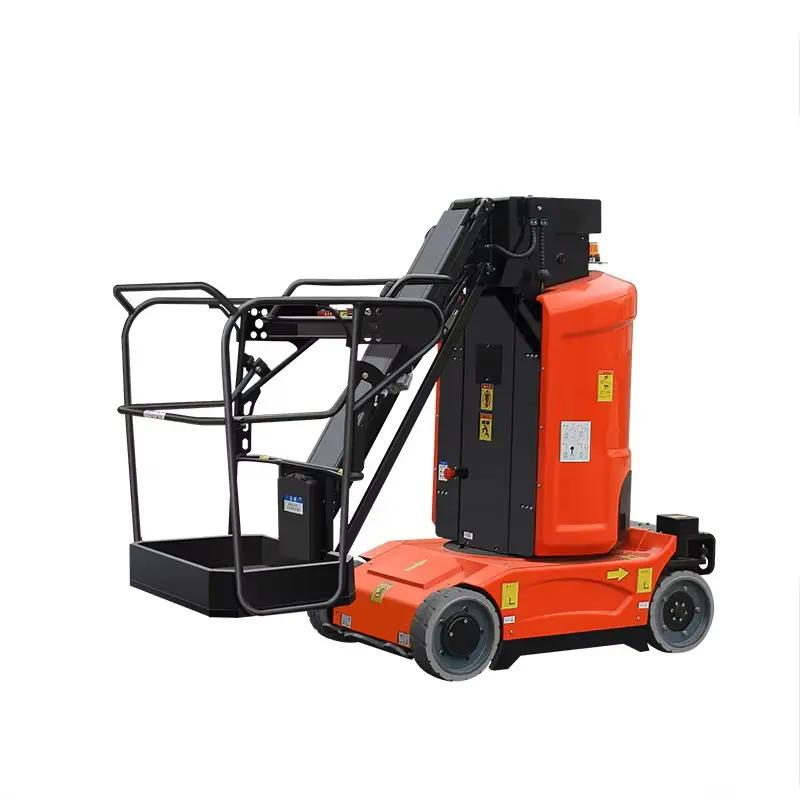

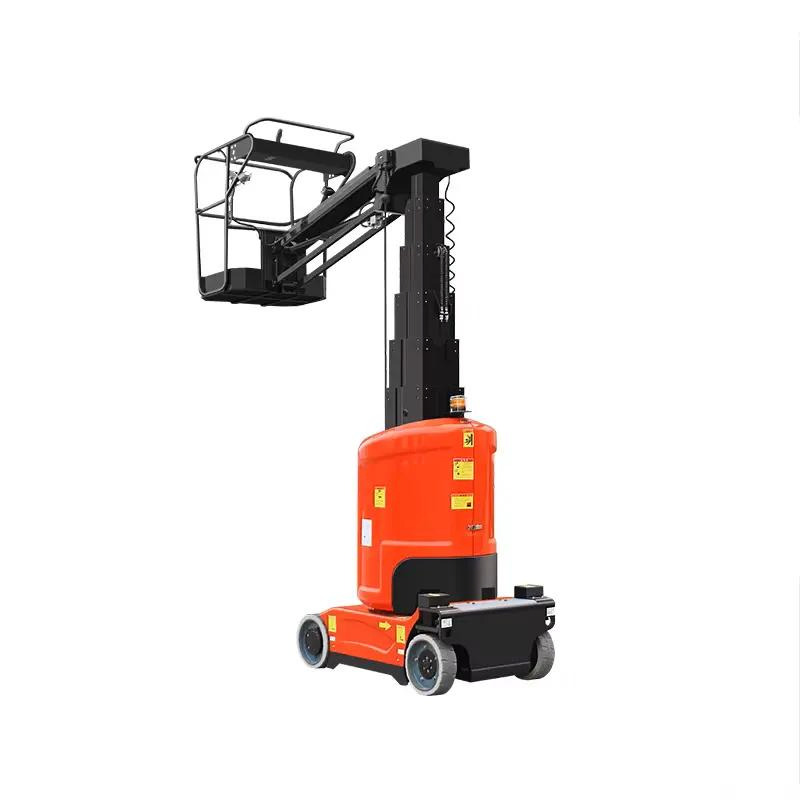

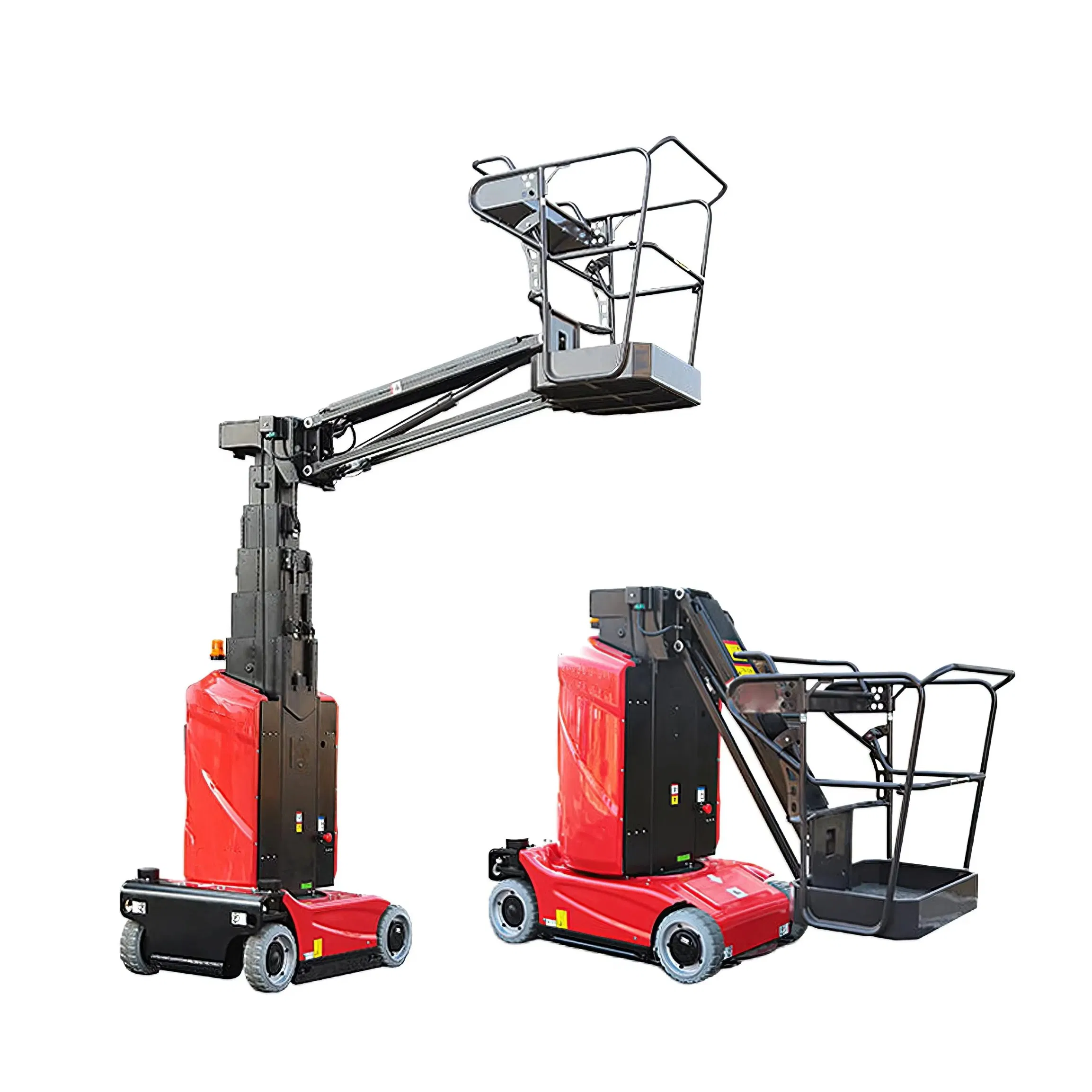

26FT Small Boom Lift Self Propelled Vertical Mast Lift

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info

Model NO.
AMWP11.2-8100
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Moves
Self-propelled
Driven Type
Hydraulic
Certification
CE, RoHS
Table Size
620*870mm
Net Lift Height
9.2m
Standard Loads
200kg
Power
1.1kw/220V/110V
Specification
2530*1100*1990MM
Origin
China

Product Description

The mobile lifting platform is mostly made of shear fork lifting structure, manufactured using high-quality rectangular pipe of manganese steel. This series of products features flexible movement, stable lifting, convenient operation, and significant load capacity. Most units utilize electric hydraulic systems for lifting power, though manual hydraulic devices can be equipped upon request.

Power options include single-phase 220v AC, three-phase 380v AC, DC (12V, 24V, 36V, 48V, 60V), or diesel engines. Movement methods range from manual and self-walking to track electric movement. These lifts are ideal for industrial workshops, stations, docks, and high-altitude construction sites.

Vertical Mast Lift Overview

Technical Specification

Max. Working Height11.2m Max. Platform Height9.2m
Max. Horizontal Reach3m Up and Over Height7.89m
Overall Length2.53m Overall Width1.0m
Overall Height (stowed)1.99m Platform Dimension0.62*0.87m
Loading Capacity200Kg Occupants2
Turret Rotation345° Travel Speed (Stowed)4.5Km/h
Driving Motor24V/0.9kW Lifting Motor24V/3kW
Battery24V/200Ah Weight2950kg

Detailed Photos

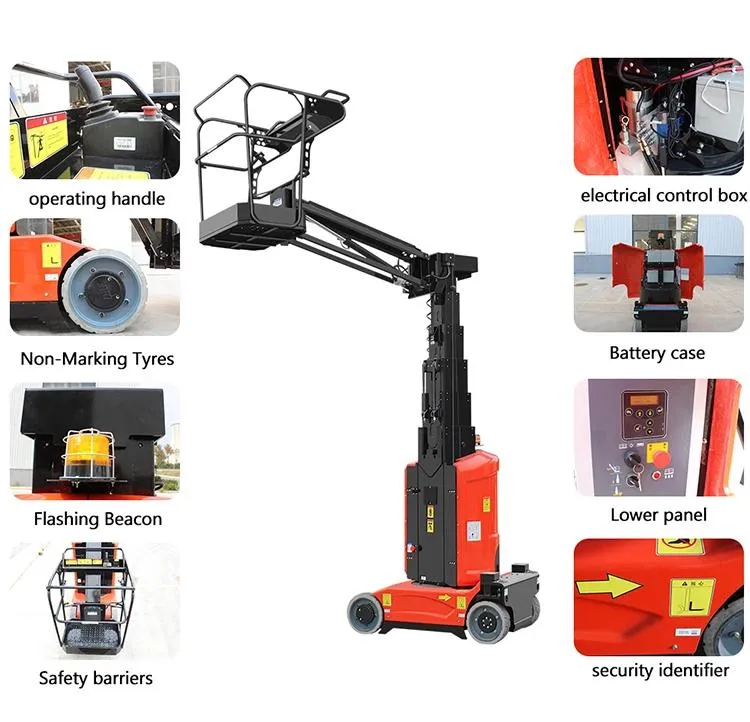

Lift Detail 1

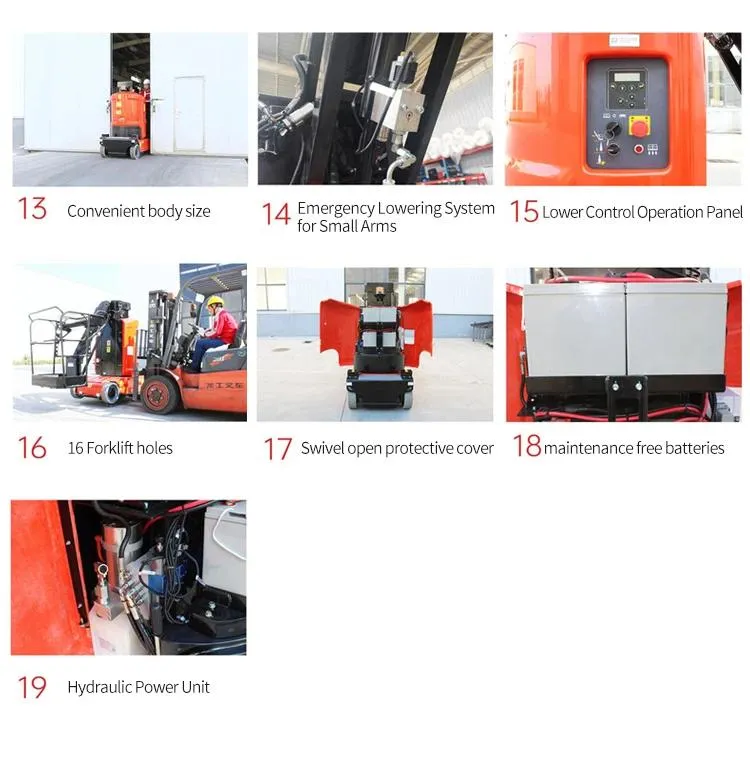

Lift Detail 2

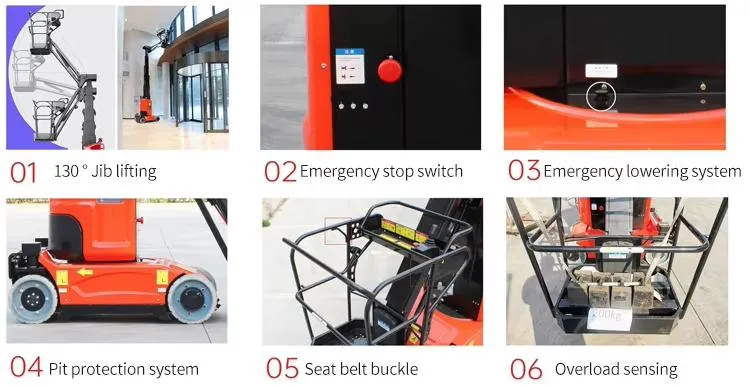

Lift Detail 3

Packing & Delivery

Package Size
263.00cm * 1100.00cm * 17.00cm
Gross Weight
1200.000kg

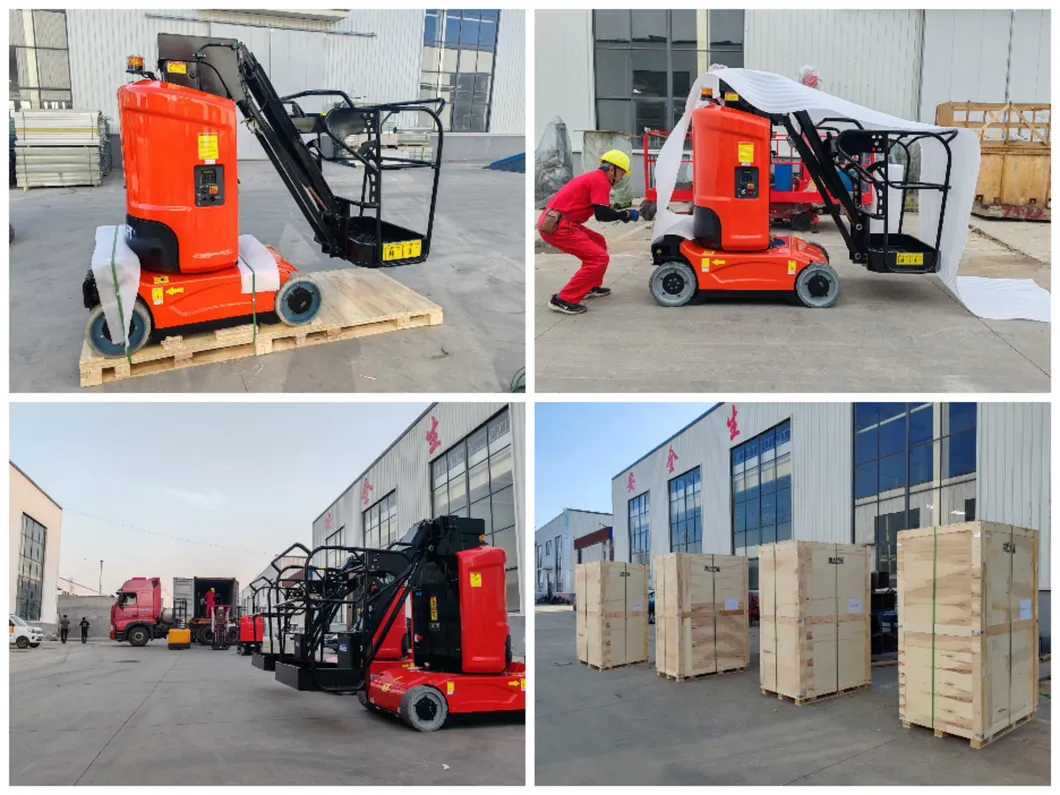

Packing 1

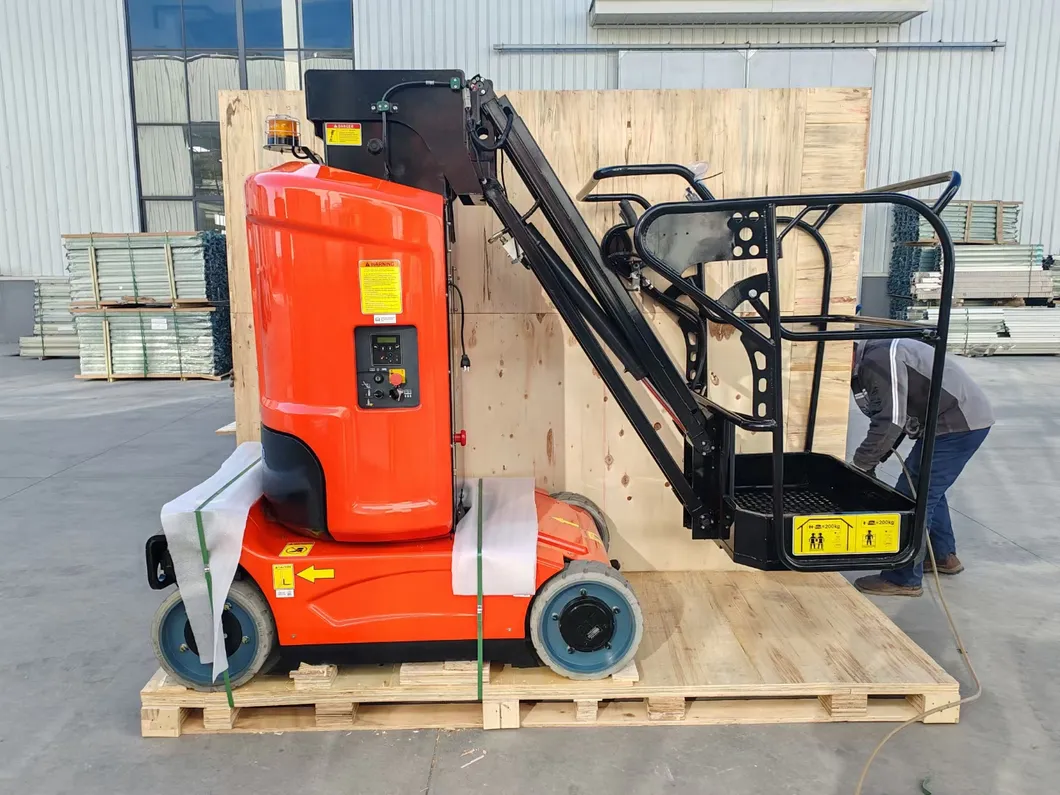

Packing 2

Frequently Asked Questions

1. Where is the production base located?
We are headquartered in Henan, China. Our products are exported globally, including South America (35%), Southeast Asia (20%), and Africa (15%).
2. How is product quality guaranteed?
We ensure quality through pre-production samples before mass production and a rigorous final inspection carried out before every shipment.
3. What types of machinery can be purchased?
Our range includes mini excavators, skid steer loaders, hydraulic scissor lifts, guardrail pile drivers, photovoltaic pile drivers, and more.
4. Why choose these products over other suppliers?
We focus on professional service and high-quality standards, with a proven track record in over 70 countries and regions worldwide.
5. What are the accepted delivery and payment terms?
We accept FOB, CIF, EXW, and DDP terms. Payments can be made via T/T or L/C in various currencies including USD, EUR, AUD, and GBP.
6. Which languages are supported for customer service?
Our support team is proficient in English, Chinese, Japanese, German, and French to assist global clients effectively.
