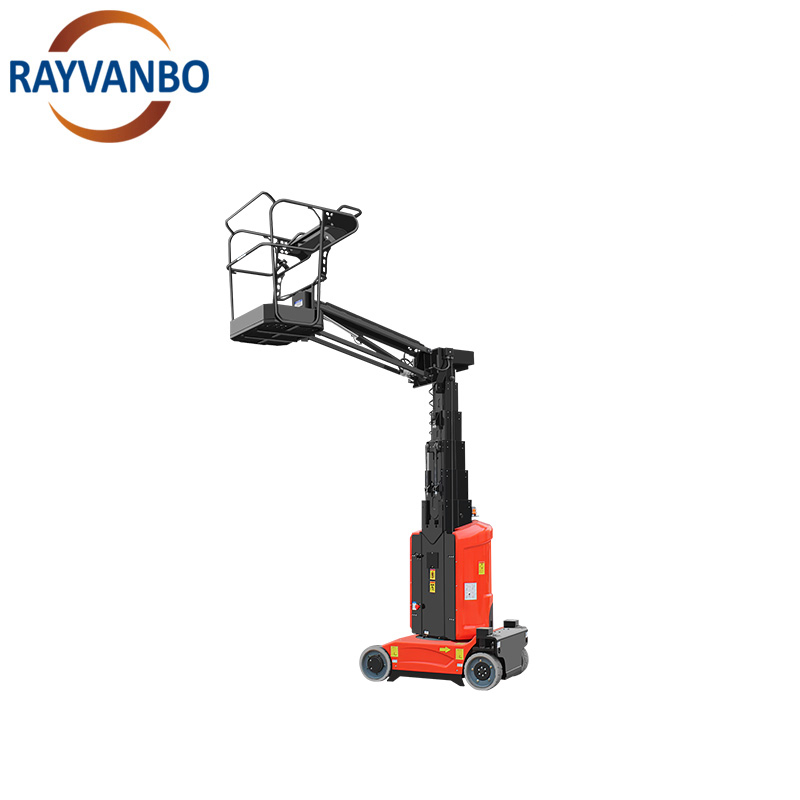

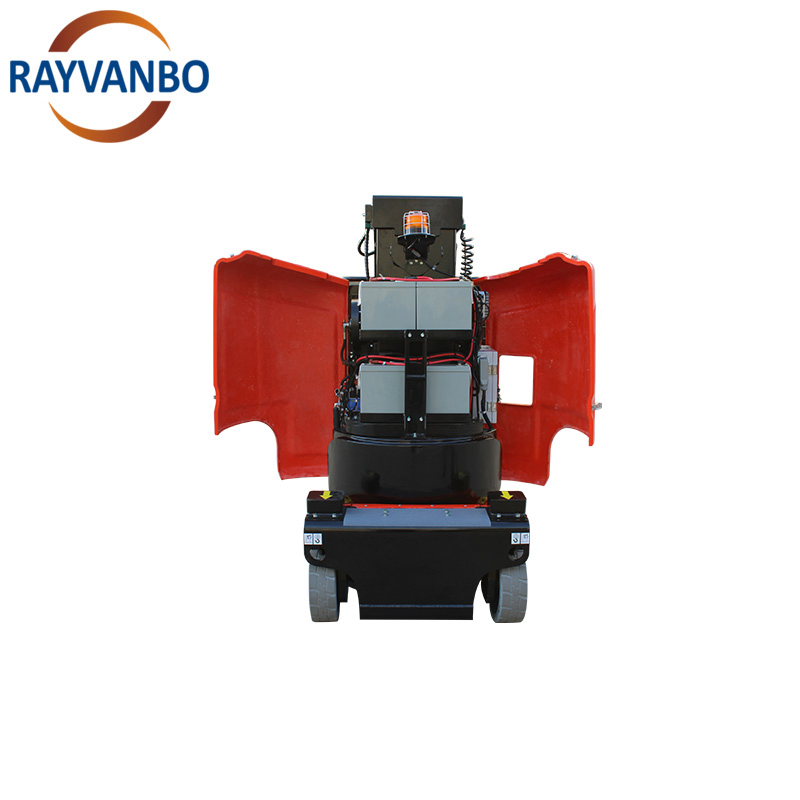

200kg 5m 6m 8m Small Aerial Boom Lift Mini Self Propelled Man Lift Vertical Work Platform Single Mast Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Telescoping Lift

Basic Information

Product Name

Self-Propelled Vertical Mast with Jib

Carrying Capacity

Middle-Level (200kg)

Moves

Self-propelled

Driven Type

Hydraulic

Certification

CE, ISO 9001

Max. Platform Height

9.2m

Max. Horizontal Reach

3m

Occupants

2

Origin

China

Production Capacity

5000 Pieces/Month

Product Description

Self-propelled vertical mast with jib description

A self-propelled vertical mast with a jib is a type of aerial work platform or mobile elevating work platform designed for lifting personnel and equipment to elevated work areas. This equipment is particularly useful in construction, maintenance, and industrial applications where access to high places is required.

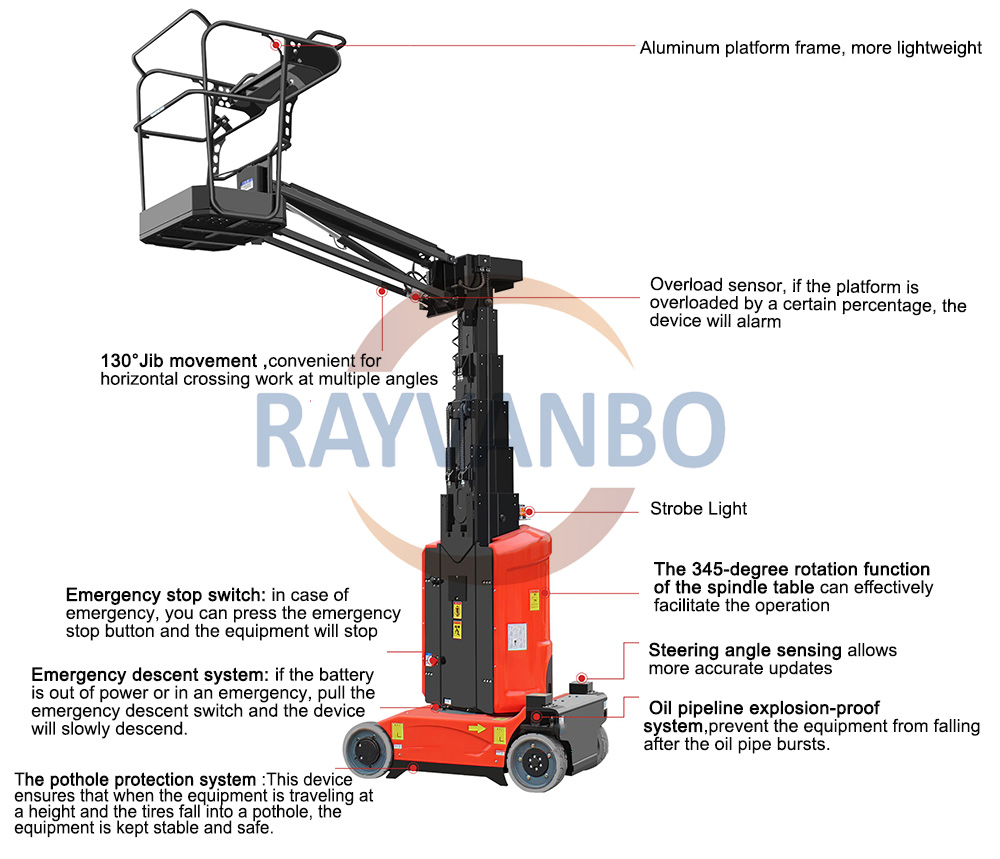

Key Features

1. Self-Propelled: The unit can move independently without needing to be towed or manually moved, providing greater flexibility and efficiency on the job site.
2. Vertical Mast: This is the main lifting mechanism, which extends vertically to provide height. The vertical mast offers a stable and compact solution for reaching high places.
3. Jib: A jib is an additional, often articulating arm that extends from the top of the vertical mast. It provides extra reach and allows for more precise positioning, making it easier to navigate obstacles.

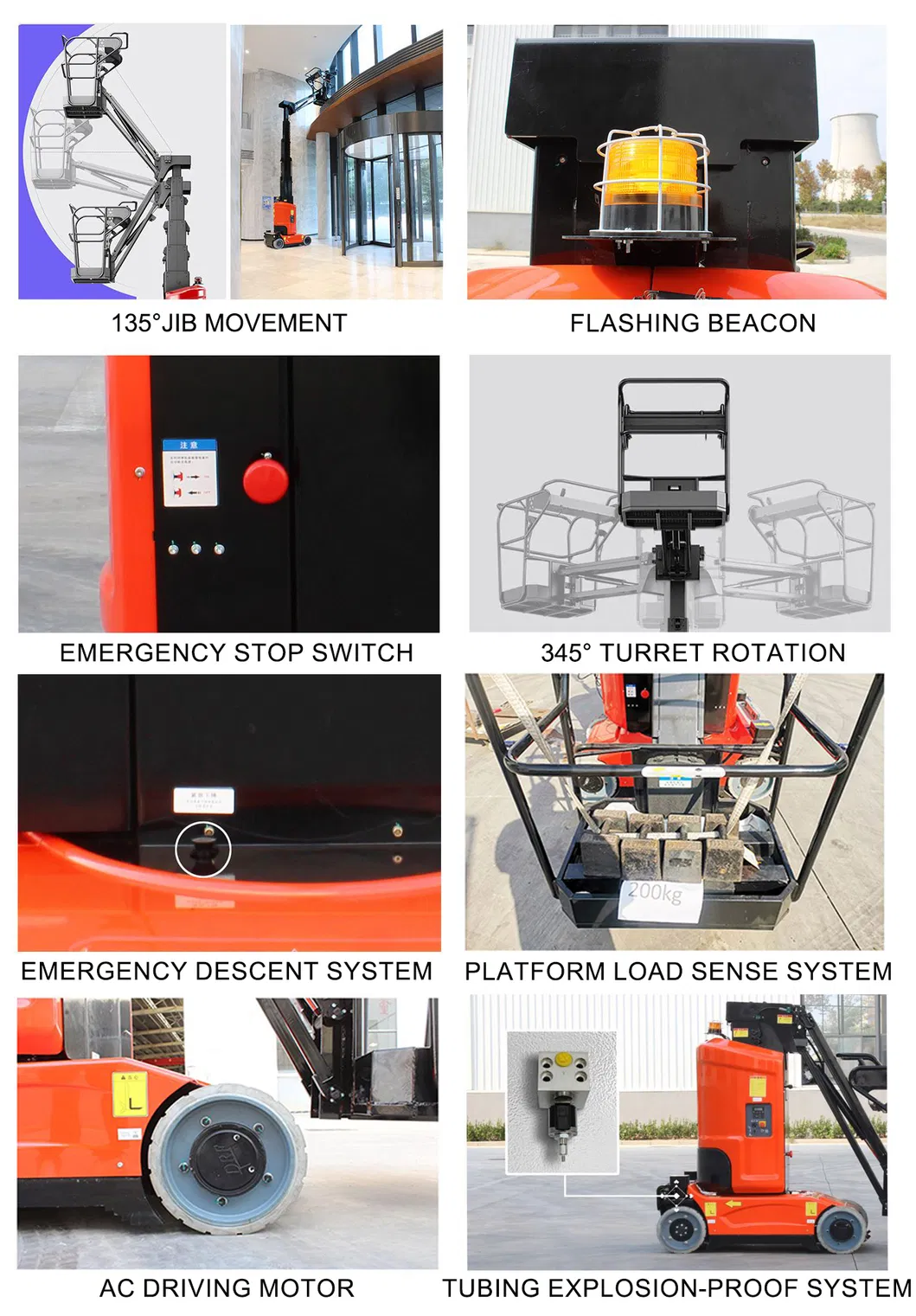

Product Advantages

Versatility: The combination of the vertical mast and jib allows for a range of motion and reach useful in various applications, from tight indoor spaces to outdoor job sites.

Compact Design: These machines are typically designed to be compact, making them suitable for use in confined spaces where larger equipment cannot fit.

Maneuverability: Being self-propelled, these units can be easily moved around a job site, enhancing productivity and reducing manual labor.

Safety: Equipped with safety features such as guardrails, harness attachment points, and stability systems to ensure operator safety.

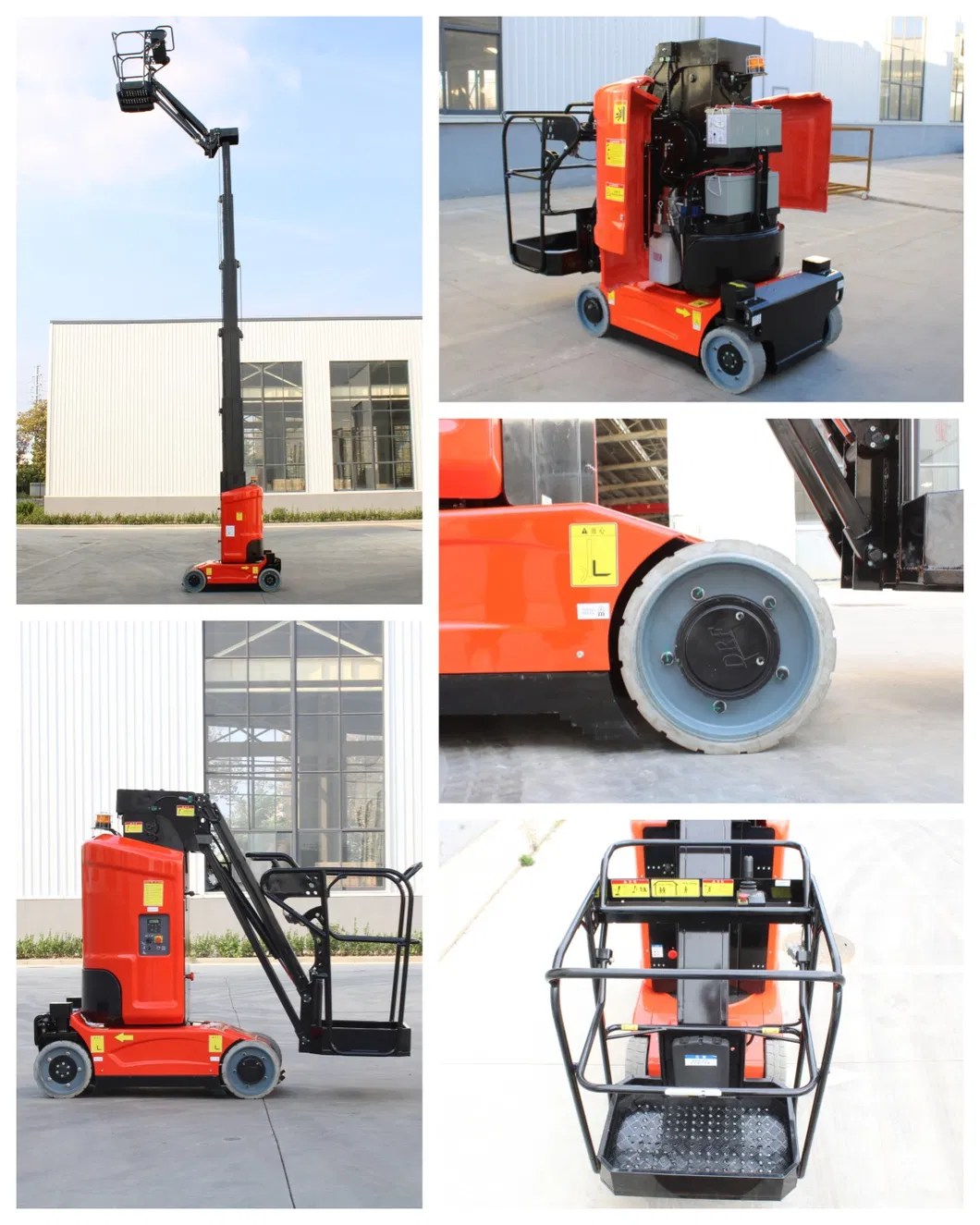

Product Details & Applications

Wide Range of Applications

Construction: For tasks such as installing fixtures, wiring, or other overhead work.

Maintenance: Ideal for building maintenance, including window cleaning, painting, and HVAC repairs.

Warehousing: Useful in large warehouses for reaching high shelves and performing inventory tasks.

Events & Entertainment: Setting up lighting, sound equipment, and other overhead installations.

Technical Specifications

Parameter Item	Technical Data
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
Guardrail Height	1.1m
Overall Dimension (LWH)	2.53m * 1.0m * 1.99m
Platform Dimension	0.62 * 0.87m
Loading Capacity	200kg
Occupants	2
Turret Rotation	345°
Jib Movement	130°
Travel Speed (Stowed/Raised)	4.5km/h / 0.5km/h
Driving Motor	24V/0.9kW
Battery	24V/240Ah
Total Weight	2950kg

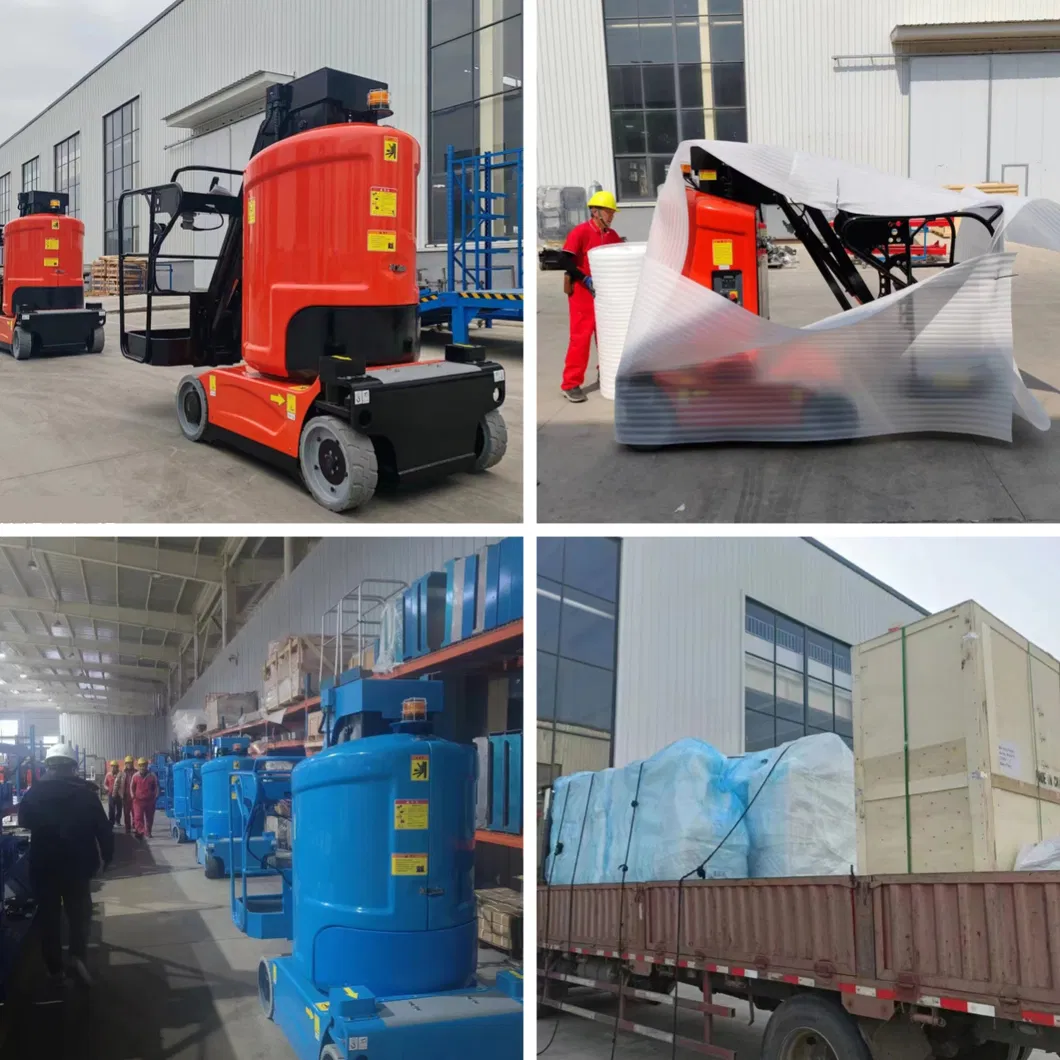

Packaging & Shipping

About Our Factory

Frequently Asked Questions

What is the maximum working height of this vertical mast lift?

The maximum working height is 11.2 meters, with a maximum platform height of 9.2 meters.

How many people can the platform accommodate?

The platform is designed to carry up to 2 occupants with a total loading capacity of 200kg.

Is this lift suitable for narrow indoor aisles?

Yes, with an overall width of only 1.0 meter and a compact self-propelled design, it is ideal for confined indoor spaces and warehouse aisles.

What are the advantages of having a jib on a vertical mast?

The jib provides an additional 130° of movement and a 3-meter horizontal reach, allowing operators to reach over obstacles and position the platform more precisely.

What power source does the machine use?

The machine is powered by a 24V/240Ah battery system, making it environmentally friendly for indoor use with no emissions.

What safety certifications does the product have?

The product is fully certified with CE and ISO 9001 standards, ensuring it meets international safety and quality requirements.
