Kathy lift
1 / 5
| Model | YM30FS |
| Type | Double Cylinder Hydraulic Lift |
| Lifting Capacity | 3t / 3.5t |
| Driving Type | Hydraulic |
| Certification | CE |
| Design | Scissor |
| Minimum Height | 103mm |
| Maximum Height | 1950mm |
| Safety Mechanism | Standard Mechanical Safety Device |
| Package Size | 225.00cm * 130.00cm * 80.00cm |
| Gross Weight | 815.000kg |

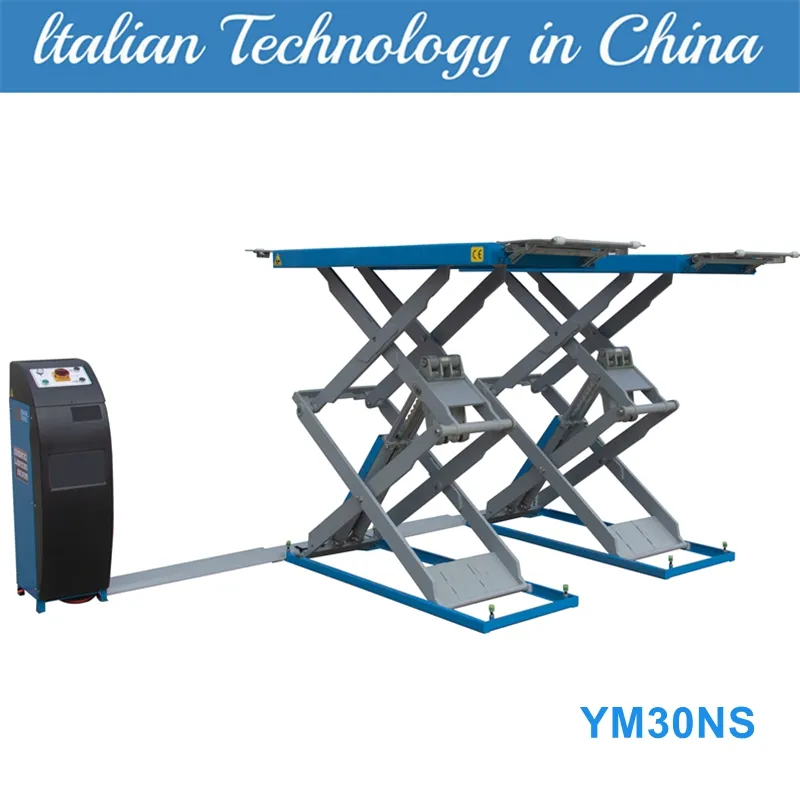

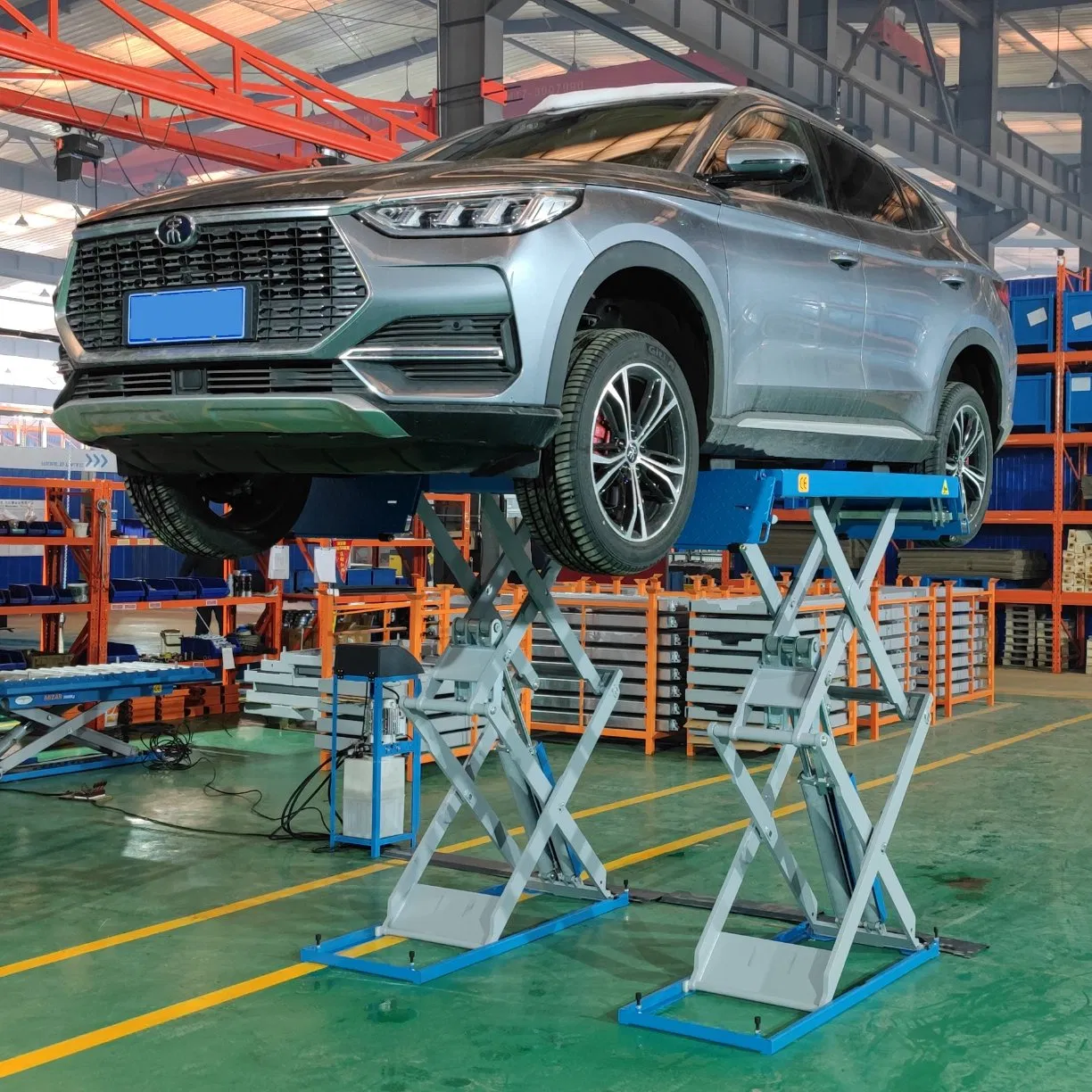

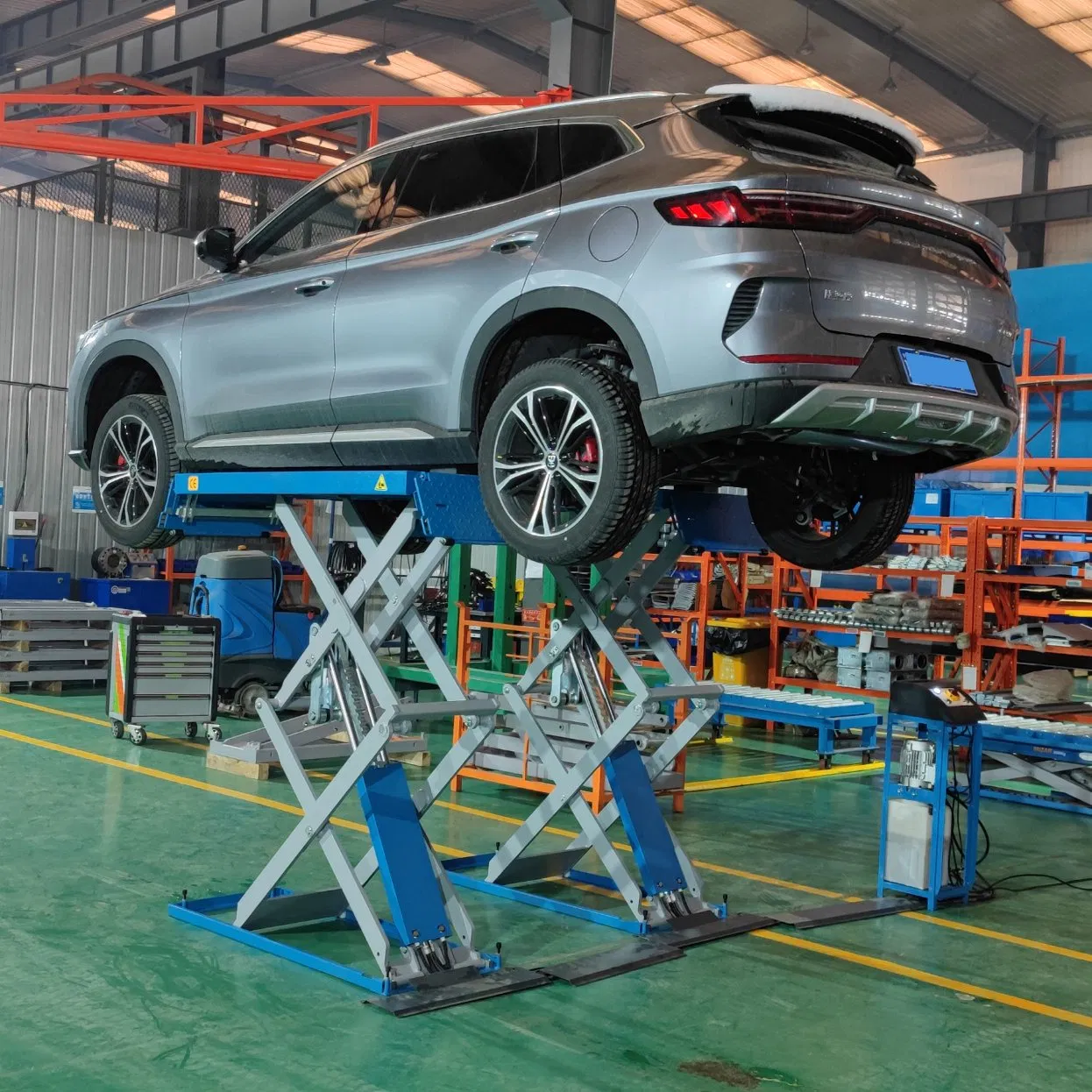

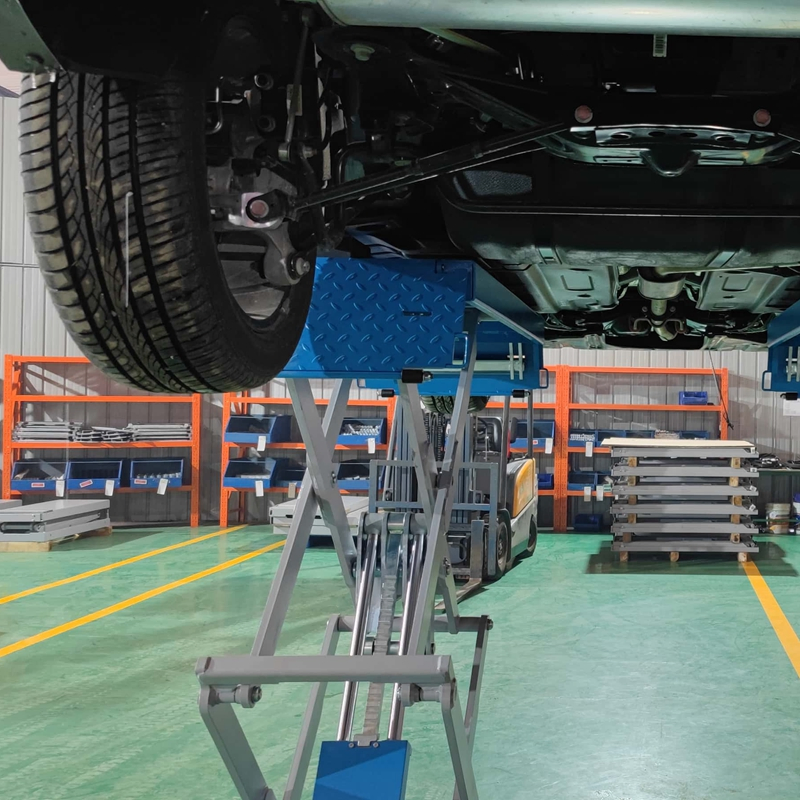

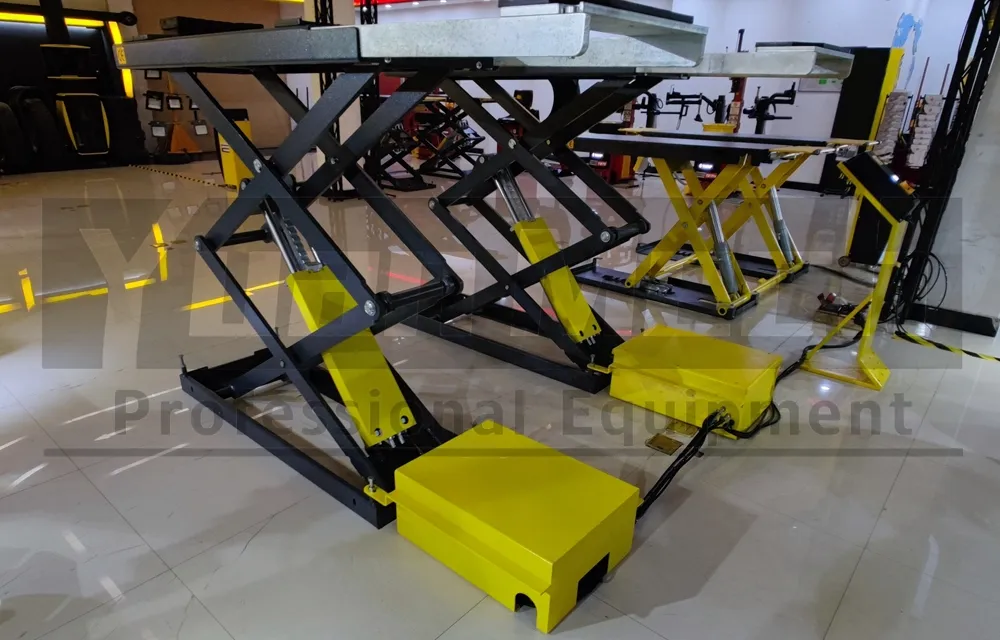

Low Profile Double Scissor Lift with Mechanical Safety Device

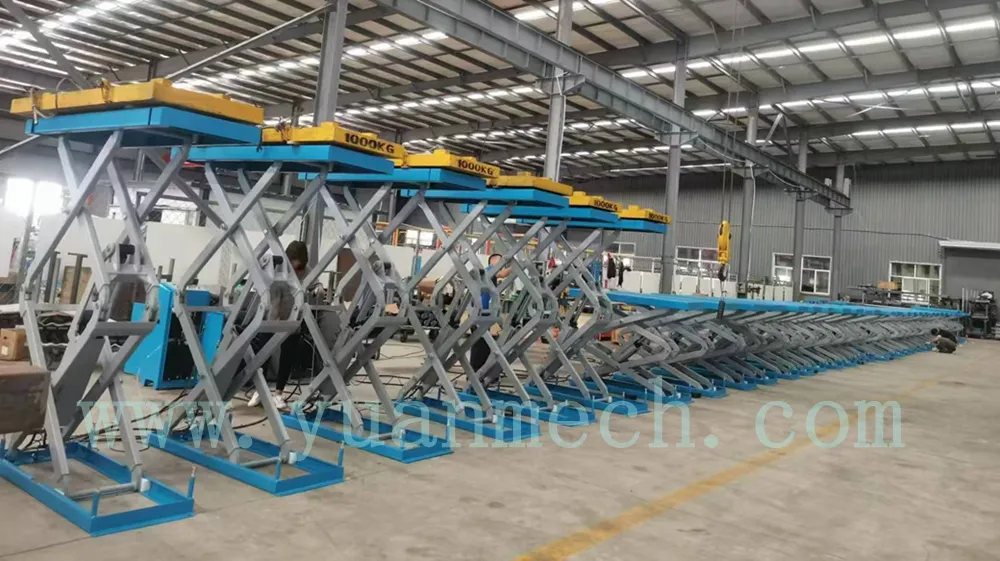

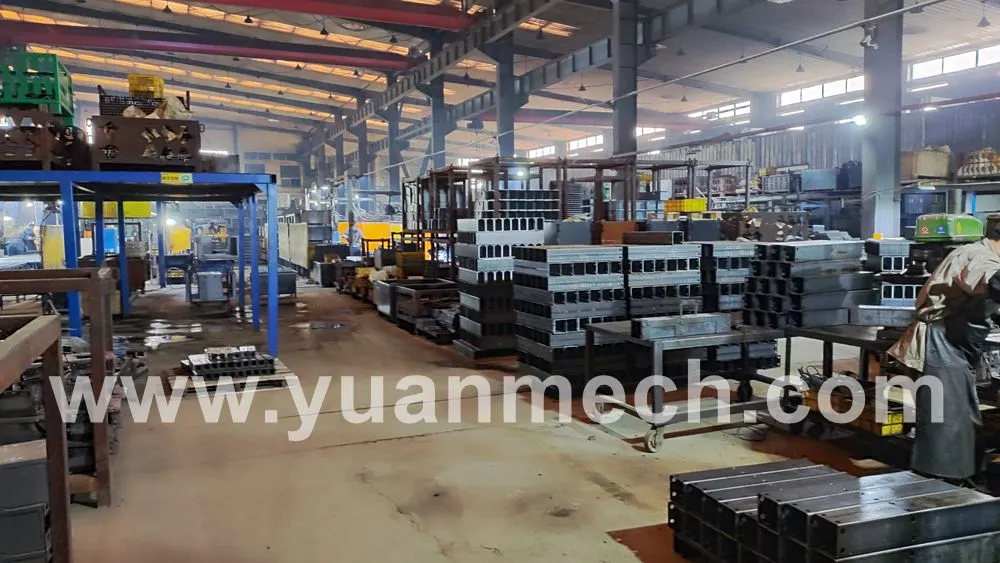

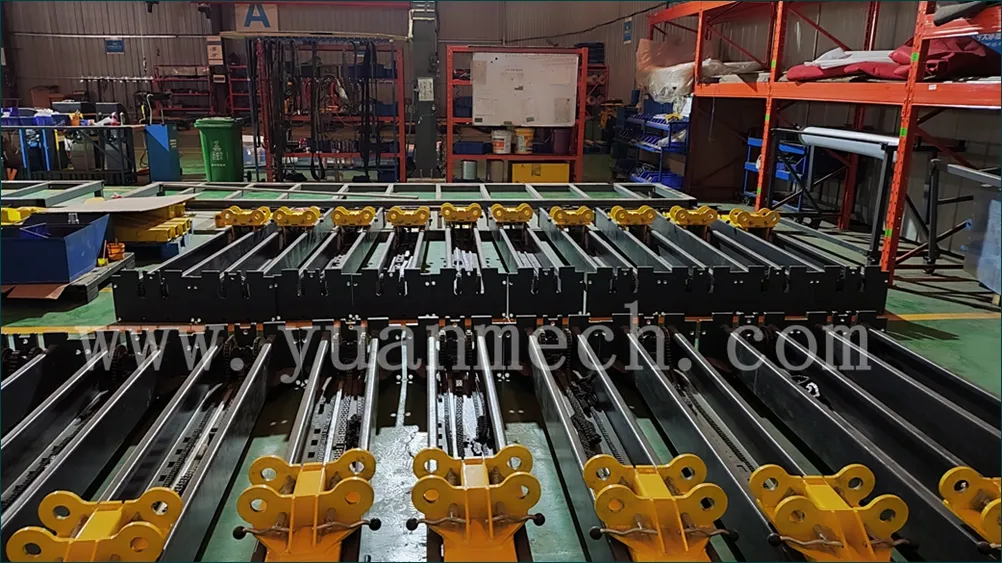

Latest design by a professional team with over 40 years of experience in the lifting industry. Produced in a high-tech machinery workshop using high-quality materials to meet the highest CE requirements in Europe.

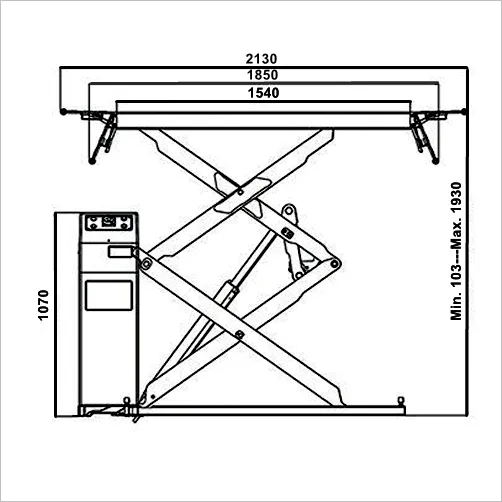

| No. | Item | Specifications |
|---|---|---|
| 1 | Power | 400V/230V 3 ph 2.2 Kw 50/60 Hz |
| 2 | Lifting Capacity | 3000 kg / 3500 kg |
| 3 | Max. Height | 1930mm |
| 4 | Min. Height | 103mm |

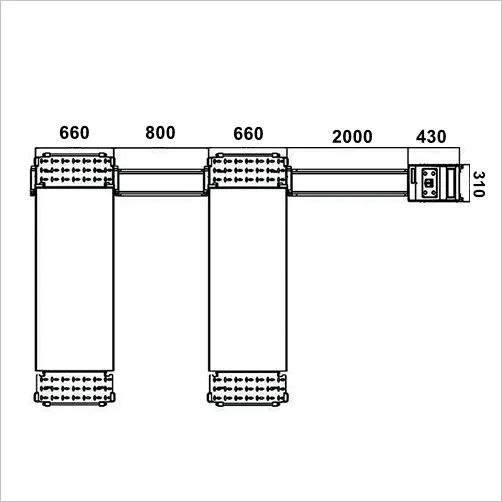

| 5 | Platform Length | 1540 / 1850 / 2130mm |
| 6 | Lifting/Lowering Time | 40s |
| 7 | Net Weight | 793kg |

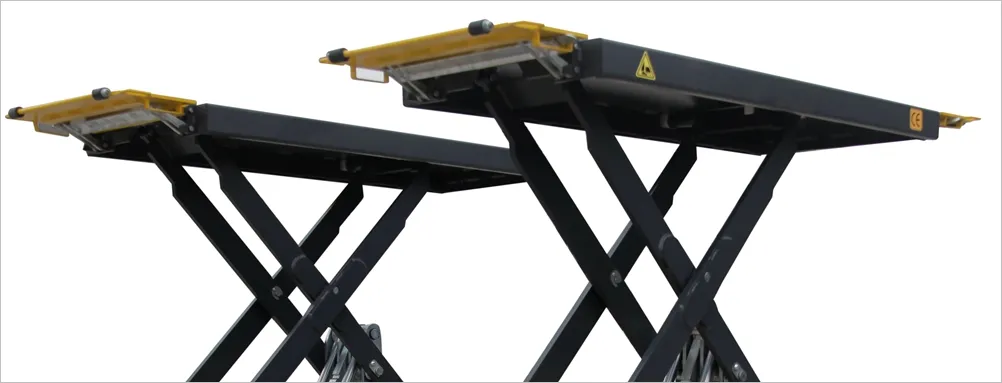

Equipped with a one-key leveling function. Both platforms maintain perfect synchronization with a single press.

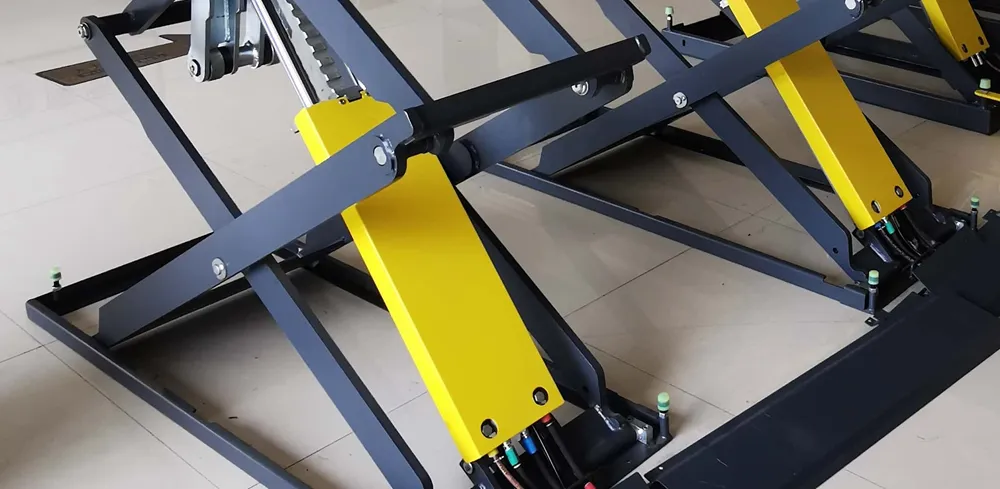

Standard 4-cylinder system ensures power and safety. High-quality imported seals prevent any oil leakage.

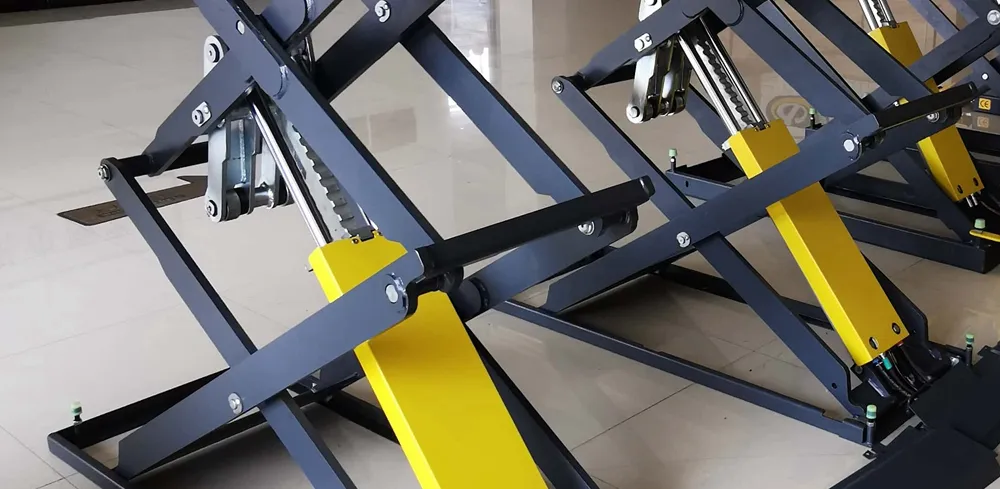

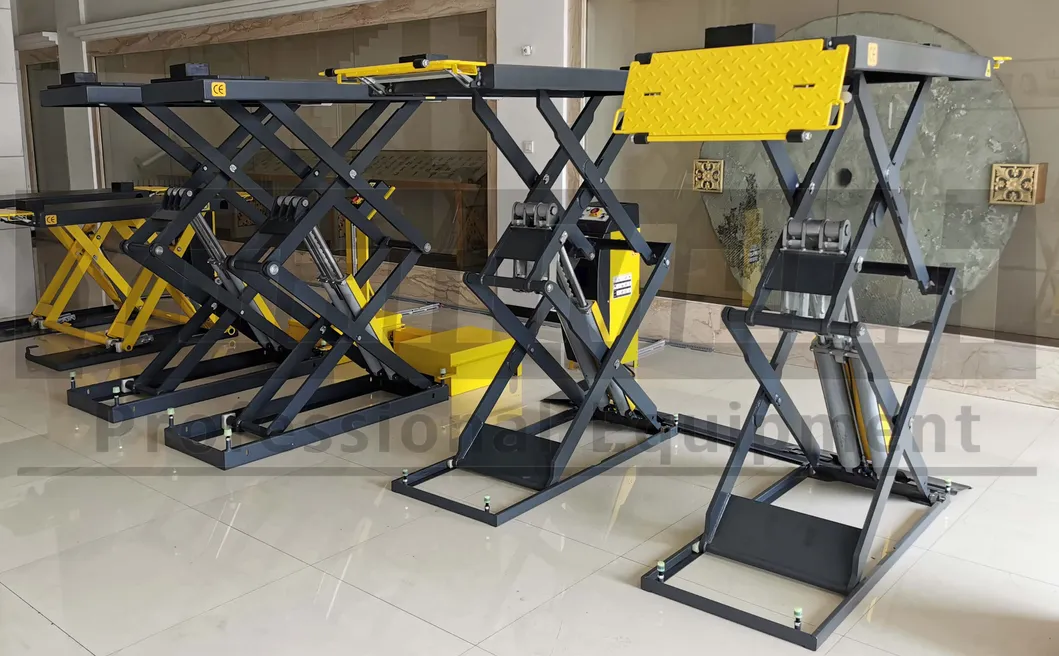

90% of the solid X-arm and platform are made from 16-manganese material for super high strength.

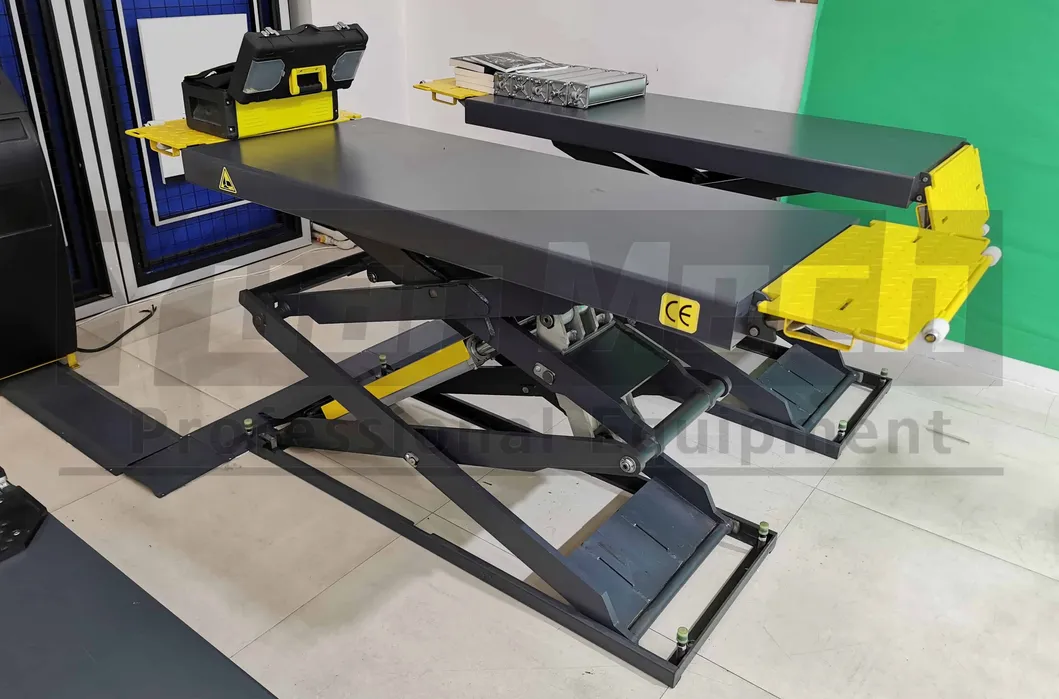

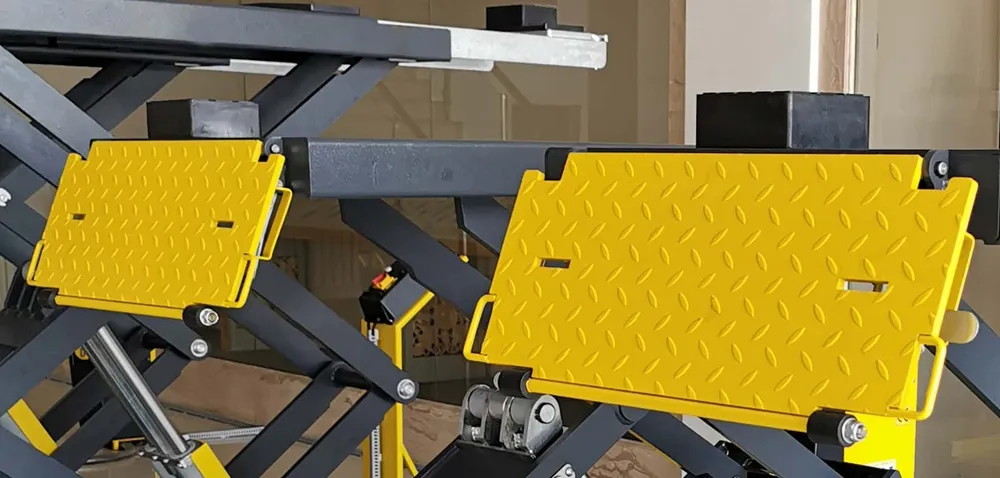

Ramp extensions can extend the platform by 590mm. A 66° flap angle prevents wheel contact during lifting.

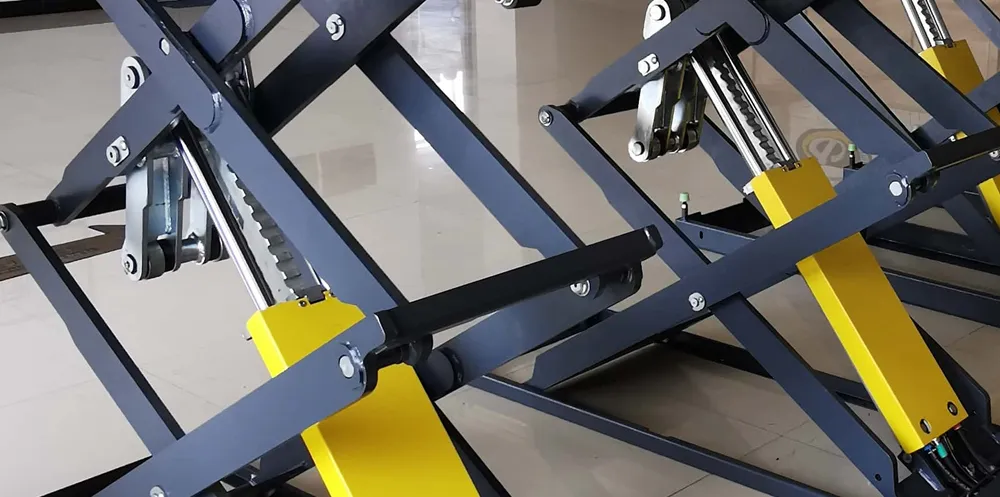

Includes a standard helper arm that is longer and stronger than typical industry versions.
Participating annually in major exhibitions and fairs worldwide, including Germany, Dubai, Colombia, and Las Vegas. We bring our equipment and expertise directly to customers for face-to-face communication.
Specializing in a comprehensive range of automotive garage equipment, including two-post lifts, scissor lifts, tire changers, and wheel balancers. We focus on quality control and dedicated customer care, providing technical support and detailed service manuals for all equipment.
