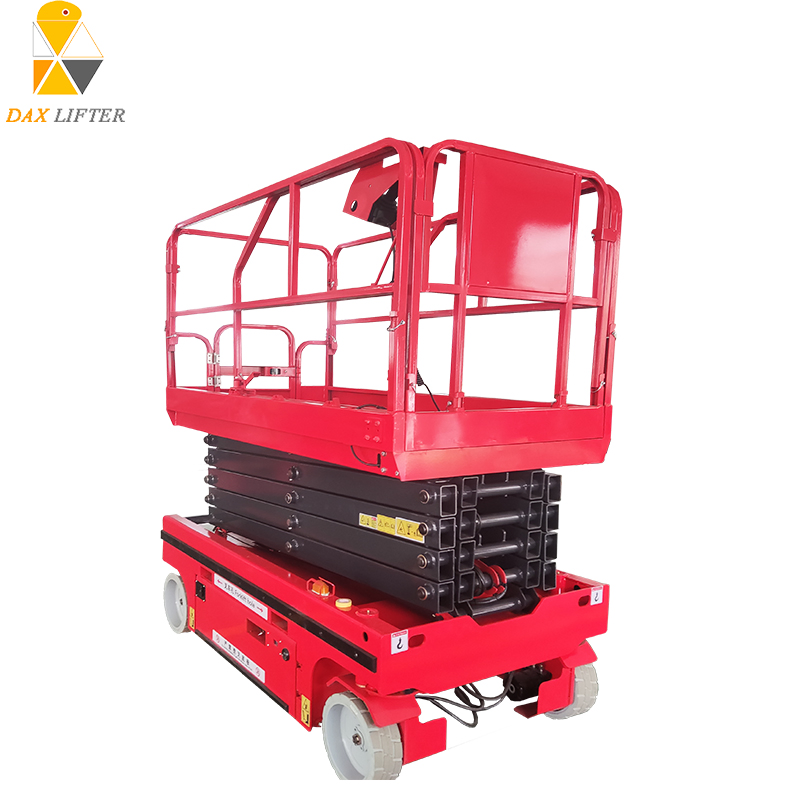

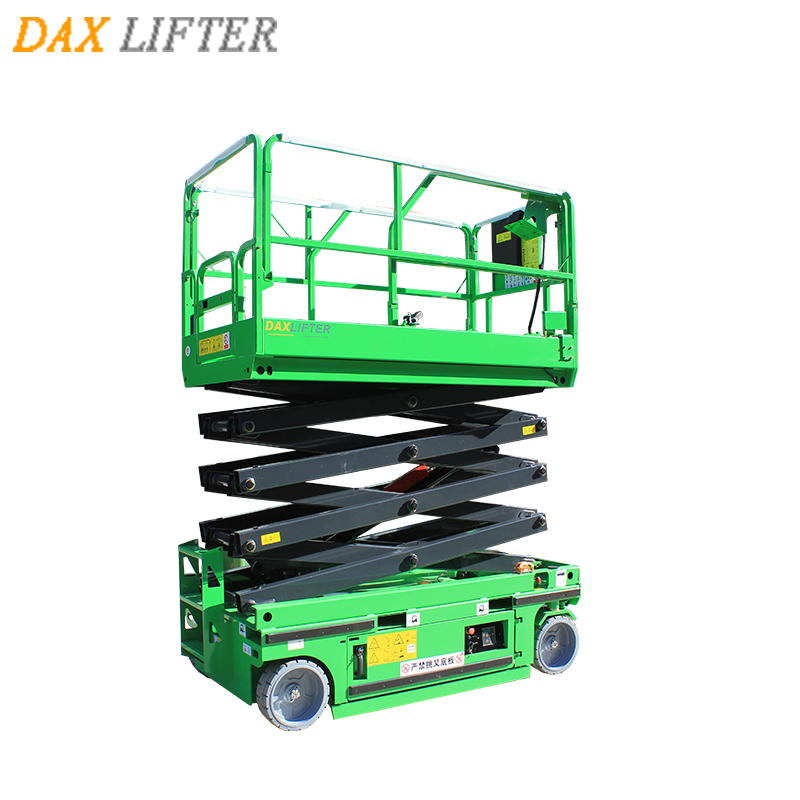

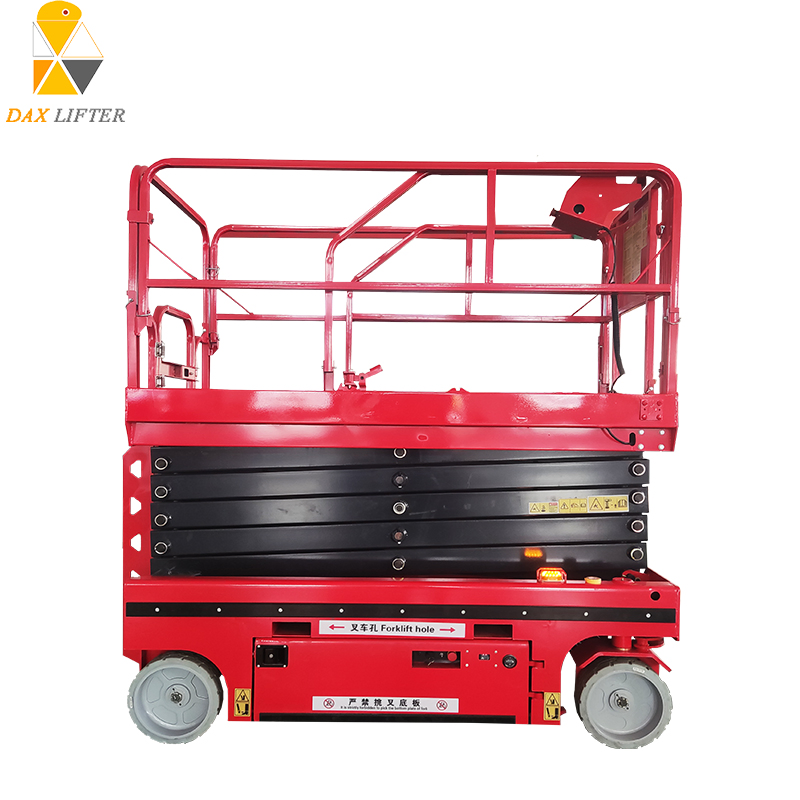

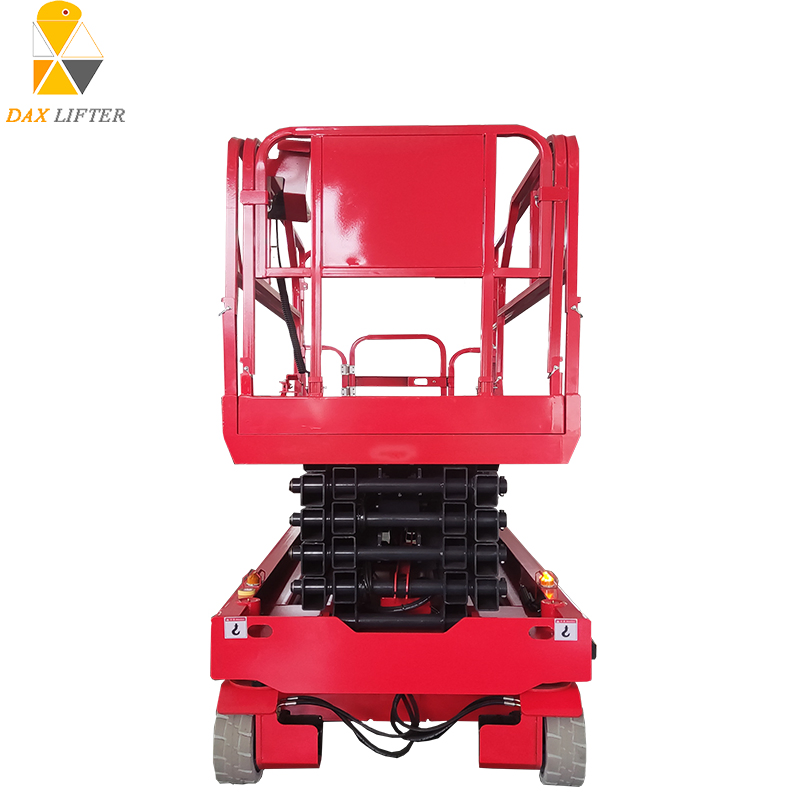

The self-propelled hydraulic drive scissor lift is a premium solution widely utilized across the aerial work platform industry. These lifts are engineered for factory operations, high-altitude installations, aviation maintenance, and professional cleaning tasks.
The primary advantage of the self-propelled model over manual variants is the integrated control system; operators can navigate and position the lift directly from the elevated platform, significantly enhancing workplace efficiency and convenience.
| Model | DX06 | DX08 | DX10 | DX12 | DX14 |
|---|---|---|---|---|---|
| Max Platform Height | 6m | 8m | 10m | 12m | 14m |
| Max Working Height | 8m | 10m | 12m | 14m | 16m |
| Lifting Capacity | 320kg | 320kg | 320kg | 320kg | 230kg |
| Platform Size | 2270*1110mm | 2640*1100mm | |||
| Overall Size | 2470*1150*2220mm | 2470*1150*2320mm | 2470*1150*2430mm | 2470*1150*2550mm | 2855*1320*2580mm |
| Weight | 2210kg | 2310kg | 2510kg | 2650kg | 3300kg |

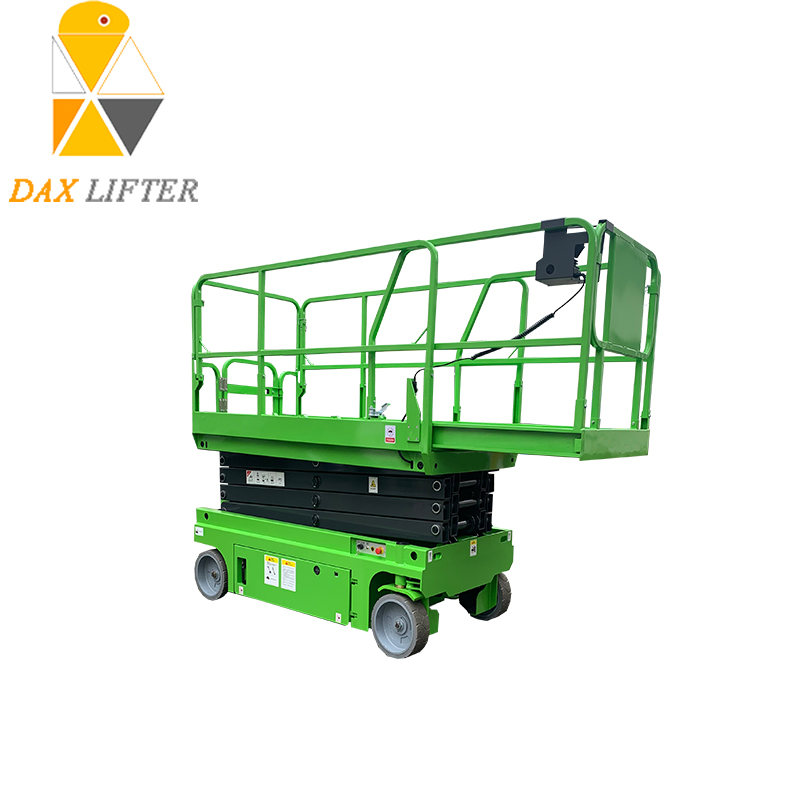

The work platform can be extended by 900mm to widen the working site, allowing multiple workers to collaborate efficiently.
Reasonably designed system ensures the oil cylinder remains free of impurities, making long-term maintenance easier.
Features a fully hydraulic drive system for smooth movement without manual traction, ideal for indoor and outdoor use.
Adopts reliable DC battery power, reducing cables and obstacles during high-altitude movement.

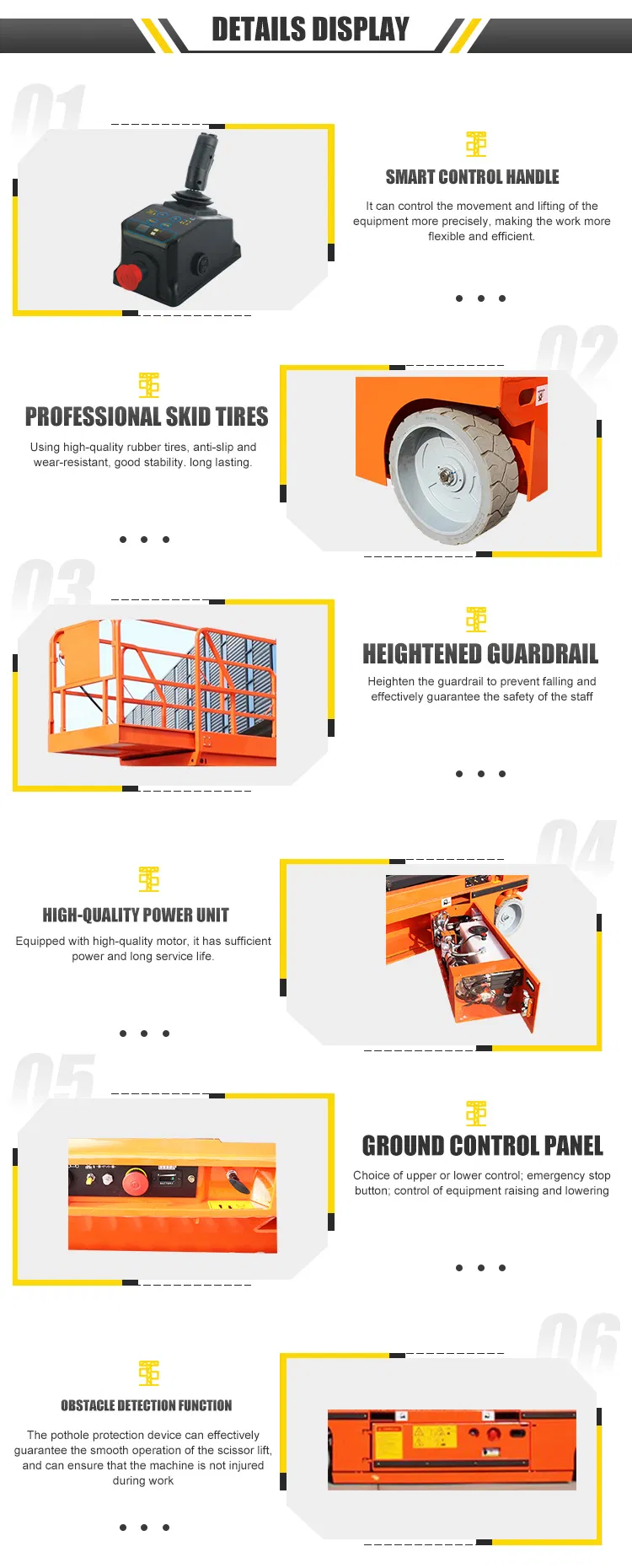

Equipped with an emergency lowering valve and a removable control panel to prevent unauthorized use or weather damage.
Shipped as complete equipment; no complex assembly is required upon delivery, ensuring immediate productivity.
