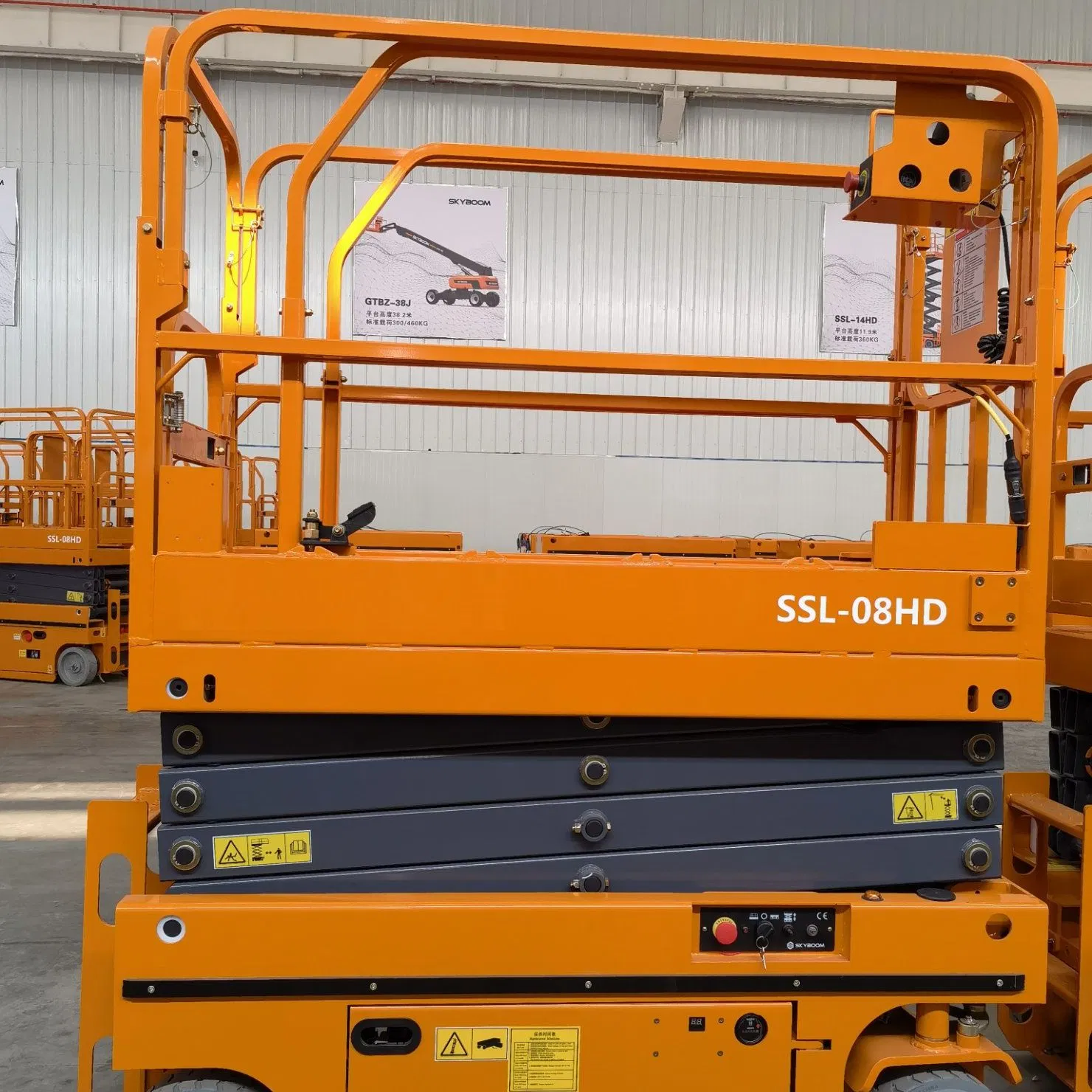

Self-Propelled Scissor Lift with Intelligent Leveling

Customization:	Available
After-sales Service:	Technical Support
Warranty:	One Years

Basic Specifications

Model NO.SSL-06HD

Lift MechanismScissor Lift

Driven TypeDC / Electric

CertificationCE, ISO 9001

Carrying CapacityLight Level

FeatureInsulating, Proportional Control

ApplicationWorkshop, Shipboard, Warehouse, Building

PackingWooden Case

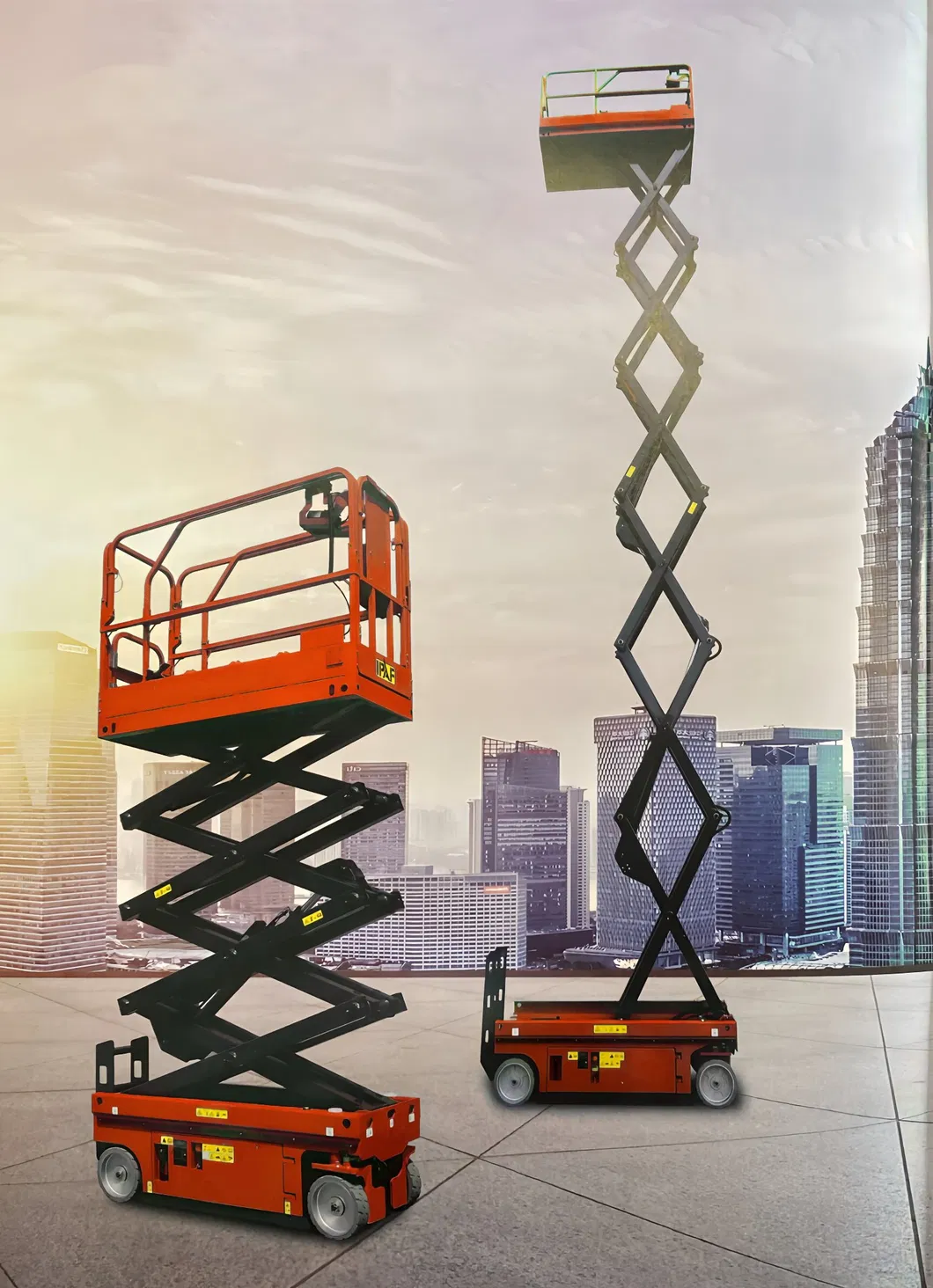

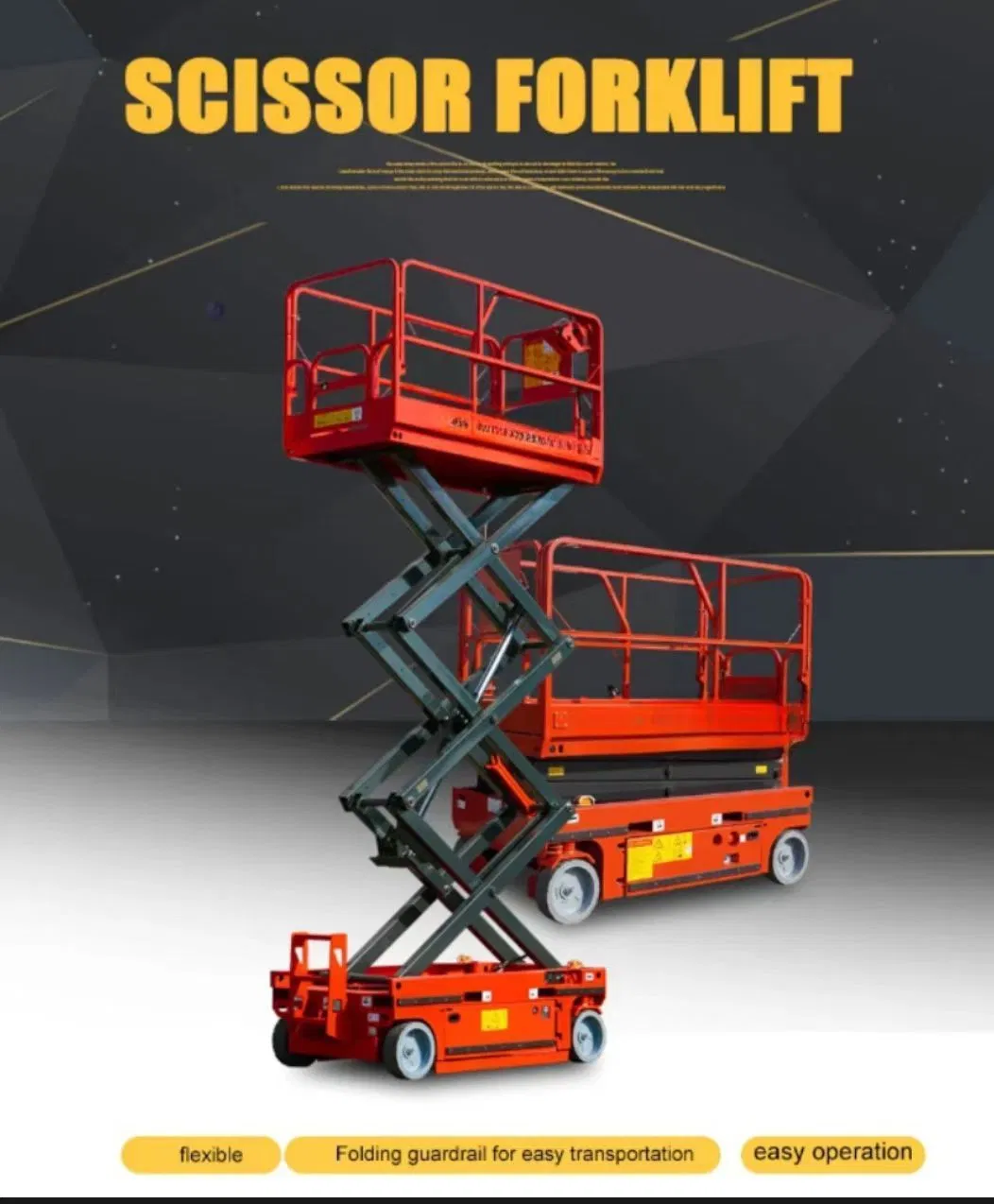

Electric Scissor Aerial Work Platform

✔

Precise Control: Proportional control handle enables speed-controlled lifting and traveling at any desired rate.

✔

High Efficiency: Capability to travel and steer at full height, facilitating seamless operation.

✔

Extended Reach: One-way extended platform increases the operation radius and improves the ability to cross obstacles.

✔

Easy Maintenance: The box bodies on both sides of the chassis can be swiveled out for convenient inspection.

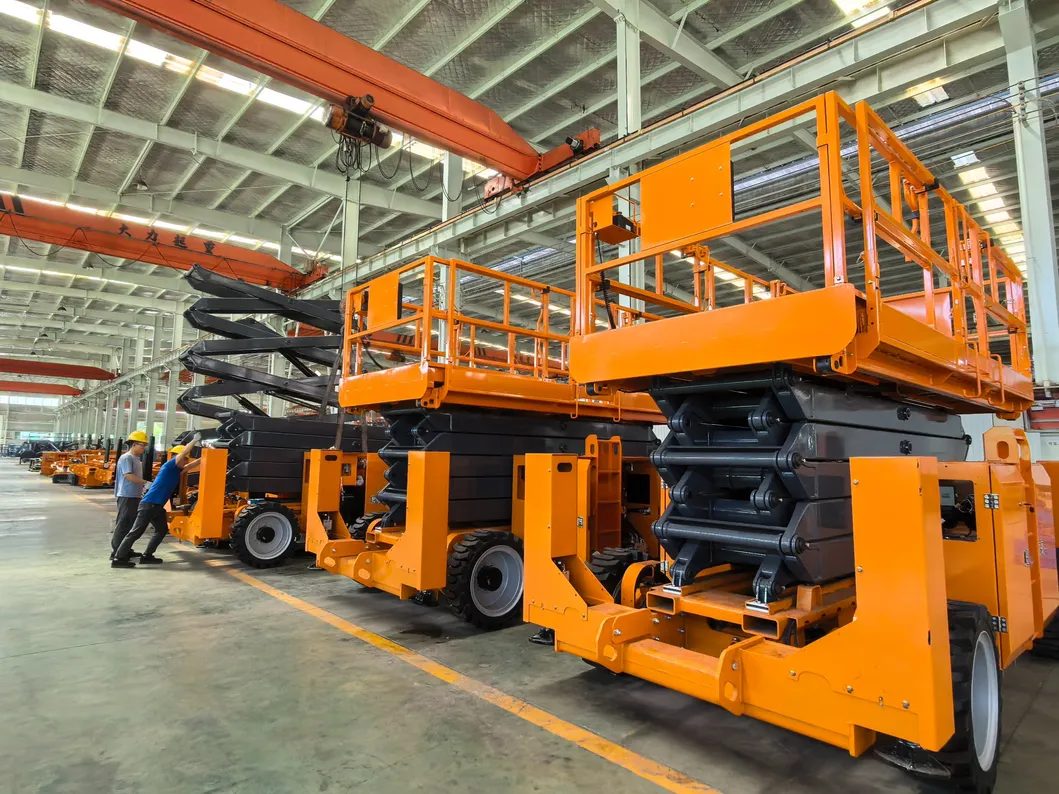

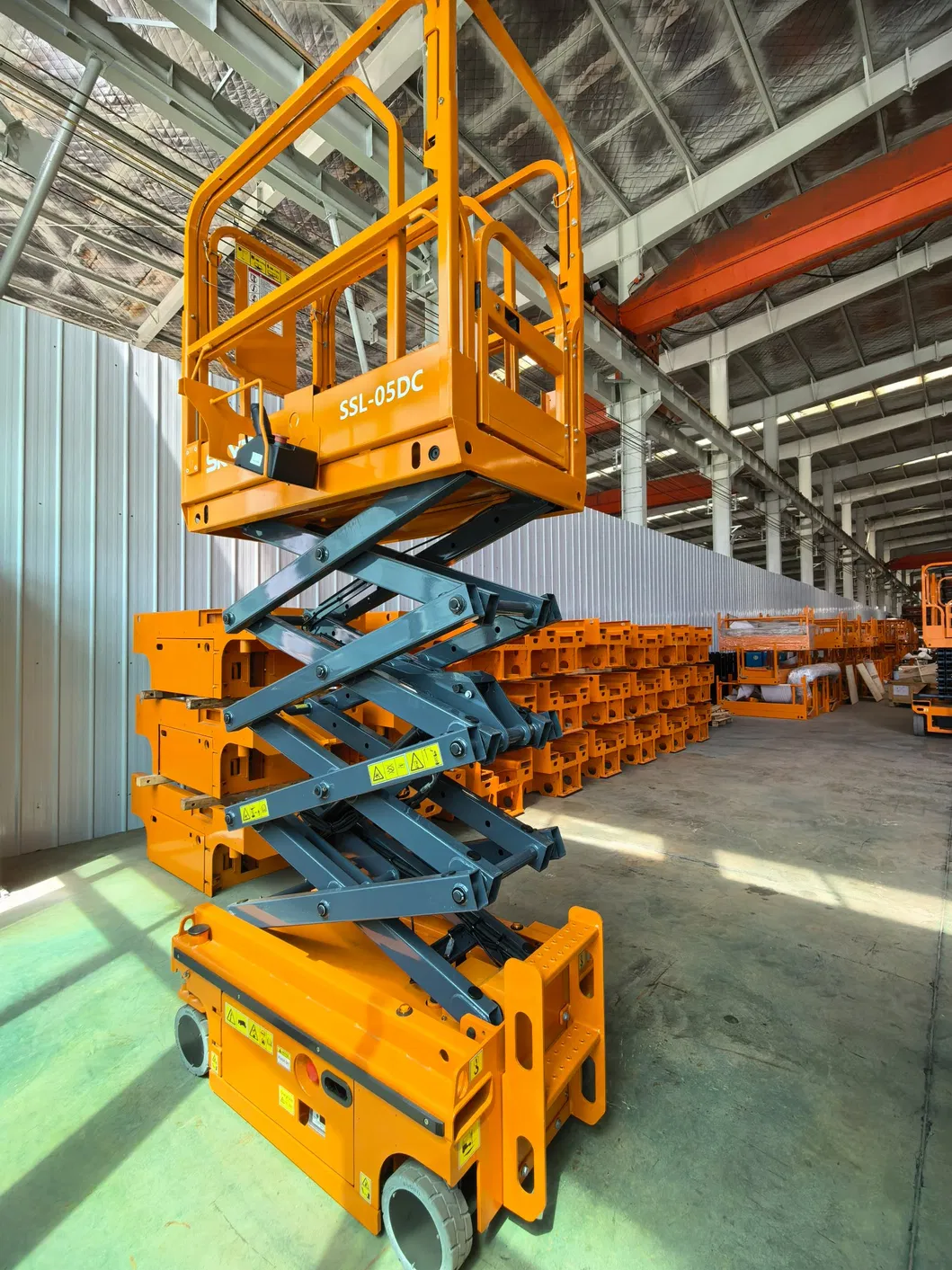

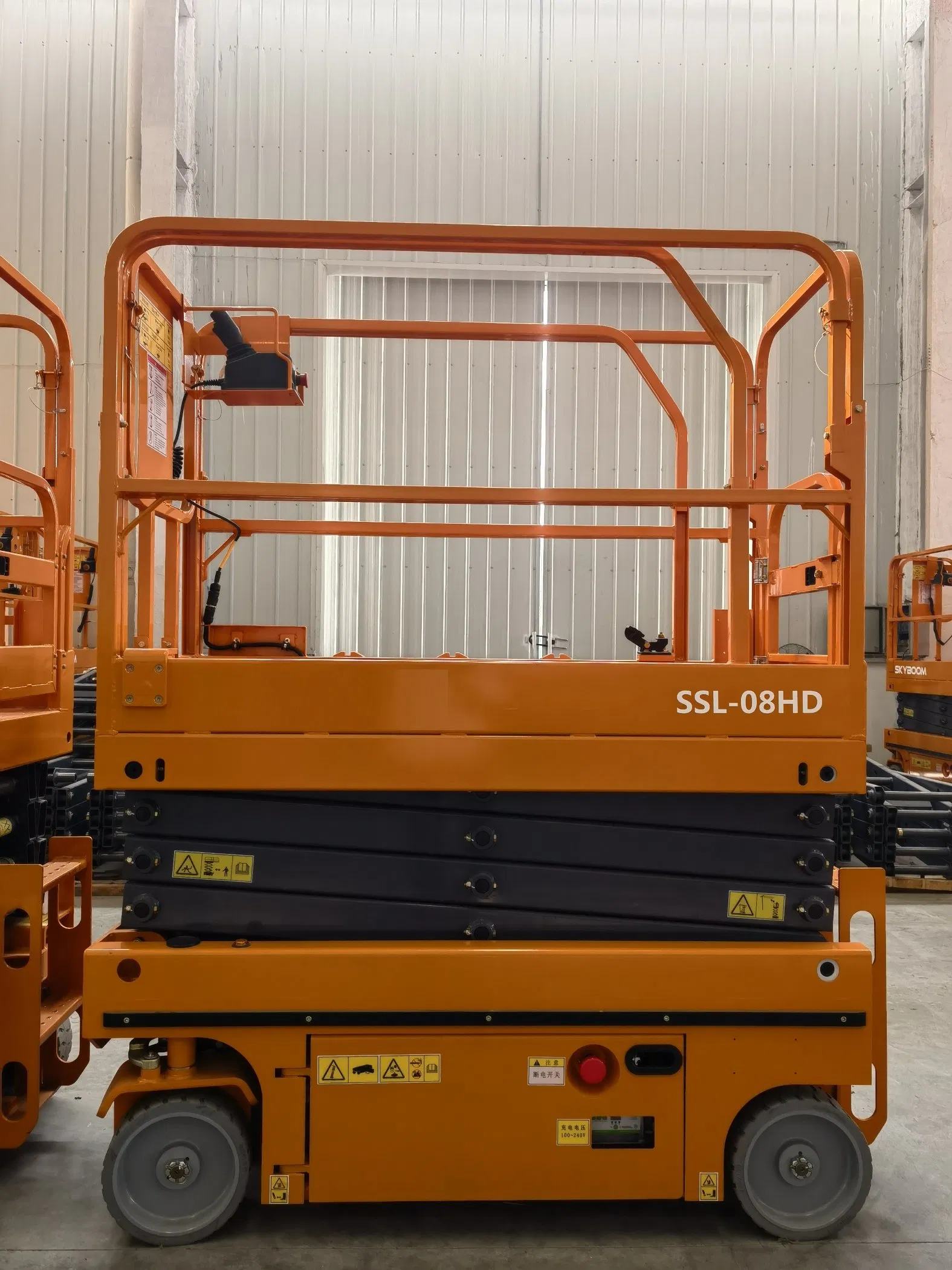

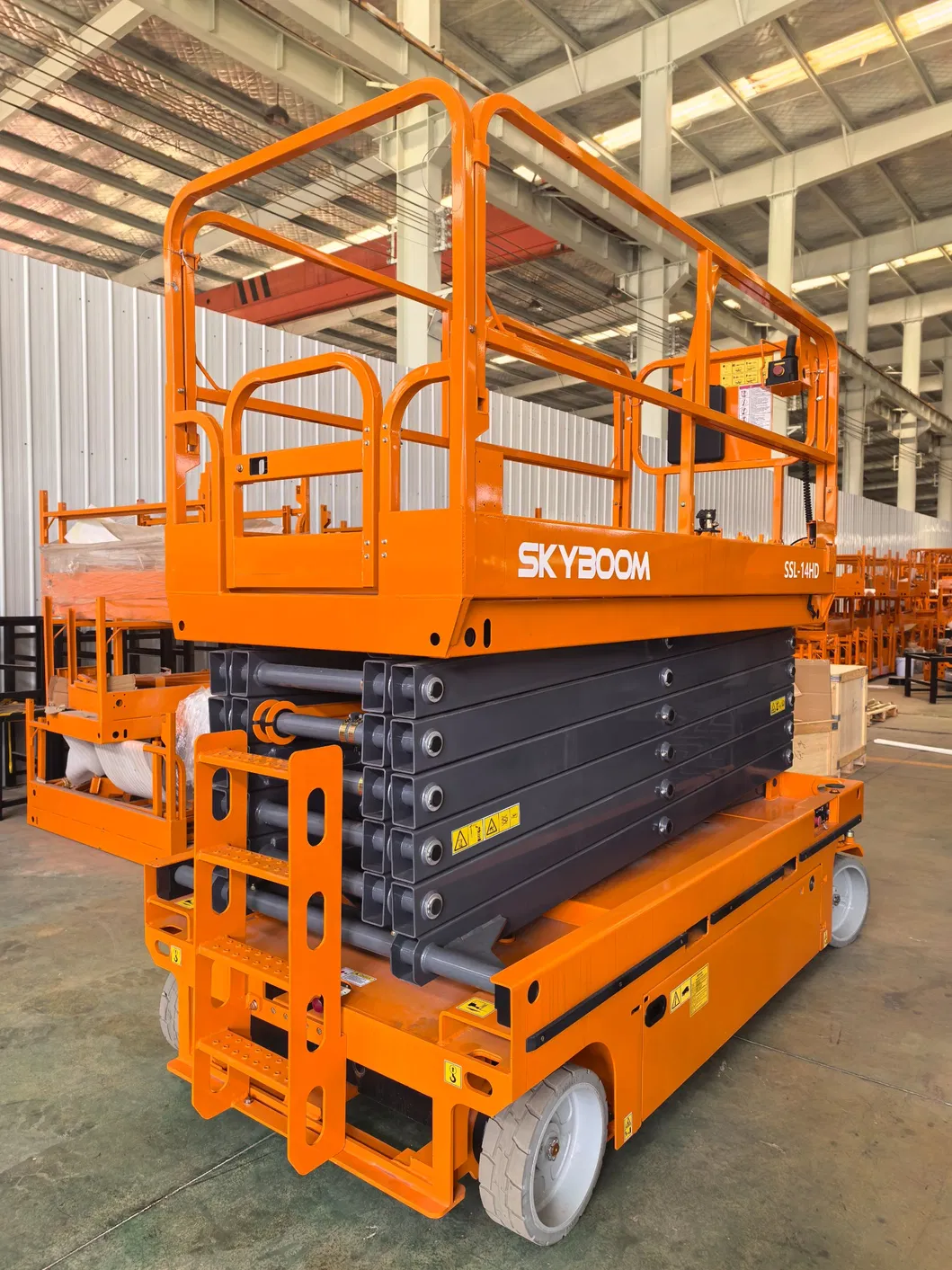

Product Detail View

Technical Parameters

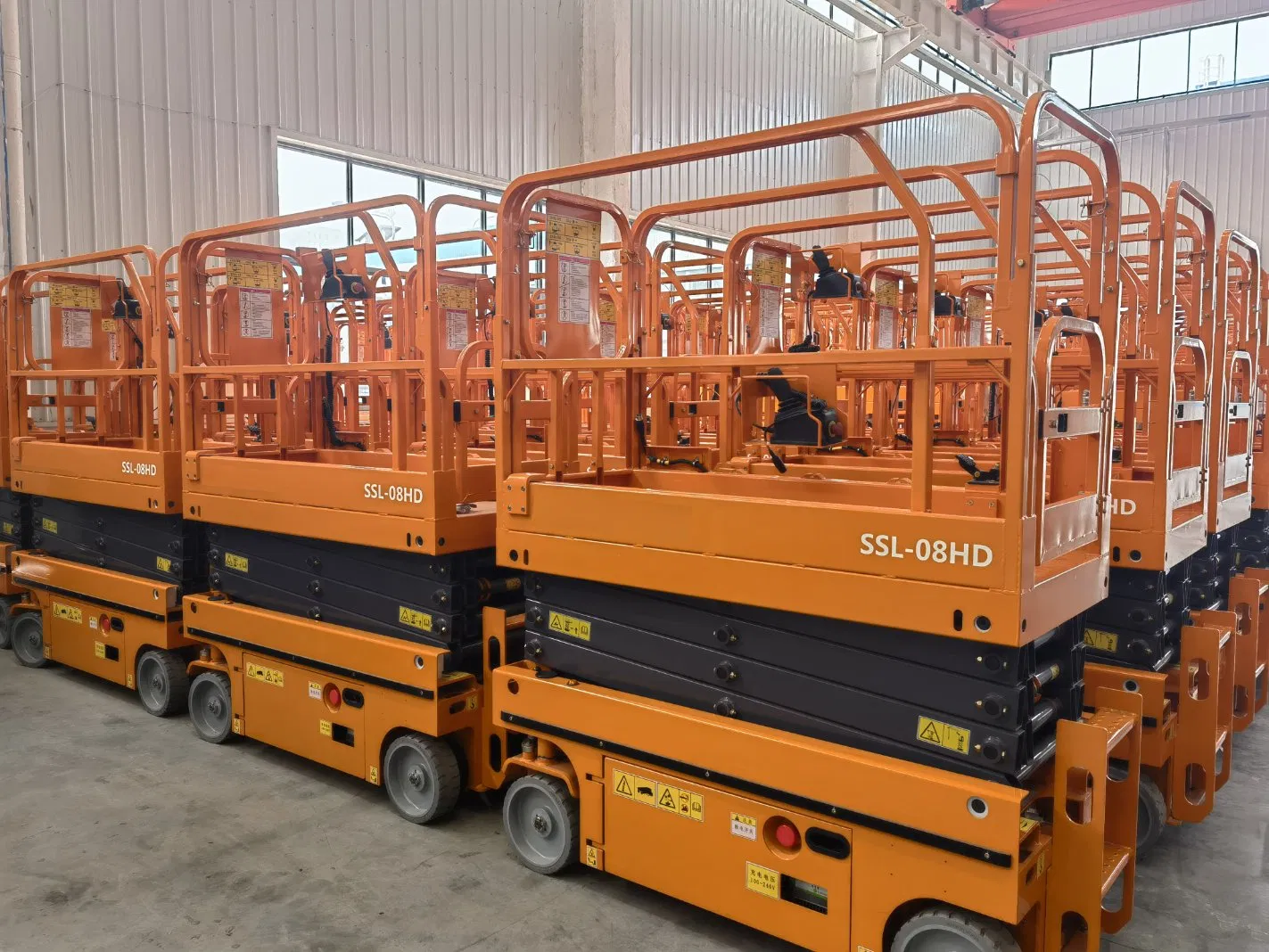

MODEL	SSL-05DC	SSL-06HD	SSL-08HD
DIMENSION
Working height maximum	6.5m	7.8m	10m
Platform height maximum	4.5m	5.8m	8m
Length-stowed	1.43m	1.8m	2.45m
Width-stowed	0.78m	0.78m	0.83m
Platform size (L×W)	1.3m*0.7m	1.67m*0.74m	2.27m*0.81m
PRODUCTIVITY
Lift capacity	240kg	230kg	230kg
Max platform occupancy	2 Indoor	2 Indoor / 1 Outdoor	2 Indoor / 1 Outdoor
Drive speed-stowed	3.5km/h	3.5km/h	3.5km/h
Gradeability	25%	25%	25%
POWER
Power source	12V*2/115Ah	4*6V/240Ah	4*6V/240Ah
Weight	890kg	1490kg	2150kg

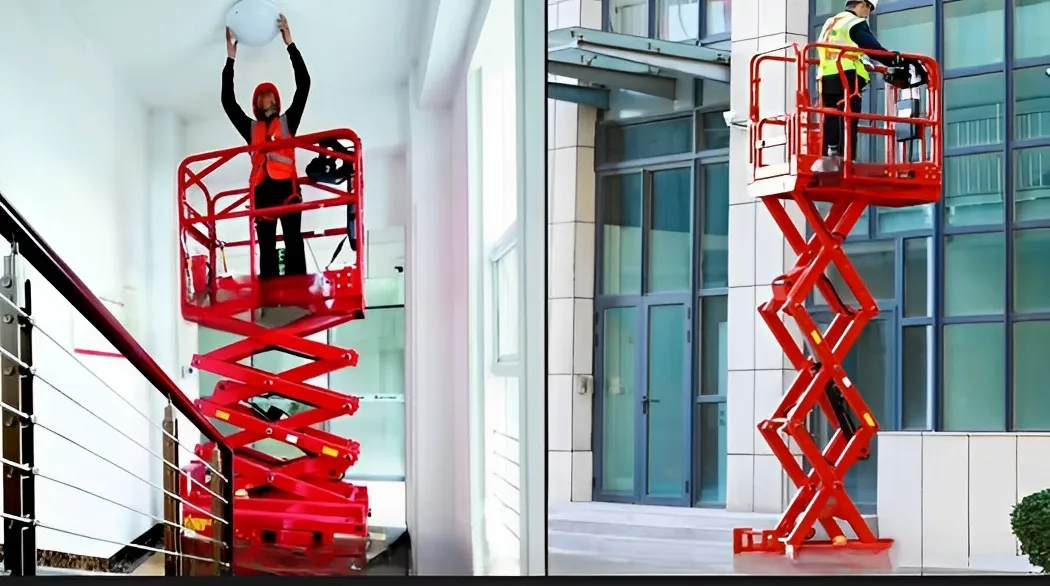

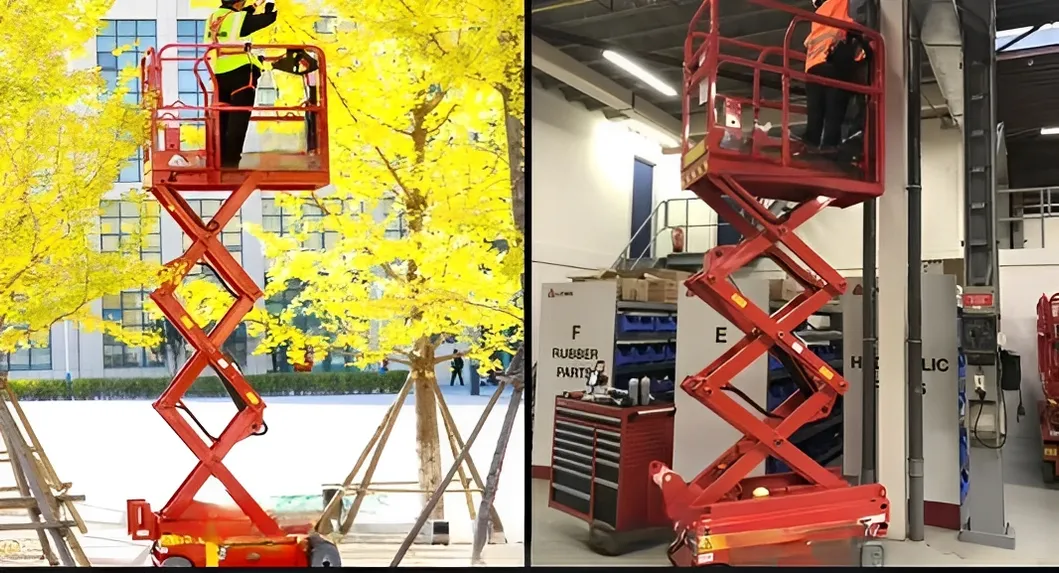

Application Scenarios

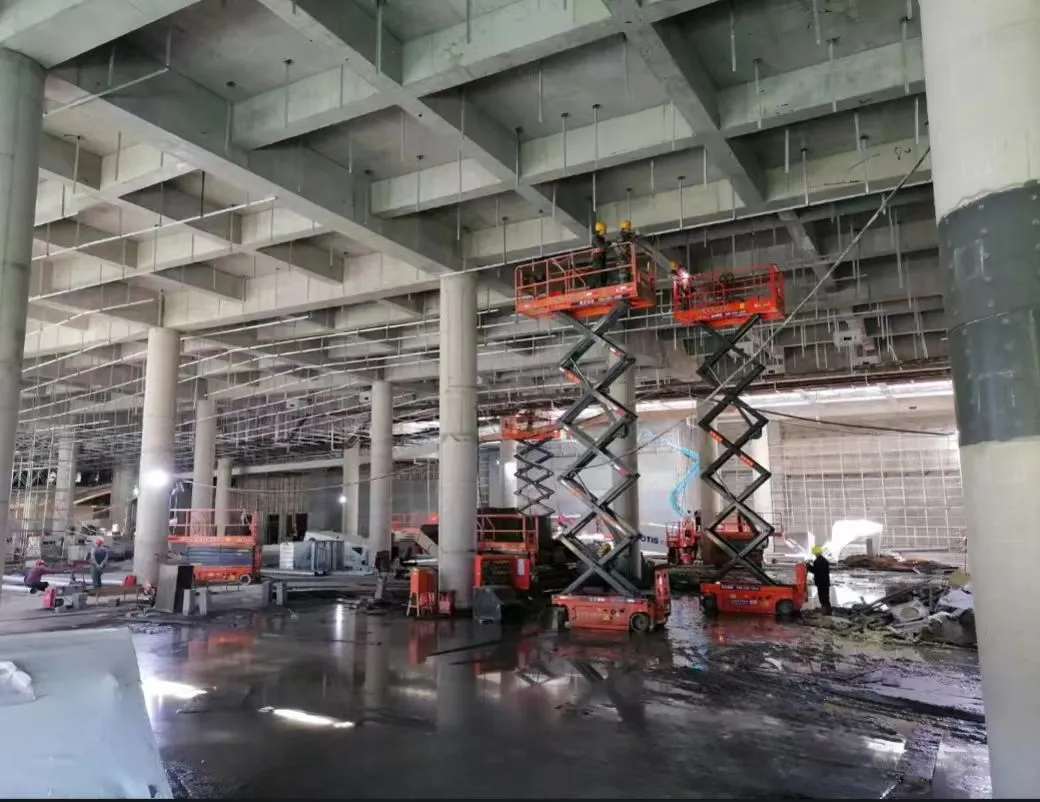

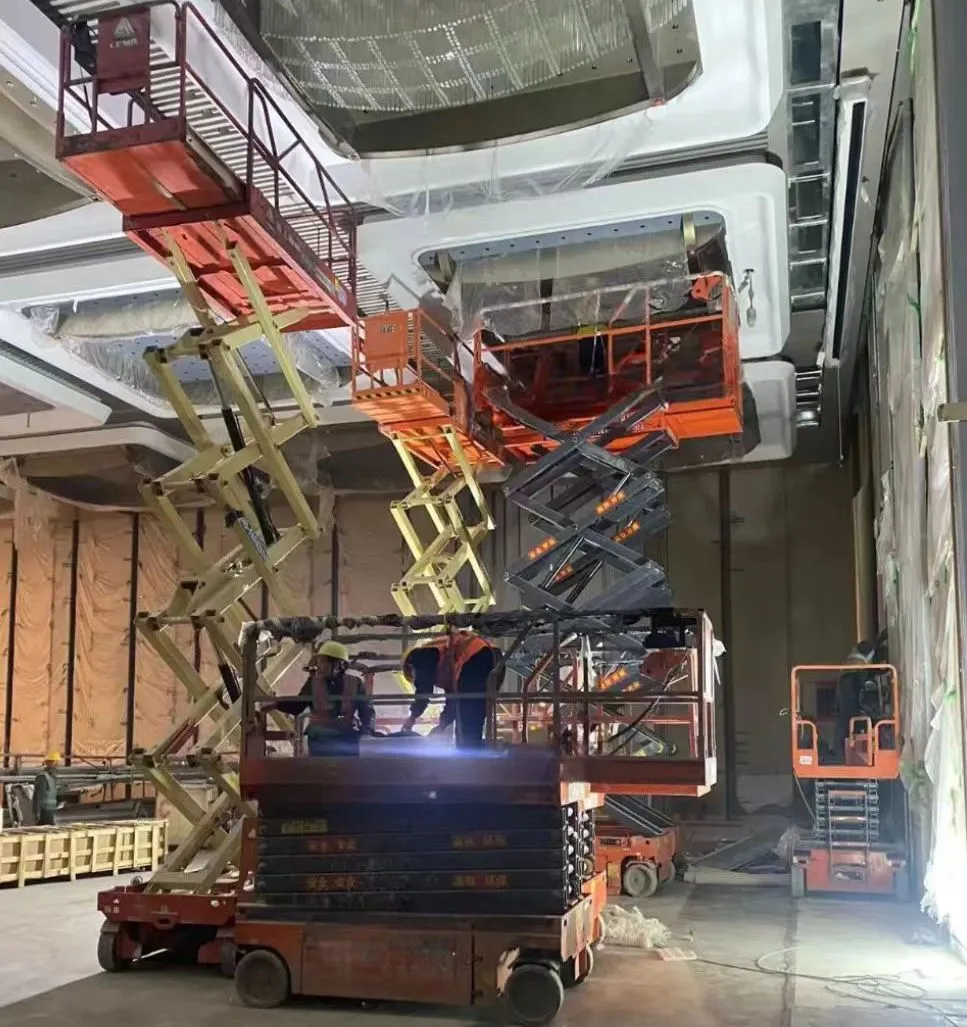

Electric-driven scissor-type aerial work platforms are ideal for construction sites, industrial plants, commercial premises, logistics warehousing, and transportation hubs.

Specialized Construction Solutions

Expertise in research, development, and manufacturing of high-performance operating devices for excavators and loaders. Products include buckets, crushing buckets, hydraulic shears, intelligent robots, and customized solutions exported to over 20 countries across Europe, America, and Southeast Asia.

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a factory certified with ISO9001. We specialize in manufacturing high-quality Construction Machinery & Attachments, with a professional history in production since 2008.

2. Is it possible for us to buy a sample?

Yes, samples are available. While a sample fee is included initially, we refund this fee once you place a bulk order with us in the future.

3. What's the estimated delivery time?

Generally, delivery takes between 7 to 14 days after payment. The exact timeline depends on the specific production requirements of your ordered items.

4. Is OEM or ODM service available?

Absolutely. We have extensive experience in OEM/ODM services and have successfully collaborated with many global construction equipment leaders.

5. How do I know if the product fits my equipment?

Simply provide your model number or machine tonnage, and our technical team will recommend the best matched products for your specific needs.

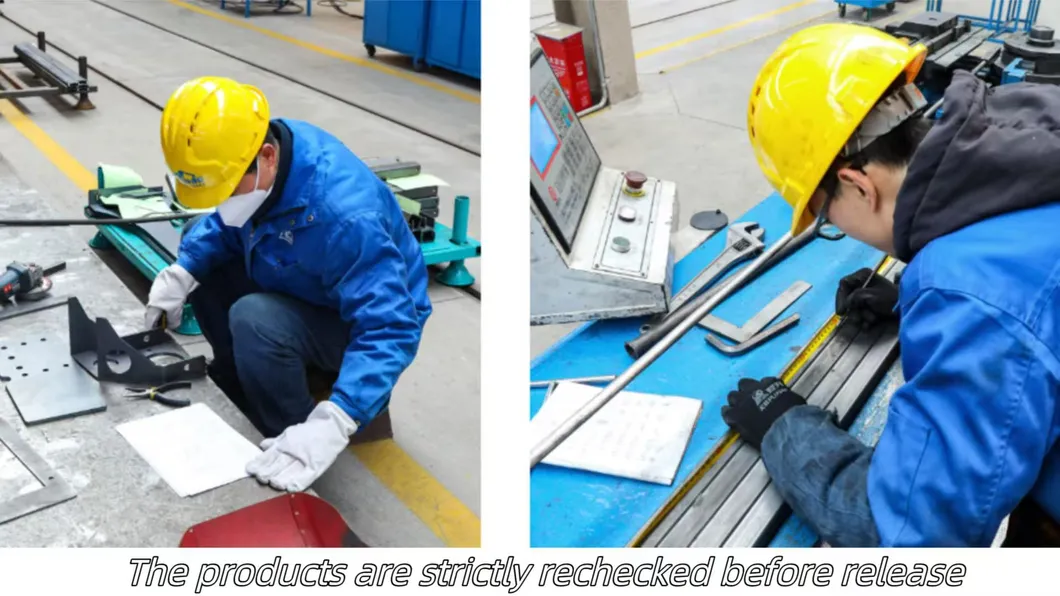

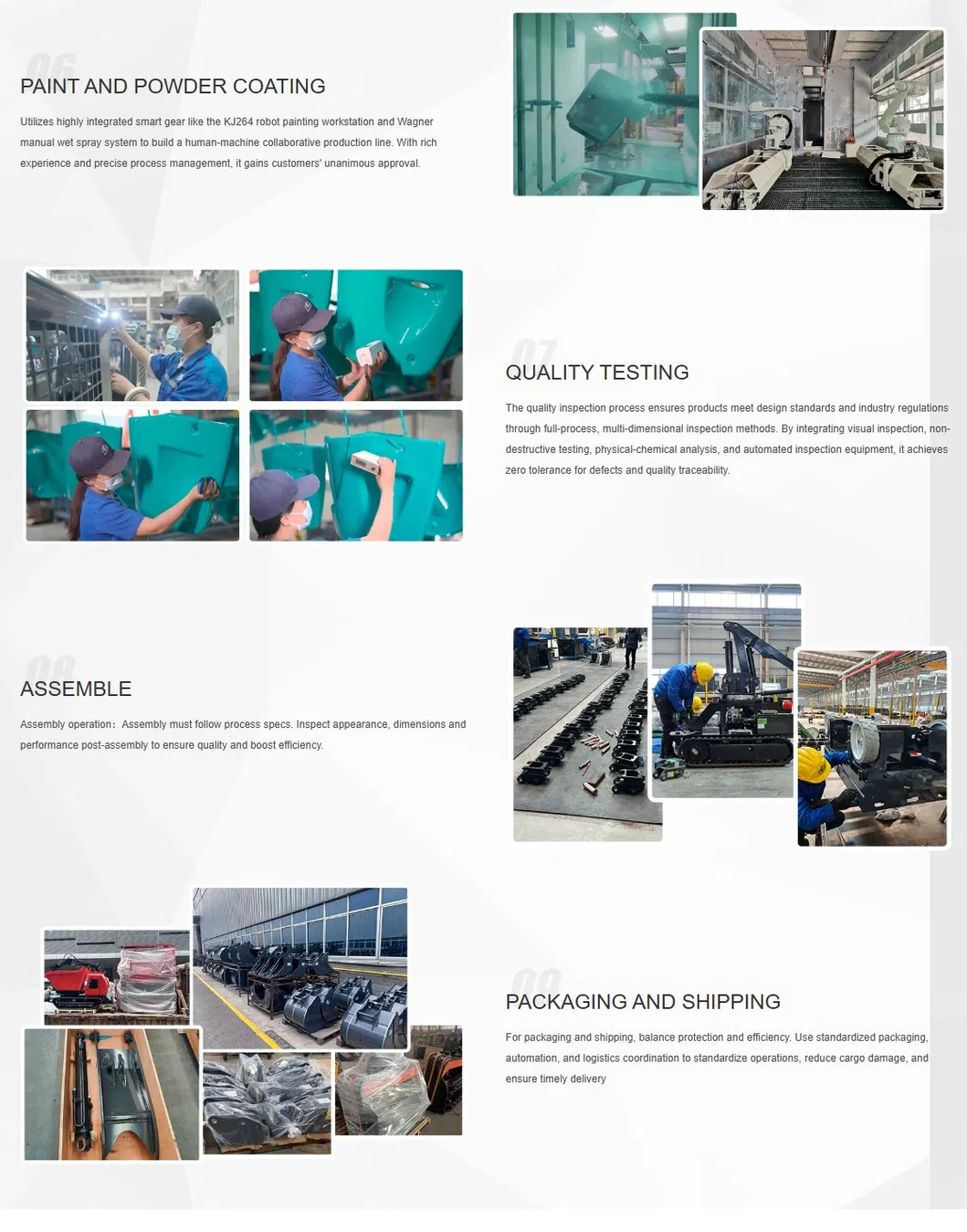

6. What is your quality control process?

We perform a 100% inspection on all products before packaging. Our quality management system ensures every unit meets the highest safety and performance standards.
