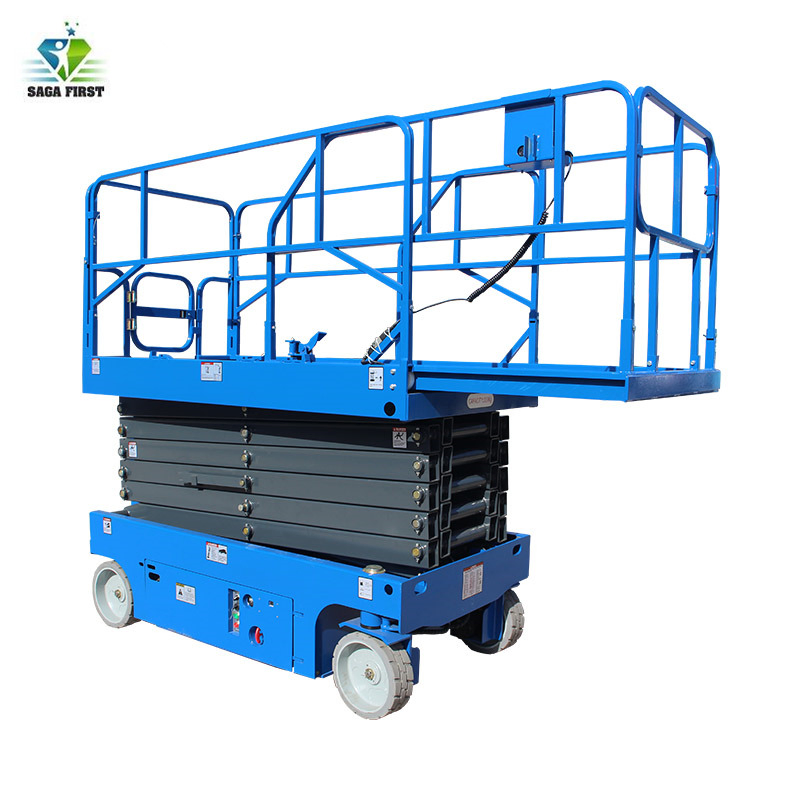

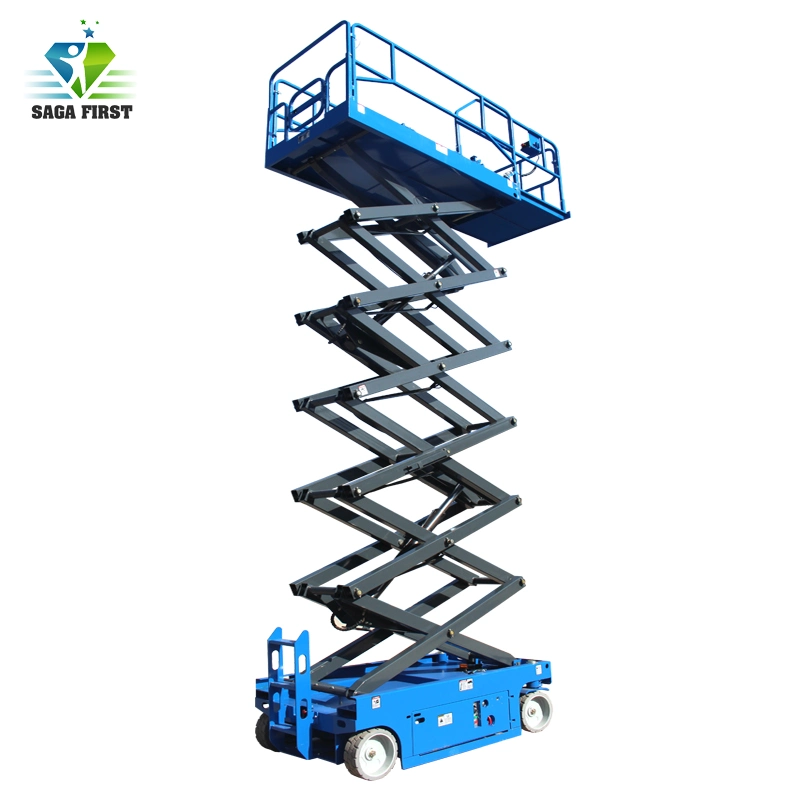

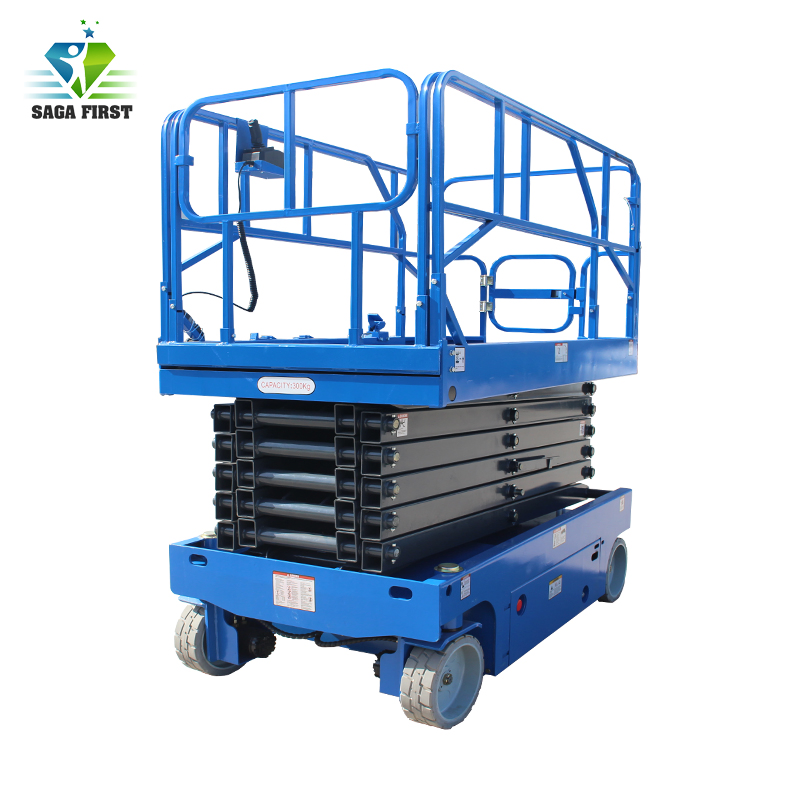

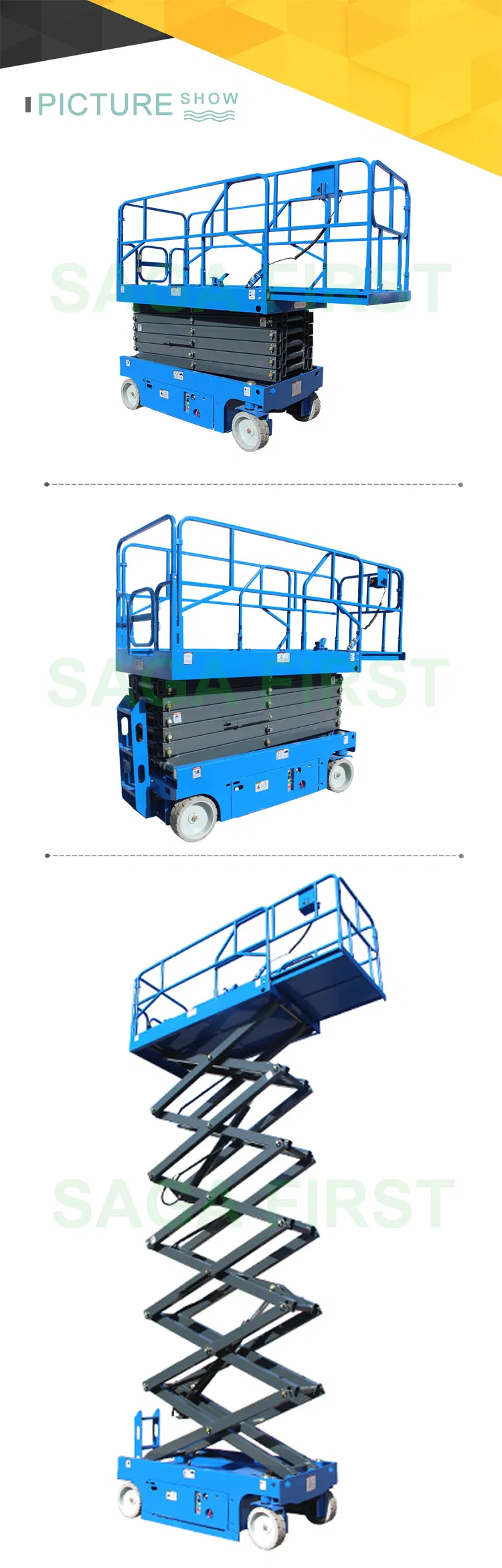

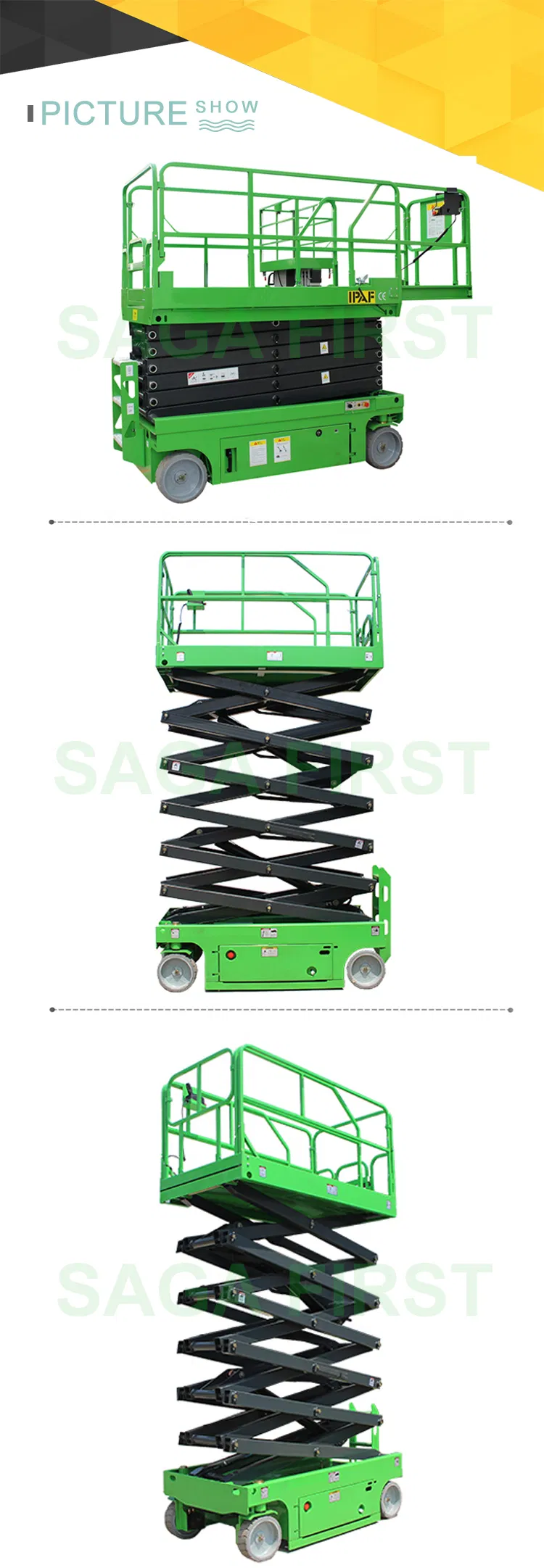

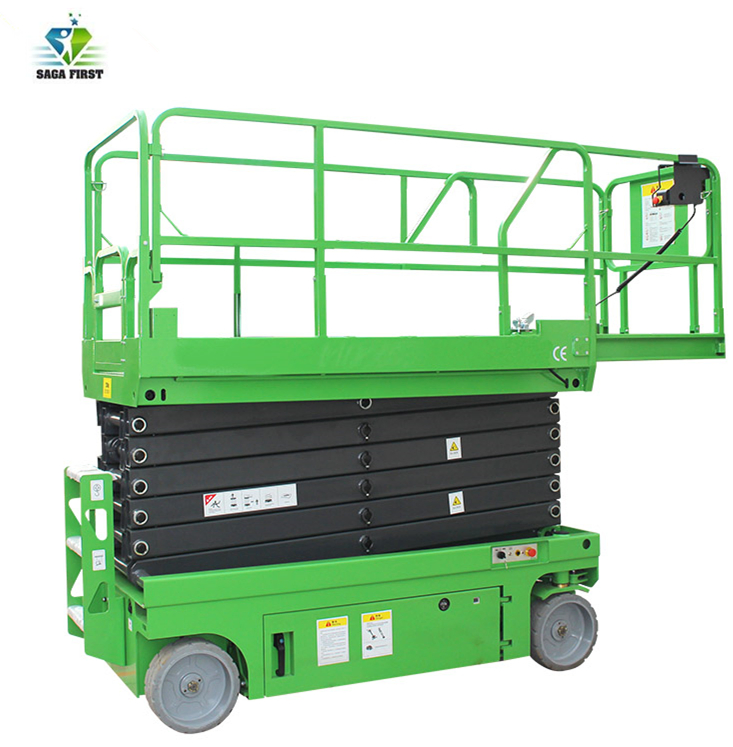

6m-12m Self Propelled Hydraulic Driven Aerial Scissor Lift
This Aerial Scissor Lift is driven by hydraulic principles, where a hydraulic motor supplies power for both driving and lifting. Known for high precision, great sensitivity, low wear, and lower noise levels, it offers a superior drive model compared to standard electric motors.
The compact modular structure allows for operation in small spaces. Featuring a new electric propulsion system, it provides more flexibility and environmentally friendly exhaust emissions. Includes an automatic hole protection system for enhanced safety and reliability, plus an extensible platform for increased workspace.
| Model No. | SP06 | SP08 | SP10 | SP12 | SP14 |
|---|---|---|---|---|---|
| Max Platform Height (mm) | 6000 | 8000 | 10000 | 12000 | 14000 |
| Max Working Height (mm) | 8000 | 10000 | 12000 | 14000 | 16000 |
| Lifting capacity (kg) | 300 | 300 | 300 | 300 | 300 |
| Overall Length (mm) | 2400 | 2770 | |||
| Overall Width (mm) | 1150 | 1330 | |||
| Platform Size (mm) | 2270×1150 | 2640x1150 | |||
| Power source (v/kw) | 24/4.0 | 24/4.5 | |||
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3400 |

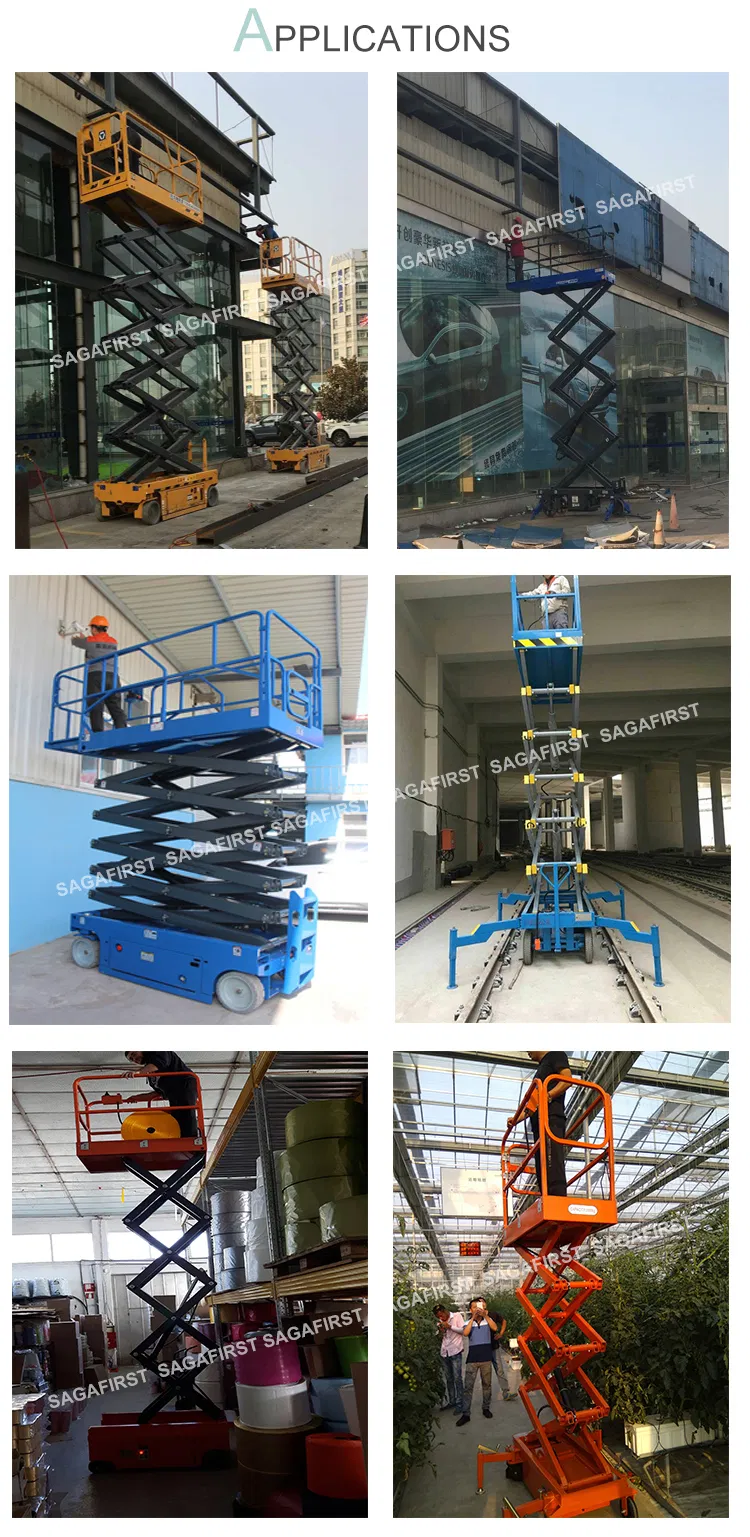

The Aerial Scissor Lift is widely utilized in construction sites, building maintenance, factory daily aerial work, and various other high-altitude tasks.

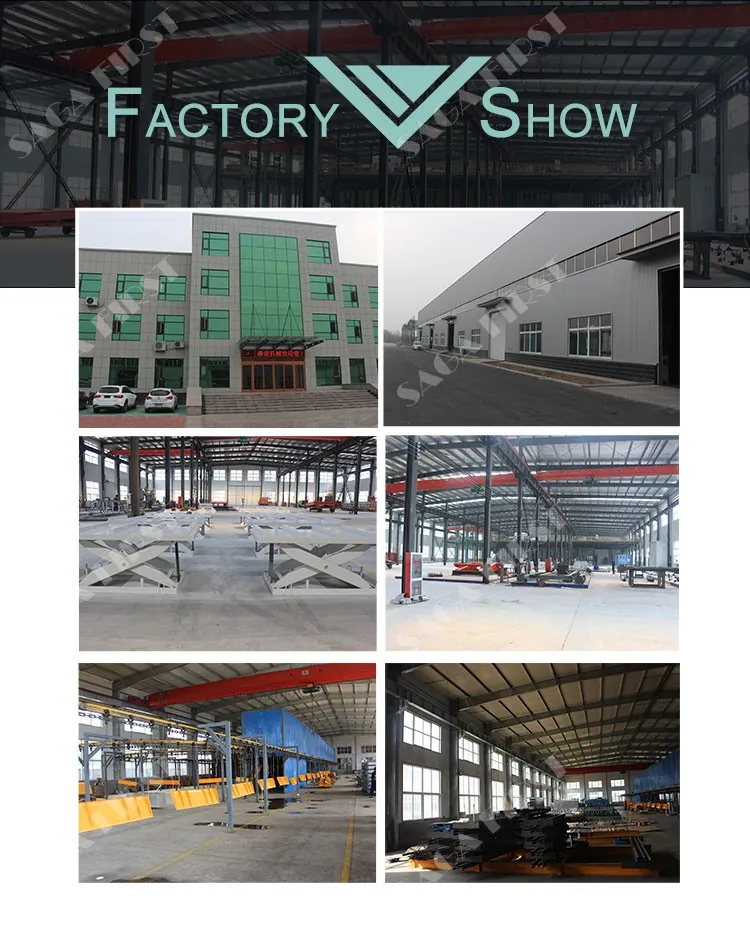

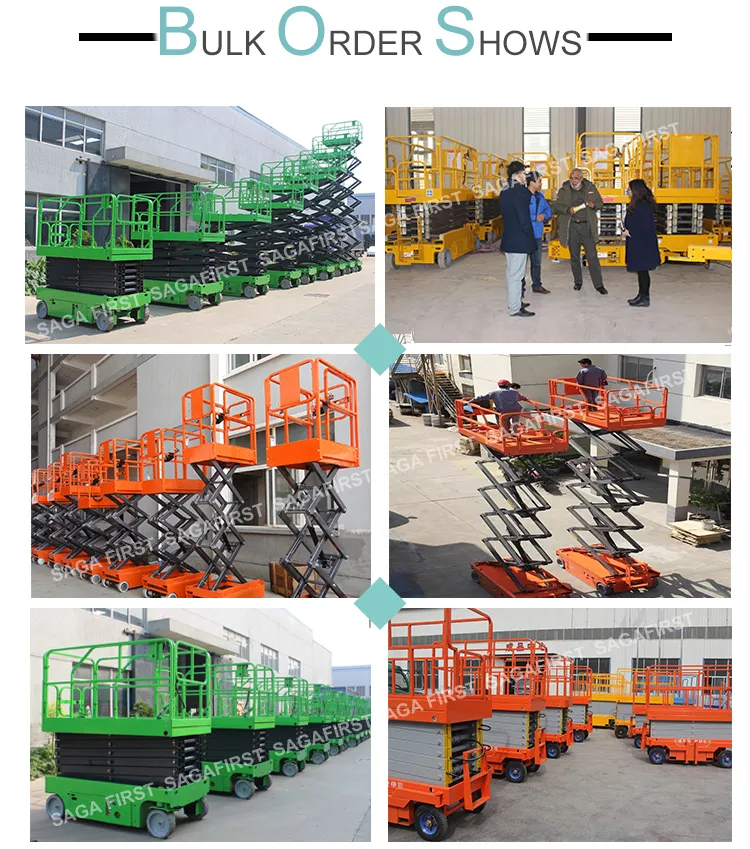

We welcome dealers, wholesalers, and customers to visit our facilities and negotiate business. Special discounts are available for wholesale partners.
All models in the SP series, from SP06 to SP14, have a rated lifting capacity of 300kg.
The lift is powered by a 24V/200Ah to 300Ah battery system (depending on the model) and includes a 24V/30A charger for easy maintenance.
Yes, the SP14 model can reach a maximum platform height of 14,000mm, providing a working height of up to 16,000mm.
The lift is equipped with an automatic pothole protection system and a tilt angle sensor to ensure stability during aerial operations.
Yes, the unit uses non-marking wheels and electric/hydraulic propulsion, making it ideal for clean indoor environments like warehouses and factories.
The platform features an extendable section of 900mm, allowing operators to reach over obstacles or access a larger work area.
