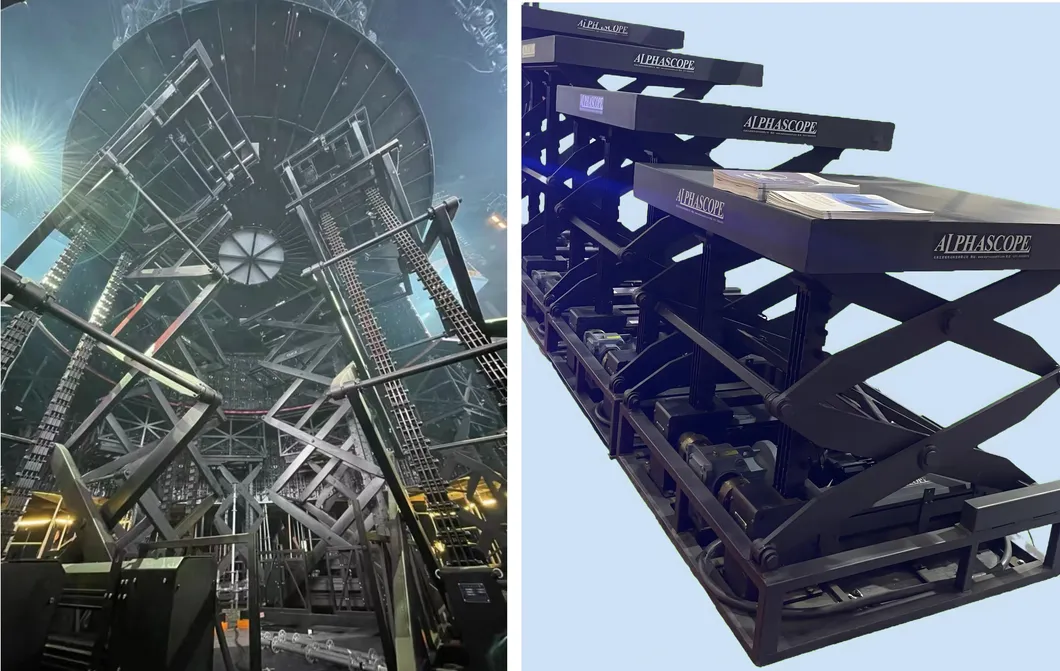

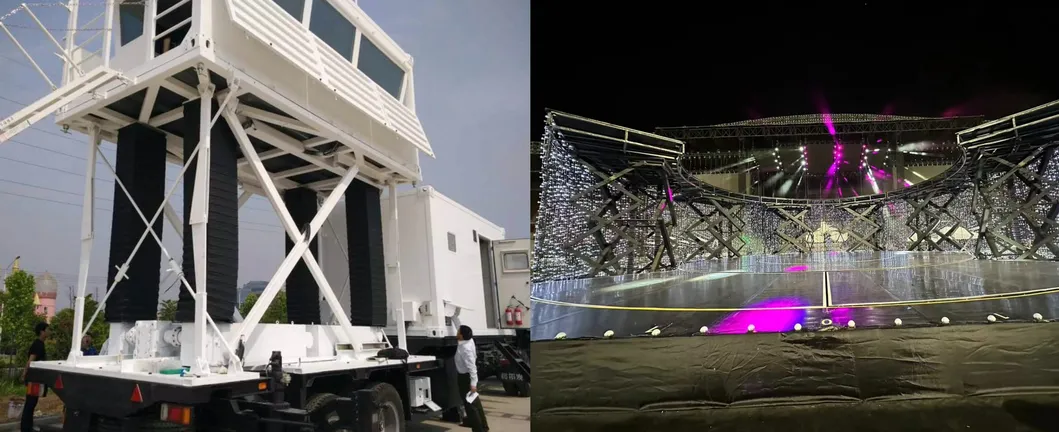

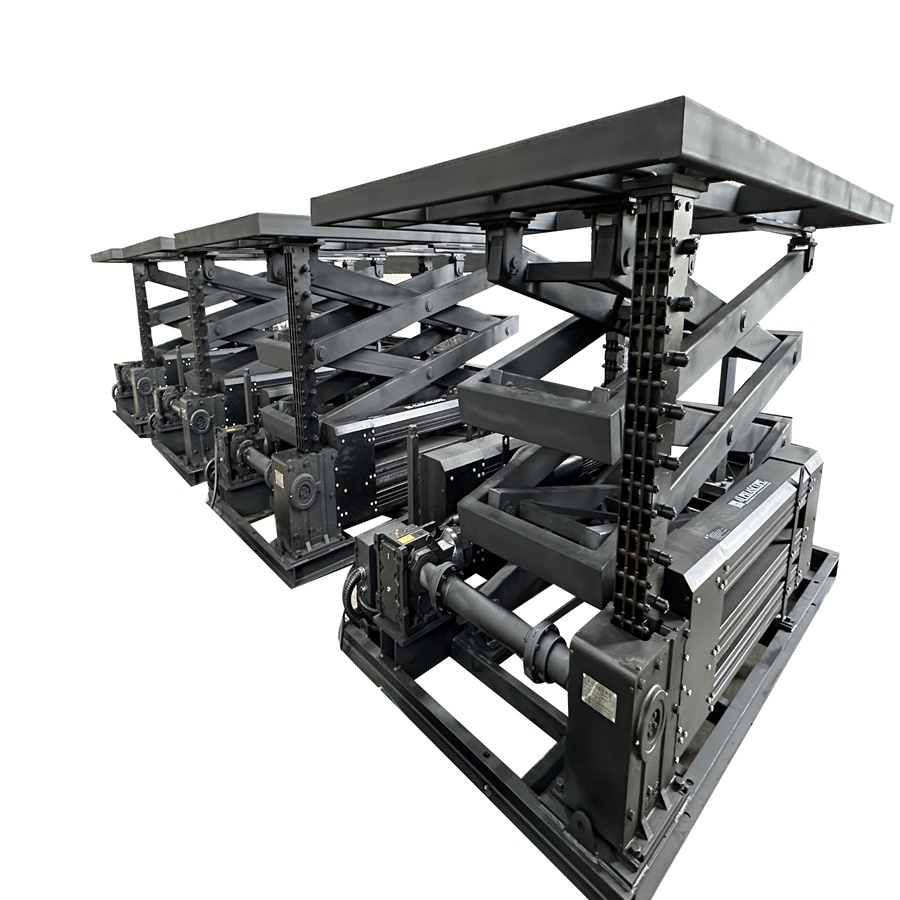

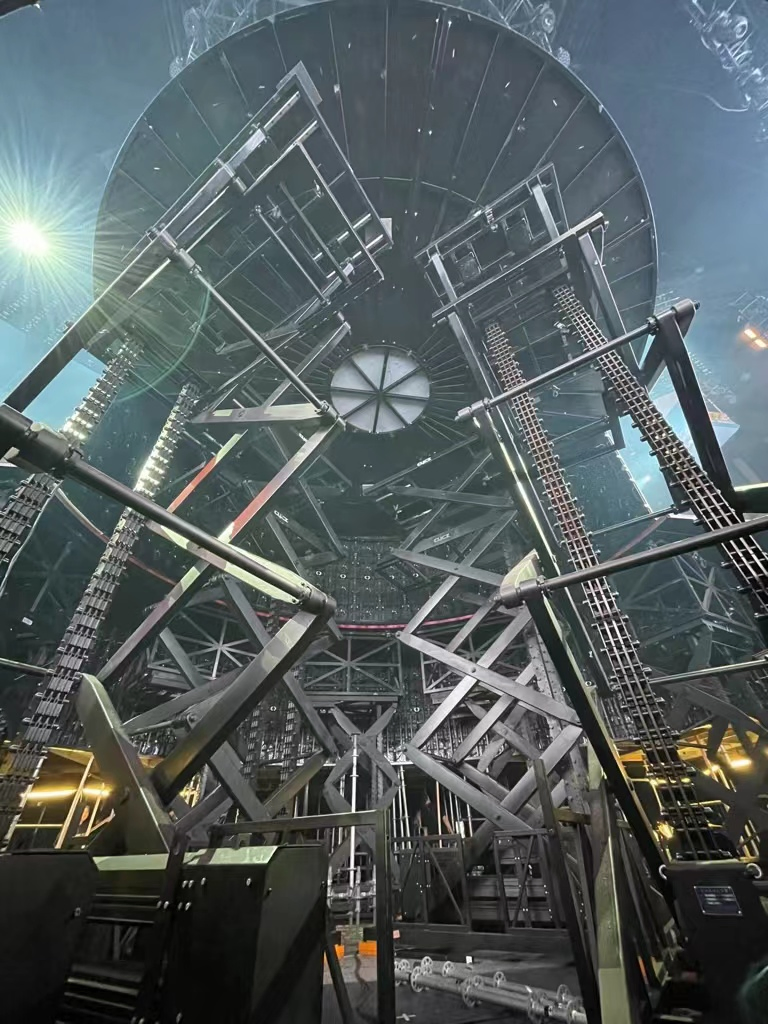

Rigid Chain Scissor Lift Table is widely applied to fields such as automotive automation production lines, logistics and stage machinery platforms, especially when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. Rigid Chain (Flexible Transmission Column Lift) is a cutting-edge product designed to meet the needs of businesses seeking reliable, efficient, and precise vertical and horizontal motion solutions.

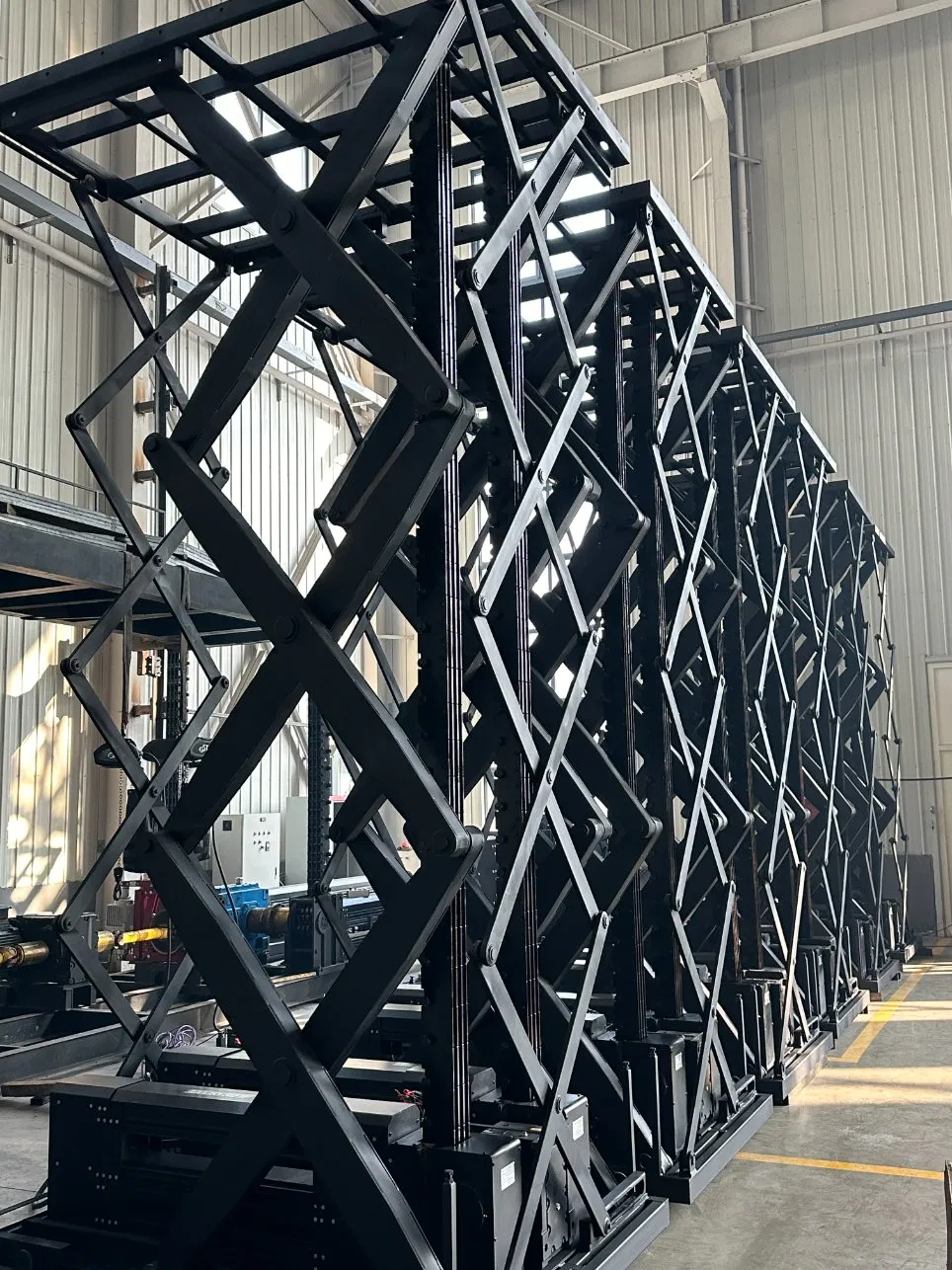

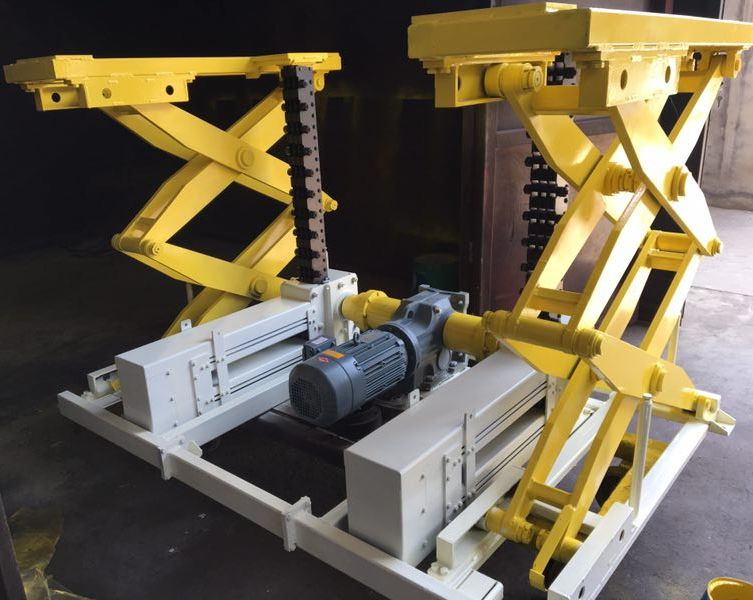

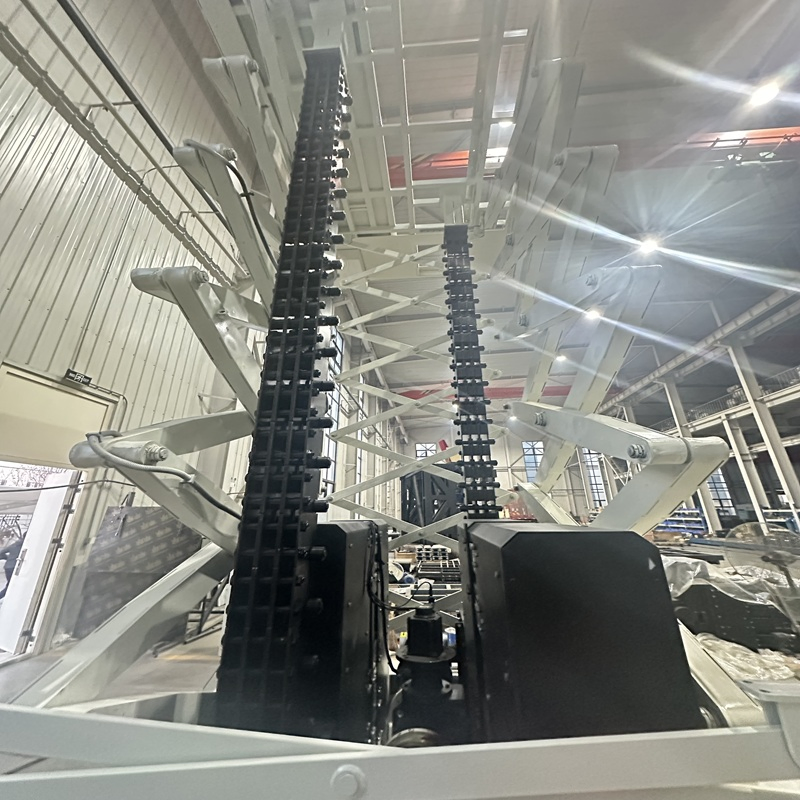

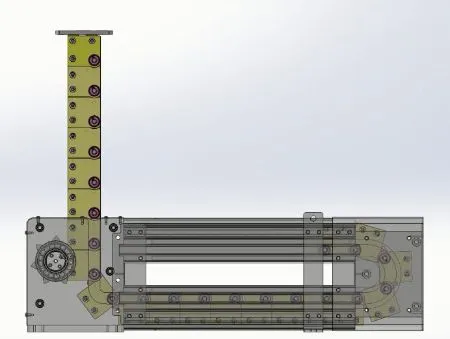

The Flexible Transmission Scissor Lift Table is driven by a Flexible Transmission Column Lift system. The horizontal movement of the chain links in the storage box is converted into vertical movement. The chain links form a vertical rigid column that bears the vertical load to achieve precise lifting.
| Model | 15A Flexible Transmission Scissor Lift Table |
| Platform dimensions WxD (m) | 1.0 x 1.0 or customized |
| Load capacity (ton) | 3 |
| Stroke (meters) | 2.0 |
| Max. Speed (m/s) | 0.25 |
| Power supply | AC 220V/380V 50Hz/60Hz |
| Power (kw) | 2.2~5.5 |
