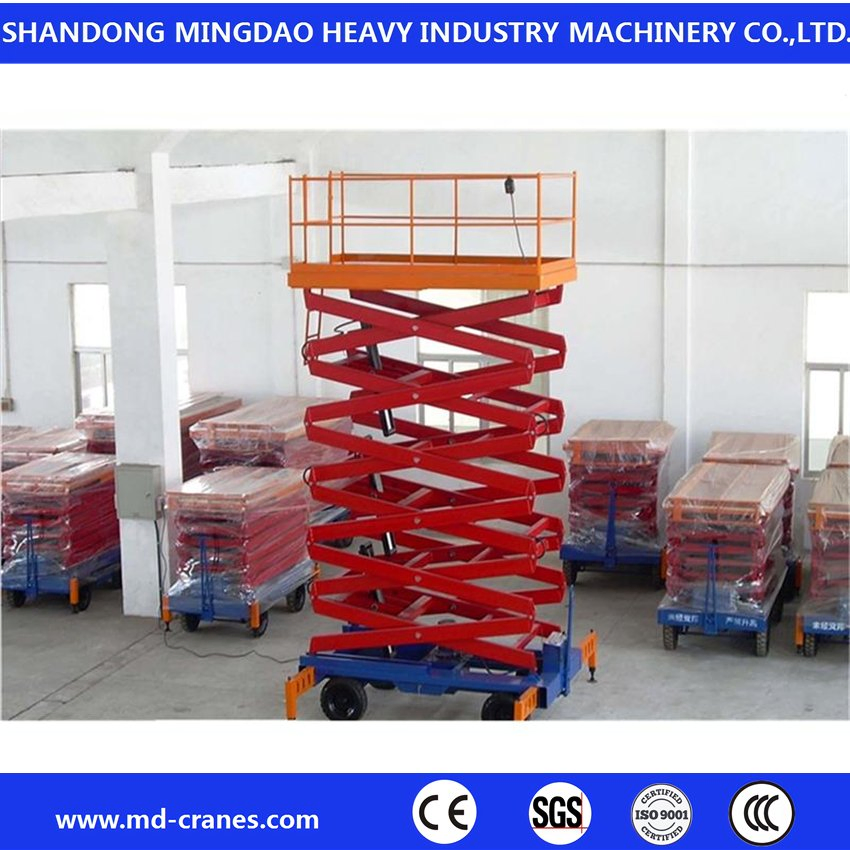

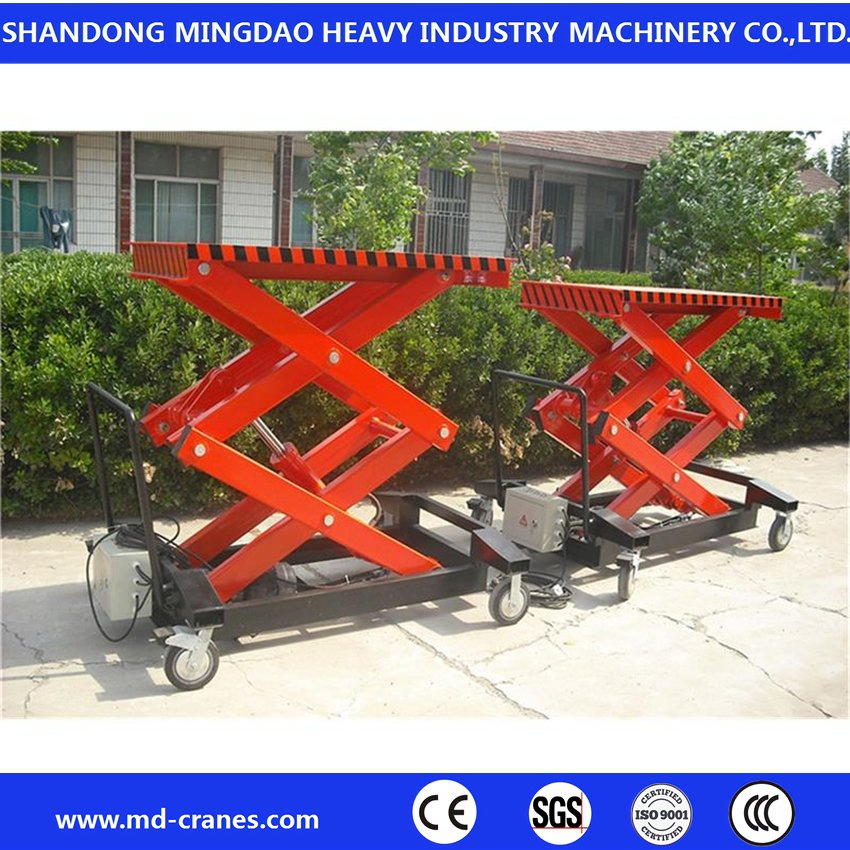

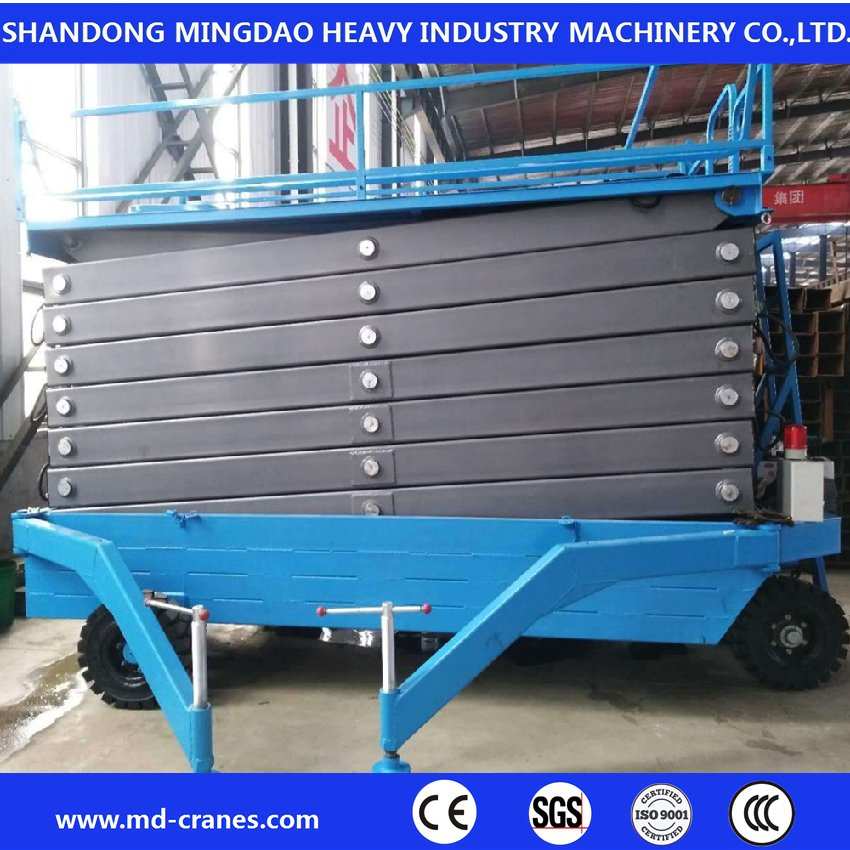

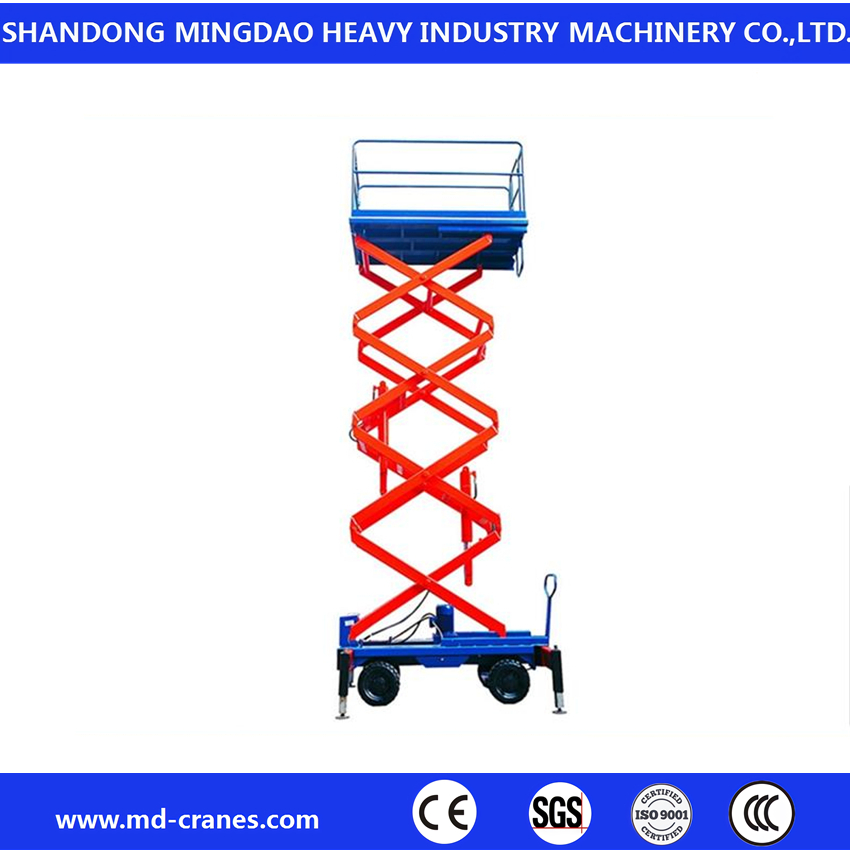

Moving Sky Model Mobile X Is a Mingdao Brand Scissor Lift.

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Specifications

Model

Mobile scissor X lift table

Application

Workshop Crane

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating

Certification

ISO 9001

Travel Mode

Self-Propelled / Manual

HS Code

8428909090

Package Size

100cm * 100cm * 100cm

Gross Weight

500.00kg

Product Description

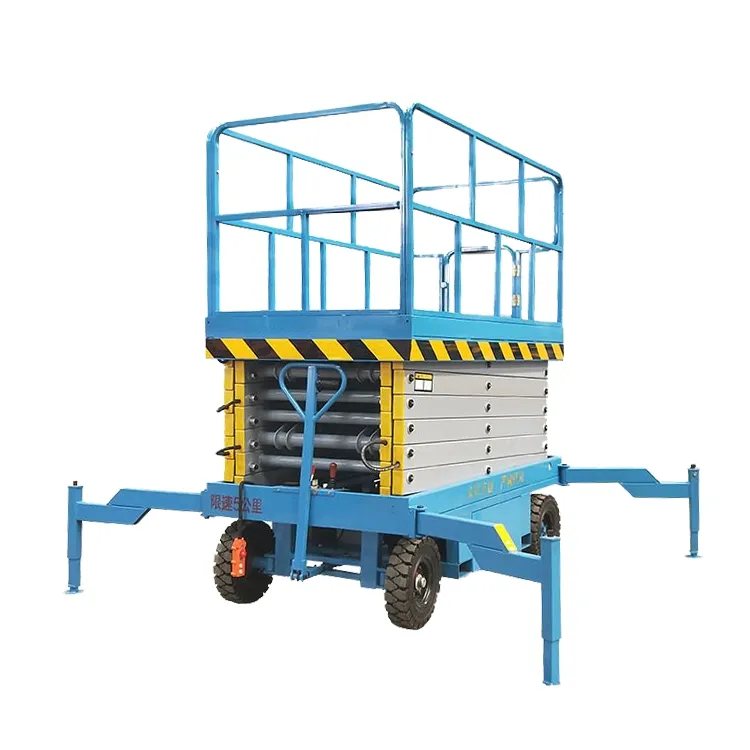

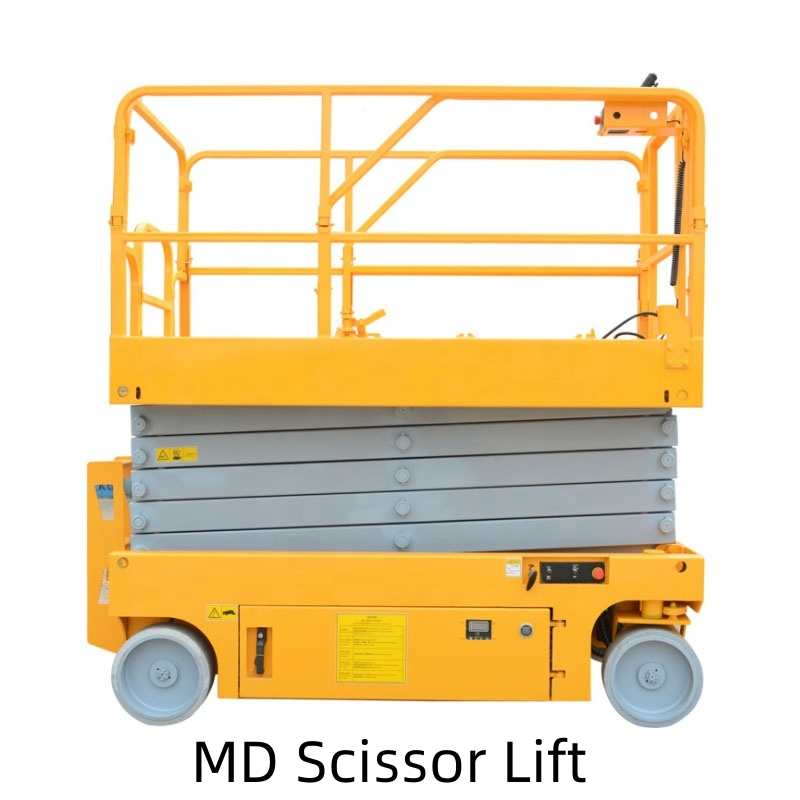

Heavy Loading Stationary Hydraulic Self-Propelled Scissor Lift Table

The self-propelled hydraulic scissor lift features an automatic walking function. It can be raised and lowered freely under various working conditions without requiring an external power supply or traction. A single operator can manage both walking and steering functions from the platform.

This equipment is flexible, convenient to move, and significantly enhances the speed and safety of high-altitude operations, making it an ideal solution for efficient modern production environments.

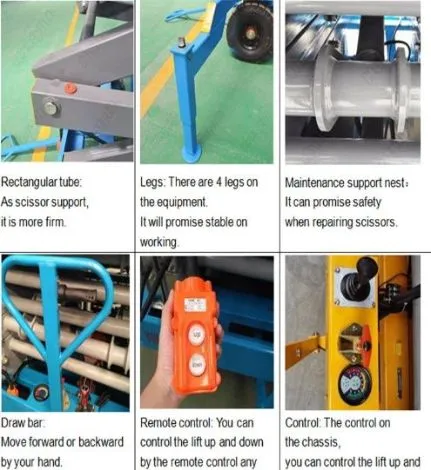

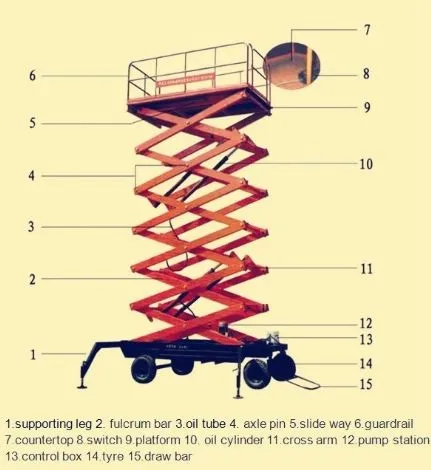

Detailed Photos

Technical Parameters

Model	GTJZ0608	GTJZ0810	GTJZ1012	GTJZ1214	GTJZ1416
Rated Load Capacity	450kg	450kg	320kg	320kg	230kg
Working Height	8m	10m	12m	14m	16m
Platform Height	6m	8m	10m	12m	14m
Overall Length	2480mm	2480mm	2480mm	2480mm	2850mm
Overall Width	1190mm	1190mm	1190mm	1190mm	1250mm
Overall Height (Rails up)	2200mm	2320mm	2450mm	2570mm	2635mm
Driving Speed	3.5/0.8km/h	3.5/0.8km/h	3.5/0.8km/h	3.5/0.8km/h	3.5/0.8km/h
Overall Weight	2170kg	2360kg	2640kg	2980kg	3600kg

Features & Advantages

Simple structure, ensuring easy maintenance and durability.
Equipped with 4 sturdy outriggers for maximum stability.
Flexible producing techniques, suitable for specific customization requirements.
Wide load capacity range (500-2000kg) and platform heights (4m to 18m).

Safety Systems

Explosion-proof valves for hydraulic line protection.
Advanced overload protective system.
Reliable check valves to prevent dropping during power failure.
Manual emergency decline valve for safe lowering.

Configuration: Standard semi-electric (manual movement, electric lift). Full electric moving and lifting options are also available.

Operational Guidelines

1. Ensure the work surface is kept level during equipment use.

2. Users should utilize safety ropes when working outdoors or in harsh environments.

3. Climbing or approaching the machine during lifting operations is strictly forbidden for unrelated personnel.

4. Use clean hydraulic oil; avoid water and impurities. Replace every six months.

5. Maintenance and cleaning should only be performed after supporting the safety brace.

6. Electrical and hydraulic systems must be serviced by professionals.

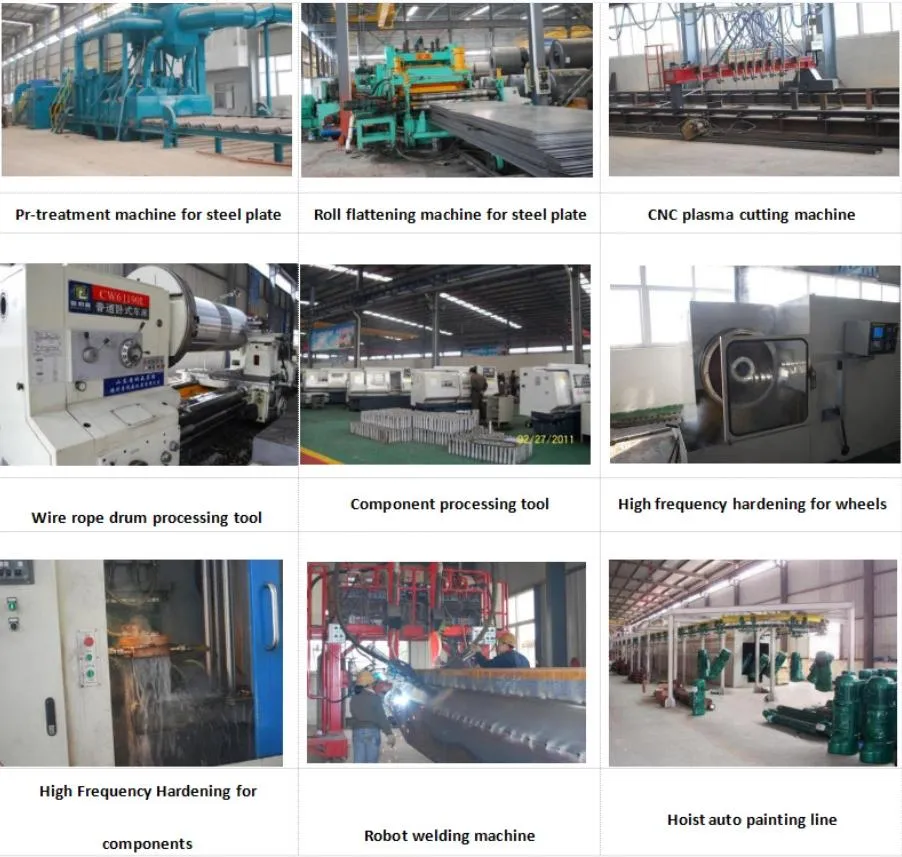

Production & Quality Control

Our production facility integrates R&D, manufacturing, and sales across 16 specialized workshops including electrical, assembly, and machining. We maintain a rigorous quality control system to ensure every unit meets international standards.

Frequently Asked Questions

What is the standard delivery time?

We maintain an inventory for standard products. If not in stock, standard products take 7-10 days to produce, while customized units require 10-15 days.

What kind of guarantee do you provide?

We offer a one-year guarantee period. During this time, we provide replacement parts for non-human damage free of charge, supported by 24h online technical service.

Can the scissor lift be customized?

Yes, we can customize products based on your specific load, height, and dimension requirements. We also support OEM and ODM services.

What is the Minimum Order Quantity (MOQ)?

Our MOQ is one unit. However, we offer significant discounts for bulk orders.

How are the machines packaged for international shipping?

Machines are typically packed in sturdy wooden boxes or secured directly within containers to ensure safe transport during export.

Why choose this hydraulic lift equipment?

We are a specialized manufacturer integrating R&D and production for logistics and construction use. Our products are safety-recognized and have received positive feedback from over 20 countries.
