Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	One Year

📋

Basic Information

Model NO.

HW1001, HW2001, HW4001

Capacity

1000kg, 2000kg, 4000kg

Lift Mechanism

Scissor Lift

Driven Type

AC (380V/50Hz)

Certification

CE, ISO 9001

Min. Height

205-240mm

Max. Height

990-1300mm

Lift Time

20-25s

Application

Workshop, Shipboard, Warehouse, Building

Package

1PC/Wooden Case

⚙️

Product Description

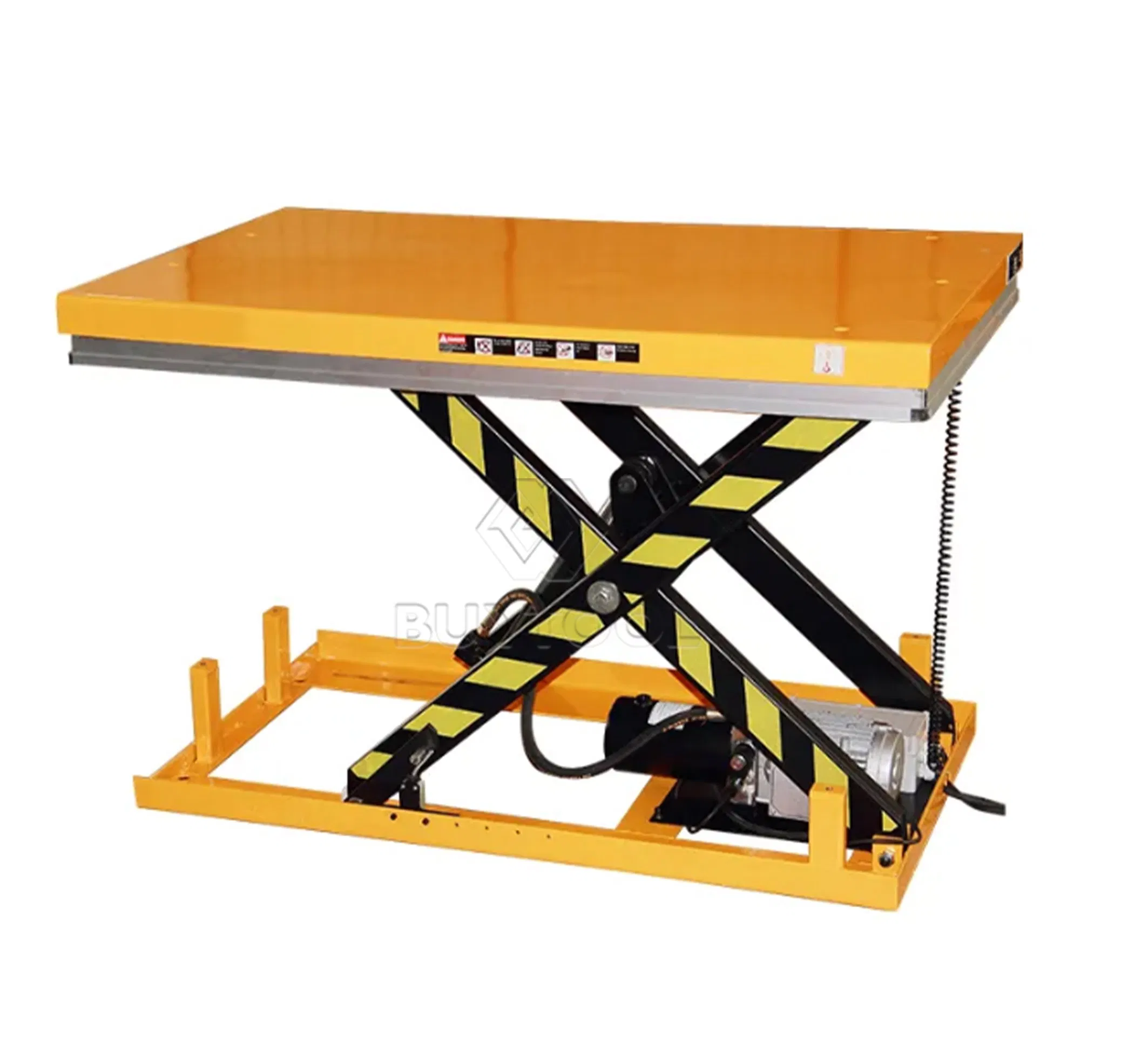

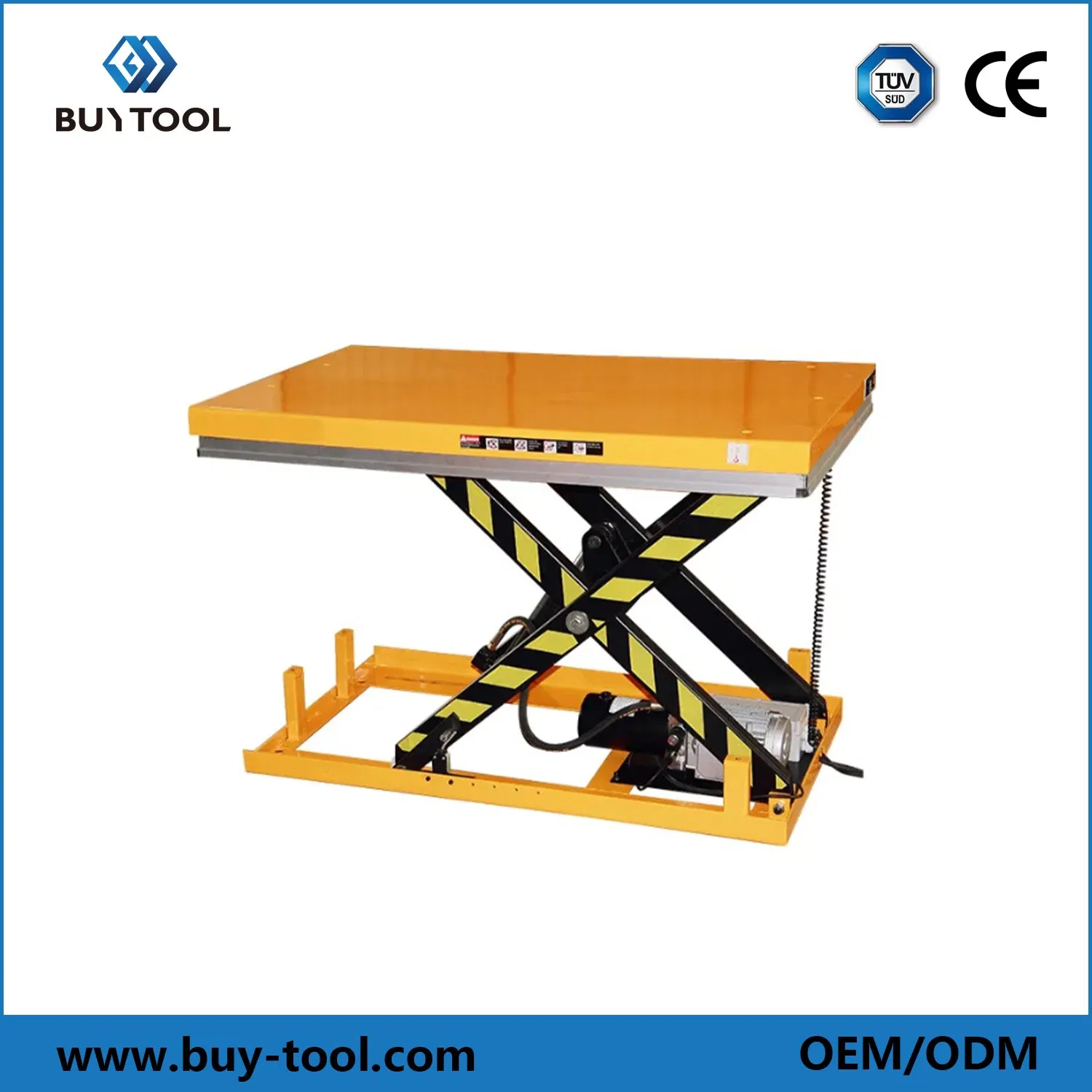

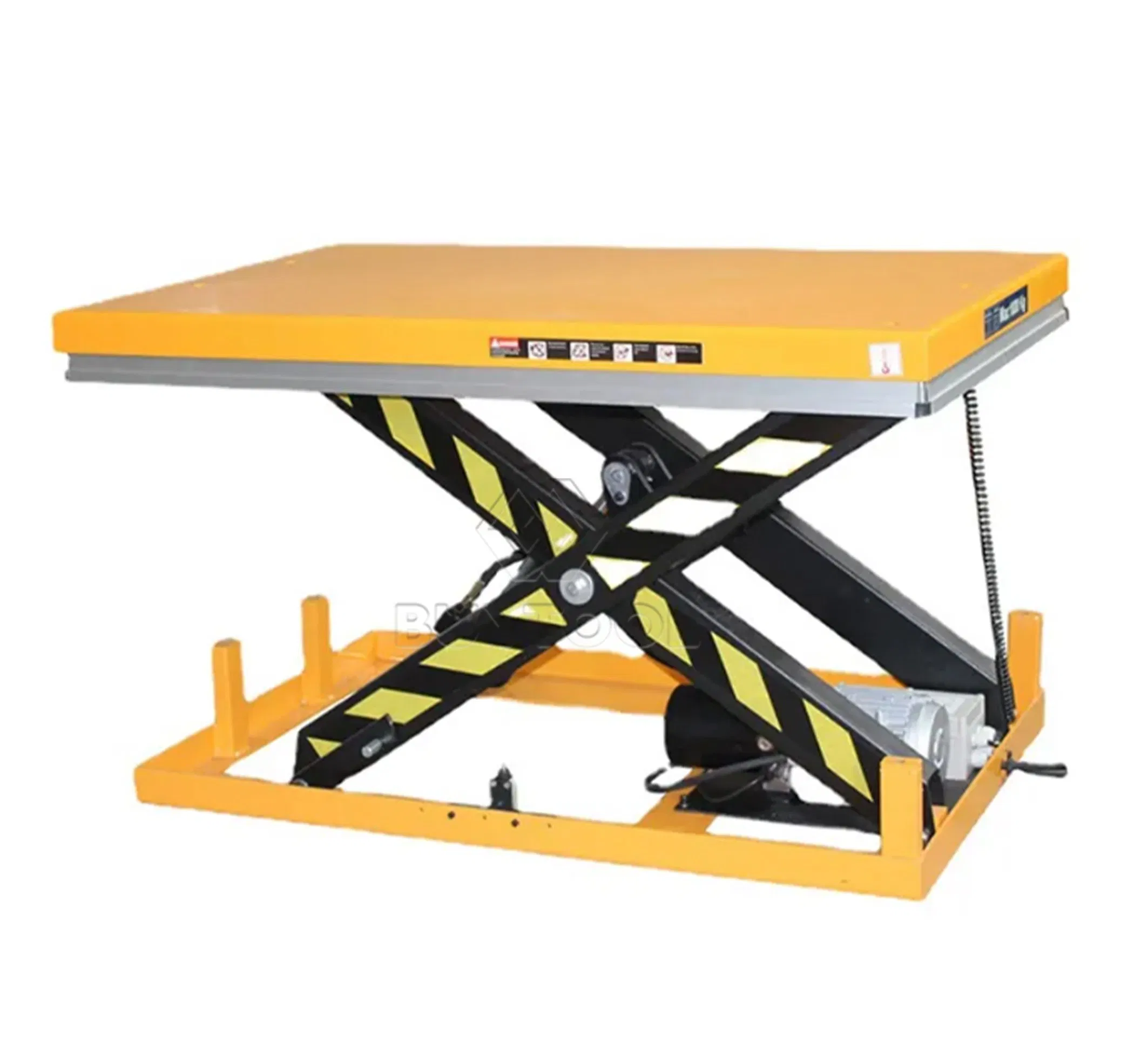

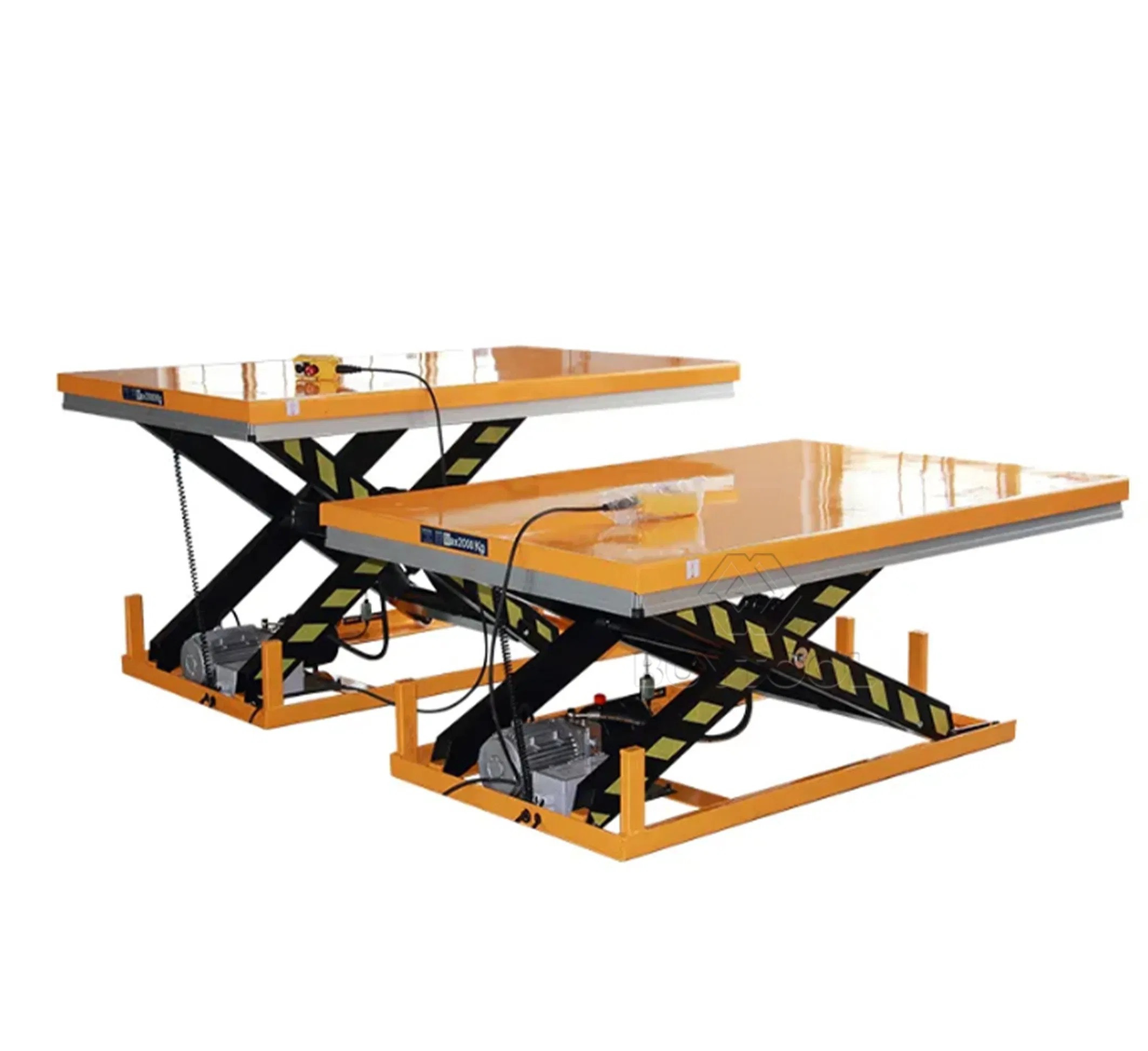

Heavy Duty Hydraulic Scissor Lift Table 1 Ton 2 Ton

Main Features:

✔️ Heavy duty design with safety guard.
✔️ Equipped with anti-explosion valve.
✔️ Meets EN norm and ANSI/ASME safety standards.
✔️ Applicable for above-floor or in-floor pit applications.

Standard Safety Features

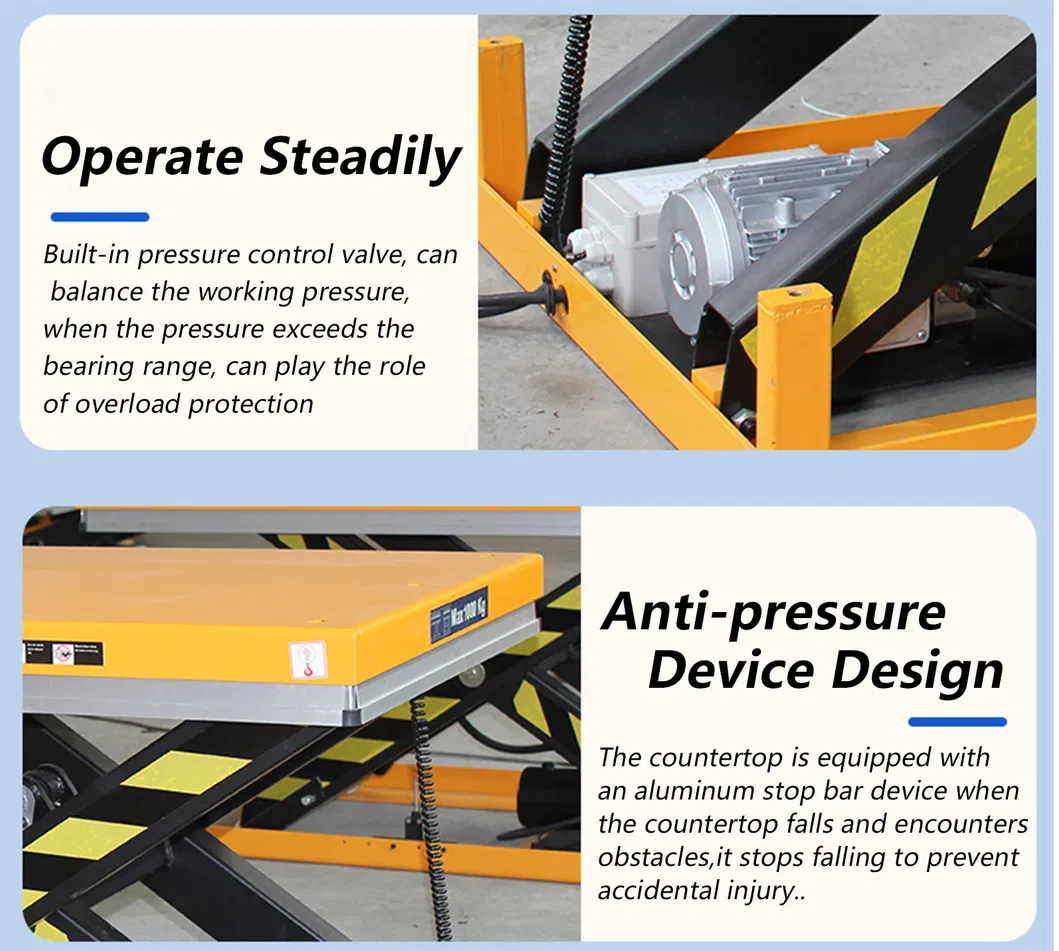

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tension (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading.
Compensated flow valve for controlled lowering speed.

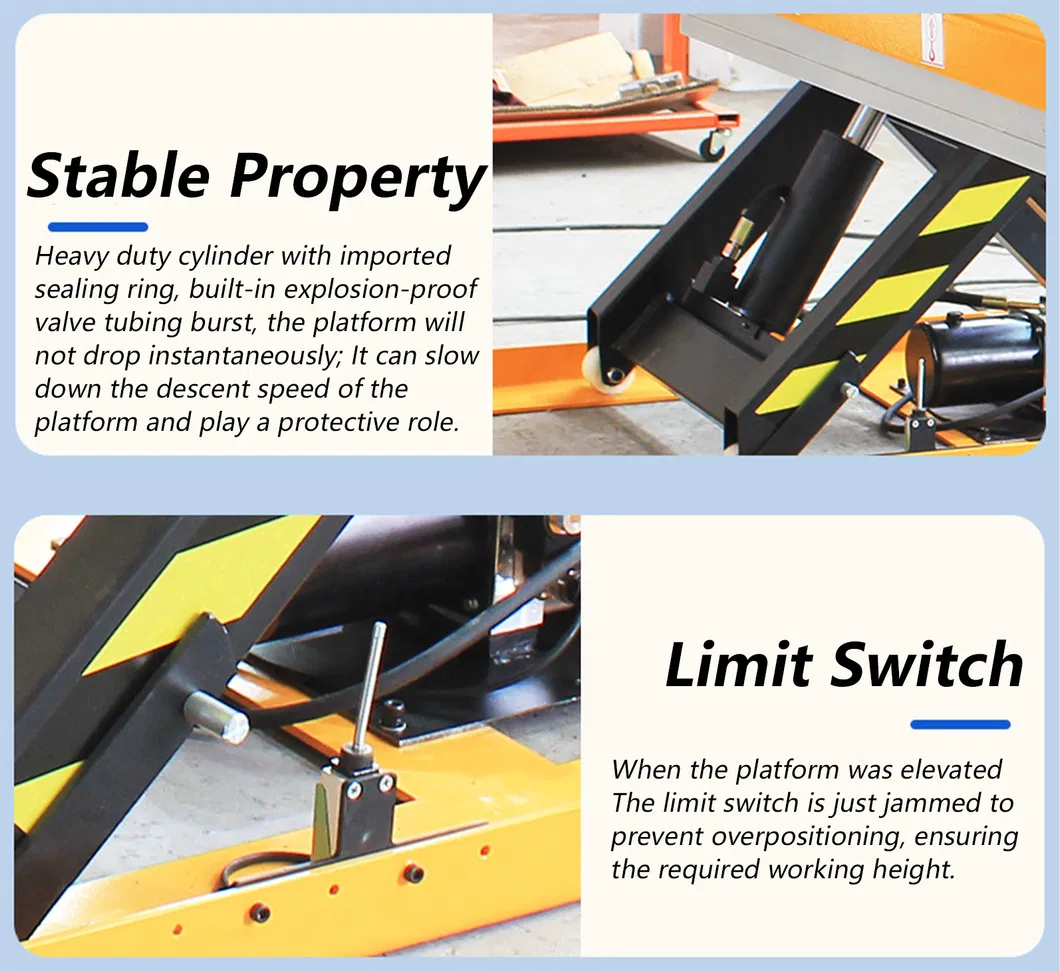

Heavy duty cylinders with drainage system and check valve to prevent lowering in case of hose burst.
Safety clearance between scissors to prevent trapping.

Other Standard Features

Self lubricating bushings on pivot points.
Removable lifting eye to facilitate handling and installation.

📊

Product Parameters

Model	Capacity (kg)	Lowered H (mm)	Raised H (mm)	Platform Size (mm)	Lift Time (s)	Power Pack	Weight (kg)
HW1001	1000	205	990	820×1300	20-25	380v/50HZ 1.1kw	160
HW1002	1000	205	990	1000×1600	20-25	380v/50HZ 1.1kw	186
HW2001	2000	230	1000	850×1300	20-25	380v/50HZ 1.5kw	235
HW2002	2000	230	1000	1000×1600	20-25	380v/50HZ 1.5kw	268
HW4001	4000	240	1050	1200×1700	30-40	380v/50HZ 2.2kw	375
HW4008	4000	350	1300	2200×1800	35-45	380v/50HZ 2.2kw	655

📸

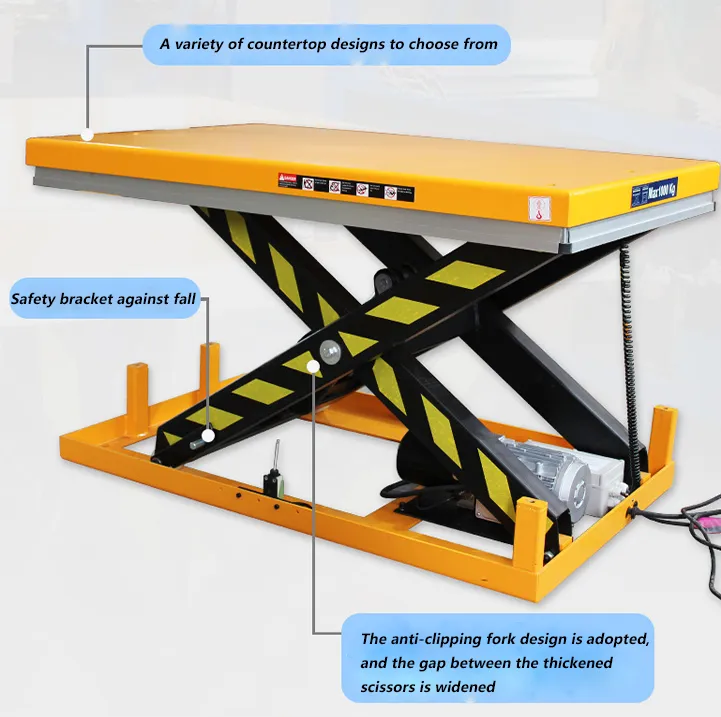

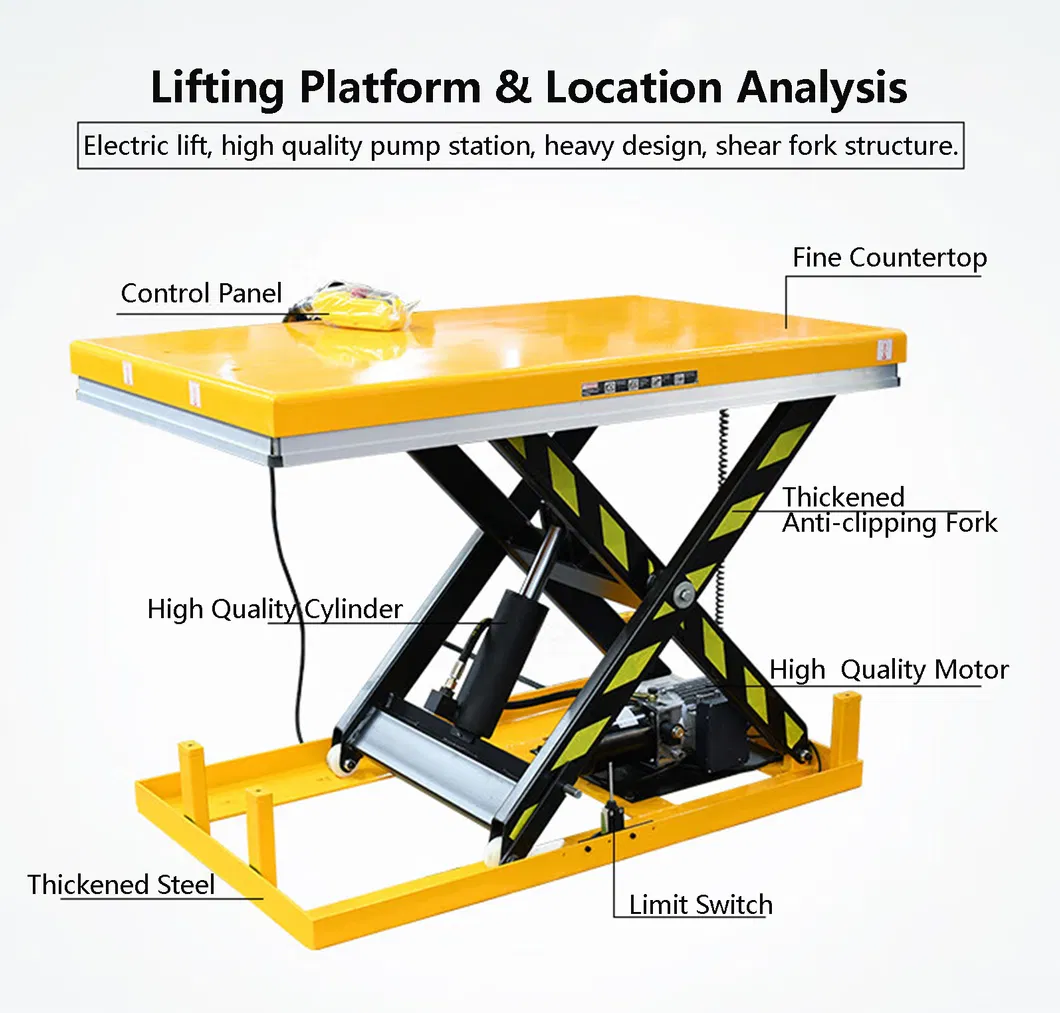

Detailed Photos

Customization Support

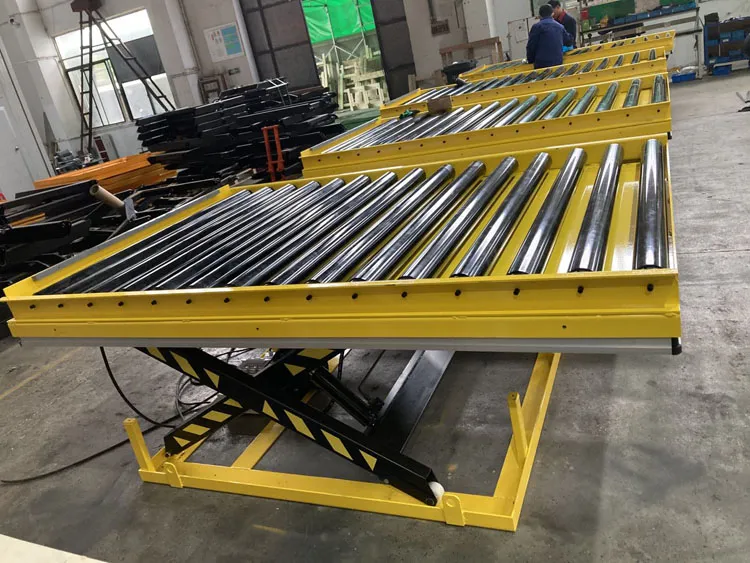

Lift Tables With Rollers: The roller design allows for easy movement between positions, greatly improving transportation efficiency and operational flexibility in warehouses and factories.

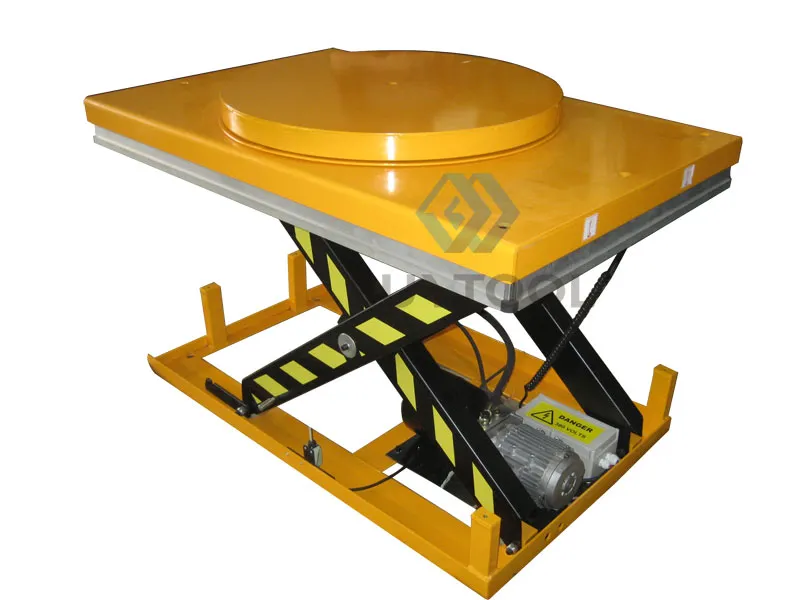

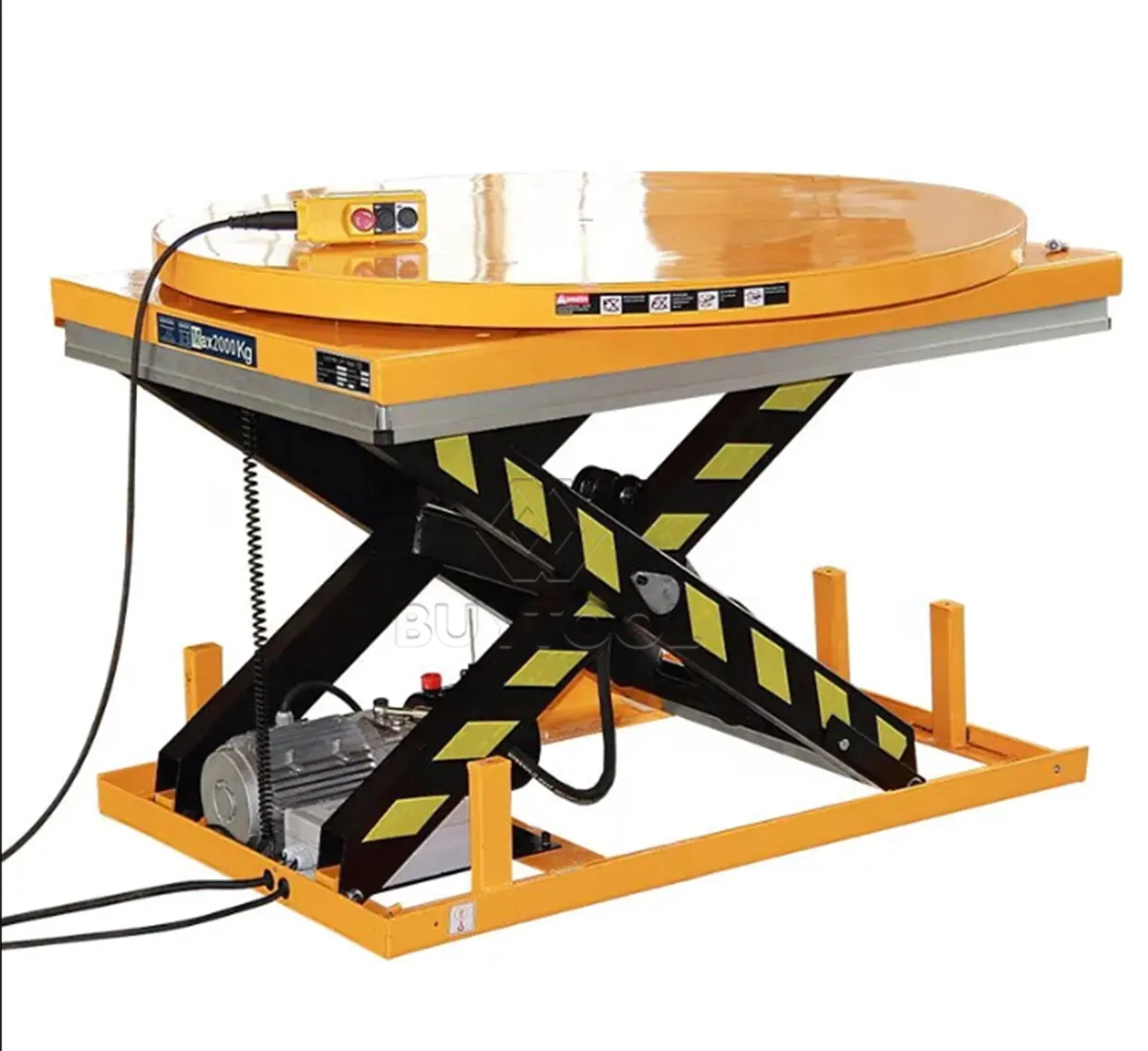

Turnable Top Platform: Allows multi-directional work without moving the entire lift. Ideal for space-limited environments and tasks requiring frequent angle changes.

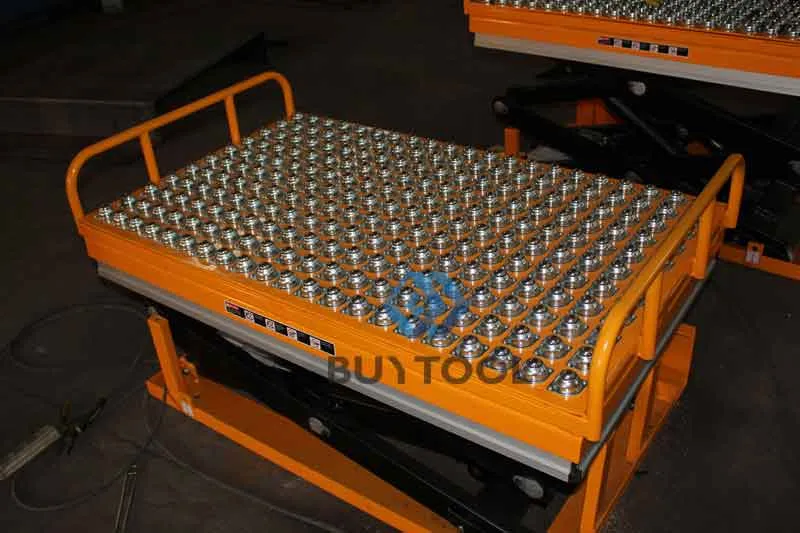

Ball Table Top: Reduces friction using spherical alloy steel balls. Enables smooth sliding of heavy goods, saving energy and reducing labor intensity.

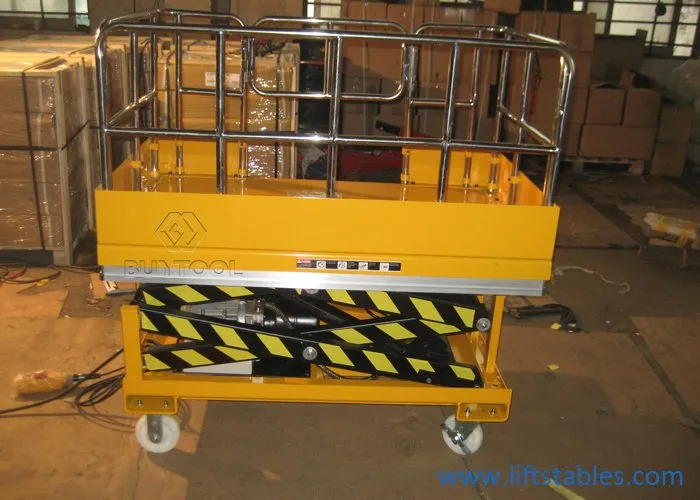

Safety Guardrails: Provides essential protection for high-altitude workers, effectively preventing accidental falls.

🏭

Range of Application

❓

Frequently Asked Questions

What safety standards do these lift tables comply with?

All our HW series lift tables meet the EN norm and ANSI/ASME safety standards, ensuring reliable operation in industrial environments.

Can the lifting platform be customized?

Yes, we support various customizations including rollers, turnable platforms, ball tables, protective skirts, wheels, and guardrails to meet specific requirements.

How do you ensure the quality of the products?

We follow five inspection steps: ISO9001 raw material check, strict production process inspection, load limit testing upon assembly, and 100% strict inspection before shipment.

What is the warranty period for the lift tables?

All of our lift tables carry a one-year quality guarantee from the date of purchase.

What is the typical lead time for an order?

Normally, the lead time is 30 days. It may vary from 20 to 45 days depending on the quantity and variety of items in your order.

Are these tables suitable for pit installation?

Yes, these models are designed for versatility and can be used in both above-floor or in-floor pit applications.
