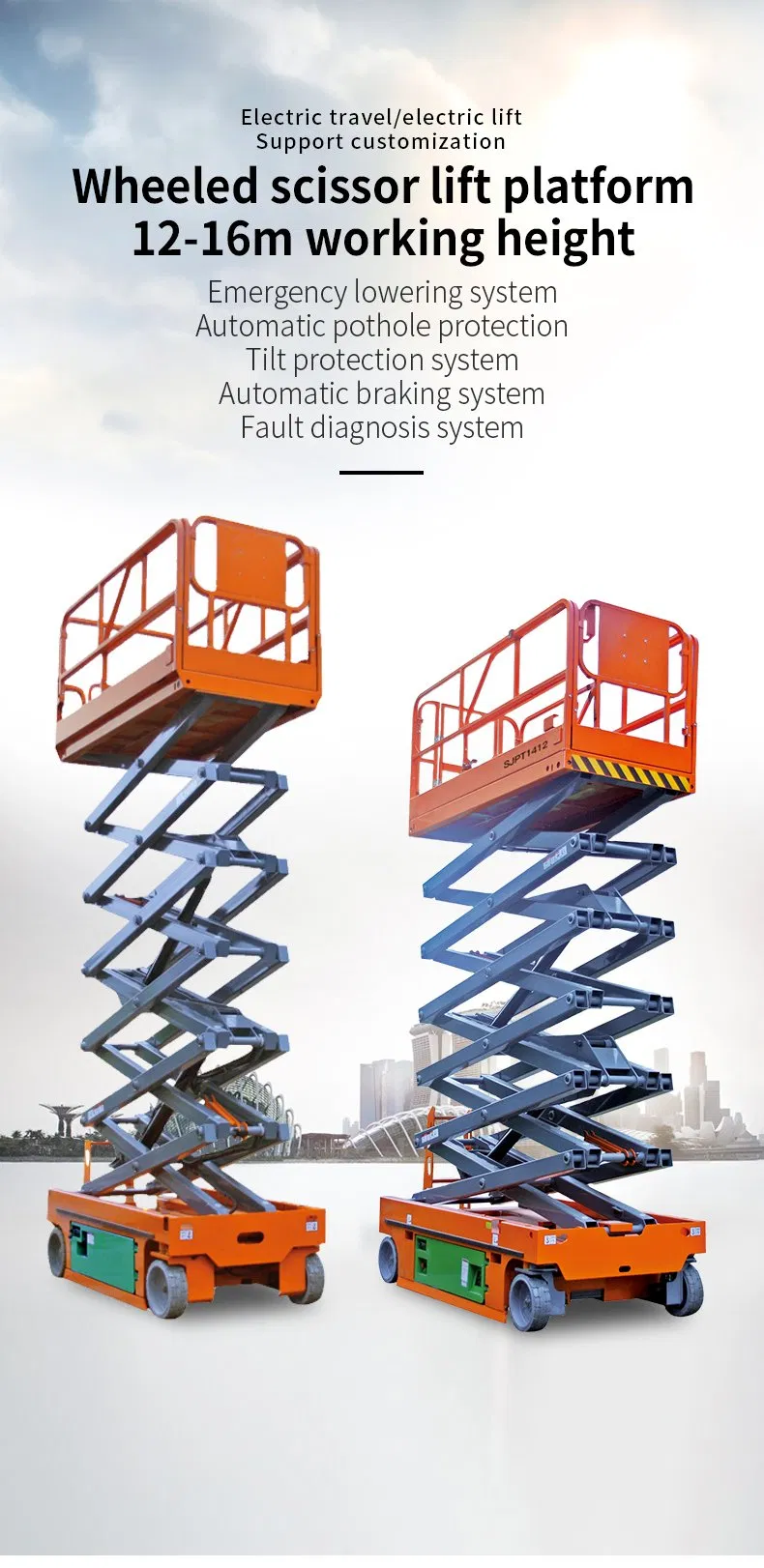

12–16m Working Height | Electric Travel & Electric Lift | Support Customization

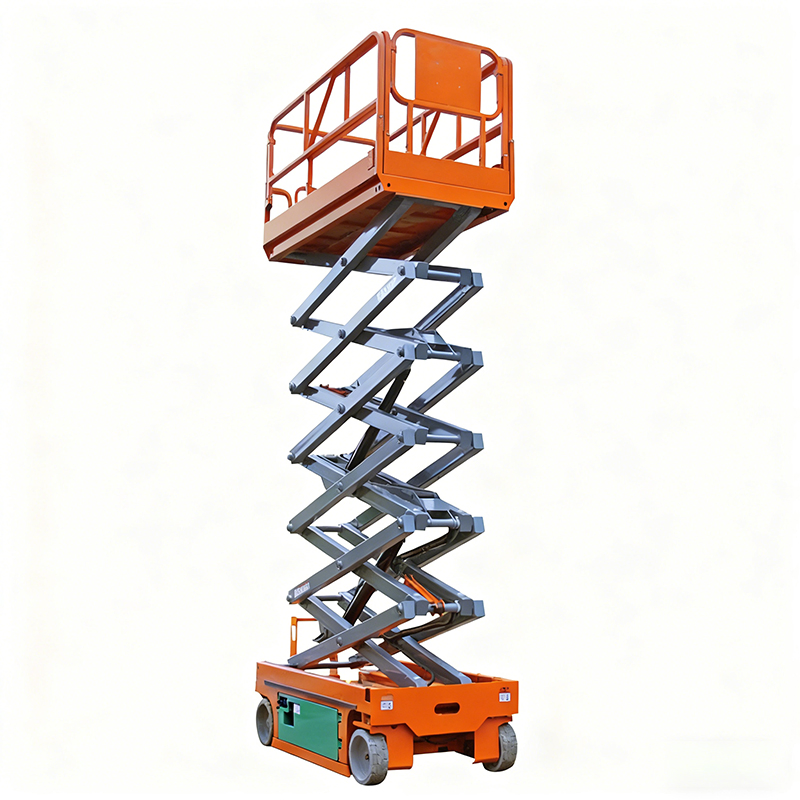

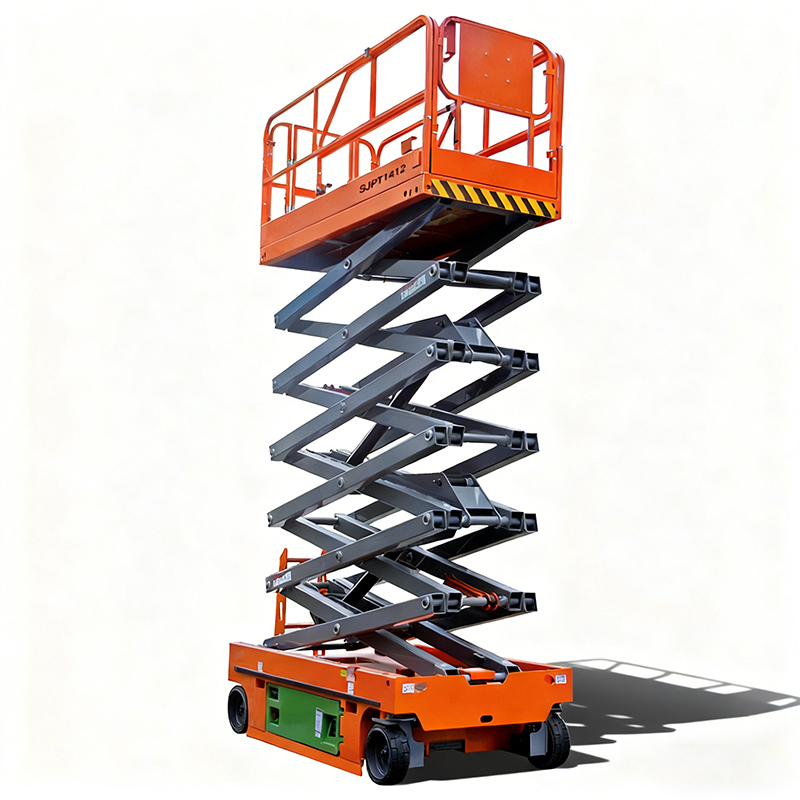

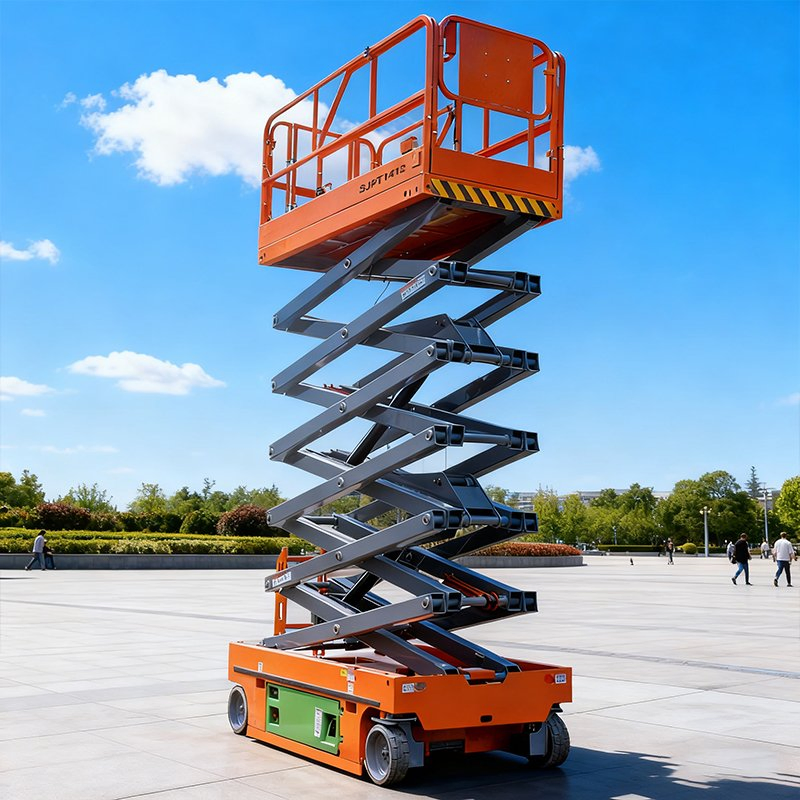

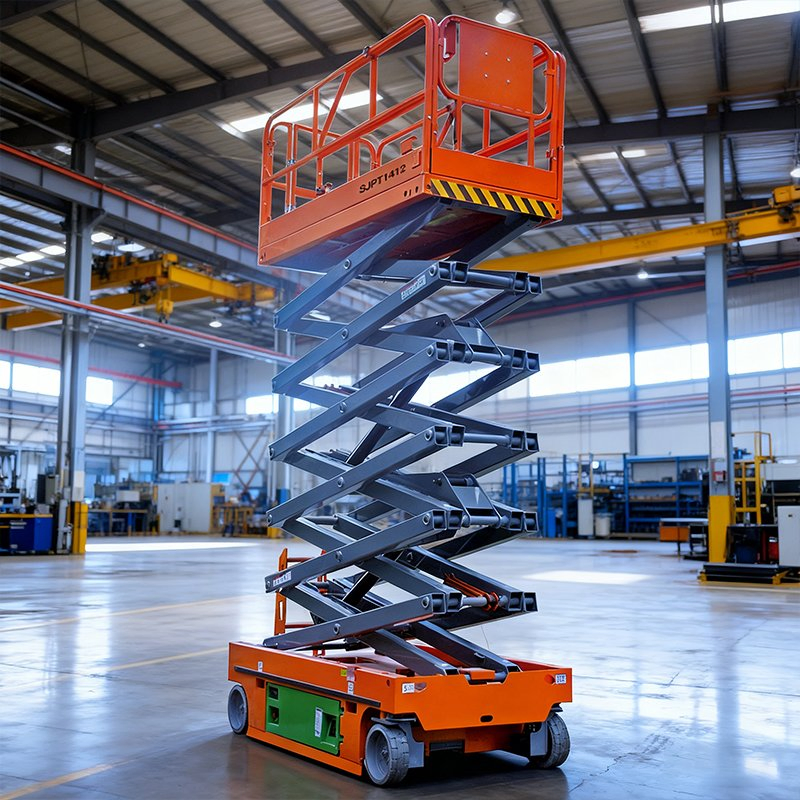

This high-reach electric scissor lift is designed for demanding aerial work tasks, offering exceptional lifting height, smooth electric travel, and multi-layer safety protection.
| Model | SJPT0812 | SJPT1012 | SJPT1212 | SJPT1412 |
|---|---|---|---|---|
| Dimensions | ||||
| Max. Working Height | 9.8m | 11.8m | 13.8m | 15.8m |
| Max. Platform Height | 7.8m | 9.8m | 11.8m | 13.8m |
| Platform Length | 2270mm | 2270mm | 2270mm | 2730mm |
| Platform Width | 1130mm | 1130mm | 1130mm | 1130mm |
| Overall Weight | 2430kg | 2740kg | 2910kg | 3900kg |
| Performance | ||||
| Rated Load Capacity | 450kg | 450kg | 450kg | 450kg |
| Max. Workers | 3 | 3 | 3 | 3 |
| Travel Speed (Stowed) | 3.5Km/h | 3.5Km/h | 3.5Km/h | 3.5Km/h |
| Battery | 4×12V/120Ah | 4×12V/120Ah | 4×12V/120Ah | 4×12V/120Ah |
Electric Travel & Electric Lift: Efficient electric drive system ensures smooth lifting and stable movement, reducing operator fatigue and improving work efficiency.
Compact Design: Small turning radius, easy maneuvering in narrow workspaces such as factories, airports, and warehouses.

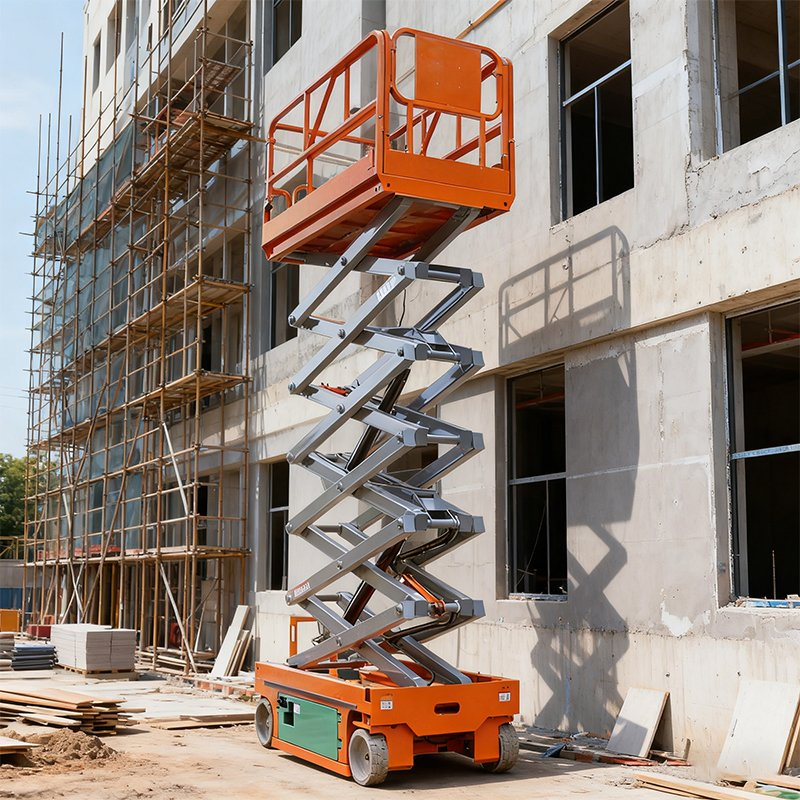

Suitable for factories, airports, hotels, shopping malls, public utilities, and construction projects. Key scenarios include:
Maintenance-free Battery: Long service life with stable power output and reduced costs.
Control Handle: Intuitive ergonomic design for travel, lifting, and speed adjustment.
Extendable Platform: Horizontal extension increases working range and efficiency.
