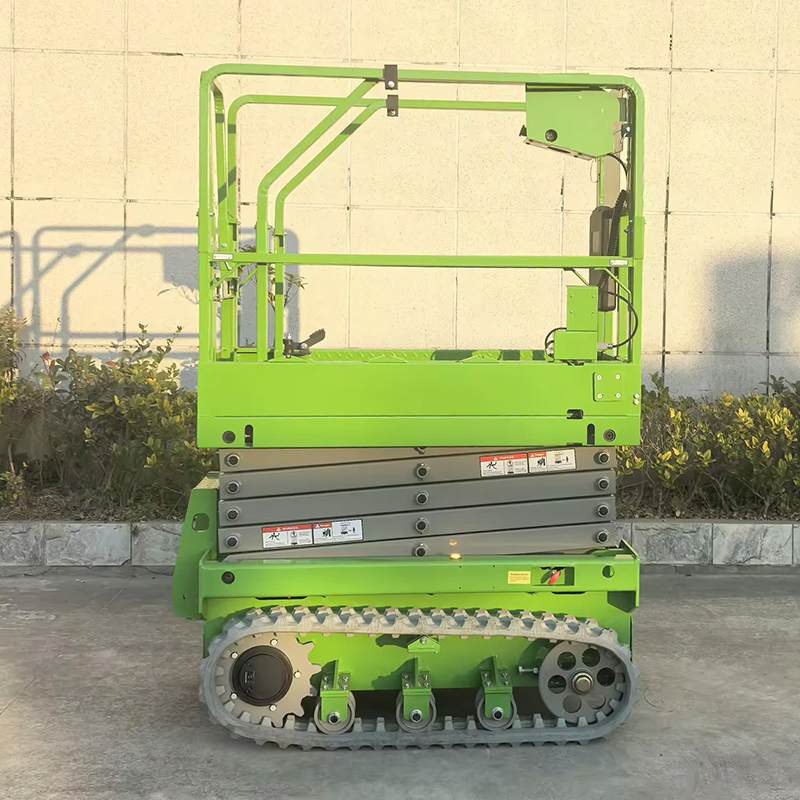

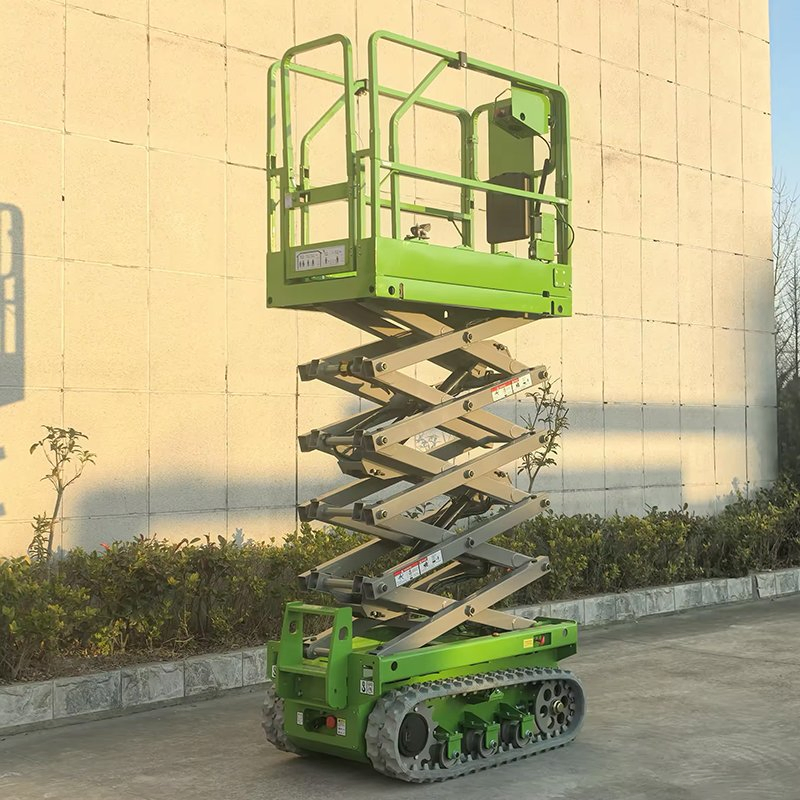

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

1 / 5

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

📋

Basic Information

Model NO.

BJ-0507T

Application

Workshop Crane, Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

230kg

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Dimensions

1560*880*1520mm

Max Occupancy

Inclination Angle

1.5°/2.5°

Electric Motor

24V/2×1kw

✨

Product Description

⚙️

Technical Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Max operating height (m)	6.6	7.8	8.3	10.3	12	14	16
Max platform height (m)	4.6	5.8	6.3	8.3	10	12	14
Platform length (mm)	1400	1400	1800	1800	2270	2270	2670
Platform width (mm)	760	780	800	800	1120	1120	1120
Overall Height (Unfolded)	1950	2140	2160	2260	2700	2700	2840
Rated load capacity (kg)	230	230	300	300	450	450	450
Gradeability (%)	30	30	30	30	30	30	30
Weight (kg)	816	1055	1640	1745	3460	3760	4760

🏭

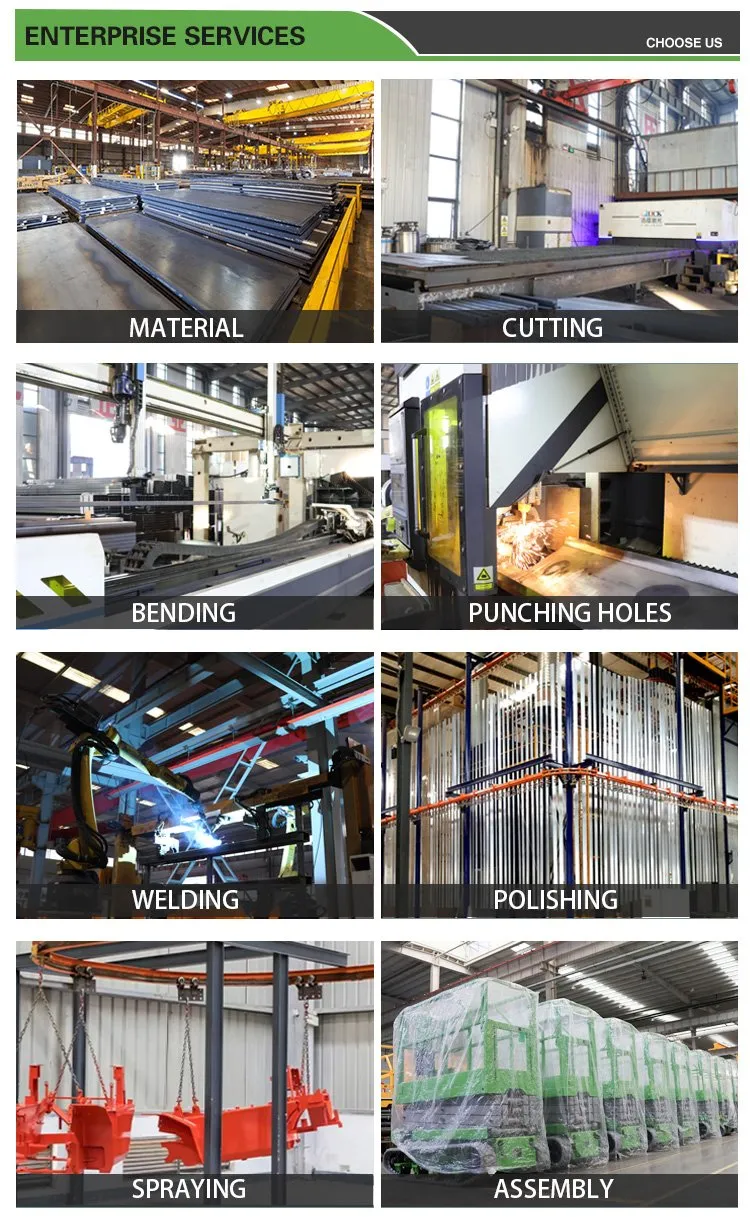

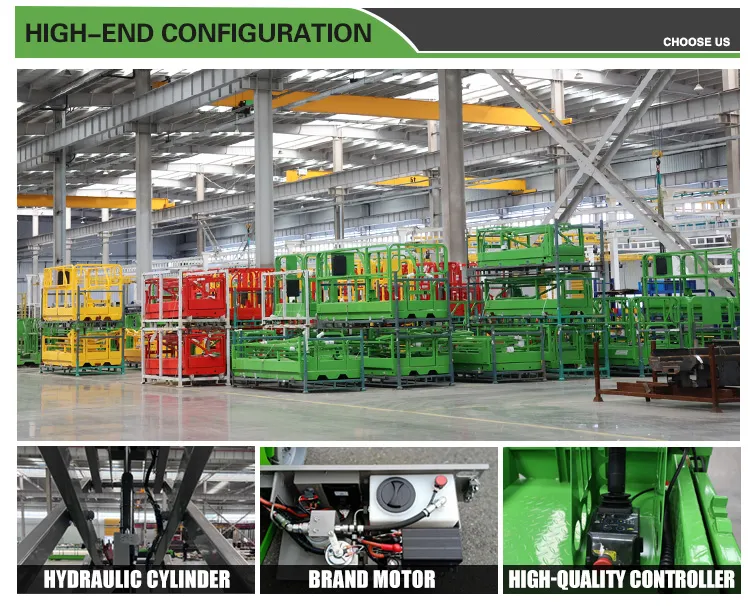

Workshop Display

❓

Frequently Asked Questions

What is the maximum working height of these scissor lifts?

Our self-propelled scissor lifts offer a wide range of working heights, starting from 6.6 meters up to 16 meters, depending on the specific model selected.

Are the tracks non-marking for indoor use?

Yes, models like the BJS0507T through BJS0810T come equipped with non-marking rubber tracks, making them ideal for indoor warehouse and workshop applications.

What type of power system do these lifts use?

The units are powered by maintenance-free lead-acid batteries (24V or 48V systems) with high-efficiency electric motors for both lifting and driving.

What safety certifications do the products hold?

All our aerial work platforms are fully certified with CE and ISO 9001 standards, ensuring high safety and quality compliance for international markets.

Can the platform be extended for extra reach?

Yes, all models feature a platform extension part ranging from 600mm to 1100mm, allowing operators to reach over obstacles easily.

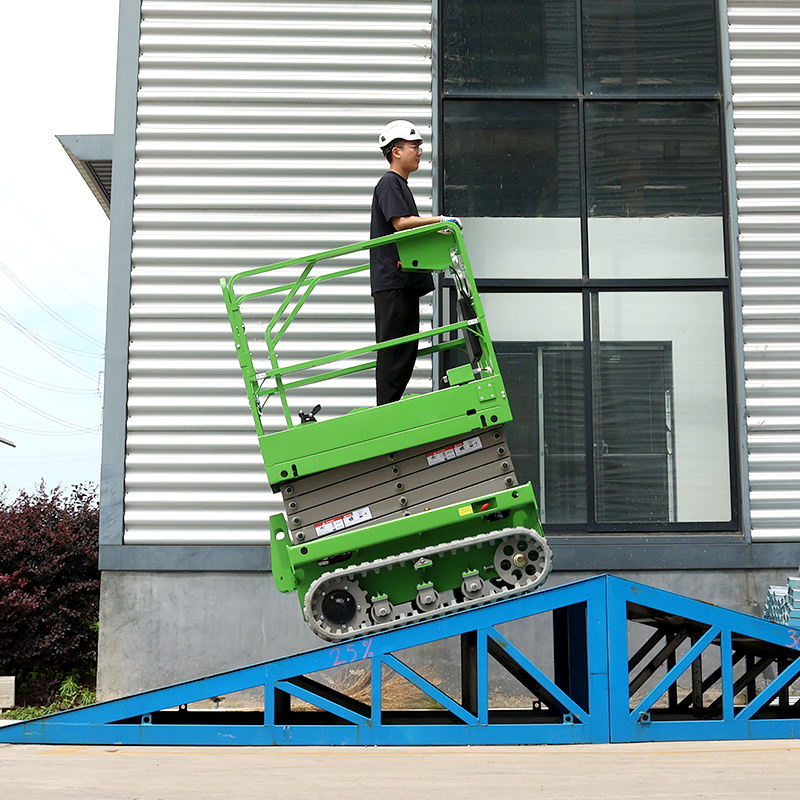

What is the gradeability of the self-propelled series?

The entire series features a 30% gradeability, allowing the lifts to navigate slopes and ramps commonly found in industrial environments.
