Product Description

Basic Specifications

Model NO. BZ70A, BZ70B, EZ75A, EZ75B
Application Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism Hydraulic Cylinder
Carrying Capacity Middle-Level (700-750kg)
Driven Type Hydraulic
Certification CE
Material Steel
HS Code 8427900000

Low Profile Lift Table Features

  • ◈ Low Profile design with a minimum height of 230mm (9 inch).
  • ◈ Versatile Capacity: 700kg and 750kg options available.
  • ◈ Lifting Heights: 840mm and 1065mm stroke range.
  • ◈ Dual Operation Modes: Manual (BZ series) and Electric (EZ series).
  • ◈ Foot operated hydraulic pump for manual models.
  • ◈ Compliance: Meets EN1570 norm and ASME safety standards.

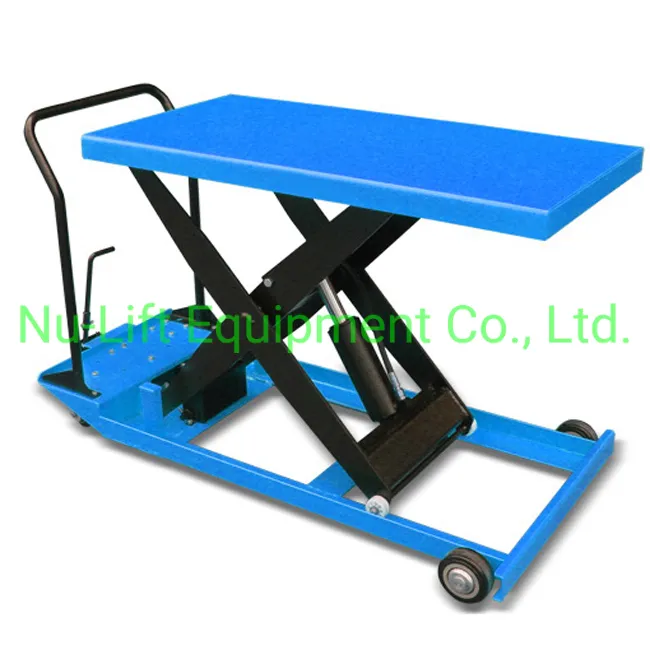

Low Profile Lift Table BZ EZ Series 1
Low Profile Lift Table BZ EZ Series 2

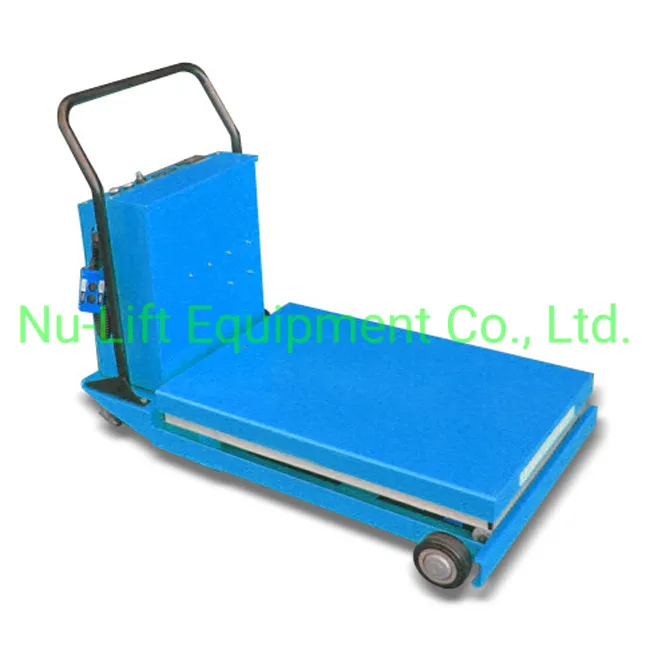

Low Profile Lift Table BZ EZ Series 3

Technical Parameters

Model Type Capacity kg(lbs) Min. Height mm(inch) Max. Height mm(inch) Platform Size mm(inch) Net Weight kg(lbs)
BZ70A Manual 700(1540) 230(9) 840(33) 916x610(36x24) 130(285)
BZ70B Manual 700(1540) 230(9) 1065(42) 1220x610(48x24) 158(350)
EZ75A Electric 750(1650) 230(9) 850(33.5) 916x610(36x24) 168(370)
EZ75B Electric 750(1650) 230(9) 1065(42) 1220x610(48x24) 192(420)

Frequently Asked Questions

What is the difference between the BZ and EZ series?
The BZ series features manual lifting via a foot-operated hydraulic pump, while the EZ series is equipped with an electric motor for powered lifting.
What is the advantage of the "Low Profile" design?
The low profile design offers a minimum height of just 230mm, making it easier to load and unload goods in environments with limited vertical clearance.
Does the equipment meet international safety standards?
Yes, the electric models (EZ series) are designed to meet the EN1570 norm and ASME safety standards, ensuring reliable and safe operation.
What applications are these lift tables suitable for?
They are ideal for use as workshop cranes, shipboard cranes, warehouse lifting equipment, and in building construction sites.
What is the maximum lifting capacity and height?
The series offers a capacity up to 750kg (1650 lbs) and a maximum lifting height of 1065mm (42 inches) depending on the specific model.
