Product Description

Ultra Low Profile Electric Scissor Lift Table
i

Basic Specifications

Model NO.
HY1001, HY1501, HY2001
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
1000-2000kg
Moves
Stationary
Driven Type
AC (380V/50Hz)
Certification
CE, ISO 9001
Min. Height
85mm - 105mm
HS Code
84279000
Production
600 PCS/Month
★

Product Description

Ultra Low Profile Electric Scissor Lifts Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table.

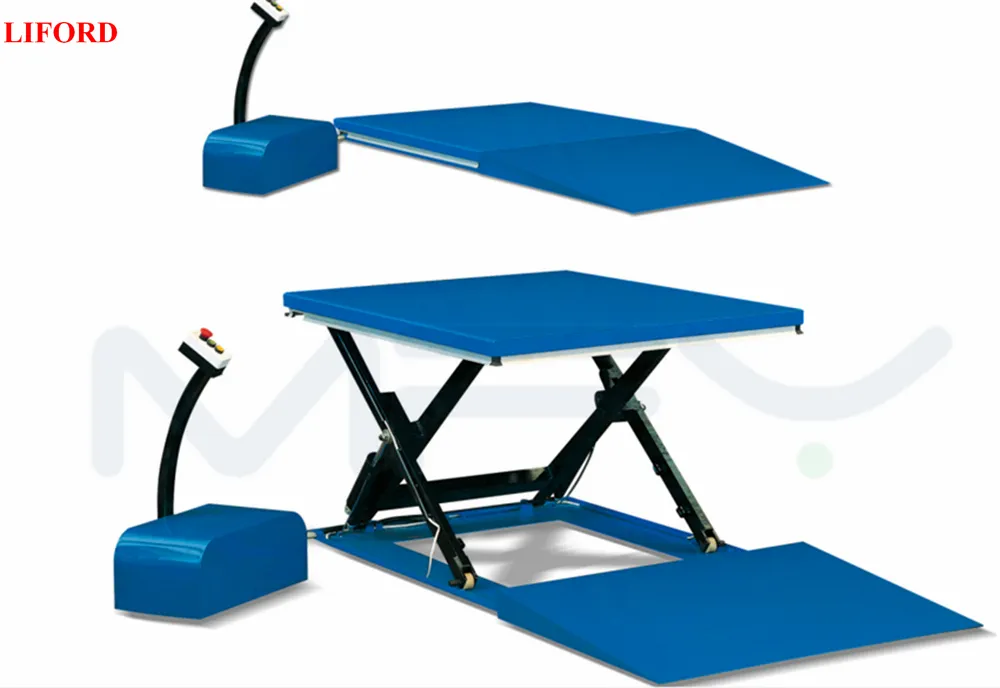

Scissor Lift Detail 1

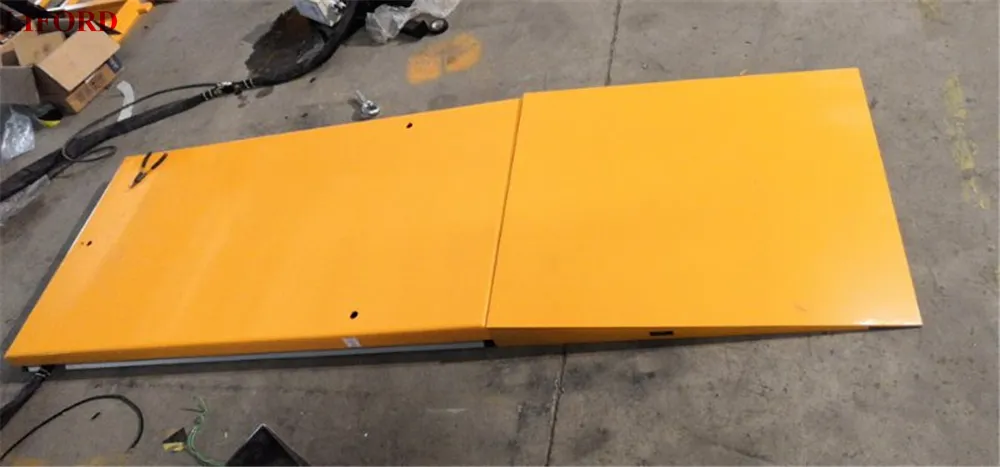

Scissor Lift Detail 2
Scissor Lift Detail 3
Scissor Lift Detail 4
✔

Key Features

  • Closed height only 85-105mm, eliminating the need for a pit installation.
  • Mechanical safety chocks included for safe maintenance operations.
  • Fully complies with EN1570 norm and ANSI/ASME safety standards.
  • Remote power pack with pedestal and controls, protected to IP54.
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
  • 24V control box with UP/DOWN buttons and emergency stop for operator safety.
  • External power pack equipped with a relief valve against overloading.
  • Hose burst safety valve stops the table from lowering in case of hose breakage.
  • Removable lifting hooks facilitate easy handling and installation.
T

Technical Data

Model Capacity (kg) Min/Max Height (mm) Table Size (mm) Base Size (mm) Lift Time (s) Power N.W. (kg)
HY1001100085/8601450*11401325*107425380V/50Hz357
HY1002100085/8601600*11401325*107425380V/50Hz364
HY1003100085/8601450*8001325*73425380V/50Hz326
HY1004100085/8601600*8001325*73425380V/50Hz332
HY15011500105/8701600*8001325*73430380V/50Hz302
HY20012000105/8701600*11801427*111435380V/50Hz419
P

Product Gallery

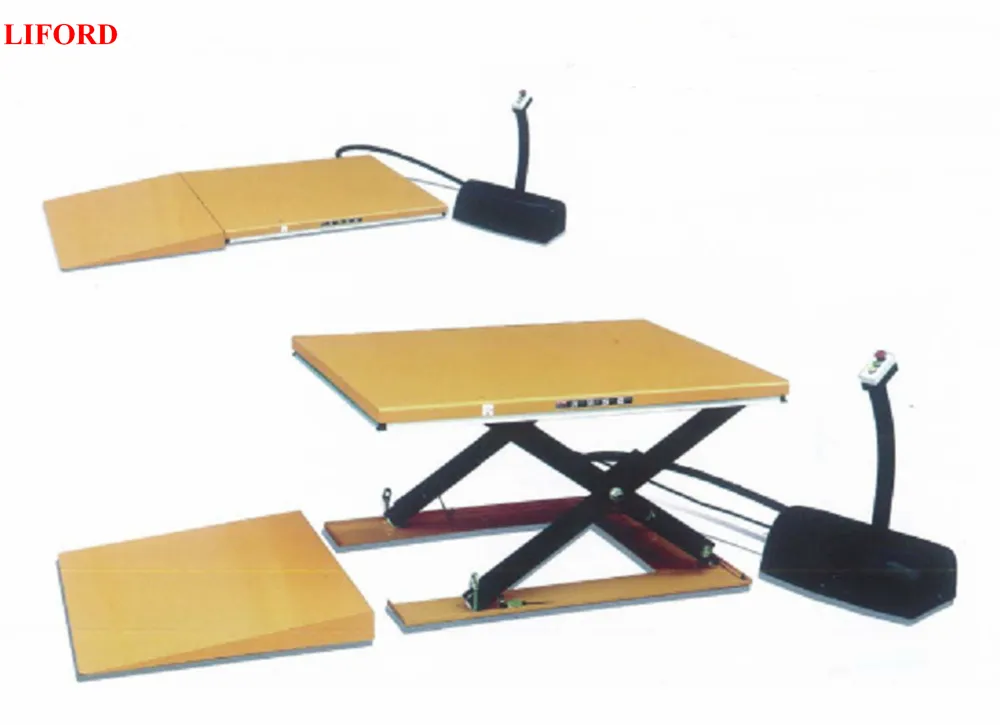

Gallery 1
Gallery 2
Gallery 3

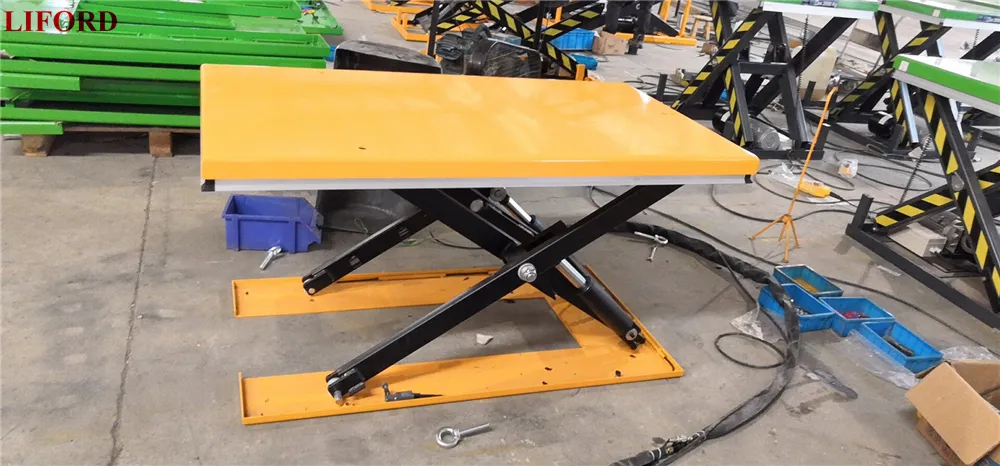

Gallery 4

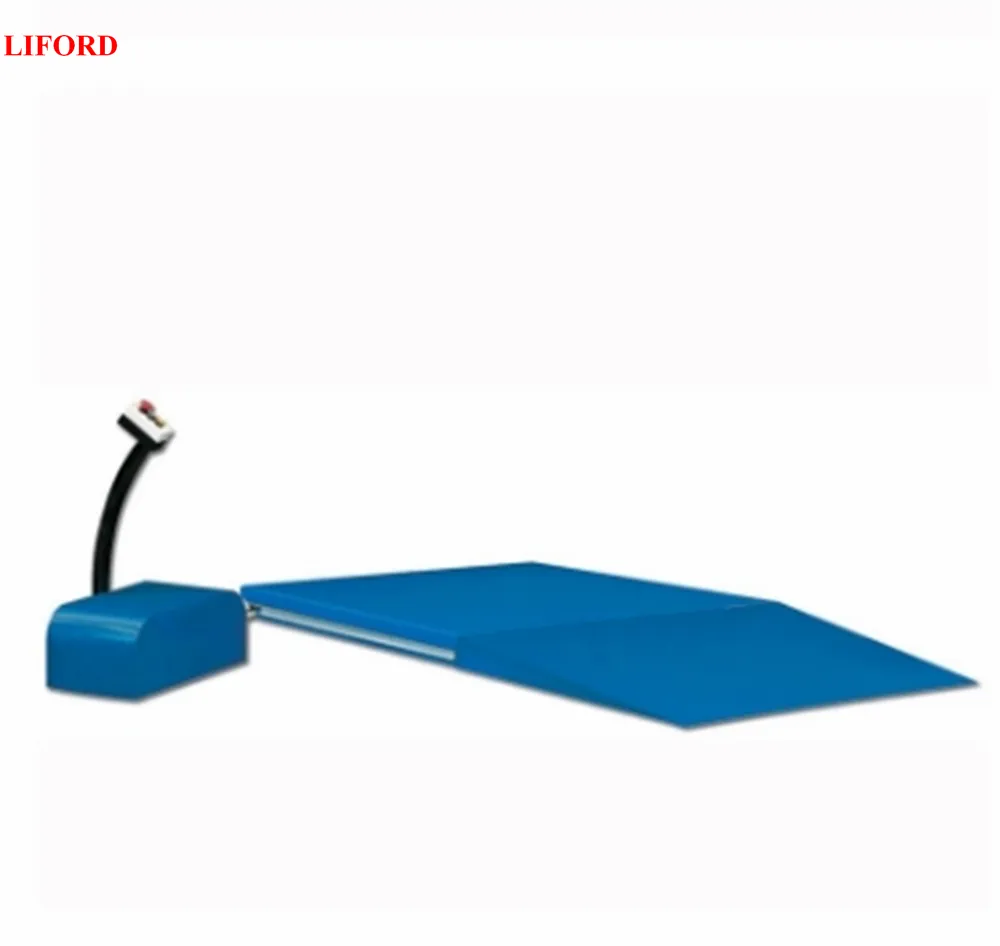

Gallery 5

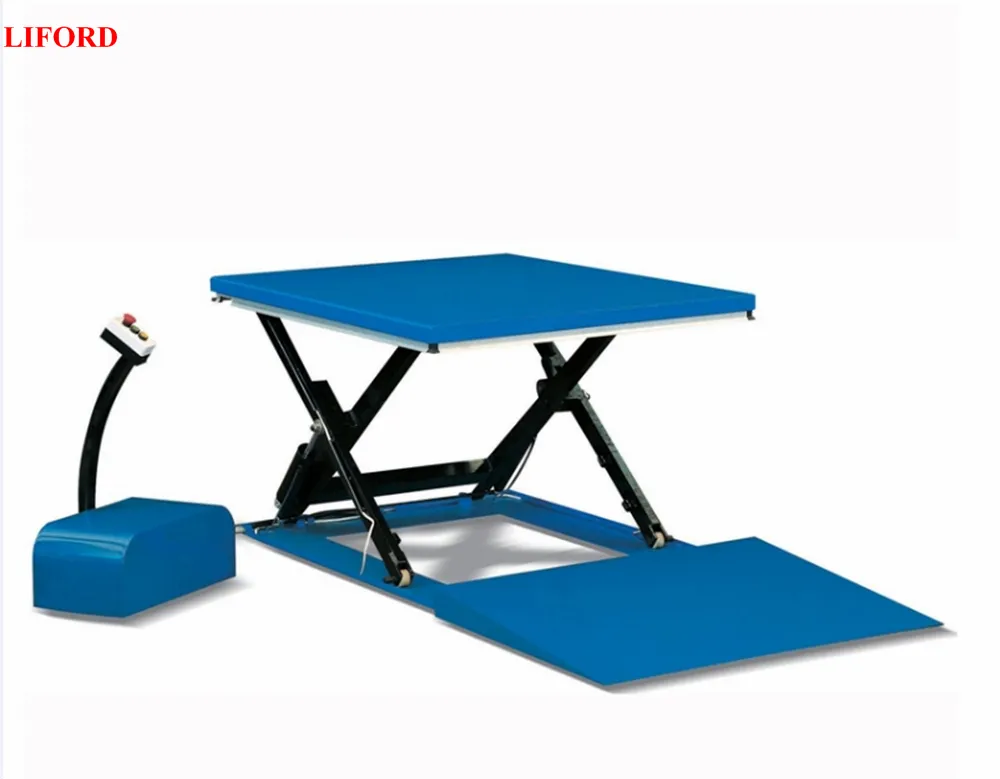

Gallery 6
?

Why Choose Our Solutions?

  • Over 10 years of professional experience in material handling industry.
  • Fast production and in-time delivery to keep your projects on schedule.
  • One-stop custom service and OEM/ODM capabilities to meet specific needs.
  • 100% inspection of all finished products before shipment.
  • Robust packaging: Strong cartons for air and heavy-duty pallets for sea freight.
Quality Control
Packaging
F

Frequently Asked Questions

What is the main advantage of the ultra-low profile design?
The ultra-low profile (minimum height 85-105mm) allows for easy loading with a pallet truck without needing to excavate a floor pit.
What safety features are included?
It includes a safety perimeter bar, emergency stop, hose burst safety valve, and mechanical safety chocks for maintenance.
Can the table handle 2000kg loads?
Yes, models like the HY2001 and HY2002 are specifically designed for a 2000kg carrying capacity.
Is the power pack built into the table?
No, it uses a remote power pack with a pedestal and controls to maintain the ultra-low profile of the table itself.
What are the power requirements?
The standard configuration requires a 380V/50Hz AC power supply.
Are these units certified for international use?
Yes, they meet CE and ISO 9001 certifications, as well as EN1570 and ANSI/ASME safety standards.
