Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
1 / 5
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501
Low Profile Hydraulic Pump Electric Lift Table Hy1501

Low Profile Hydraulic Pump Electric Lift Table Hy1501

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HY1001, HY1003, HY1501, HY2001
Product Name
Stationary Super Low Lift Table
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
1000kg-2000kg
Driven Type
Electric Motor
Certification
CE, ISO 9001
Min. Lifting Height
85mm
Max. Lifting Height
870mm
Lifting Time
25-35s
Power Supply
380V/50Hz
HS Code
84279000

Product Description

Low Profile Hydraulic Pump Electric Lift Table

Low Profile Hydraulic Pump Electric Lift Table HY1501

Electric Lift Table Detail 1

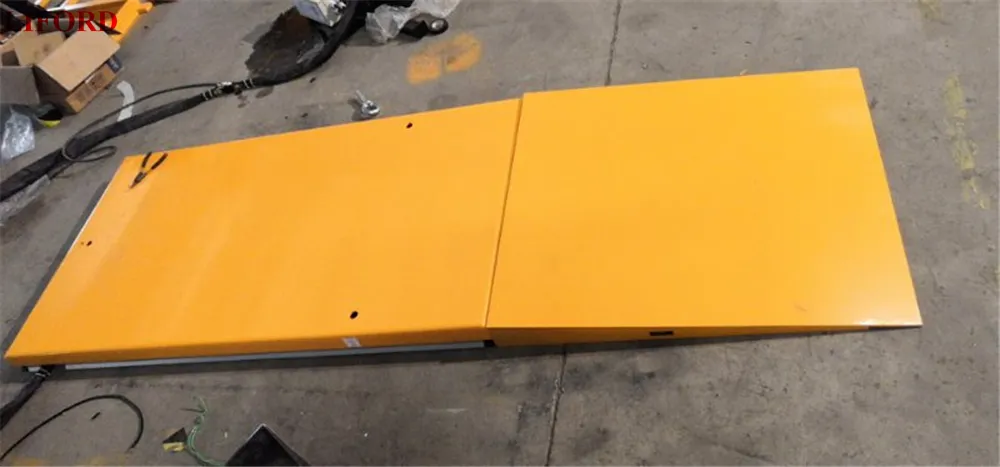

Electric Lift Table Detail 2

Key Features

1
Closed height only 10mm, no ramp needed for pallet.
2
Mechanical safety chocks for maintenance.
3
Super low closed height eliminates the need for pit installation.
4
Complies with EN1570 norm and ANSI/ASME safety standards.
5
Remote power pack with pedestal and controls, IP54 protected.
6
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
7
24V control box with UP/DOWN buttons and emergency stop.
8
External power pack with relief valve against overloading and compensated flow valve for speed control.
9
Hose burst safety valve to stop lowering in case of breakage.
10
Removable lifting hooks for easy handling and installation.

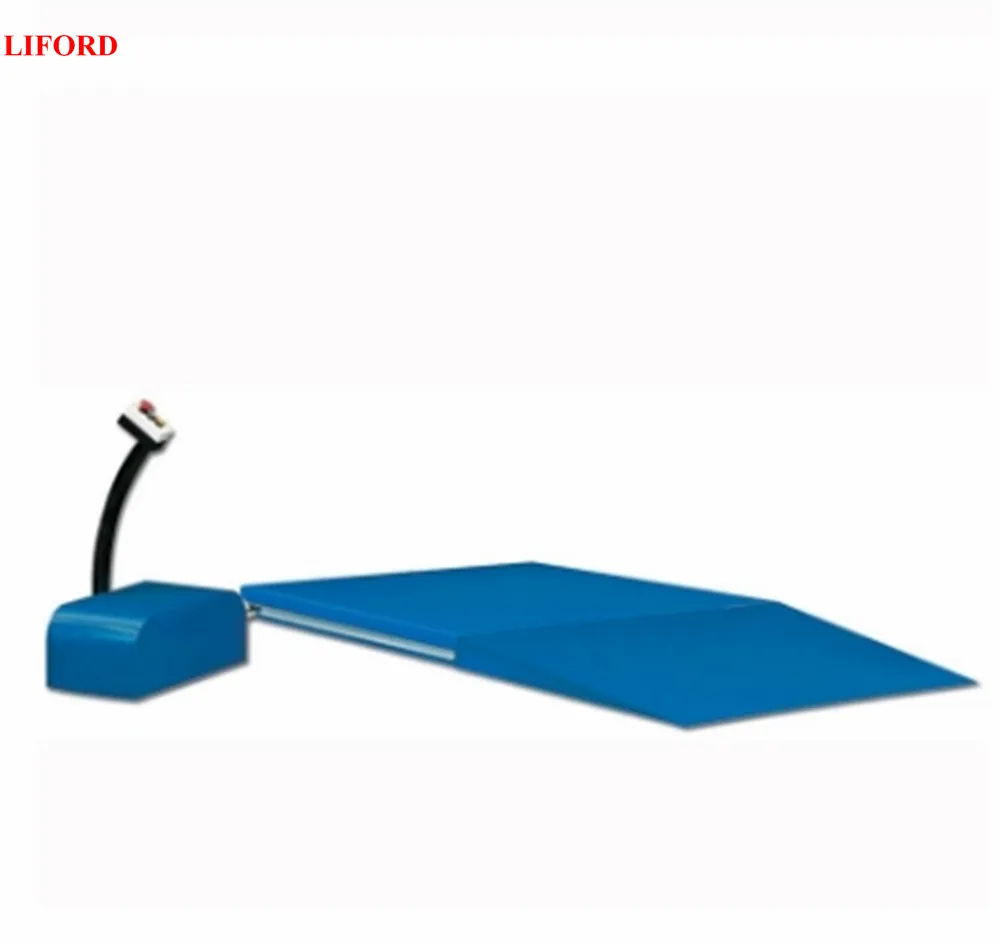

Safety Features 1

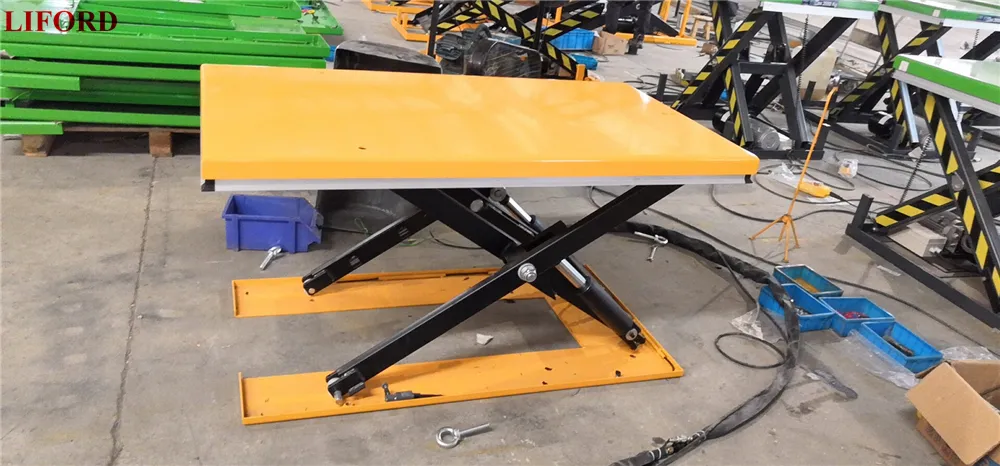

Safety Features 2

Technical Data

Model Capacity (kg) Min/Max Height (mm) Table Size (mm) Base Size (mm) Lifting Time (s) Power N.W. (kg)
HY1001100085/8601450*11401325*107425380V/50Hz357
HY1002100085/8601600*11401325*107425380V/50Hz364
HY1003100085/8601450*8001325*73425380V/50Hz326
HY1004100085/8601600*8001325*73425380V/50Hz332
HY1005100085/8601600*10001325*73425380V/50Hz352
HY15011500105/8701600*8001325*73430380V/50Hz302
HY15021500105/8701600*10001325*73430380V/50Hz401
HY15031500105/8701600*11801325*73430380V/50Hz415
HY20012000105/8701600*11801427*111435380V/50Hz419
HY20022000105/8701600*10001427*73435380V/50Hz405

Related Products & Feedback

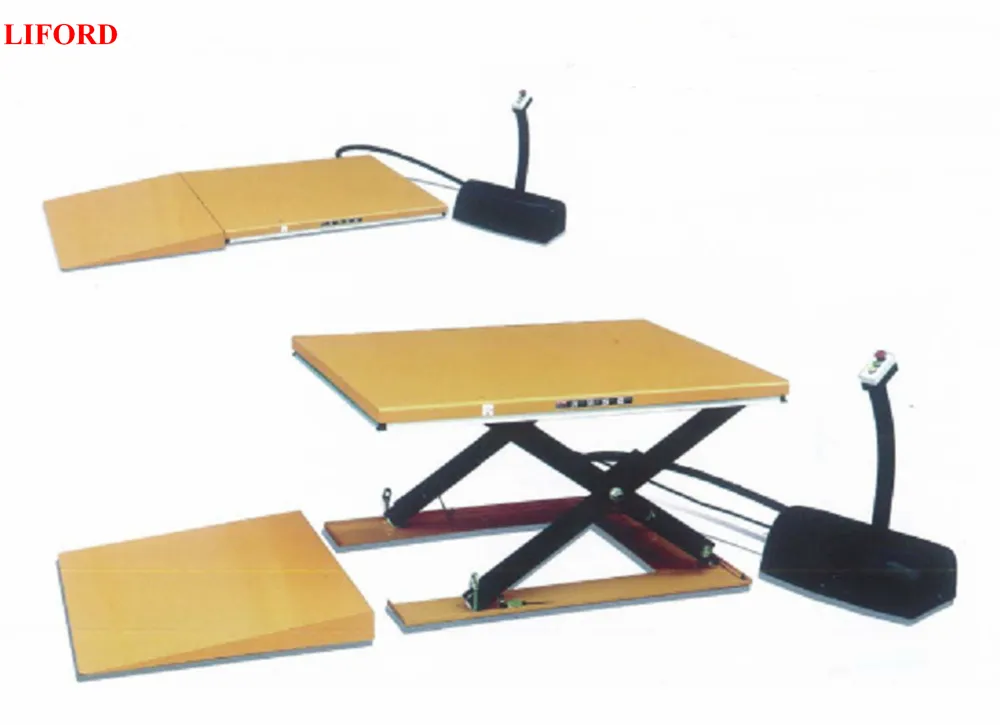

Product Application 1

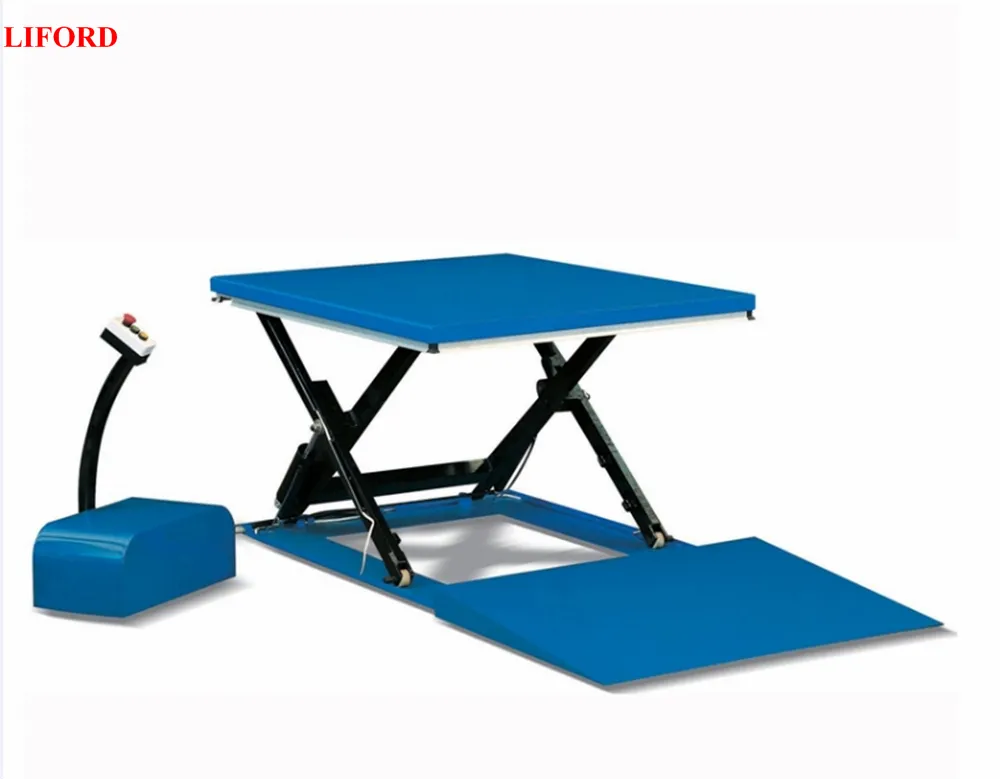

Product Application 2

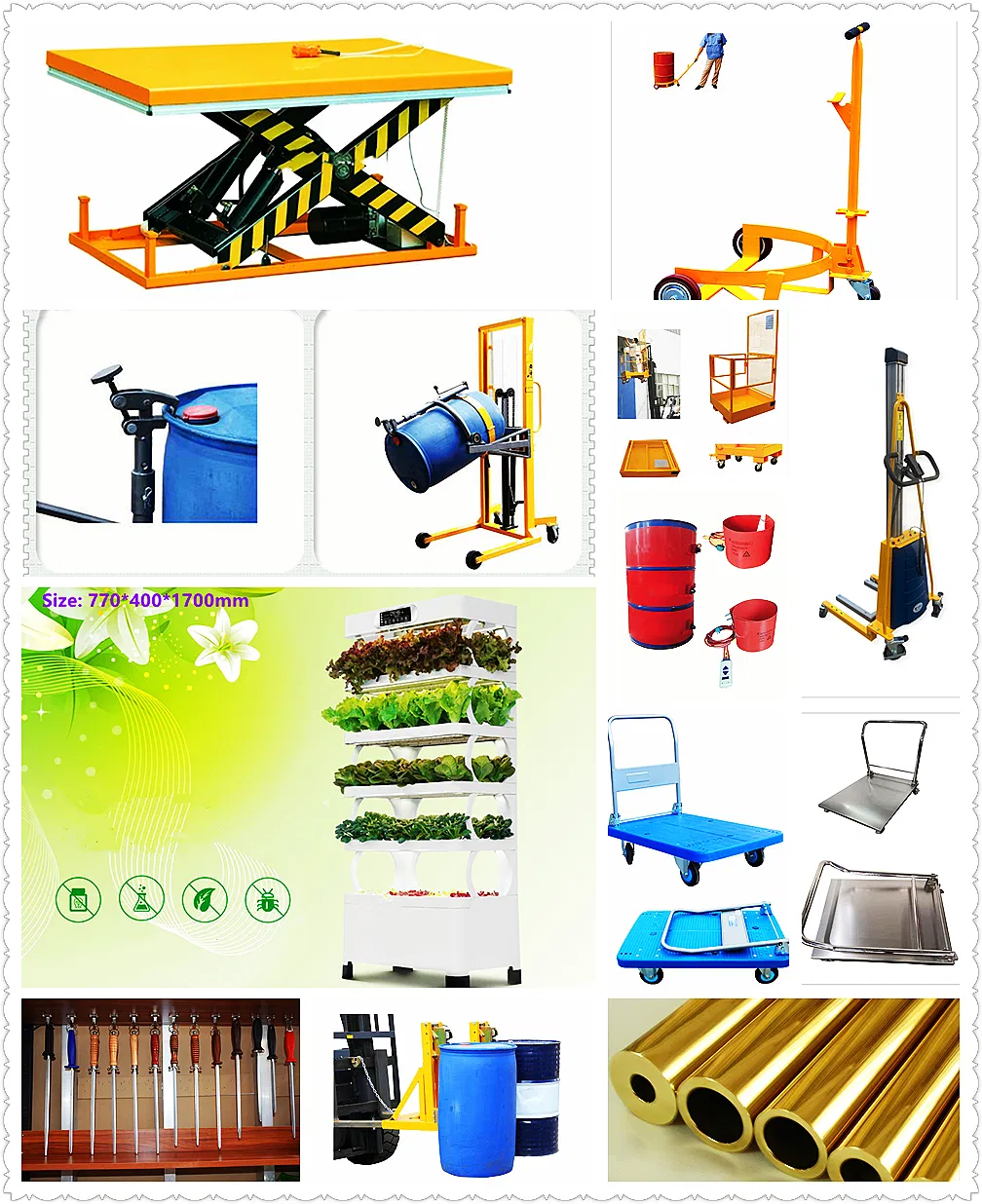

Related Product 1

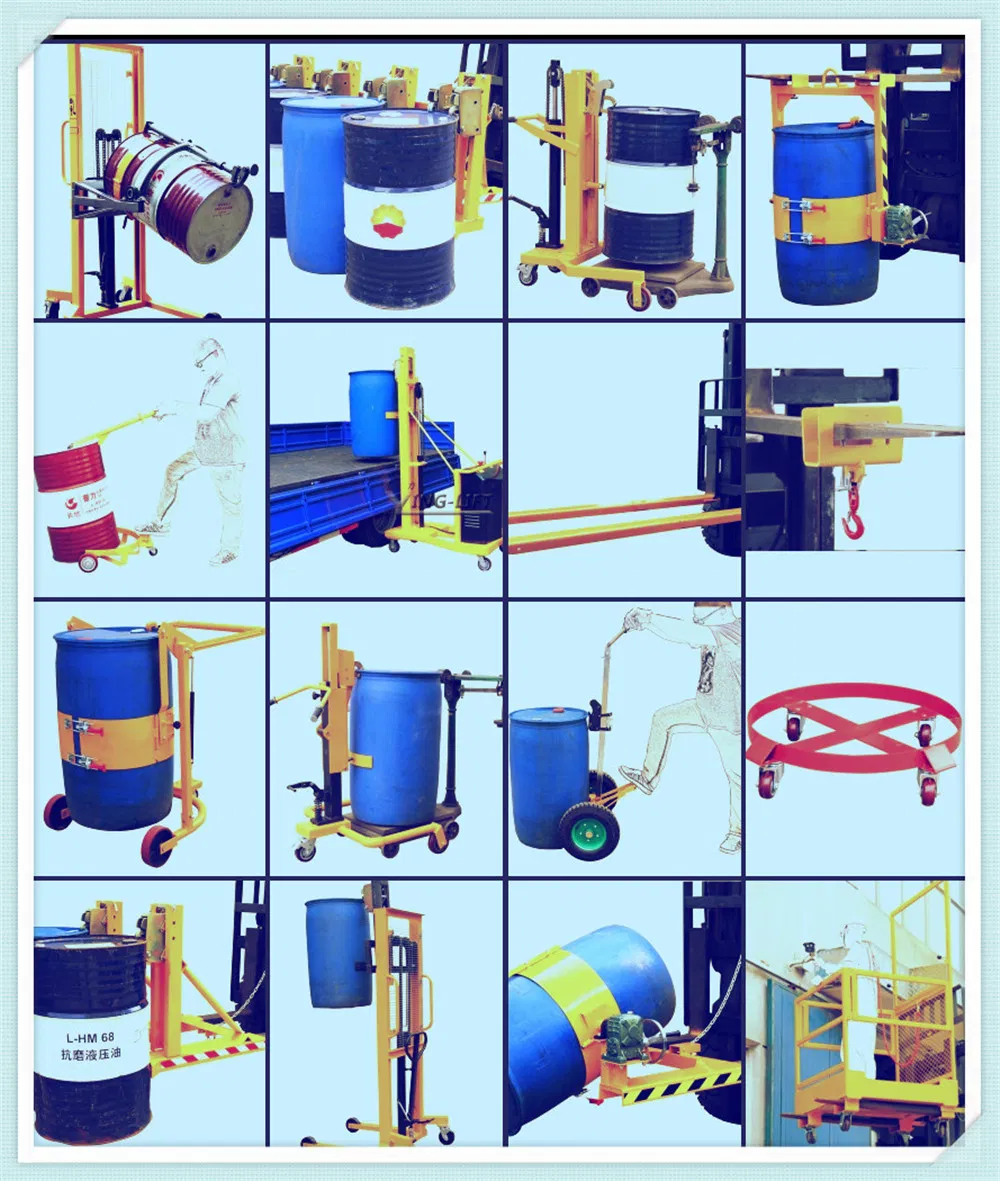

Related Product 2

Customer Visiting & Positive Feedback: We adhere to quality in every detail by strictly arranging production and inspection. We have established good cooperative relations with over 100 leading enterprises and nearly one hundred merchants in more than 20 countries and areas.

Customer Feedback

Why Choose Us?

✓
More than 10 years' professional experience in material handling industry.
✓
Fast production & in-time delivery that never delay your project.
✓
One-stop custom service and value-added service to save time and cost.
✓
OEM/ODM Services available for non-standard parts according to specific needs.
✓
100% inspection of all finished products before shipment.
✓
Strong and perfect packing for air and sea delivery (pallets and reinforced cartons).
Production Line
Factory Overview

Frequently Asked Questions

Does this lift table require a pit for installation?
No, these tables achieve a super low closed height (as low as 85mm), which eliminates the need for a pit installation.
What safety features are included for the operator?
The table includes a safety perimeter to stop descent on contact with obstructions, a 24V control box with an emergency stop, and a hose burst safety valve.
What is the maximum weight capacity available?
The stationary super low lift table series offers capacities ranging from 1000kg up to 2000kg depending on the model.
Can the lowering speed be adjusted?
Yes, the external power pack is equipped with a compensated flow valve specifically for controlling the lowering speed.
What are the power requirements for these lift tables?
The standard power specification is 380V/50Hz, suitable for industrial electric motor driven operations.
Are custom sizes or OEM services available?
Yes, OEM/ODM services are available. Non-standard parts and various specifications can be designed and produced according to specific user needs.
