Product Description

Basic Specifications

Model NO.ZM Series Lifting Table
ApplicationWorkshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift MechanismArticulated Lift
Carrying CapacitySpecial Weight Level
MovesVehicular
Driven TypeHydraulic
Running ModeMoving
FeatureExplosion-Proof
CertificationCE
Max. Working Height20m
Max. Operating Radius11.7m
Production Capacity100 Sets Per Month

Product Overview

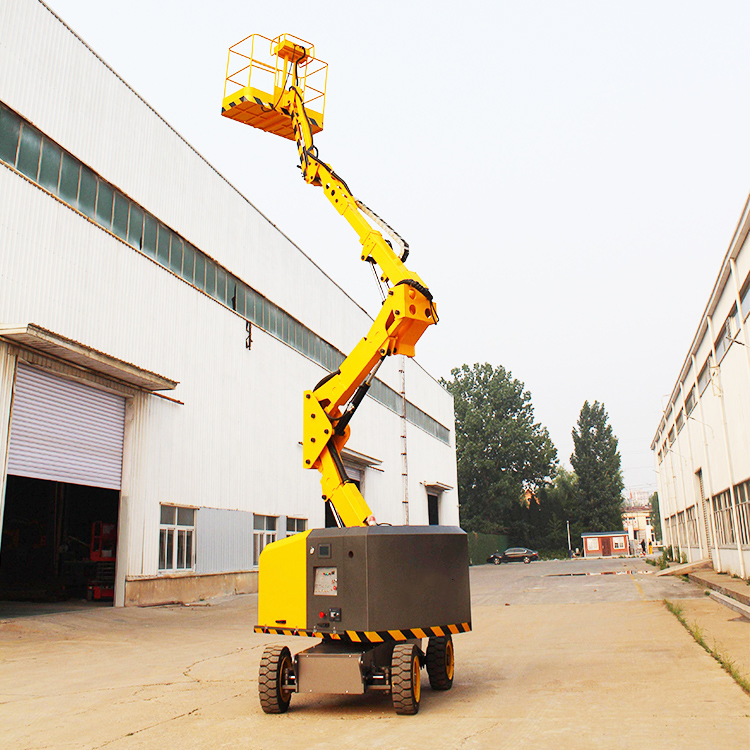

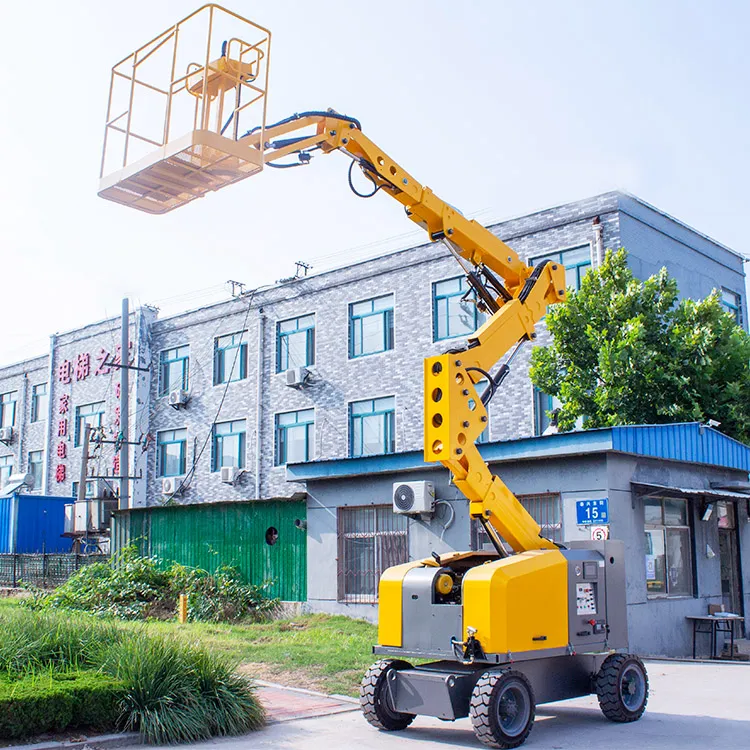

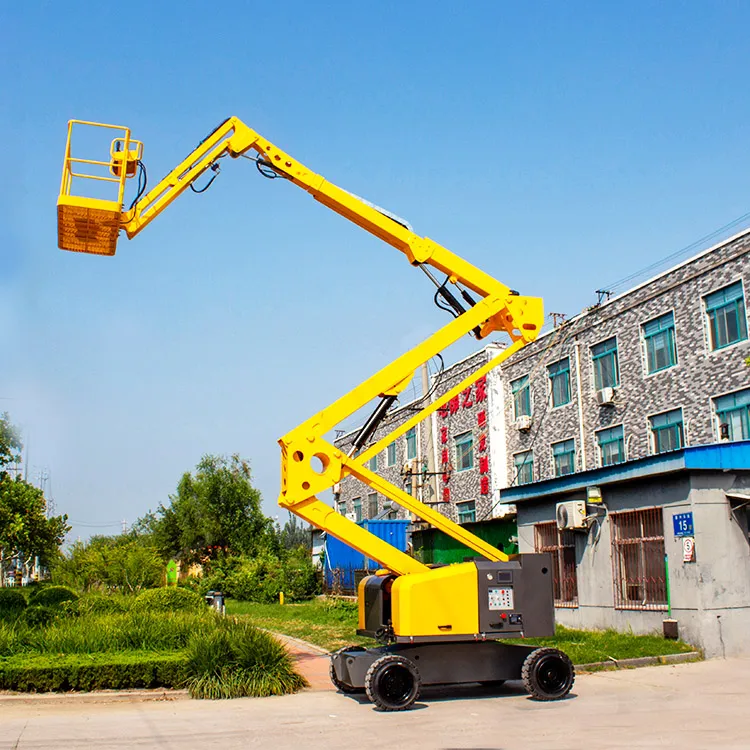

Articulating Boom Lift

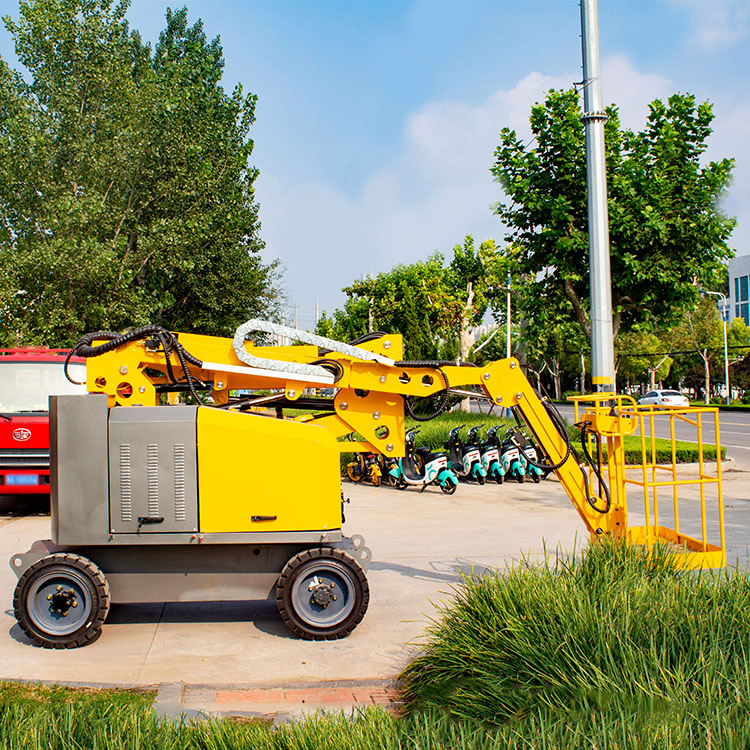

Mobile Articulating Boom Lift (8~20m)

Designed to simplify difficult and dangerous high-altitude tasks. These self-propelled platforms eliminate the need for scaffolding, providing a safe and efficient solution for airport terminals, stations, and shopping malls. Operated by a single person, it allows for lifting, forward, backward, steering, and slewing actions, significantly enhancing work efficiency.

Key Advantages

  • Obstacle Clearance: Capable of performing cantilevered operations and crossing obstacles.
  • 360-Degree Rotation: Full rotation for multi-point operations without moving the base.
  • Dual Power Options: Choice between 48V battery pack for extended life or diesel engine for diverse environments.
  • Maneuverability: Advanced turning drive technology for a smaller turning radius.
  • Capacity: Large load capacity accommodating two workers and necessary equipment.
  • Drive System: Equipped with two-wheel/four-wheel drive technology for high gradeability.

Technical Parameters

Model Name ZMQBPT10C/D ZMQBPT12C/D ZMQBPT14C/D ZMQBPT16C/D ZMQBPT18C/D ZMQBPT20C/D ZMQBPT22C/D
Max. Working Height 10m 12m 14m 16m 18m 20m 22m
Max. Platform Height 8m 8m 12m 14m 16m 18m 20m
Max. Operating Radius 5.3m 5.3m 6.9m 8m 8.9m 10.6m 11.7m
Table Load 230kg 230kg 230kg 230kg 230kg 230kg 230kg
Overall Weight 4900kg 4900kg 6596kg 6900kg 8550kg 9200kg 11000kg

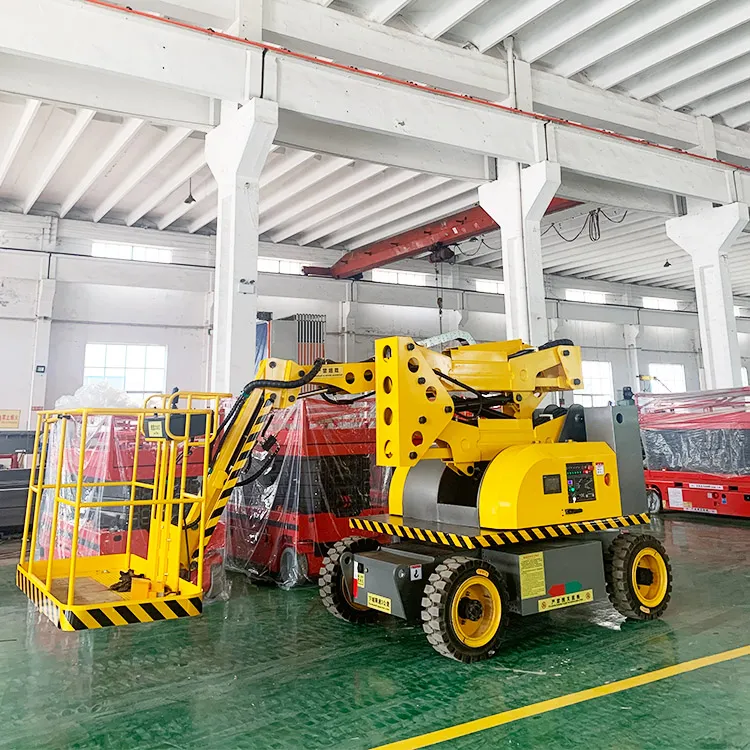

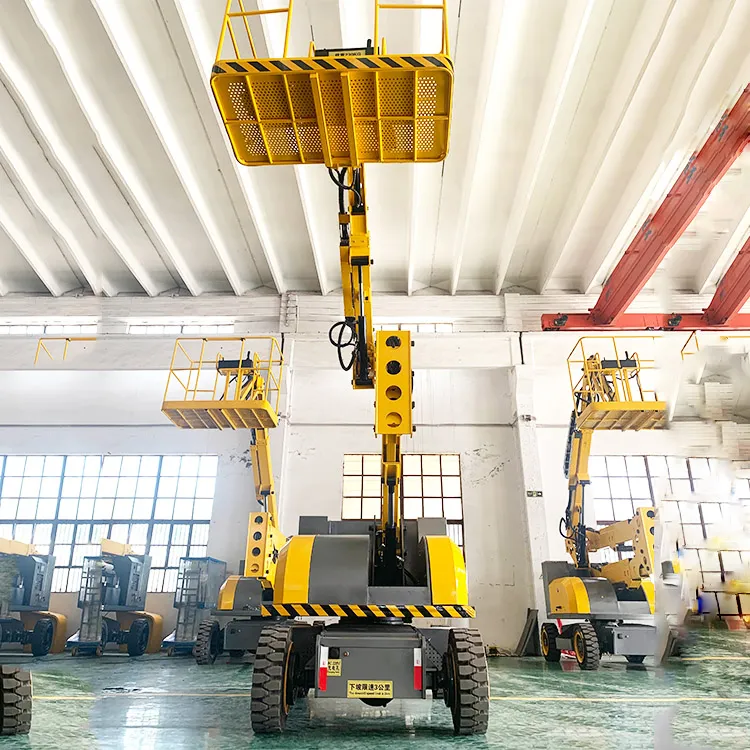

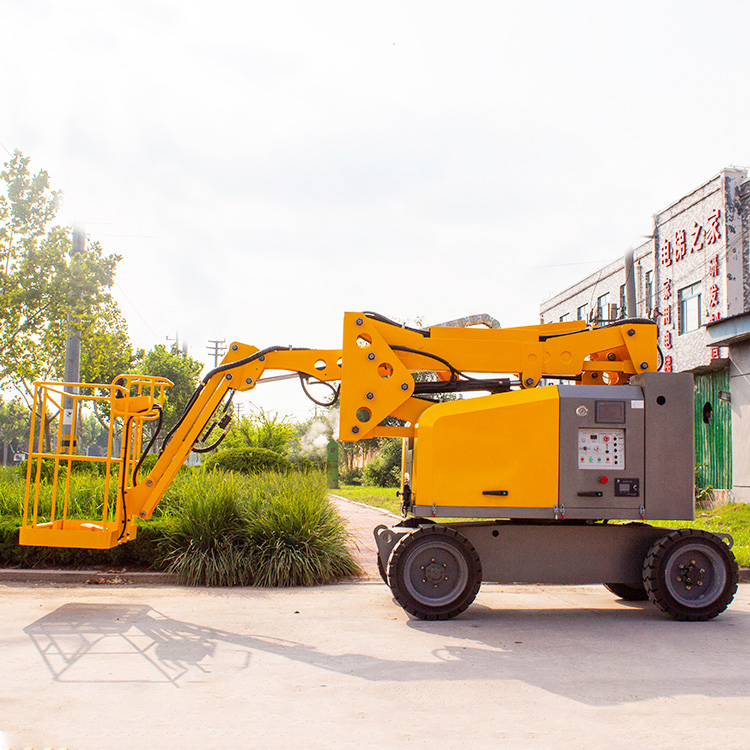

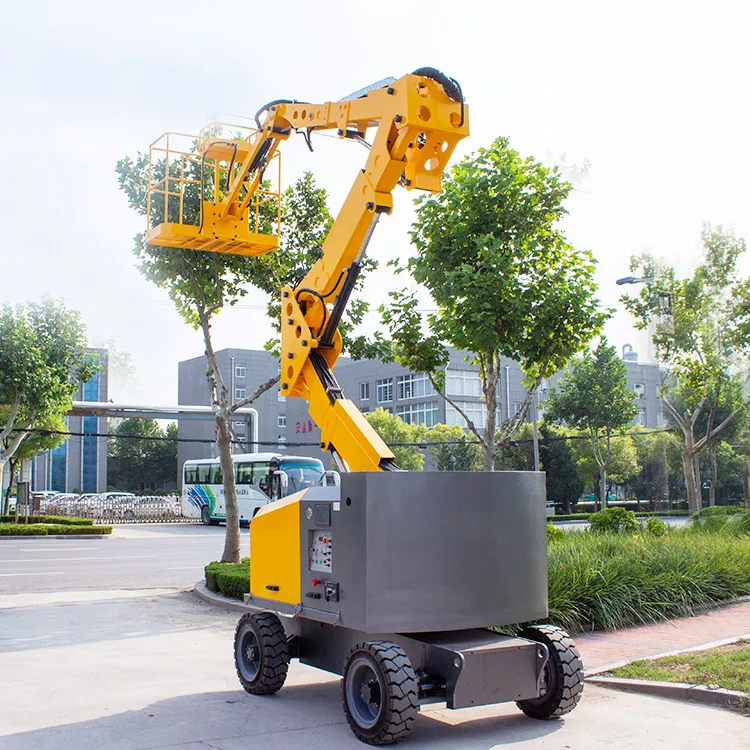

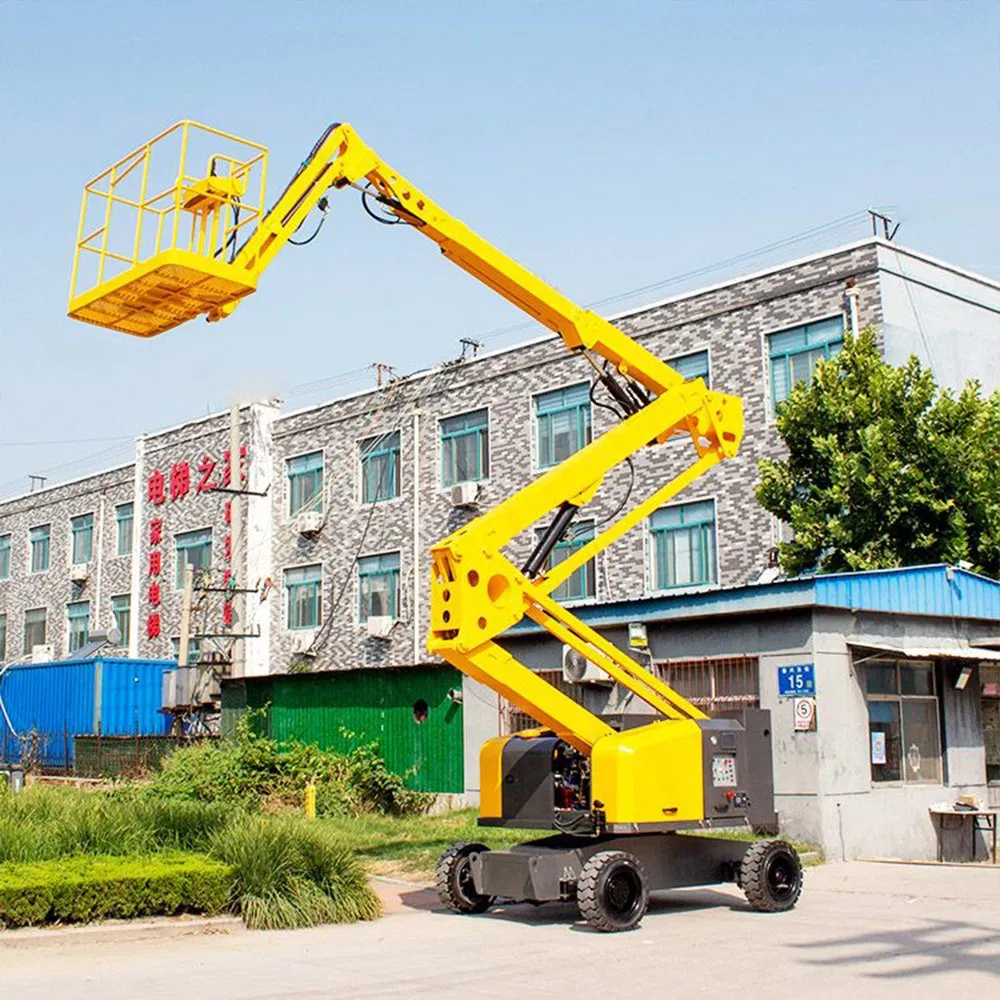

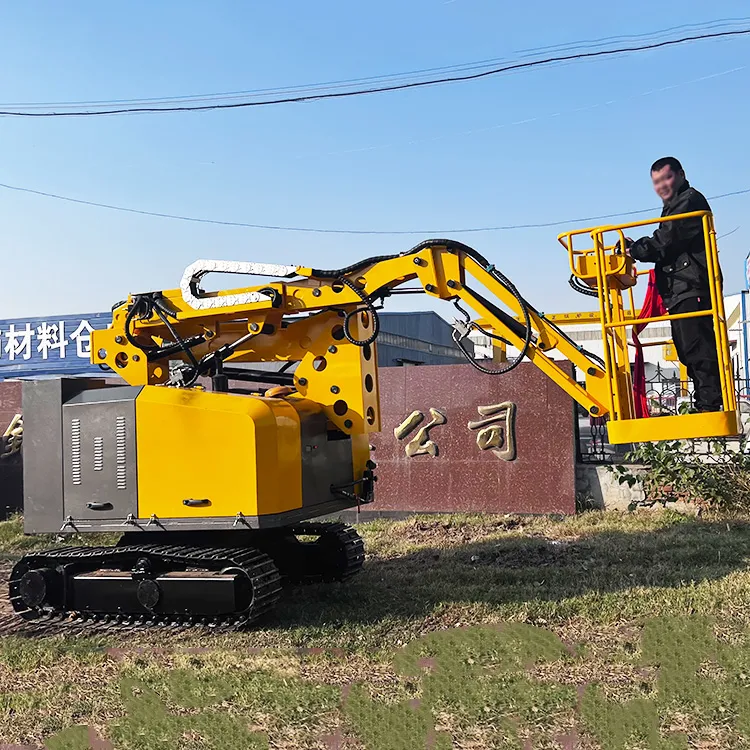

Detailed Photos

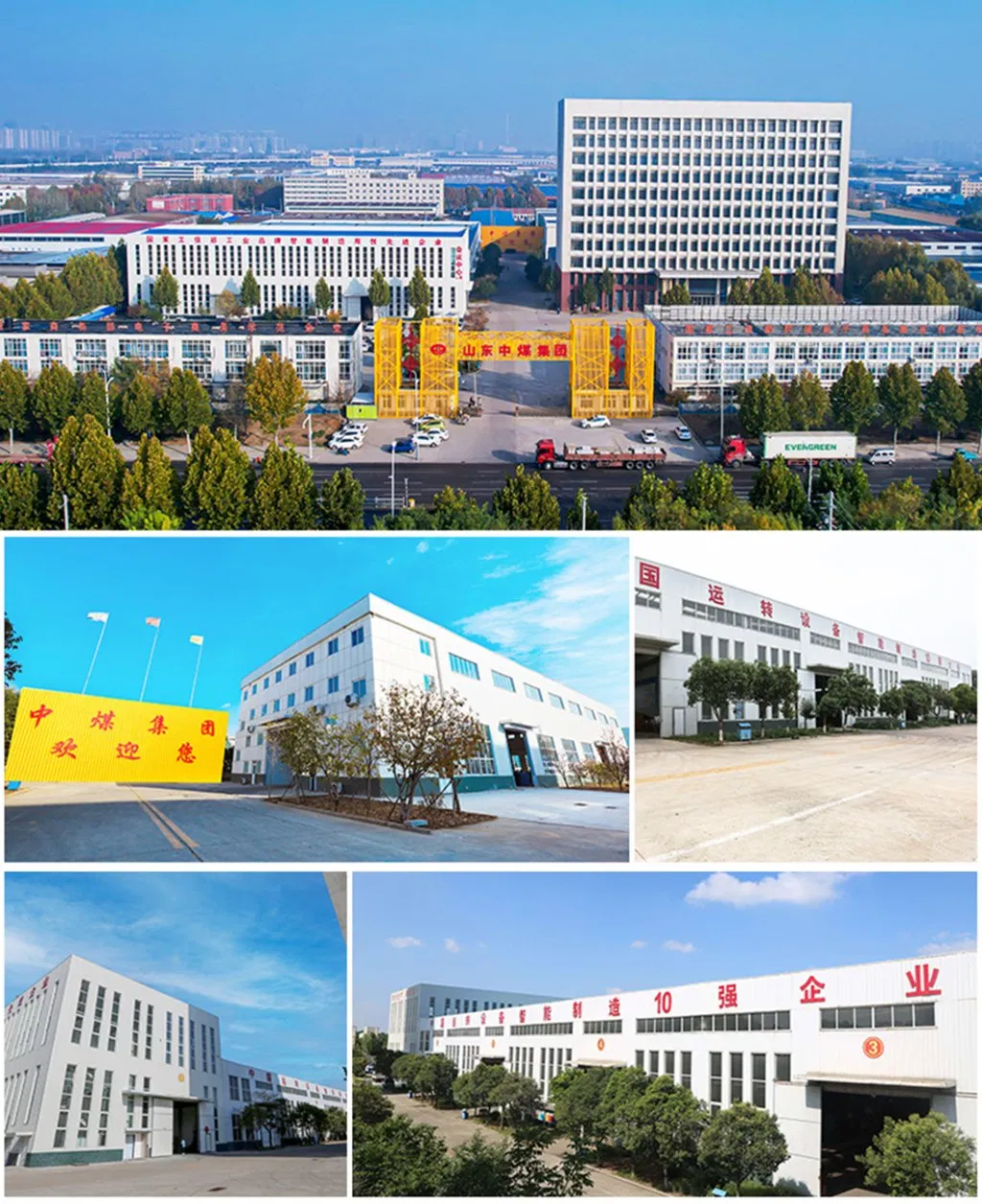

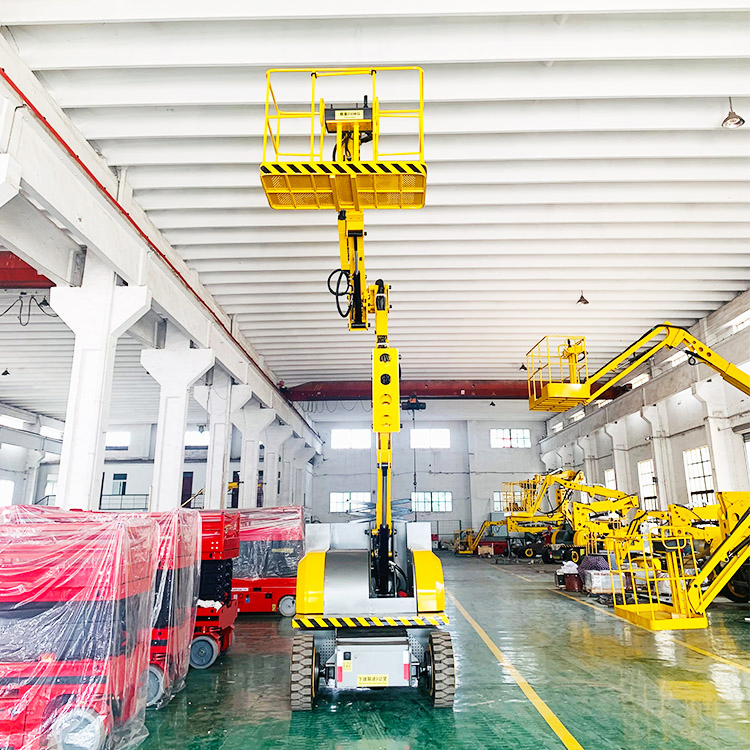

Professional Manufacturing

Frequently Asked Questions

Q1: What is the maximum height reachable by this platform?
A: The ZM Series offers a maximum working height of up to 22 meters, with platform heights ranging from 8 to 20 meters depending on the model.
Q2: Can the boom lift operate in tight spaces?
A: Yes, it features zero tail swing and advanced turning drive technology for a small turning radius, making it ideal for crowded work sites.
Q3: What power sources are available for the self-propelled models?
A: We provide both 48V battery pack options for indoor/quiet use and diesel engine options for high-power outdoor requirements.
Q4: How many people can the platform carry?
A: The platform is designed to safely accommodate two people along with their necessary tools, with a load capacity of up to 230kg.
Q5: Is the turntable rotation limited?
A: Diesel models feature 360-degree continuous rotation, while electric models offer 355-degree discontinuous rotation for versatile maneuvering.
Q6: What certifications does this equipment have?
A: All our articulating boom lifts are CE certified, ensuring they meet strict safety and quality standards for international use.
