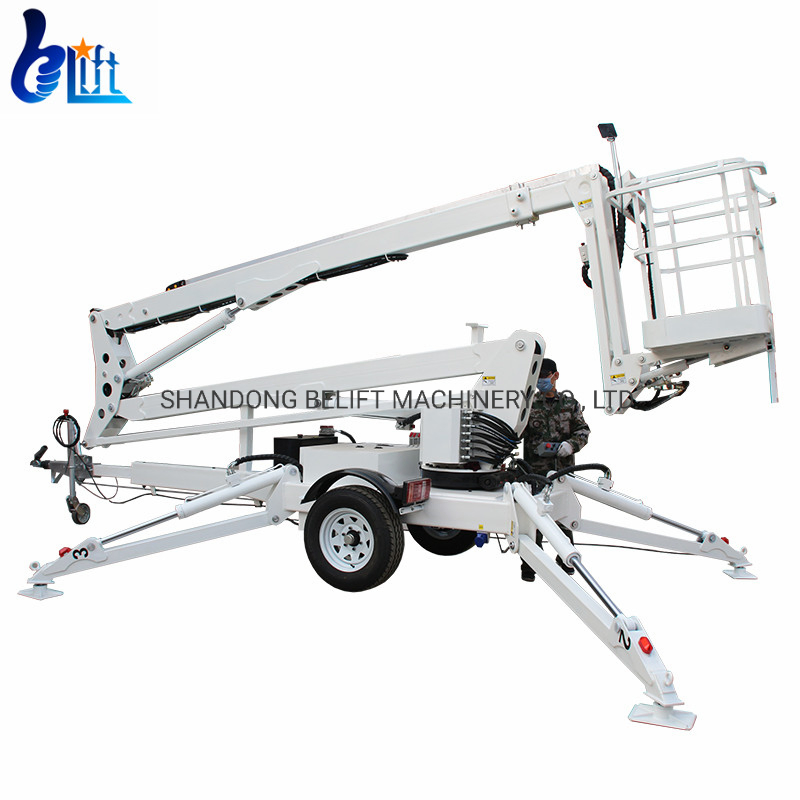

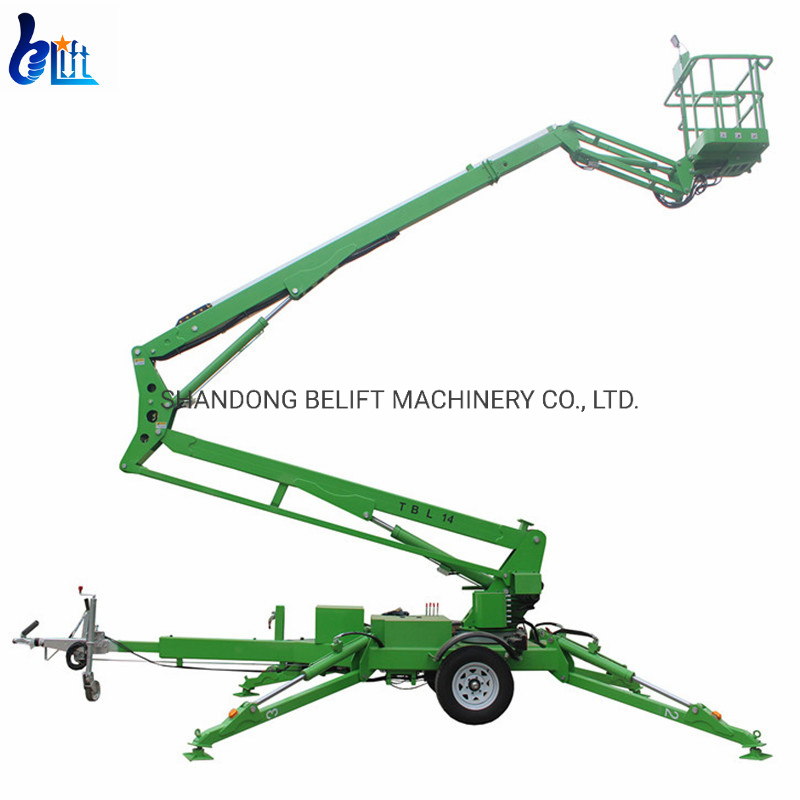

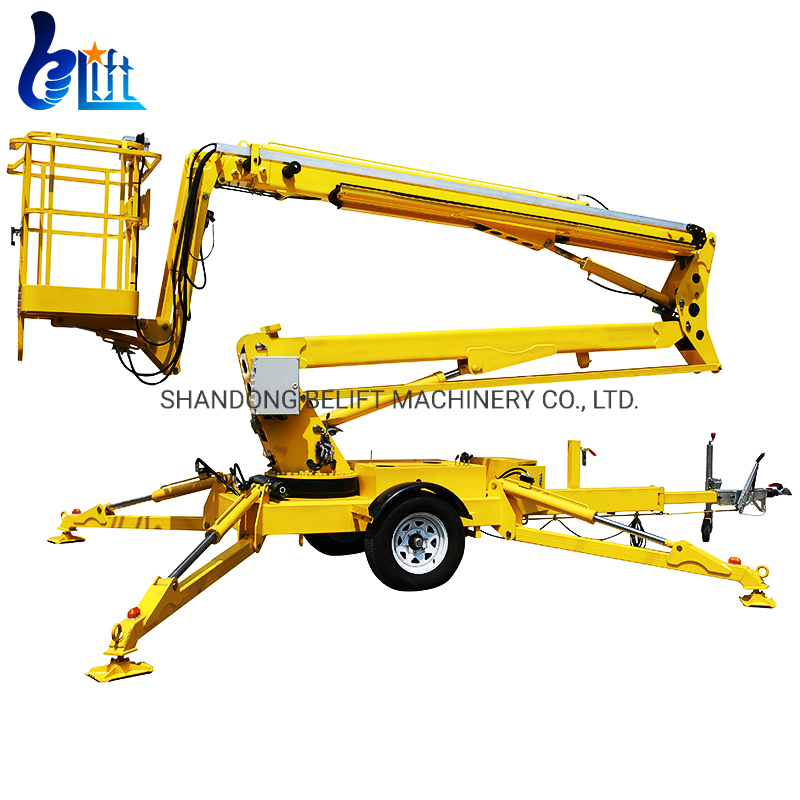

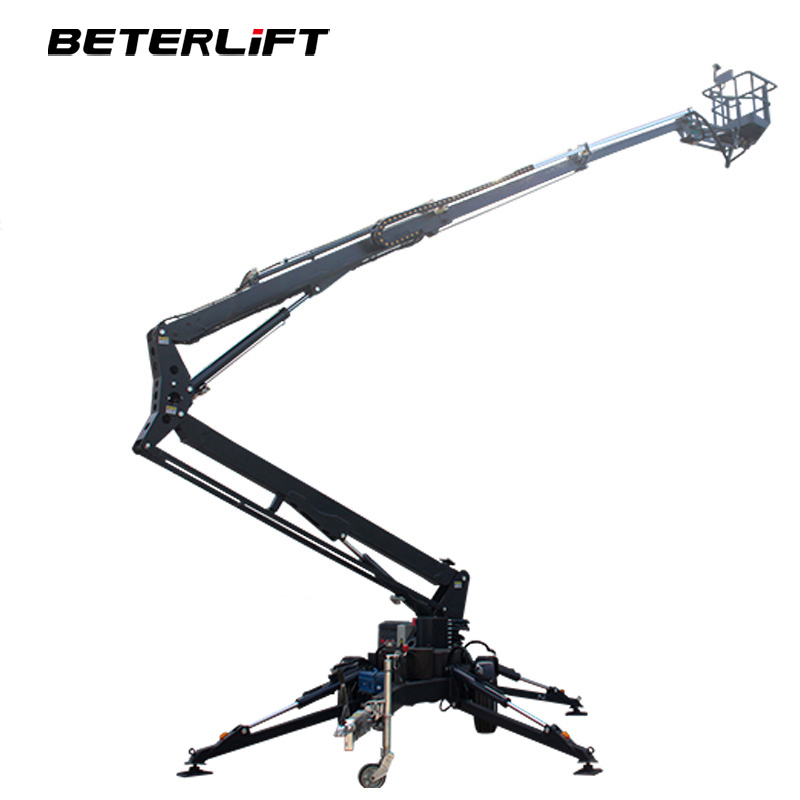

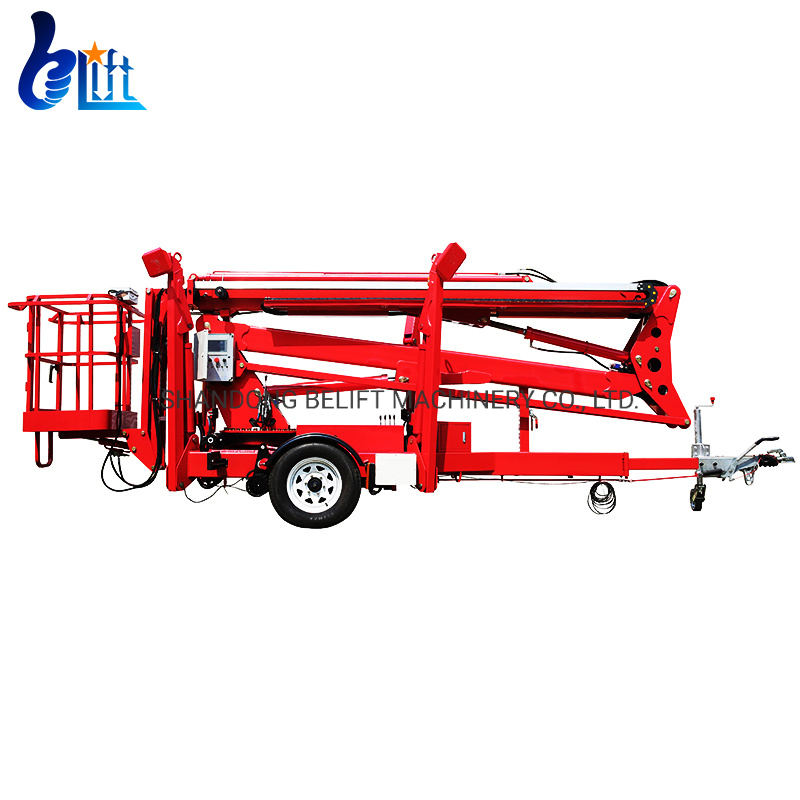

10m-22m Electric Hydraulic Aerial Telescopic Cherry Picker Towable Spider Trailer Boom Lift

Basic Information

Model NO.

SBL

Lift Mechanism

Articulated Lift

Carrying Capacity

200kg (Light Level)

Driven Type

Hydraulic

Max. Working Height

12m-24m

Platform Size

0.9X0.7m

Wind Resistance

Below or Equal 5

Certification

GS, CE, RoHS, ISO 9001

Power Type

AC/Diesel/DC/Gasoline

HS Code

8428909090

Product Description

10m-24m Electric Towed Telescopic Cherry Pickers Hydraulic Articulated Spider Towable Boom Lift

This towable boom lift is a versatile aerial work platform ideal for construction, shipyards, cleaning, and installation services. It is characterized by its compact size, stable lifting mechanism, 360-degree rotation, and multiple power options, with platform heights ranging from 10m to 22m.

Electric Hydraulic Aerial Telescopic Cherry Picker

Features and Advantages

✔
Multiple Power Options: AC (110V/220V), Diesel, Gasoline, DC Battery, or Hybrid systems.
✔
359° Rotation: Equipped with a rotatable motor for precise positioning.
✔
High Reach: Capable of reaching working heights from 12m up to 24m.
✔

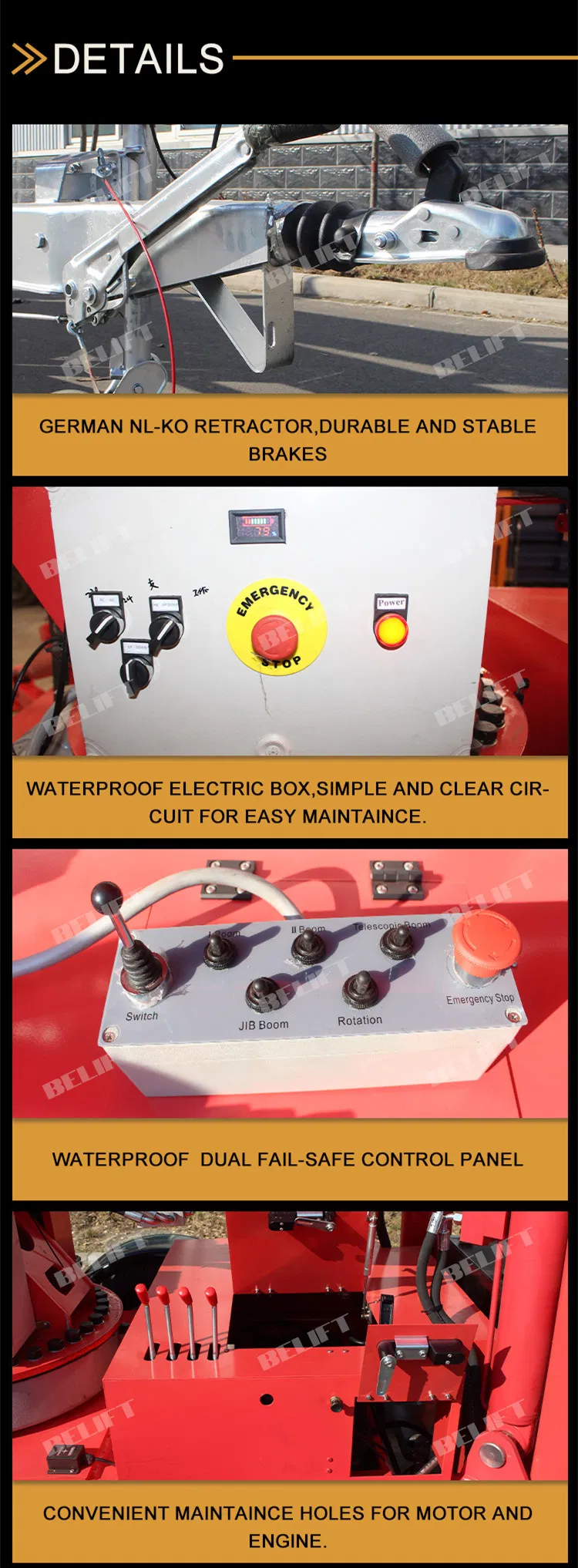

Durable Controls: Waterproof and dustproof control panels and electric boxes.
✔
Superior Finish: Perfect shot blasting treatment and anti-corrosion paint spraying.
✔
Safety Design: High strengthened steel structures for smooth lifting and minimal faults.

Product Parameters

Model Type	SBL10	SBL12	SBL14	SBL16	SBL18	SBL20	SBL22
Lifting height	10M	12M	14M	16M	18M	20M	22M
Working height	12M	14M	16M	18M	20M	22M	24M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	12.5M	14.5M	15.5M
Net Weight	1855KG	2050KG	2500KG	2800KG	3100KG	3290KG	3500KG

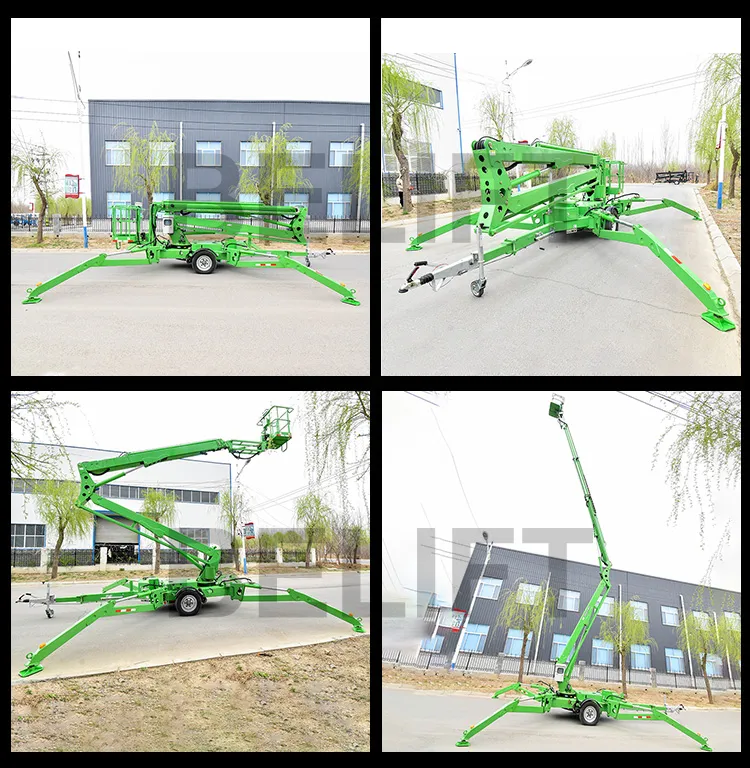

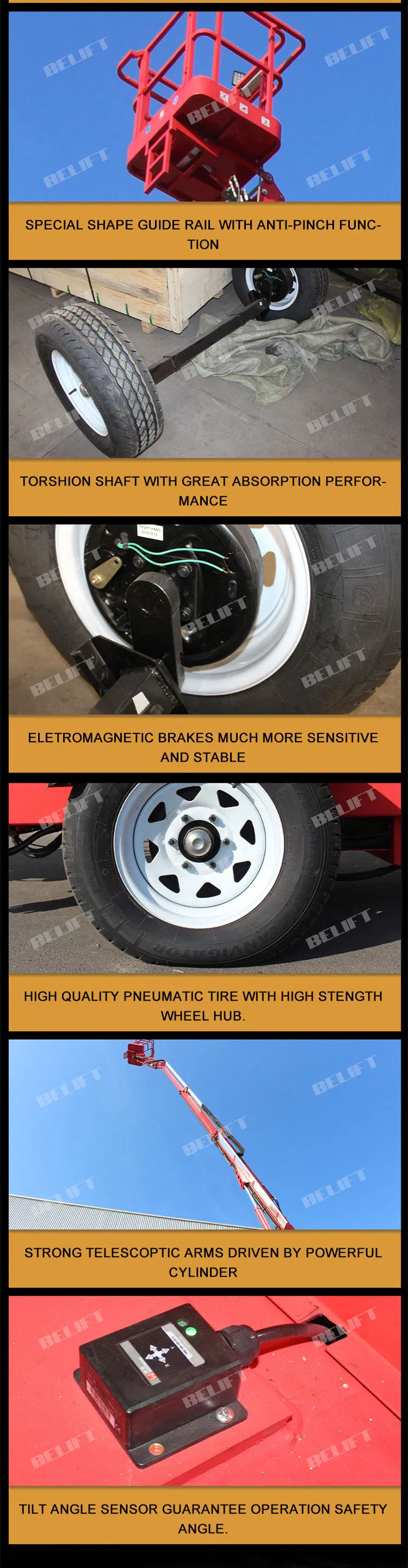

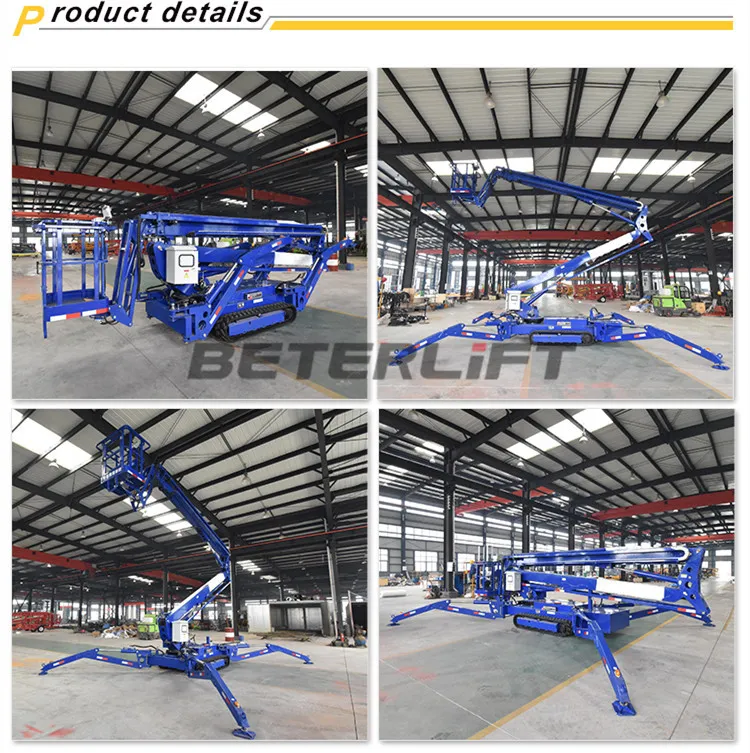

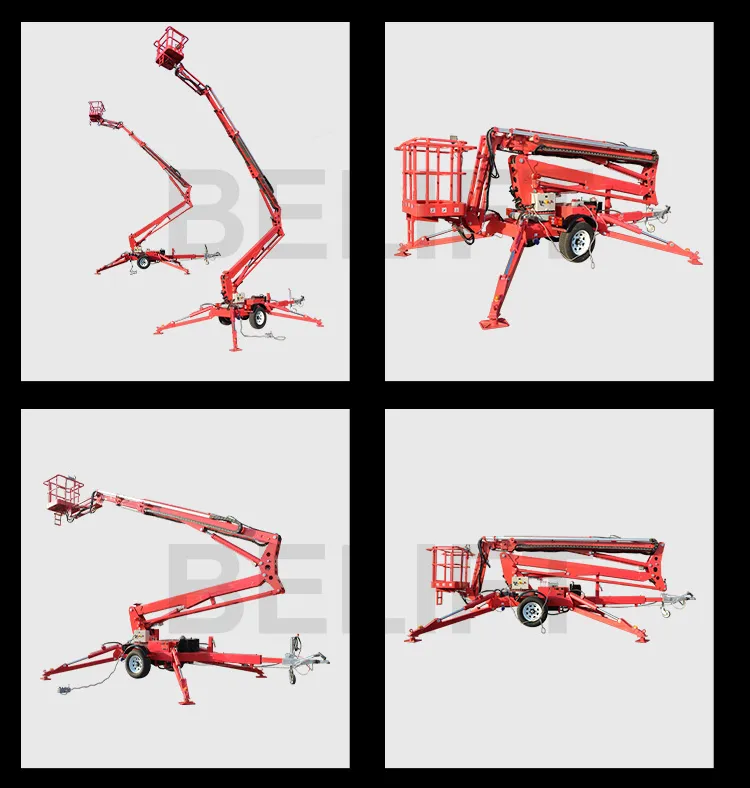

Detailed Photos

After Sales Service

1. Spare parts provided freely within quality warranty.

2. Comprehensive user's manual provided.

3. Lifetime technical support.

4. 24-hour telephone and internet service.

Frequently Asked Questions

How can customers buy replacement parts?

The lift uses common hardware parts. You can easily purchase them at local hardware markets or forklift parts shops.

How is the equipment repaired if a fault occurs?

The equipment has a very low failure rate. If needed, we provide detailed video guides and written instructions to assist with repairs.

What is the duration of the quality guarantee?

We offer a one-year quality guarantee. During this period, if any breakdown occurs, we send replacement parts free of charge.

What power sources are available for this lift?

We offer AC power, Diesel engines, Gasoline engines, DC battery power, and Hybrid configurations (e.g., AC+Diesel or DC+Gasoline).

Is the boom lift suitable for outdoor use?

Yes, it features waterproof control panels and has a wind resistance level of up to level 5, making it suitable for various outdoor environments.

What certifications does the product hold?

The product is fully certified with CE, ROHS, SGS, and ISO standards, ensuring high quality and safety compliance.
