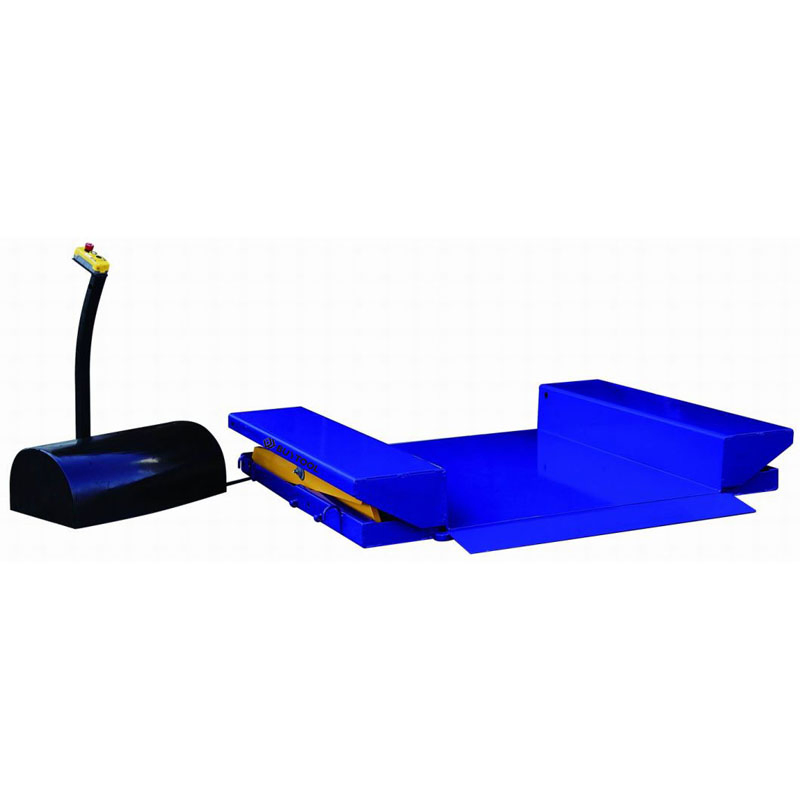

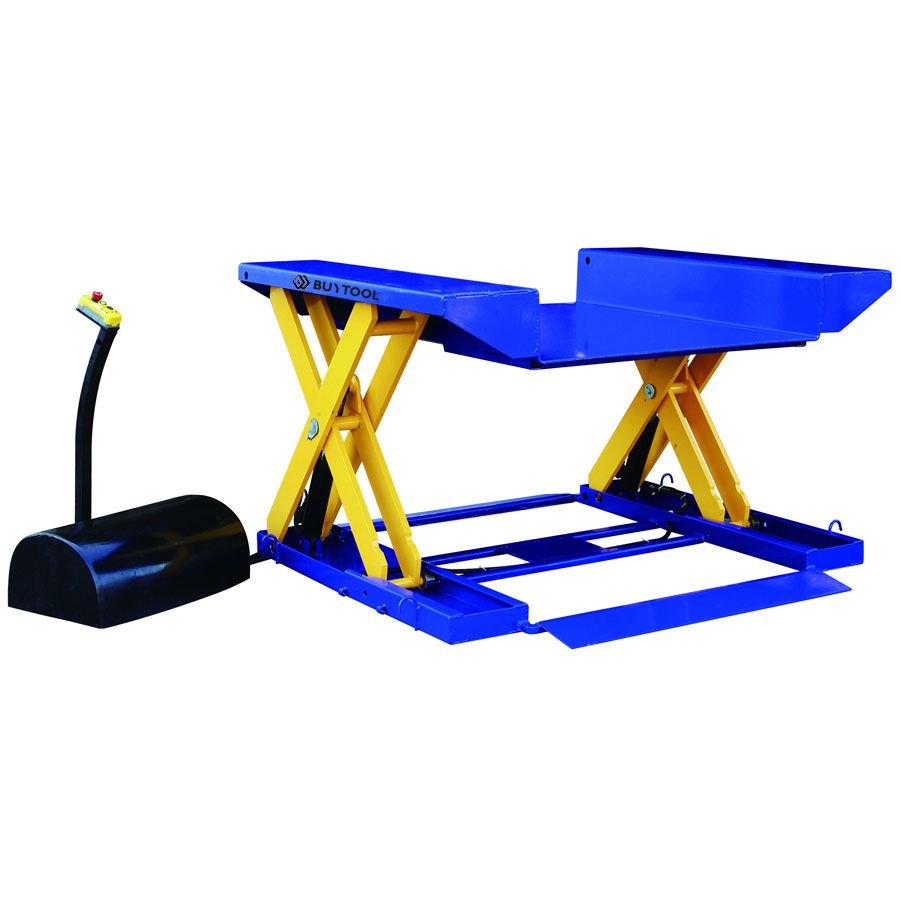

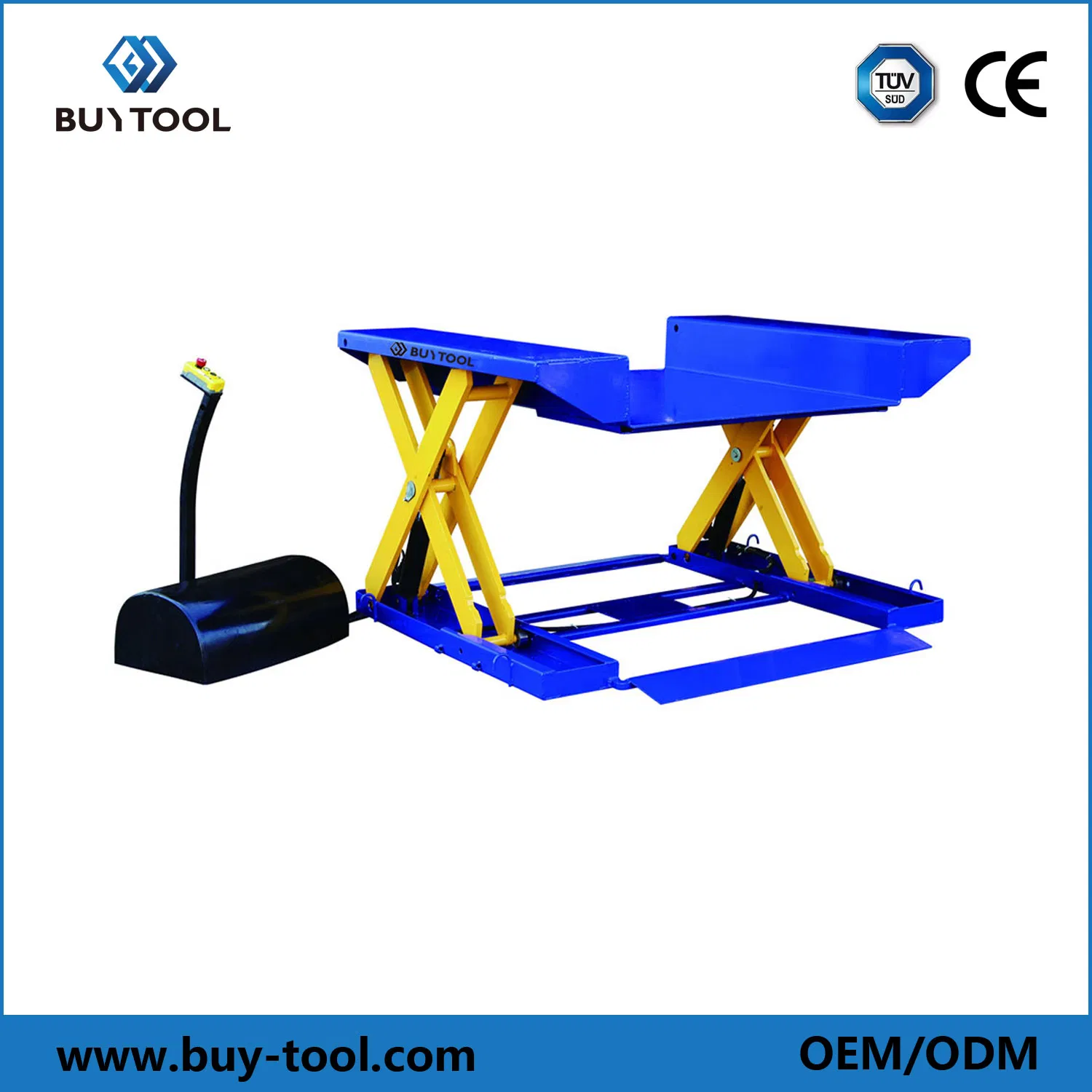

Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
1 / 5
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables
Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables

Hx Series Hx500 Hx1000 Hx1500 Low Profile Scissor Lift Tables

Customization: Available
After-sales Service: 24 Hours Online Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.HX500, HX1000, HX1500
ApplicationWorkshop, Shipboard, Warehouse
Lift MechanismScissor Lift
Driven TypeAC
FeatureExplosion-Proof
CertificationCE Approved
Min. Height10mm
Max. Height810mm
Table Size1270*1100mm
HS Code8427900000
Product Description
Hx Series Low Profile Scissor Lift Tables
  • No Pit Required: Achieve a super low closed height, eliminating the need for costly pit installations.
  • Safety Standards: Manufactured to all European safety standards including EN1570: 1999.
  • Remote Control: Features a remote power pack with pedestal and IP54 protected controls.
  • Perimeter Protection: Upper platform fitted with a safety perimeter to prevent descent upon contact with obstructions.
  • Emergency Ready: 24V control box with UP/DOWN buttons and integrated emergency stop.
  • Hydraulic Safety: External power pack equipped with relief valves and hose burst safety valves to prevent accidental lowering.
  • Easy Installation: Includes removable lifting hooks to facilitate handling and setup.
  • Maintenance Chocks: Mechanical safety chocks provided for secure maintenance operations.
Technical Parameters
Model HX500 HX750 HX1000 HX1500
Capacity (kg) 500 750 1000 1500
Max. Height (mm) 800 800 800 800
Min. Height (mm) 25 25 25 35
Platform L×W (mm) 1270x1100 1270x1100 1270x1100 1270x1100
Lifting Time (s) 25~35 25~35 25~35 25~35
Power Pack 0.75KW 0.75KW 0.75KW 1.5KW
Net Weight (kg) 207 250 280 380
Real Photography Display

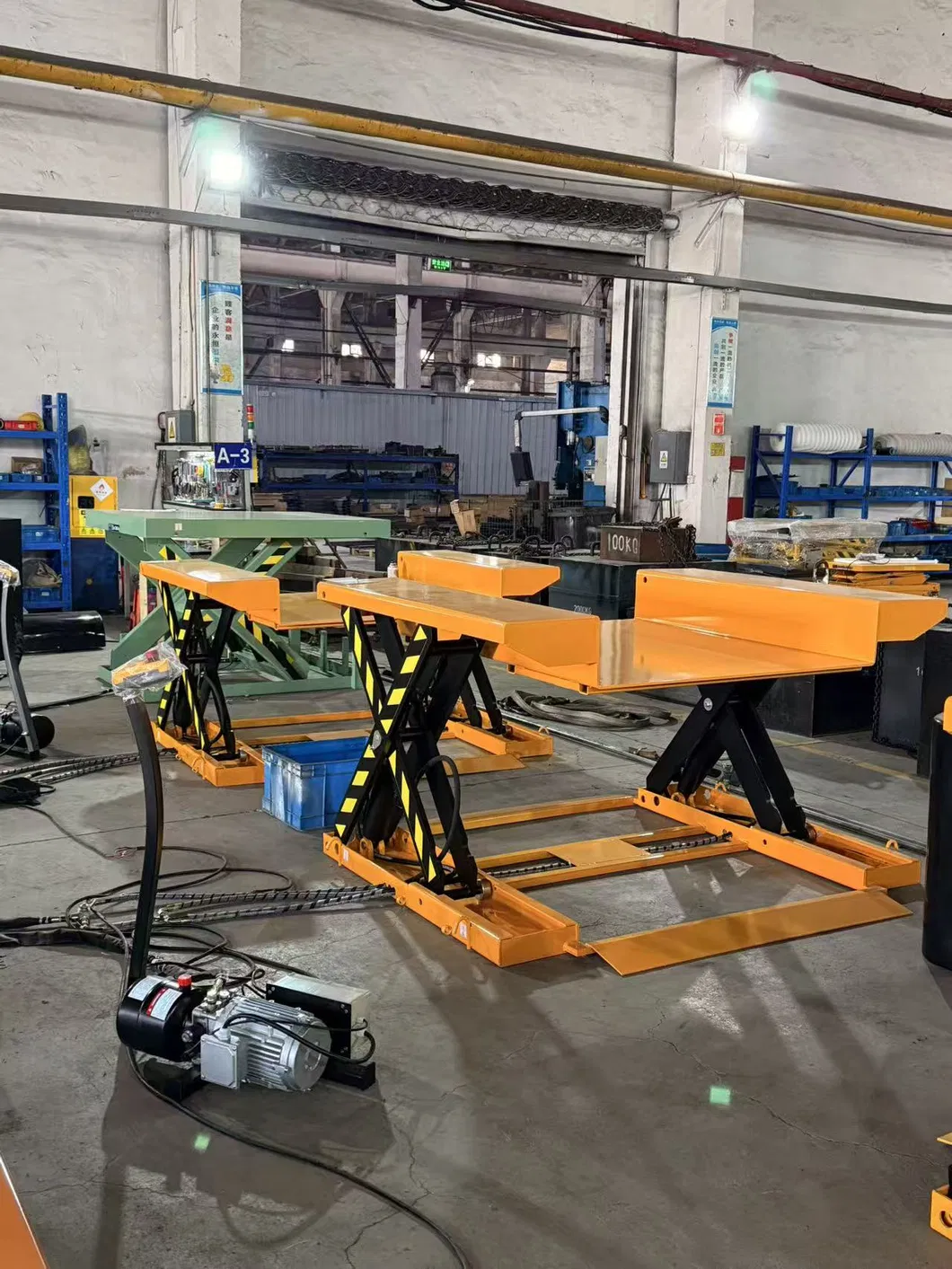

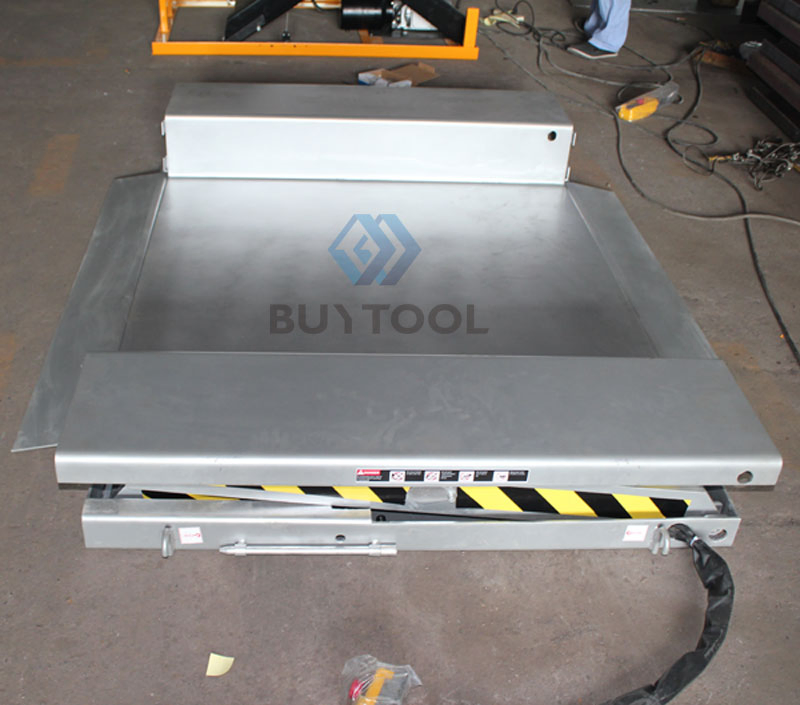

Lift Table Front View

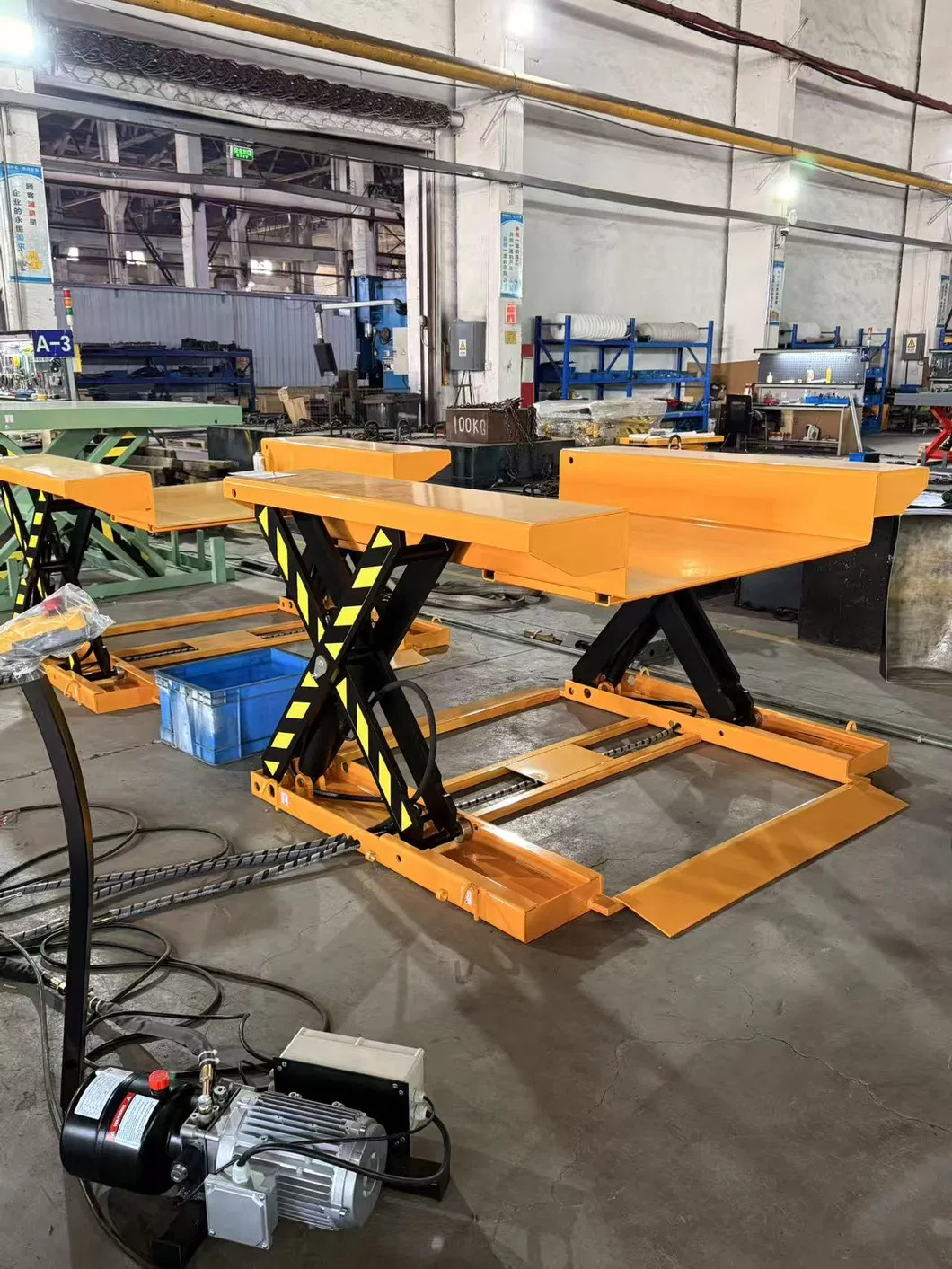

Lift Table Side View

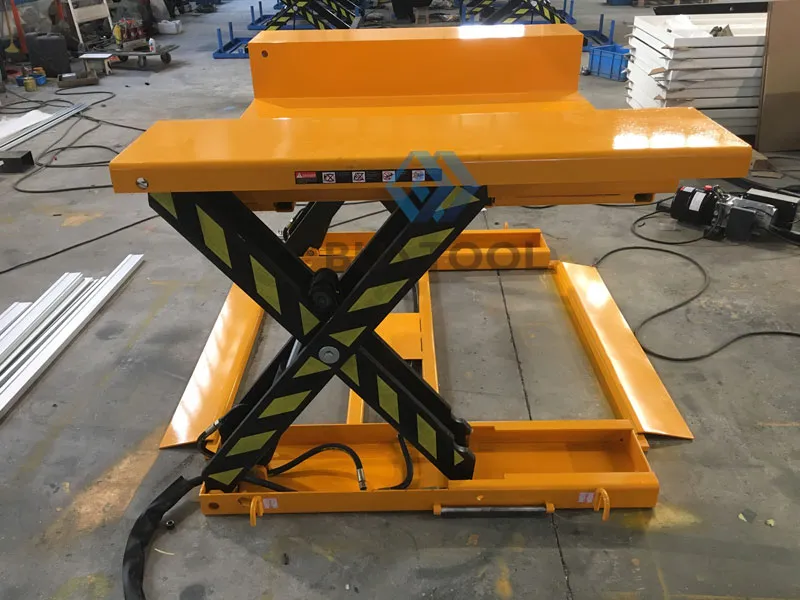

Product Operation

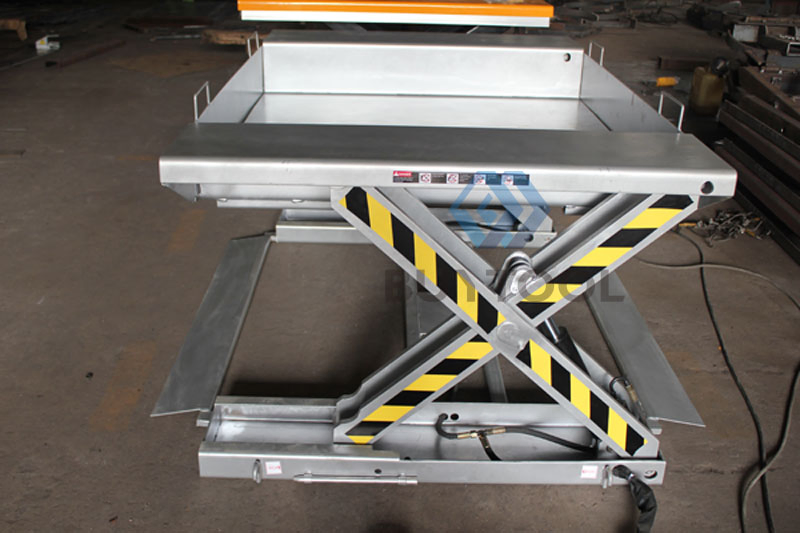

Product Detail
Certifications & Packaging
CE Certification
Quality Standard

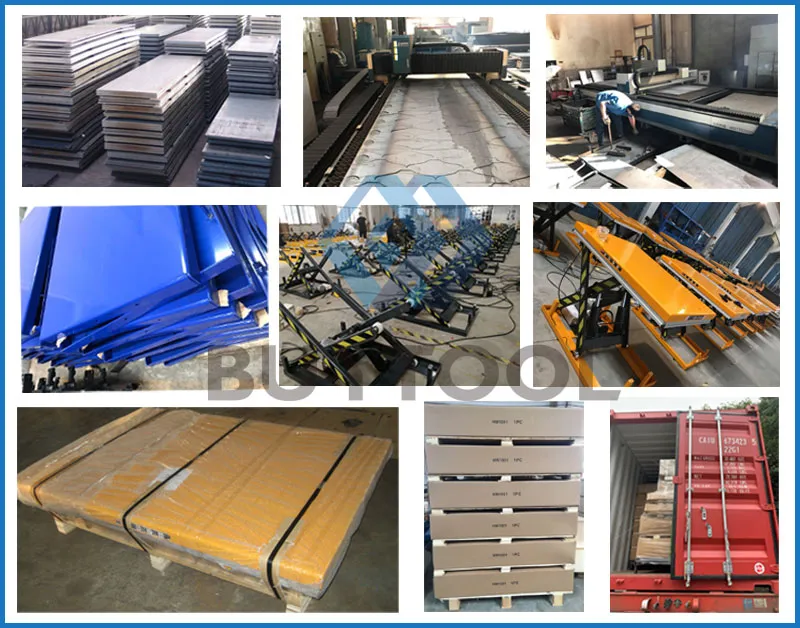

Wooden Case Packaging
Frequently Asked Questions
What about the quality of the products?
Our products are CE approved. We implement a 5-step inspection process: raw material check (ISO9001), production process monitoring, load limit testing upon assembly, and a 100% strict final inspection before shipment.
How long is the quality guarantee?
All of our lift tables carry a comprehensive one-year warranty against manufacturing defects.
What is the standard lead time for orders?
Normally, the lead time is 30 days. For single-item full containers, it can be as fast as 20 days, while mixed containers with over 5 items may take up to 45 days.
Do these tables require a pit for installation?
No, the HX series is specifically designed with a low profile. This eliminates the need for pit excavation, making installation simpler and more flexible.
Are the safety features compliant with international standards?
Yes, they are manufactured to meet European safety standards including EN1570: 1999, featuring safety perimeters, emergency stops, and hose burst valves.
Can the color and specifications be customized?
Yes, both the color and specific technical requirements can be customized to suit your specific industrial application and branding needs.
