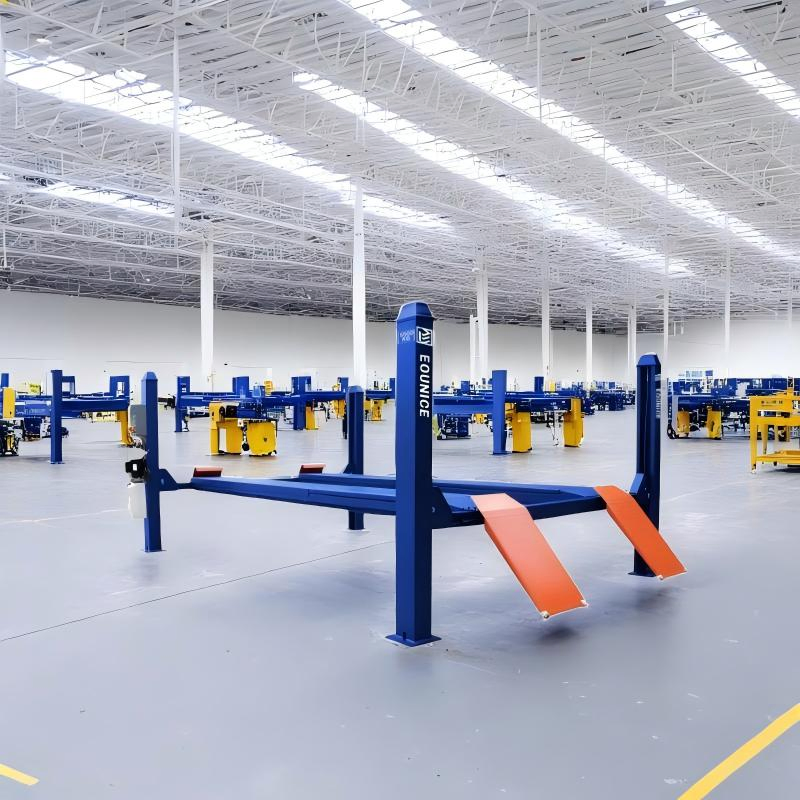

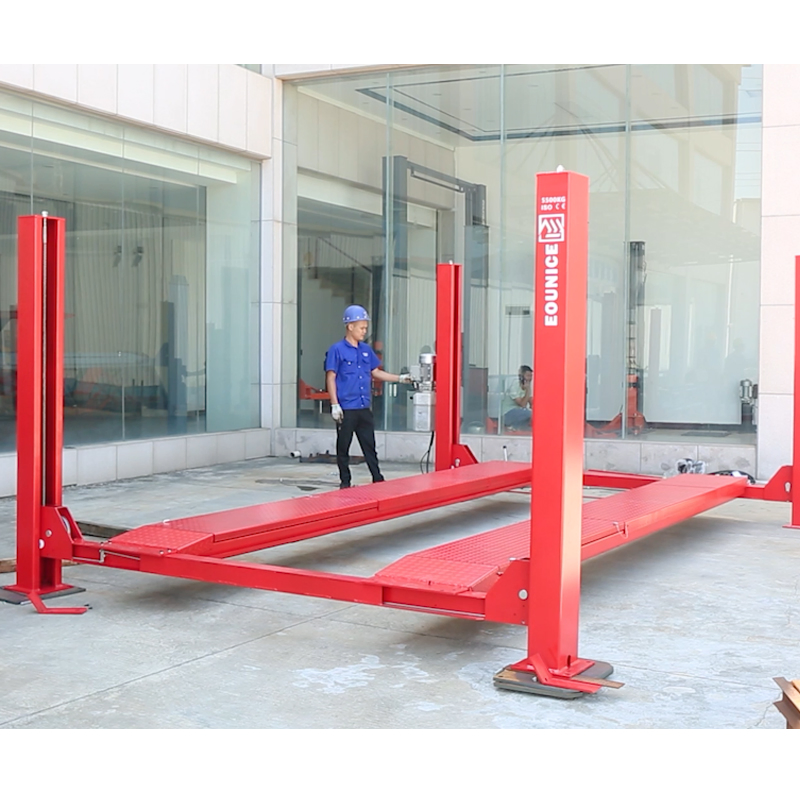

High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
1 / 5
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.
High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.

High-Performance Four Post Lift for Rapid Vehicle Alignment Checks in Fast-Paced Service Centers.

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.ON-7445
TypeOne Cylinder Hydraulic Lift
Lifting Capacity4.5T
Driving TypeHydraulic
CertificationCE, ISO, RoHS, GS
DesignFour Post Lift
UsageAlignment
ConditionNew
Production Capacity10000
📦 Packaging & Delivery
Package Size530.00cm * 52.00cm * 60.00cm
Package Gross Weight1358.000kg
Transport PackageContainer
OriginChina
🛠️ Product Overview

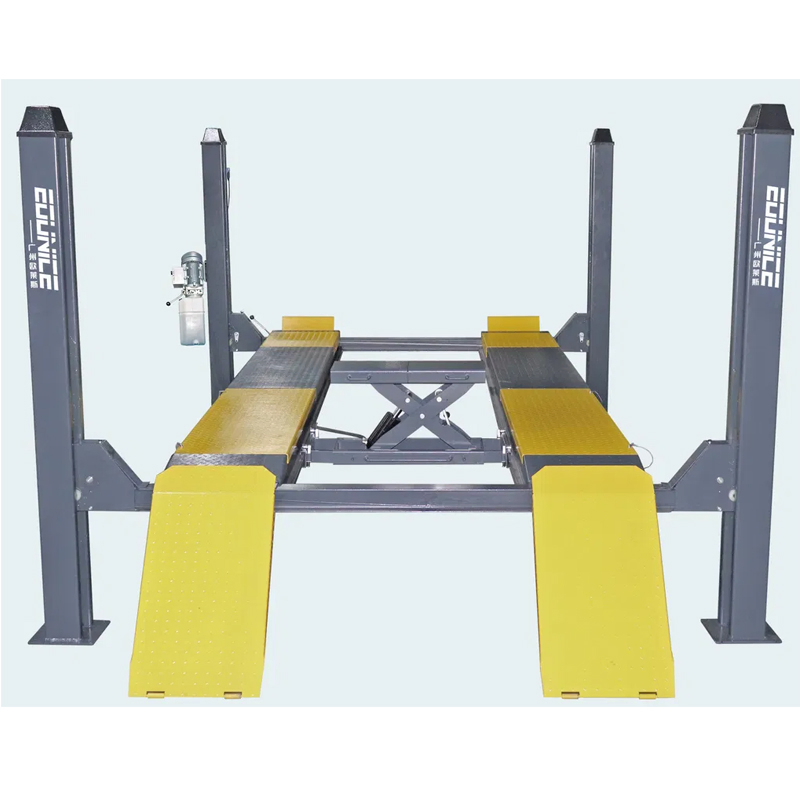

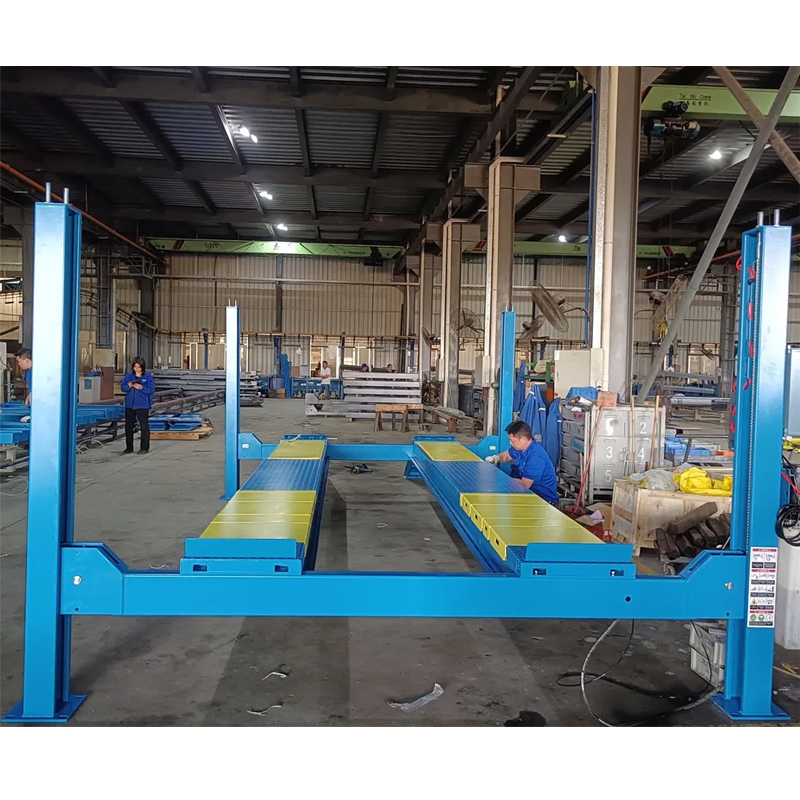

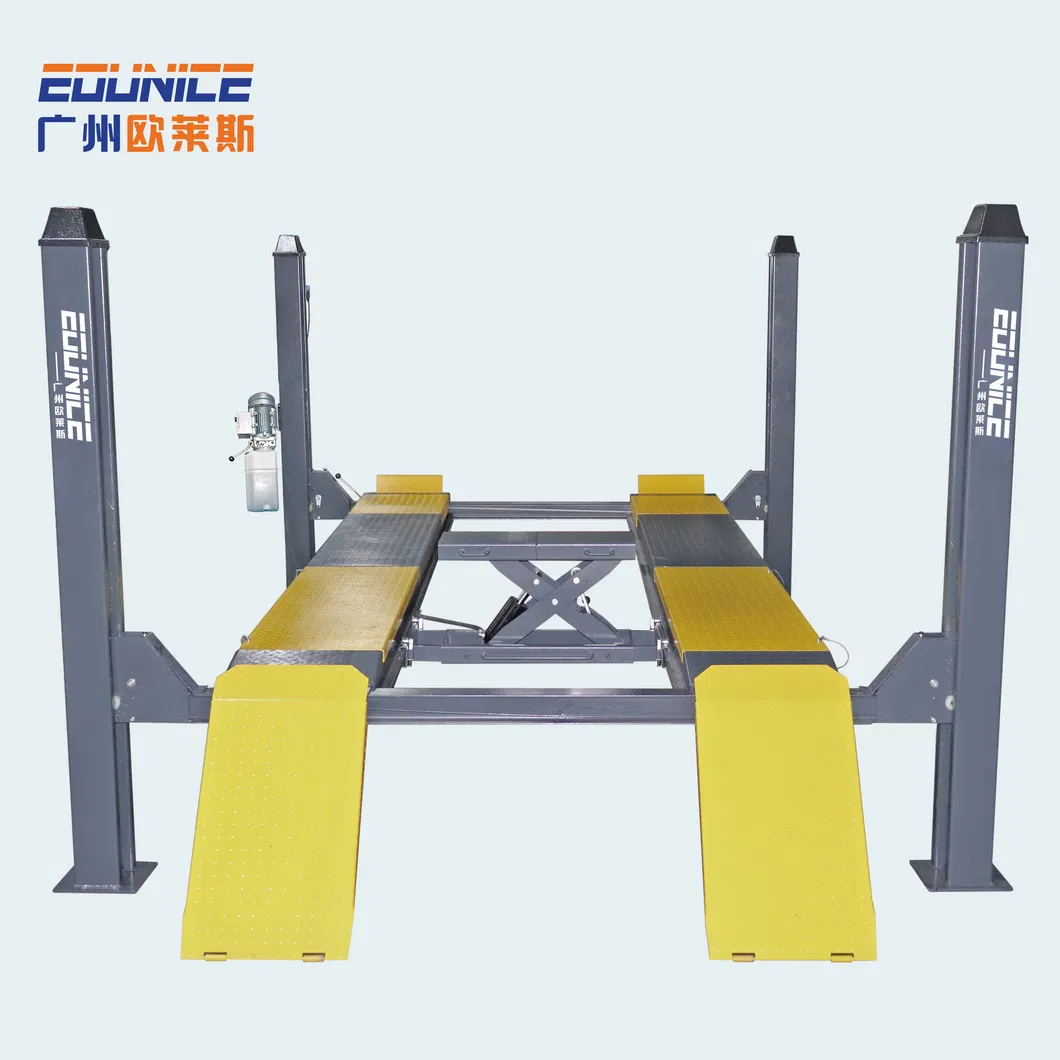

High-Performance Four Post Lift

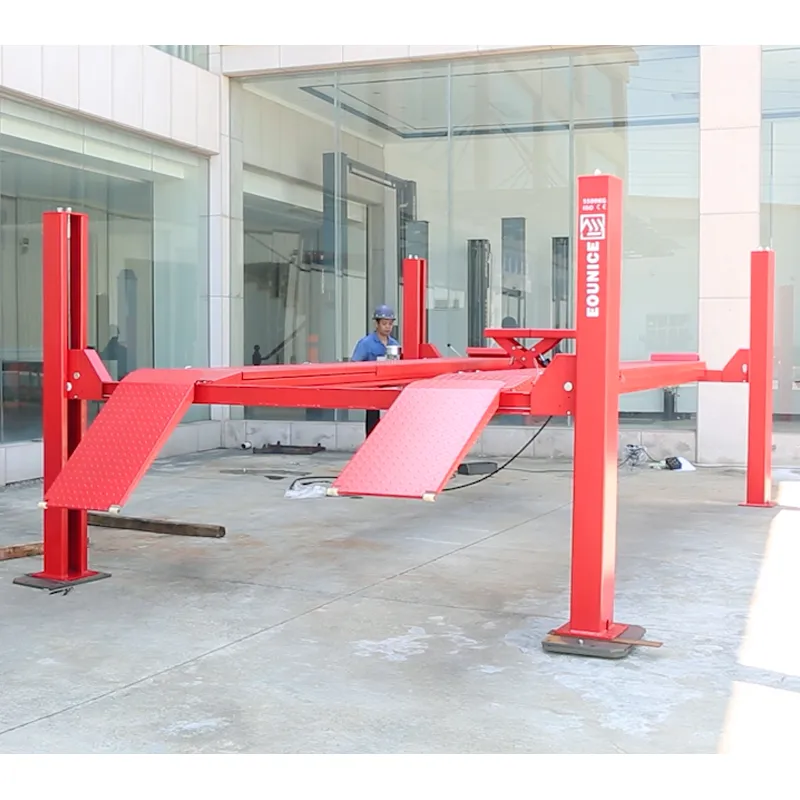

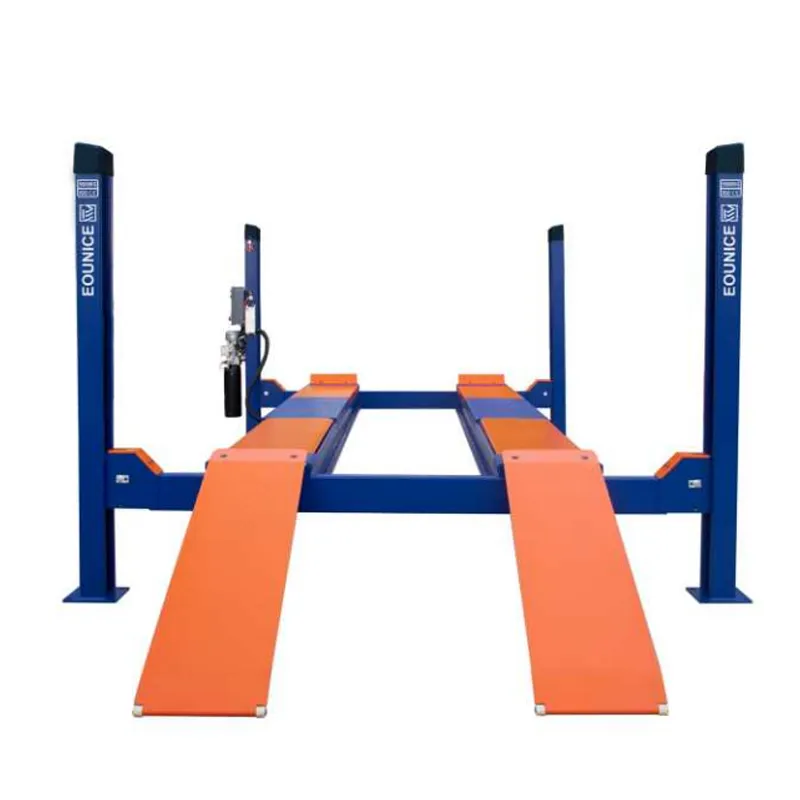

Lift Detail 1 Lift Detail 2 Lift Detail 3

Key Strengths:

  • Minimum ground height is 180mm (7 1/16"), preventing low chassis vehicle hanging issues.
  • Column upper end is suspended and lower end is adjustable (40mm range), ensuring level runways regardless of ground factors.
  • Double insurance system: Manual safety and cable breaking safety inside the cross beam.
  • Robot-welded structural parts ensure high strength, consistency, and a premium finish.
  • Powder-coated components using imported equipment for strong adhesion and lasting color.
Technical Design
⚡ Features
  • 4500kg lifting capacity.
  • Electro-air control and 24V low voltage operation system.
  • Reliable mechanical self-lock and air-drived safety lock release.
  • Max height limit switch to protect cylinder stroke.
  • Skid proof diamond and low-profile platforms.
  • Dual safety device: Automatic secondary locking mechanism for primary lock failure protection.
  • Optional manual or pneumatic rolling jack.
📈 Technical Data
Model Lifting Capacity Lifting Time Lifting Height Overall Height Overall Length (Inc. Ramps) Overall Width Width Between Columns Gross Weight
ON-7445 4,500kgs (9,500LBS) ≤60S 1800mm (75 9/16") 2167mm (85 5/16") 5800mm (228 3/8") 3432mm (135 1/8") 3000mm (118 1/8") 1358kg
ON-7445E 4,500kgs (9,500LBS) ≤60S 1800mm (75 9/16") 2167mm (85 5/16") 5800mm (228 3/8") 3432mm (135 1/8") 3000mm (118 1/8") 1358kg
🏭 Manufacturing Capability

Established in 2017, the manufacturing facility spans 35,000m² and employs over 200 skilled professionals. The factory is equipped with state-of-the-art laser cutting, digital control bending, CNC equipment, and a powder coating static electricity spray line for modern production.

As a professional manufacturer and exporter of commercial-grade vehicle service lifts and stereo parking equipment, we are committed to continuous technological innovation and strict quality control.

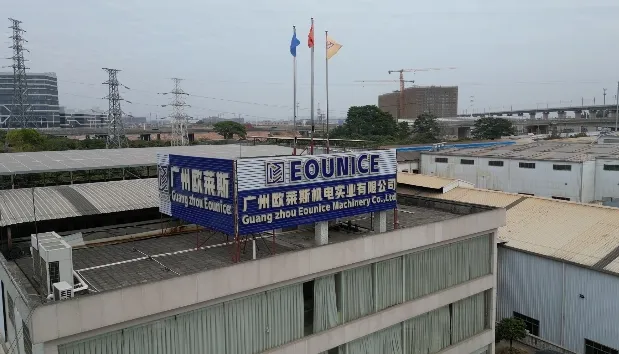

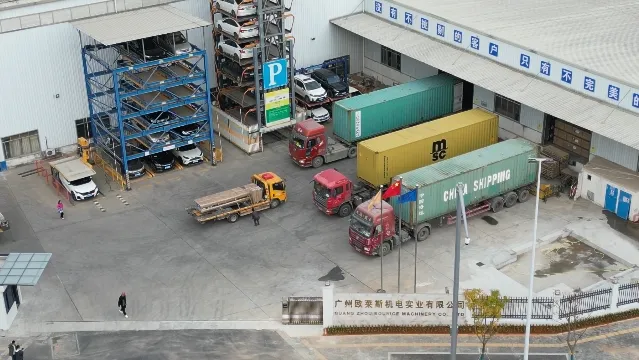

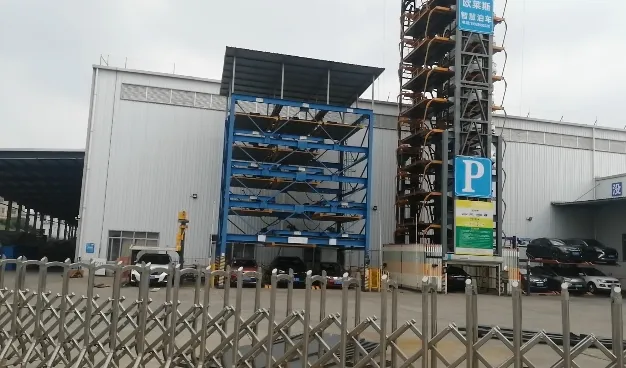

Factory Overview Workshop Production Line

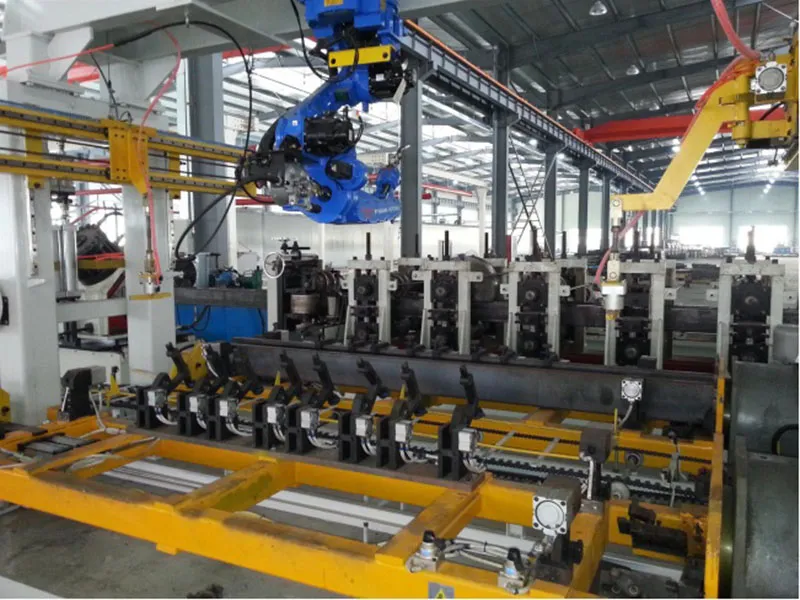

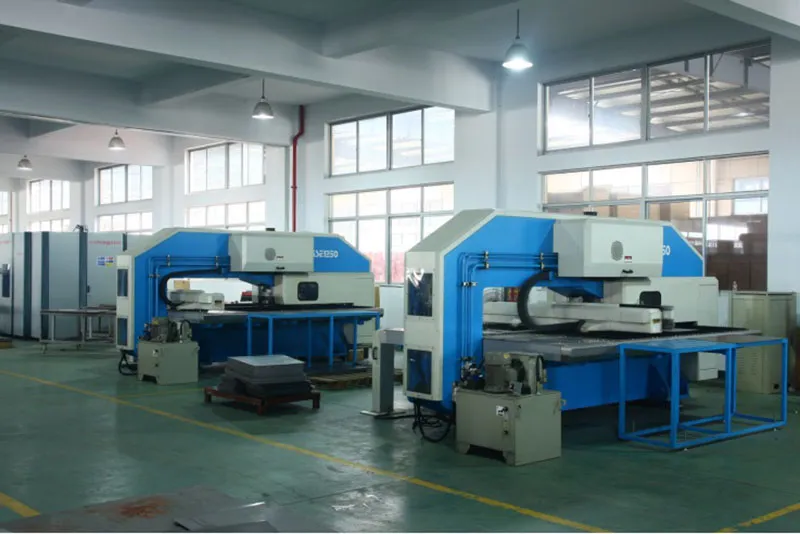

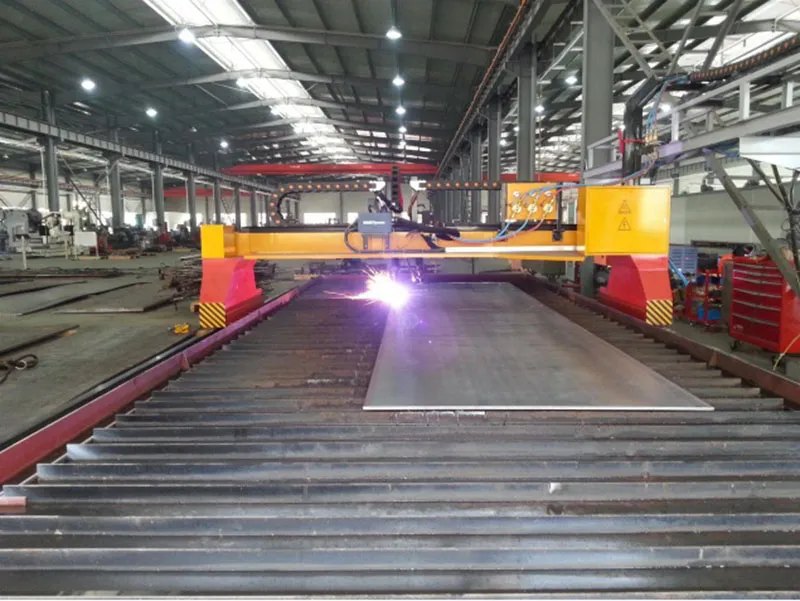

Equipment 1 Equipment 2 Equipment 3
Certification Showcase
✅ Certifications & After-Sales
Certificates

Warranty Terms:

  • One-year warranty on equipment structure against material or workmanship defects.
  • One-year warranty on motors, gear boxes, power units, hydraulic cylinders, cables, chains, valves, and switches.
  • OEM and ODM services tailored for specific needs.
  • Lifelong professional team support for optimal performance.
❓ FAQ
Q1: What is the lifting capacity of the ON-7445 model? A: The lifting capacity is 4,500kg (approximately 9,500 lbs), suitable for most passenger vehicles and light trucks.
Q2: Can this lift be used for wheel alignment? A: Yes, it is specifically designed for vehicle alignment services and includes features like turnplate pockets and slip plates.
Q3: Is this lift safe for cars with a low chassis? A: Absolutely. The minimum ground height is only 180mm, which effectively prevents the chassis of low cars from scraping.
Q4: What safety mechanisms are integrated into the four post lift? A: It features a dual safety device system, including mechanical self-locks and an air-driven safety lock release, ensuring the lift remains secure even if primary locks are disengaged.
Q5: What is the standard production lead time? A: Typically, production is completed within 15 days after receiving the deposit, depending on the order size (20FT or 40HQ containers).
Q6: Can I request a custom color or special size? A: Yes, we offer color customization beyond our standard blue, red, and yellow. Sizes can also be adjusted as long as they fit within container dimensions.
