1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1 / 5
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use
1.5t U Shape Low Profile Electric Lift Table for Versatile Use

1.5t U Shape Low Profile Electric Lift Table for Versatile Use

Customization: Available
After-sales Service: Lifetime
Warranty: 1 Year
Send Inquiry

Product Description

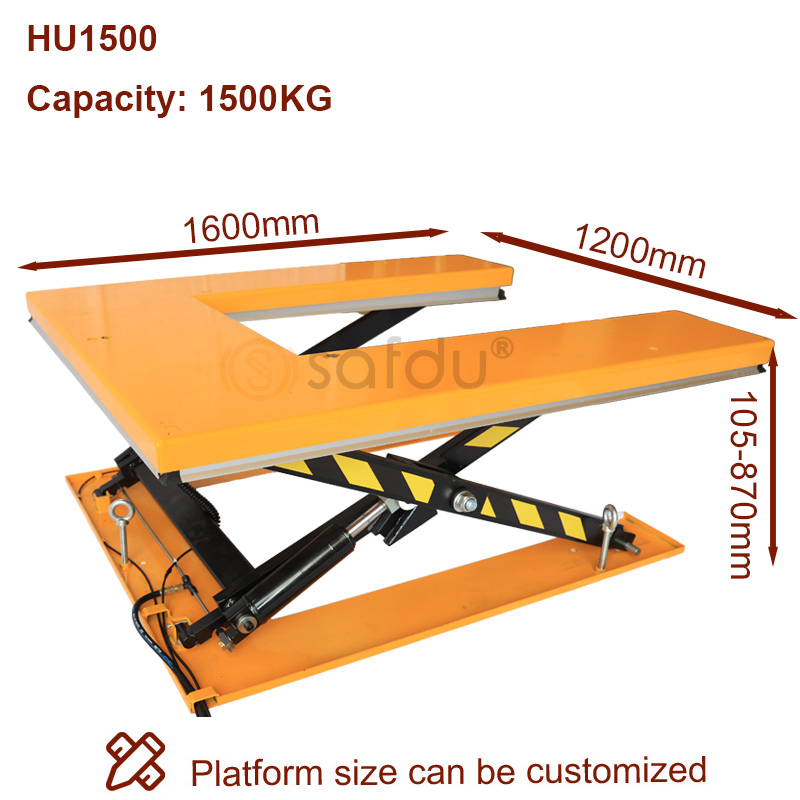

Overview & Basic Specifications
Model NO.
HU1500
Application
Workshop, Shipboard, Warehouse, Building, Logistics
Lift Mechanism
Scissor Lift
Carrying Capacity
1500kg
Driven Type
AC (Electric)
Certification
CE, ISO 9001
Platform Size
1600*1200mm
Lowered/Raised Height
105mm / 870mm
Power Supply
AC380V 50Hz
Weight
380 Kg
Product Introduction

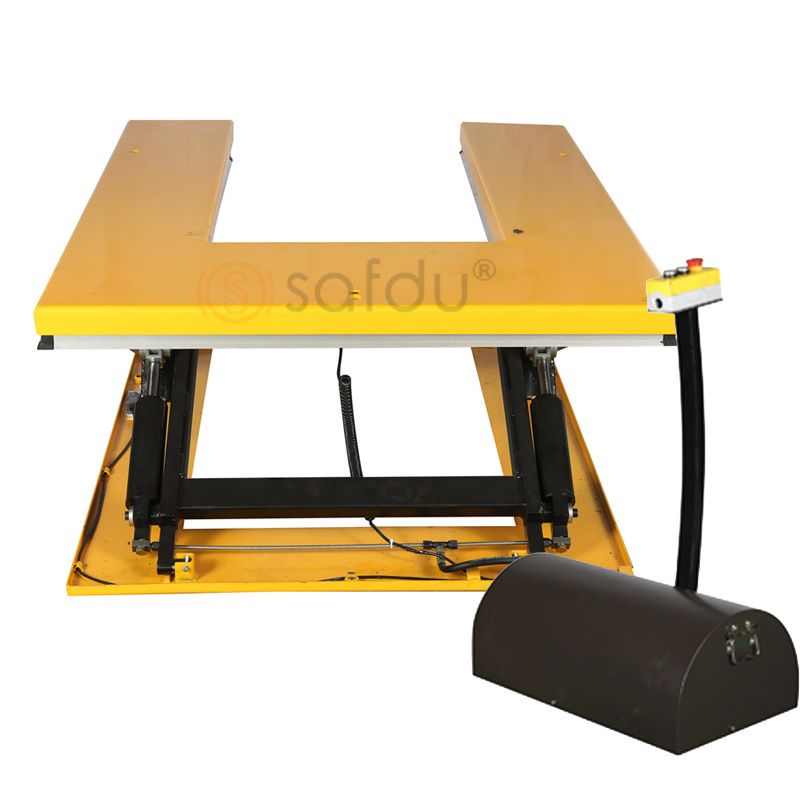

U Shape Electric Lift Table

Electric Scissor Lift Table - U Shape

Our Stationary Hydraulic U-Shape Lift Table is a premium industrial positioning device, engineered to rigorous EN1570 and ANSI/ASME safety standards. It is specifically designed for safe, ergonomic, and highly efficient interface for palletized load handling, eliminating the need for pits or ramps.

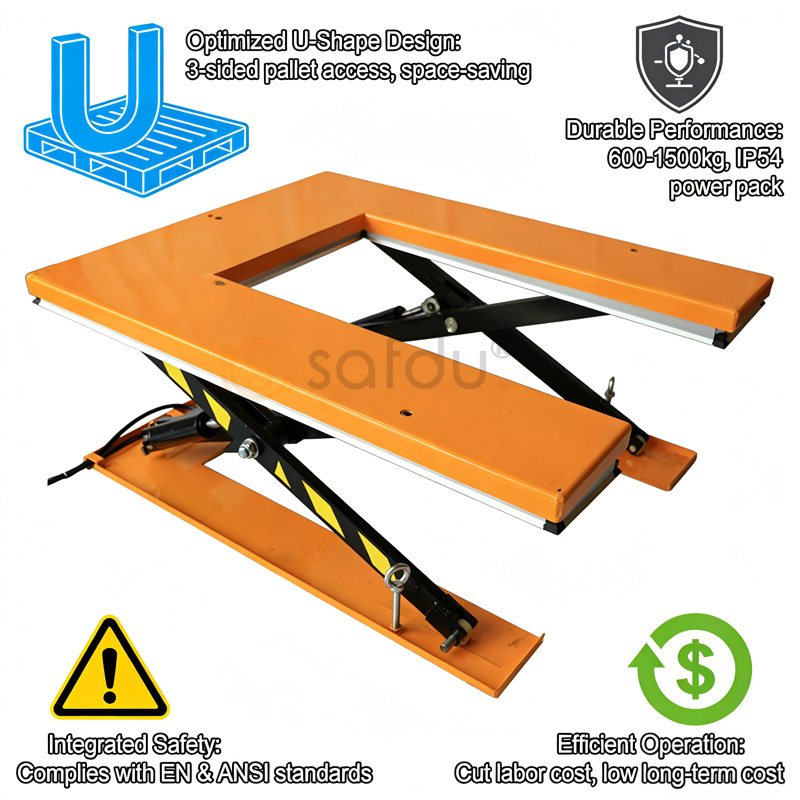

Key Advantages

✔
Optimized U-Shape Design: Enables efficient three-sided pallet access and space-saving operation.
✔
Durable Performance: 600-1500kg capacities with IP54-rated external power pack.
✔
Integrated Safety: Full protection system meets international EN & ANSI standards.
✔
Efficient Operation: Reduces manual handling and ensures low long-term operational costs.
Industrial Applications
●
Warehouse & Logistics: Essential for efficient pallet handling at loading docks.
●
Packaging Operations: Streamlines workflows on packaging and sorting lines.
●
Production Assembly: Ergonomically positions materials at assembly workstations.
●
Manufacturing Cells: Integrates seamlessly for repeated lifting in production areas.

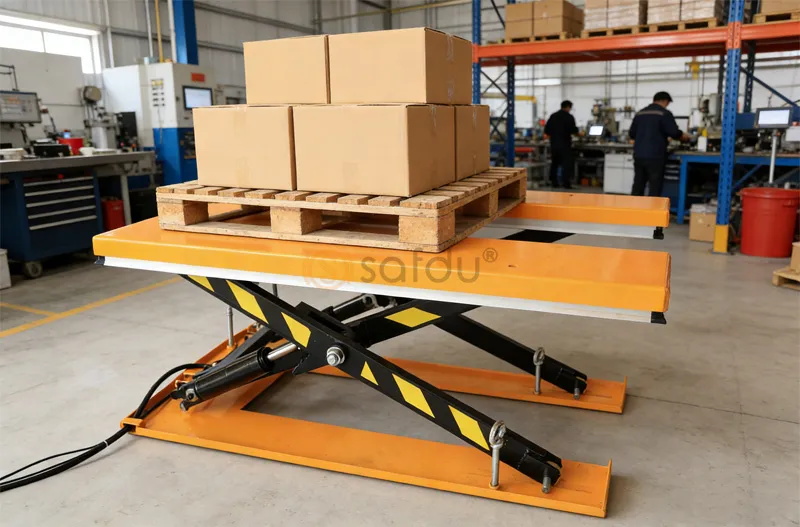

Application scenarios
Technical Specifications
Model Capacity (kg) Lowered H (mm) Raised H (mm) Platform Size (mm) Lift Time (sec) Power Motor (KW) Net Weight (kg)
HU600600858601450*98525-35AC380V1.1207
HU10001000858601450*114025-35AC380V1.1280
HU150015001058701600*120030-40AC380V1.5380
Product feature 1 Product feature 2 Product feature 3

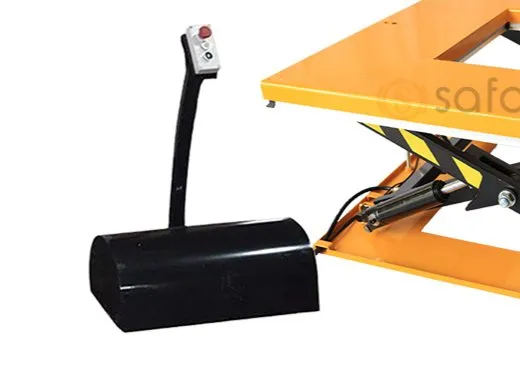

High Efficiency
1.1–1.5KW electric motor provides one-button lifting, increasing daily volume by 35%.

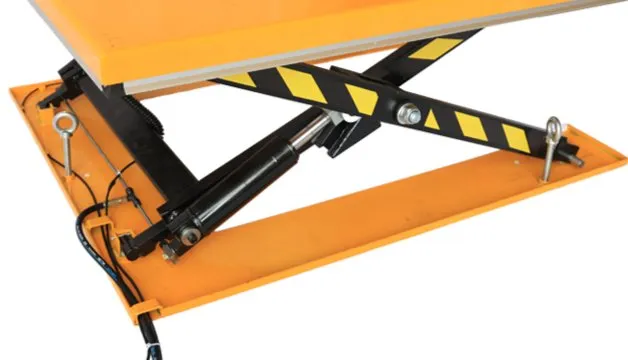

Safety First
High-strength steel scissor arms and built-in overload protection. Meets US OSHA and EU CE standards.

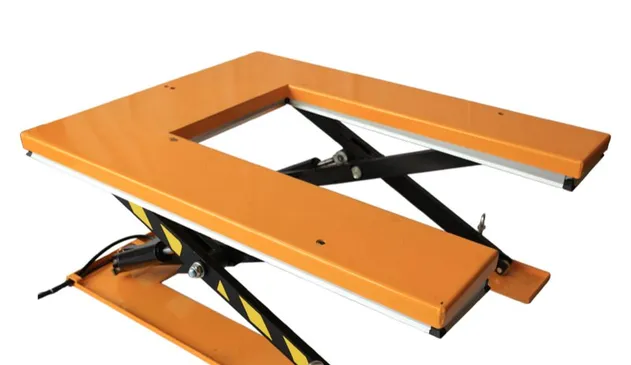

Customizable
Platform sizes can be tailored to your requirements, fitting tight spaces and specific workshop layouts.
Main Products

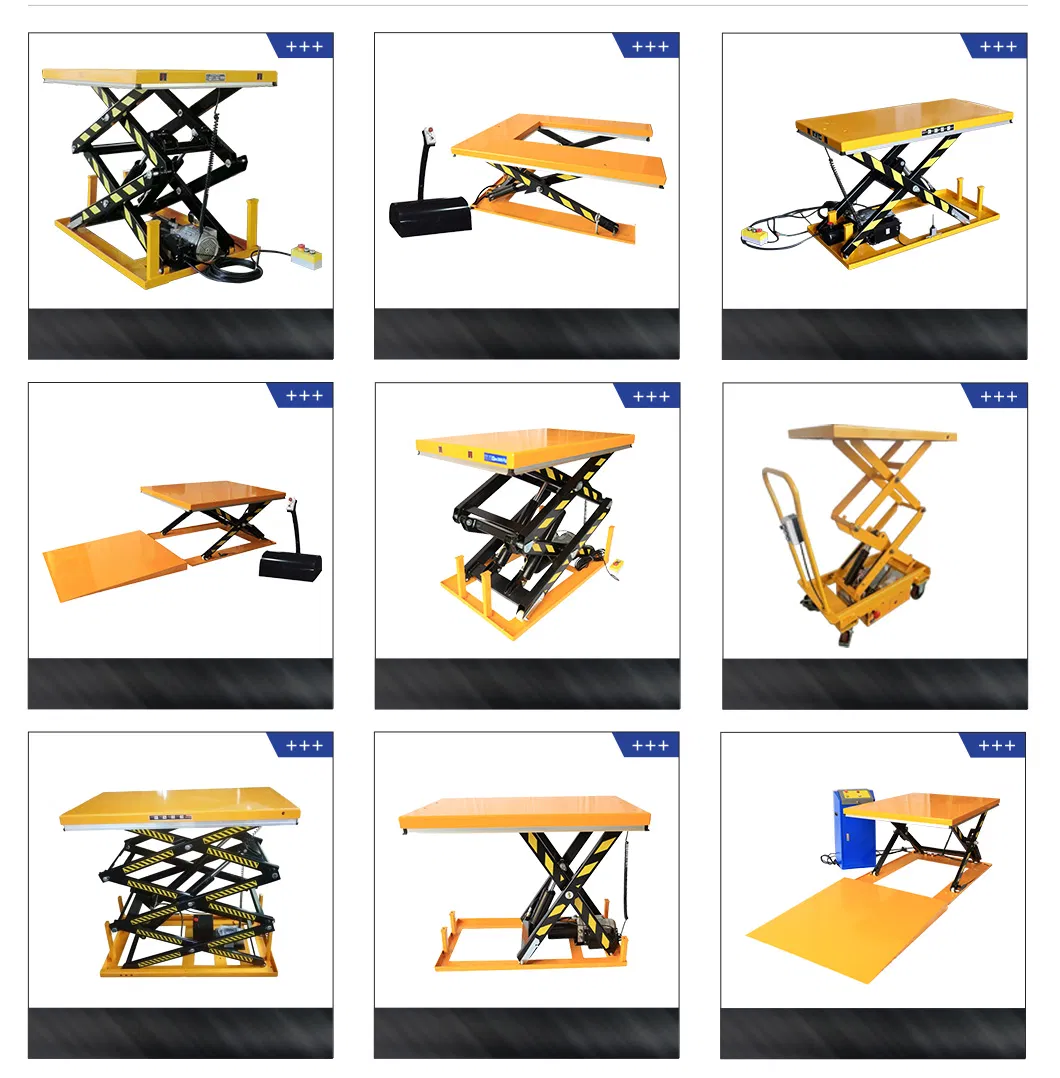

Main Product Catalog
Why Choose Our Solutions

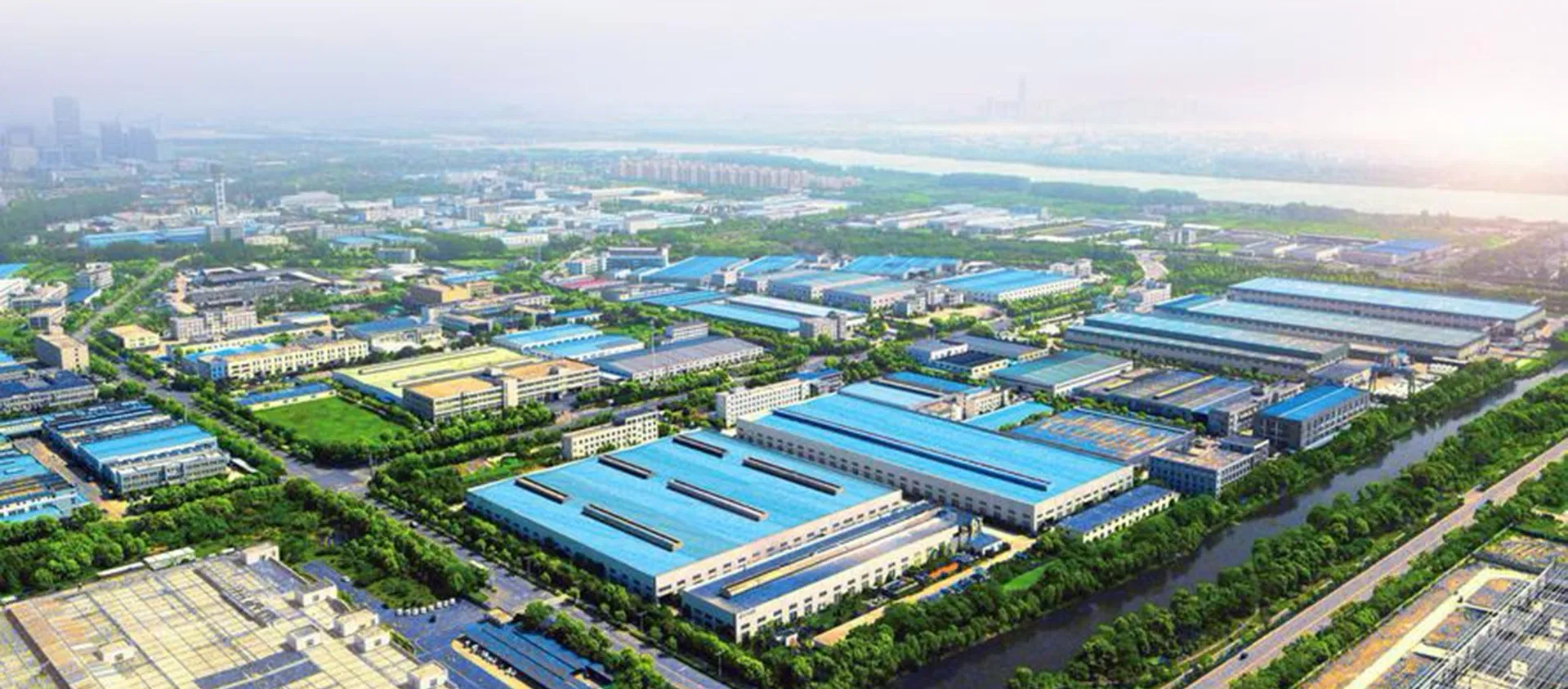

Company manufacturing

Our products focus on being SAFE and DURABLE. We prioritize quality at every stage, from material handling through inspection, testing, and shipping. Under our mature supplier chain and manufacturing system, we provide better solutions timely based on customer feedback.

Our Mission: Helping customers to enhance market share, innovating and promoting industry forward, and growing continuously together.

Quality & Logistics
Certificates Packaging and shipping
Frequently Asked Questions
? Q1: What certifications do your products have?
A: Our products carry ISO 9001 certification and are CE marked. Relevant product test reports and certification documents are available upon request to ensure compliance and quality assurance.
? Q2: Can you provide custom specifications?
A: Yes. We offer custom solutions for dimensions, load capacity, materials, and mounting types. Our engineering team provides tailored technical proposals based on your requirements.
? Q3: What are the MOQ and delivery time?
A: MOQ is flexible for trial orders. Standard lead time is 15-30 days for production. Export-standard packaging is used to ensure safe delivery.
? Q4: How do you handle quality control?
A: We implement strict QC, including dimensional checks and mechanical performance testing. Third-party Pre-Shipment Inspections are welcome, and test videos can be provided.
? Q5: What are your payment terms and warranty?
A: Standard terms include T/T with 30% deposit and 70% before shipment, or L/C at sight. We offer comprehensive warranties for different components.
? Q6: Is installation support provided?
A: Yes, we provide detailed user manuals and technical support to ensure your lift table is installed and operated safely within your facility.
