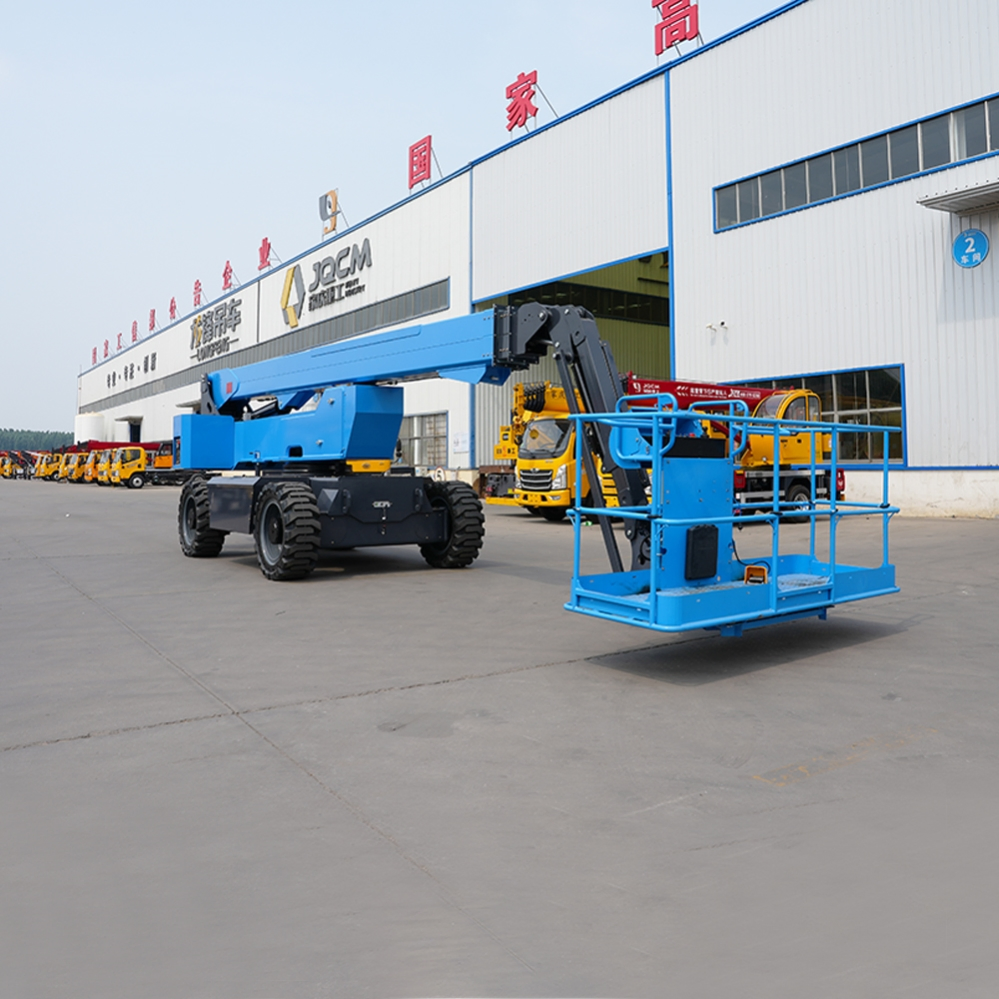

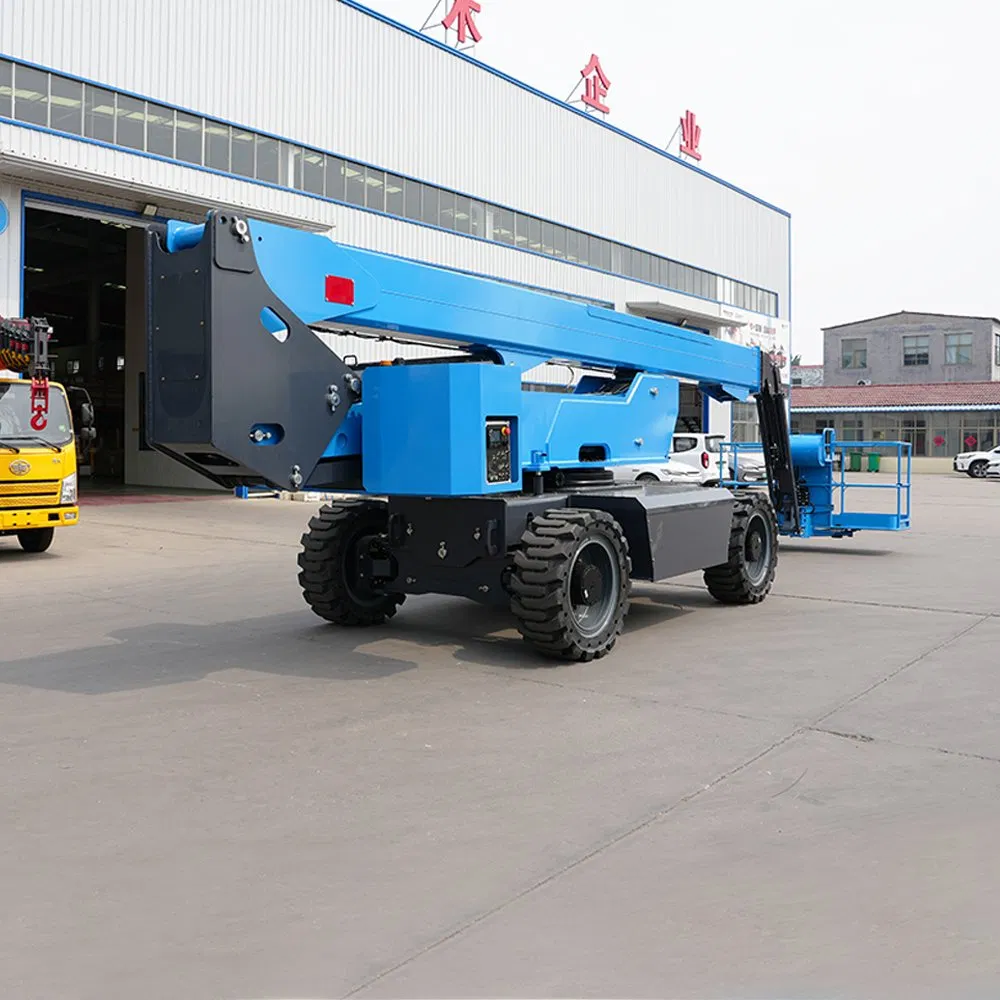

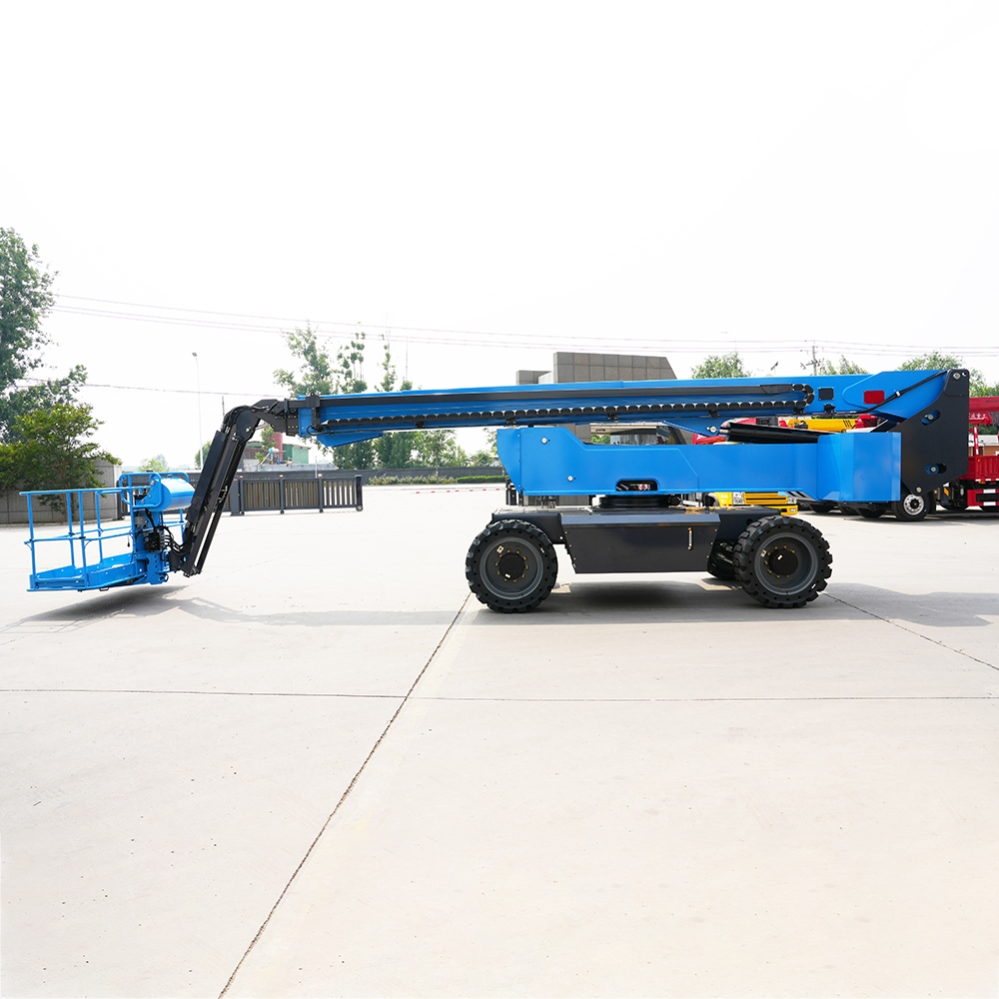

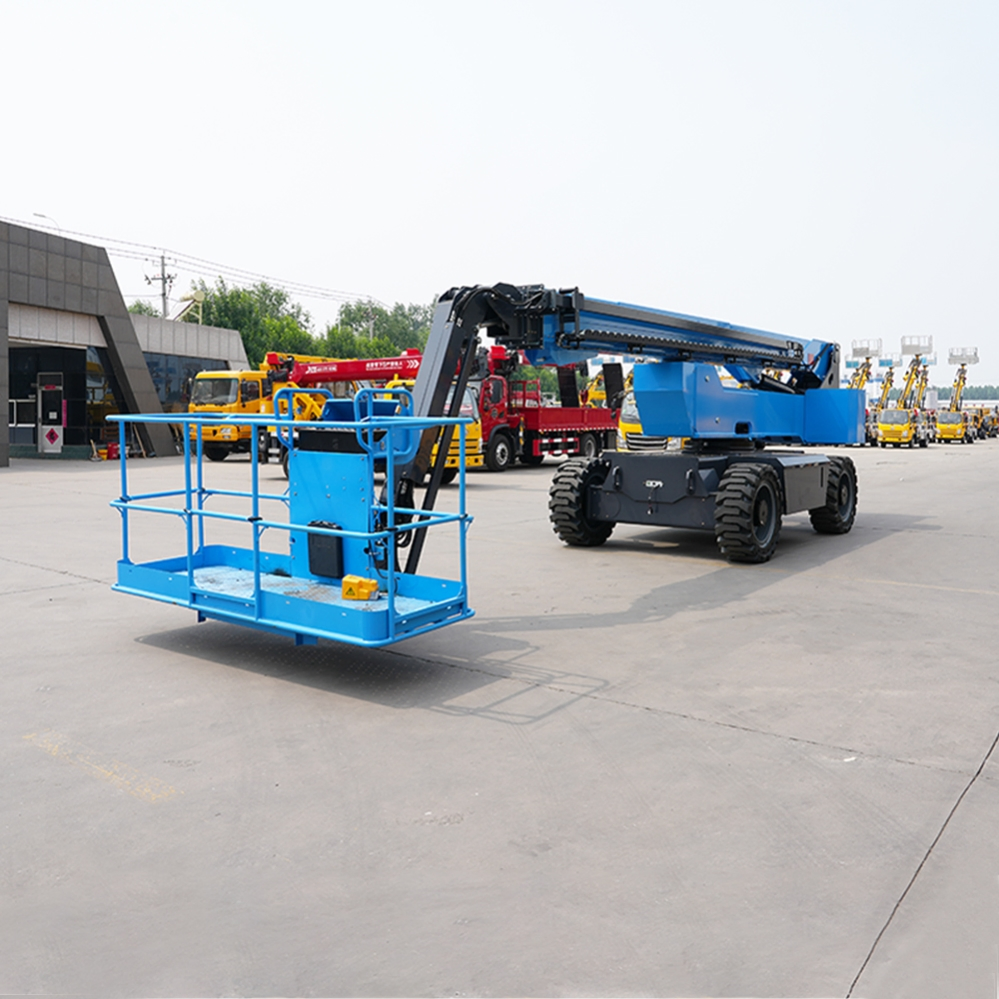

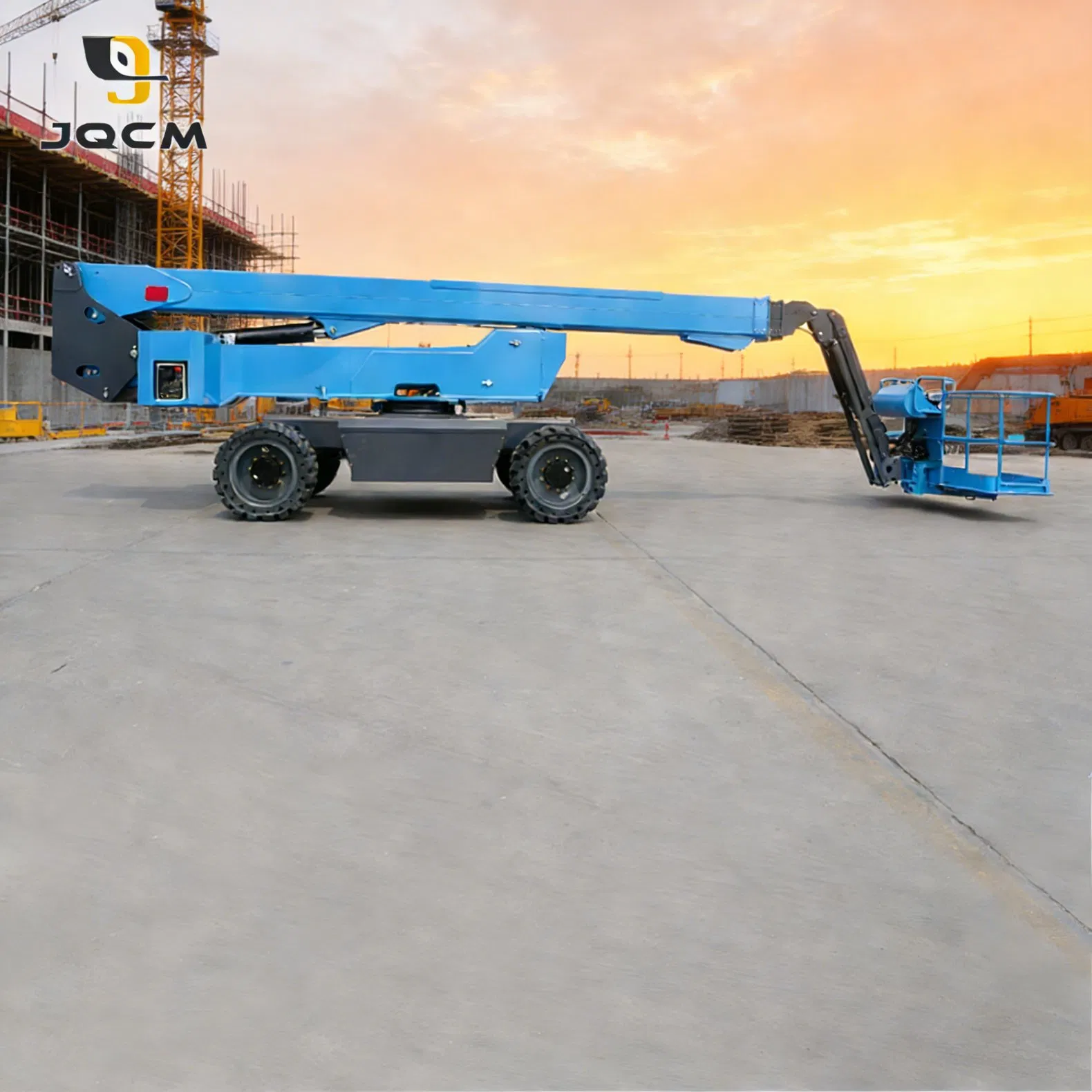

New Arrival 10m-28m Electric Articulated Lift Boom Arm Platform Man Aerial Working Telescopic Boom Lifts Self Propelled Boom Lift

1 / 5

New Arrival 10m-28m Electric Articulated Lift Boom Arm Platform Man Aerial Working Telescopic Boom Lifts Self Propelled Boom Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model:

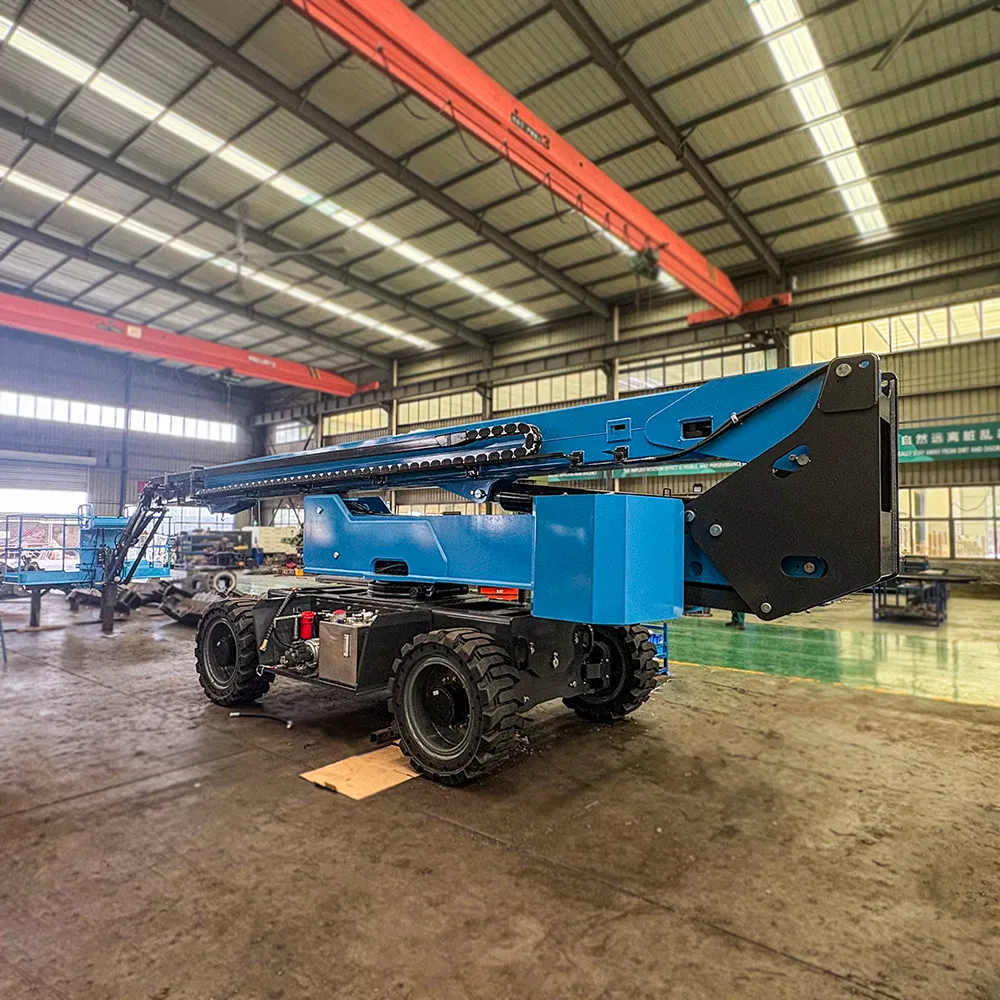

28M Self-Propelled Electric Boom Lift

Lift Mechanism:

Telescoping Lift

Driven Type:

Electric

Use Life:

12-18 Years

Carrying Capacity:

Middle-Level

Certification:

GS, CE, RoHS, ISO 9001, Saber/CCC

Running Mode:

Moving

Origin:

China

Product Overview

A leading producer of multifunctional cranes and aerial work vehicles. Adhering to "quality first, customer first", it aims to provide high-quality products and services globally.

Featuring annual sales of 4,000,000 USD, factory area of 50,000 square meters, and 350 production staff. We provide customized services, raw materials traceability, and rigorous quality control.

Technical Parameters

Product Name	Self-Propelled Electric Boom Lift	Maximum Working Height	28 m
Maximum Platform Height	26 m	Maximum Working Radius	20 m
Load Capacity	300 kg (unrestricted) / 460 kg (restricted)	Platform Dimensions	2400×900×1150 mm
Travel Speed (stowed)	0.6 km/h	Gradeability	30% - 45%
Battery	83.2 V / 460 Ah	Overall Length	11,000 mm
Platform Rotation	160°	Slewing Rotation	360°

Frequently Asked Questions

What is the maximum working height of this electric boom lift? The 28M Self-Propelled Electric Boom Lift offers a maximum working height of 28 meters and a maximum platform height of 26 meters.

What are the load capacity specifications? It features a dual load capacity: 300 kg for unrestricted movement and up to 460 kg for restricted working conditions.

What type of power source does this lift use? The equipment is powered by a high-capacity 83.2 V / 460 Ah battery system, making it suitable for clean, indoor, and emission-sensitive environments.

Is the equipment certified for international standards? Yes, the product holds multiple certifications including GS, CE, RoHS, ISO 9001, and Saber/CCC, ensuring global safety and quality compliance.

What is the expected service life of the machine? Under normal operating and maintenance conditions, the equipment is designed for a service life of approximately 12 to 18 years.

What is the maximum gradeability for transport? The lift can handle a maximum gradeability of 30% with the counterweight end downhill and up to 45% with the counterweight end uphill.
