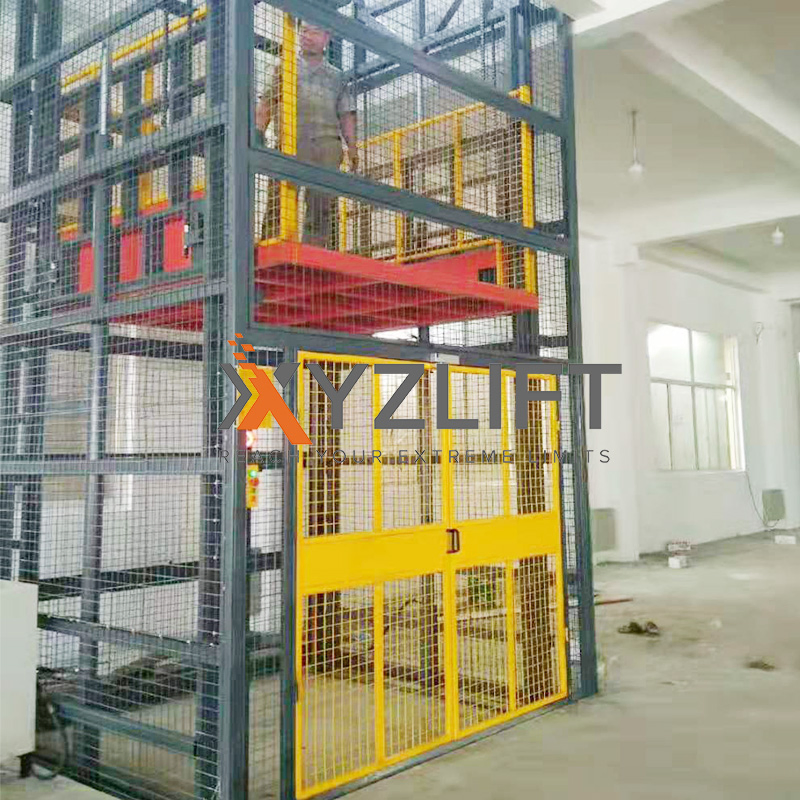

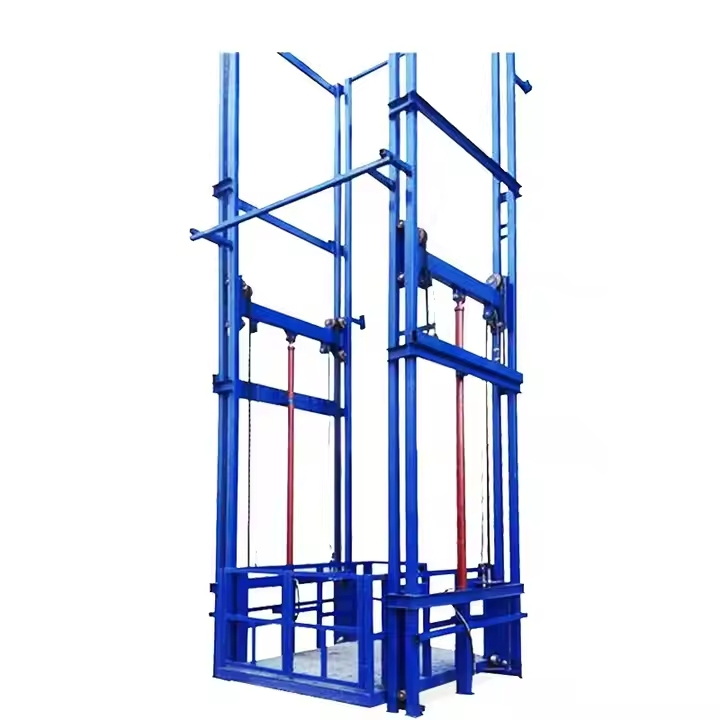

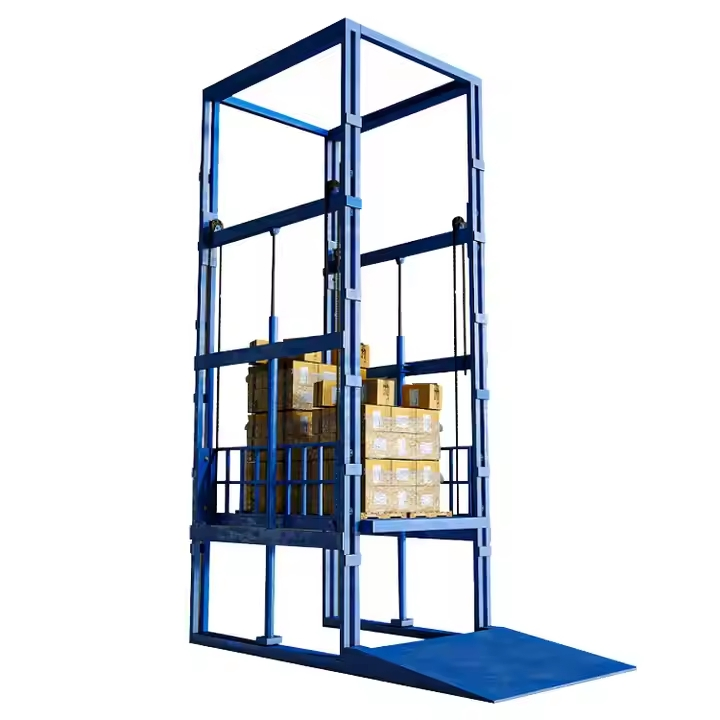

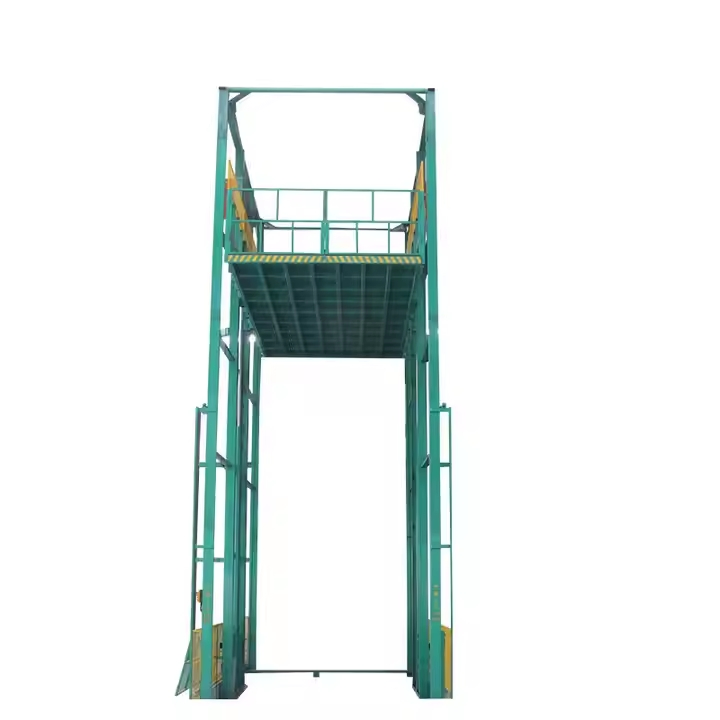

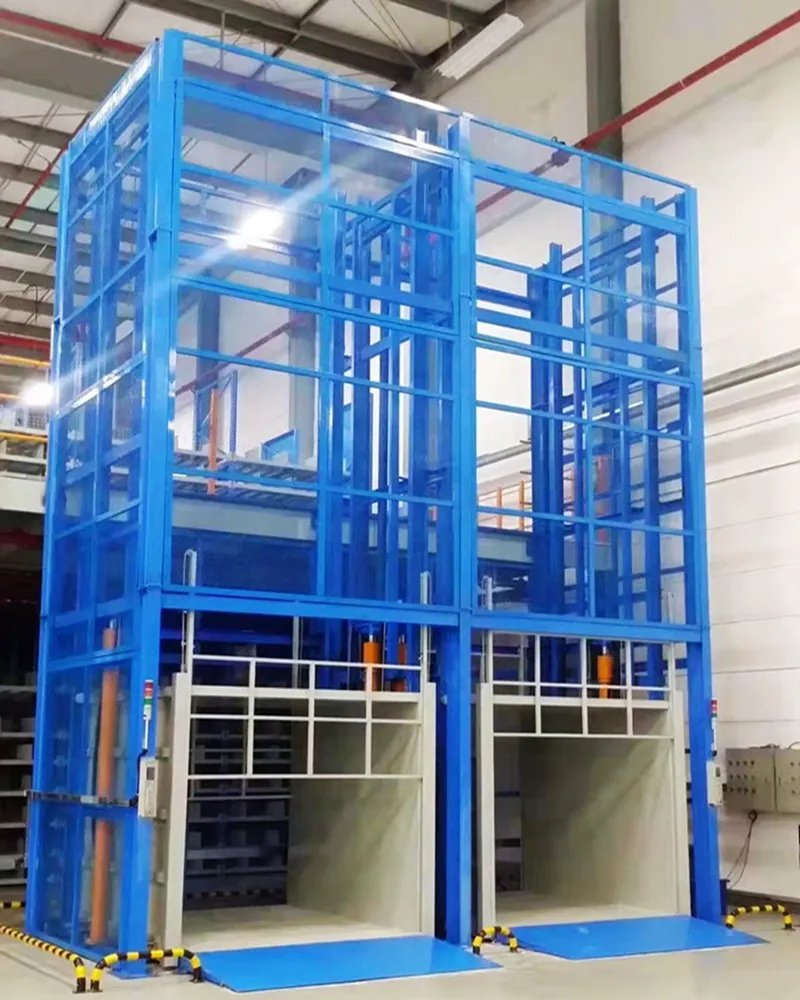

Xyzlift- 7m 3 Ton Hydraulic Industrial L Mezzanine Lift for Goods

1 / 5

Xyzlift- 7m 3 Ton Hydraulic Industrial L Mezzanine Lift for Goods

Customization:	Available
After-sales Service:	12 Month
Warranty:	12 Month

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.XYZGL

ApplicationWorkshop, Warehouse, Building

Lift MechanismLift Chain

Driven TypeHydraulic

CertificationGS, CE, RoHS, ISO 9001

Load CapacityCustomized per requirements

Lift Height3m - 18m

Running ModeStationary

🏗️

Product Description

A cargo lift, also known as a freight elevator or mezzanine lift, provides an efficient solution for transporting goods vertically between floors. These hydraulic lift solutions are customized to specific operational needs, offering versatile weight capacities and dimensions.

🚀 Weight capacity: 300kg to 50,000kg
🚀 Lifting height: Up to 18 meters
🚀 Platform size: Up to 10m x 10m
🚀 Lifting speed: 4 to 15 meters per minute

📊

Technical Parameters

Model	Load Capacity	Lifting Height	Platform Size
XYZGL1-2.7	1000KG	2700MM	1600*1600MM
XYZGL1-3	1000KG	3000MM	2000*1500MM
XYZGL2-3	2000KG	3000MM	2500*2500MM
XYZGL3-3	3000KG	3000MM	2800*3000MM
XYZGL5-7	5000KG	7000MM	4000*3500MM
Customized	Available	Per Request	Per Request

🛡️

Safety System

Compliance with EN81-31 and ISO9001 standards ensures reliable and safe operations.

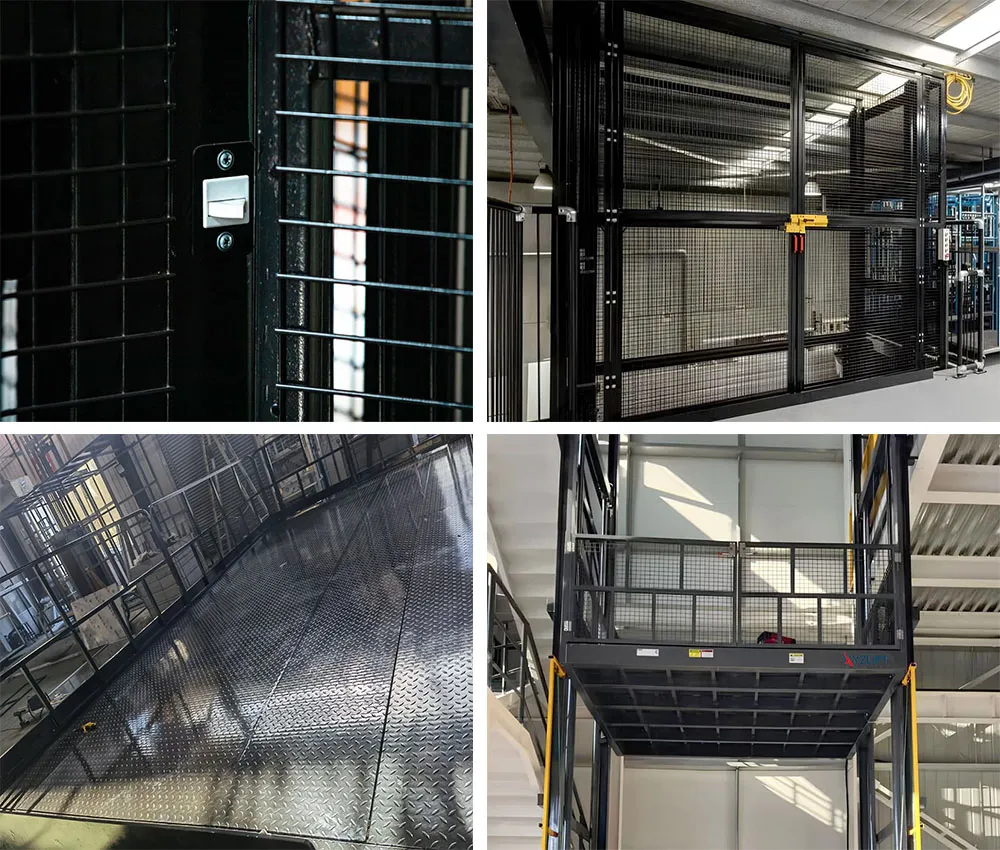

Platform & Door Safety

Guard Locks: Lift will not move if doors are open.
Interlocks: Mechanical and electric interlocks on landing doors.
Anti-skid Floor: Non-slip steel plate for cargo stability.
Guardrails: Standard 1.2m high rails (customizable up to 2.2m).

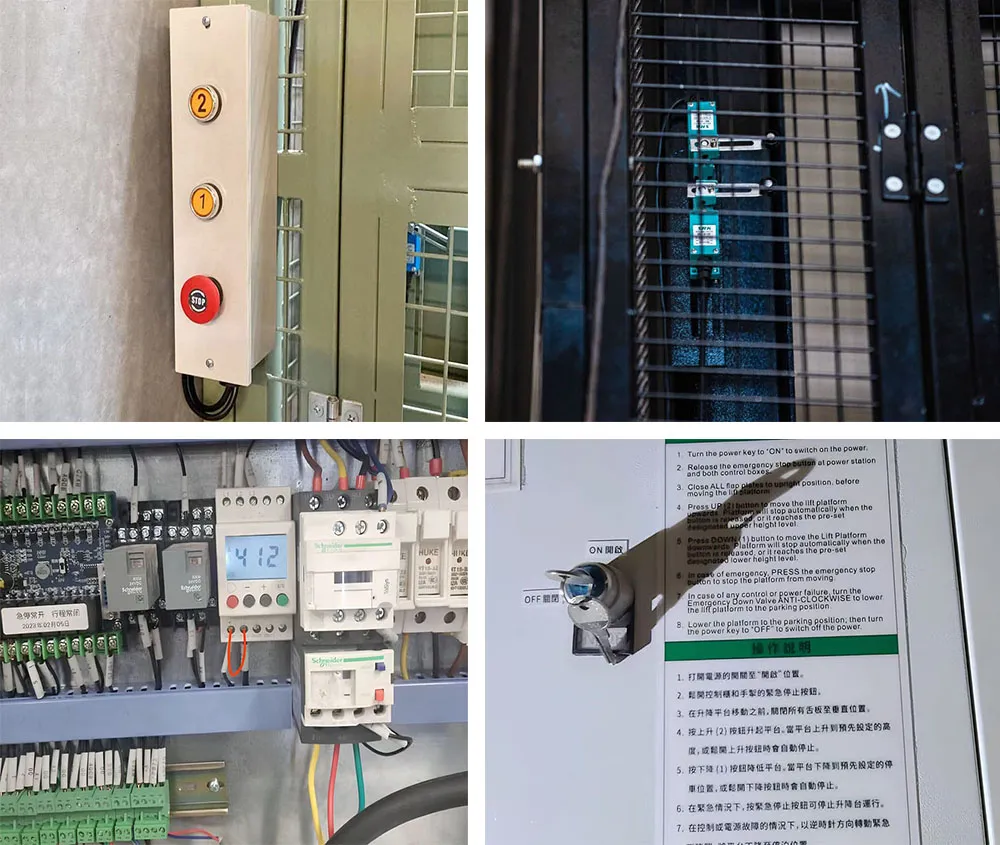

Control & Electrical Safety

Emergency Stop: Immediate shut-off button on each level.
Limit Switches: Dual protection against overtravel.
Voltage Protection: Built-in defense against spikes and sags.
Key Switch: Power control to prevent unauthorized use.

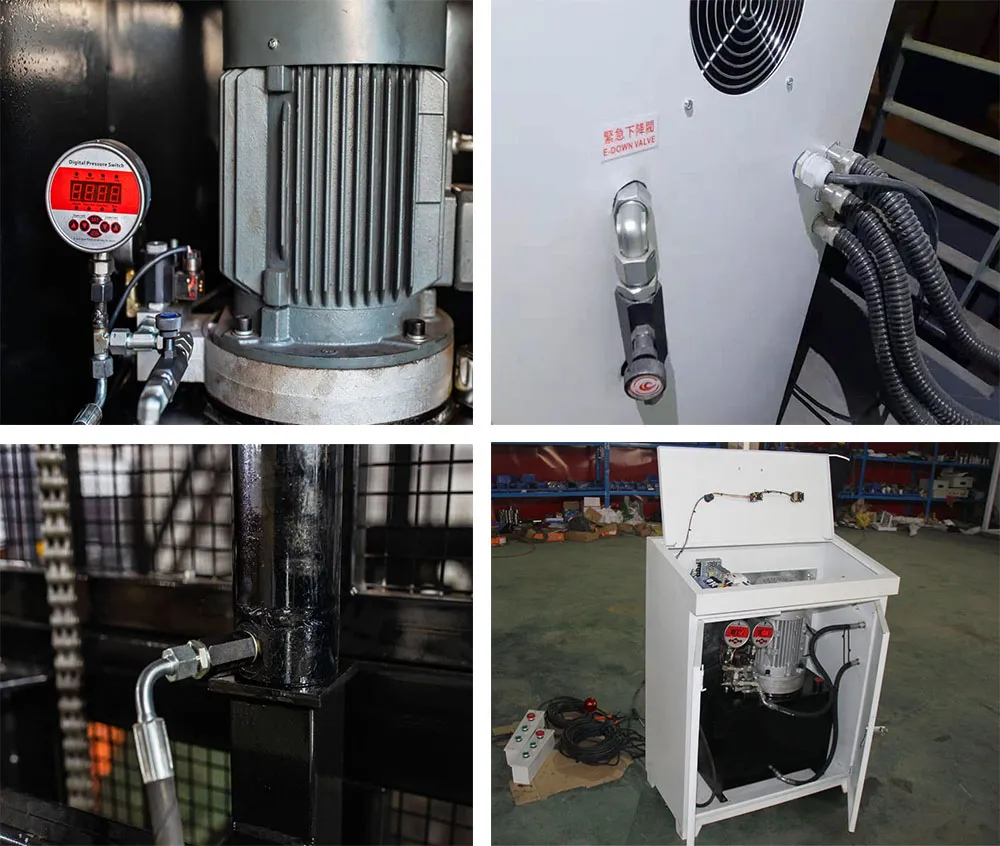

Hydraulic Safety

Overload Protection: Sensors prevent operation if weight limit exceeded.
Emergency Descent: Safety valve allows manual lowering during power failure.
Anti-explosion Valve: Prevents sudden drops in case of hose failure.
Pump Station Case: Protects system from rain and debris.

📸

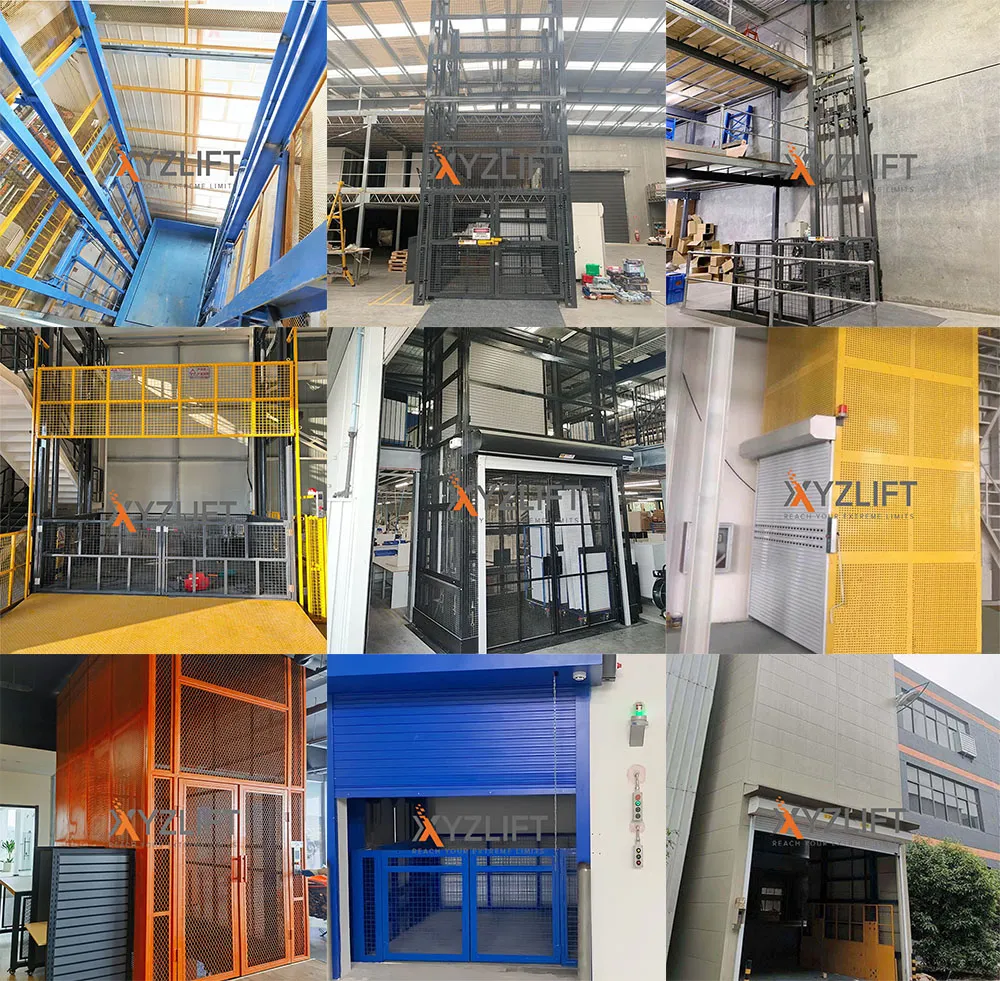

Installation & Project Showcase

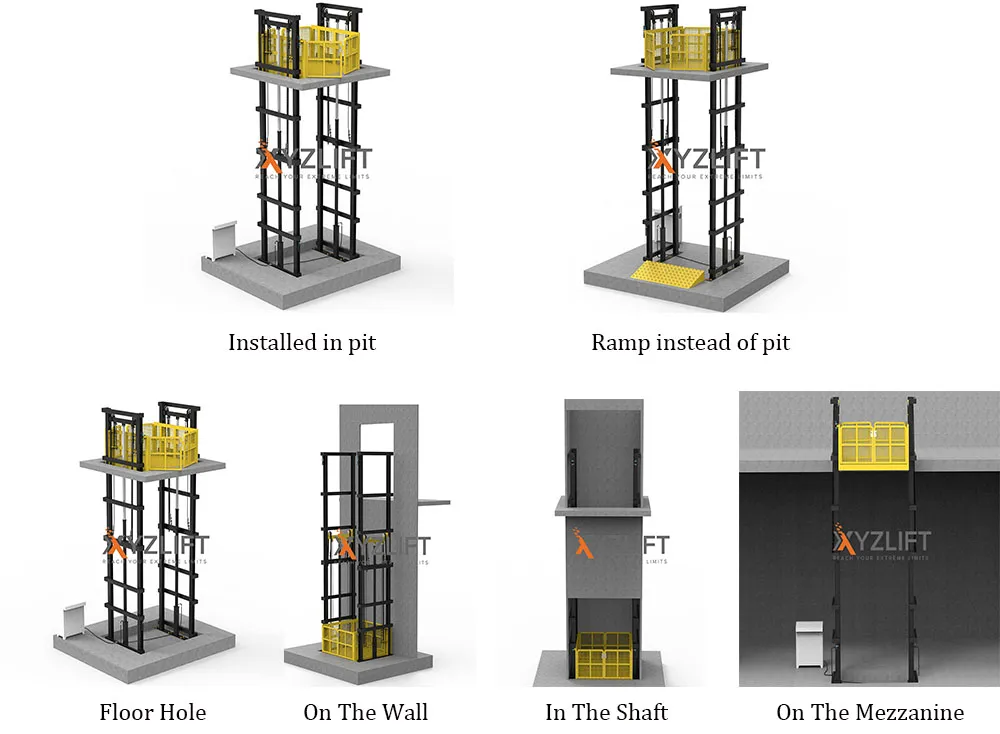

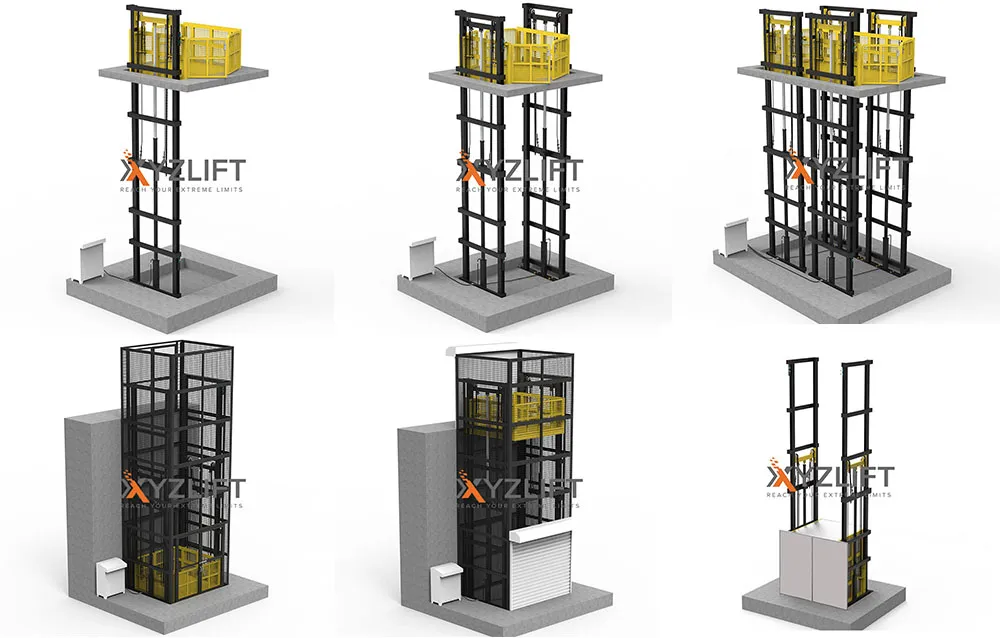

Versatile installation options including indoor, outdoor, through floors, or with/without a pit.

📦

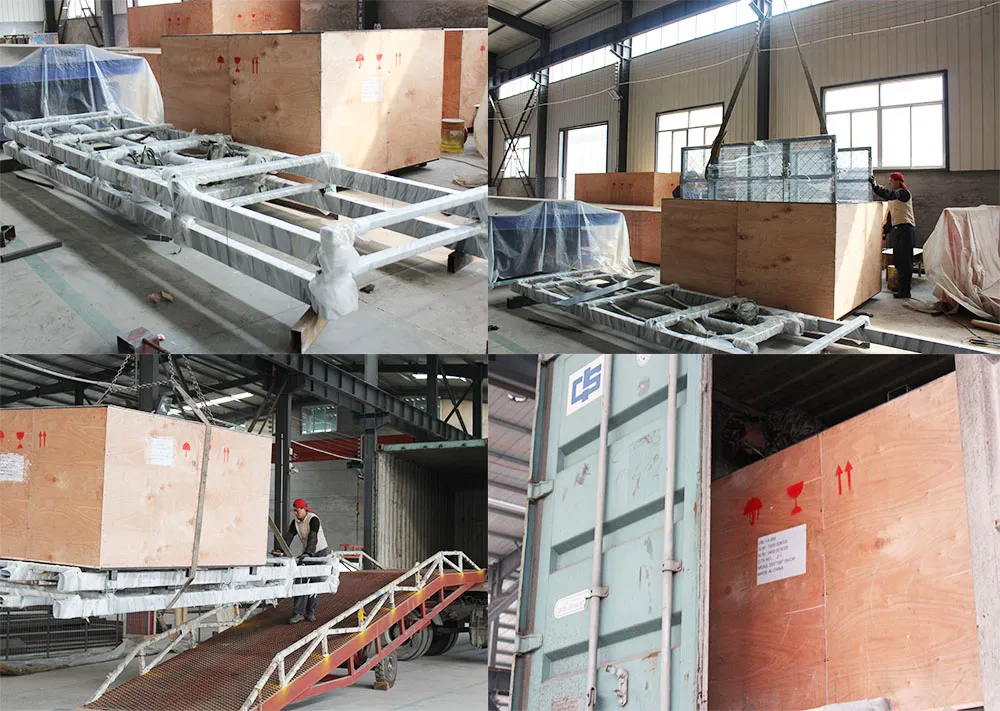

Packaging & Delivery

Package TypeWooden Crate

Gross WeightApprox. 1800kg

📝

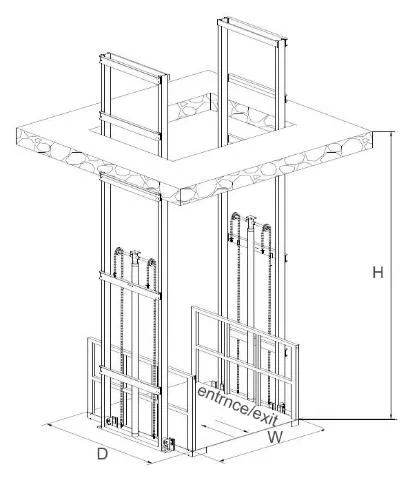

How to Get a Quote

Please provide the following details:

🔹 Load capacity: (e.g., 2000kg)
🔹 Platform size: Width * Depth
🔹 Lifting height: (H) and number of stops
🔹 Enclosure: Full mesh or open

❓

Frequently Asked Questions

1. What is the maximum weight capacity of the goods lift?

Our lifts are highly customizable and can handle capacities ranging from 300kg up to 50,000kg to suit industrial needs.

2. Can the platform size be tailored to my specific space?

Yes, we design platform sizes based on your installation area, with dimensions reaching up to 10m x 10m if required.

3. What safety standards do these lifts follow?

All our goods lifts comply with EN81-31 standards and ISO9001 quality management systems, ensuring high safety and reliability.

4. Does the lift work during a power outage?

The system includes an emergency descent valve, allowing the platform to be lowered safely to the nearest floor manually if power is lost.

5. How difficult is the installation process?

The installation is straightforward. We provide a comprehensive installation manual, and the units are designed for easy setup in pits or directly on the ground with a ramp.

6. Is it possible to install the lift outdoors?

Yes, our lifts are suitable for outdoor installation. We provide a protective case for the pump station to shield it from weather conditions.
