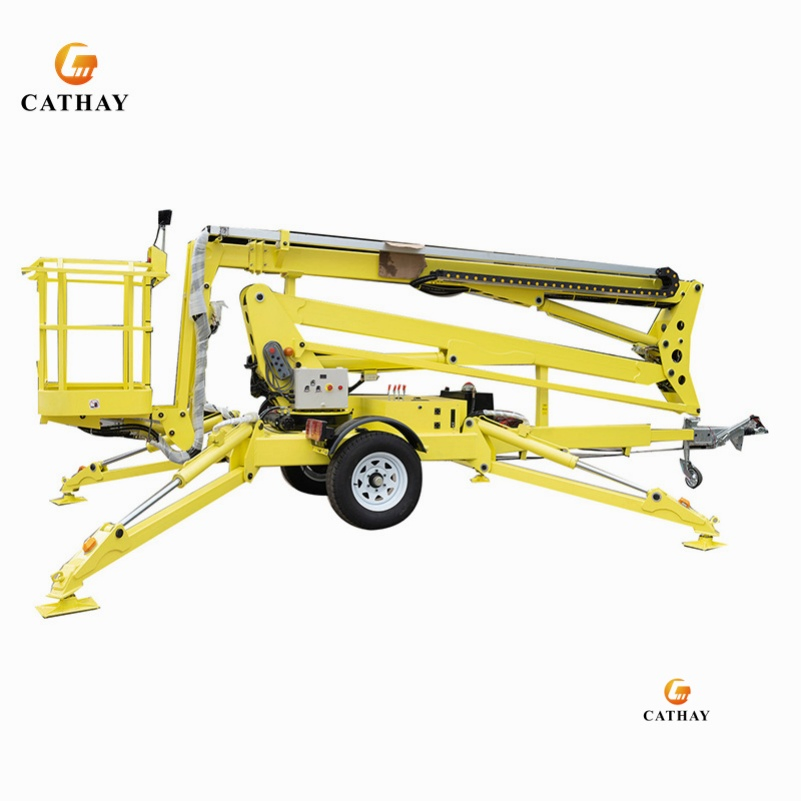

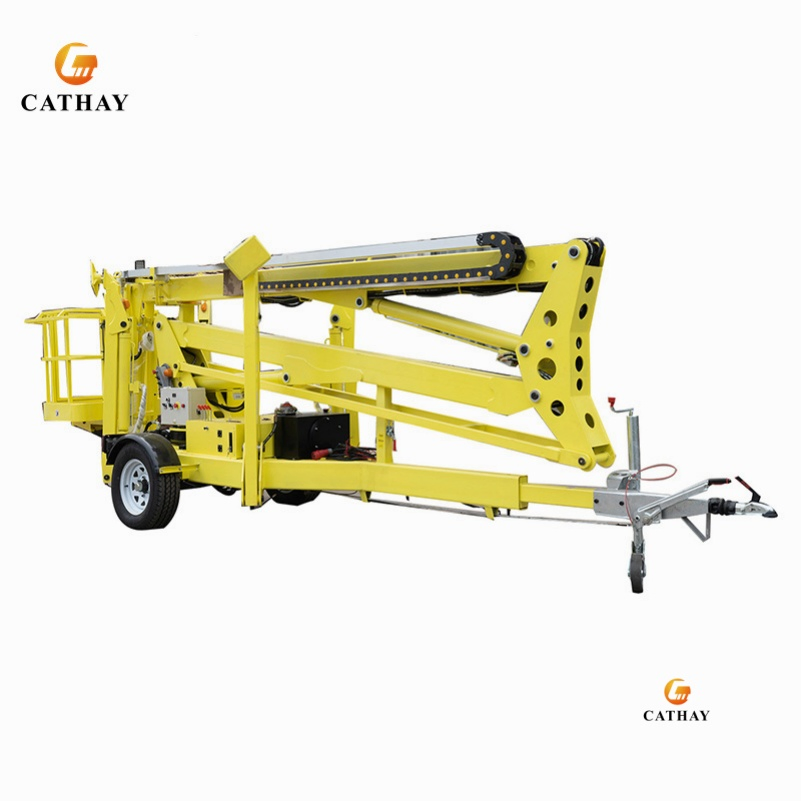

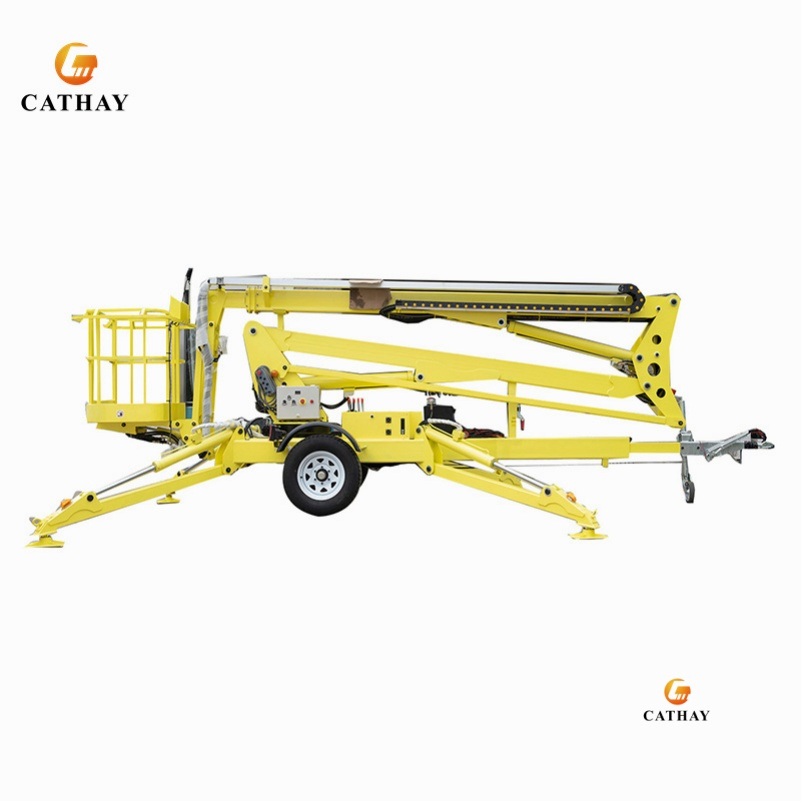

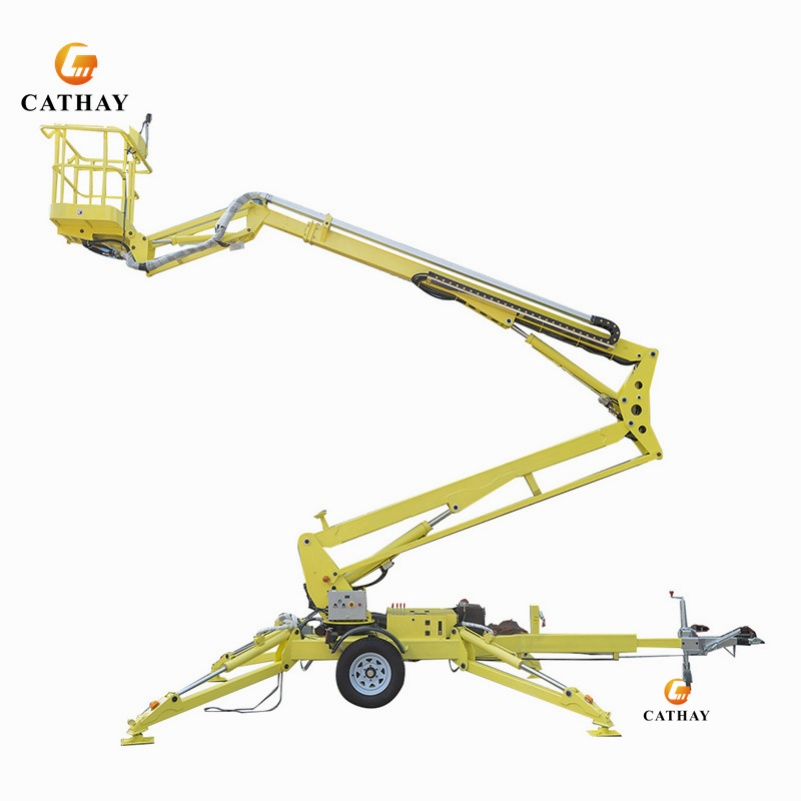

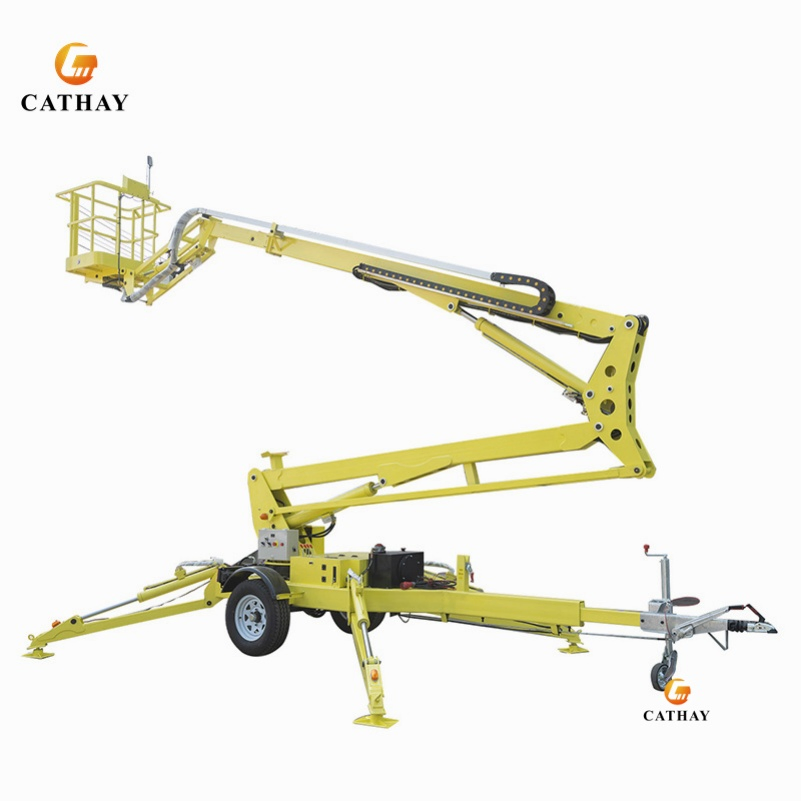

Towable Boom Lift Trailer Mounted Boom Lift with High Reach Articulating Arm

📋 Basic Information

Model NO.

CTA-20T

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Articulated Lift

Carrying Capacity

227kg

Moves

Vehicular

Driven Type

AC

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Working Height

12m-24m

Working Radius

5.5-11m

Power Optional

AC/DC/Gasoline/Diesel/Hybrid

🏗️ Product Description

Diesel Power Rotation Basket 359 Degree Trailer Towable Boom Lift

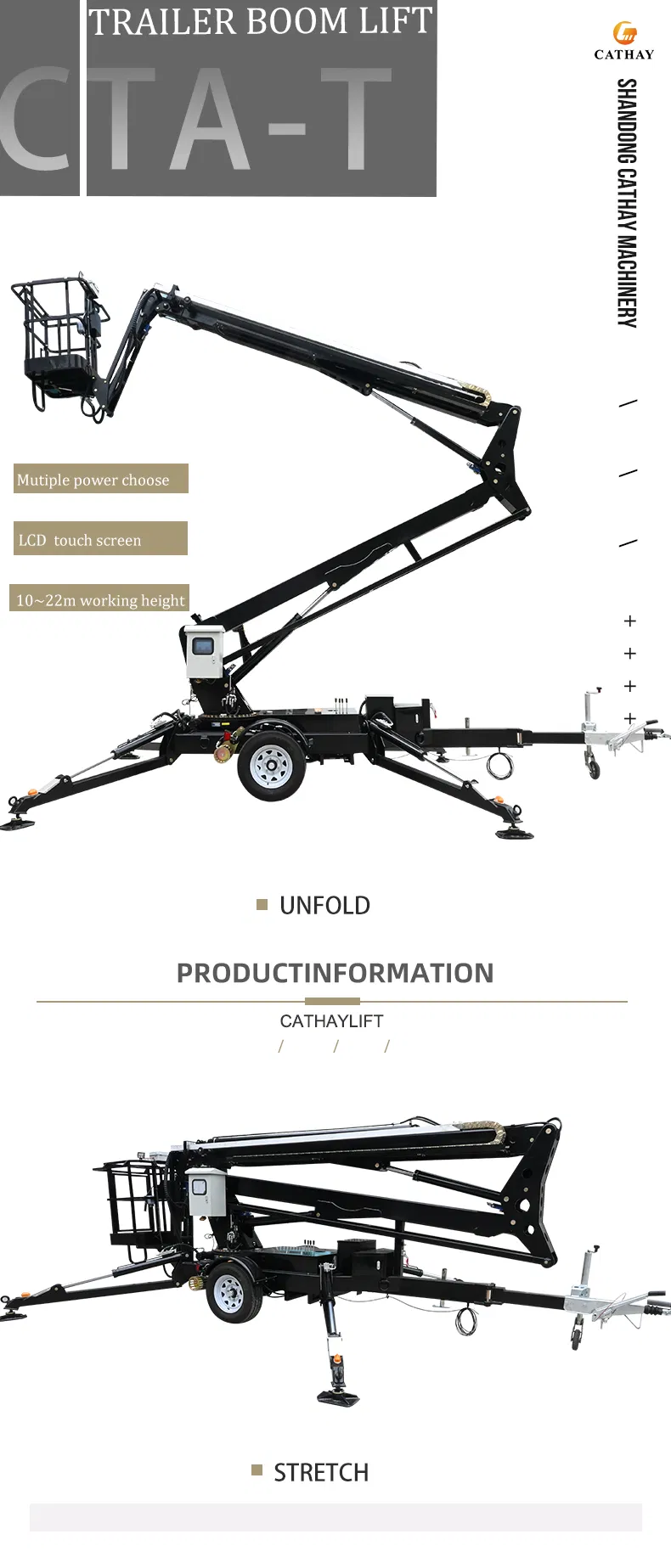

The trailer boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m, and the models with higher lift heights are all telescopic versions. The horizontal working radius of 5.5m~11m, and its 360-degree rotating table, make it have outstanding performance in various aerial work projects.

📊 Product Parameters

Model Type	CTA-12A	CTA-14A	CTA-14T	CTA-16T	CTA-18T	CTA-20T	CTA-22T	CTA-24T
Version	Articulated	Articulated	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic
Lifting Height	10M	12M	12M	14M	16M	18M	20M	22M
Working Height	12M	14M	14M	16M	18M	20M	22M	24M
Load Capacity	227Kg
Working Radius	5.5M	6.5M	7.8M	8.5M	10.5M	11M	11M	11M
Net Weight	1750KG	1950KG	1850KG	2150KG	2350KG	3000KG	3500KG	5000KG

Customization Available: Tailored products to suit specific requirements, such as large slope work, one-key leg leveling, insulated baskets, and remote control.

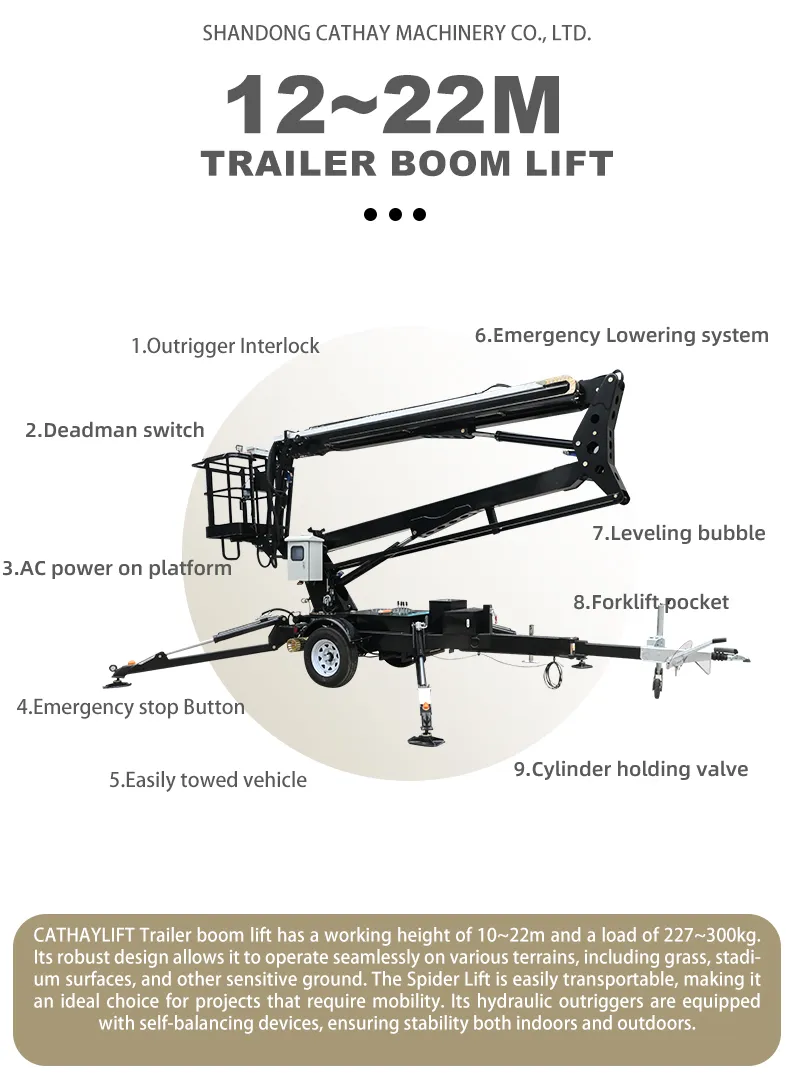

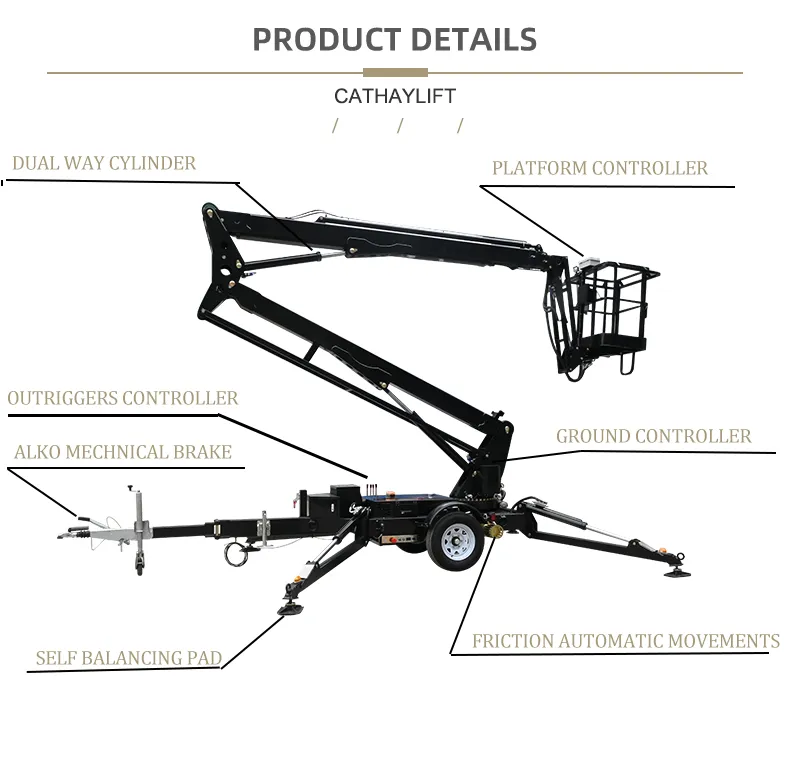

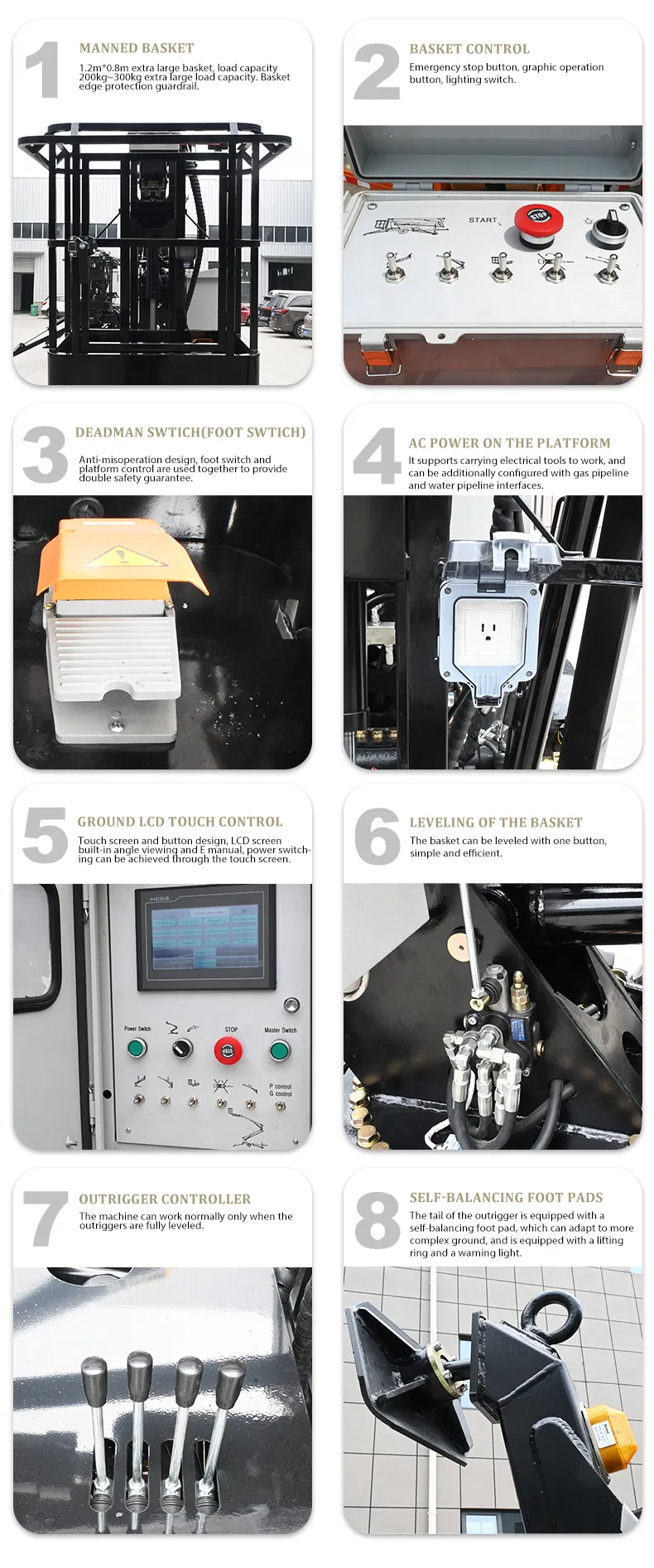

🌟 Product Advantages

✔ Compact & portable, can be towed by various vehicles - No commercial driver's license needed.
✔ Hydraulic outriggers with an automatic leveling device.
✔ 360˚ continuous turntable rotation for maximum reach.
✔ Friction wheel walking device with remote control for easy maneuvering in tight spaces.
✔ Waterproof control panel with LCD touch screen and E-manual access.
✔ German AL-KO Retractor with electromagnetic and manual brakes.

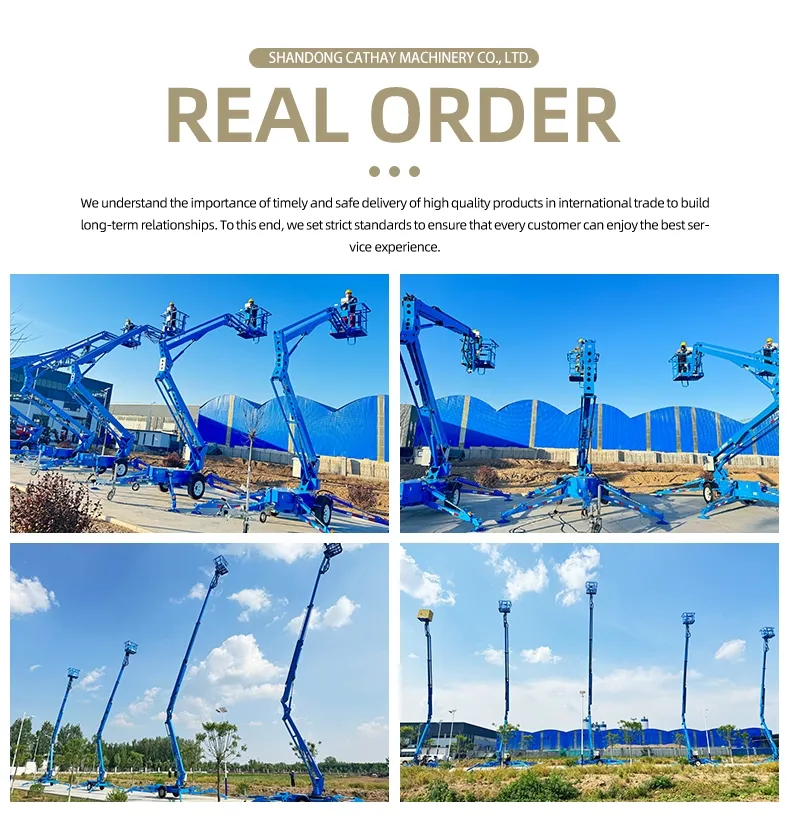

🛠️ Application & Real Orders

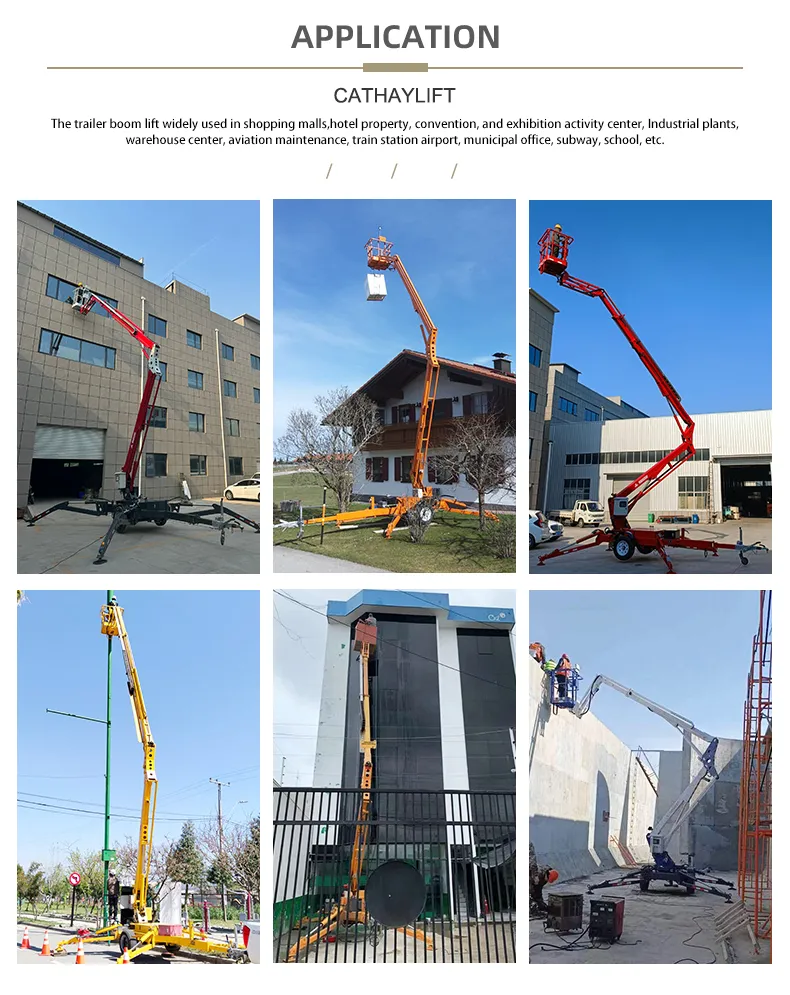

Boom lifts are versatile machines used across various industries. In construction, they support steel structure installation and high-rise access. For maintenance, they provide safe access to roofs and HVAC systems. In agriculture, they assist with harvesting and pruning. Utility workers rely on them for electrical line maintenance and pole inspections.

🏆 Certifications & Teams

Related Products

❓ Frequently Asked Questions

What is the maximum working height of the towable boom lift?

The working height ranges from 12 meters to 24 meters depending on the specific model selected.

Do I need a special license to tow this equipment?

No, the compact and portable design allows it to be towed by various vehicles without the need for a commercial driver's license.

What power options are available for the boom lift?

We offer multiple power configurations including AC electric, DC battery, Diesel, Gasoline, and Dual Power (Hybrid) options.

Can the platform rotate completely?

Yes, the machine features a 360-degree continuous turntable rotation for excellent accessibility.

What is the maximum towing speed?

Equipped with a German AL-KO retractor, the maximum towing speed is 120km/h.

Is the control system waterproof?

Yes, the unit is equipped with a waterproof LCD touch screen control panel suitable for outdoor environments.

Product Detail

Towable Boom Lift Trailer Mounted Boom Lift with High Reach Articulating Arm

Product Description

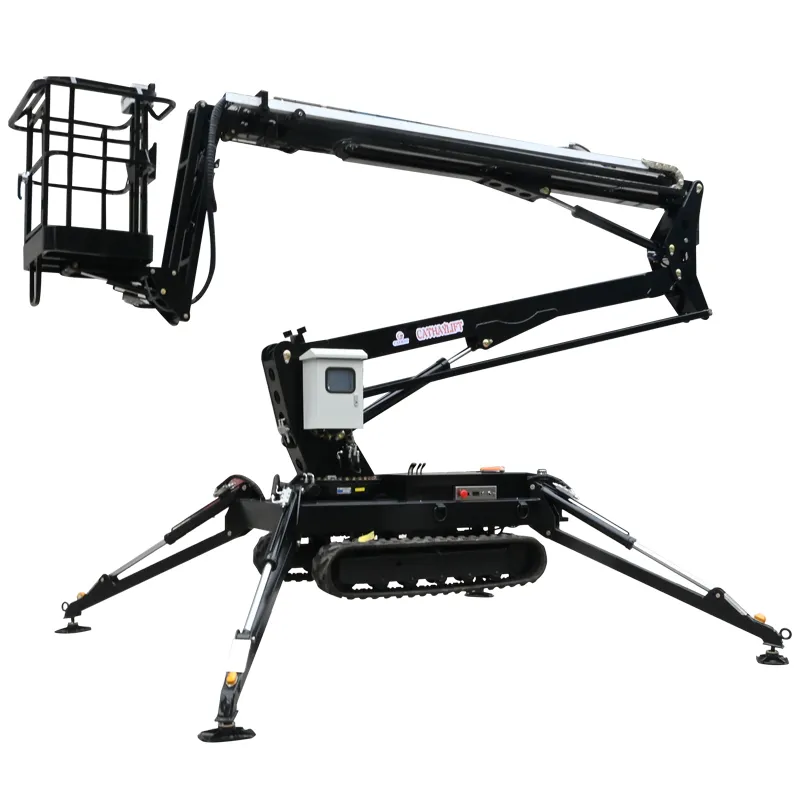

Related Products
