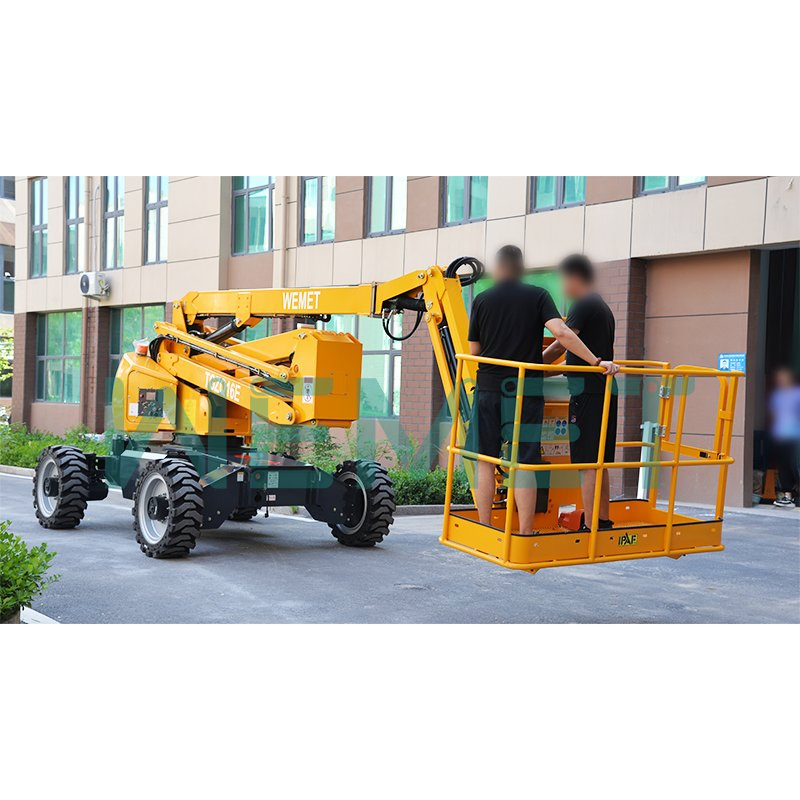

Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
1 / 5
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift
Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift

Telescopic Boom Lift Self-Propelled Articulating Hydraulic Boom Lift

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
boom lift
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Trademark
RACERMAX
Origin
China
Production Capacity
500 Units
Technical Parameters
Model Rising Height Horizontal Span Loading Capacity Table Size External Dimensions (mm) Net Weight
SDZ-8 8m 4.5m 200kg 1200*800mm 5460*1650*1900 1700kg
SDZ-10 10m 5m 200kg 1200*800mm 5200*1600*1900 1500kg
SDZ-12 12m 6m 200kg 1200*800mm 6400*1665*1900 2000kg
SDZ-14 14m 8.5m 200kg 1200*800mm 6500*1730*2100 2350kg
SDZ-16 16m 9m 200kg 1200*800mm 7000*730*2200 2600kg
Safety & Control Features
1
Anti-collision Safety Guardrail Protects user's hands from collisions. Features metallic paint with anti-ultraviolet radiation and corrosion resistance.
2
Independent Outriggers High-strength steel base with independently operated hydraulic outriggers for adjustable stability.
3
Regulating Wheel Adjusts machine height for optimal movement and ensures level working conditions.
4
Inertial Sensor Automatically brakes the towable boom lift during sudden stops of the towing vehicle.
5
Dual Controllers Equipped with controllers at both the top platform and the chassis for easy operation.
6
Boom Lock Prevents boom sway during transportation to avoid structural damage.
7
Warning Systems Acoustic and visual warning lights alert surrounding personnel during operation.
Key Advantages
  • Flexible Power Sources: General Diesel engine, AC Electric power, or Storage battery (silent operation).
  • High Stability: Four full-automatic hydraulic legs ensure steady performance.
  • Full Rotation: 360° boom rotation allows working across various barriers.
  • Ease of Transport: Can be towed easily by car to any job site.
Product Display

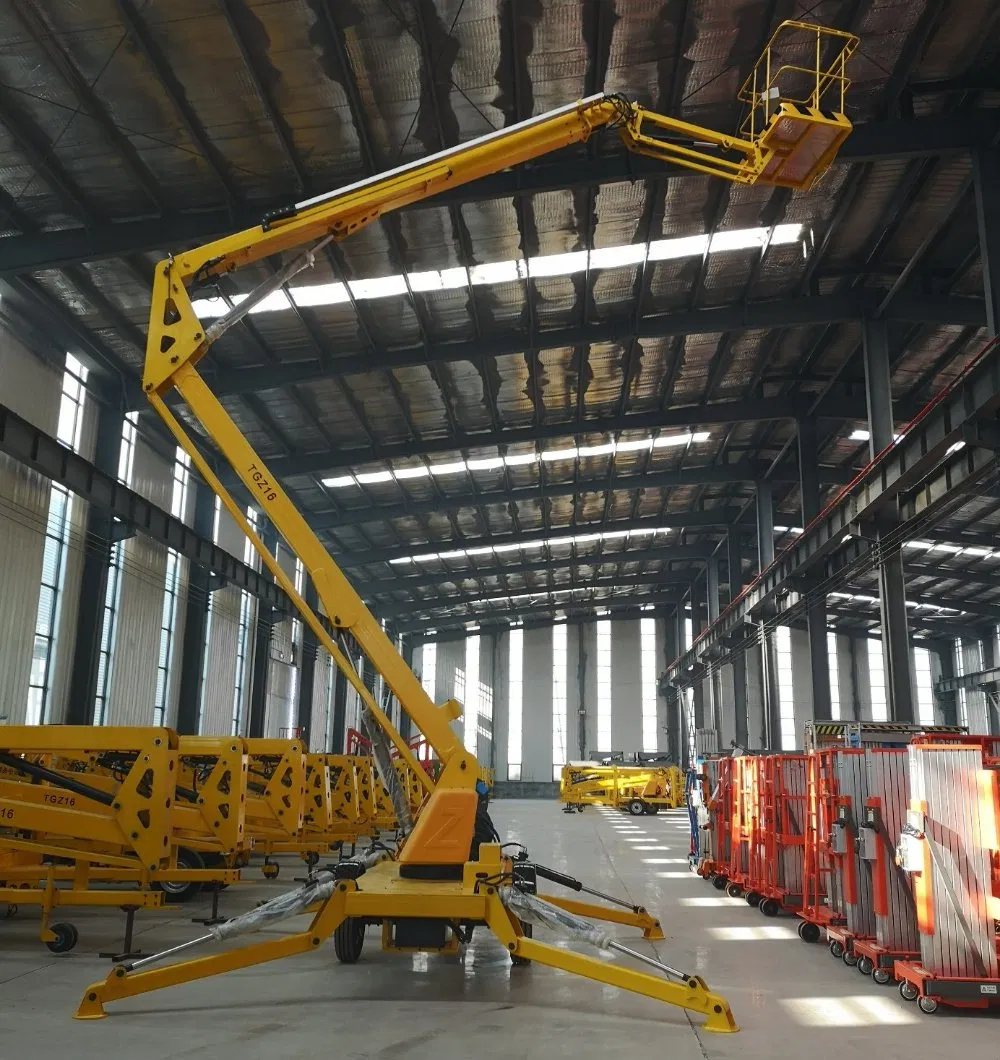

Telescopic Boom Lift
Details Show

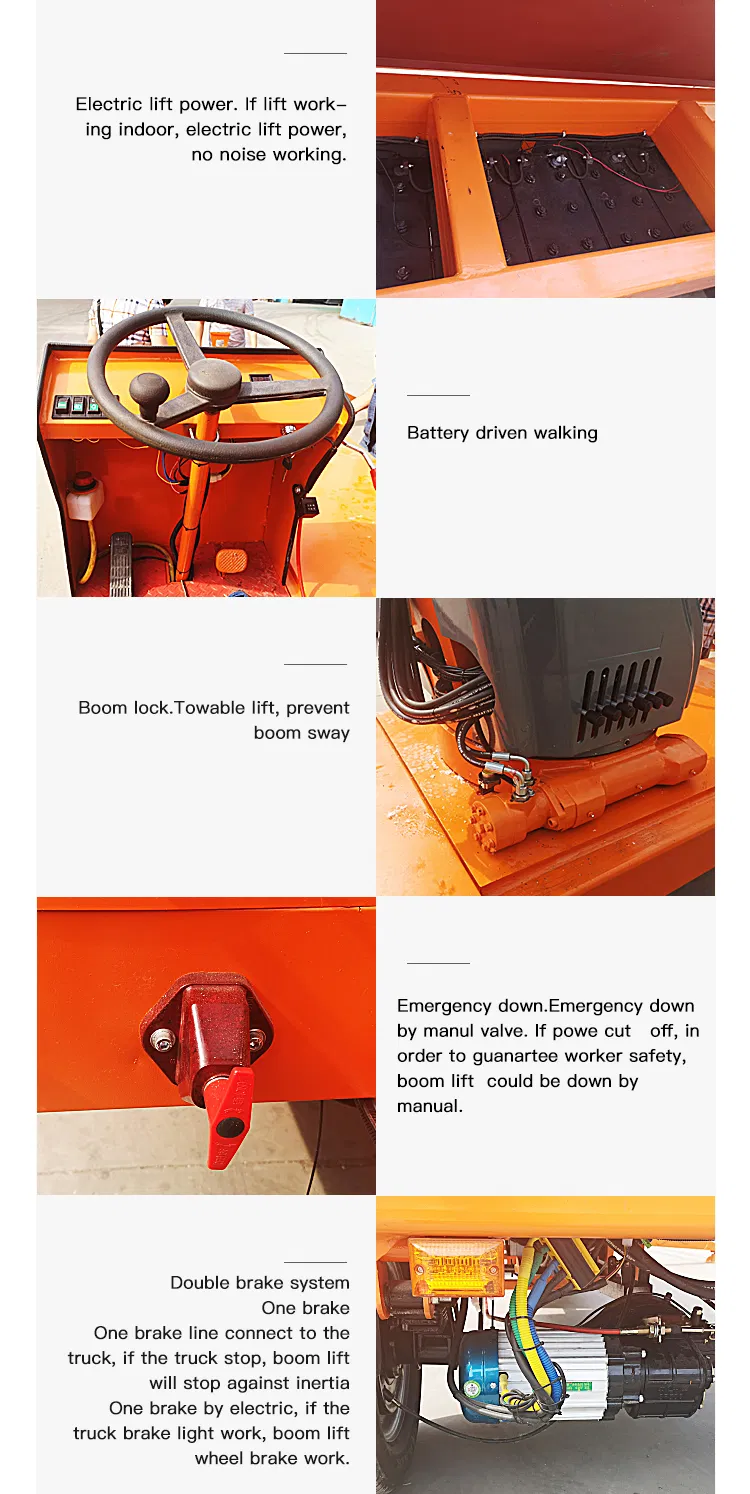

Lift Details
Applications

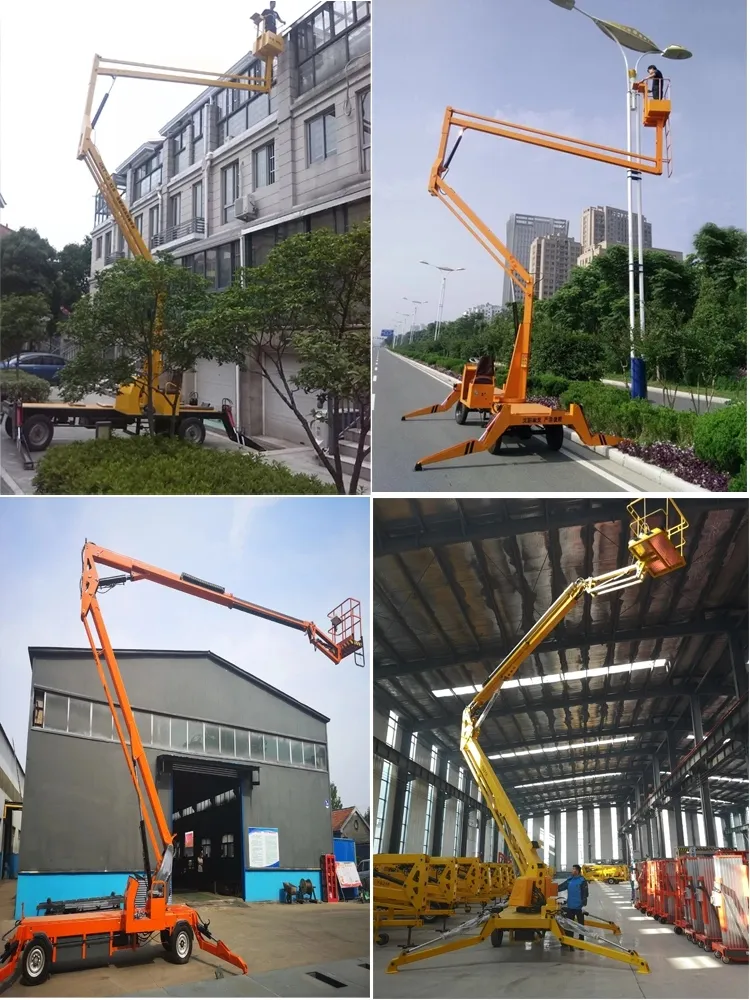

Widely used for street light maintenance, shopping malls, and road works.

Application Scene 1
Application Scene 2
Frequently Asked Questions
What is the maximum lifting height available?
We offer multiple models with rising heights ranging from 8 meters up to 16 meters.
What kind of power source can I use?
The boom lift supports three power sources: General Diesel engine, AC Electric power, and Storage battery for noise-free operation.
What is the load capacity of the platform?
The standard loading capacity for these articulating boom lifts is 200kg.
Can the boom rotate completely?
Yes, the boom supports 360° rotation, allowing it to reach over obstacles and barriers easily.
Is the equipment stable on different terrains?
Yes, it is equipped with four full-automatic hydraulic outriggers that provide excellent stability and can be adjusted based on the site conditions.
How is the lift transported to the job site?
The boom lift is designed to be towable and can be easily moved to different locations behind a car or van.
