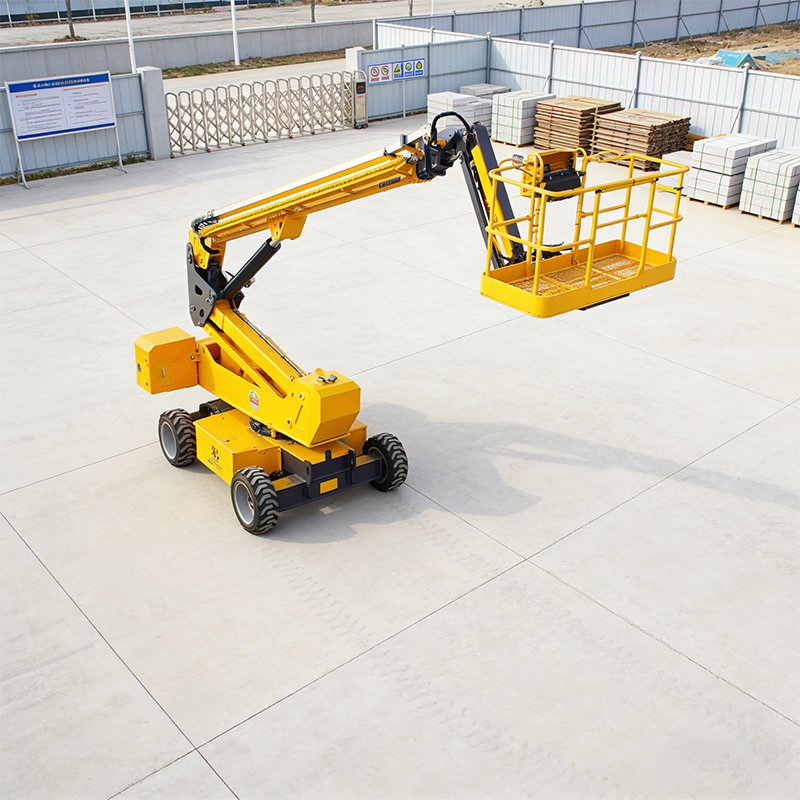

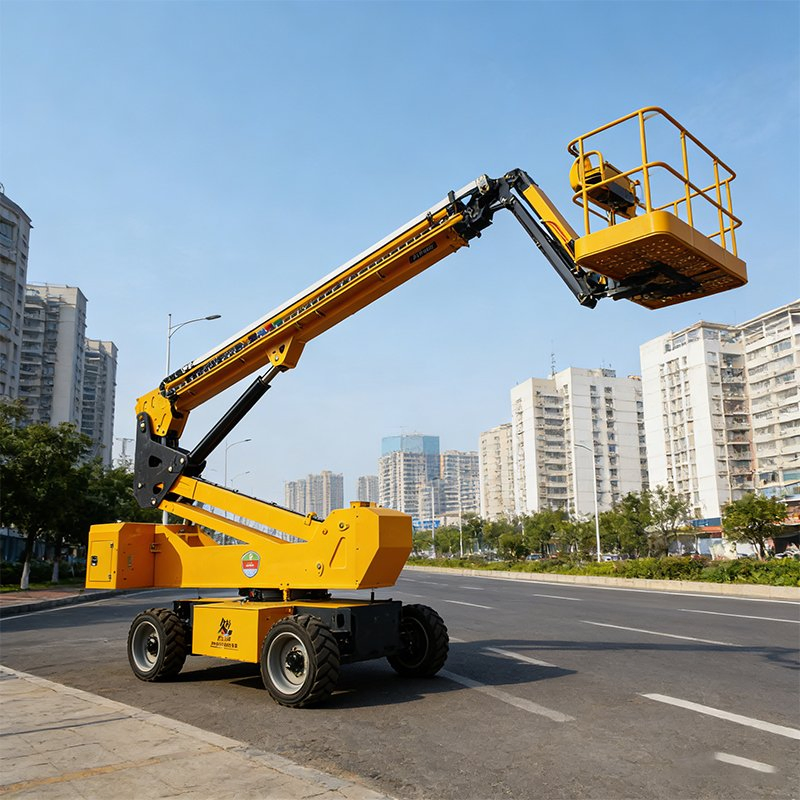

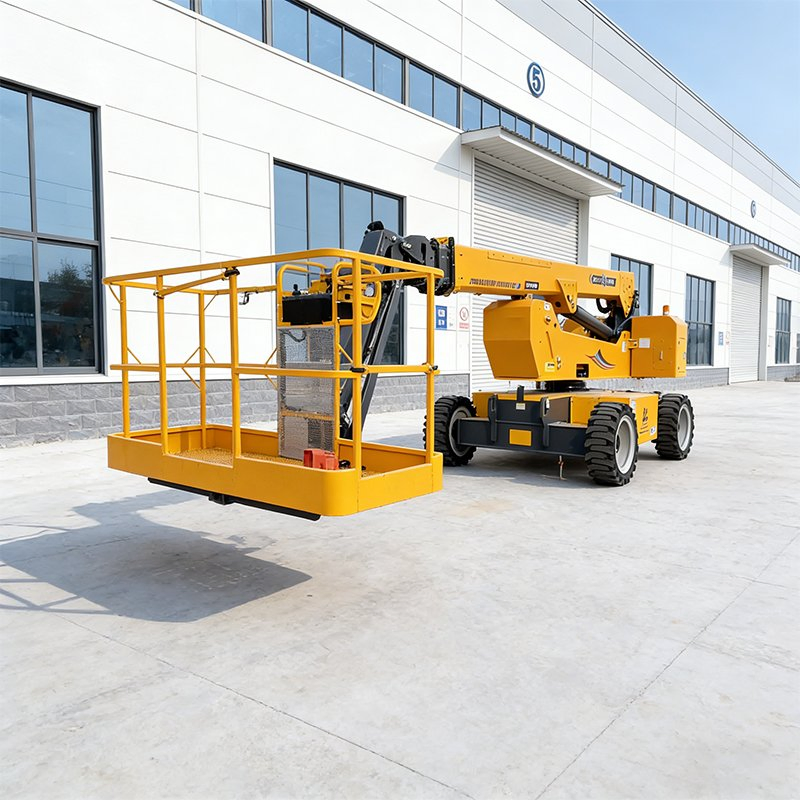

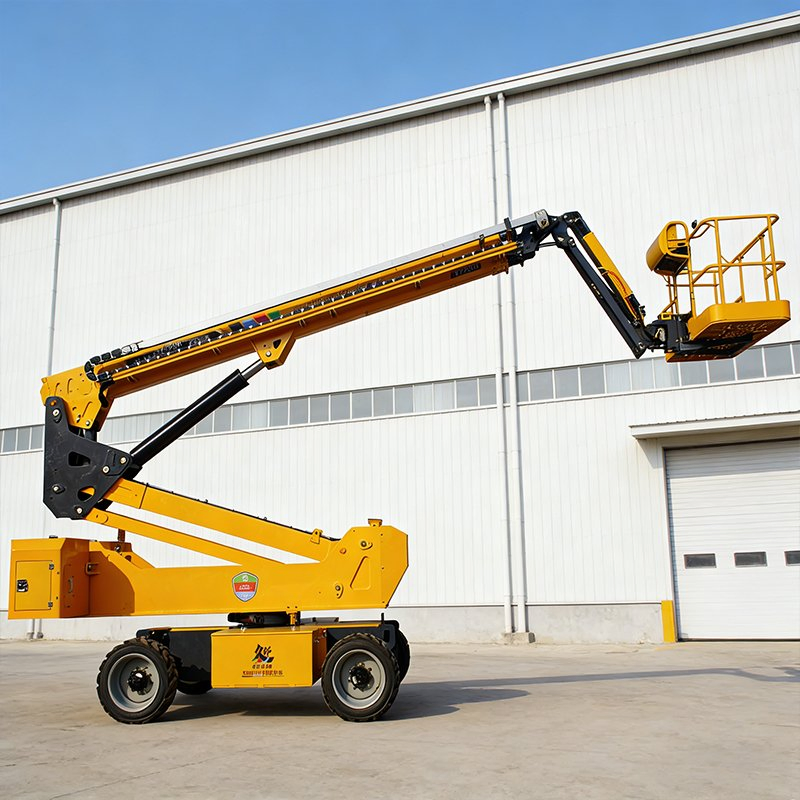

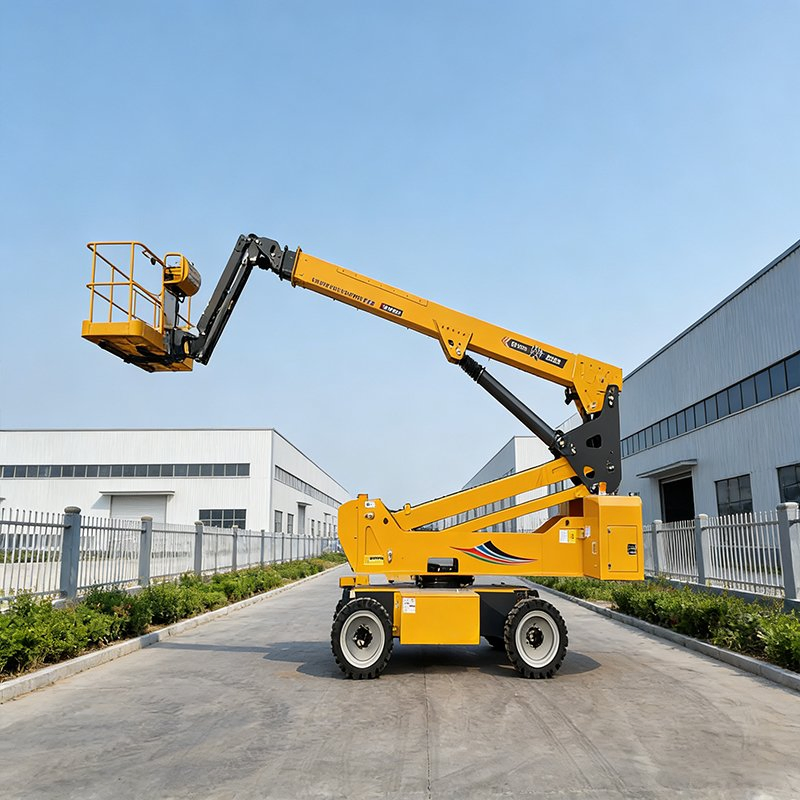

Rough Terrain Self-Propelled Boom Lift - 20m Working Height

Customization: Available
After-sales Service: Provided
Warranty: 1year

Product Description

📊

Basic Information

Model NO.
20m
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Articulated Lift
Carrying Capacity
250kg
Moves
Self-propelled
Driven Type
Hydraulic
Certification
ISO 9001
Max. Working Height
23m
Max. Gradeability
45°
Weight
10500kg
Rotation Angle
360° Continuous
HS Code
84289090
🏗️

Product Description

Self-Propelled Boom Lift Overview

The self-propelled aerial work platform has the ability to move independently. It can flexibly adjust the working position without external traction, significantly enhancing the flexibility, efficiency and safety of high-altitude operations.

Boom Lift Details
📋

Technical Specifications

Item Value
Core ComponentsEngine, Motor
Warranty1 Year
Unique Selling PointHigh operating efficiency
Weight (KG)10500kg
Rated Loading Capacity460KG
Max Lifting Height23M
Dimensions (L*W*H)9470*2450*2770mm
🌟

Key Advantages

The self-propelled aerial work vehicle is equipped with an independent driving system, which enables it to directly drive the equipment forward, backward, and turn during the operation process. Some small models have compact bodies and small turning radii, allowing them to navigate narrow alleys and workshops easily.

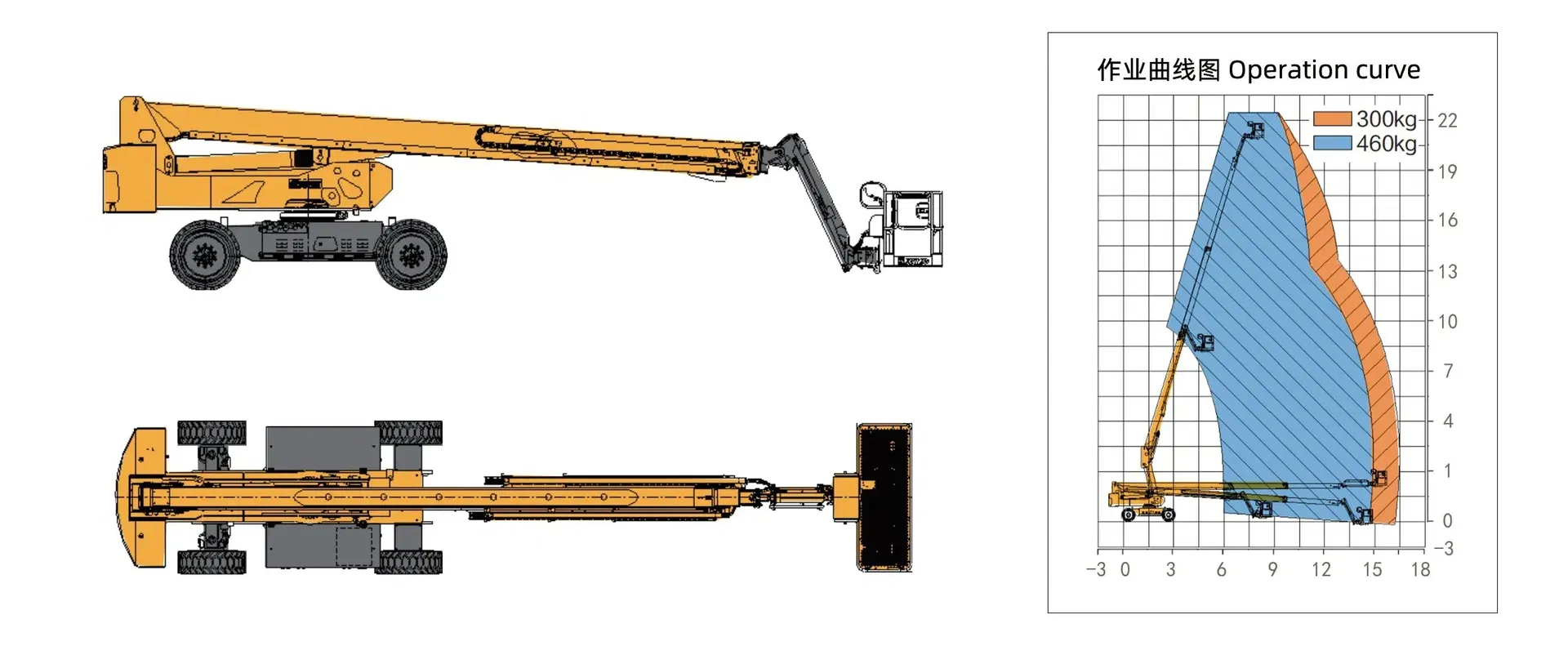

Operating View

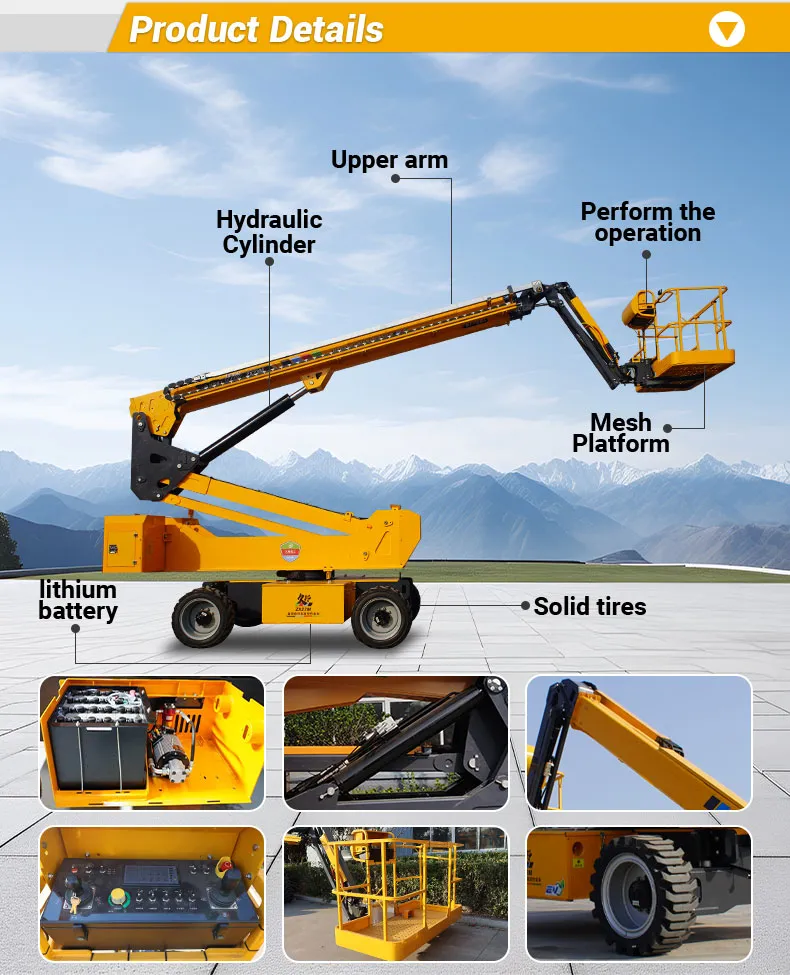

Machine Structure
  • Steering in place: Equipped with four-wheel drive and swing axles for 360-degree turns.
  • Moving while lifted: Operators can control movement while the platform is raised for "sweeping" operations.
  • All-terrain adaptation: Suitable for indoor marble floors and outdoor muddy construction sites.

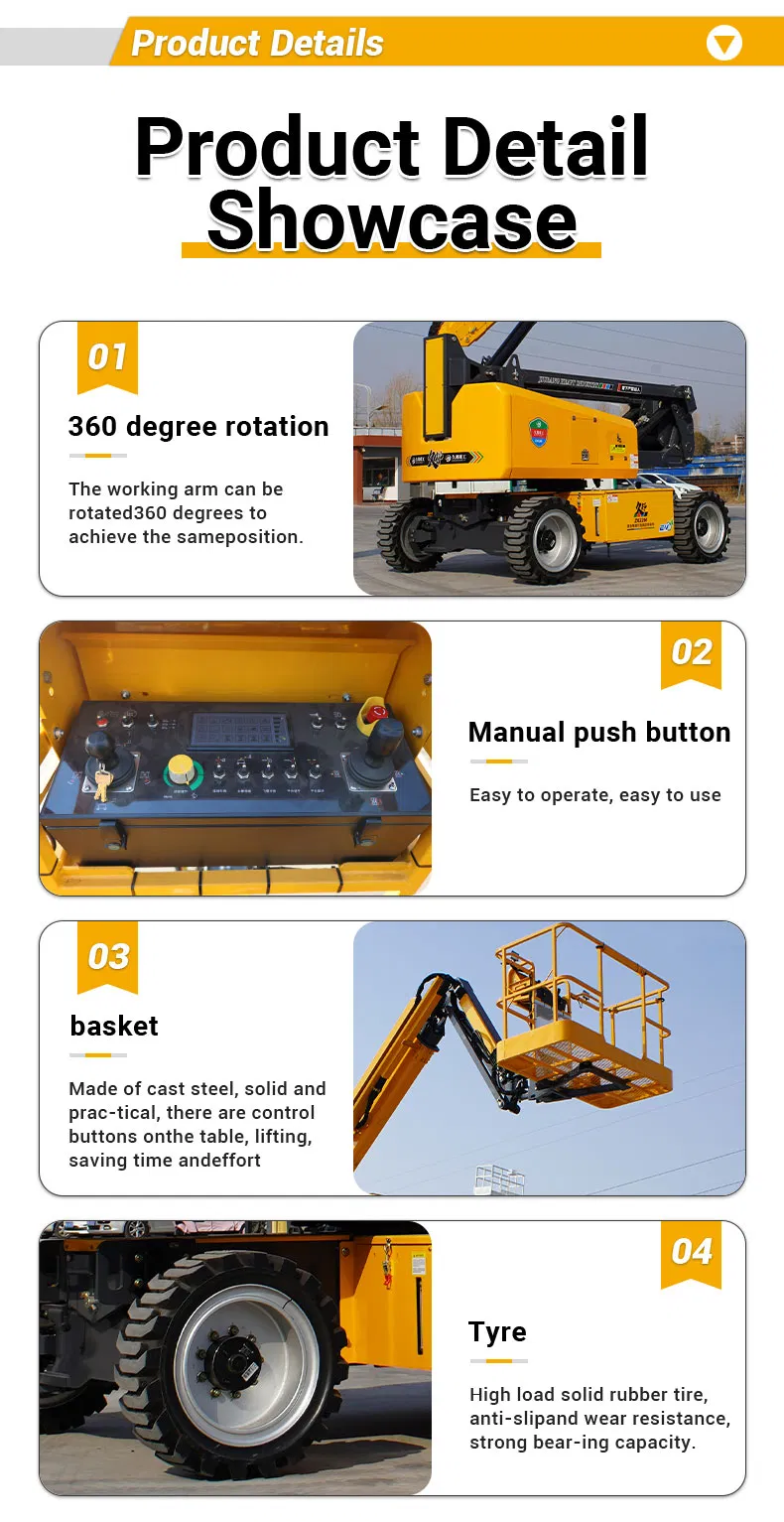

Off-road capability

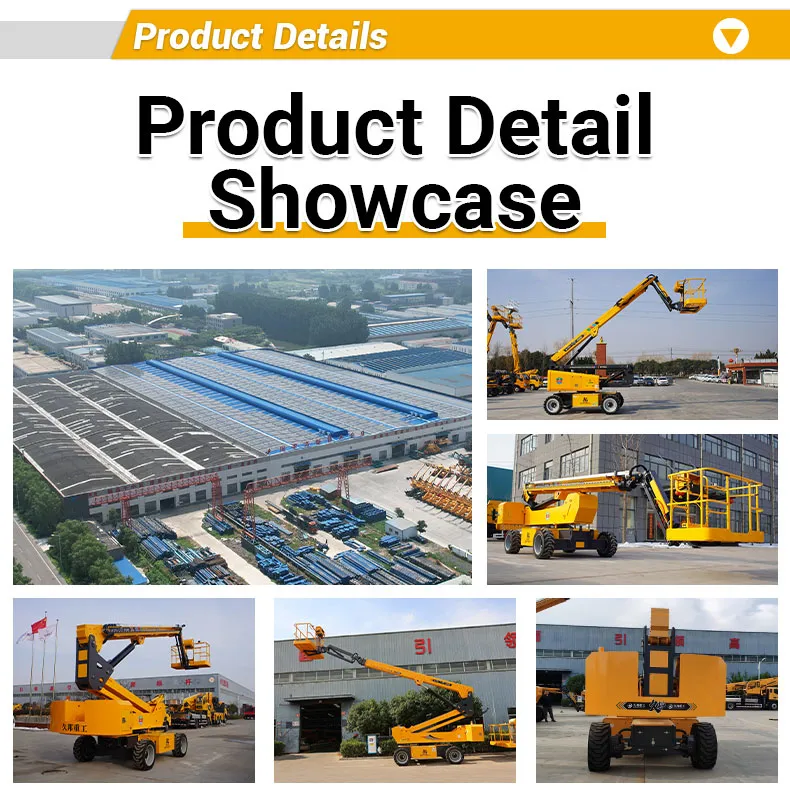

Platform View
Working Site
🏭

Professional Manufacturing

Factory Video Cover

Our group is an advanced manufacturer in the specialized vehicle industry. With over 370 employees, we focus on the research, development, and production of high-tech machinery. The factory covers 60,000 square meters and features modern production equipment including laser cutting and fully automatic digital processing.

Factory Workshop
Production Line
📦

Packing & Delivery

Shipping and Packing
Package Size
670.00cm * 178.00cm * 200.00cm
Gross Weight
10500.00kg
Packing Method
Nude Packing / Standard Export Packing

Frequently Asked Questions

What is the maximum working height of this boom lift?
The equipment provides a maximum working height of up to 23 meters with a 360-degree continuous turntable rotation.
How does the self-propelled system benefit operations?
It allows the machine to move independently without external towing. Operators can drive and steer the lift directly from the platform, even when it is raised.
What kind of terrains can the machine handle?
It is designed for rough terrain with a 45° gradeability and high-power driving systems, making it suitable for muddy construction sites and gravel roads.
What are the core safety and quality certifications?
The manufacturing process is ISO 9001:2015 certified, and the equipment undergoes strict machinery testing and video inspections before shipment.
What is the carrying capacity of the platform?
The rated loading capacity is 460kg, allowing for multiple workers and necessary tools to be lifted safely.
Is there a warranty provided for the equipment?
Yes, we provide a 1-year warranty covering the core components including the engine and motor.
