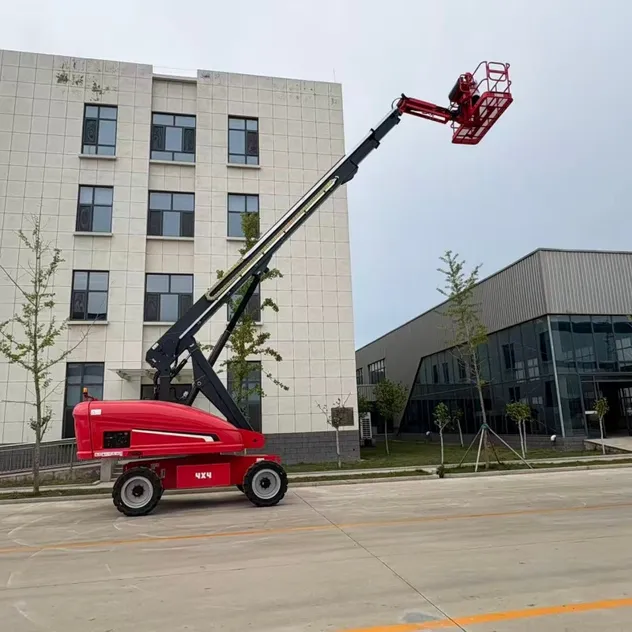

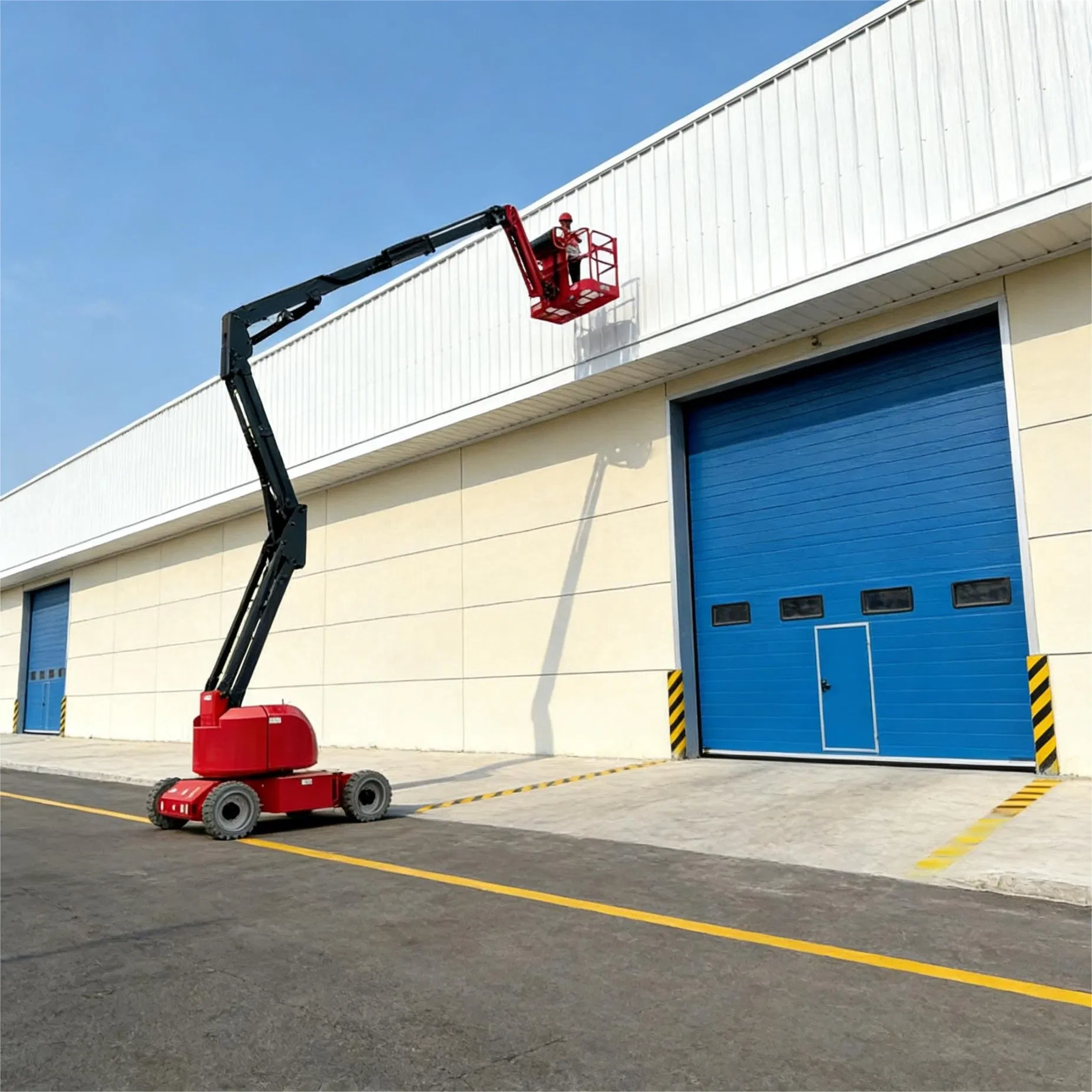

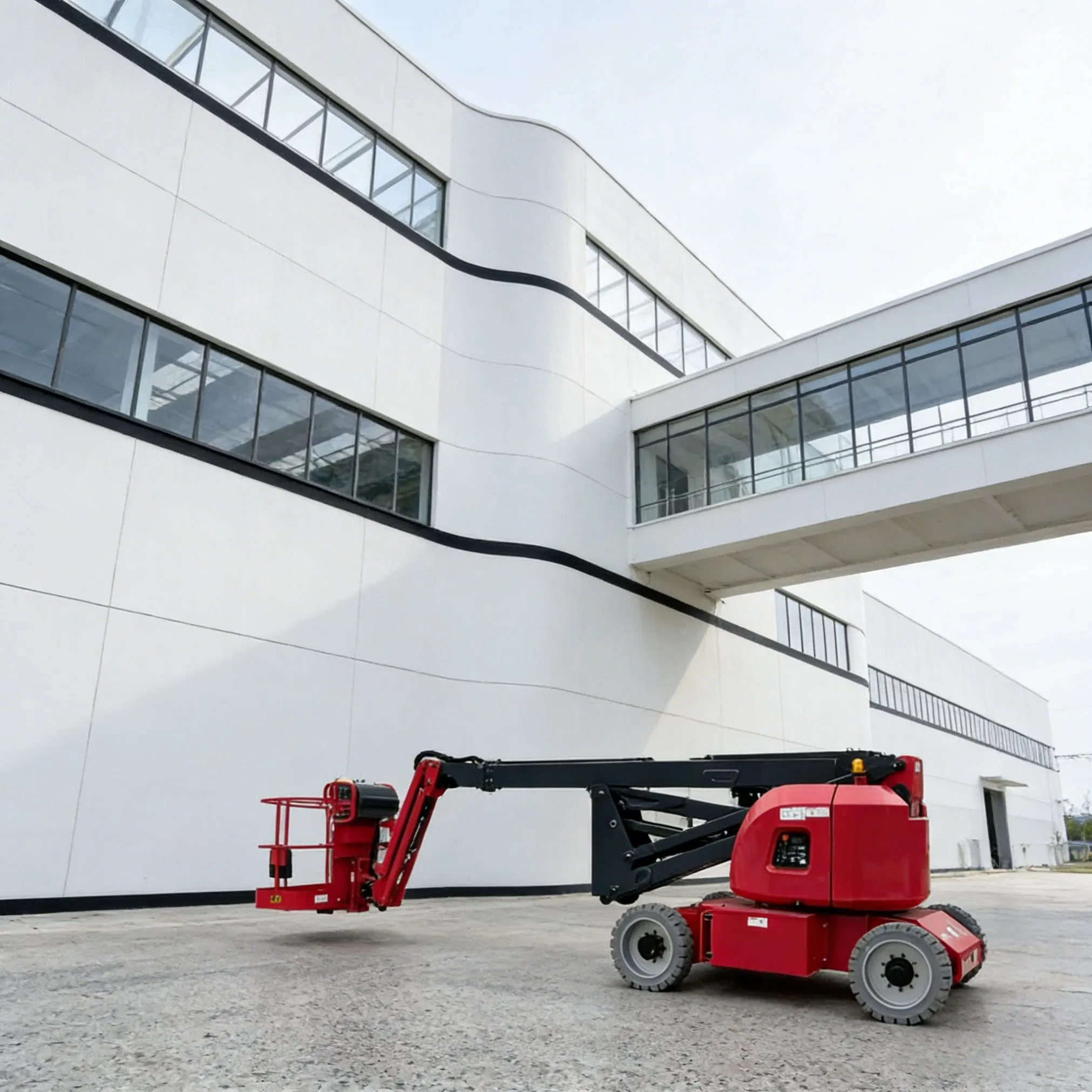

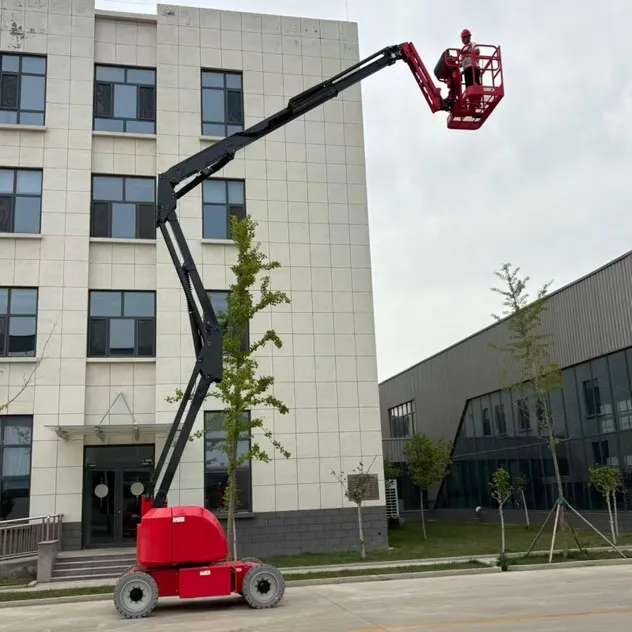

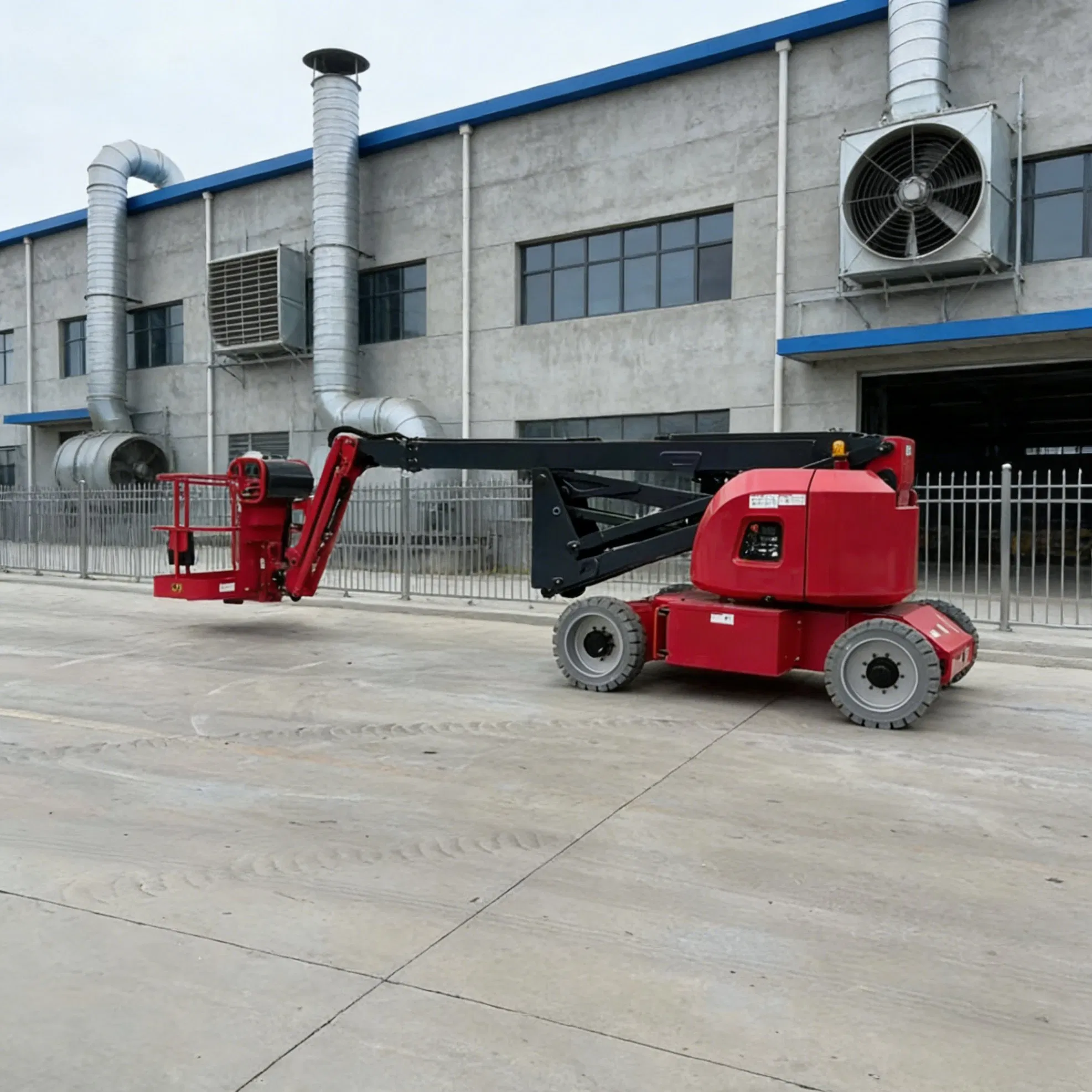

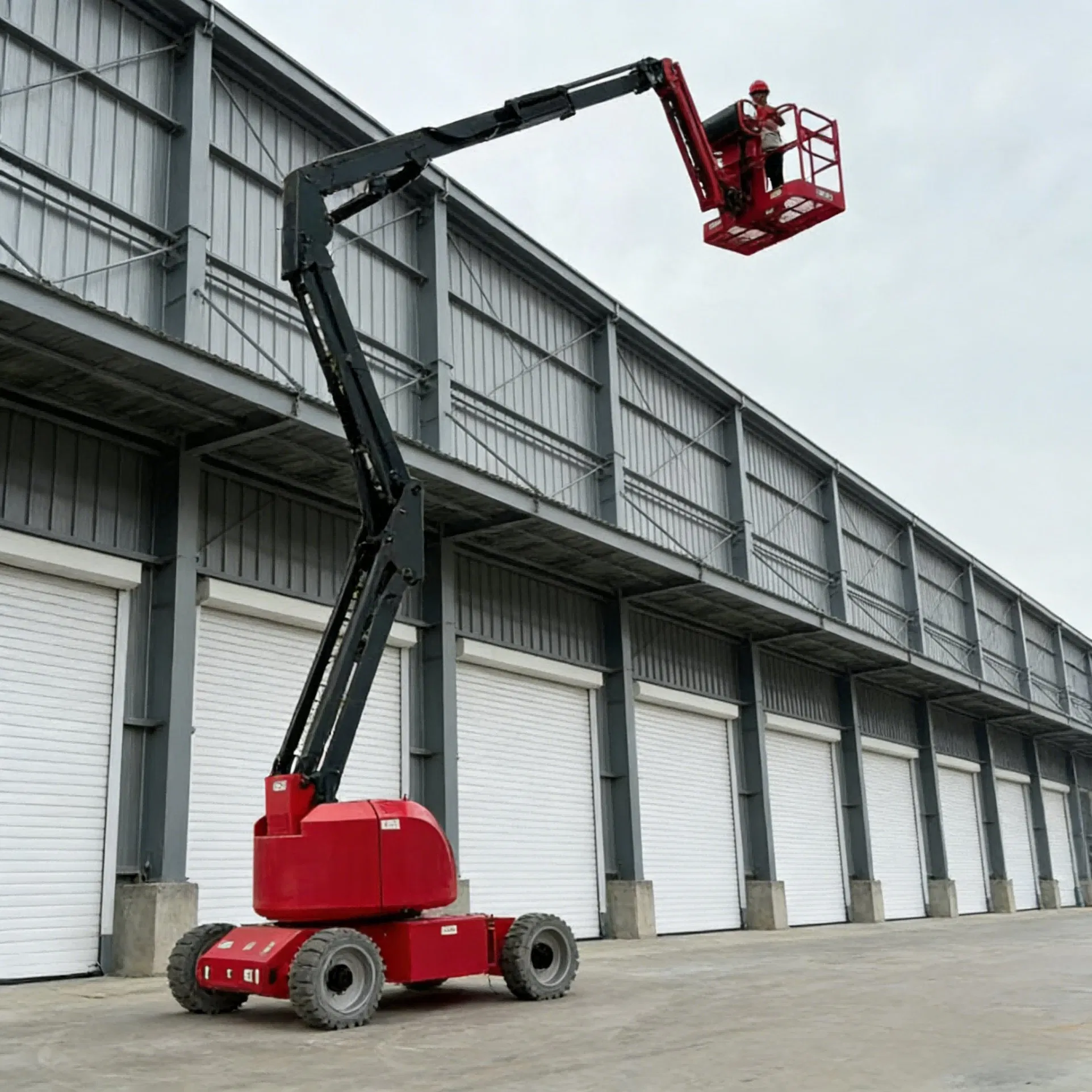

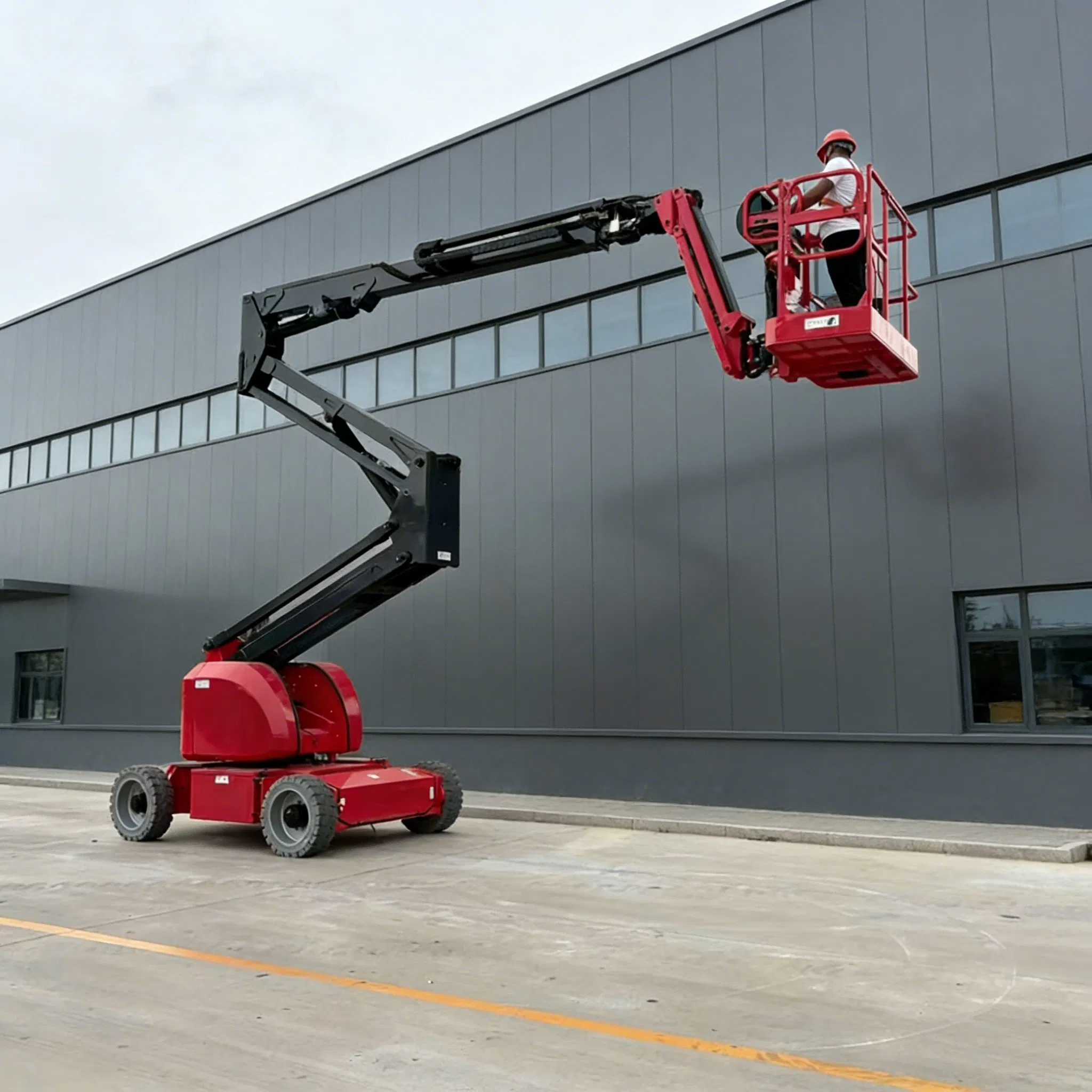

Self Propelled Articulated Boom Lift: Maximum Reach with All-Terrain Capability
This off-road articulated boom aerial work platform is a heavy-duty self-driven system designed for challenging environments. Operators control the platform via proportional joysticks for precise positioning, allowing "up-and-over" access to obstacles without external assistance. Equipped with comprehensive safety protection systems, the platform triggers alarms and stops operation in cases of overload, instability, or low power.
Core Highlights:
| Max. Working Height | 22.55m |
| Max. Platform Height | 20.55m |
| Max. Horizontal Extension | 12.5m |
| Max Up and Over Height | 8.9m |
| Stowed Dimensions (L*W*H) | 9.05m * 2.49m * 2.7m |
| Platform Capacity | 250kg |
| Gradeability | 45% |
| Turntable Rotation | 360 degrees continuous |
| Batteries | 48V/440Ah |
| Tires | 36x14-20 |

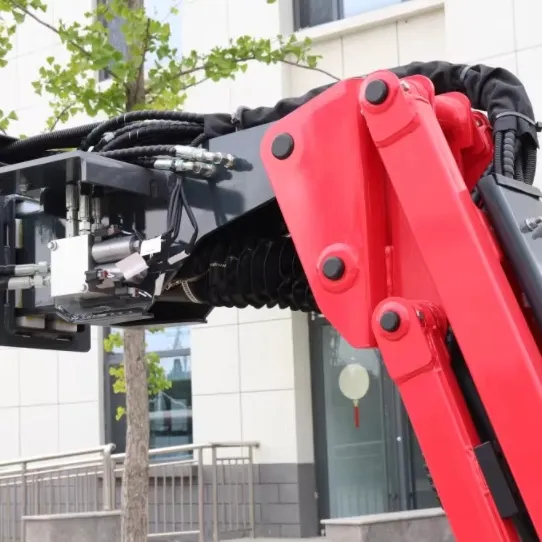

Jib boom connection

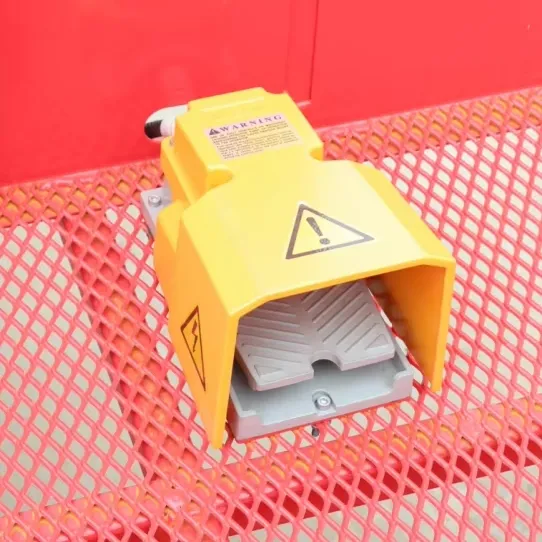

Enable pedal

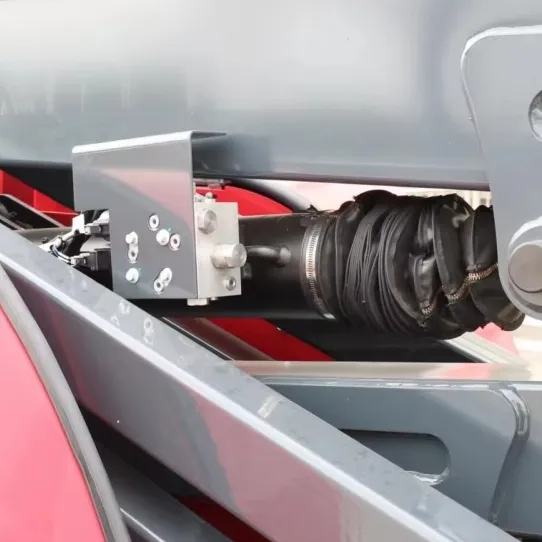

Hydraulic cylinder

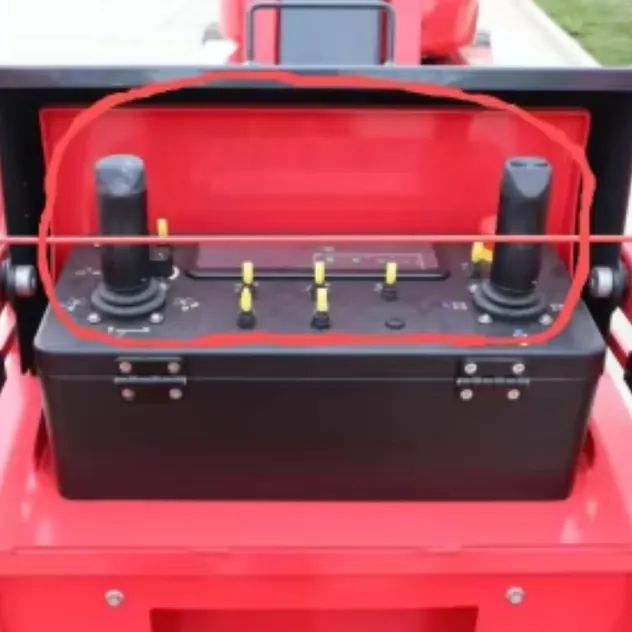

Upper control

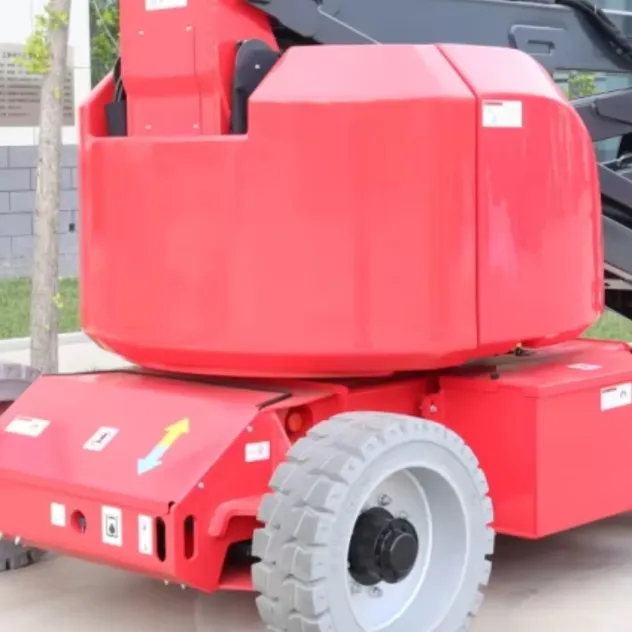

Turntable

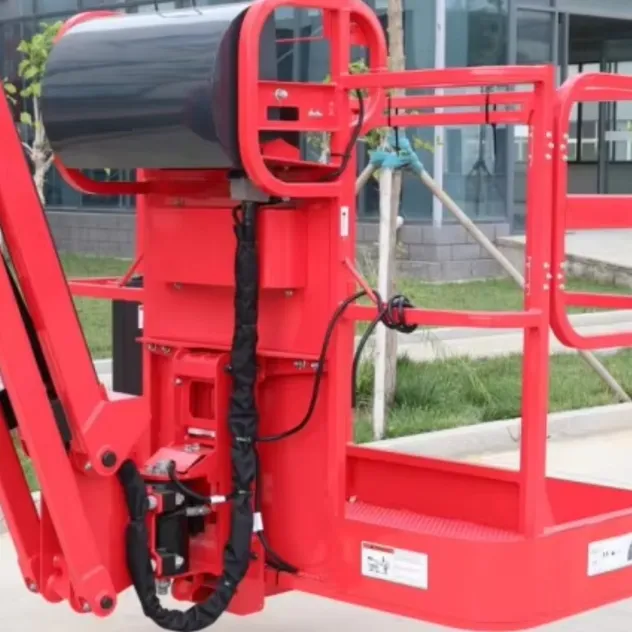

Work platform
Our manufacturing facility spans 48,000 square meters, utilizing advanced processes to ensure equipment reliability, safety, and energy efficiency. We hold over 60 patents and maintain an annual production capacity of 8,000 units.

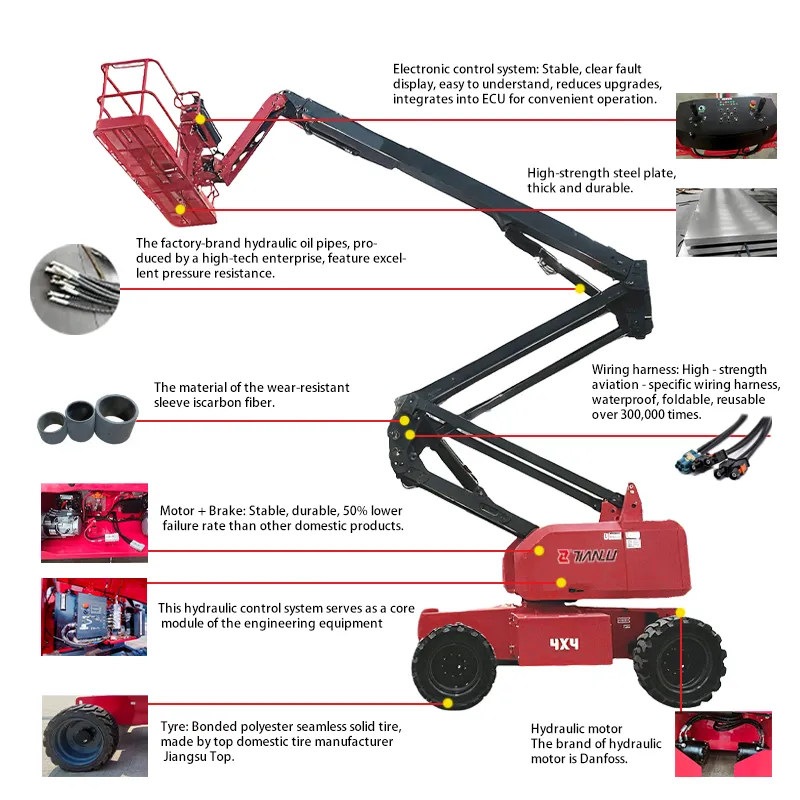

Key Components:
1. Hydraulic Pipe: High-tech industrial pipes withstanding up to 25 Mpa.
2. Wiring Harness: Aviation-specific materials, waterproof, tested for 300,000+ folds.
3. Axis Pin: 40cr material with QPQ treatment for superior wear and corrosion resistance.
4. High-Strength Steel: Q355B manganese steel arm frames for maximum safety and durability.
