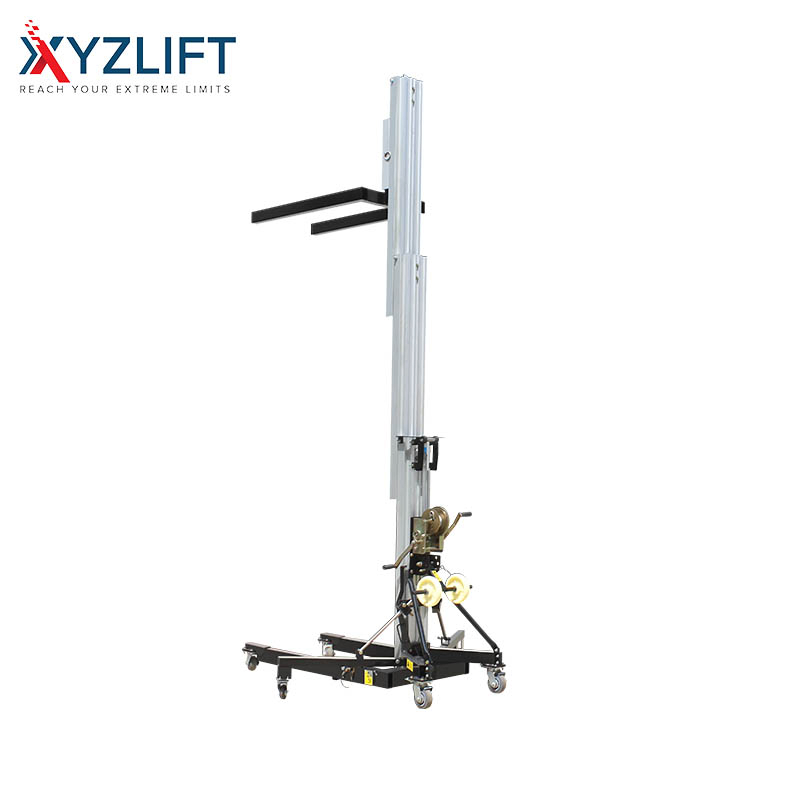

En280 Approved Portable Manual Operated Aluminum Material Lift

1 / 5

En280 Approved Portable Manual Operated Aluminum Material Lift

Customization:	Available
After-sales Service:	7*24 Hours Via Phone/Whatsapp/Email
Warranty:	2 Years

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

XYZAML-3

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Manual Winch

Material

High-Strength Aluminum Alloy

Lifting Height

3.49m / 4.98m / 6.46m / 7.94m

Driven Type

Manual

Certification

CE, ISO 9001

Stowed Size

0.8mW * 0.74mD * 1.99mh

HS Code

84289090

Production Capacity

50,000 PCS/Year

🏗️

Material Lift Overview

Aluminum Material Lift is a lightweight yet robust lifting solution designed for efficient material handling in various working environments. Constructed from high-strength aluminum alloy, this lift offers an excellent strength-to-weight ratio, making it easy to transport and maneuver while maintaining exceptional durability and corrosion resistance.

Key Features:

Lightweight & Portable: Made of aviation-grade aluminum, significantly lighter than traditional steel lifts. Equipped with swivel casters for easy movement across job sites.
High Load Capacity: Lifting capacities ranging from 100kg to 450kg, suitable for diverse material handling needs.
Compact Design: Low stowed height (1.99m) allows the lift to pass through standard doorways easily.
Corrosion Resistant: Aluminum construction naturally resists rust and chemical corrosion.
Easy Operation: Simple controls allow single-person operation, reducing labor costs and improving efficiency.

📋

Technical Specification

Model		XYZAML3	XYZAML4.5	XYZAML6	XYZAML7.5
Working height	Fork up	3.49m	4.98m	6.46m	7.94m
Working height	Fork down	2.97m	4.46m	5.94m	7.42m
Stowed width		0.8m	0.8m	0.8m	0.8m
Stowed height		1.99m	1.99m	1.99m	1.99m
Max. load capacity	36cm load center	454kg	363kg	363kg	295kg
	61cm load center	454kg	363kg	295kg	204kg
	107cm load center	181kg	227kg	159kg	113kg
Overall weight		148kg	176kg	205kg	231kg

🌟

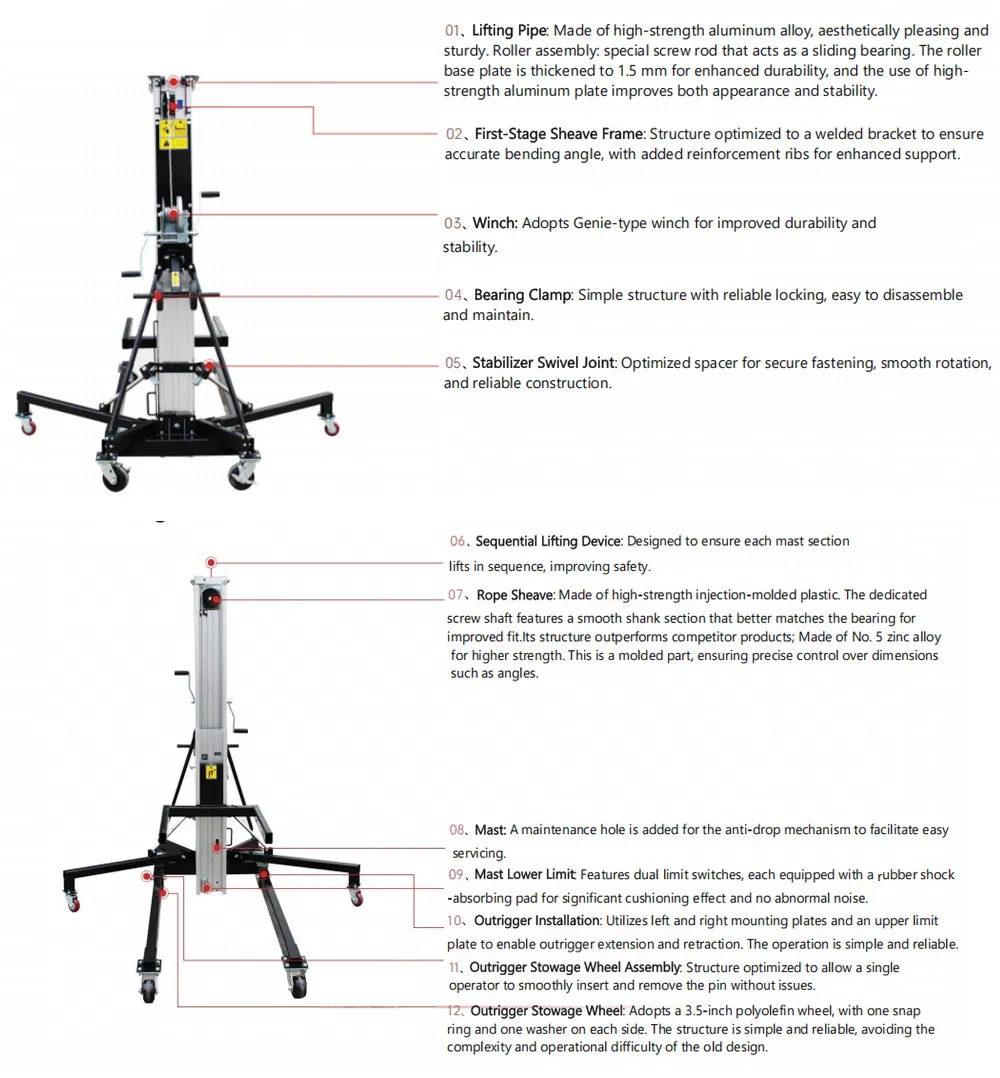

Main Features

🔍

Product Details Show

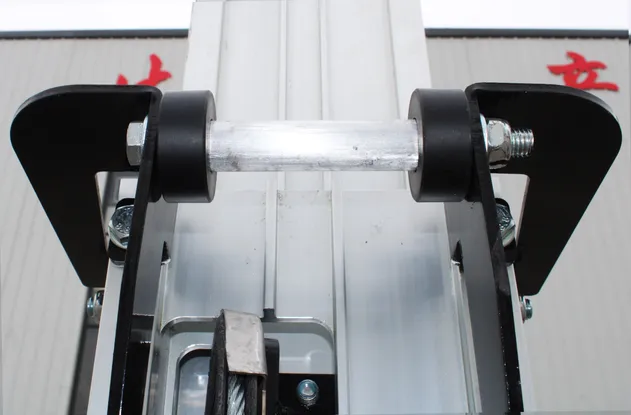

01 Lifting / Hoisting Pipe

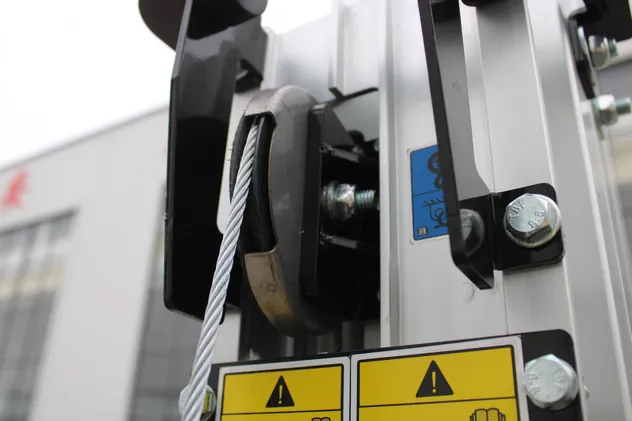

02 Rope Sheave Frame

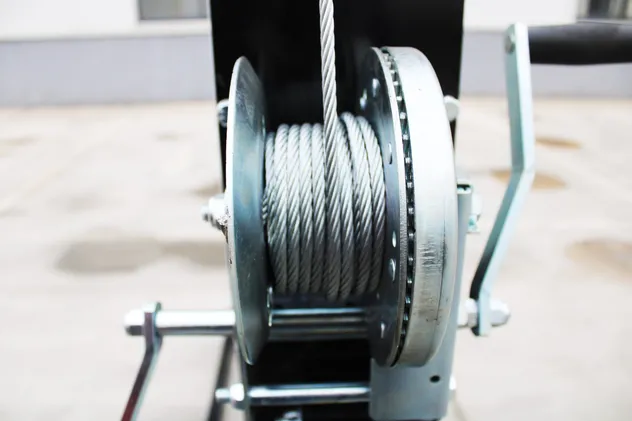

03 Winch / Capstan

04 Bearing Clamp

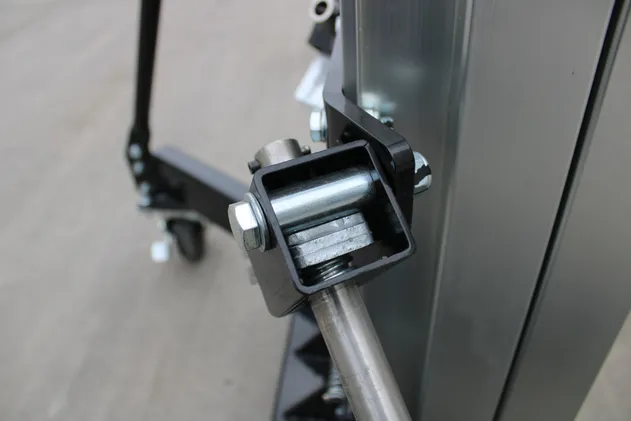

05 Stabilizer Swivel Joint

06 Sequential Lifter

07 Rope Sheave

08 Mast Maintenance Hole

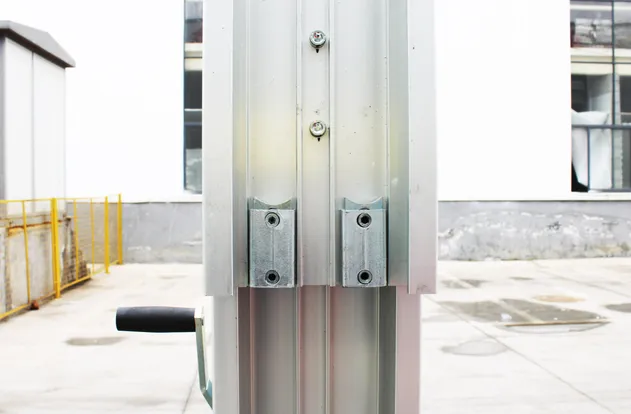

09 Mast Lower Limit

10 Mounting / Limit Plate

11 Folding Wheel Pull Pin

12 Outrigger Folding Wheel

📦

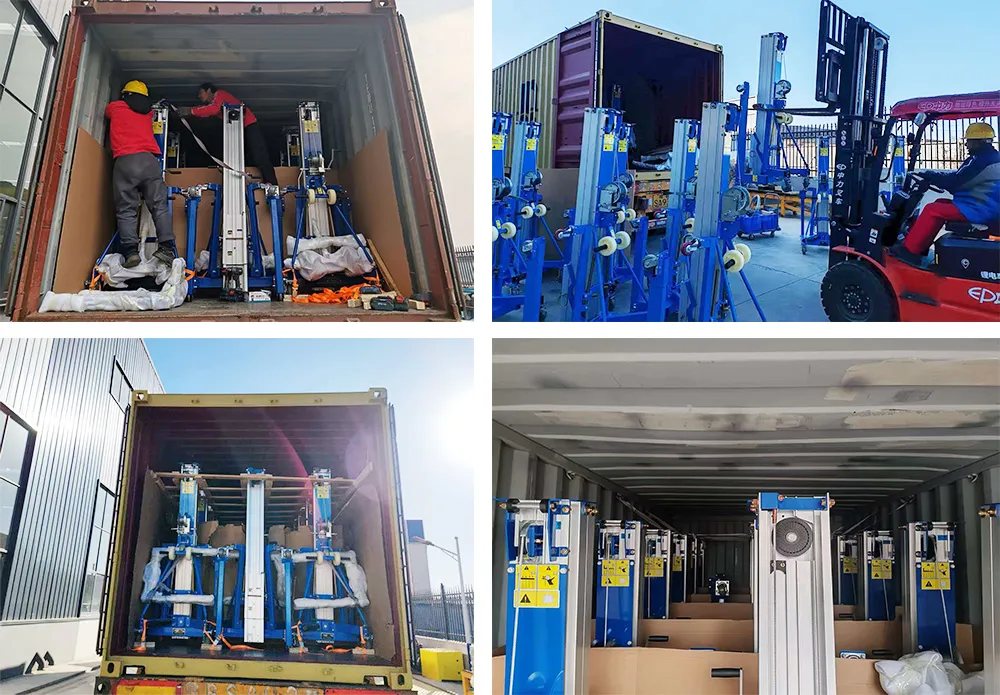

Packing & Delivery

❓

Frequently Asked Questions

What are the primary benefits of using an aluminum material lift?

It is constructed from aviation-grade aluminum, making it significantly lighter and more portable than steel alternatives, while offering excellent corrosion resistance for long-term use.

What is the maximum lifting height available?

Depending on the model, the maximum working height can reach up to 7.94 meters with the forks in the upward position.

Can one person operate this equipment?

Yes, the manual winch mechanism and lightweight design are specifically engineered for easy single-person operation and maneuverability.

What is the load capacity of these lifts?

Load capacities range from 113kg to 454kg, depending on the specific model and the position of the load center.

Will the lift fit through standard office doors?

Yes, with a stowed width of only 0.8m and a stowed height of 1.99m, it is designed to pass through standard doorways and navigate narrow aisles with ease.

Is the lift suitable for outdoor environments?

Yes, the high-strength aluminum alloy naturally resists rust and chemical corrosion, making it durable for both indoor and humid outdoor settings.
