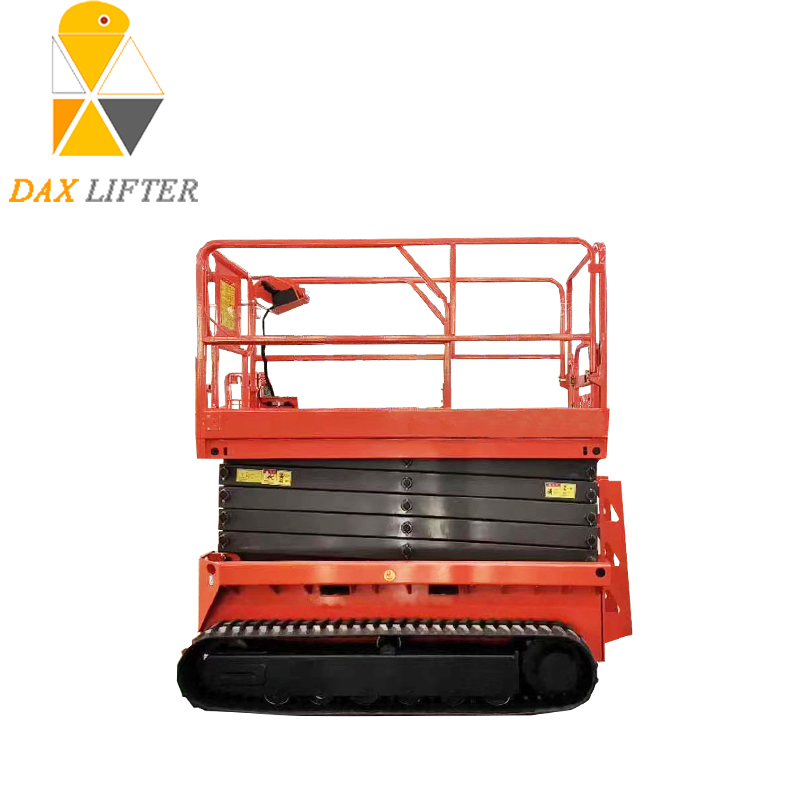

Industrial Stable Structure Rough Terrain Track Type Scissor Lift with Crawler Belt

1 / 5

Industrial Stable Structure Rough Terrain Track Type Scissor Lift with Crawler Belt

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:DX

Application:Workshop, Shipboard, Warehouse, Building

Lift Mechanism:Scissor Lift

Moves:Self-propelled

Driven Type:DC Power

Feature:Explosion-Proof, Insulating

Certification:CE, ISO 9001

Height Range:6-12m

Capacity:320-450kg

Running Mode:Moving

Rough Terrain Crawler Scissor Lift

Outdoor Working Battery Power Crawler Scissor Lift is specifically designed for challenging workspaces. The crawler design provides exceptional capability for the lift to navigate across rough obstacles such as grassland and uneven construction grounds. This Crawler Type Scissor Lift ensures maximum stability and accessibility in environments where wheeled lifts might struggle.

Technical Data Sheet

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Extendable Platform Capacity	113kg	113kg	113kg	113kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Lifting Motor	48v/4kw	48v/4kw	48v/4kw	48v/4kw
Drive Speed	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Net Weight	2400kg	2550kg	2840kg	3000kg

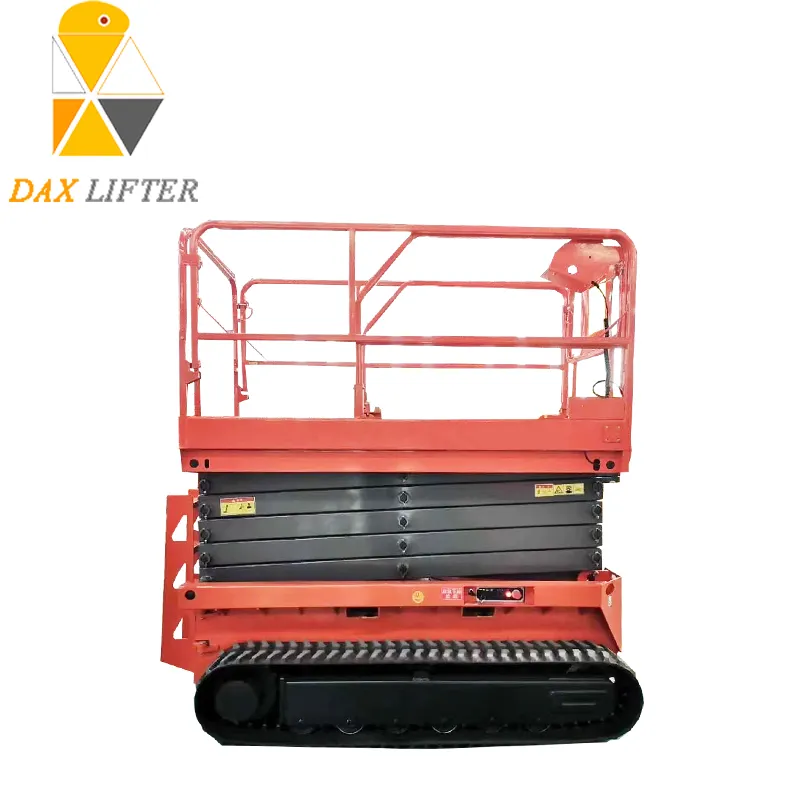

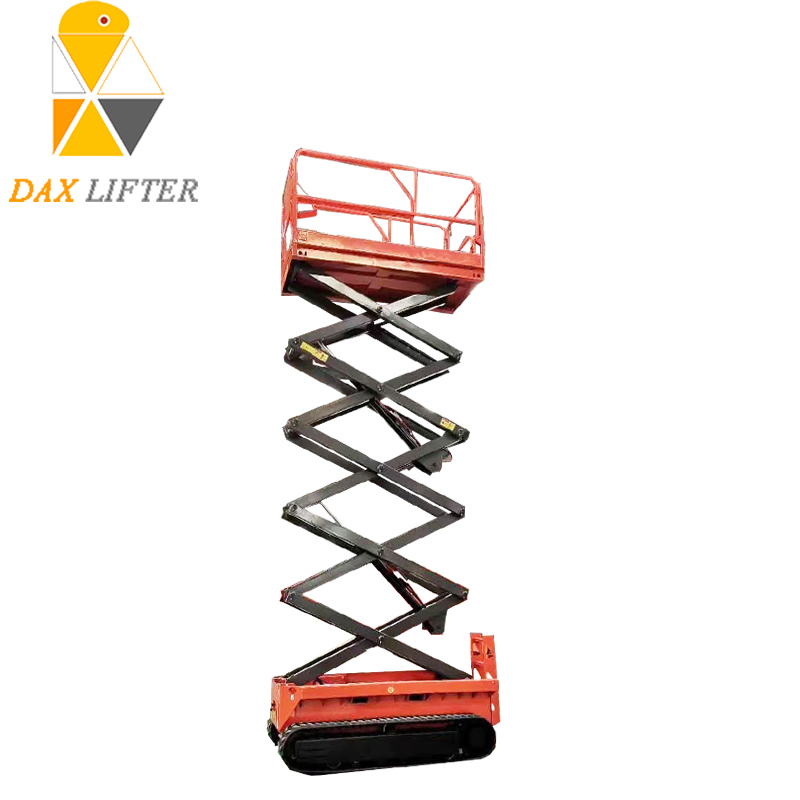

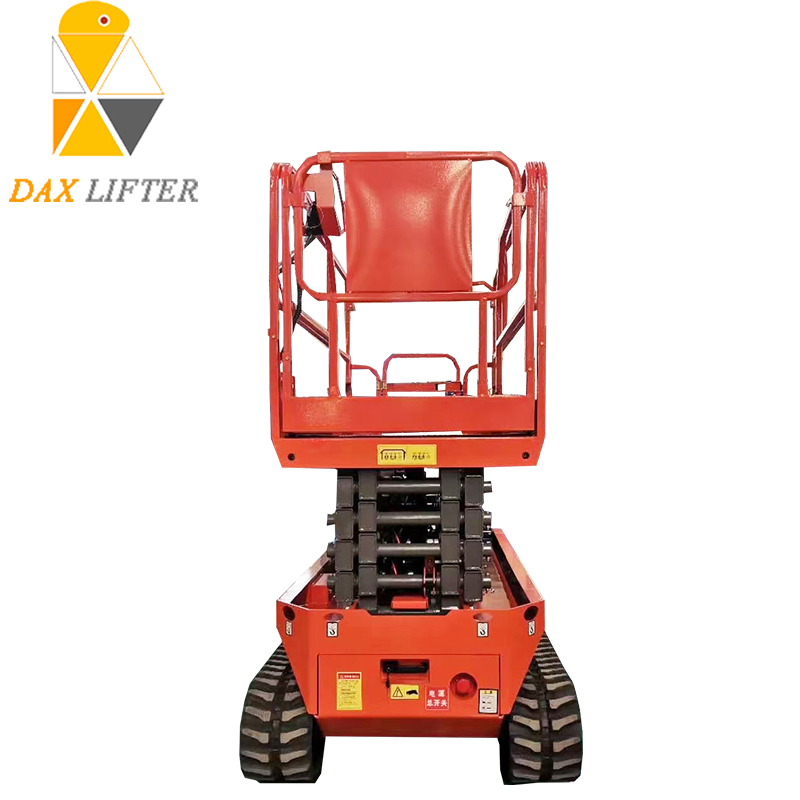

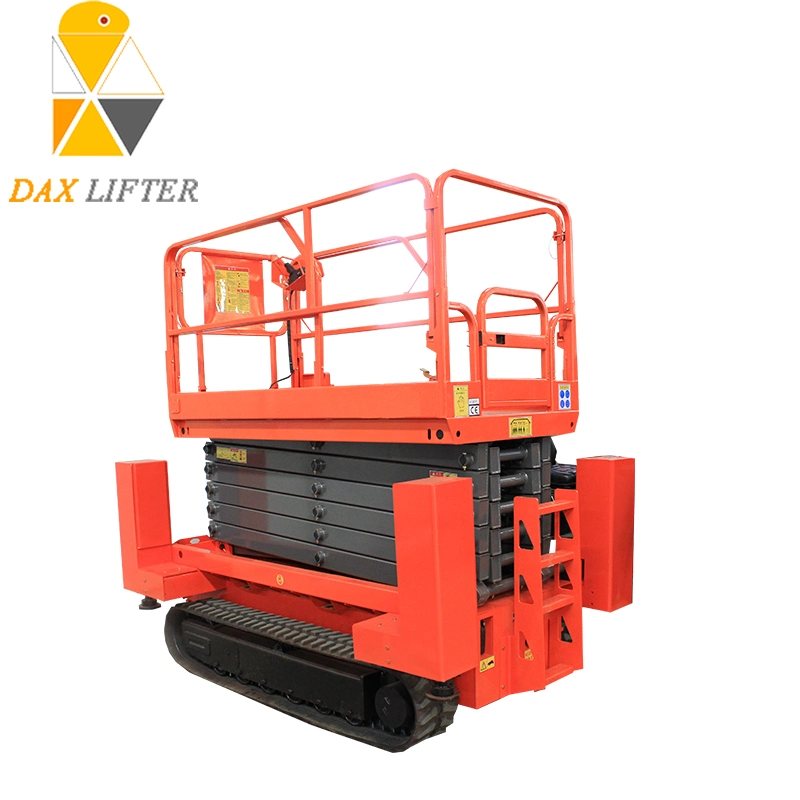

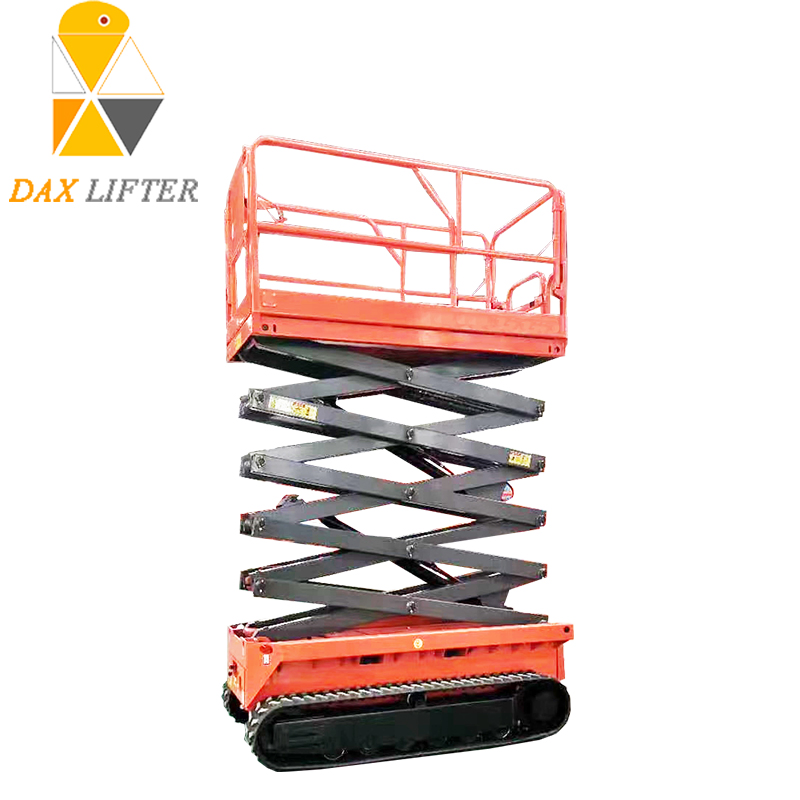

Product Visuals

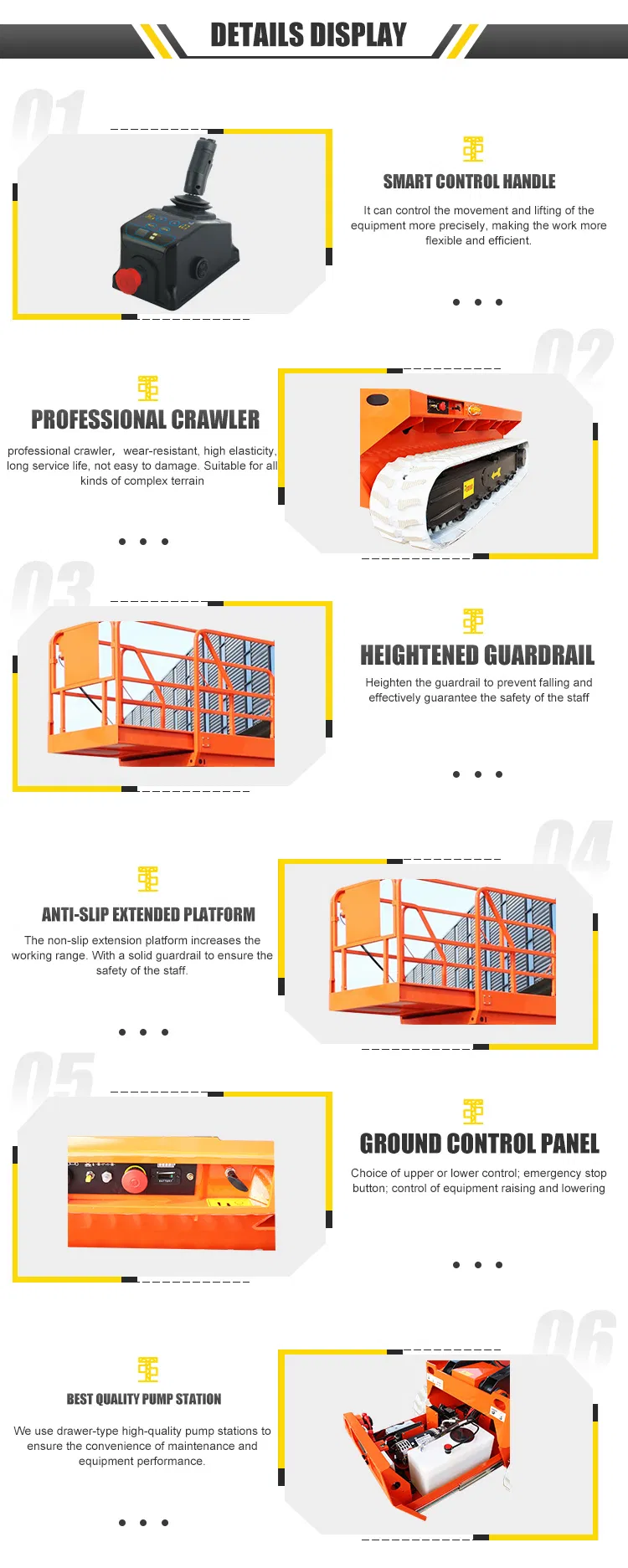

Key Features & Advantages

Extendable Platform: Expands the workspace for operators.

Crawler Belt Design: Provides strong passing ability on rough terrain.

Dual Control Panel: Operation panels located both on platform and bottom.

Built-in Battery: DC power supply for flexible movement without external cables.

Safety Systems: Includes emergency lowering valve and explosion-proof valves.

Overload Protection: Hydraulic system prevents unsafe lifting beyond capacity.

Frequently Asked Questions

Q1: What is the maximum working height of the crawler scissor lift? A: Depending on the model, the maximum working height ranges from 8 meters to 14 meters.

Q2: Can this lift operate on soft or uneven ground? A: Yes, the crawler belt design is specifically engineered for rough terrain, including grassland and construction sites.

Q3: How is the equipment powered? A: It uses a built-in 48V battery power supply, making it self-propelled and independent of external power sources during operation.

Q4: What safety features are included for emergency situations? A: The lift is equipped with an emergency lowering valve, safety explosion-proof valves for tubing bursts, and an overload protection system.

Q5: Is the platform size adjustable? A: The lift features an extendable platform that can be lengthened by 900mm to provide more workspace for workers.

Q6: Is custom-made service available for specific requirements? A: Yes, OEM and ODM services are available to meet specific customer requirements and working conditions.
