Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Capacity
Weight Level (1-2 Ton)
Certification
CE, ISO 9001
Product Description

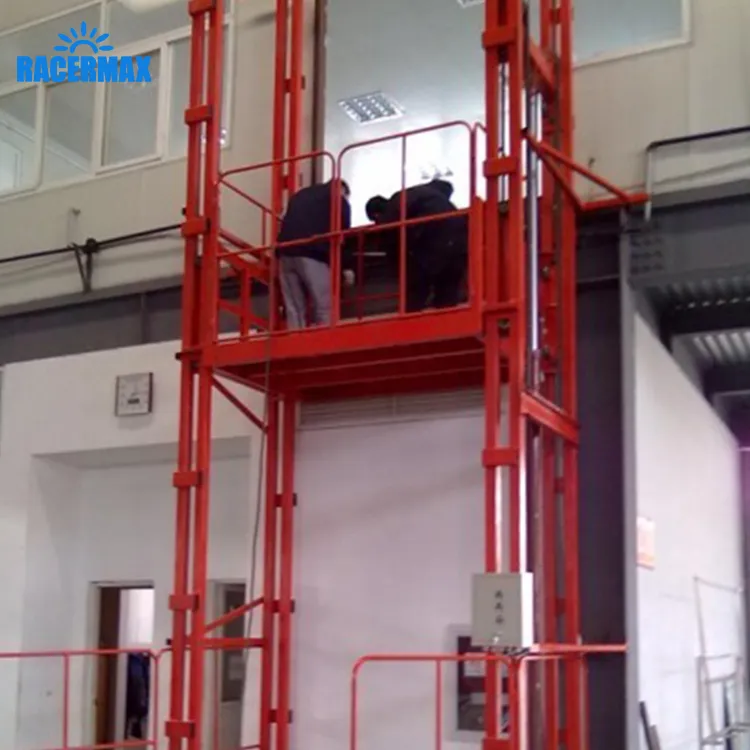

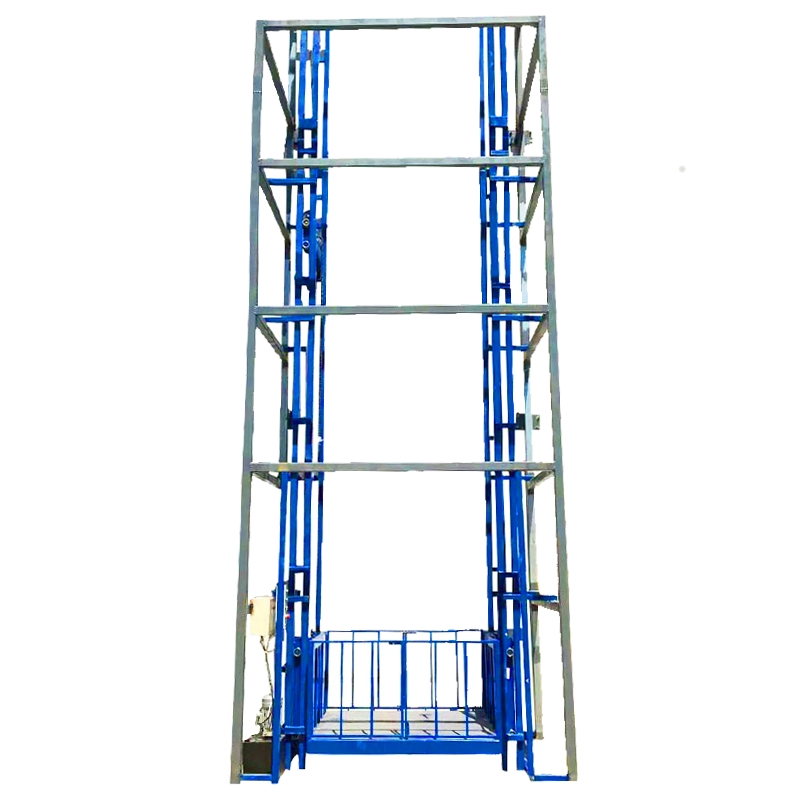

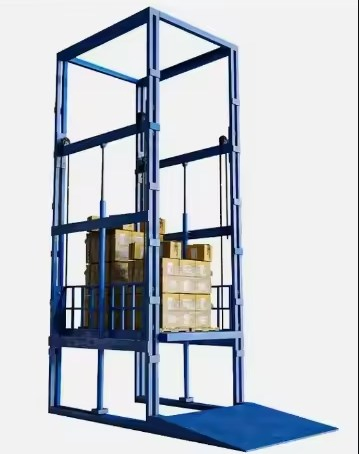

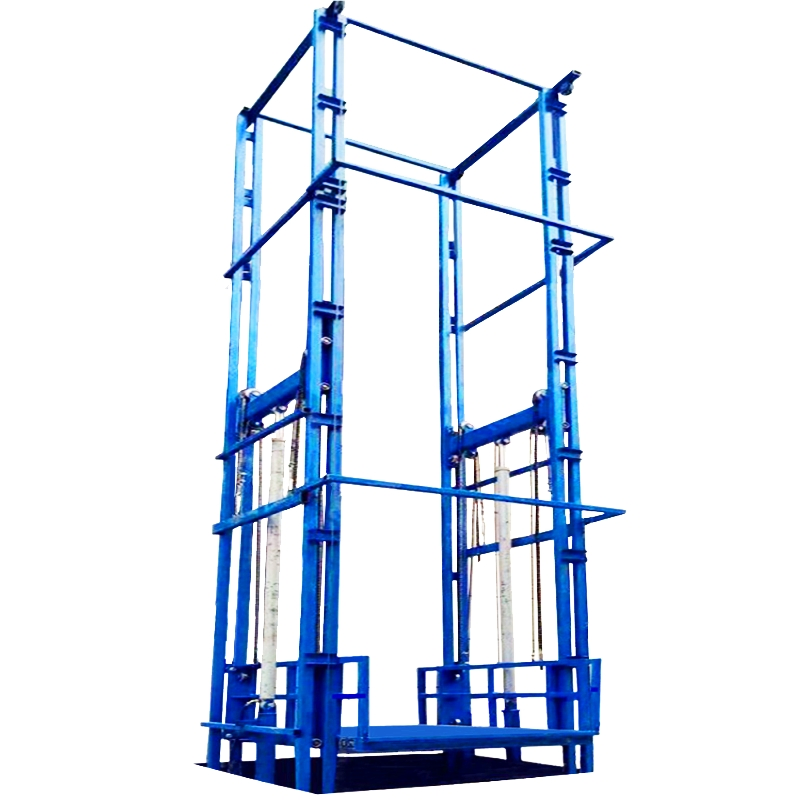

The heavy-duty mild steel hydraulic goods elevator is designed as a two or multi-column system. It is specifically engineered for material shifting from ground floors to upper levels, fixed either to storage platforms or independent steel structures.
⚙
Flexible Capacity: Supports 500kg, 1000kg, and up to 1500kg loads.
↕
Lifting Height: Standard lift from 3000 mm up to 12000 mm (12 meters).
✔
Self-Standing: No complex civil work or duct construction required.
⚡
Automatic Control: Fully automatic Electro-Hydraulic Power Pack for smooth movement.
🛡
Safety First: Equipped with adjustable overload protection valves and limit switches.
⛓
Redundant System: Includes two lifting chains and two standby ropes as standard features.

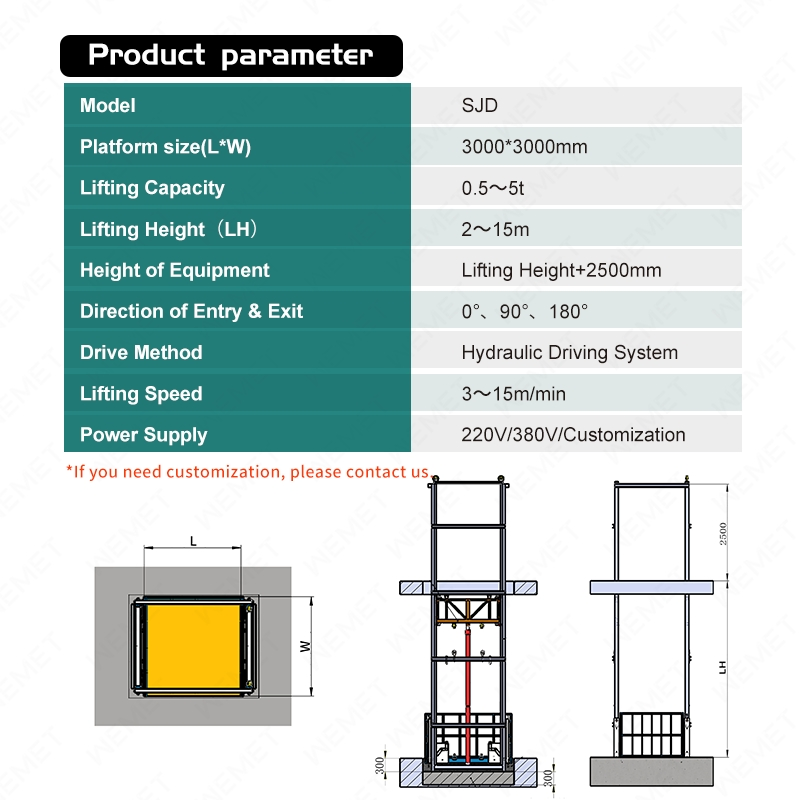

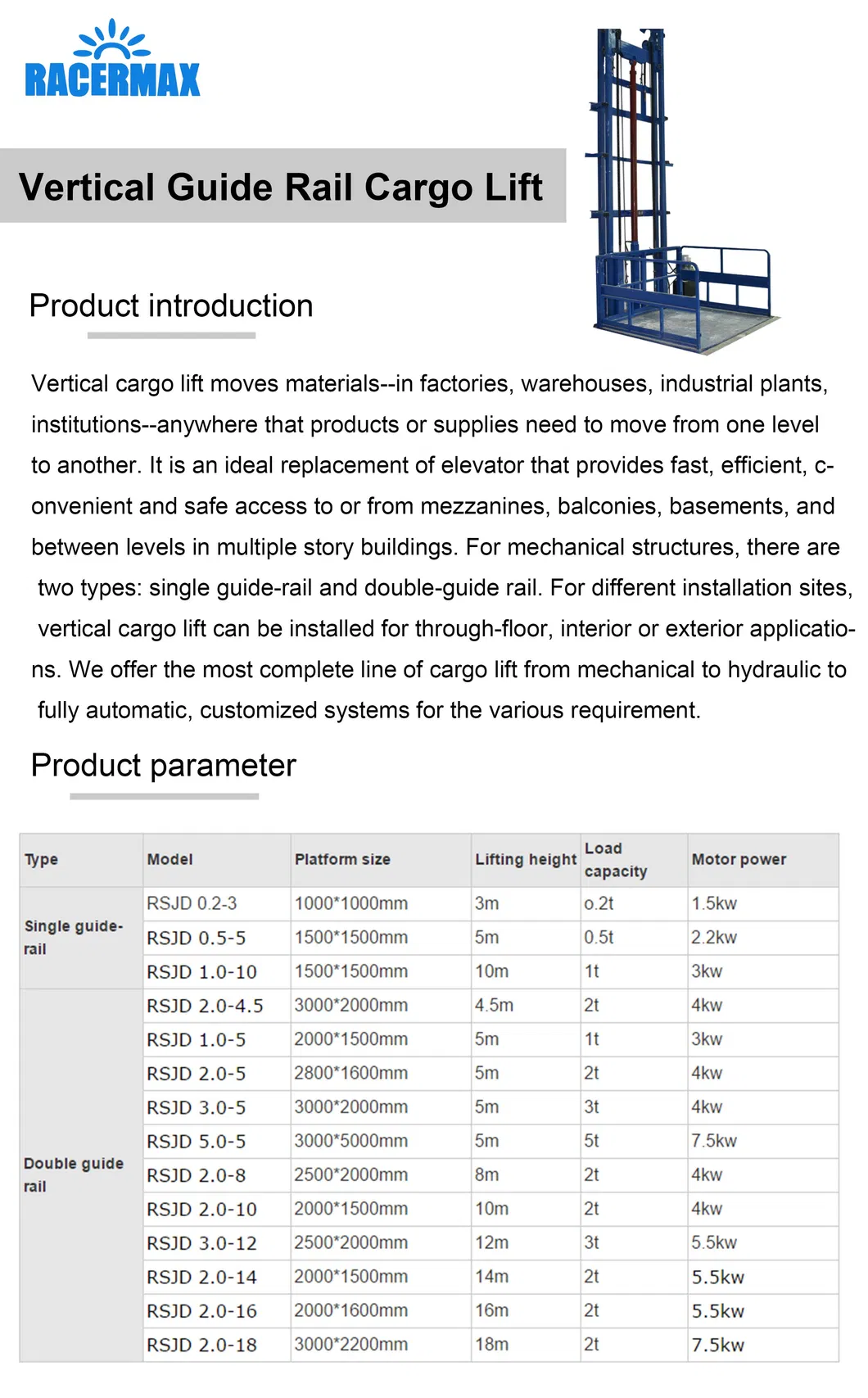

Specifications & Technical Details

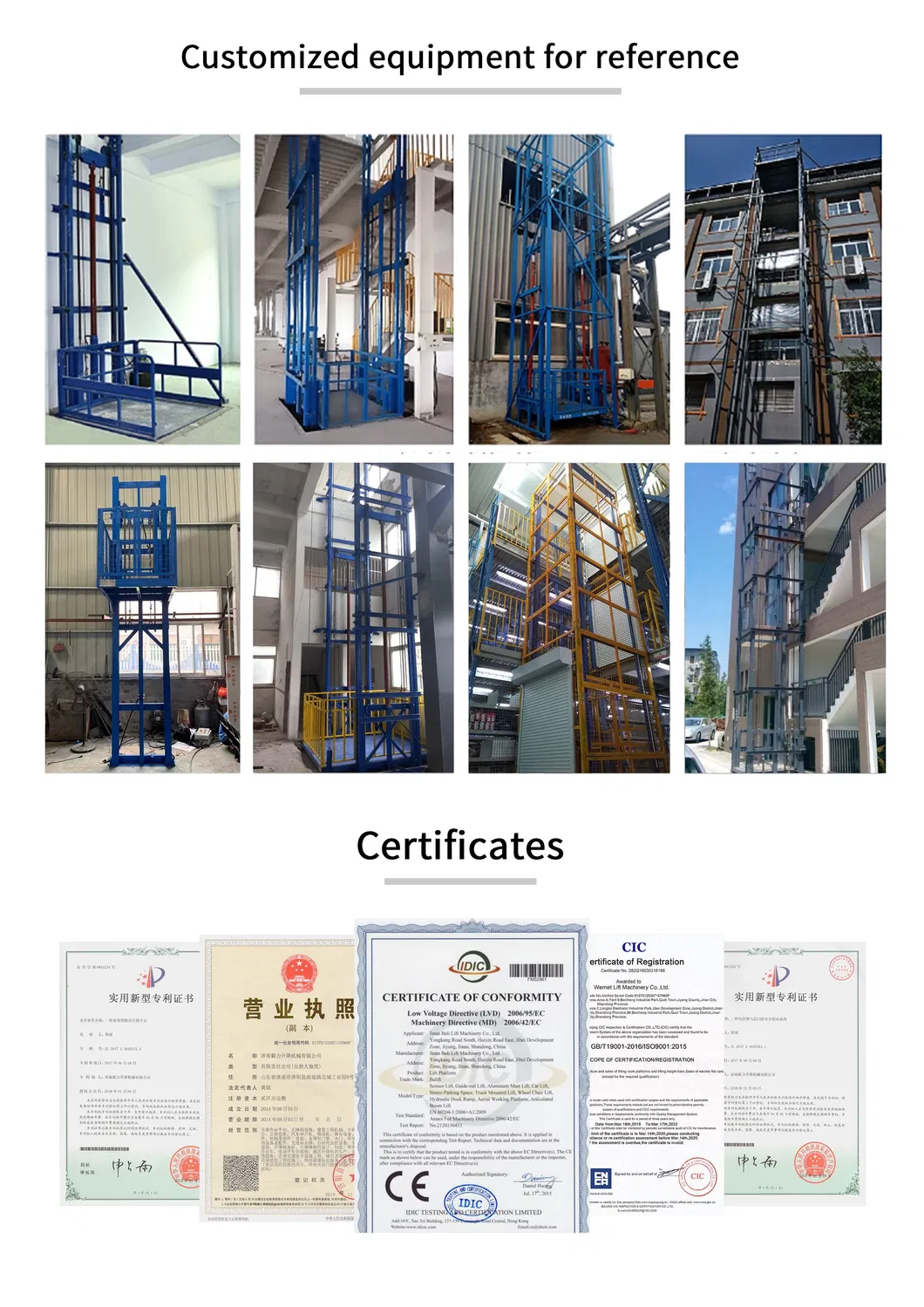

Application & Customer Interaction
Frequently Asked Questions
What is the maximum lifting capacity of this goods lift?
The lift is designed to handle loads of 500kg, 1000kg, and up to 1500kg (1.5 tons) depending on the configuration.
Does this elevator require a dedicated lift shaft?
No, these are self-standing lifts. They do not require major civil work like a traditional elevator duct or shaft.
How high can this hydraulic lift reach?
The standard lifting height ranges from 3 meters up to 12 meters, making it ideal for multi-story warehouses.
What safety mechanisms are included?

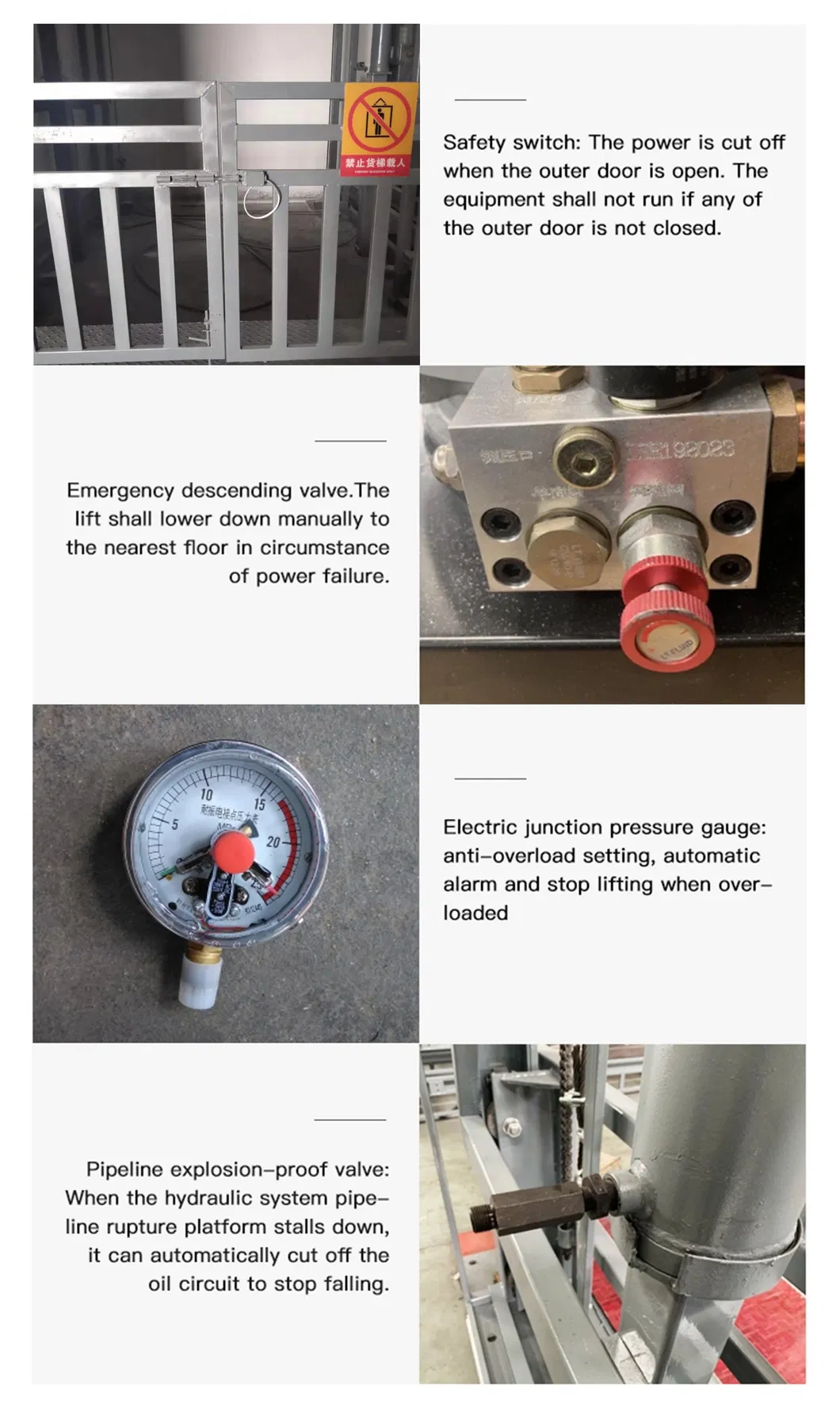

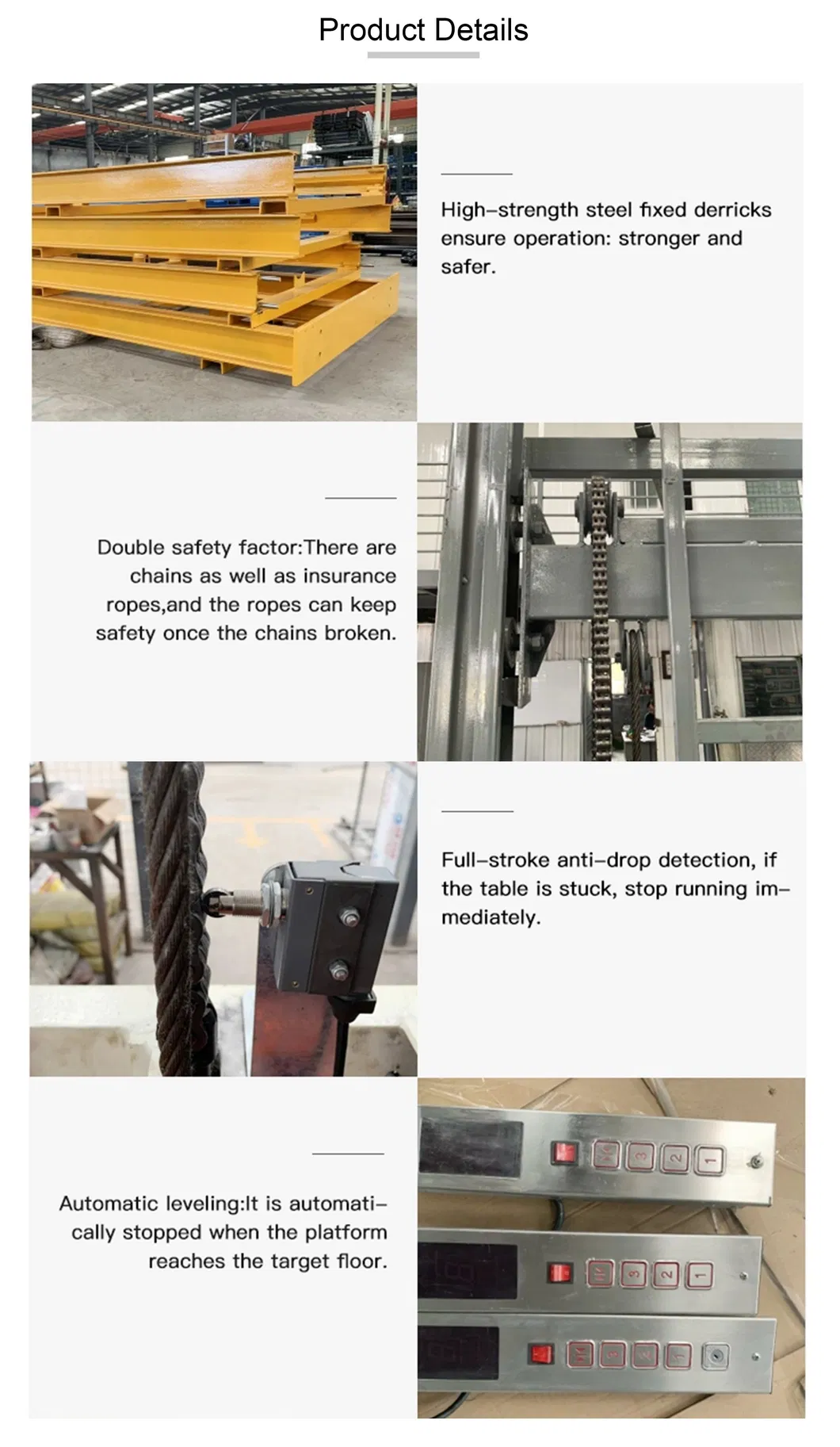

Safety features include an adjustable overload protection valve, dual lifting chains, two standby ropes, and limit switches combined with mechanical stoppers.
Can this lift be used in hazardous environments?
Yes, the product features an explosion-proof design, making it suitable for various industrial workshops and specialized environments.
How is the maintenance performed?
The power drive unit is located on the ground level, ensuring easy access and simplified maintenance work.
