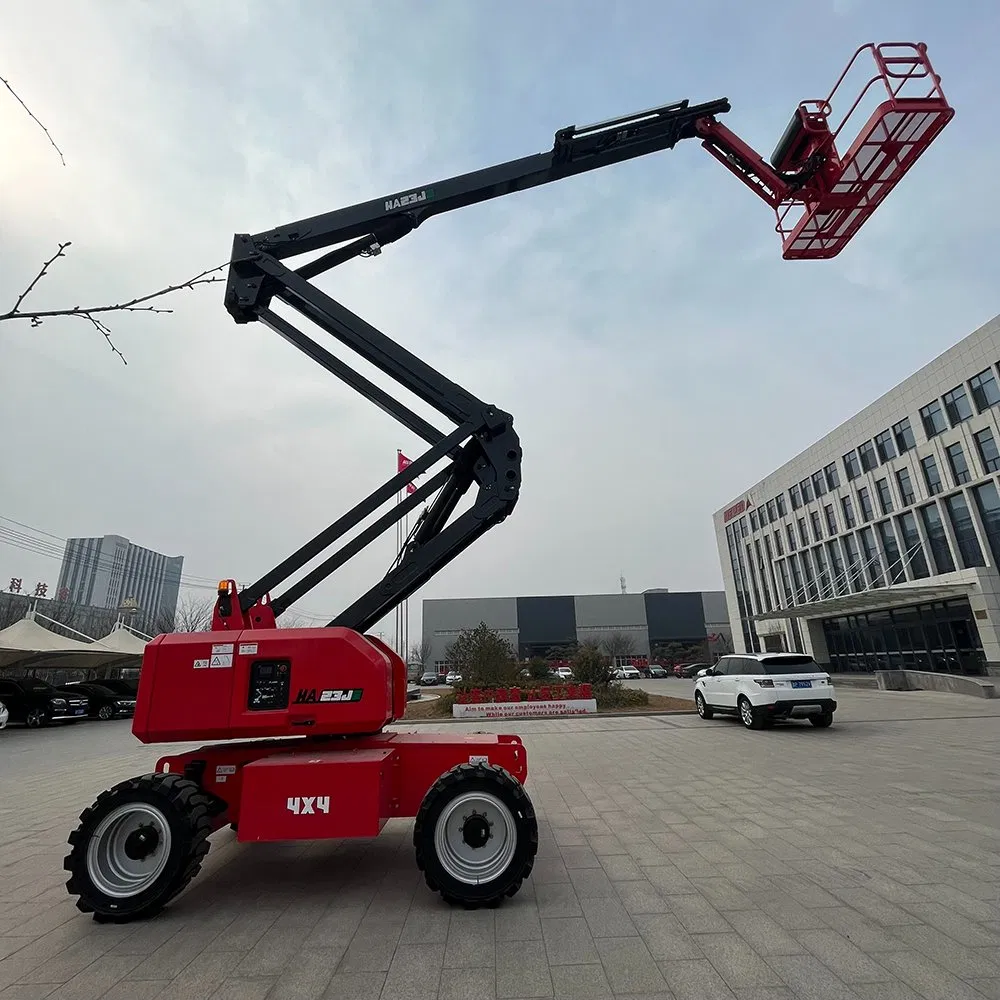

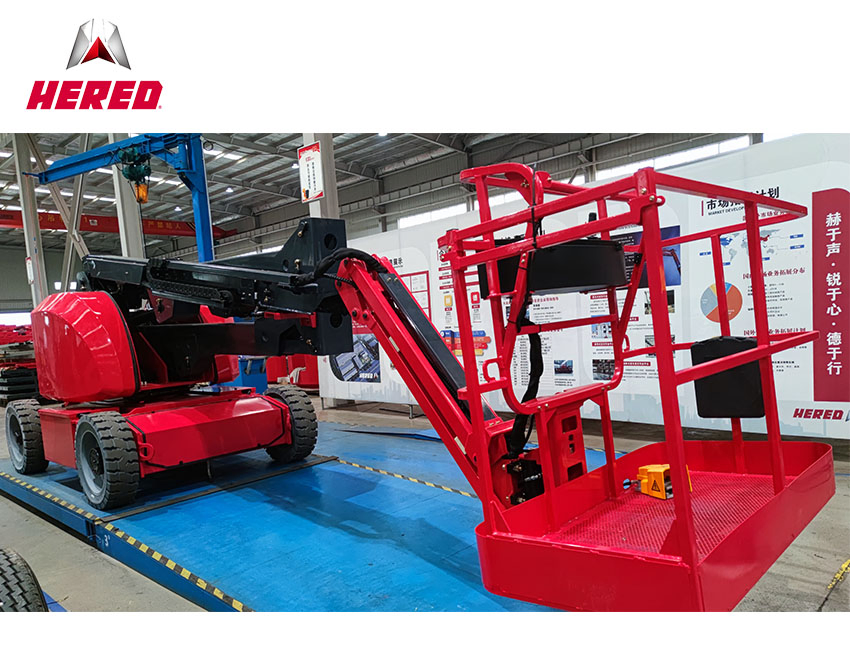

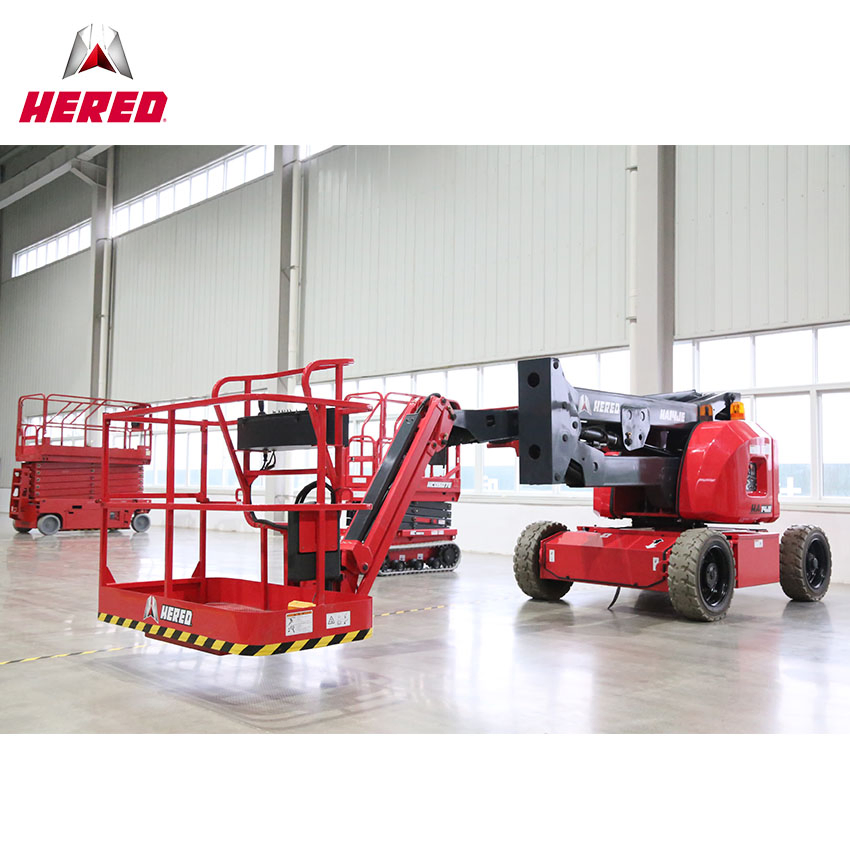

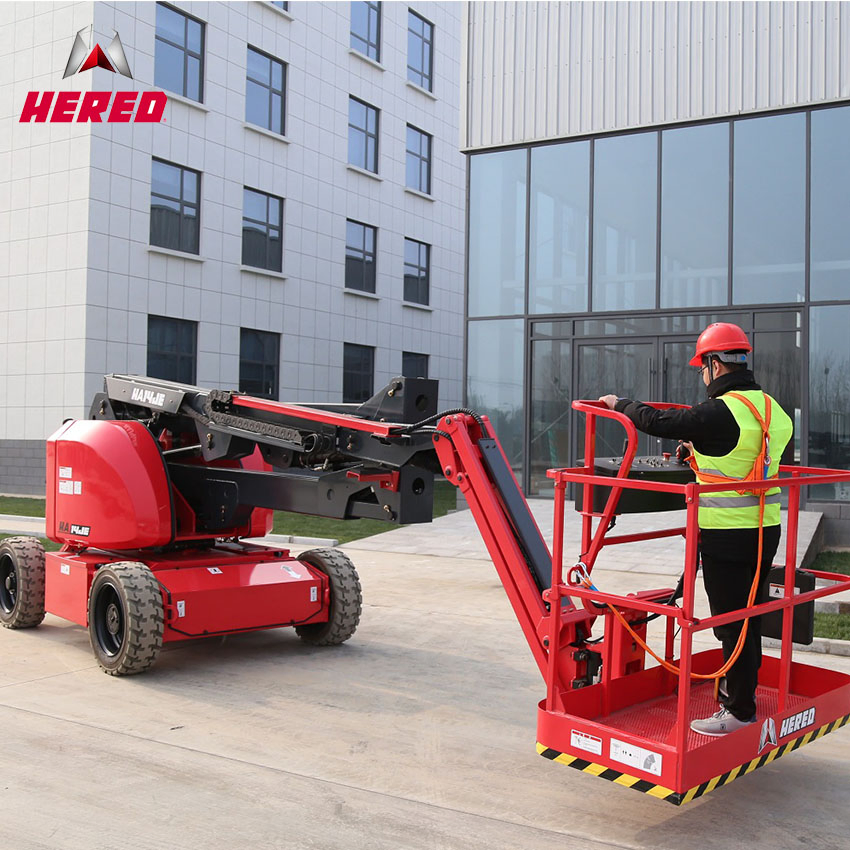

Hered Offical 14m Mobile Electric Lift Man Lift Table Aerial Work Platform Articulating Boom Lift

Customization: Available
After-sales Service: Lifetime After-Sales Service
Warranty: 2 Years

Product Description

⚙️ Basic Specifications
Model NO.HA14JE
ApplicationWorkshop, Shipboard, Warehouse, Building Crane
Lift MechanismArticulated Lift
MovesSelf-propelled
Driven TypeAC Electric
Platform Height14m
Horizontal Reach7.5m
Platform Capacity230kg
Gradeability30%
Platform Size1.52m x 0.76m
Wheelbase2.01m
Ground Clearance0.2m
Max. Drive Speed4.8km/H
Wind Speed Limit12.5m/S
Hydraulic Tank20L
Package Size6.42m * 1.75m * 1.93m
🖼️ Product Display

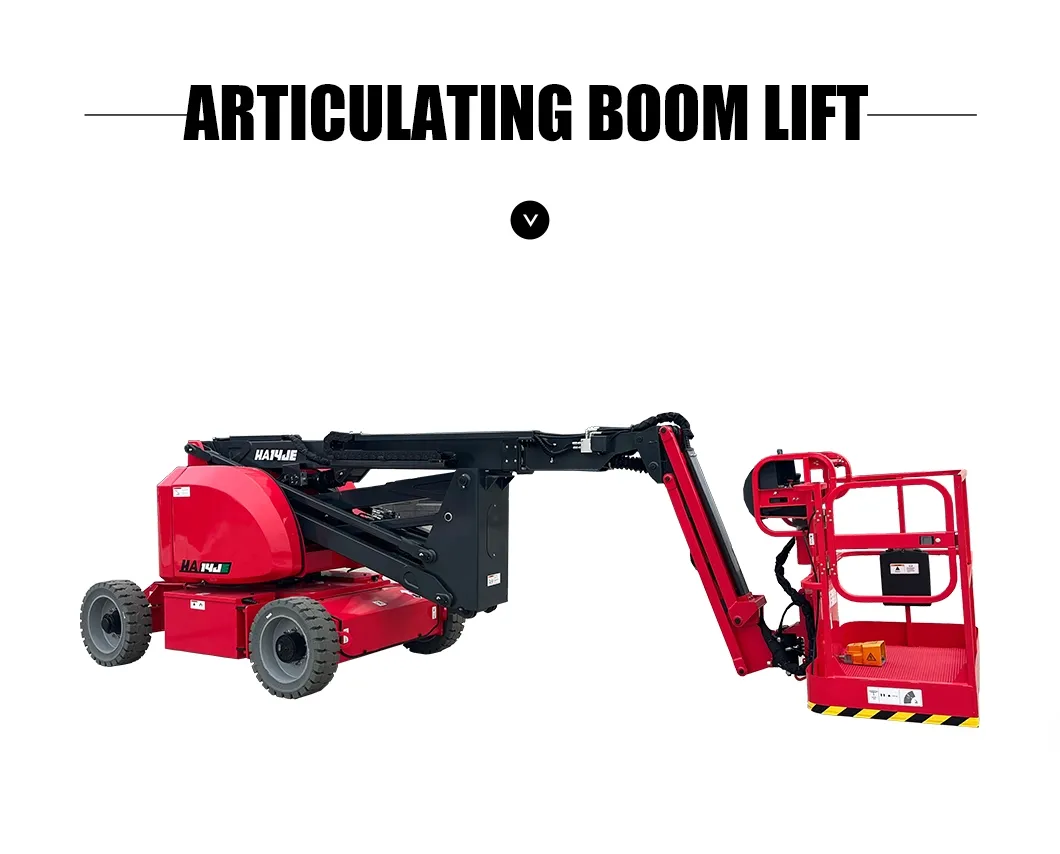

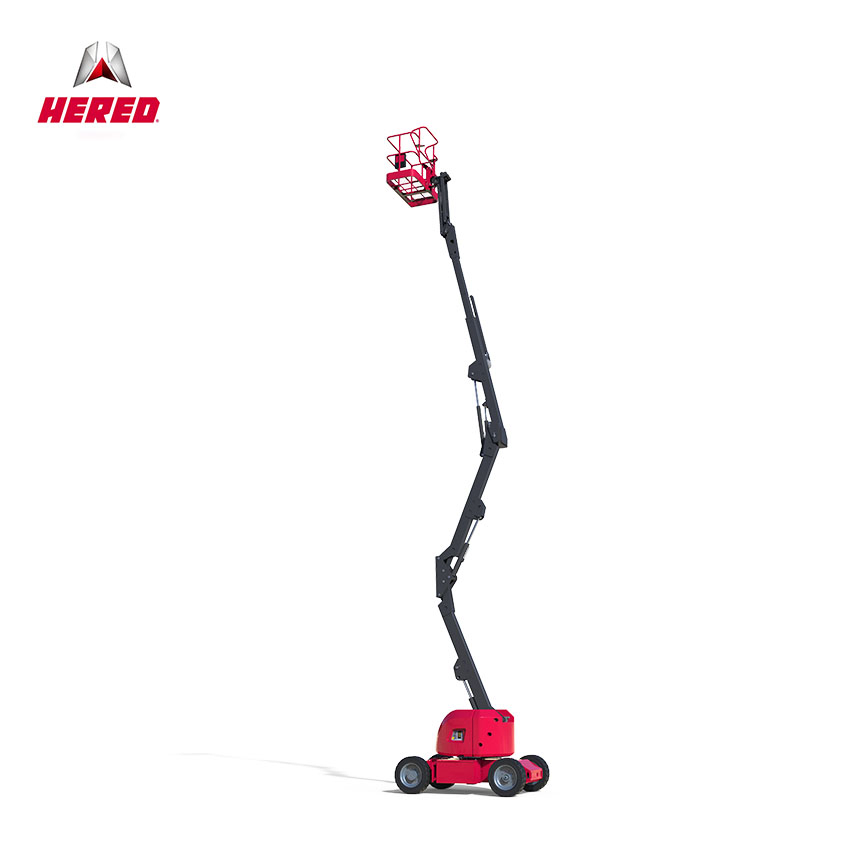

Mobile Electric Lift Articulating Boom Lift
📊 Technical Parameters
MODEL HA14JE
Max. Working Height16m
Max. Platform Height14m
Max. Horizontal Extension7.5m
Max. Up and Over Height7.54m
Length (Stowed)6.4m
Width (Stowed)1.75m
Height (Stowed)1.93m
PERFORMANCE
Platform Capacity230kg
Turning Radius (In/Out)0.8m / 3.8m
Turntable Rotation355°
Platform Rotation±90°
POWER & WEIGHT
Batteries (V/Ah)48V/310Ah
Charger100-240VAC/13.5A
Total Weight7070kg

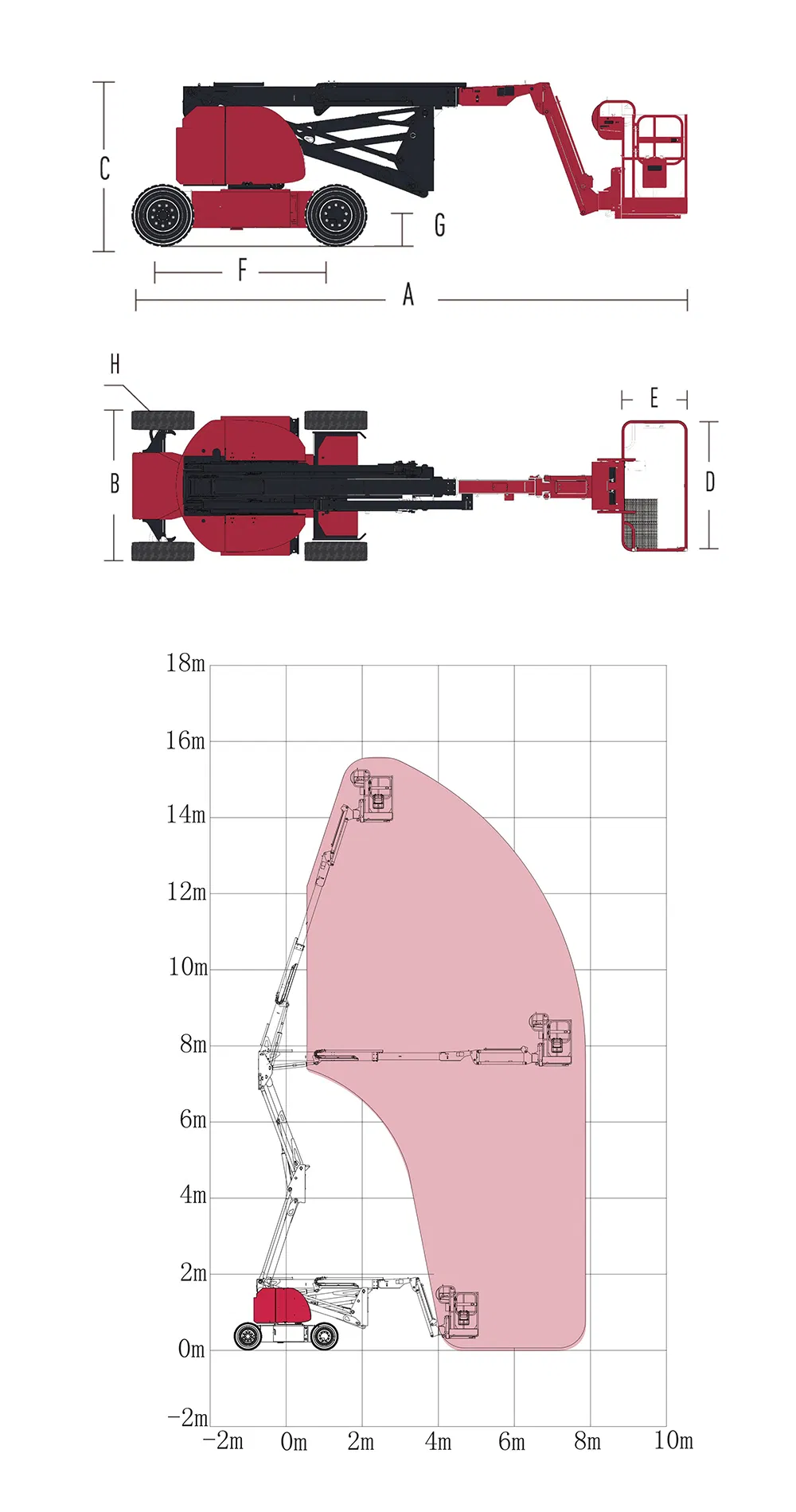

Technical Drawing

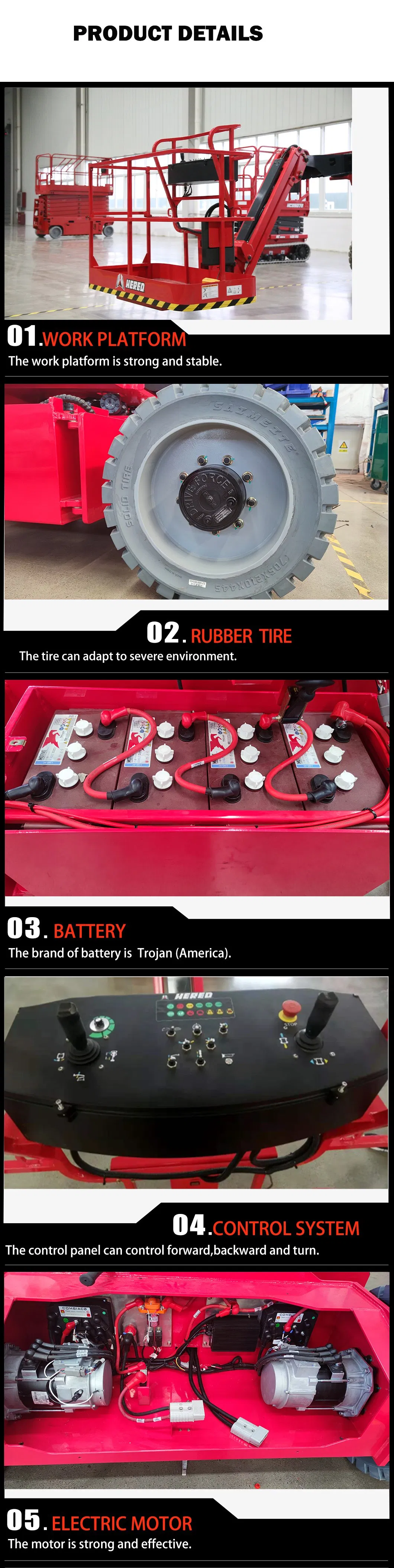

Feature Details
Control System
Safety Mechanism
Chassis Details

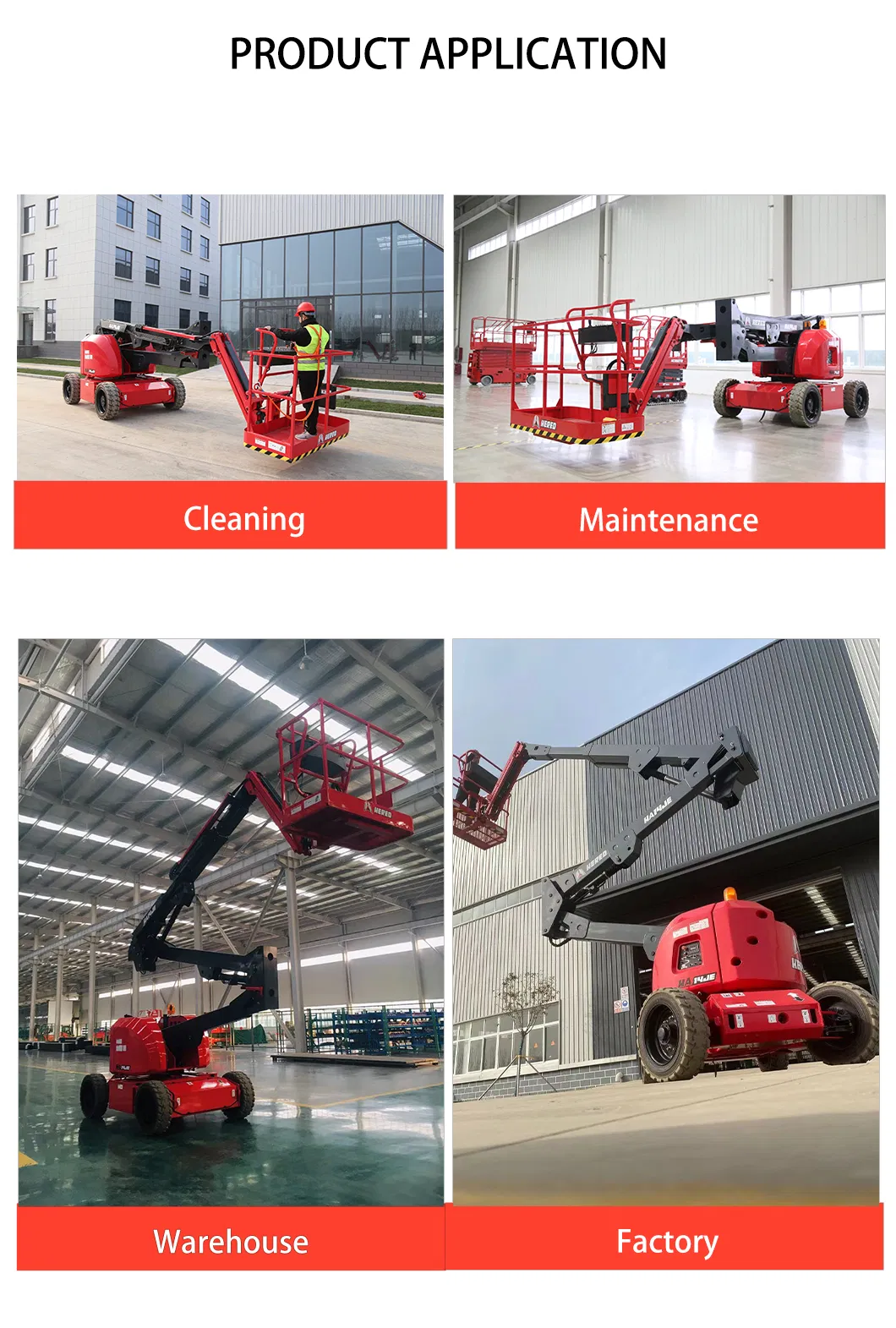

Application Scenario

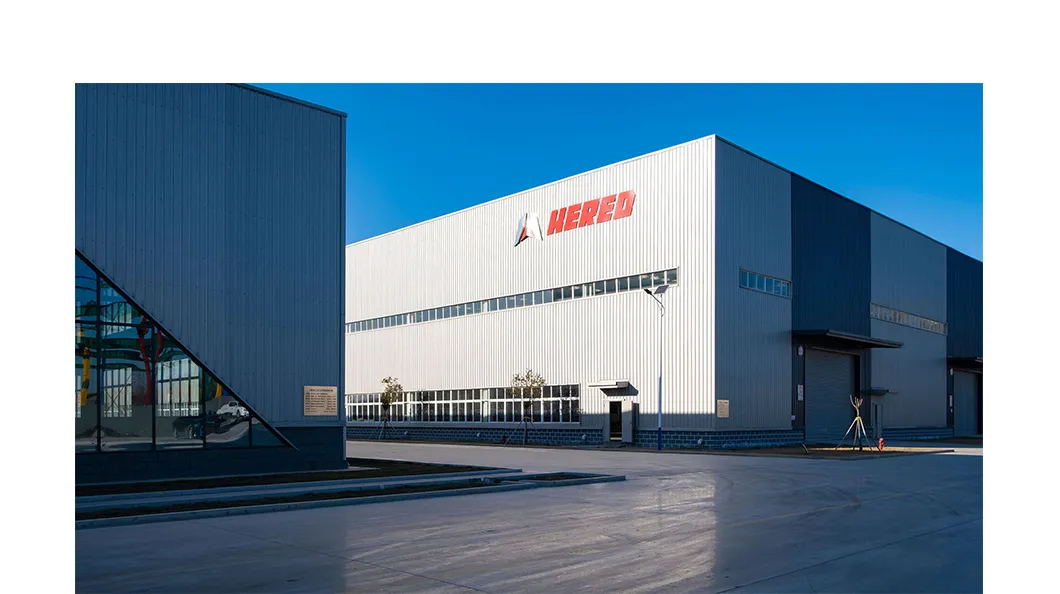

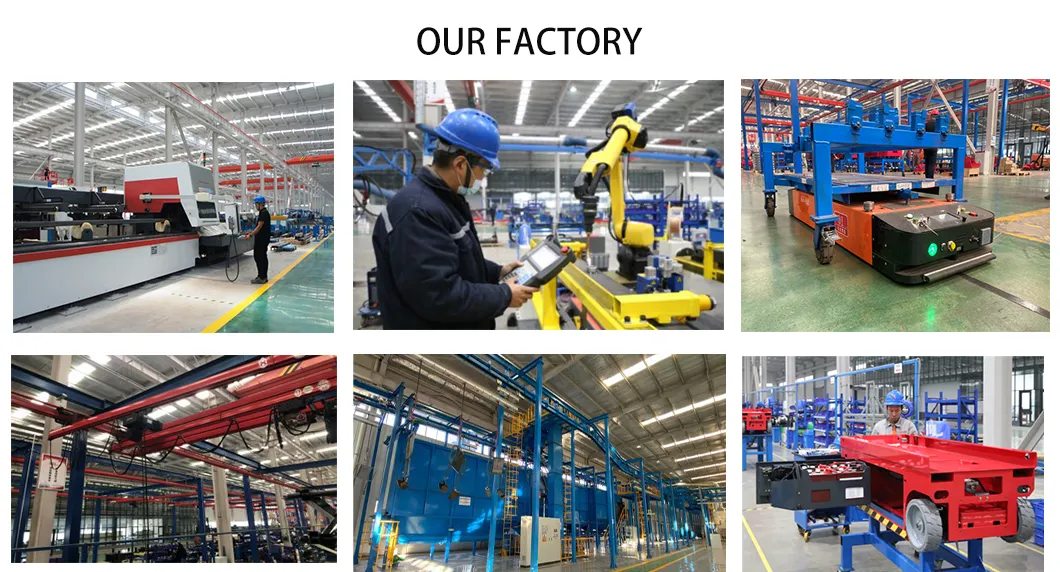

Founded since 2008, the manufacturer specializes in the research, manufacture, sales, and service of a wide range of access solutions. With a focus on intelligent technology, the product lines include self-propelled scissor lifts, articulating boom lifts, and telescopic boom lifts with working heights ranging from 6 to 28 meters.

All products undergo strict quality control processes and hold certifications such as CE, ANSI, and ISO 9001. These aerial work platforms are widely utilized in stadiums, petrochemical sites, shipbuilding, municipal works, and complex construction projects globally, providing efficient and safe aerial work solutions.

❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a professional factory with over 10 years of experience in manufacturing scissor lifts, articulating boom lifts, and telescopic boom lifts.
What is the warranty period for the equipment?
The quality warranty period is 24 months, starting from the date of shipment.
What kind of after-sales service do you provide?
We provide lifelong after-sales service and support, with a commitment to reply to all inquiries within 24 hours.
What are your standard delivery terms?
We support various delivery terms including EXW, FOB, CFR, CIF, and others depending on customer requirements.
What are your accepted payment terms?
Our standard payment terms are T/T 30% as a deposit, with the remaining 70% balance due before shipment.
Where is your factory located and can I visit?
Our production facility is located in China. We warmly welcome visitors and can arrange pick-up from the nearest airport for your convenience.
