CE Approved Hydraulic Chain Goods Lift
Main Features:
- High-strength chain system for reliable goods lifting
- Advanced hydraulic driven mechanism
- Steady and smooth upward/downward movement
- Long service life special lifting chains

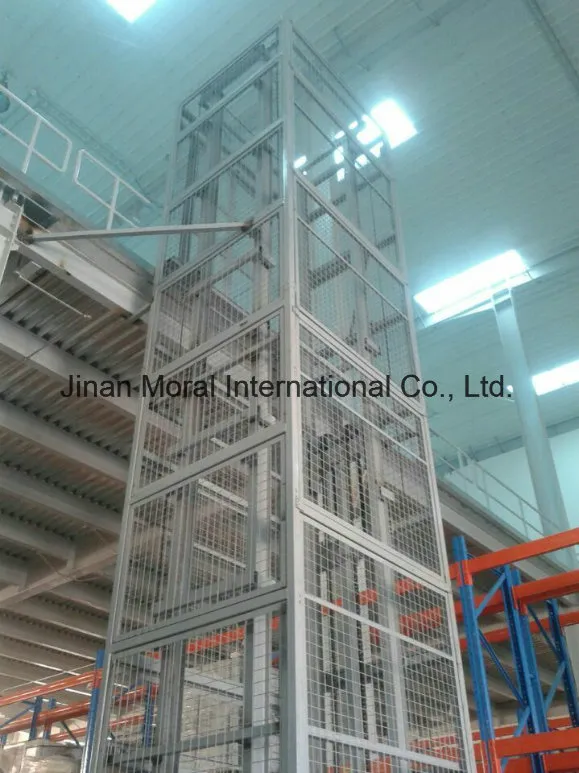

- Closed type structure for safety and easy maintenance
Product Overview:

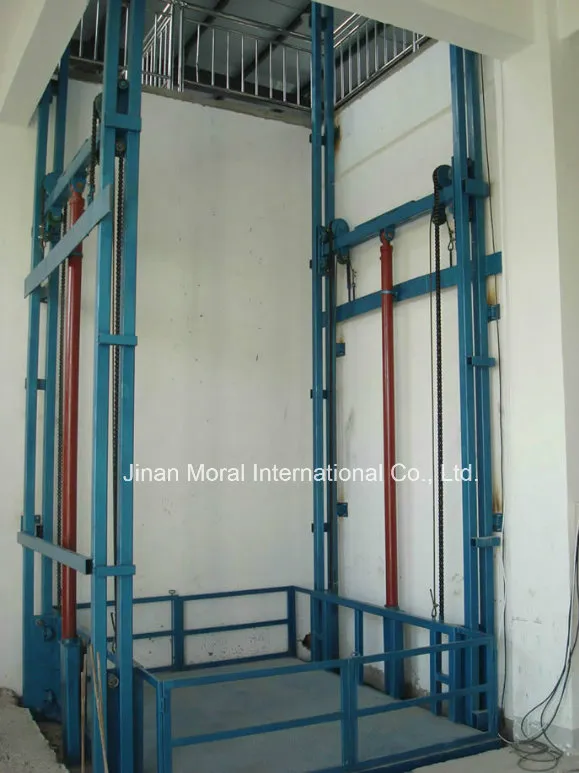

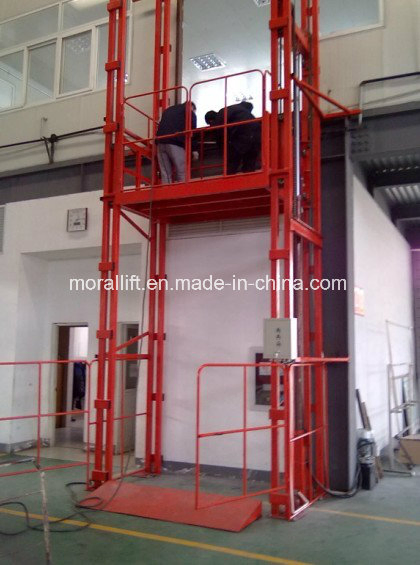

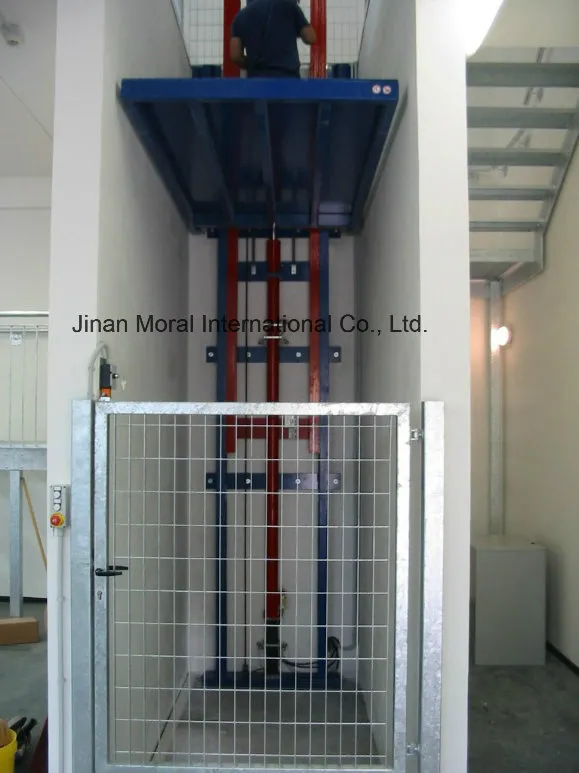

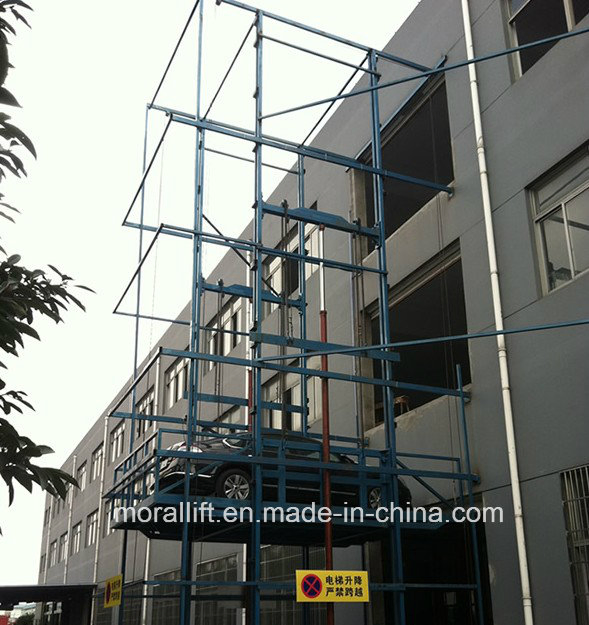

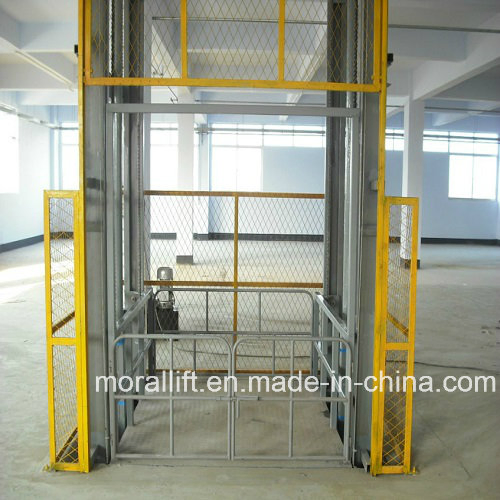

The lead rail hydraulic lifting platform (Vertical Lift) is designed for efficient cargo transfer between different floors. With a self-height of approximately 150-300mm, this platform can be installed directly on the ground or within a shallow pit. It provides fast, convenient, and safe access to mezzanines, balconies, basements, and various levels in multi-story buildings.
| Model |
Load |
Platform Size |
Lifting Height |
Pit Depth |
Dimension |
| SJD 3-2.4 | 3T | 2.0*2.0M | 2.4M | 300 MM | 2.0*2.0*0.63M |
| SJD 2-5 | 2T | 2.1*1.2M | 5.0M | 200 MM | 2.1*1.2*0.87M |
| SJD 1-4.5 | 1T | 2.1*1.5M | 4.5M | 200 MM | 2.1*1.5*0.80M |
| SJD 5-6.5 | 5T | 2.2*1.6M | 6.5M | 300 MM | 2.2*1.6*1.28M |
| SJD 3-6.5 | 3T | 2.2*1.9M | 6.5M | 300 MM | 2.2*1.9*1.52M |
?
Frequently Asked Questions
What is the maximum load capacity for this hydraulic lift?
We offer a wide range of capacities from 100kg up to 100,000kg. The standard model listed handles up to 2000kg, but we can customize the system for your specific warehousing needs.
Does this goods lift require a deep pit for installation?
No, the self-height is very low (about 150-300mm), meaning it can be installed directly on the ground without a pit, or with a very shallow pit if you require the platform to be flush with the floor.
Can it be installed for outdoor applications?

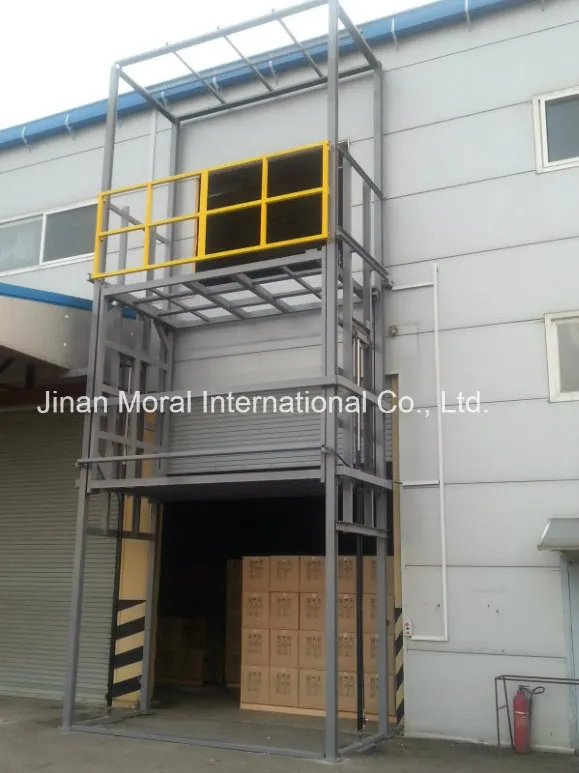

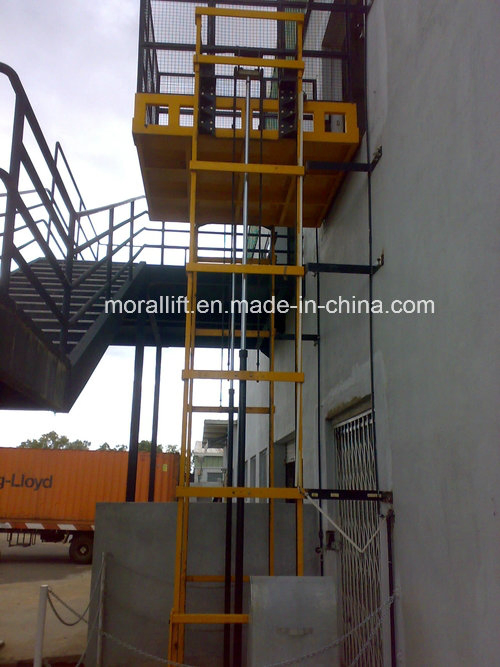

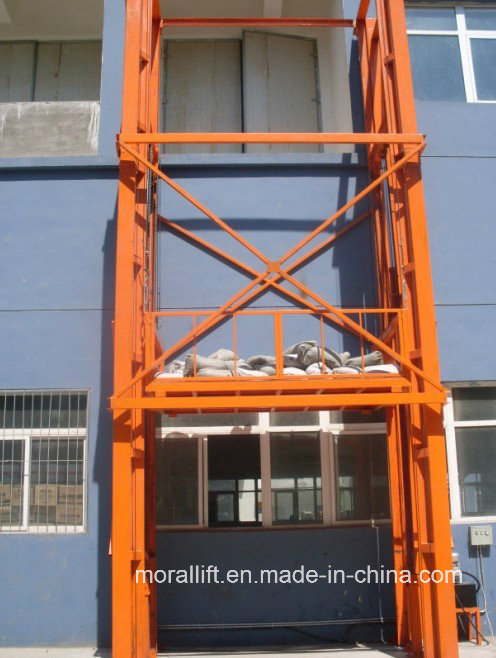

Yes, our hydraulic lifts are versatile and can be installed for through-floor, interior, or exterior applications, providing convenient access between levels in multiple-story buildings.
What safety features are included in the lifting system?
The lift features a robust hydraulic drive, special high-strength lifting chains, wire rope for added safety, and a closed type structure to ensure safe operation and easy cleaning.
Is the platform size and lifting height customizable?
Absolutely. While standard sizes like 2000*1500mm are available, both the platform dimensions and the lifting height (e.g., 3000mm) can be fully customized to fit your specific workspace requirements.
